Feature:

1. GOOD GEAR: Through exquisite workmanship, the gear has great wear resistance to ensure long time stable operation.

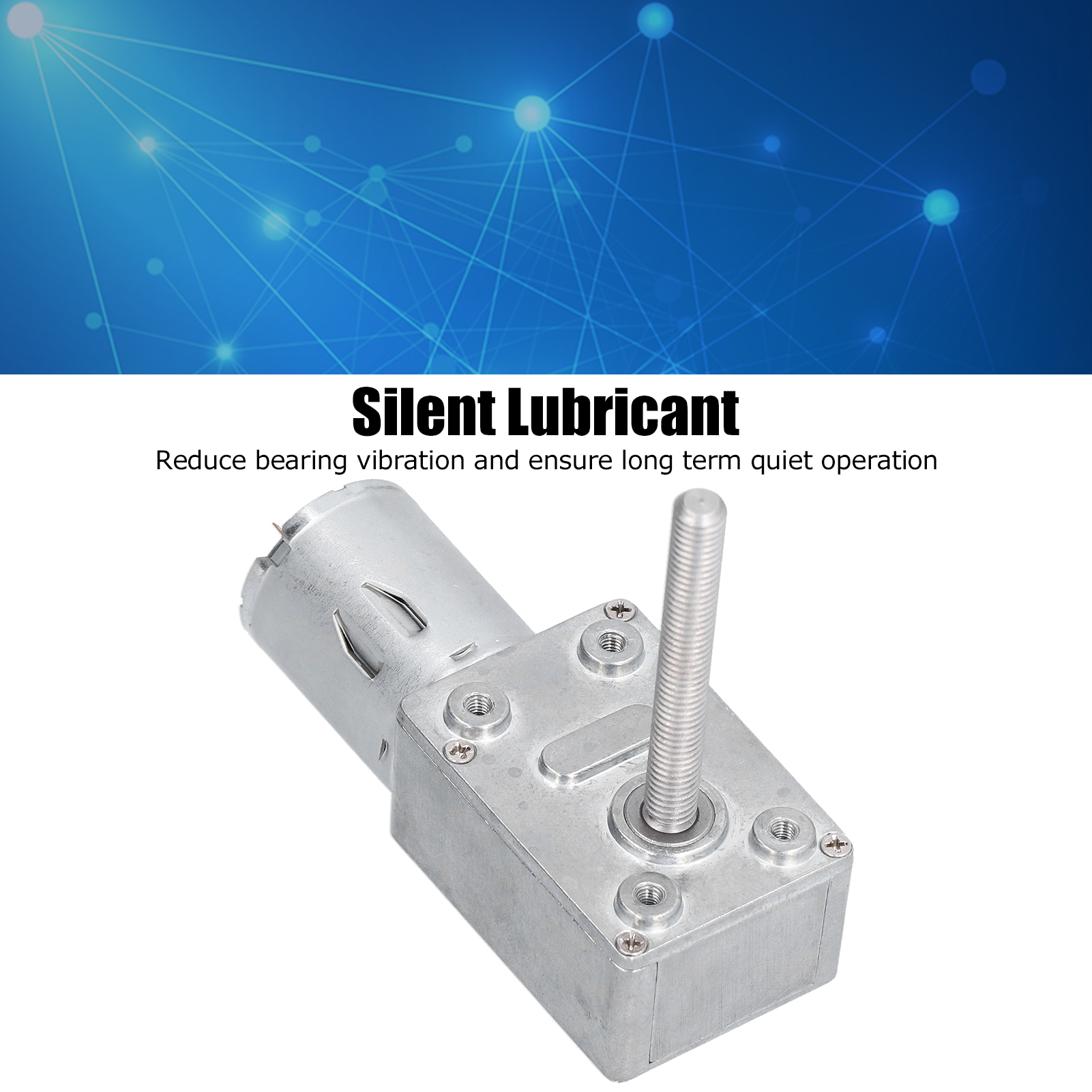

2. QUITE WORKING: The application of silent lubricant will effectively reduce bearing vibration to have low noise working.
3. CARBON BRUSH: In replacement of copper brush, the carbon brush has low power consumption, less friction and heat.
4. ALLOY SHELL: Alloy shell is not easy to rust or corrode, which also has good thermal conductivity and long service life.
5. METAL SHAFT: Stainless steel shaft guarantees smoother running of the high accuracy gear motor with high efficiency.

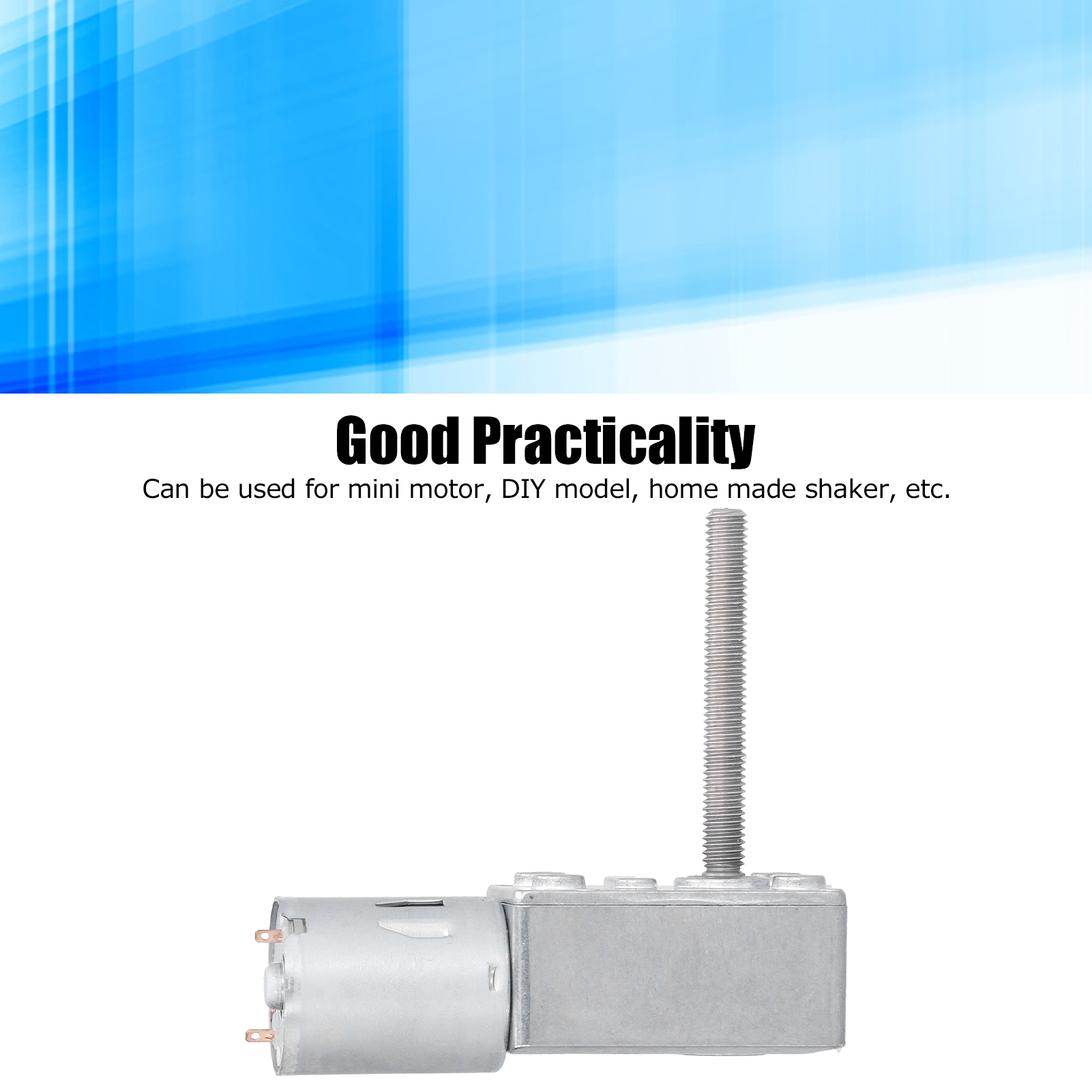

6. WIDE USING: This industrial drive device allows for flexible using in mini motor, model, home made shaker, etc.

Specification:

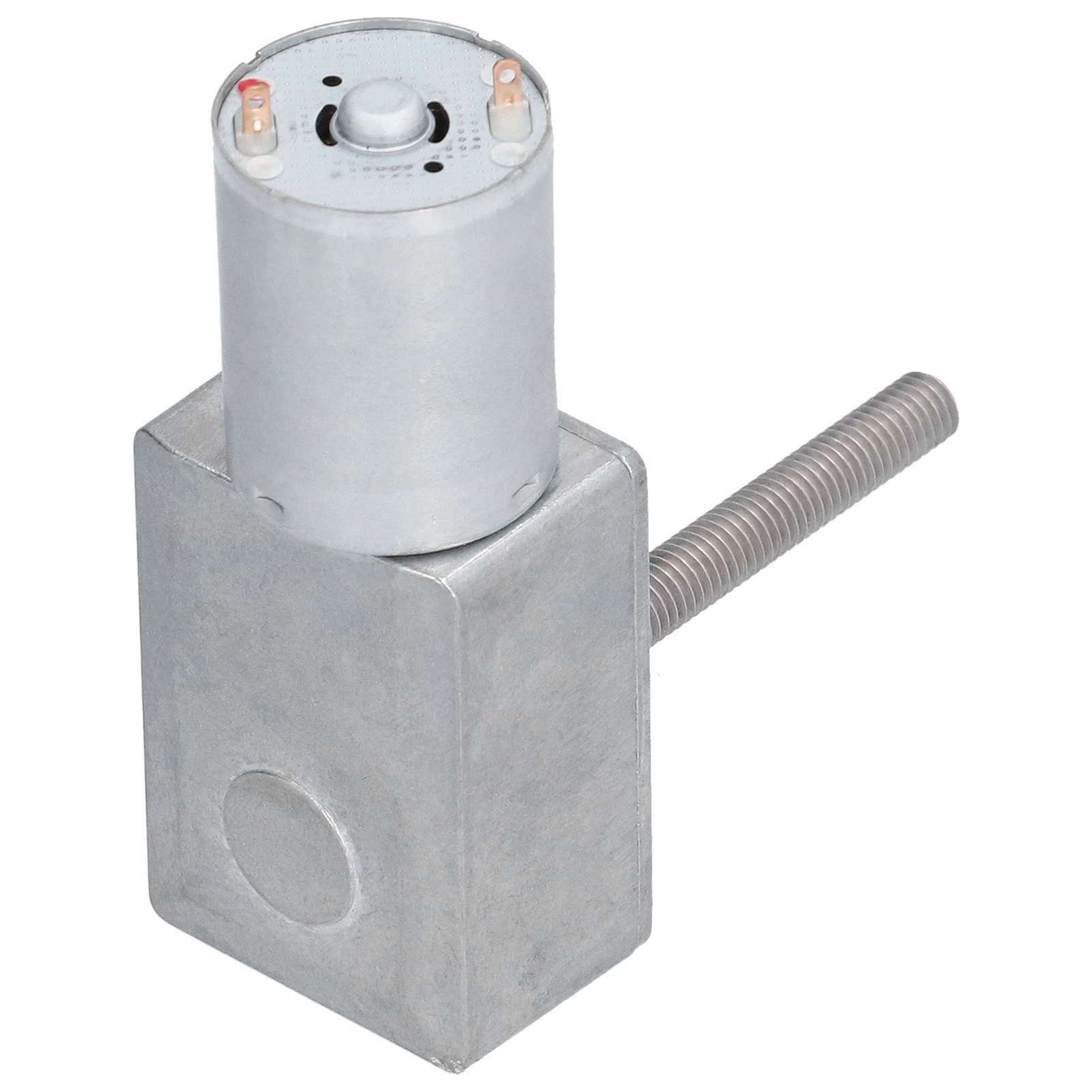

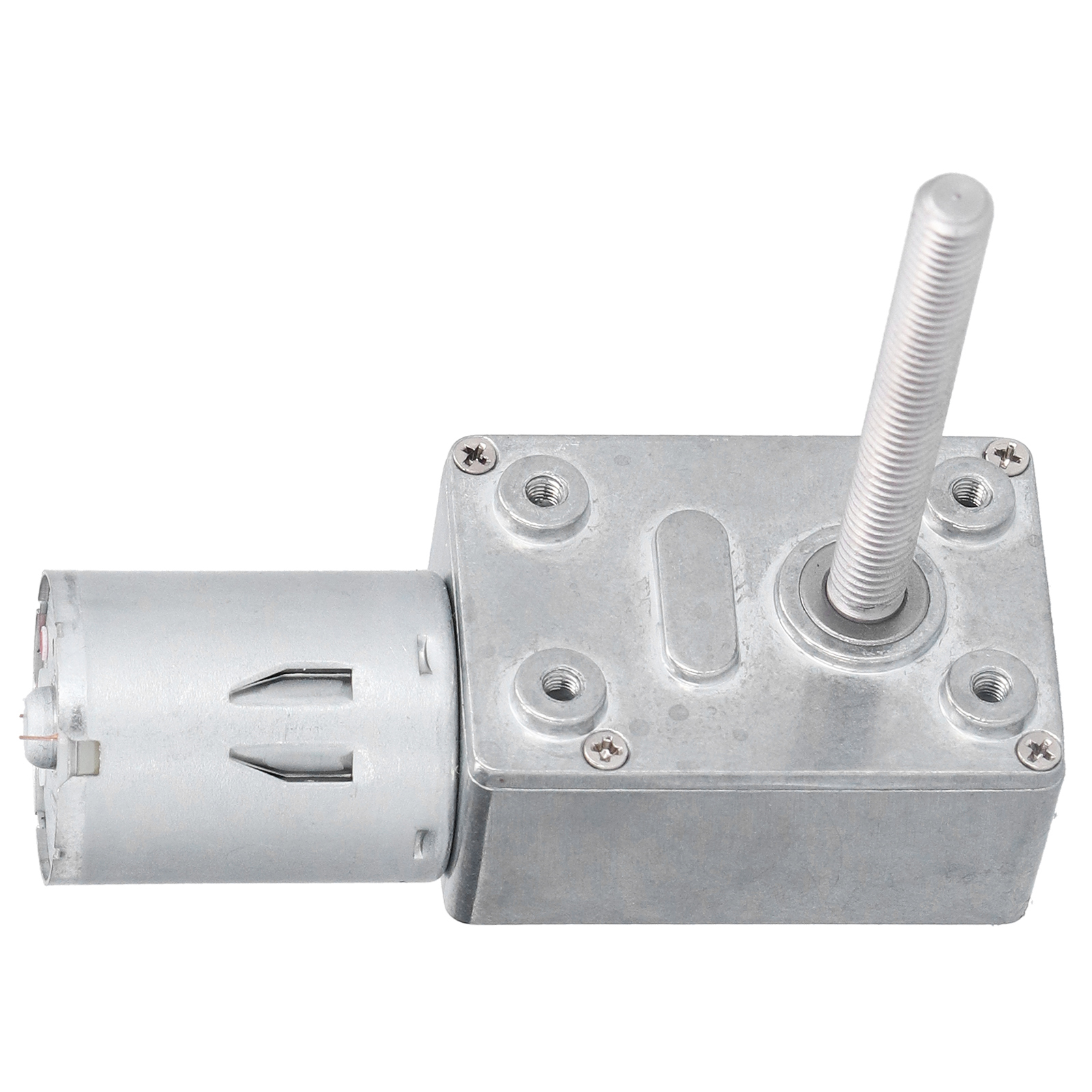

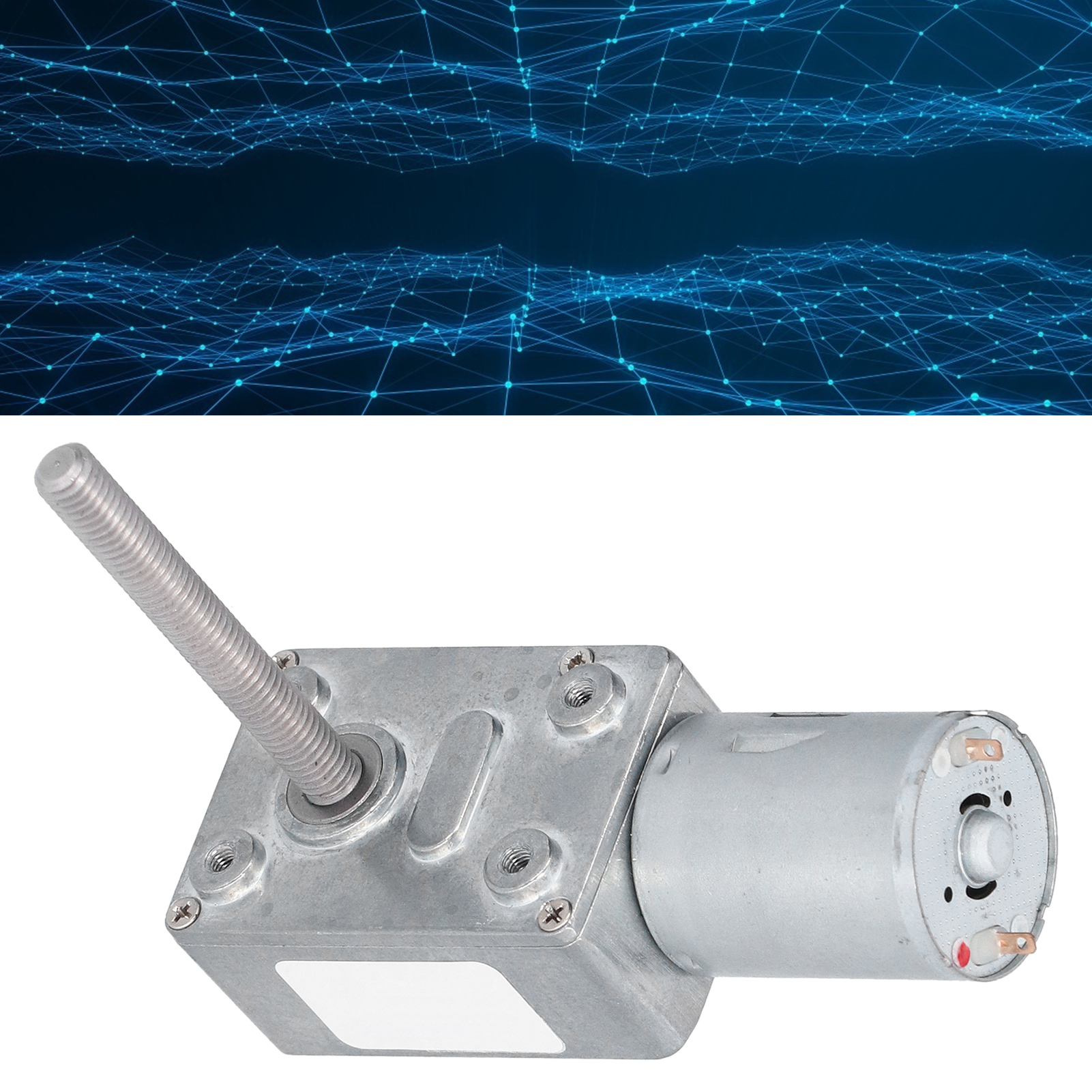

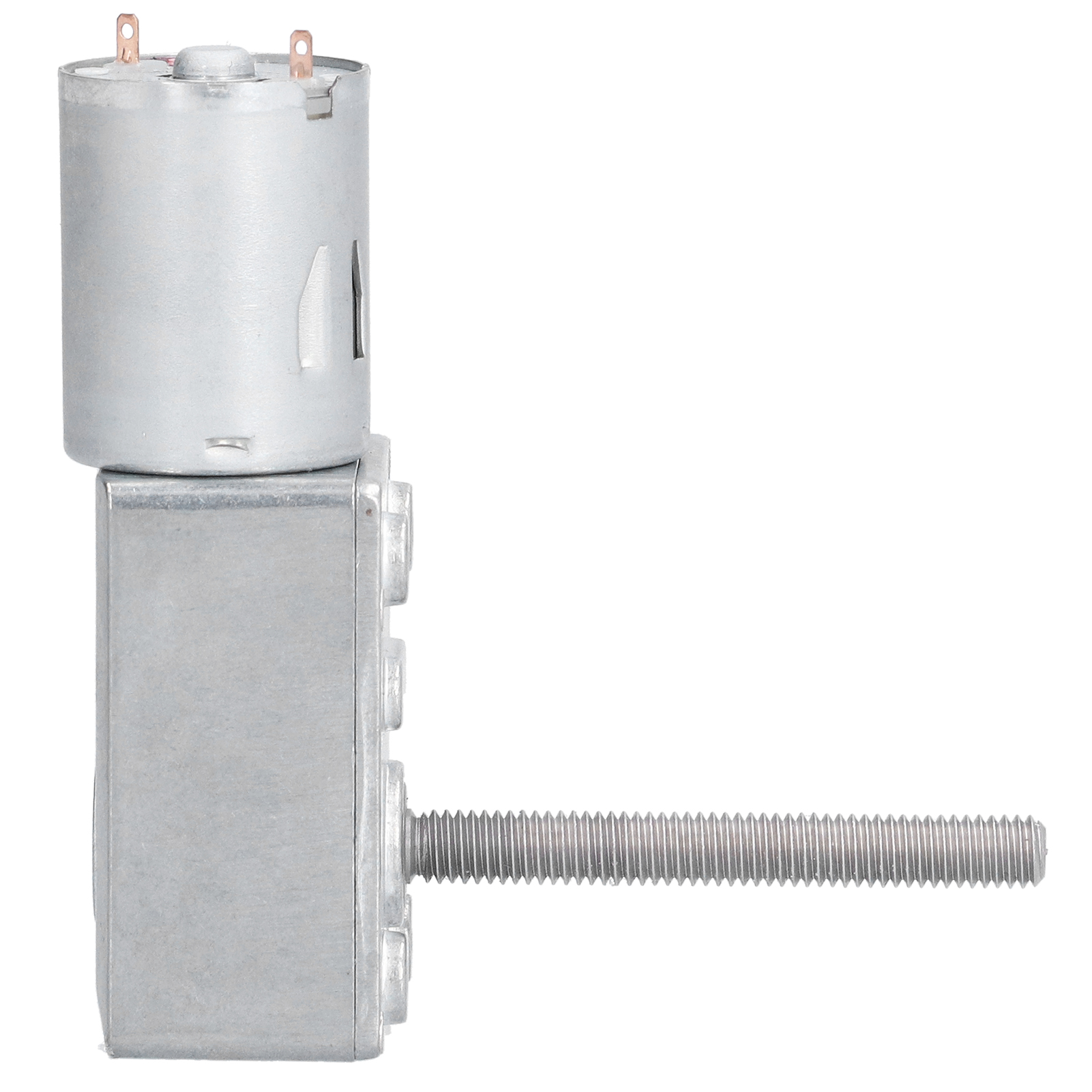

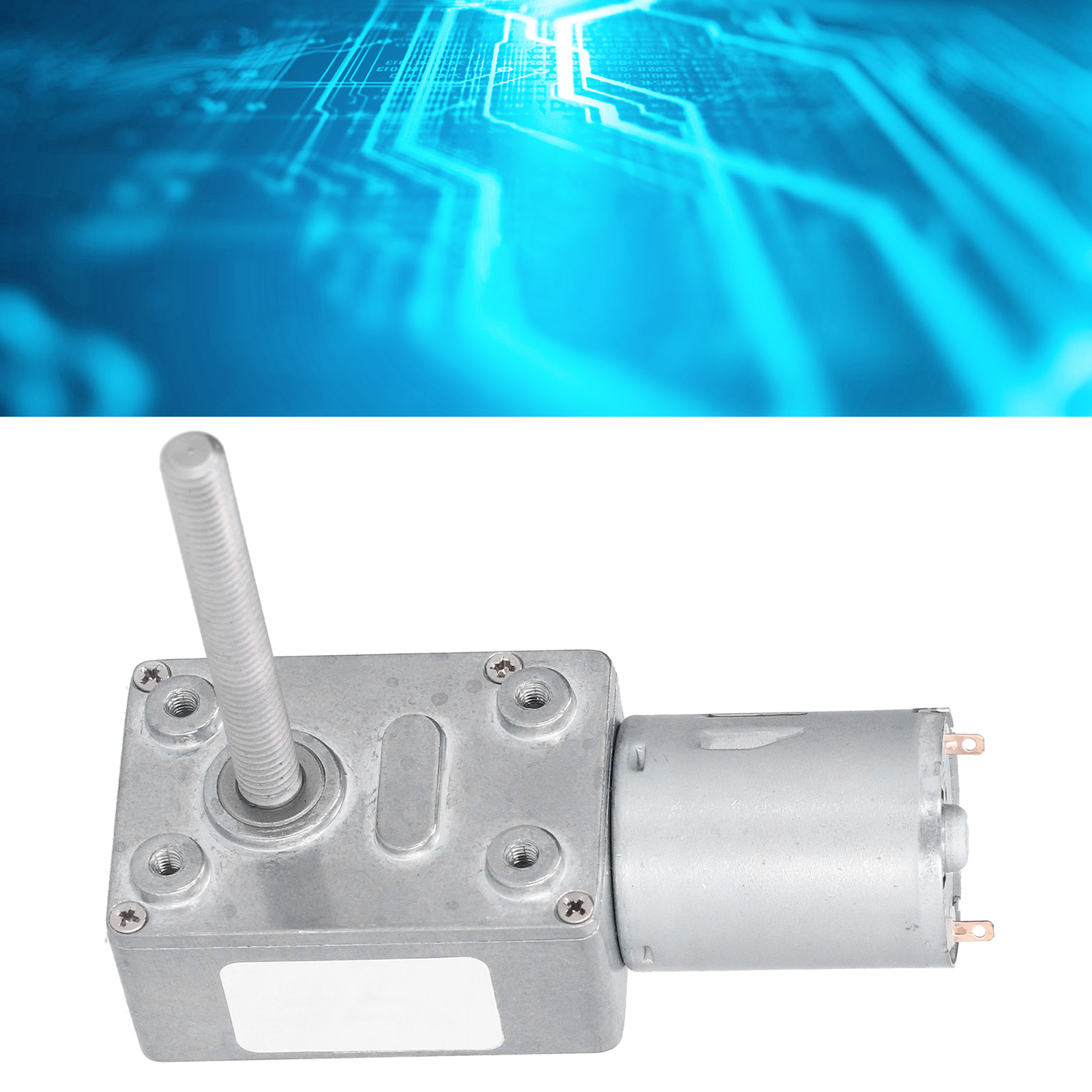

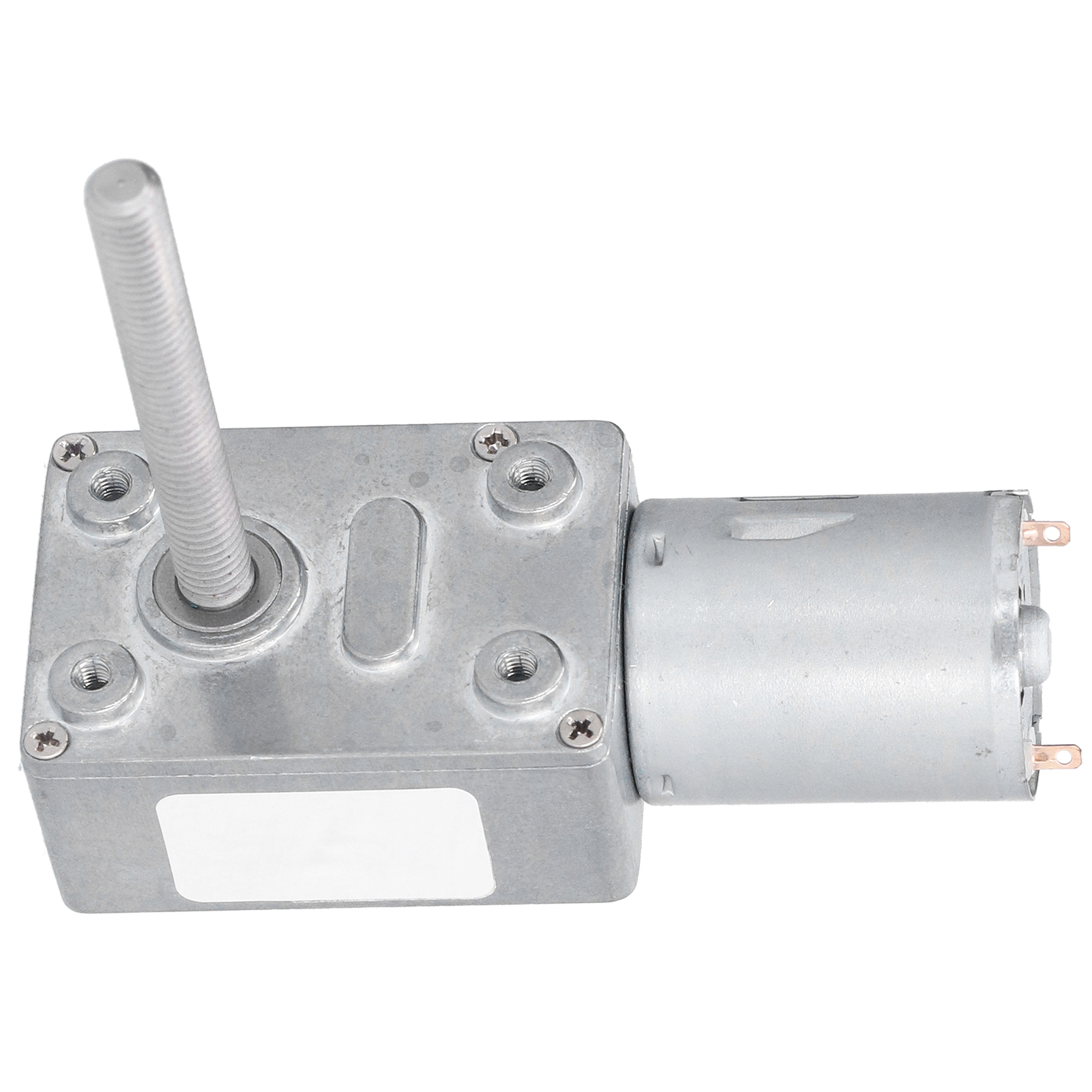

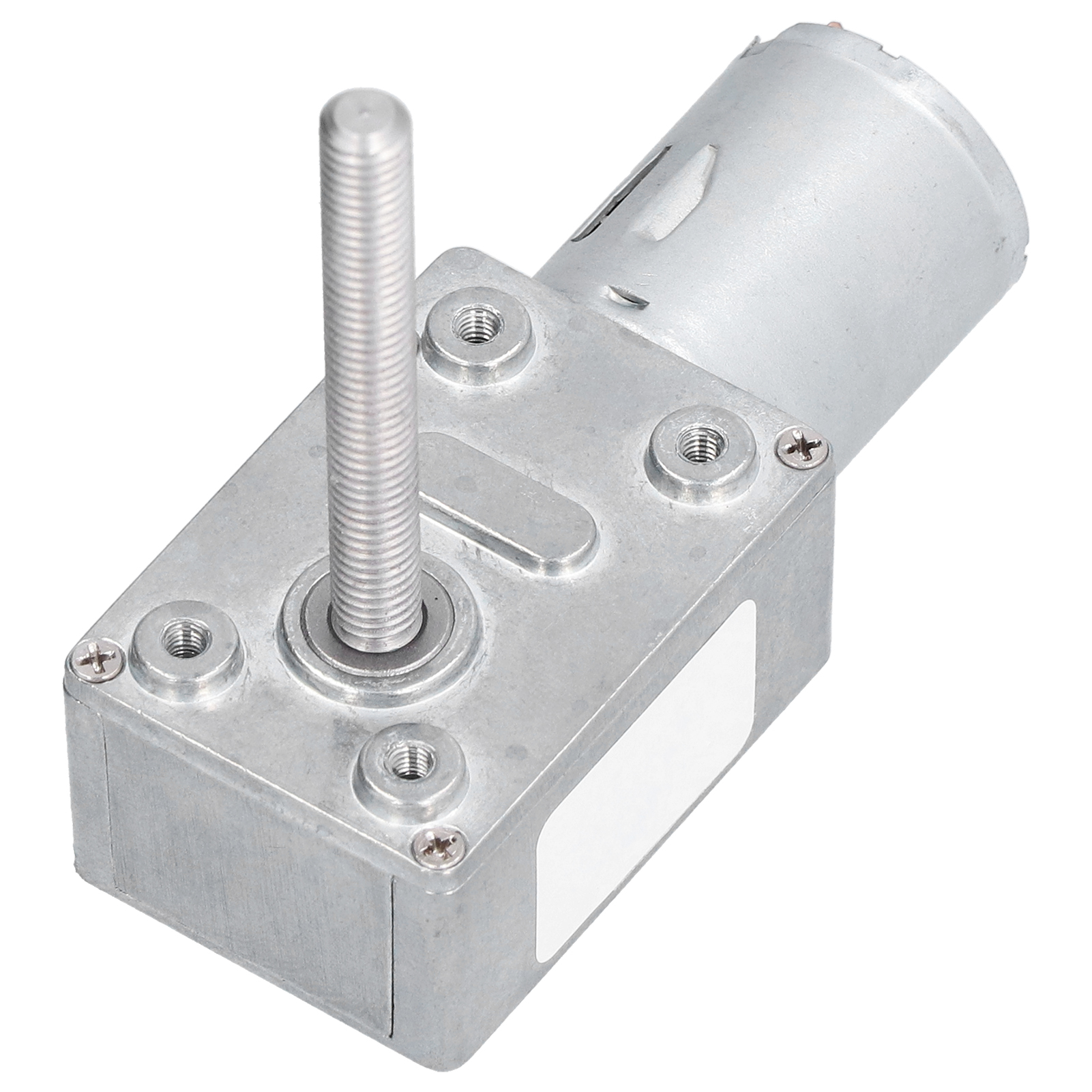

Item Type: Gear Motor
Material: Zinc Alloy + Copper + Carbon + Stainless Steel
Function: Industrial drive device.

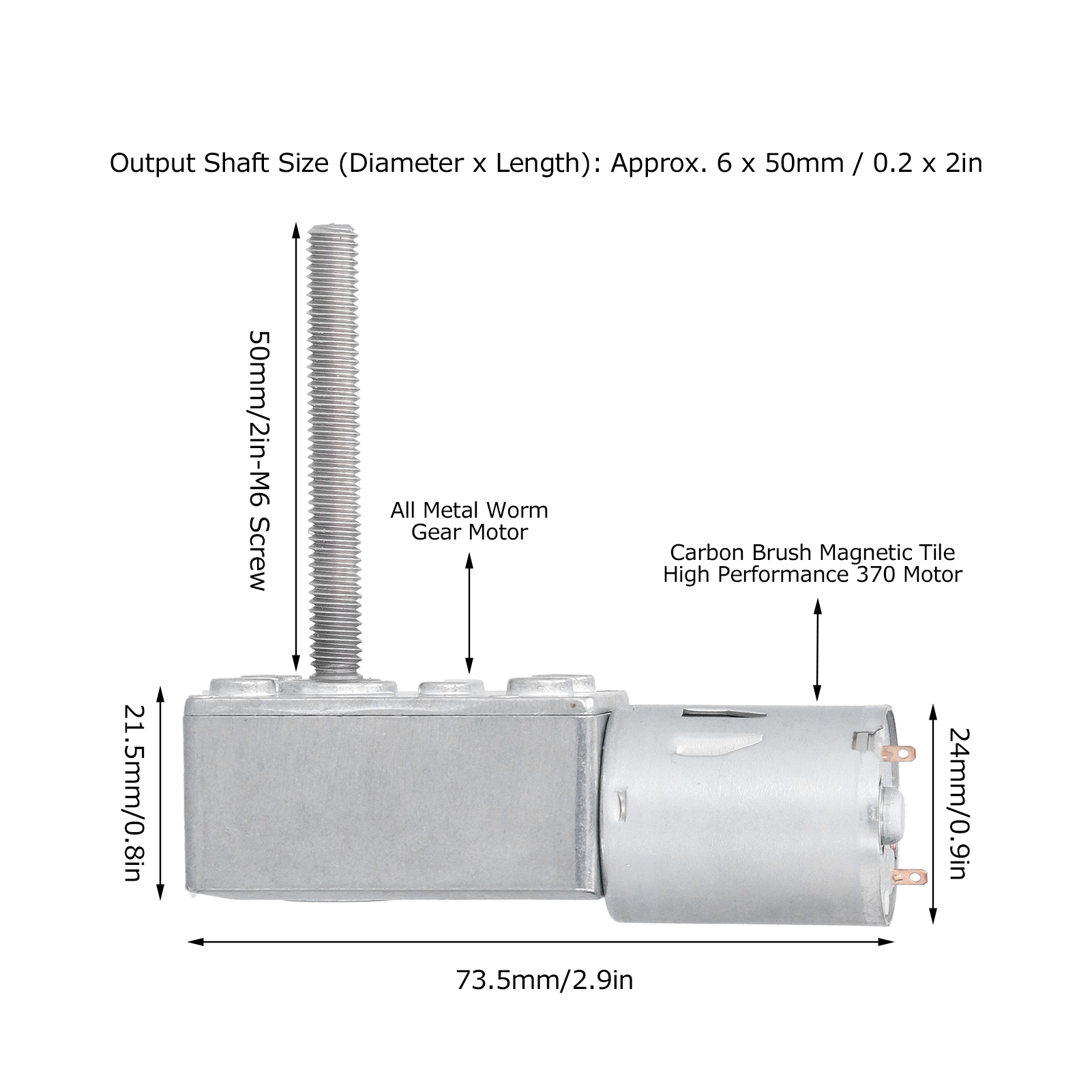

Output Shaft Size (Diameter x Length): Approx. 6 x 50mm / 0.2 x 2in
Shaft Type: M6 Threaded Shaft
Speed: Adjustable speed.
Rotation: CW rotation and CCW rotation.
DC 6V Gear Motor Specification:

Gear Ratio ( Ratio)	40	65	90	150	200	260	340	600	1000
No Load Current MA	≤100	≤100	≤100	≤100	≤100	≤100	≤100	≤100	≤100
No Load Speed rpm	150	90	66	40	30	23	18	10	6
Rated Torsion kg.cm	0.2	0.5	0.7	2	5.3	6.7	9	15.9	26.5
Rated Rotate Speed rpm	120	70	51	30	22	18	15	7.5	4
Rated Current A	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6
Maximum Torsion Kg.cm	0.9	1.6	2	7.5	10	13	18	30	45
Stalled Current A	3.3	3.3	3.3	3.3	3.3	3.3	3.3	3.3	3.3

DC 12V Gear Motor Specification:

Gear Ratio ( Ratio)	40	65	90	150	200	260	340	600	1000
No Load Current MA	≤60	≤60	≤60	≤60	≤60	≤60	≤60	≤60	≤60
No Load Speed rpm	150	90	66	40	30	23	18	10	6
Rated Torsion kg.cm	0.2	0.5	0.7	2	5.3	6.7	9	15.9	26.5
Rated Rotate Speed rpm	120	70	51	30	22	18	15	7.5	4
Rated Current A	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6
Maximum Torsion Kg.cm	0.9	1.6	2	7.5	10	13	18	30	45
Stalled Current A	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7

Package List:

1 x Gear Motor

Note:

1. Do not place the product in an environment that is too corrosive, humid or in high temperature;

2. Please supply power according to the use voltage, using other voltages may cause fire and product damage.
