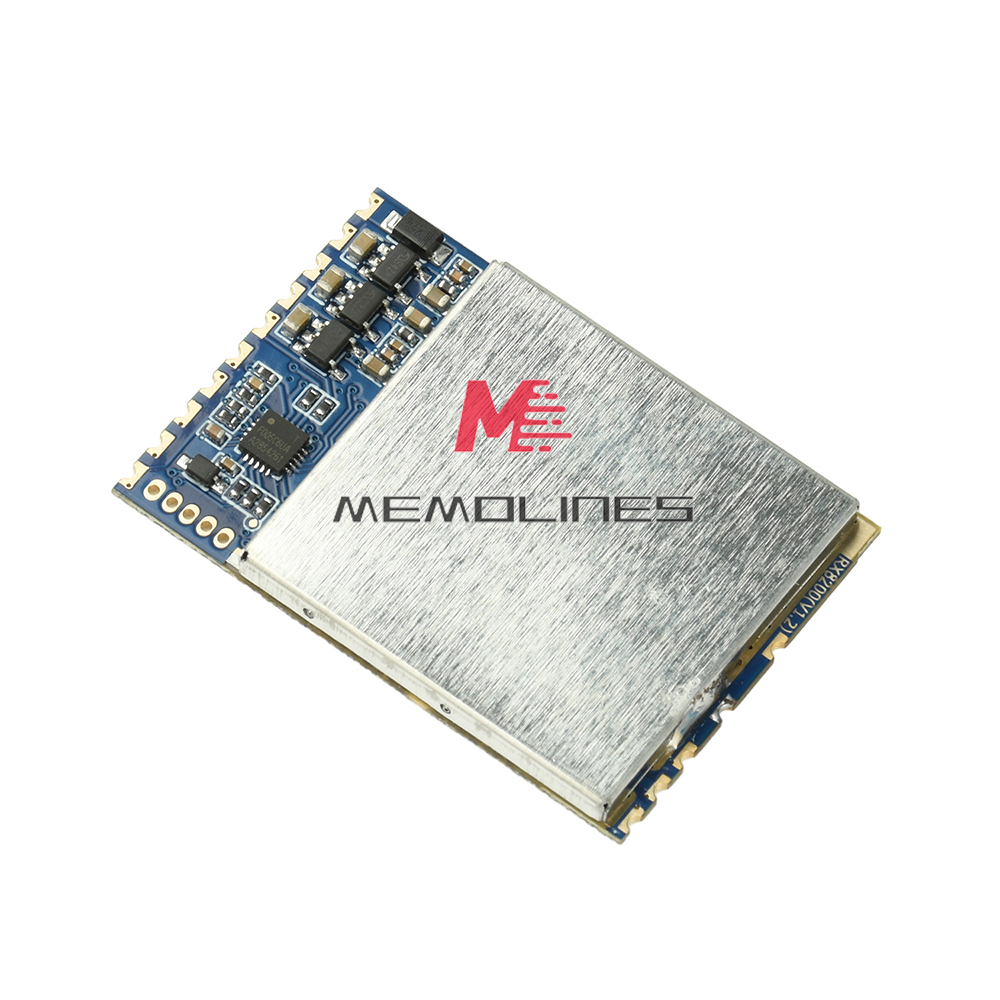

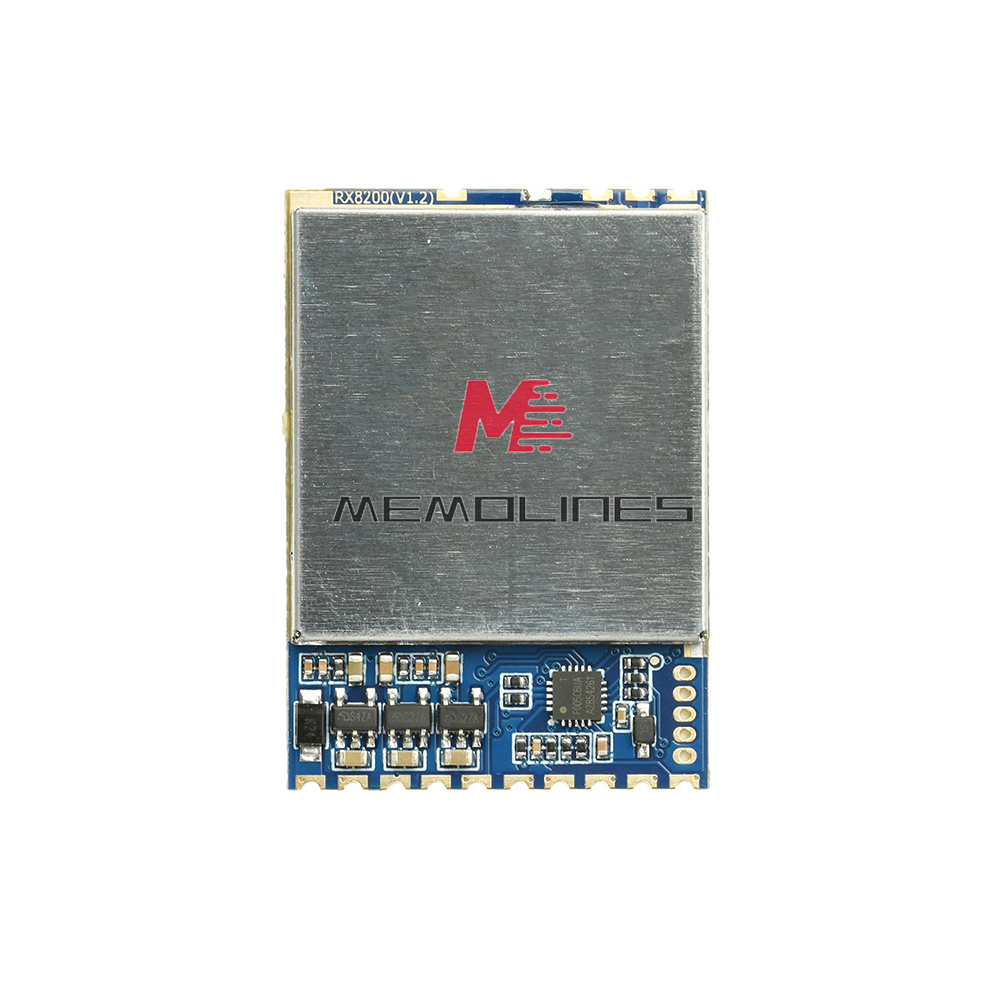

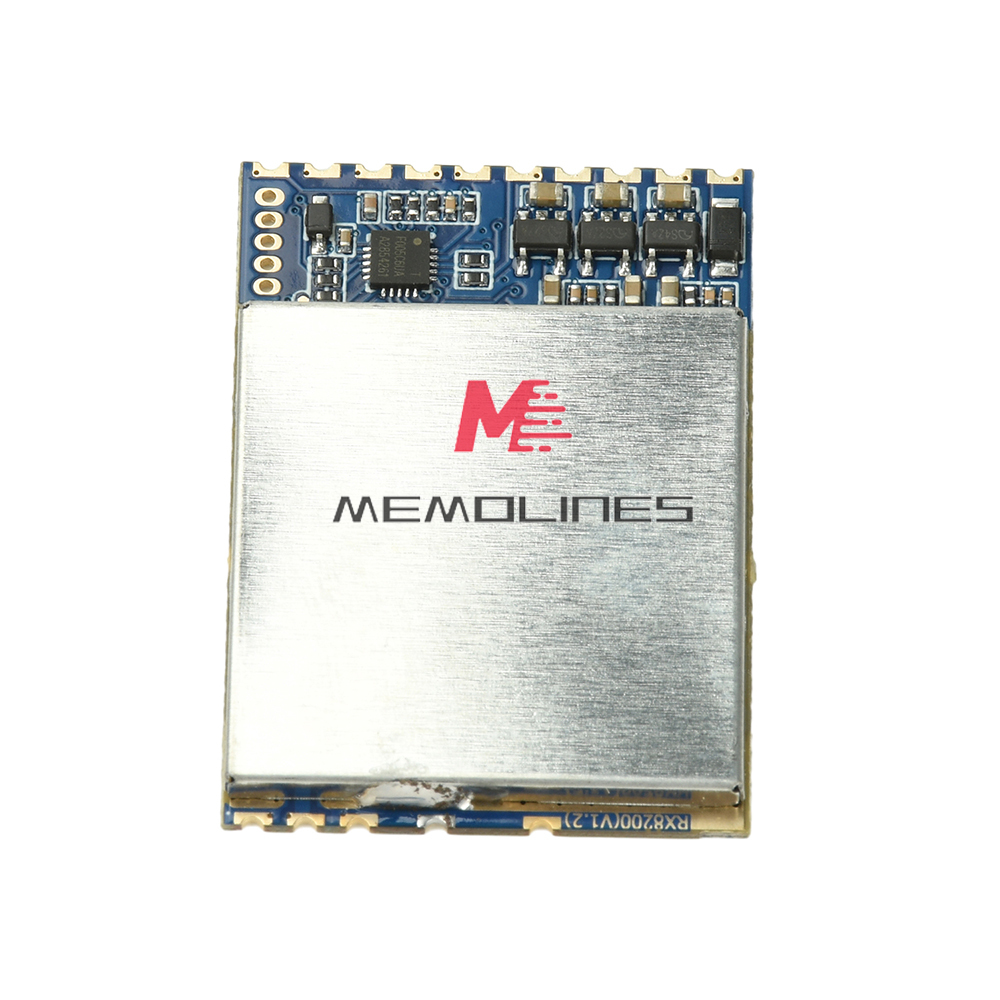

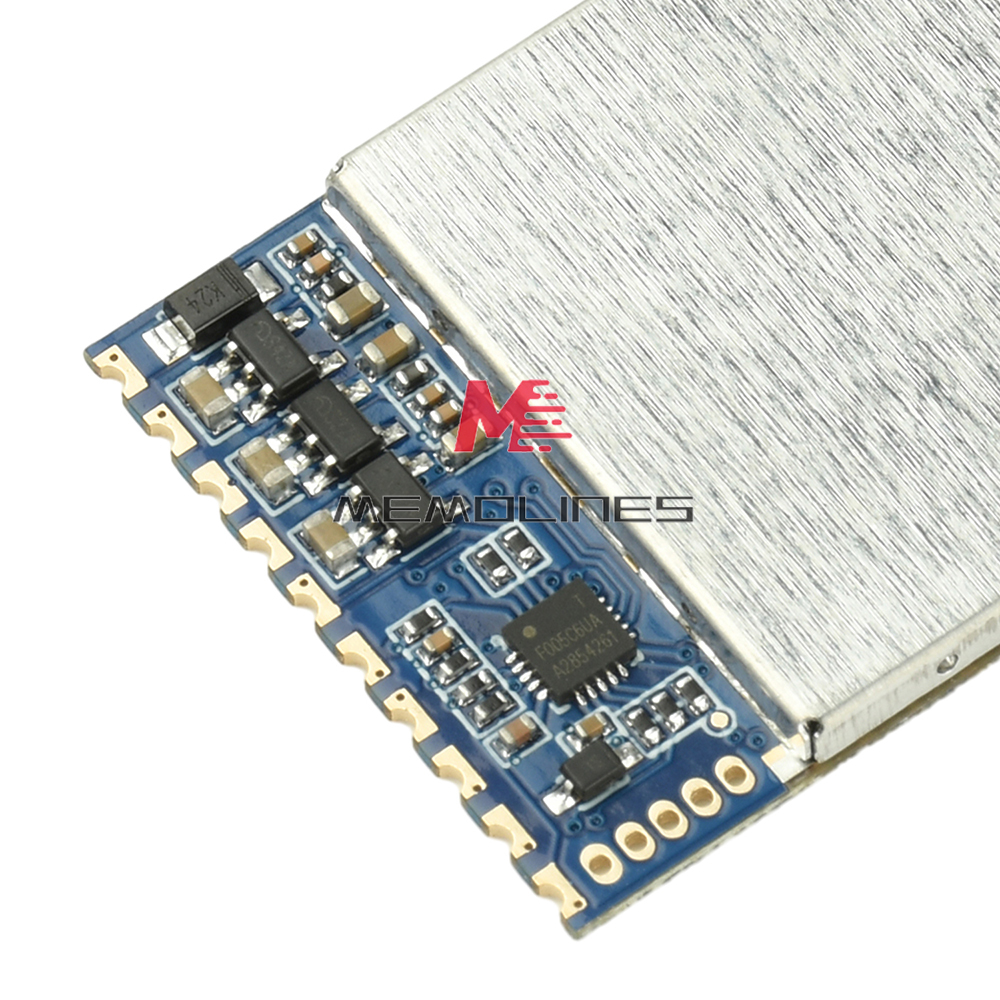

Product Features:

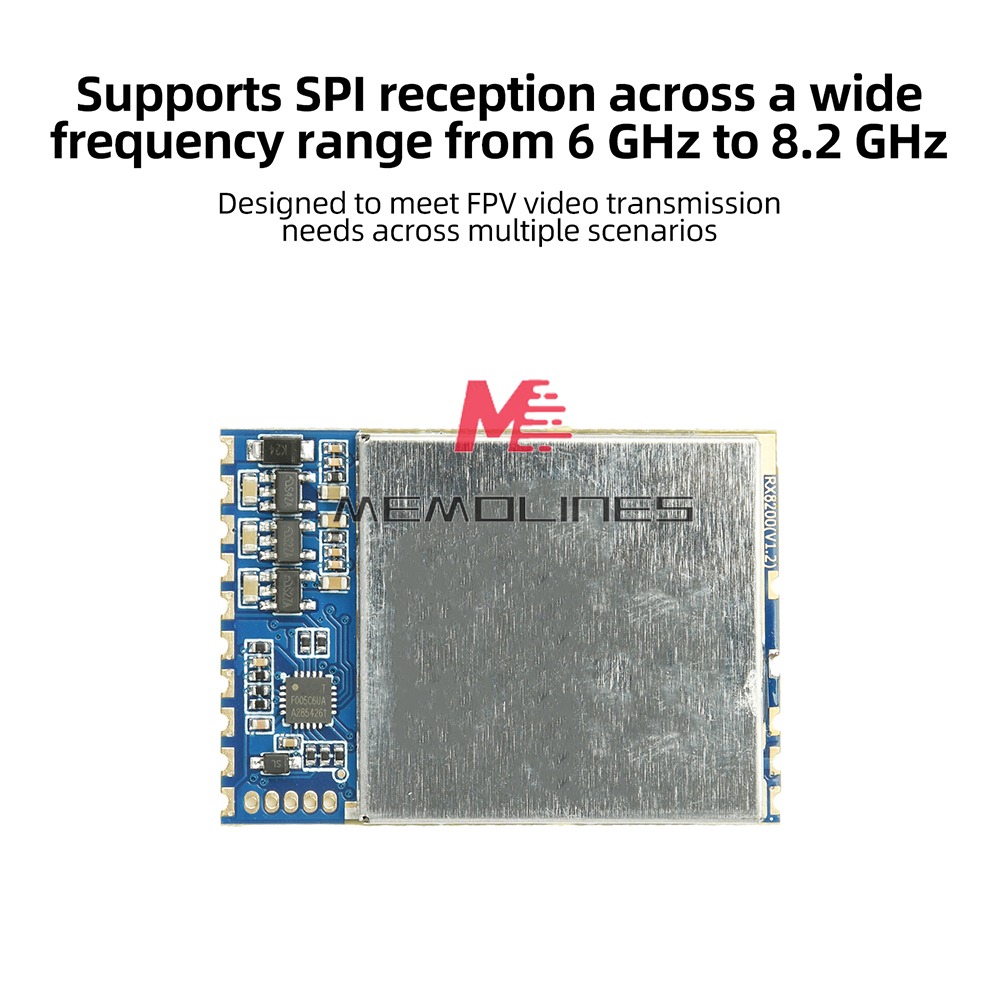

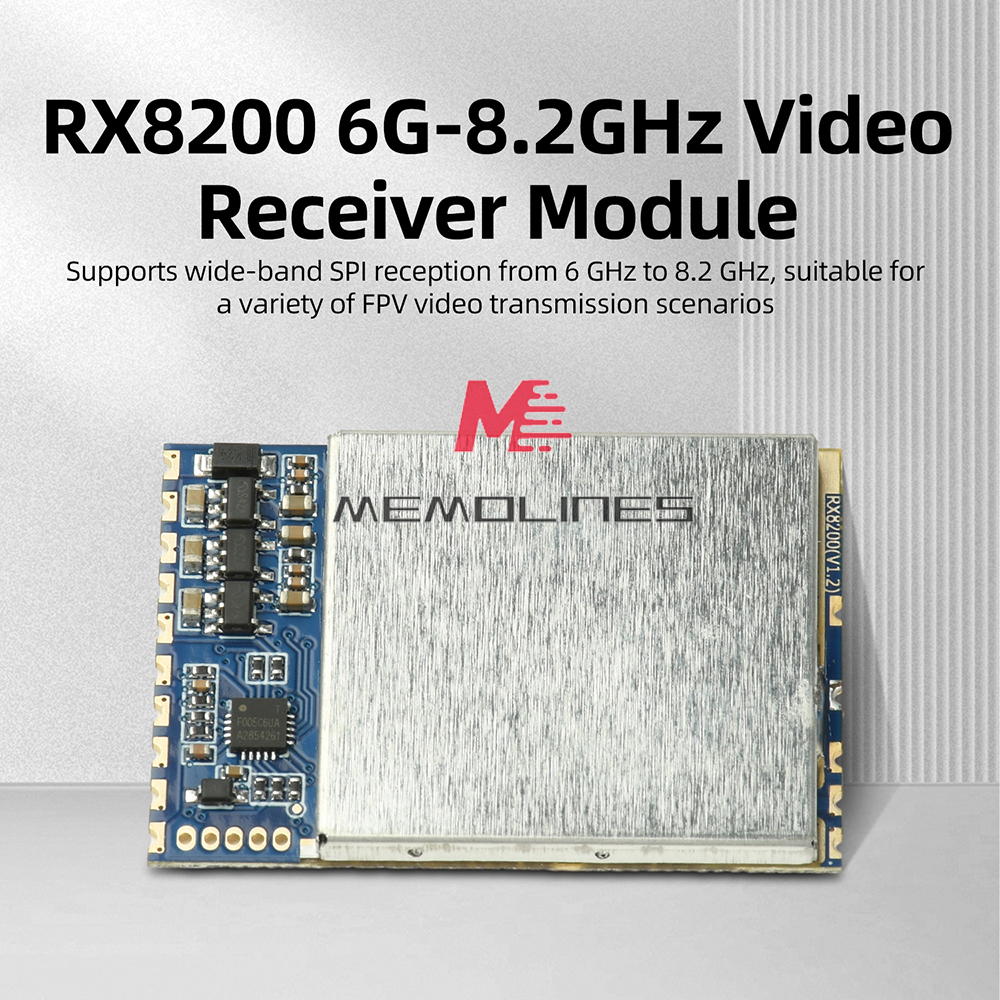

1. Supports wide-band SPI reception from 6 GHz to 8.2 GHz, meeting the video transmission needs of various FPV scenarios.

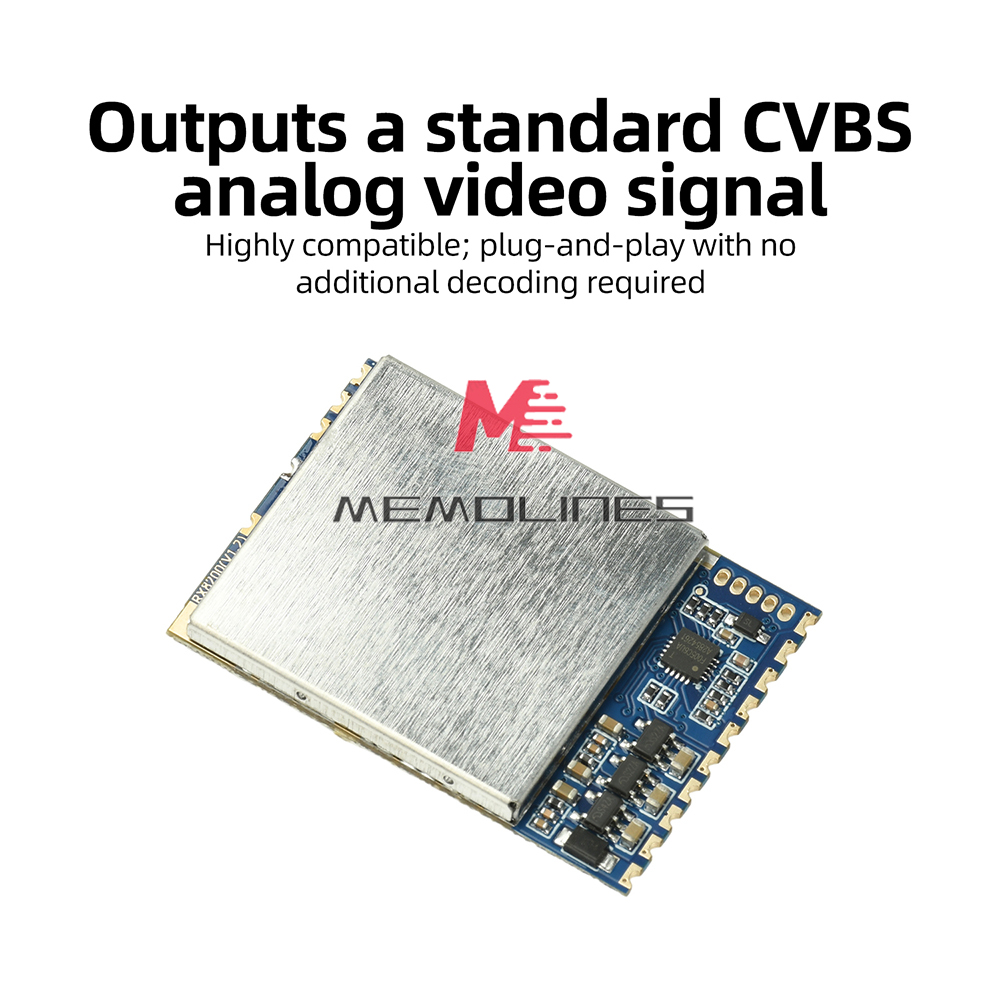

2. Outputs standard CVBS analog video signals, offering strong compatibility and plug-and-play functionality without the need for additional decoding.

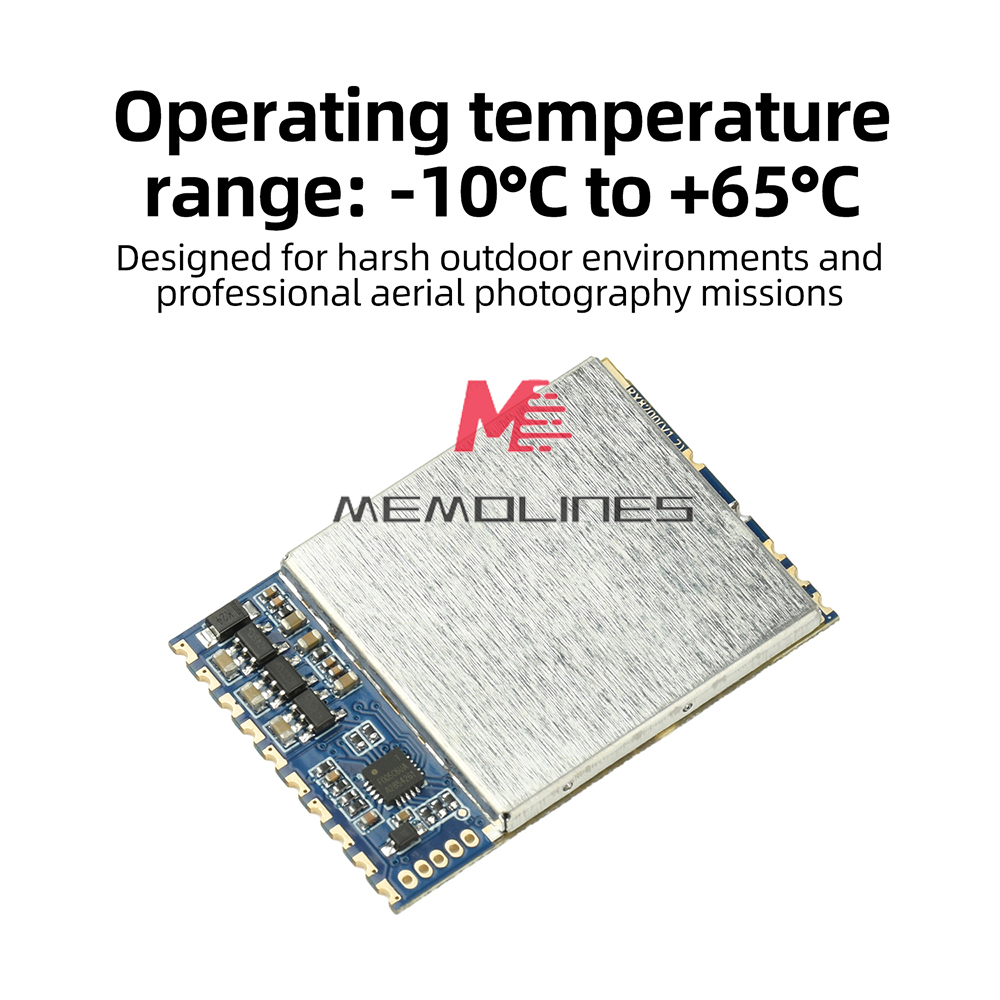

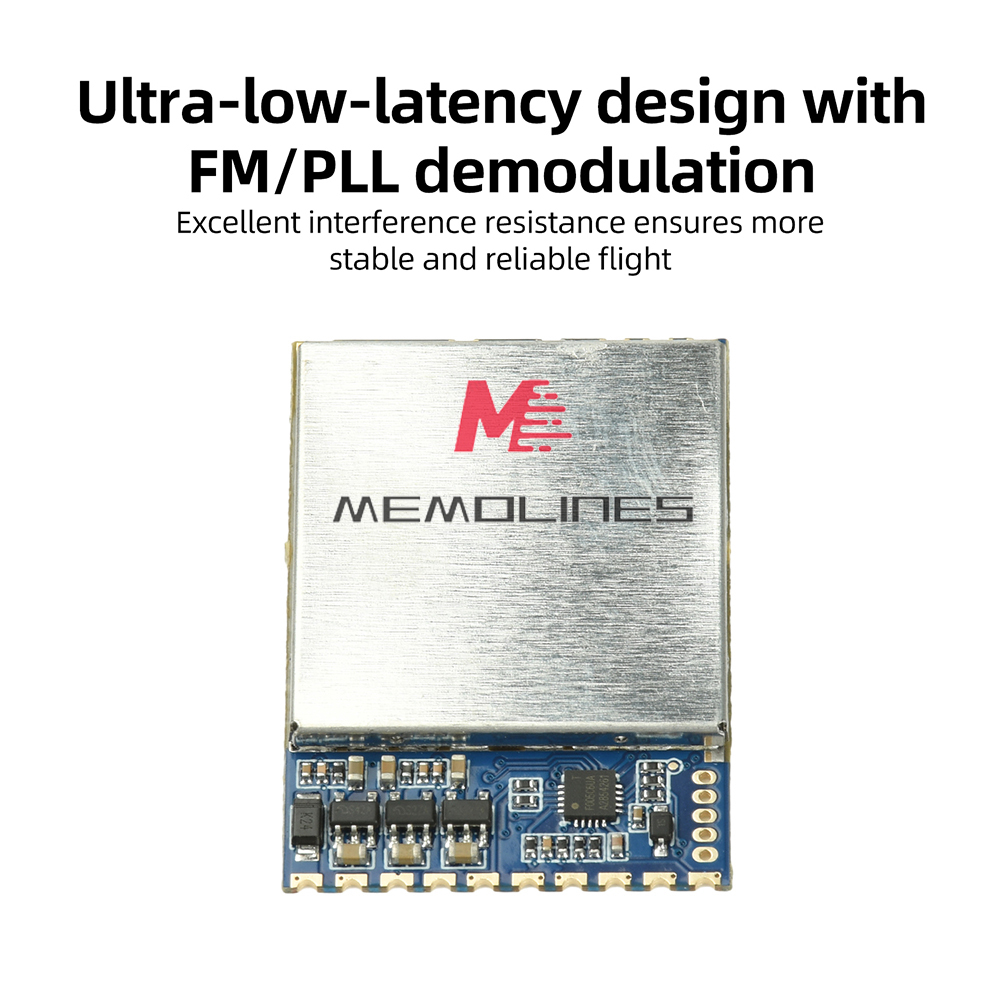

3. Ultra-low latency design combined with FM/PLL demodulation provides excellent interference resistance, ensuring more stable and reliable flight.

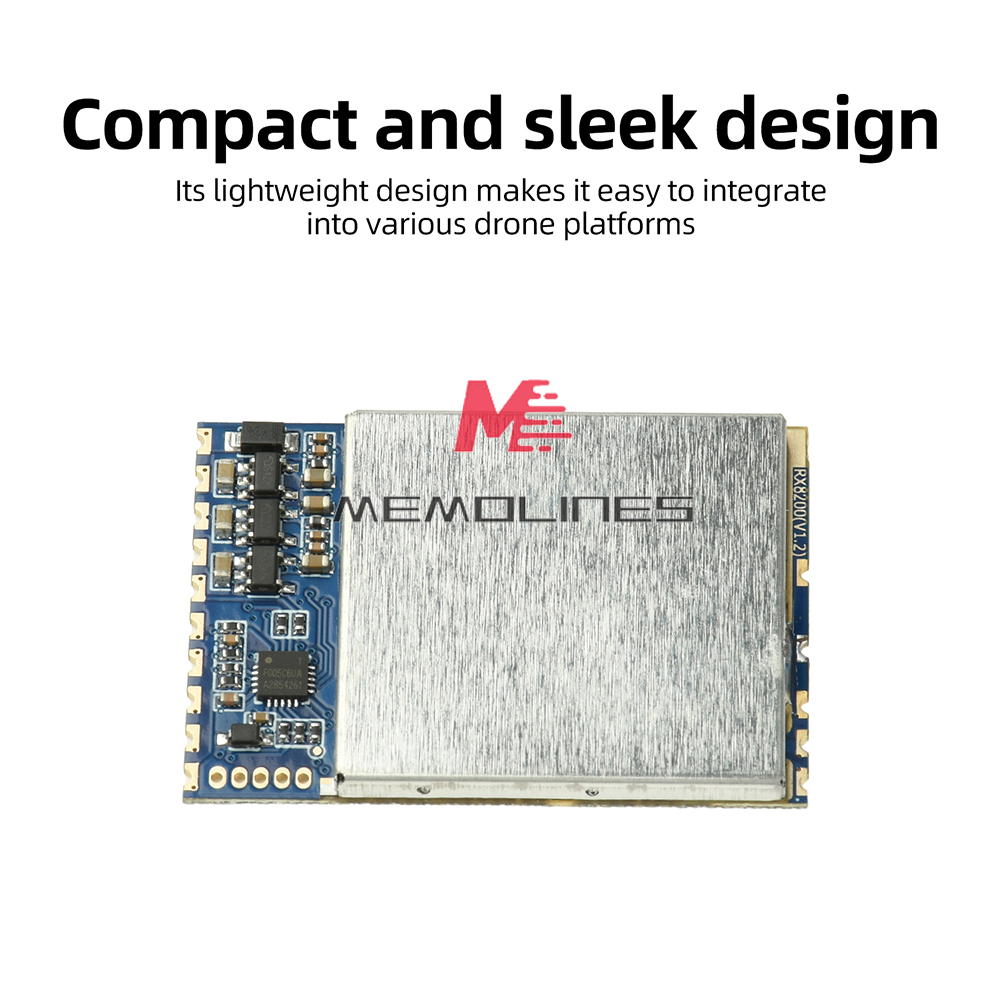

4. Operating temperature range of -10°C to +65°C, suitable for harsh outdoor environments and professional aerial photography missions.
5. Compact and lightweight design facilitates easy integration into various drone platforms.
1. Supports wide-band SPI reception from 6 GHz to 8.2 GHz, meeting the video transmission needs of various FPV scenarios.
2. Outputs standard CVBS analog video signals, offering strong compatibility and plug-and-play functionality without the need for additional decoding.
3. Ultra-low latency design combined with FM/PLL demodulation provides excellent interference resistance, ensuring more stable and reliable flight.
4. Operating temperature range of -10°C to +65°C, suitable for harsh outdoor environments and professional aerial photography missions.
5. Compact and lightweight design facilitates easy integration into various drone platforms.

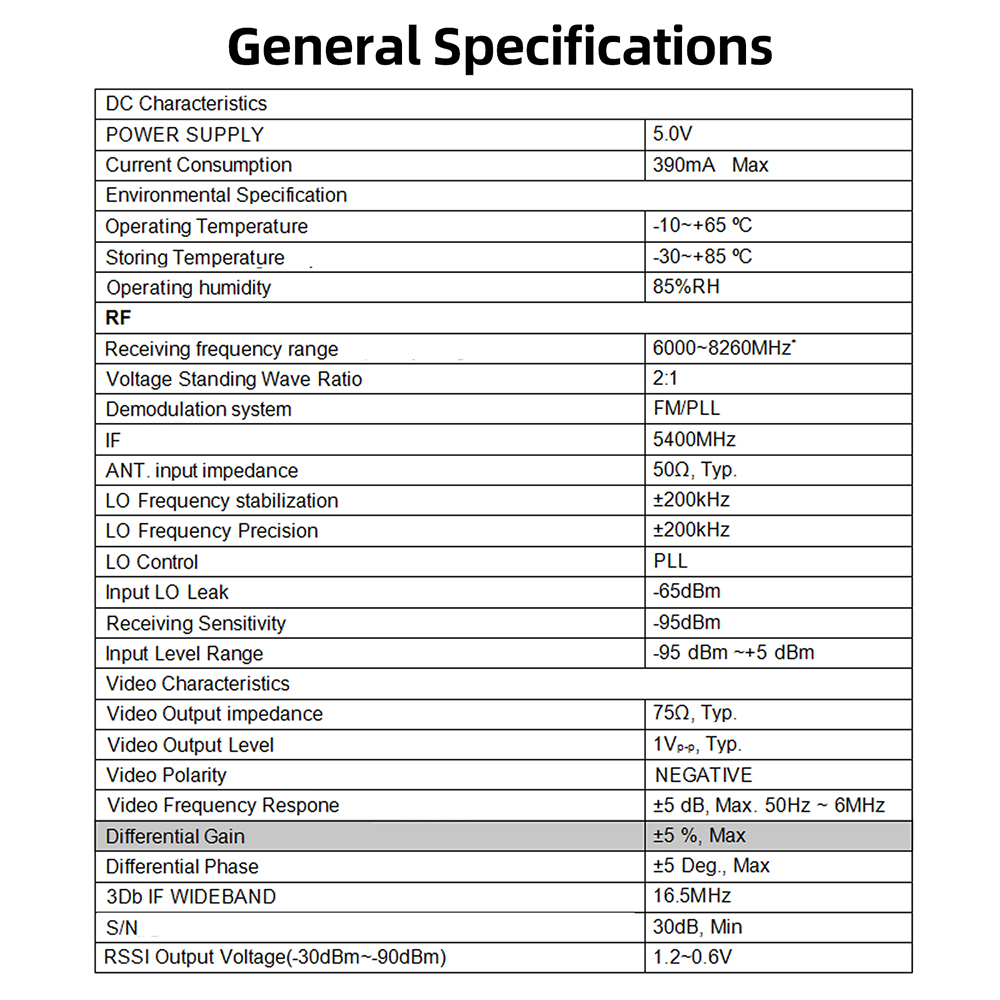

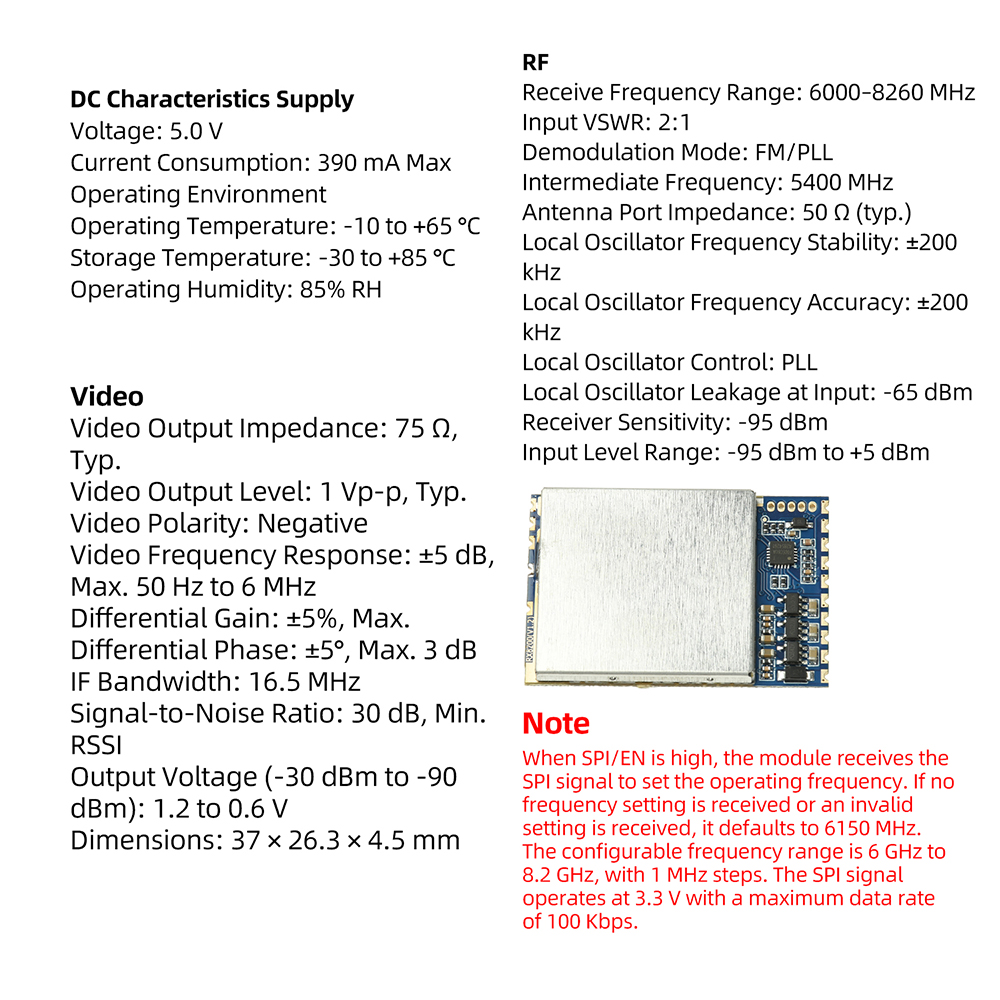

General Specifications:
DC Characteristics
Power Supply: 5.0V
Current Consumption: 390mA Max
Environmental Specifications
Operating Temperature: -10 to +65 °C
Storage Temperature: -30 to +85 °C
Operating Humidity: 85% RH
DC Characteristics
Power Supply: 5.0V
Current Consumption: 390mA Max
Environmental Specifications
Operating Temperature: -10 to +65 °C
Storage Temperature: -30 to +85 °C
Operating Humidity: 85% RH
RF
Receiving Frequency Range: 6000 to 8260 MHz
Input VSWR: 2:1
Demodulation System: FM/PLL
Intermediate Frequency (IF): 5400 MHz
Antenna Input Impedance: 50 Ω, Typ.
Local Oscillator (LO) Frequency Stability: ±200 kHz
Local Oscillator (LO) Frequency Precision: ±200 kHz
LO Control: PLL
Input LO Leak: -65 dBm
Receiving Sensitivity: -95 dBm
Input Level Range: -95 dBm to +5 dBm
Video Characteristics
Video Output Impedance: 75 Ω, Typ.
Video Output Level: 1 Vp-p, Typ.
Video Polarity: Negative (NEGATIVE)
Video Frequency Response: ±5 dB, Max. 50 Hz ~ 6 MHz
Differential Gain: ±5%, Max
Differential Phase: ±5 Deg., Max
3dB IF Bandwidth: 16.5 MHz
Signal-to-Noise Ratio (S/N): 30 dB, Min
RSSI Output Voltage (-30 dBm to -90 dBm): 1.2 to 0.6 V
Dimensions: 37 mm (L) × 26.3 mm (W) × 4.5 mm (H)

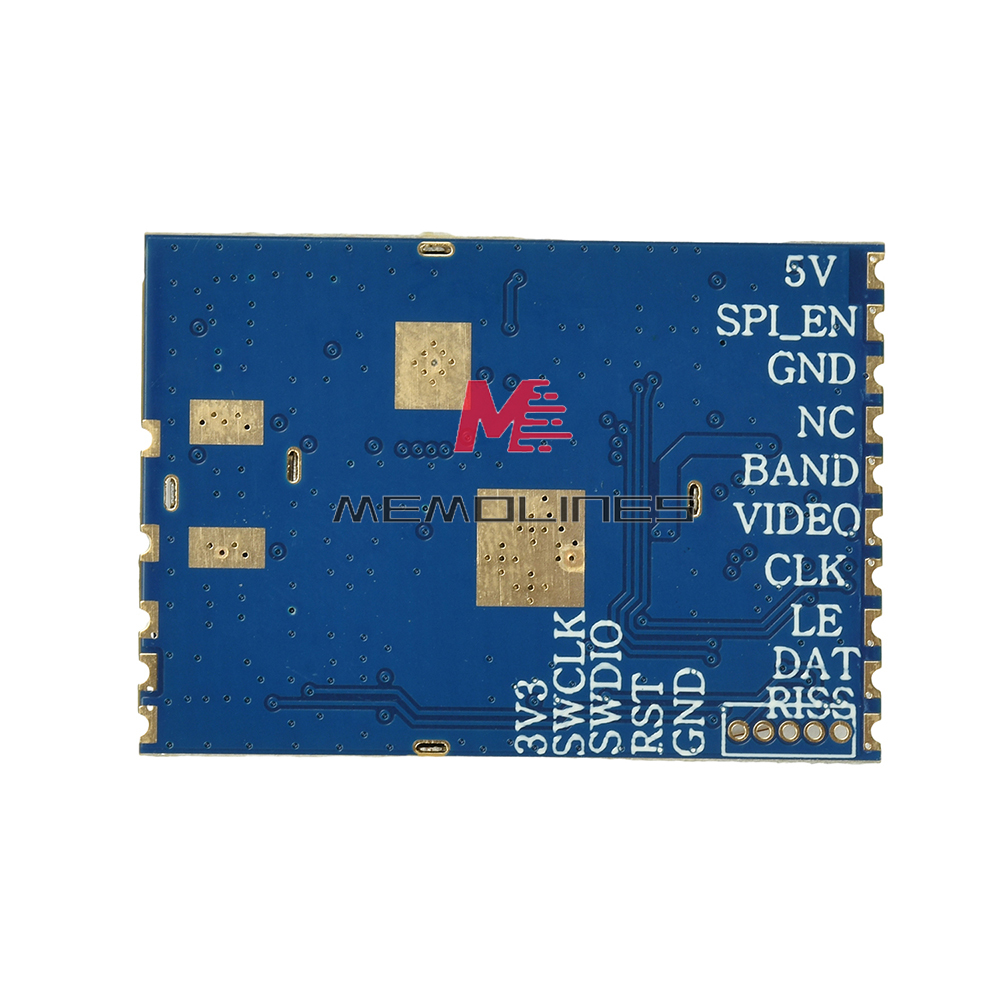

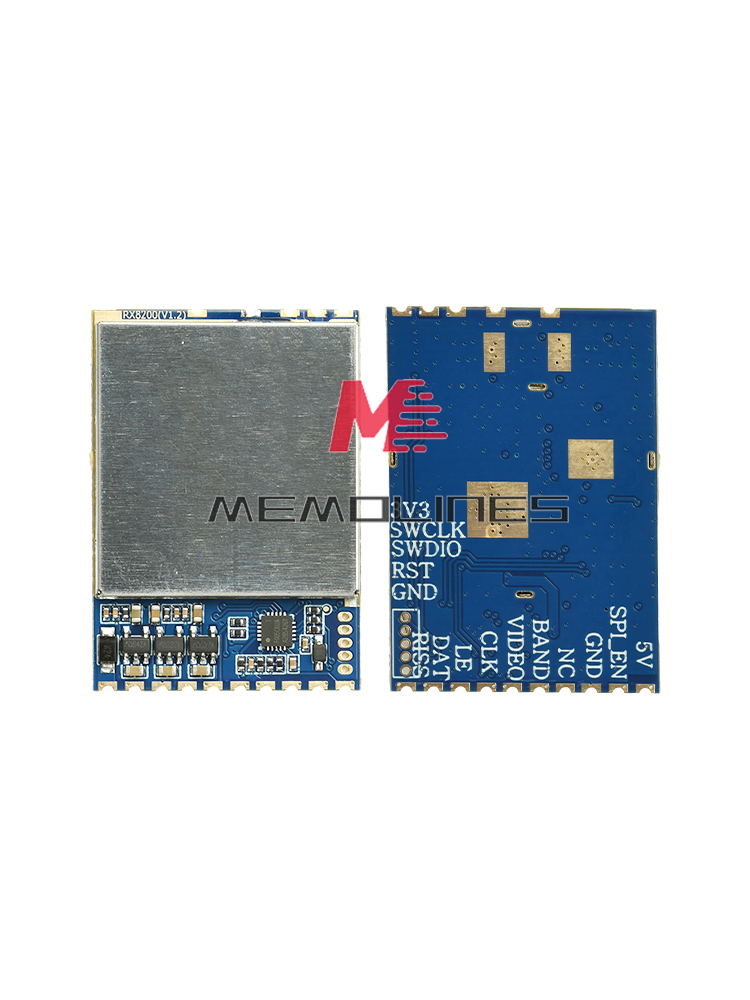

Description:

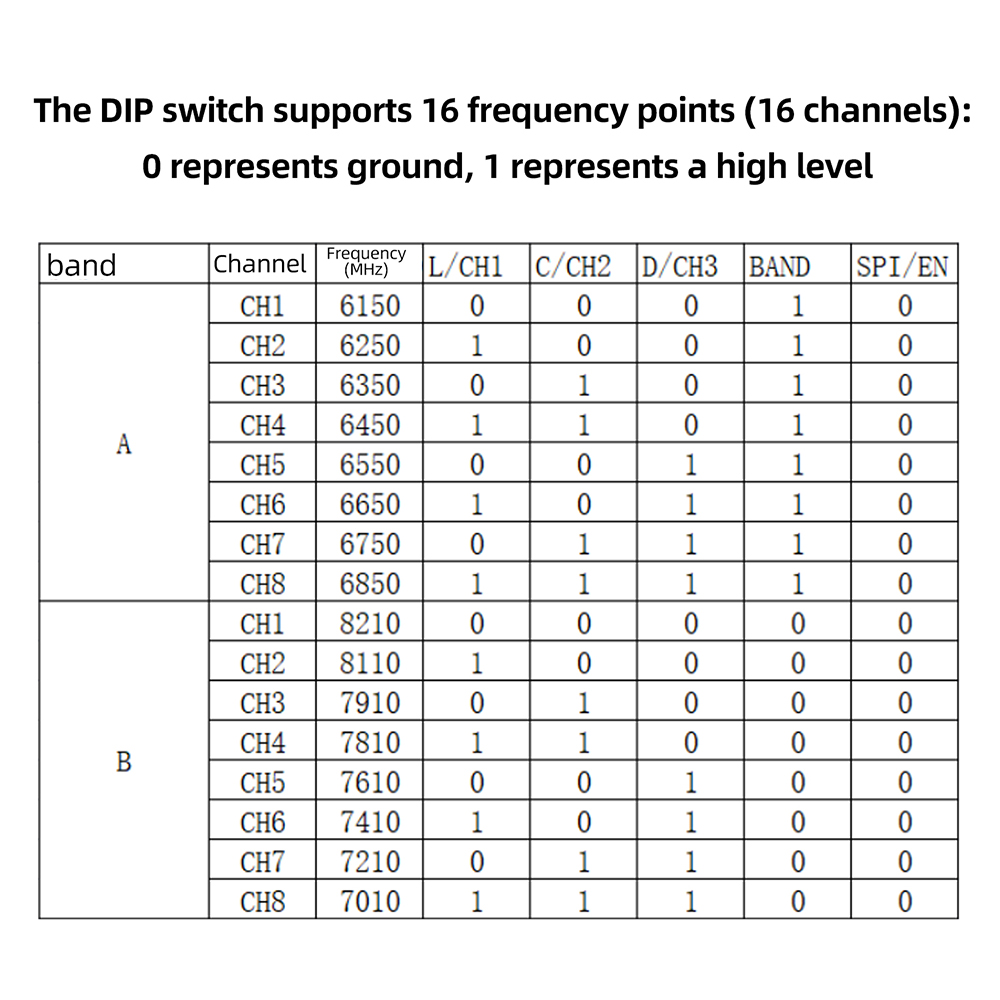

When SPI/EN is high, the module receives the SPI signal to control the frequency. If no frequency setting is received or an invalid setting is received, it defaults to 6150 MHz. The configurable frequency range is 6 GHz to 8.2 GHz, with 1 MHz steps. The SPI signal level is 3.3 V, with a maximum baud rate of 100 Kbps.
When SPI/EN is high, the module receives the SPI signal to control the frequency. If no frequency setting is received or an invalid setting is received, it defaults to 6150 MHz. The configurable frequency range is 6 GHz to 8.2 GHz, with 1 MHz steps. The SPI signal level is 3.3 V, with a maximum baud rate of 100 Kbps.
Product List:
1x Module
