Feature:

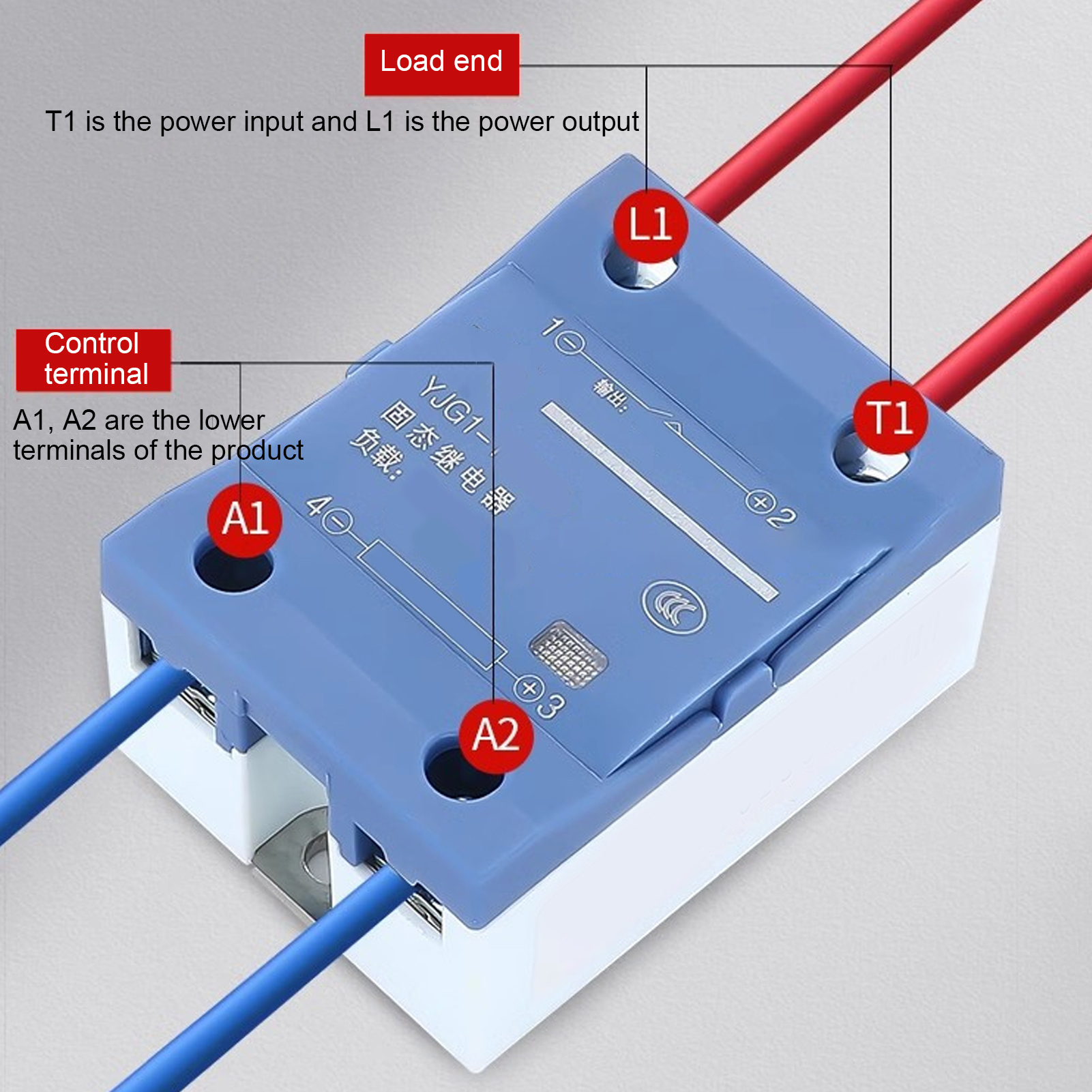

1. Input and Output: Single phase solid‑state relay with input voltage of AC80‑280V and output voltage of AC24‑480V 25A, stable and reliable operation, compatible with TTL, DTL, and HTL logic circuits.
2. Relay Advantages: This solid state relay has the advantages of reliable operation, no noise, no contact, no spark, no electromagnetic interference, fast switching speed, with strong anti interference ability.

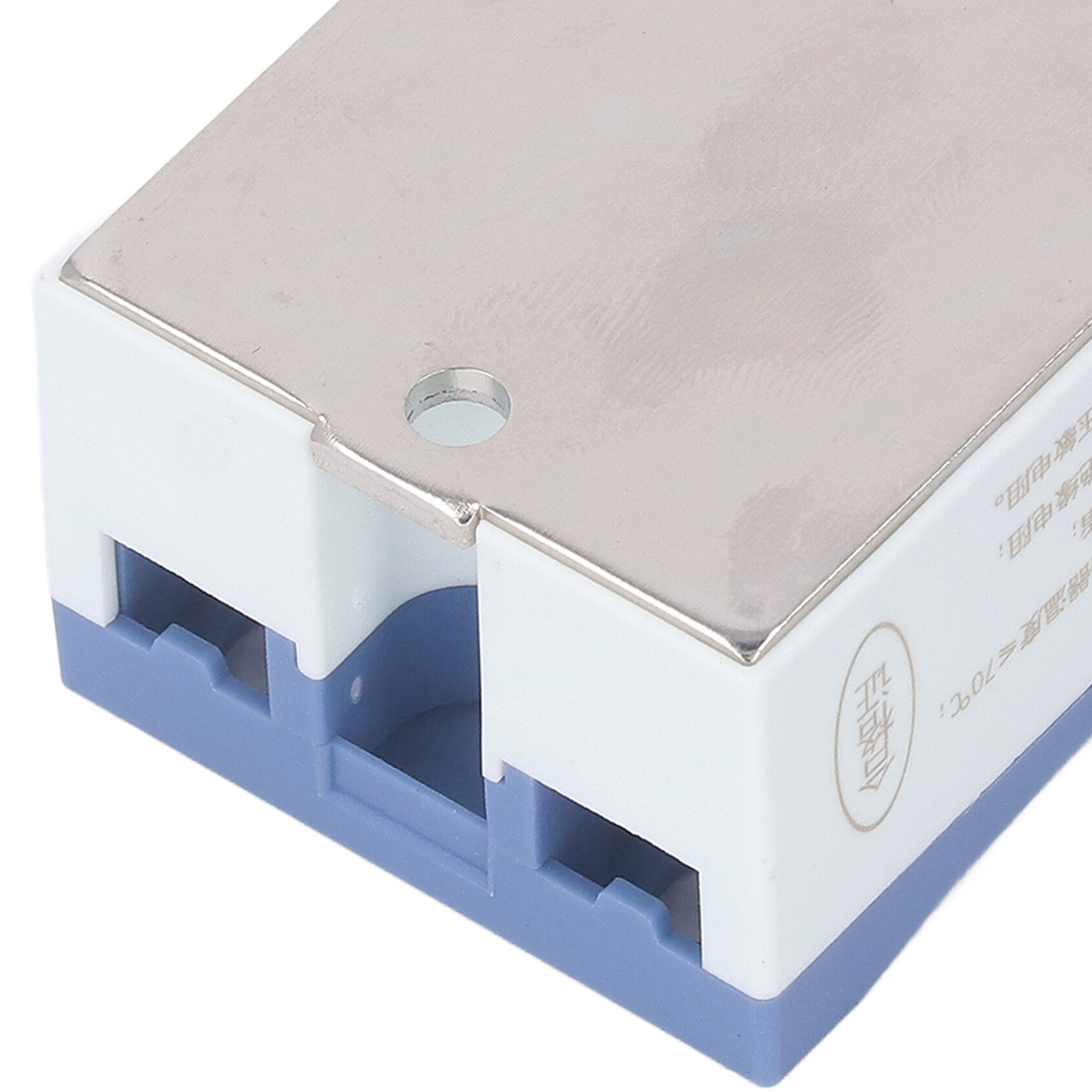

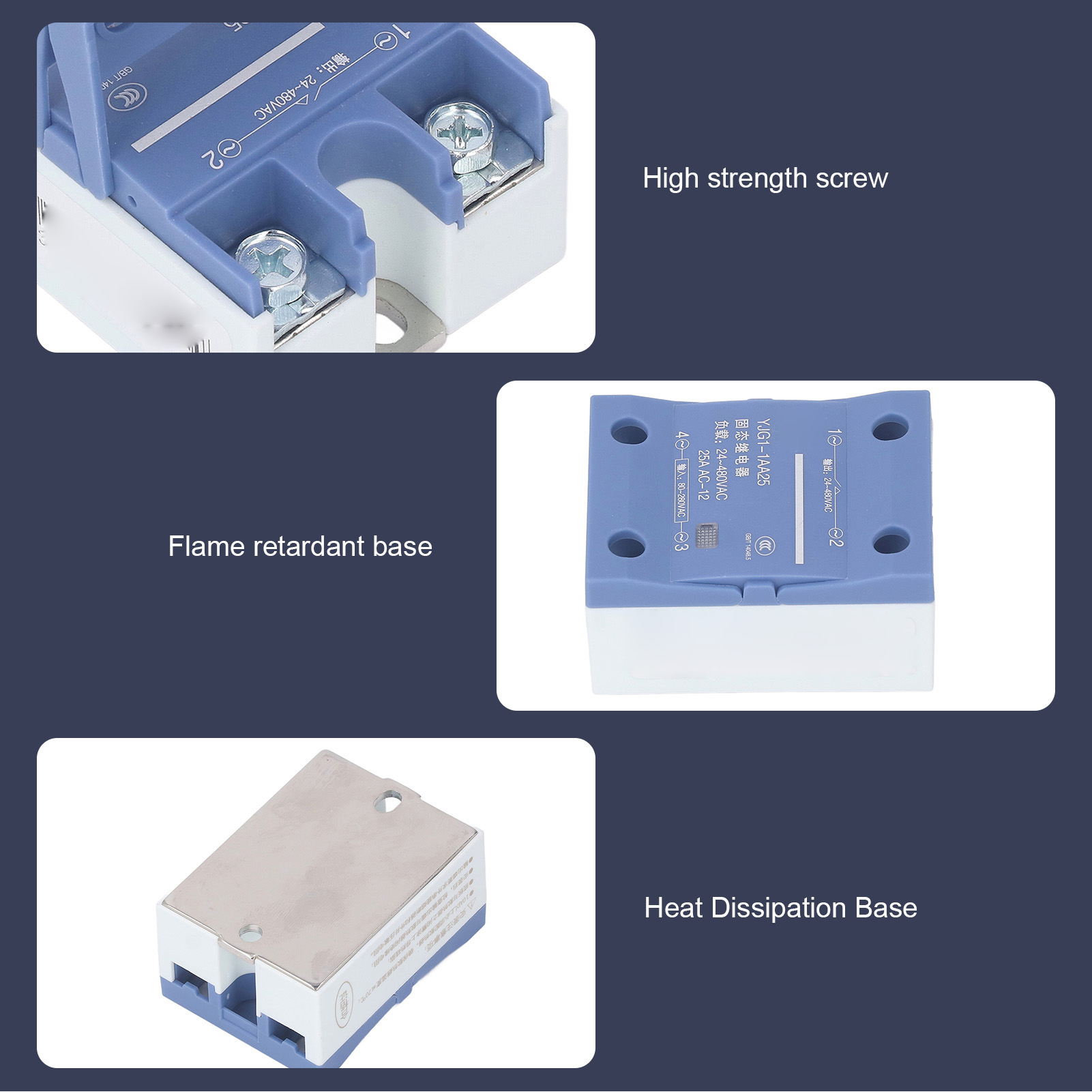

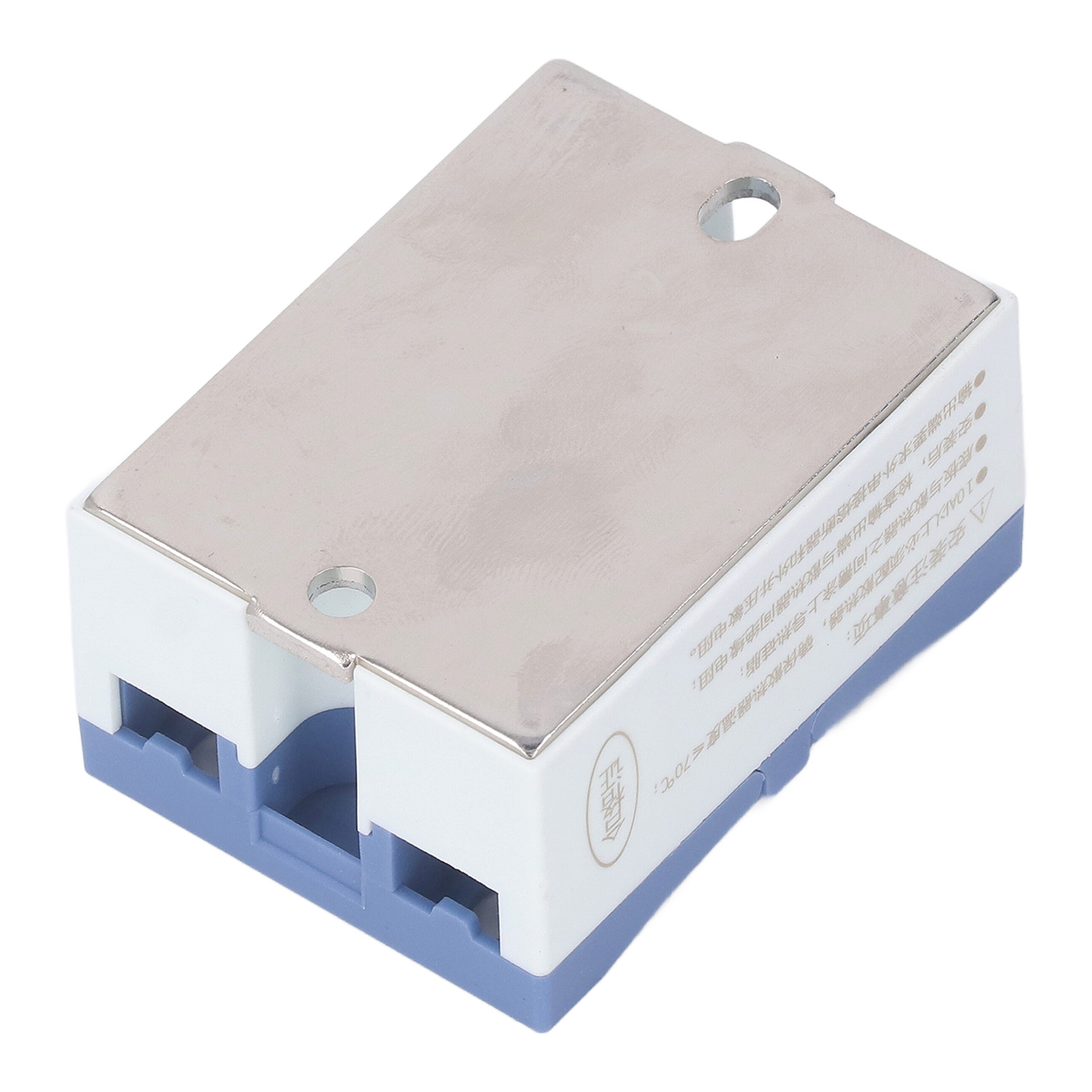

3. Engineering Plastic: Adopting engineering plastic flame retardant shell, with strong insulation, high strength, impact resistance, corrosion resistance, with cooling base, special electroplating, has good heat dissipation.
4. Function Purpose: Semiconductor technology and glue sealed non contact relay, which used in the automatic control circuit to drive the large current load directly with a small control signal.
5. Applicable Fields: Widely used in automation control systems such as heating and constant temperature systems, packaging equipment, plastic machinery, and food machinery equipment.

Specification:

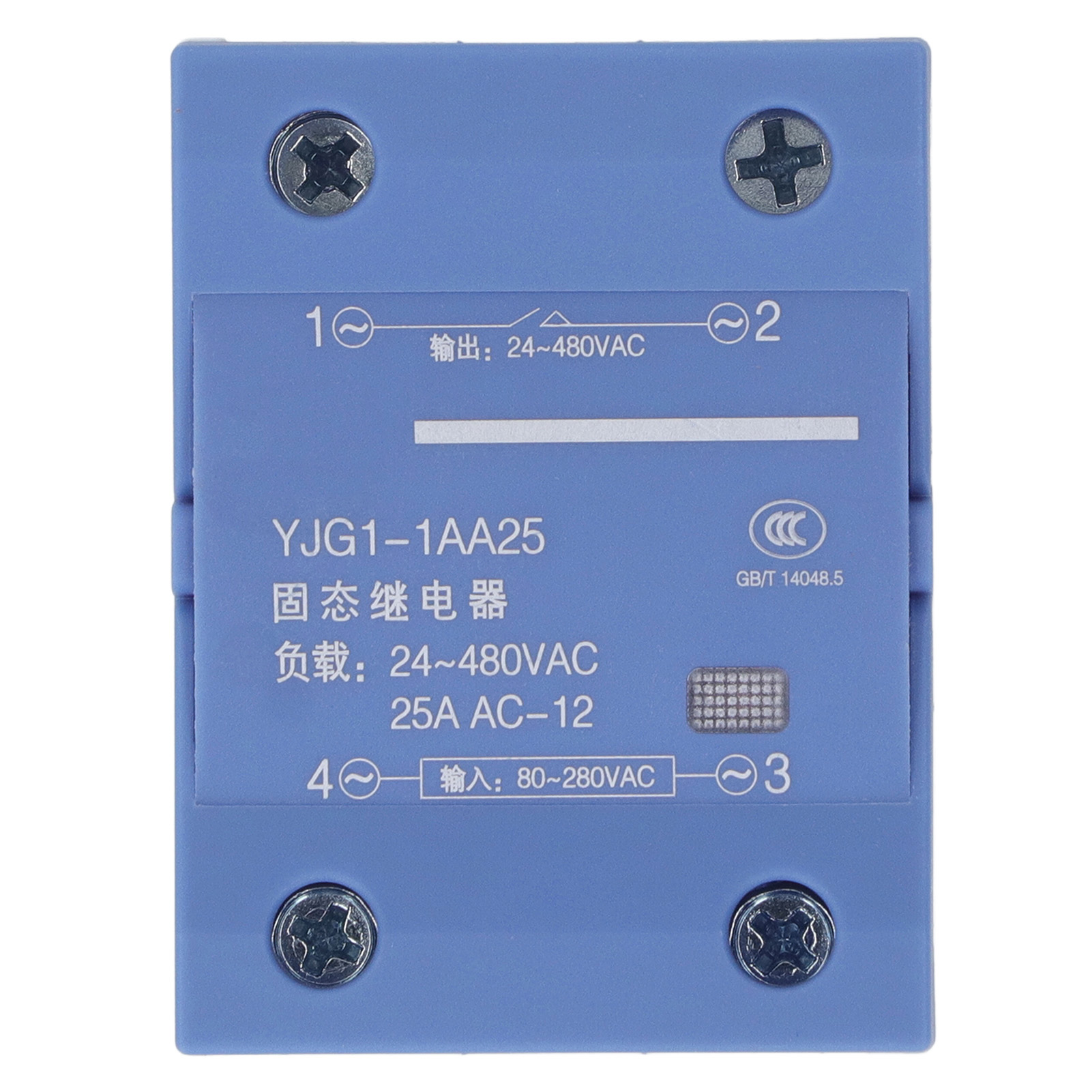

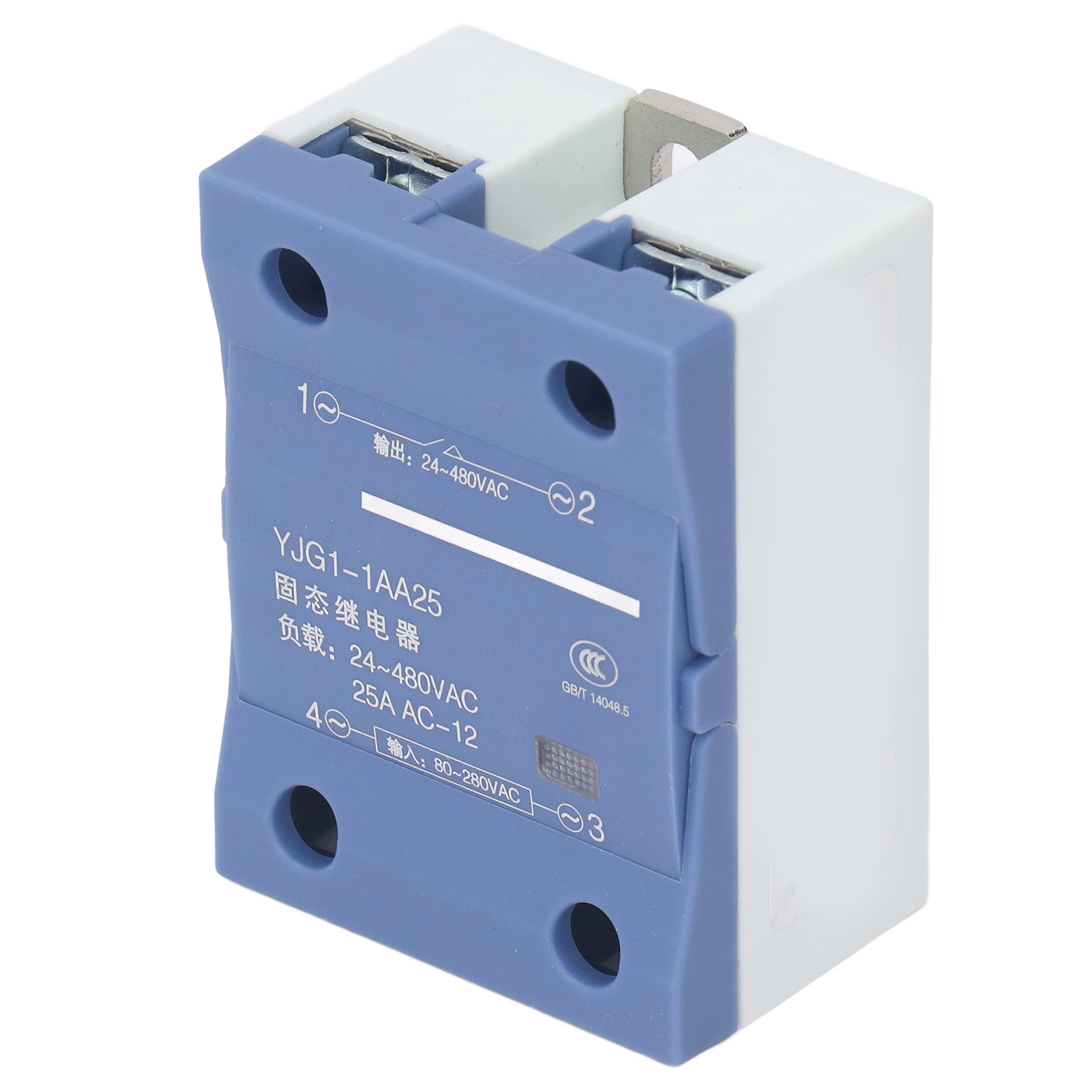

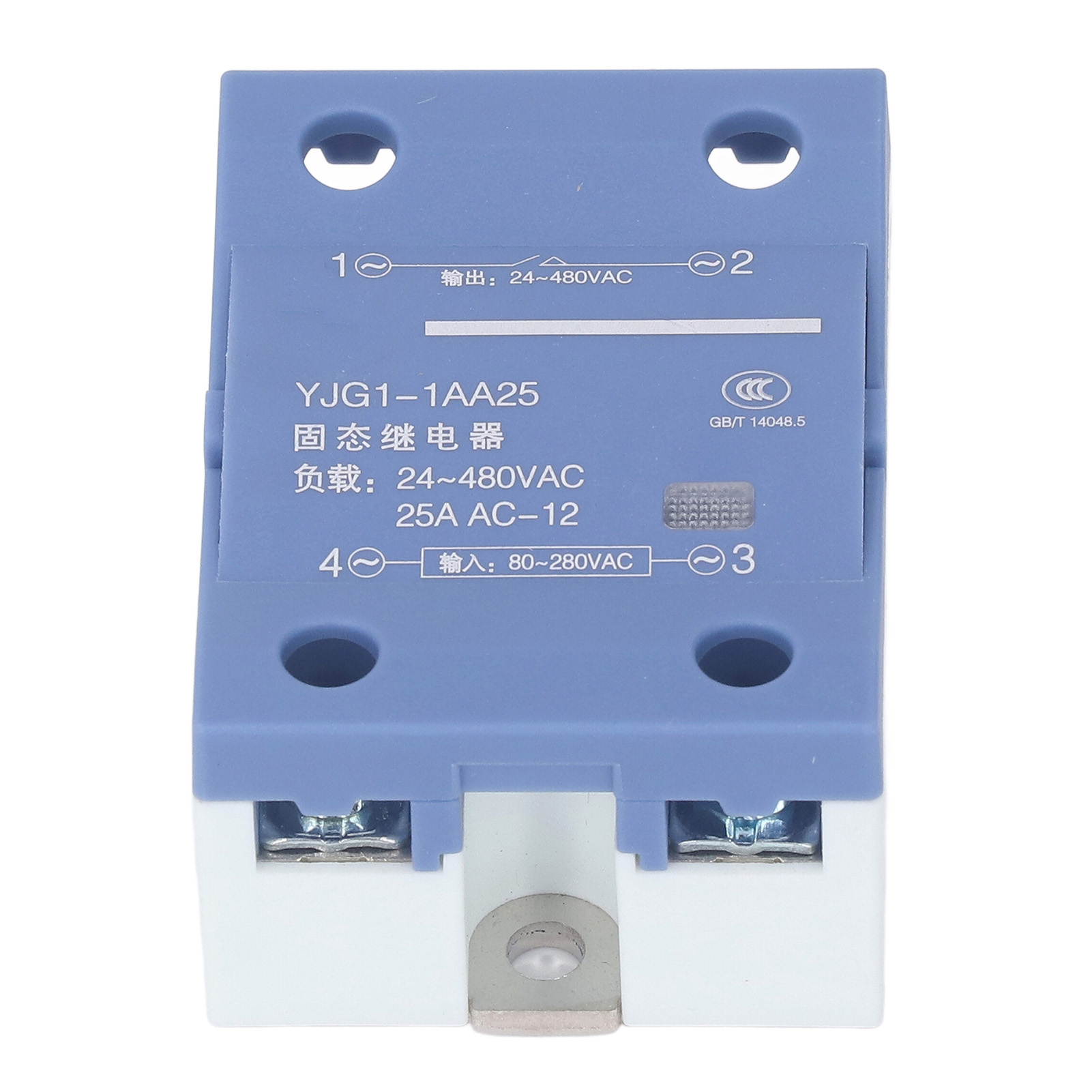

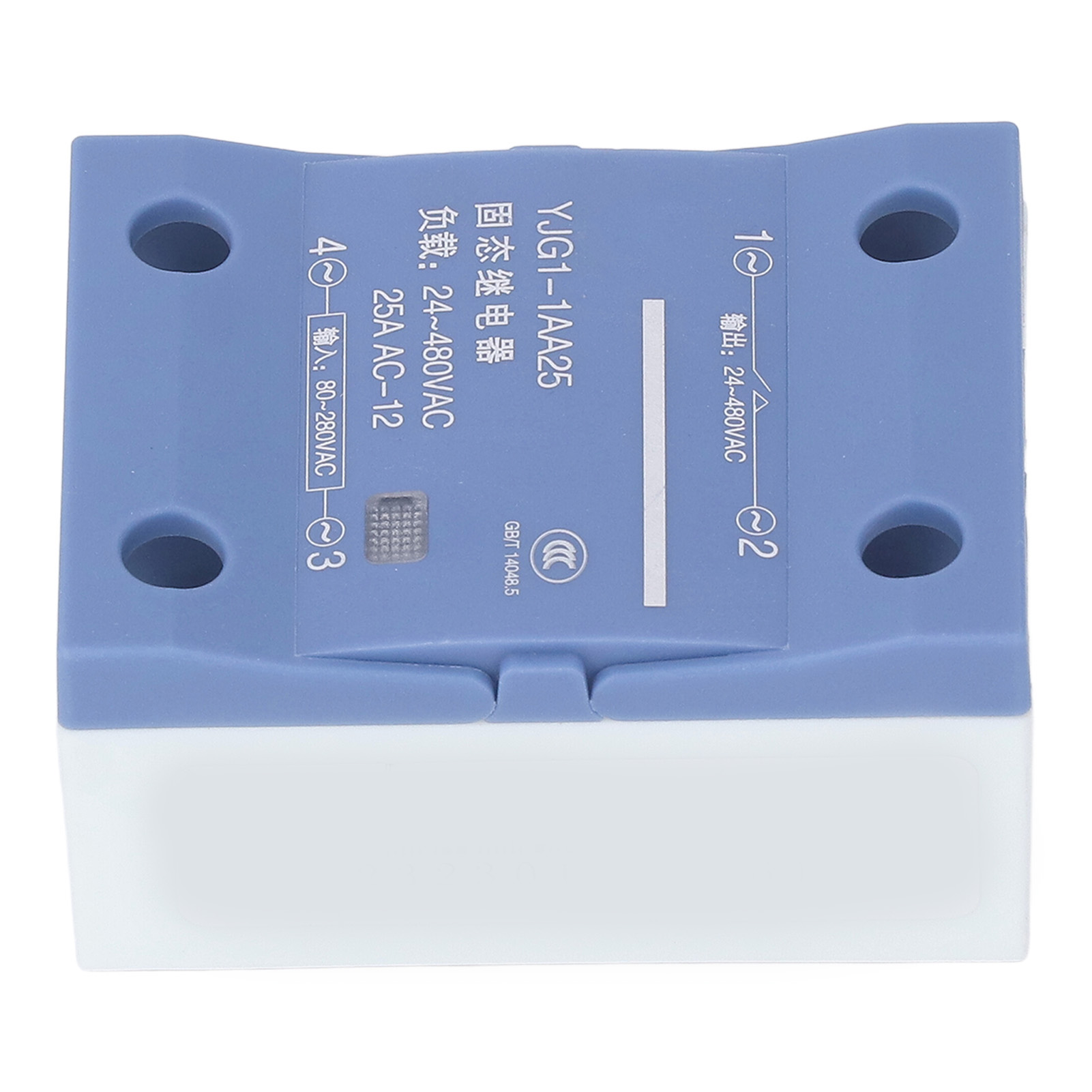

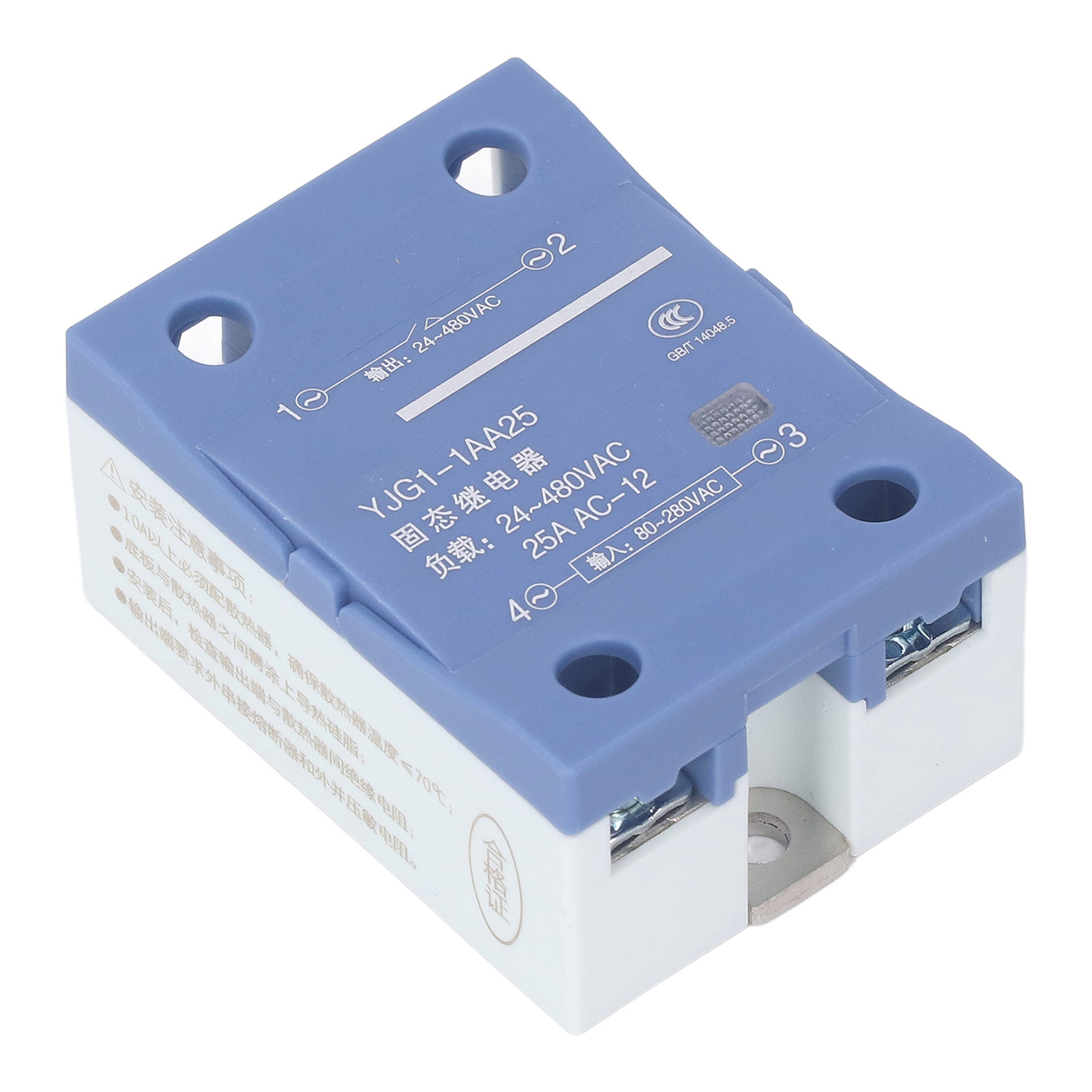

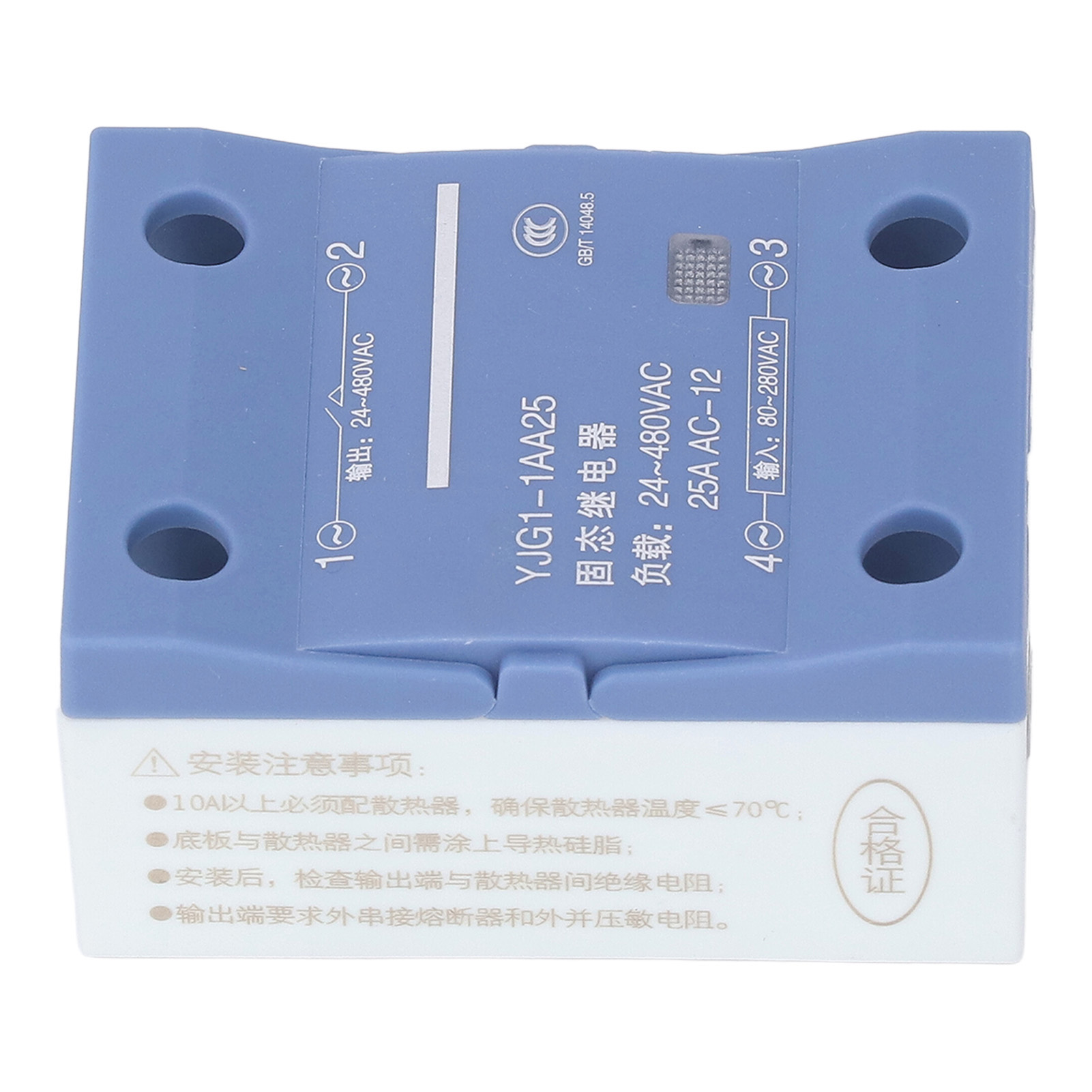

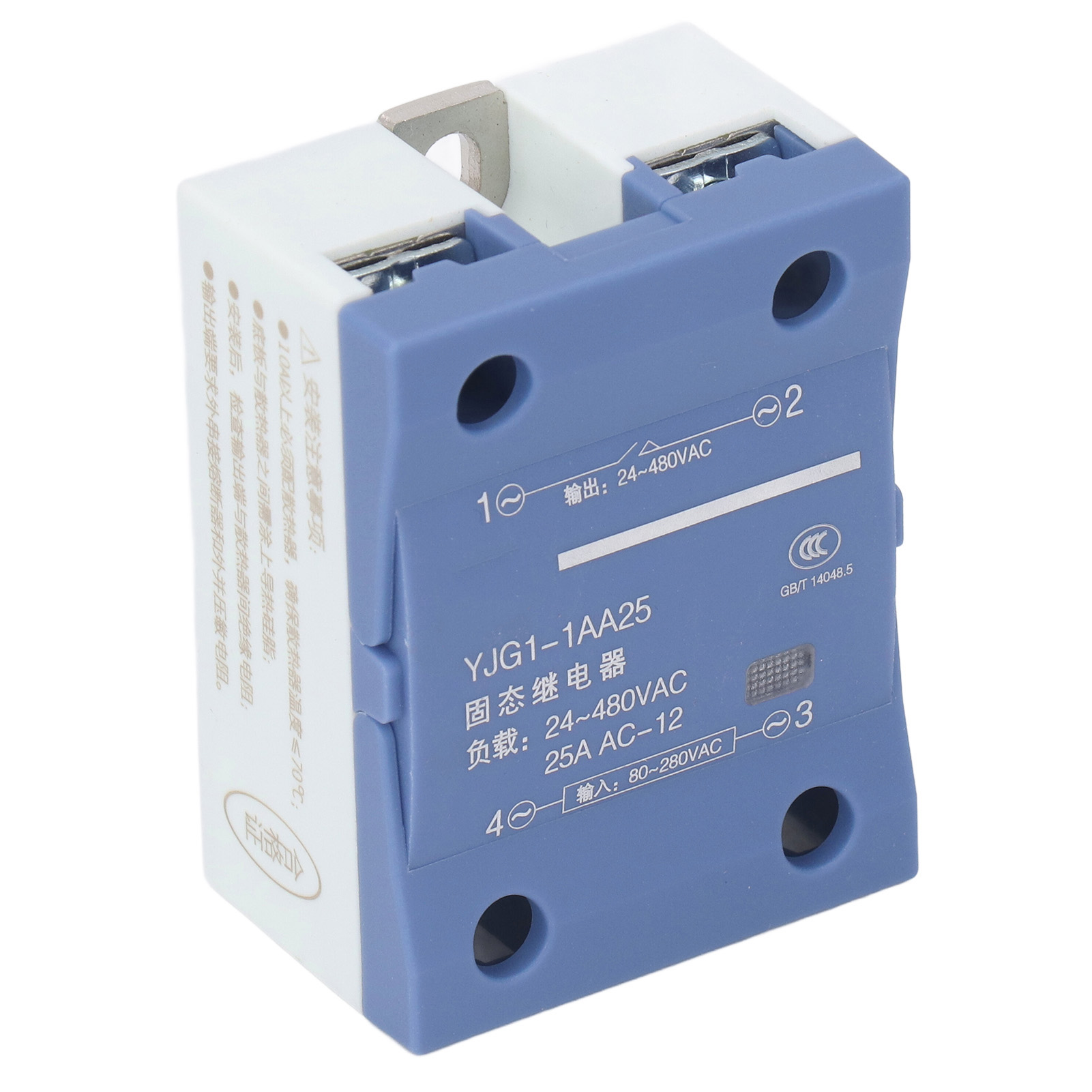

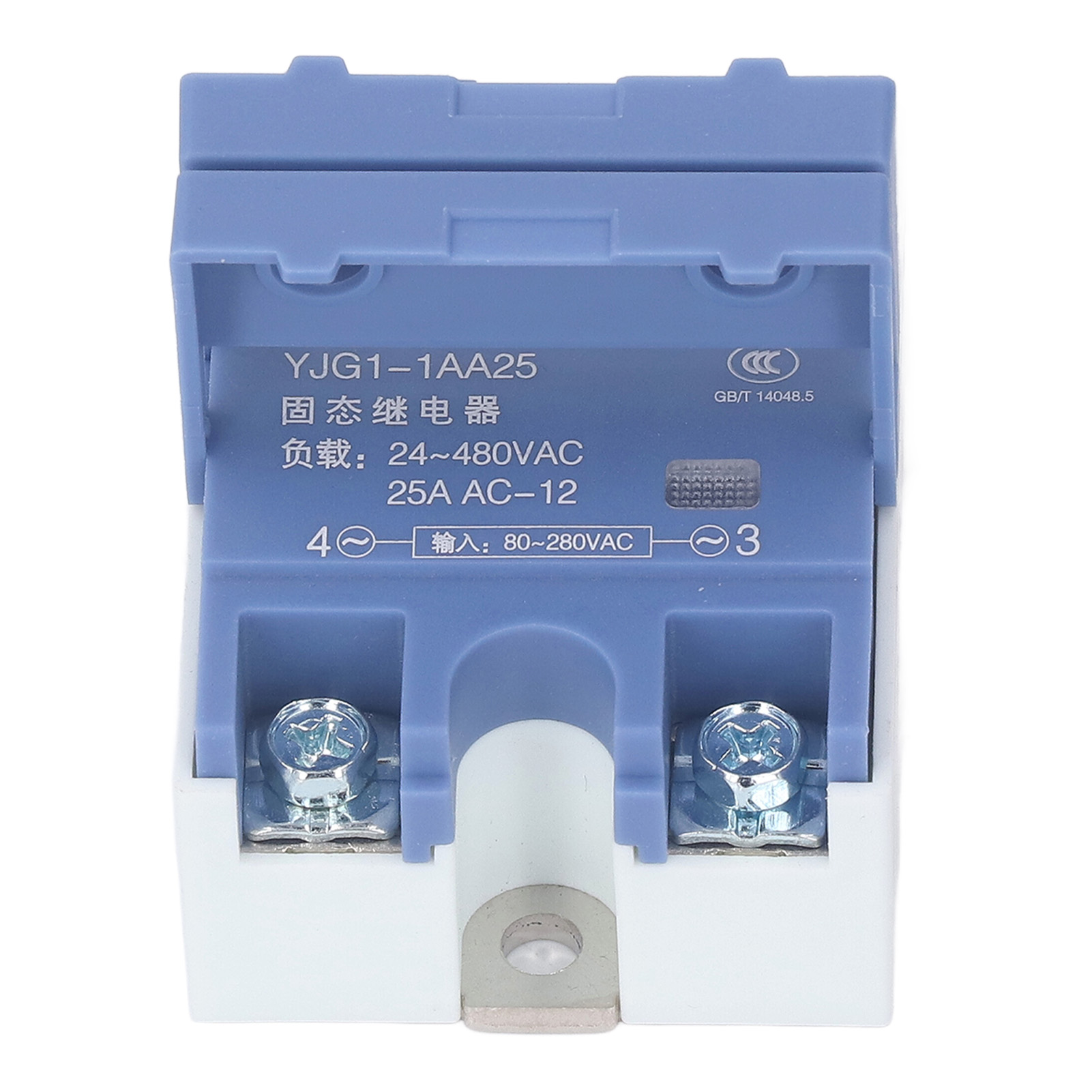

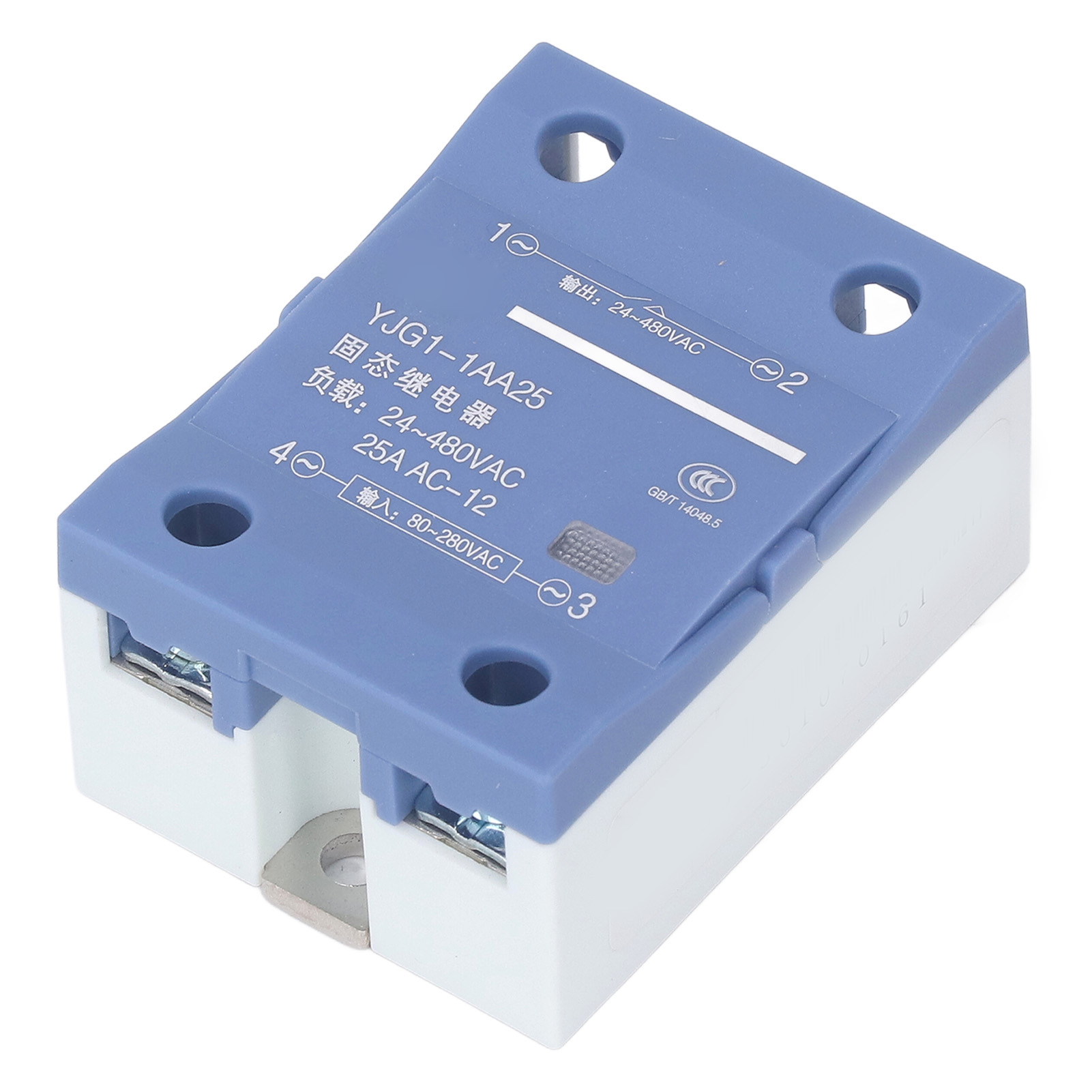

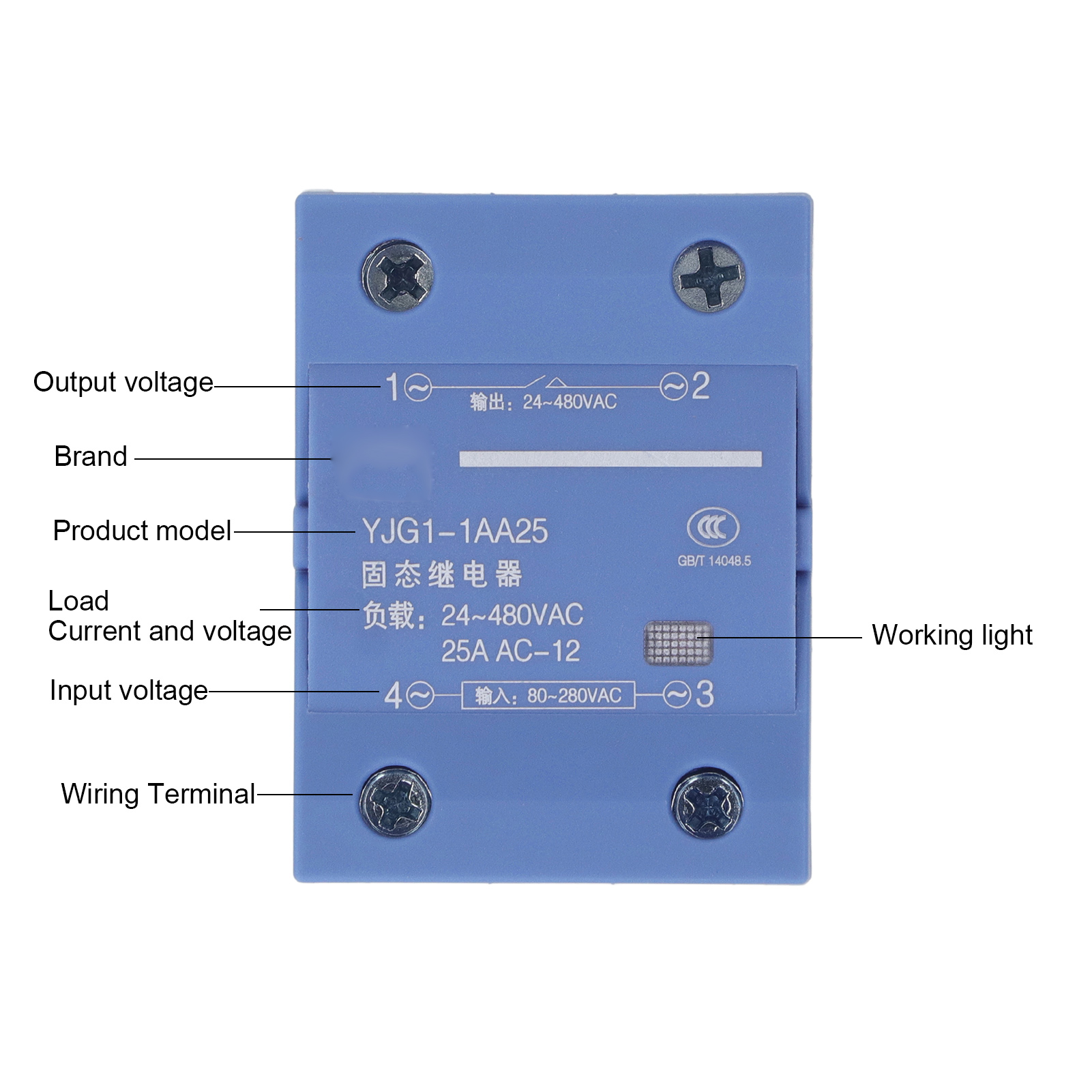

Item Type: Single Phase Solid State Relay

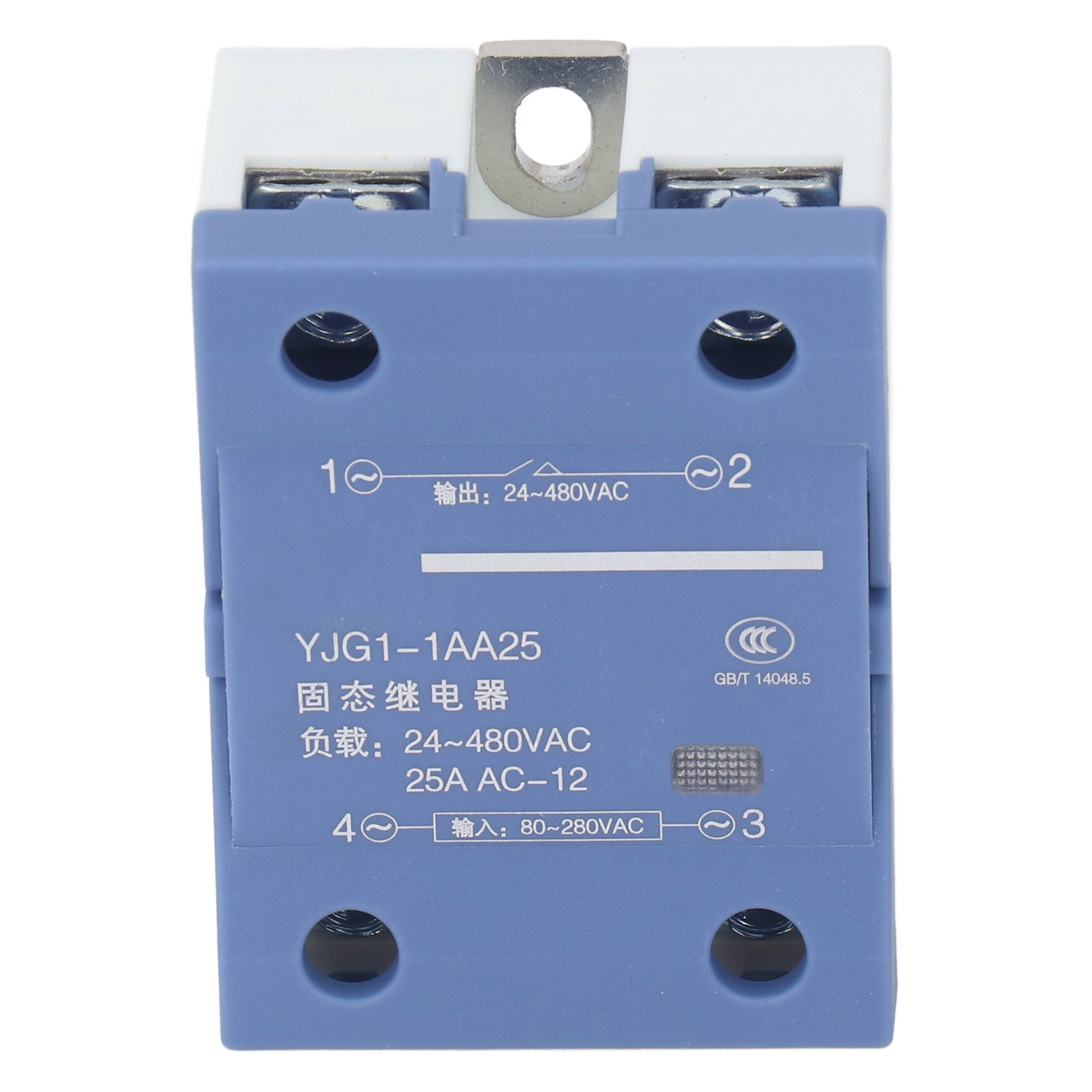

Model: YJG1-1AA25
Control Method: AC to AC
Input Control Voltage: AC80-280V
Input Load Voltage: AC24-480V
Load Current: 25A
Input Control Current: 5-30mA
Off-State Leakage Current: ≤5mA
On-State Voltage Drop: ≤1.6V
Operating Current Safety Factor: Resistor Load: 50%; Inductive Load: 15%
Rated Insulation Voltage Ui: 500V
Rated Impulse Withstand Voltage Uimp: 2.5kV
Operating Temperature: -25-70℃

Package List:

1 x Single Phase Solid State Relay
