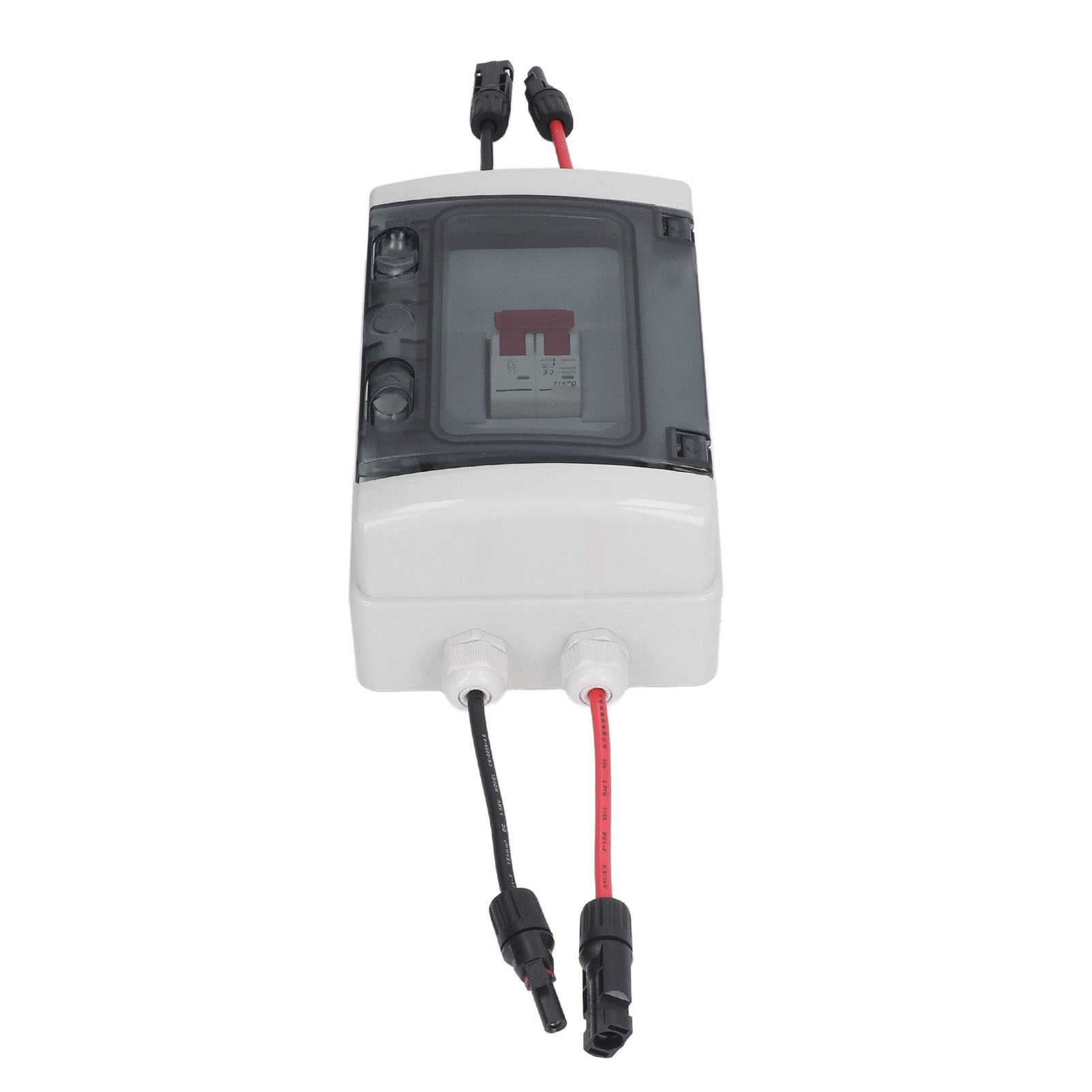

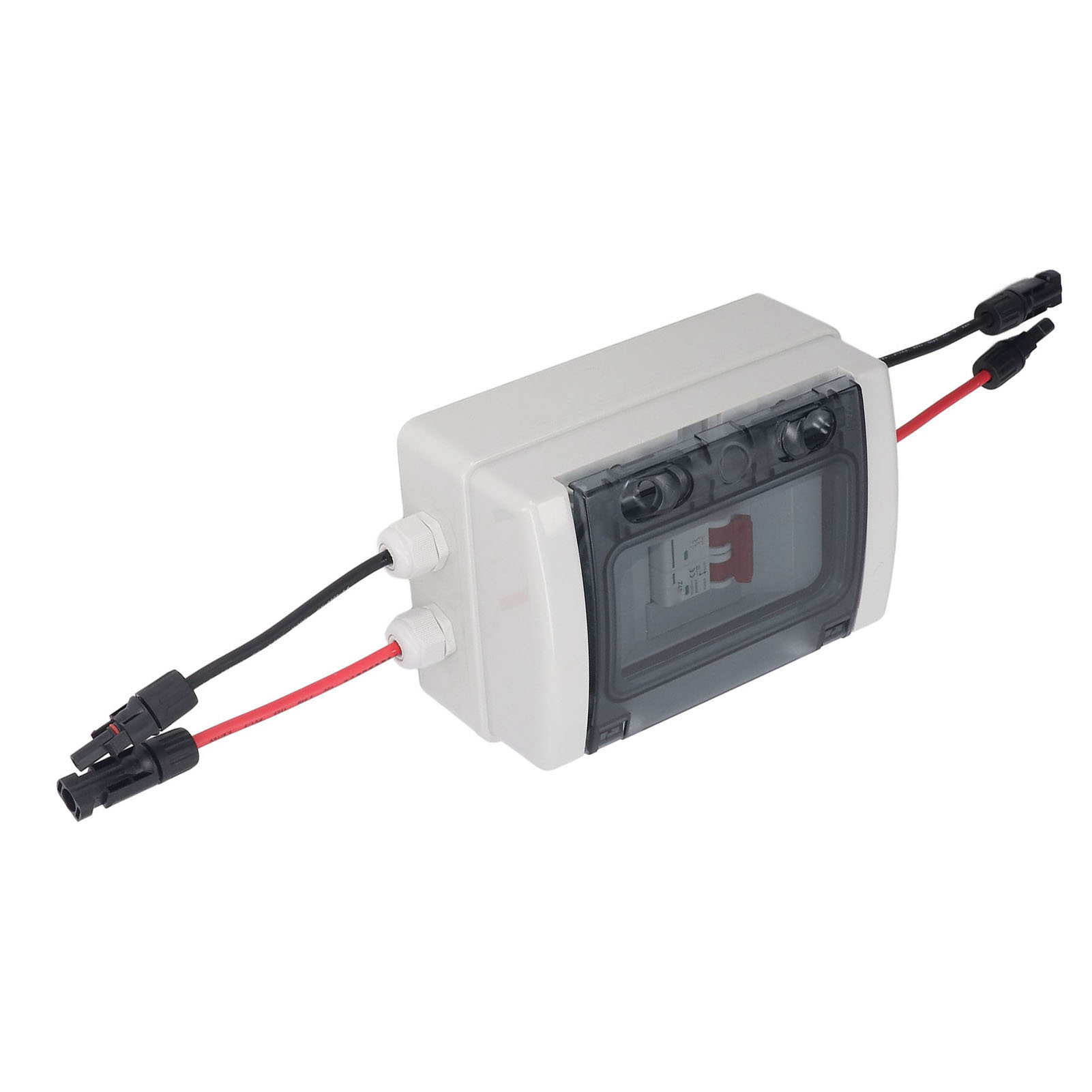

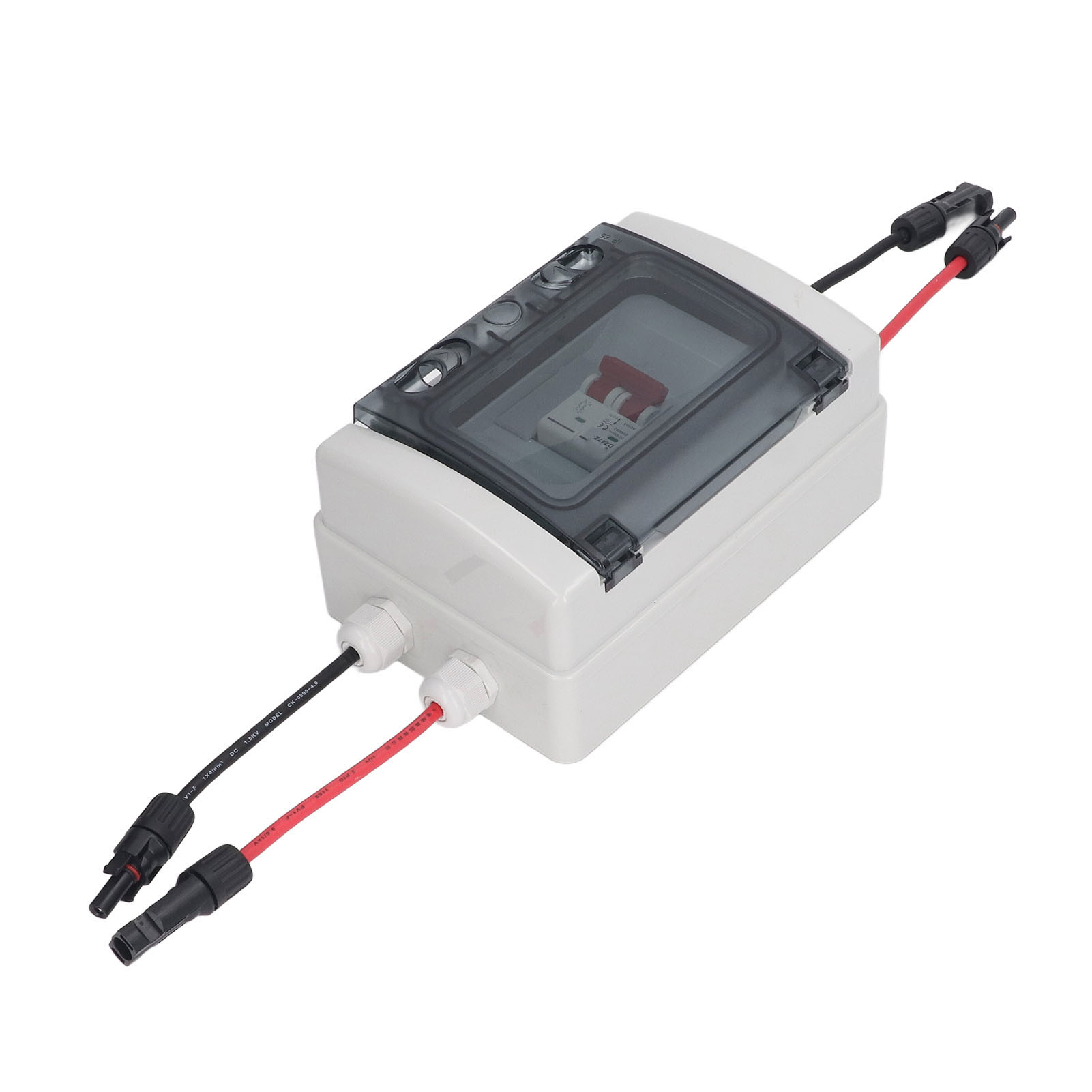

Feature:

1. VERSATILE FUNCTIONALITY: Miniature circuit breaker preserves distribution equipment from overload and short circuit damage, control and isolate, and extend the service life of solar systems.

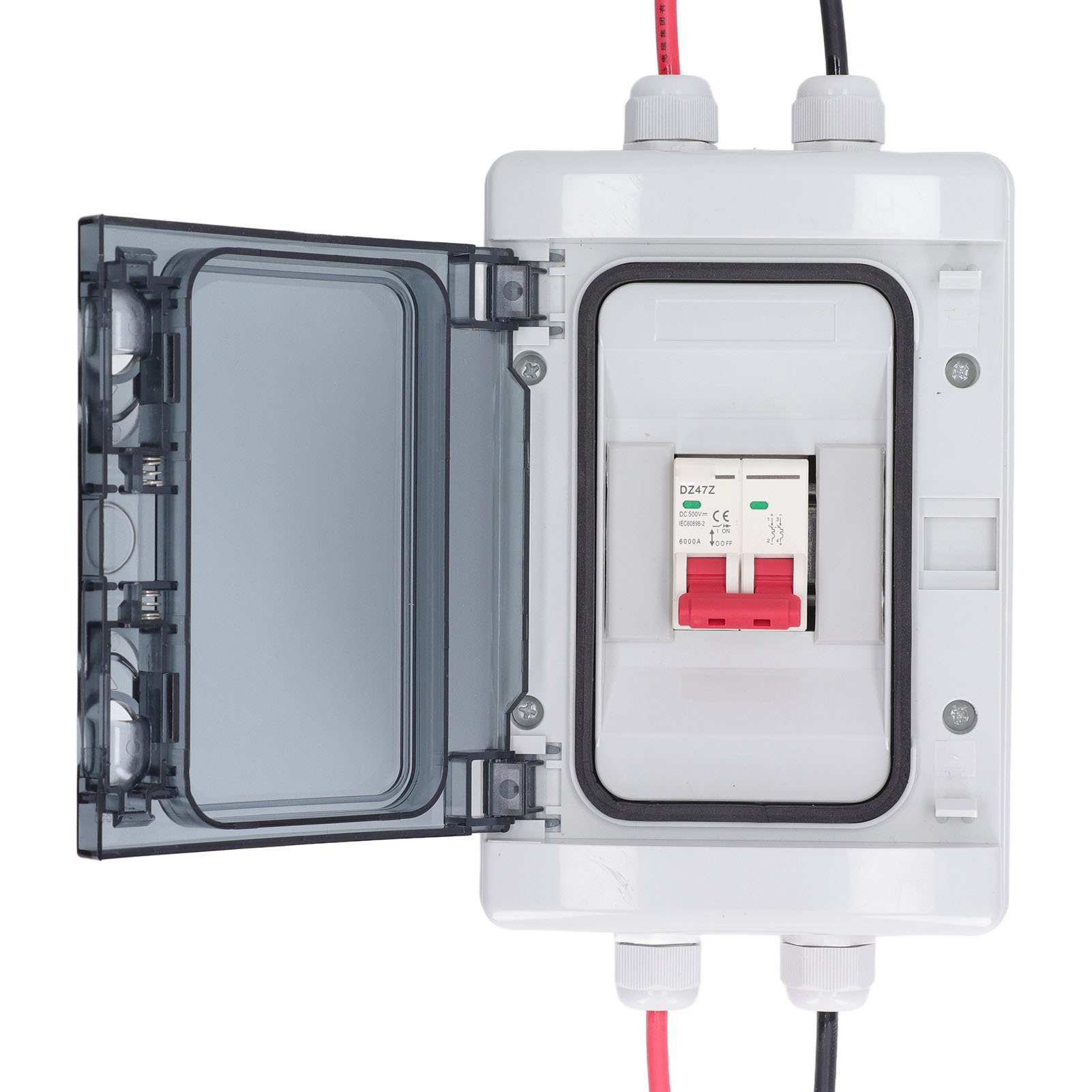

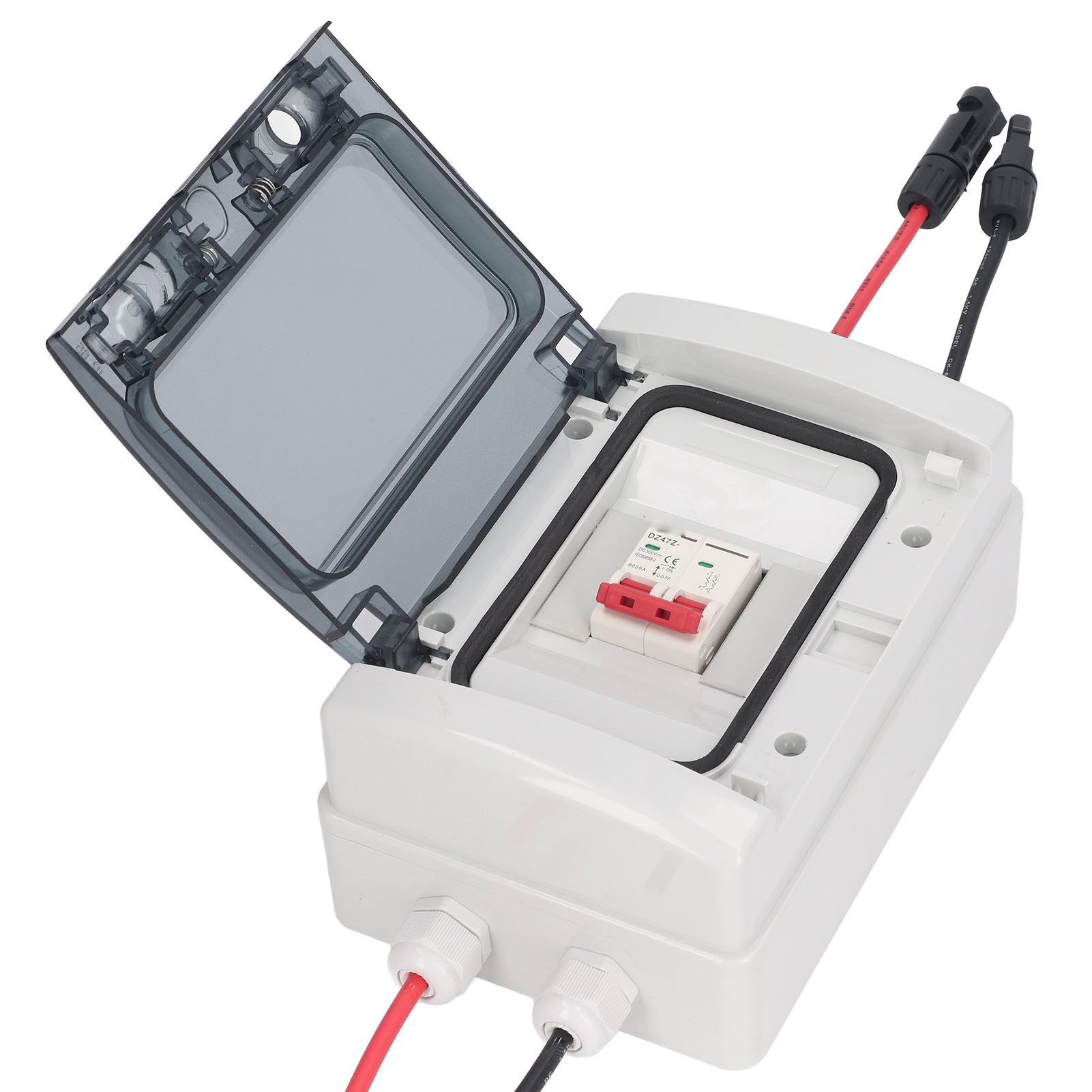

2. FINE CRAFTSMANSHIP: Equipped with the most reliable DC components, protecting the circuit breaker to the fullest, and its transparent cover allows for easy inspection of the status of circuit breaker.

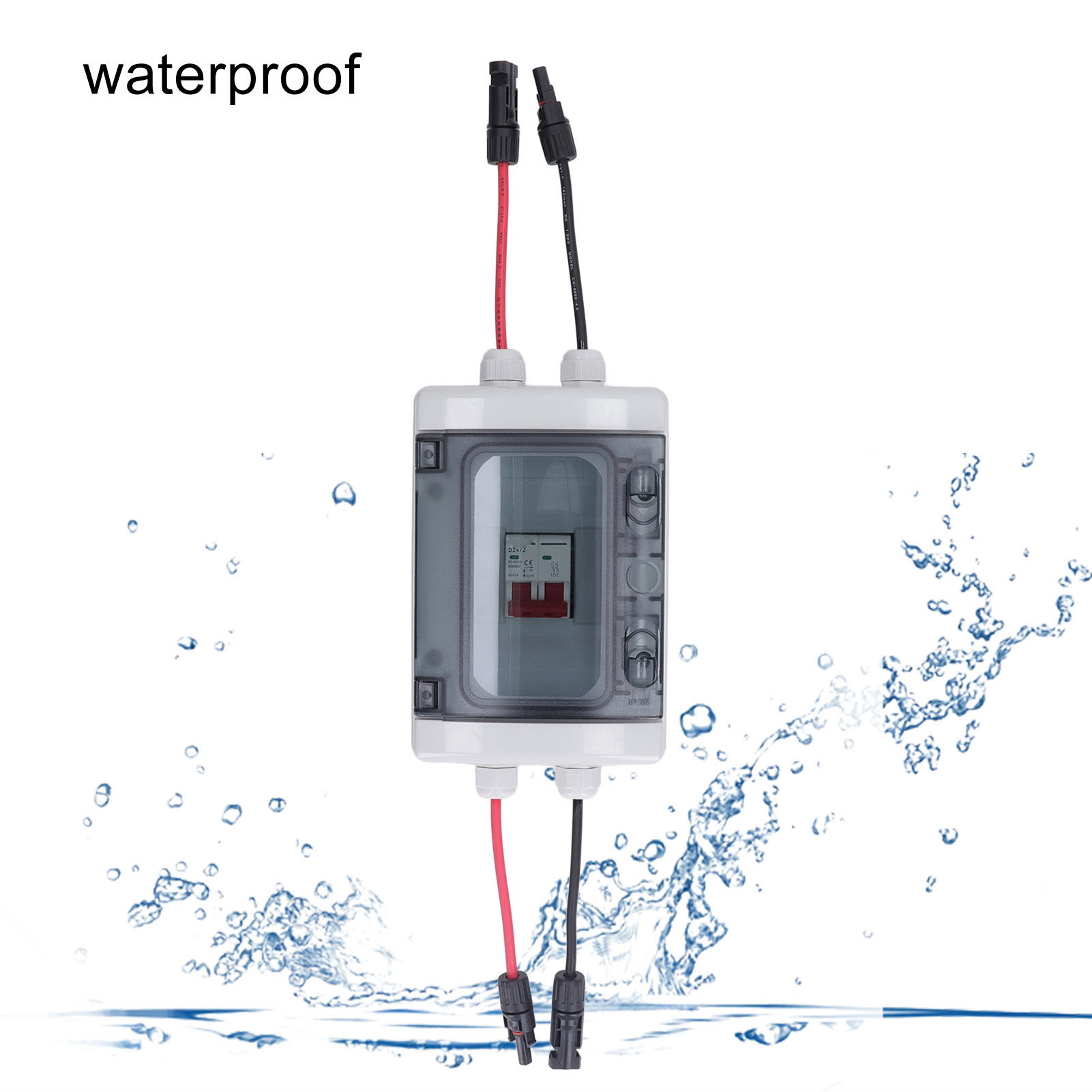

3. IP65 WATERPROOF: This isolator switch allows for both indoor and outdoor installation, built in DC switch equipment can effectively preserve against adverse weather and environmental conditions.

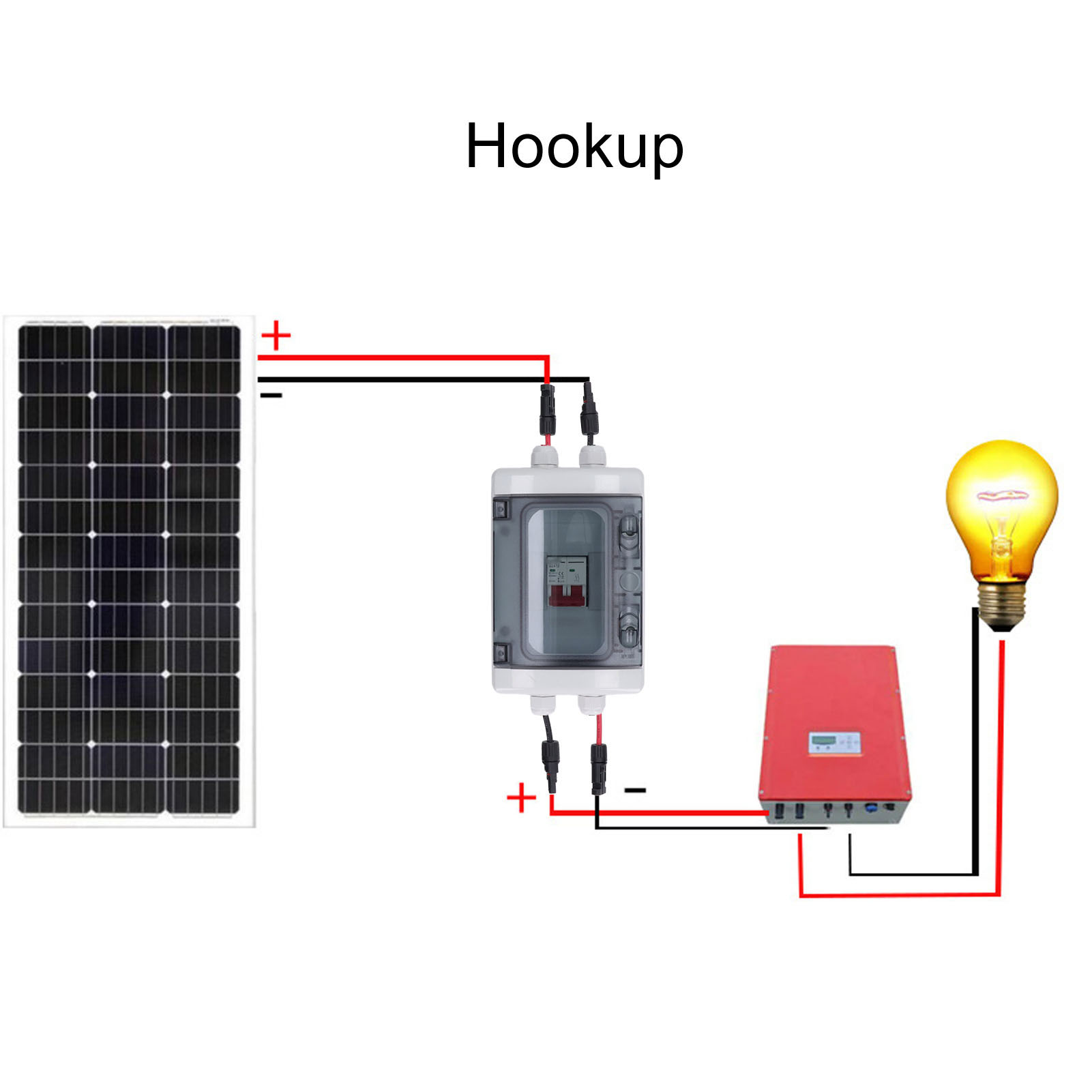

4. EASY INSTALLATION: The DC500V circuit breaker box is installed between the solar panel and the solar inverter, allowing for quick and safe installation.

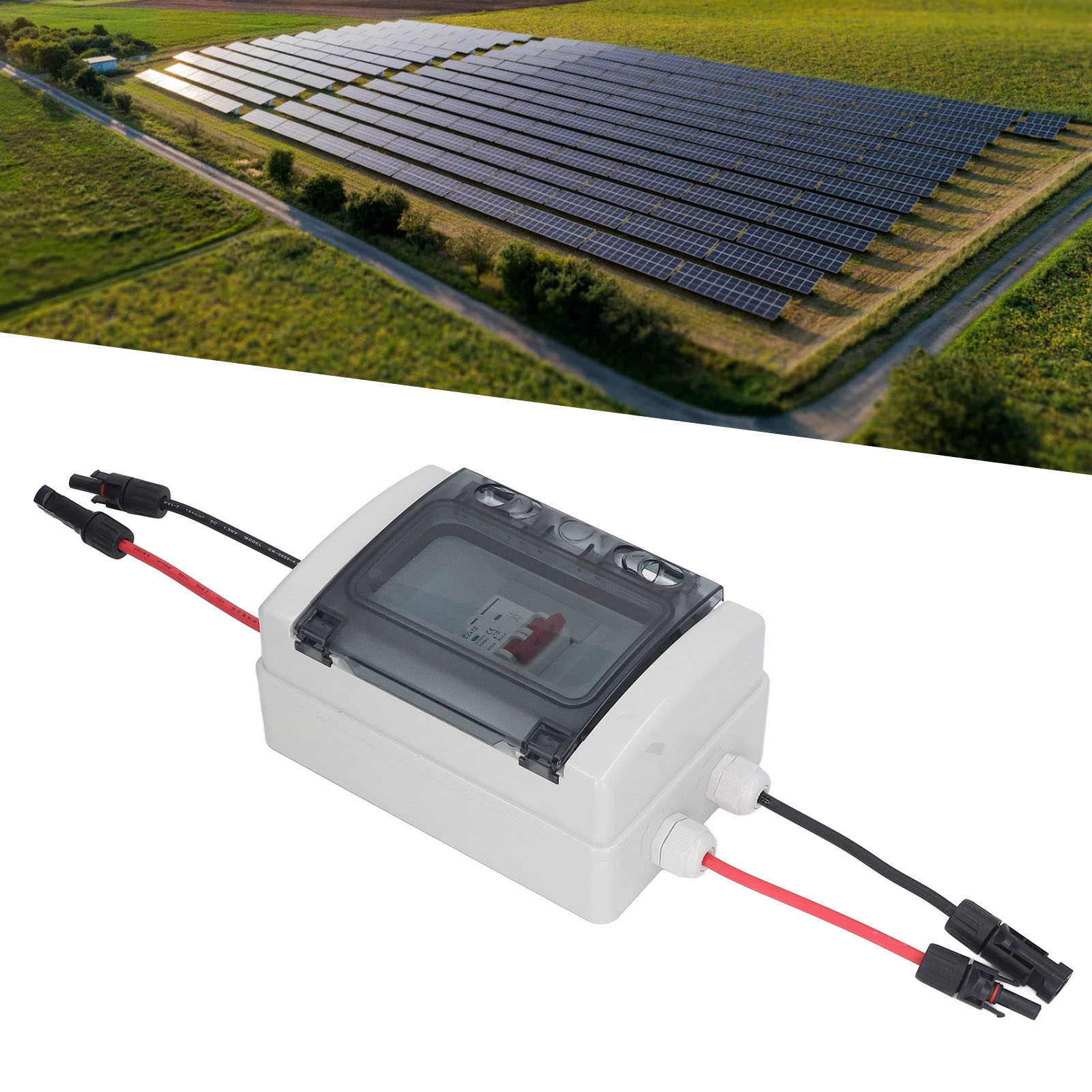

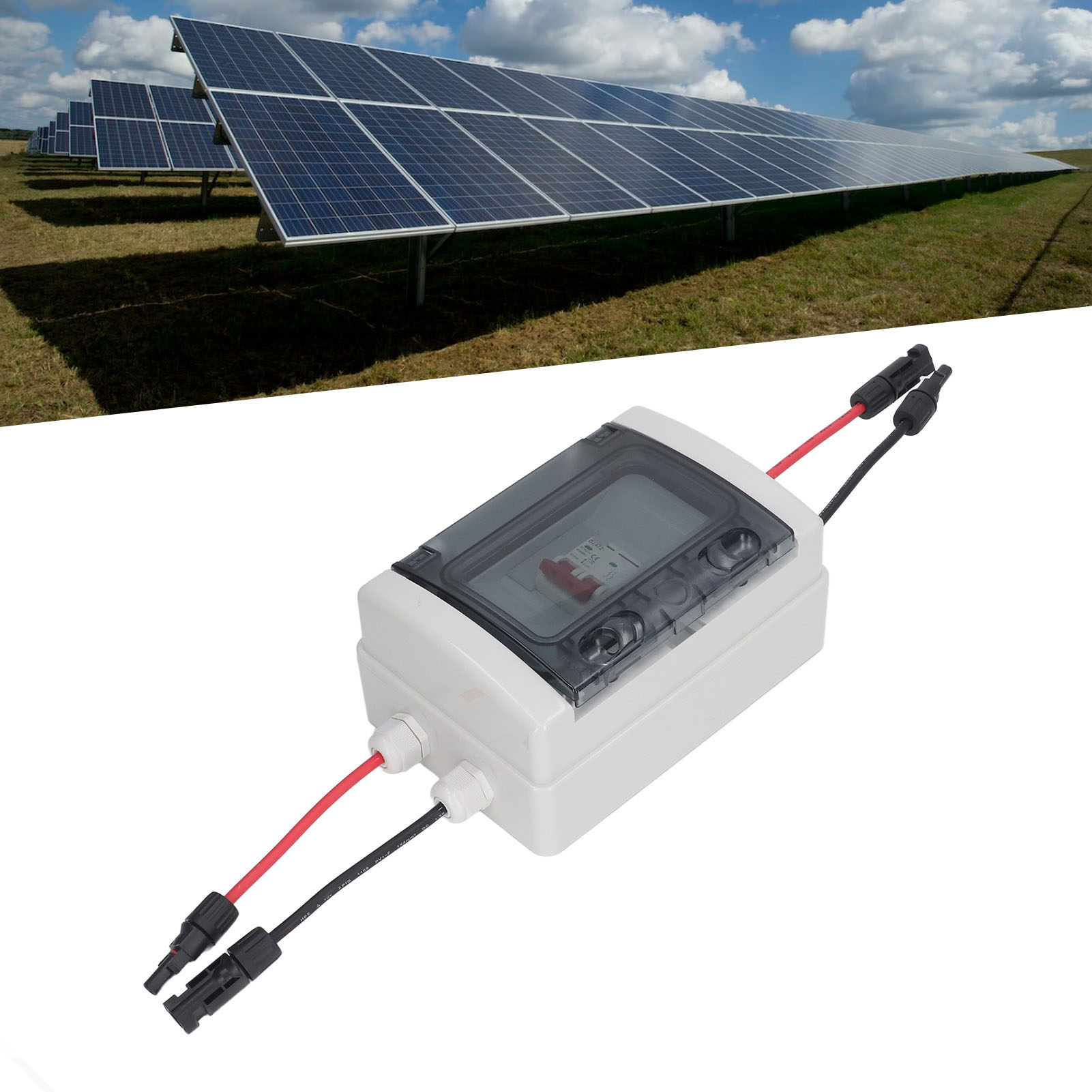

5. WIDE APPLICATION: This miniature circuit breaker is suitable for grid connected and off grid solar panel systems, solar power generation systems, photovoltaic arrays, and RV solar systems.

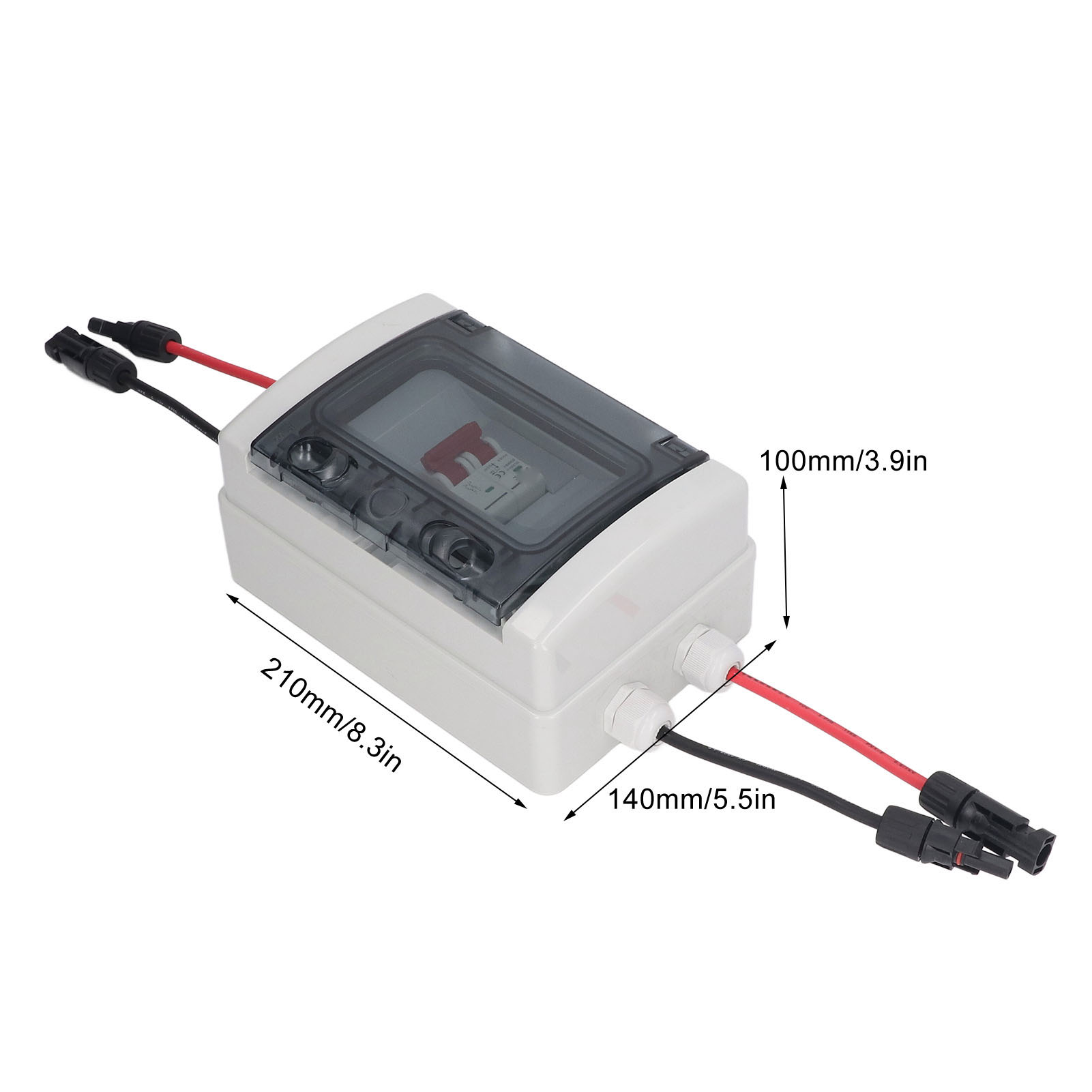

Specification:

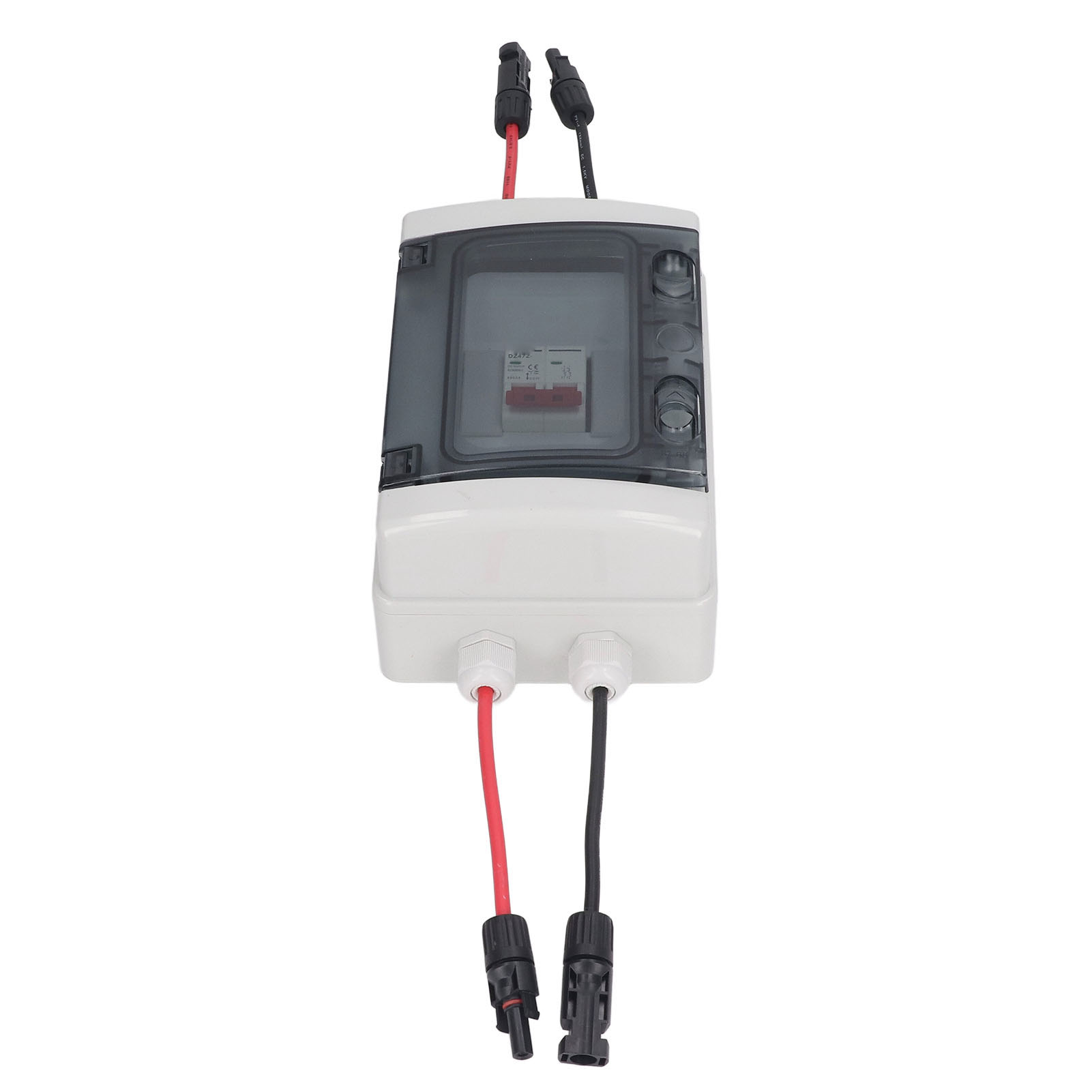

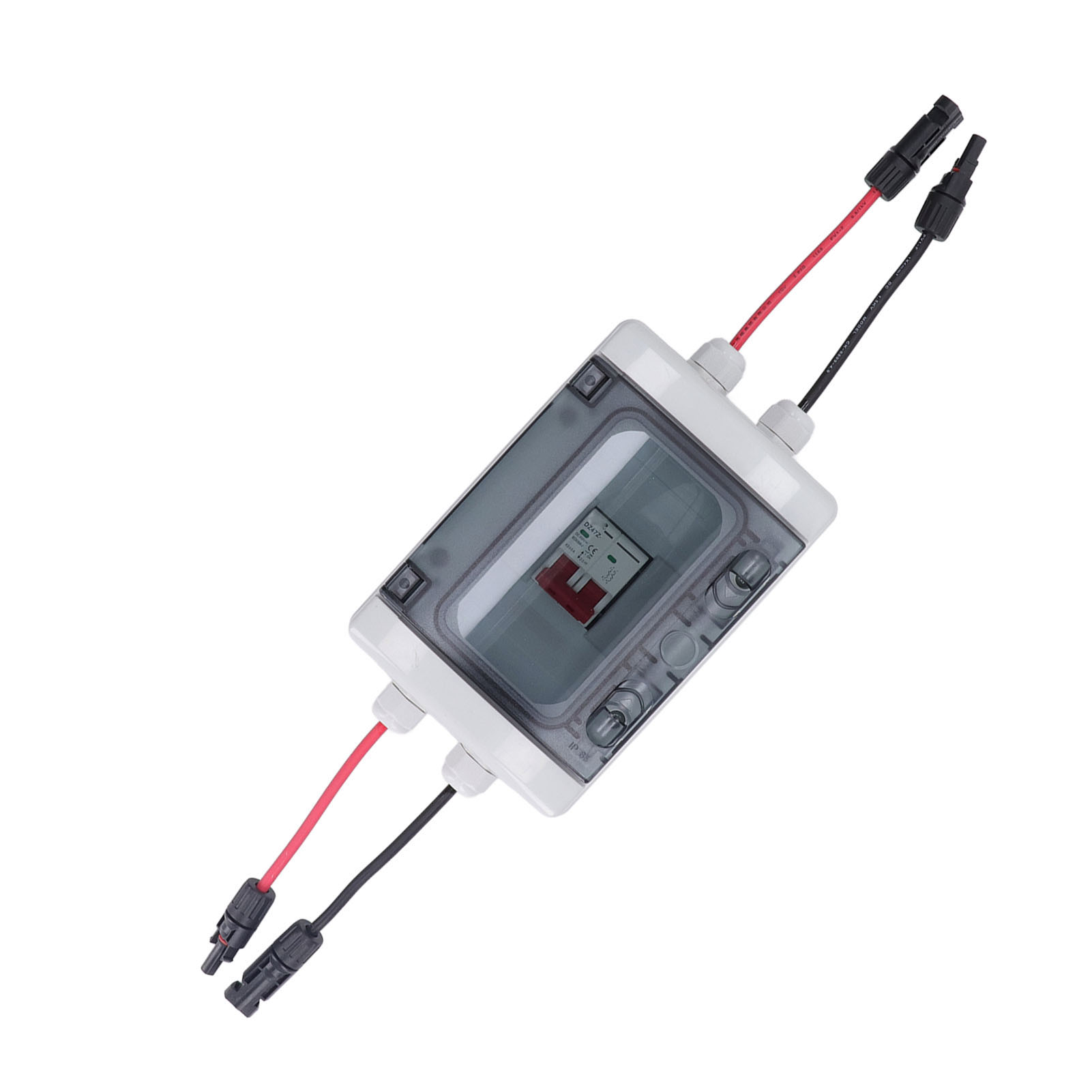

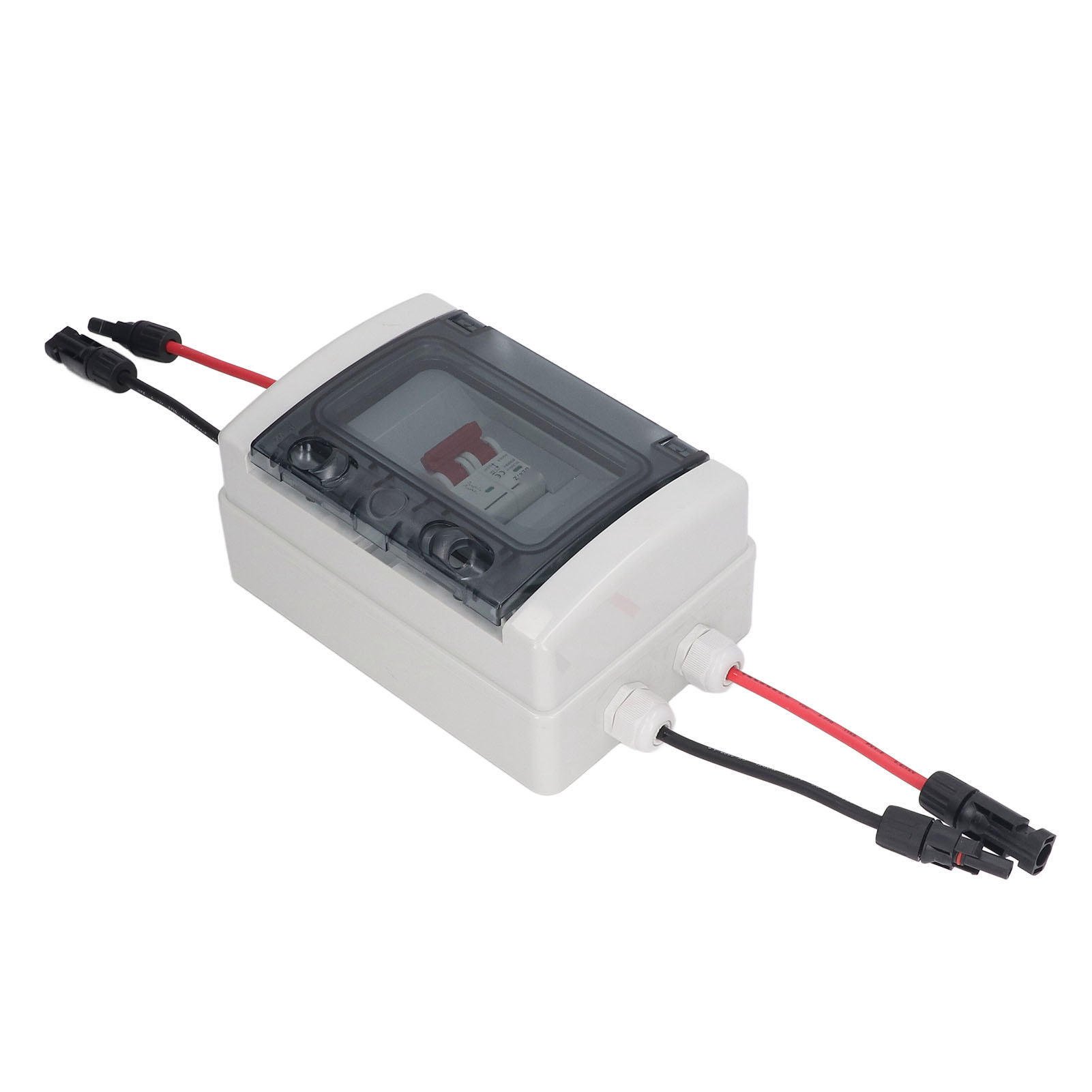

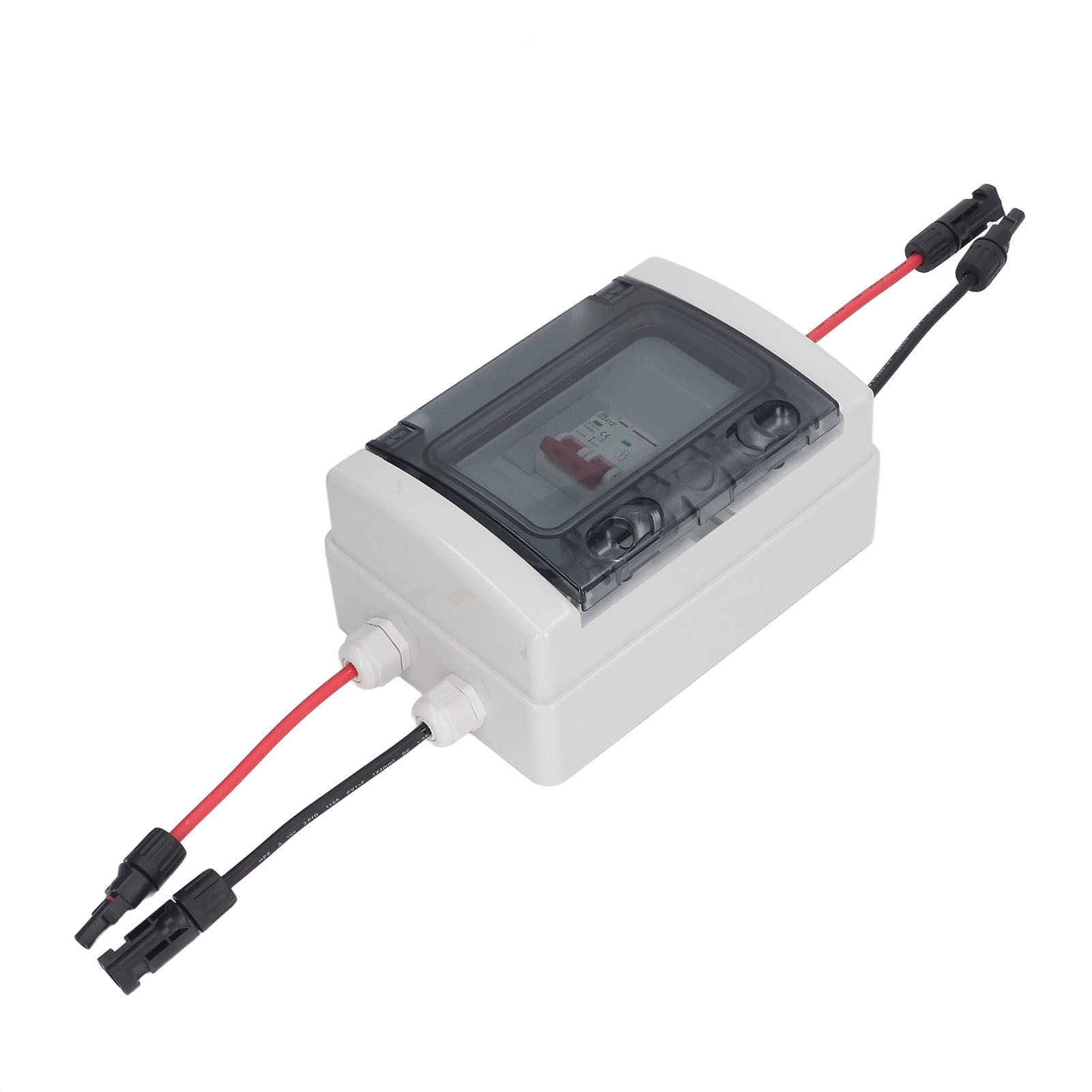

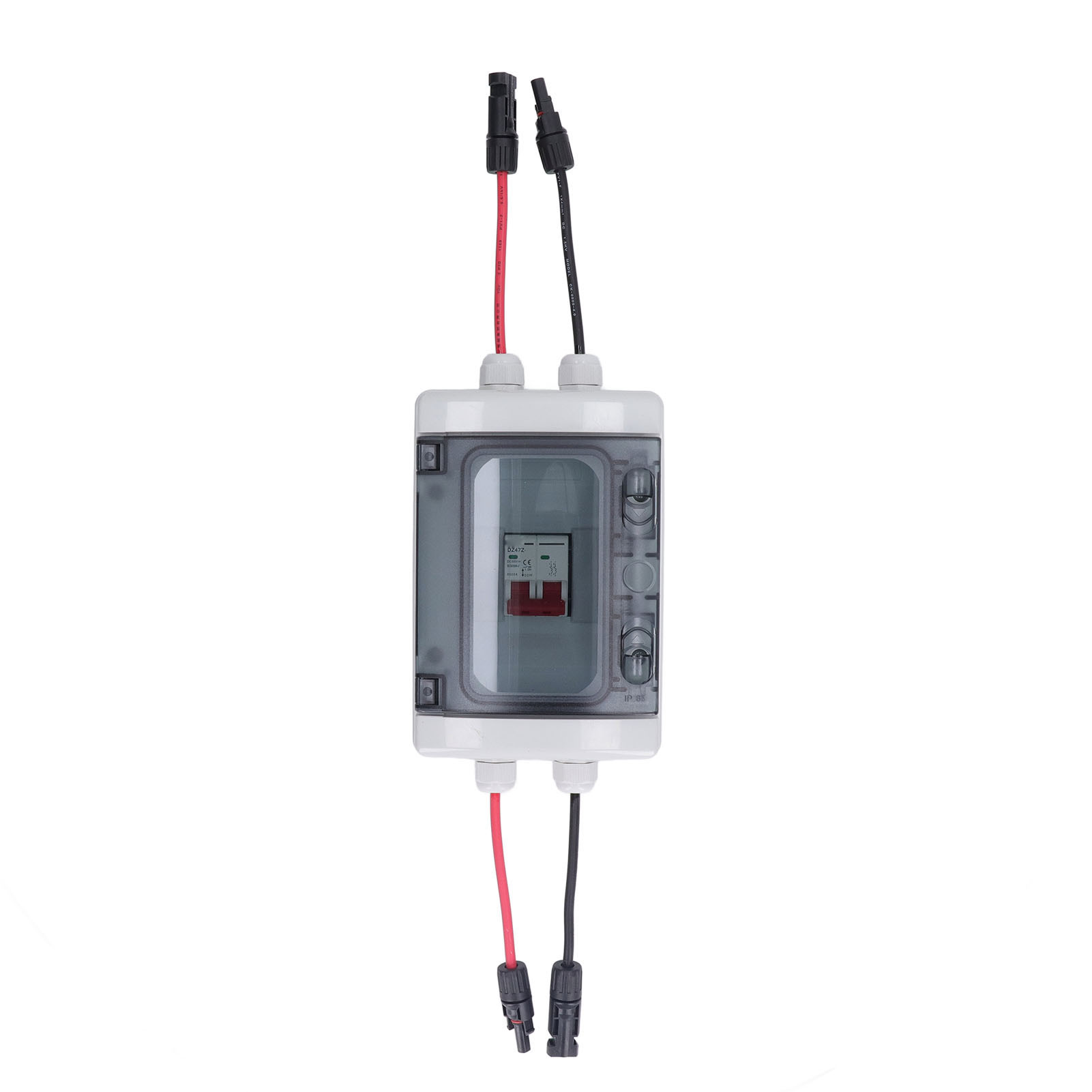

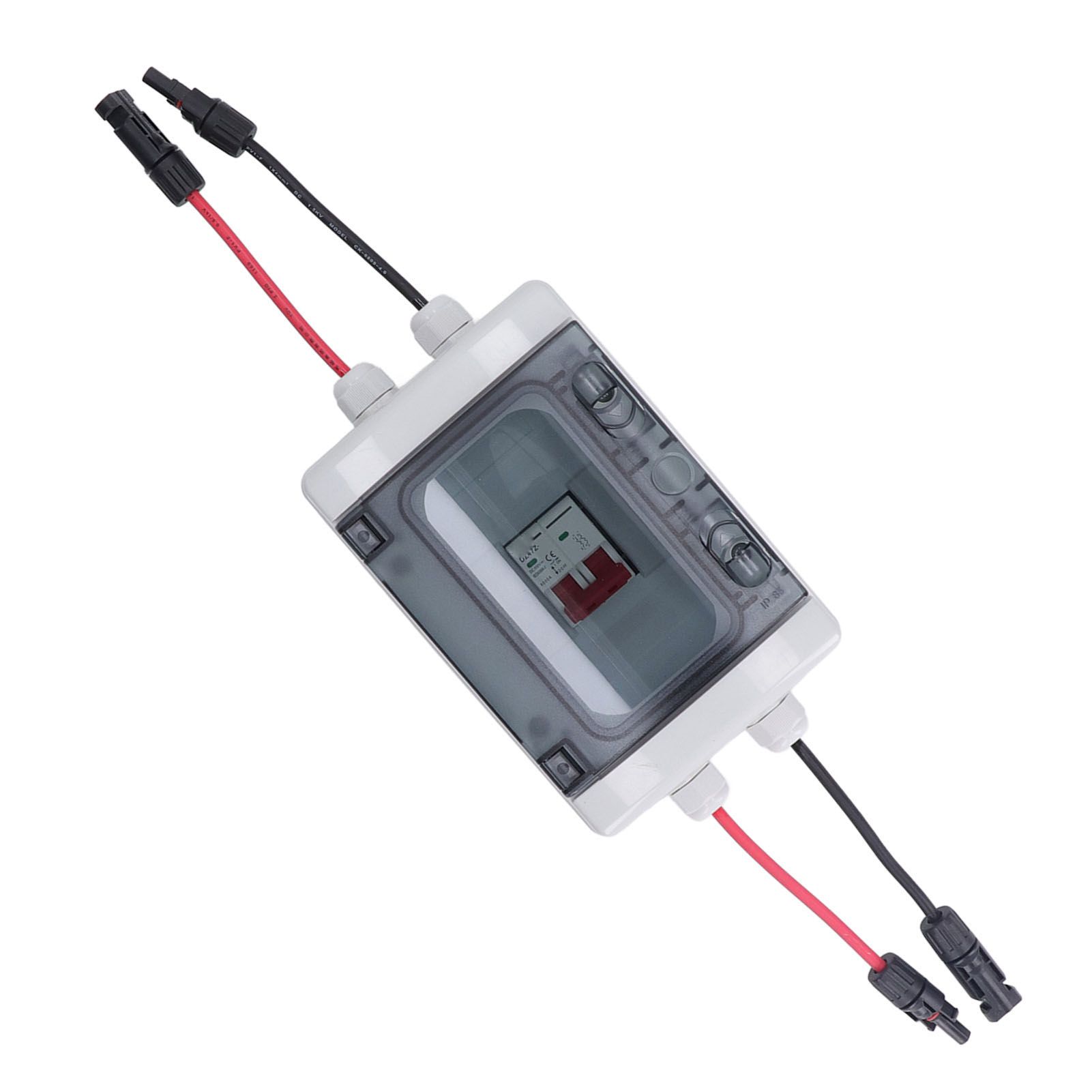

Item Type: DC Circuit Breaker
Material: Polycarbonate, ABS
Maximum Voltage: 500V
Protection Grade: IP65
Cable Input Port: 4²
Output Cable Sealed Sleeve: 4²
DC Circuit Breaker:
Rated Insulation Voltage (Ui): 500V
Maximum Working Voltage (Ucpv): 500V
Rated Working Voltage: 500V

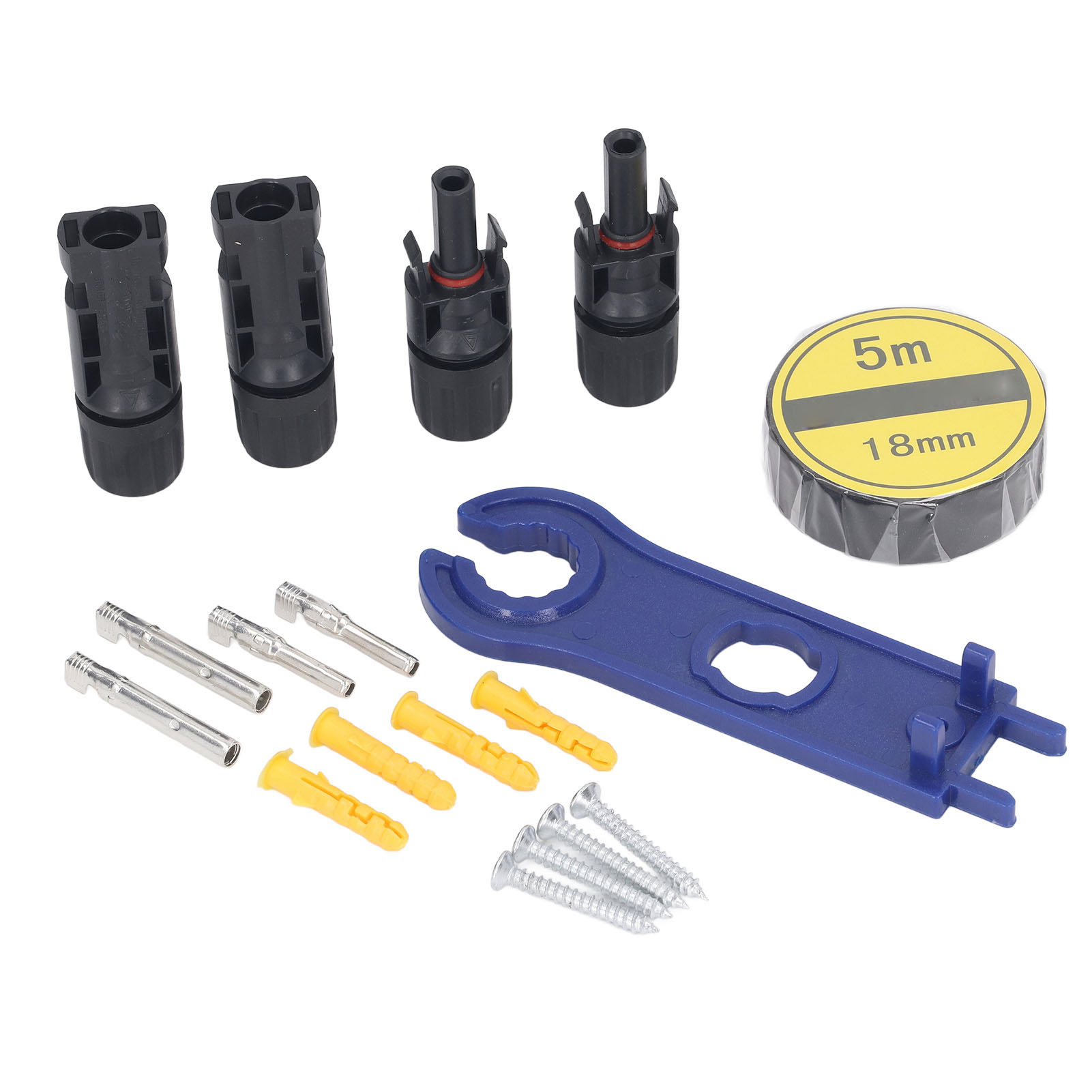

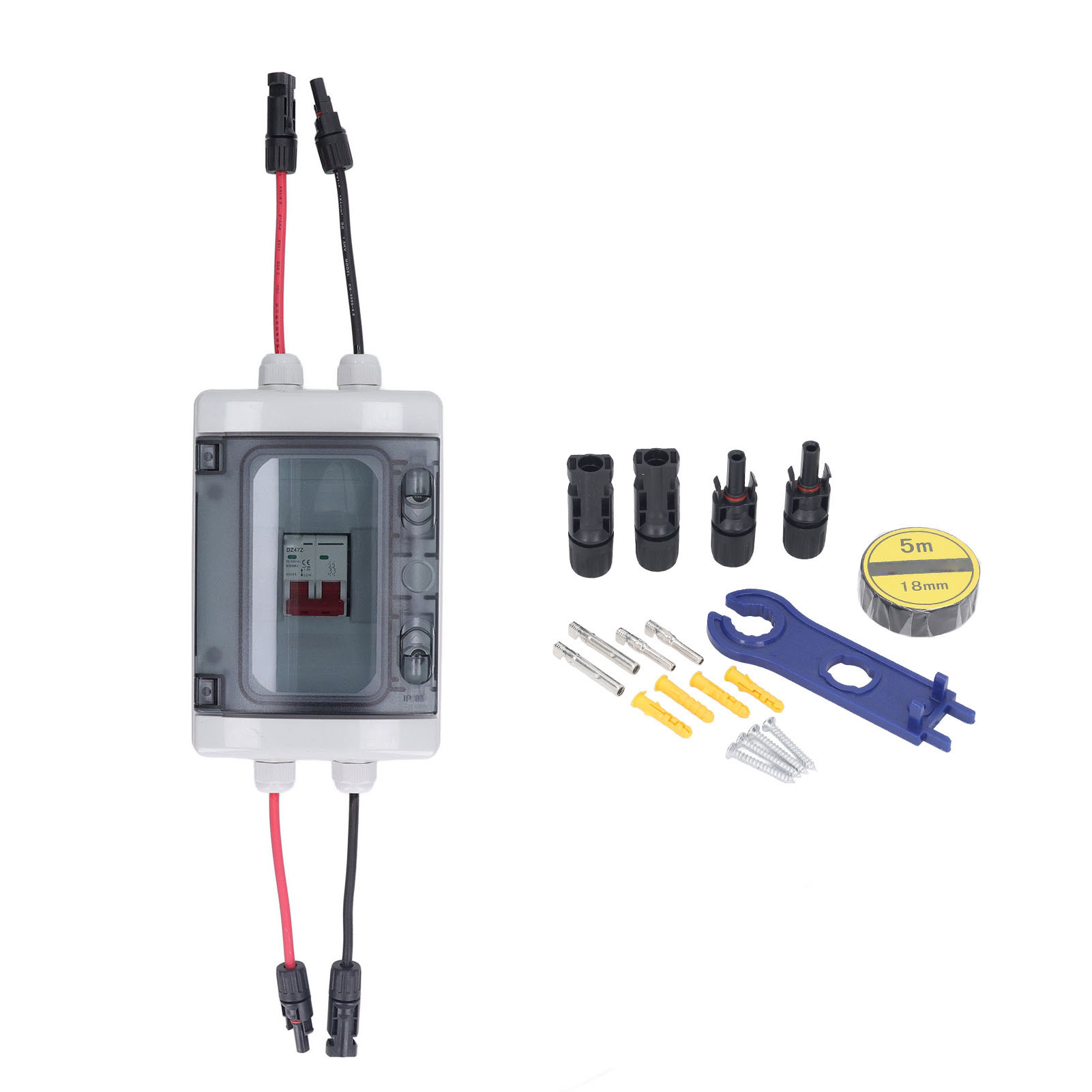

Package List:

1 x DC Circuit Breaker

4 x Connector (2 x Male, 2 x Female)

4 x

4 x Screw

4 x Anchor

1 x Wrench

1 x User Manual
