Feature:

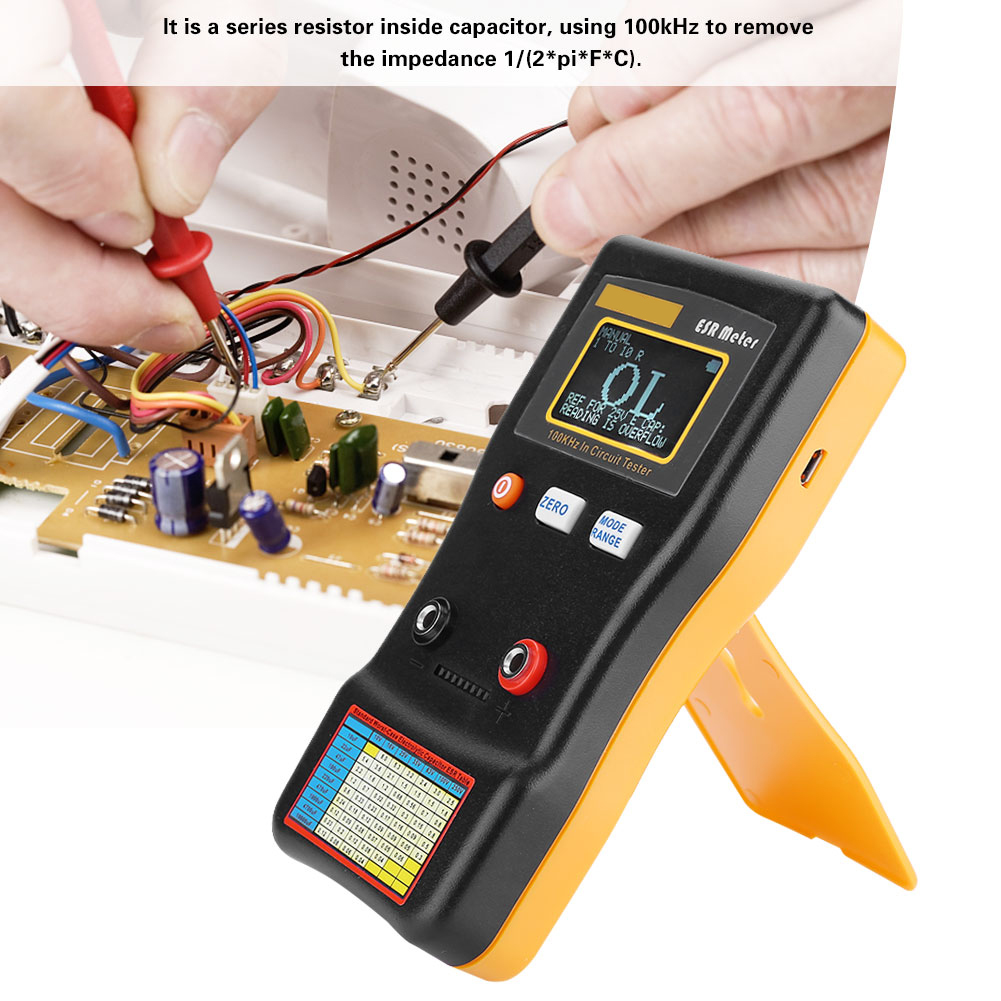

1. It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
2. The impedance become small, and we can then measure the true series resistor value.
3. Using this , we can measure the capacitor is bad/ damaged or good in condition.
4. Our meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.

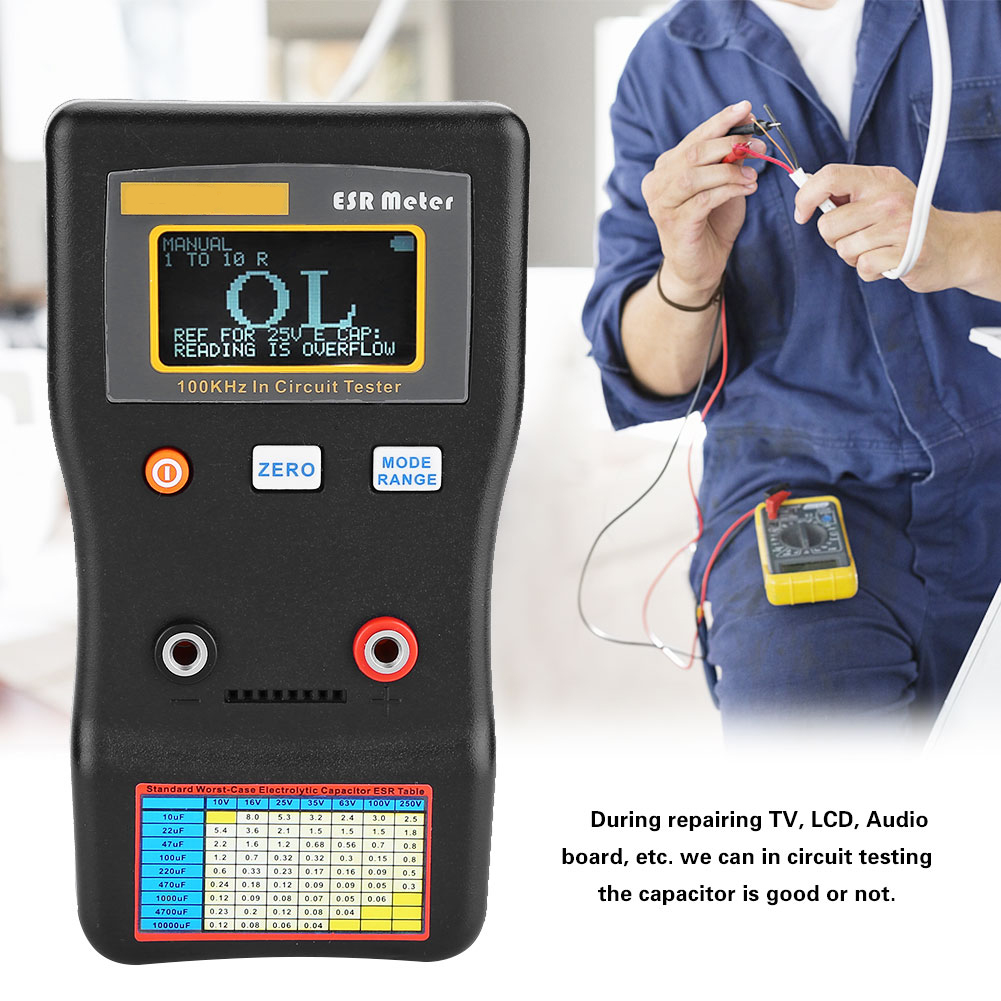

5. During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
Specification:
- It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
- The impedance become small, and we can then measure the true series resistor value.
- Using this , we can measure the capacitor is bad/ damaged or good in condition.
- Our meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.
- During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
- Dual terminal, for fast and easy inspect general capacitor or resistor, a printed table for fast check.
Specifications:
|
Model |
MESR-100 |
|
|
Range |
Accuracy (After Zero, tested with 1,10,100R resistor) |
Refresh Time (Manual Mode) |
|
*Auto mode take 0 to 2s more time on value |
||
|
0.000 to 1.000R |
1%+2Digit |
0.4s |
|
1.000 to 10.00R |
1%+1Digit |
0.4s |
|
10.00 to 100.0R |
2%+1Digit |
0.4s |
|
Accuracy |
Up to 1% (detail on above table) Wide Measurement Range: >1uF (for 0.1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz ) |
|
|
High Resolution |
4 digit, or 0.001Ohm @ 1 Ohm range |
|
|
Measuring voltage |
<40mV RMS (TESTING VOLTAGE) |
|
|
Clamping voltage |
0.15V (open voltage) |
|
|
Battery |
2X AA 1.5V battery(not included) |
|
|
External Power |
5V micro USB |
|
|
Battery Life time |
>80 Hours |
|
|
Operating current |
0.02A |
|
|
Size |
14.4*8.1*3.1cm/5.7*3.2*1.2in |
|
|
Weight |
Approx.219g/7.7oz |
Package List
1 * Capacitance Meter (battery not included)

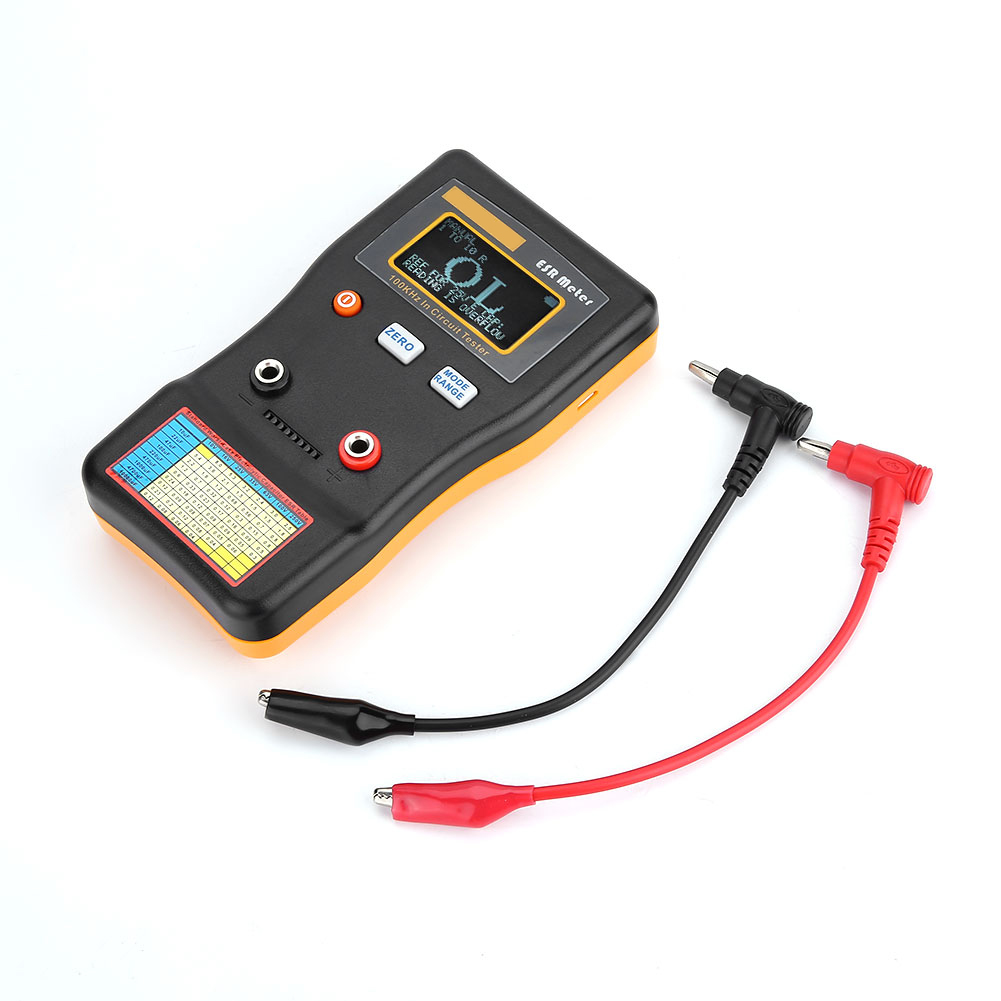

2 * Test Clips
1 * User Manual
