Feature:

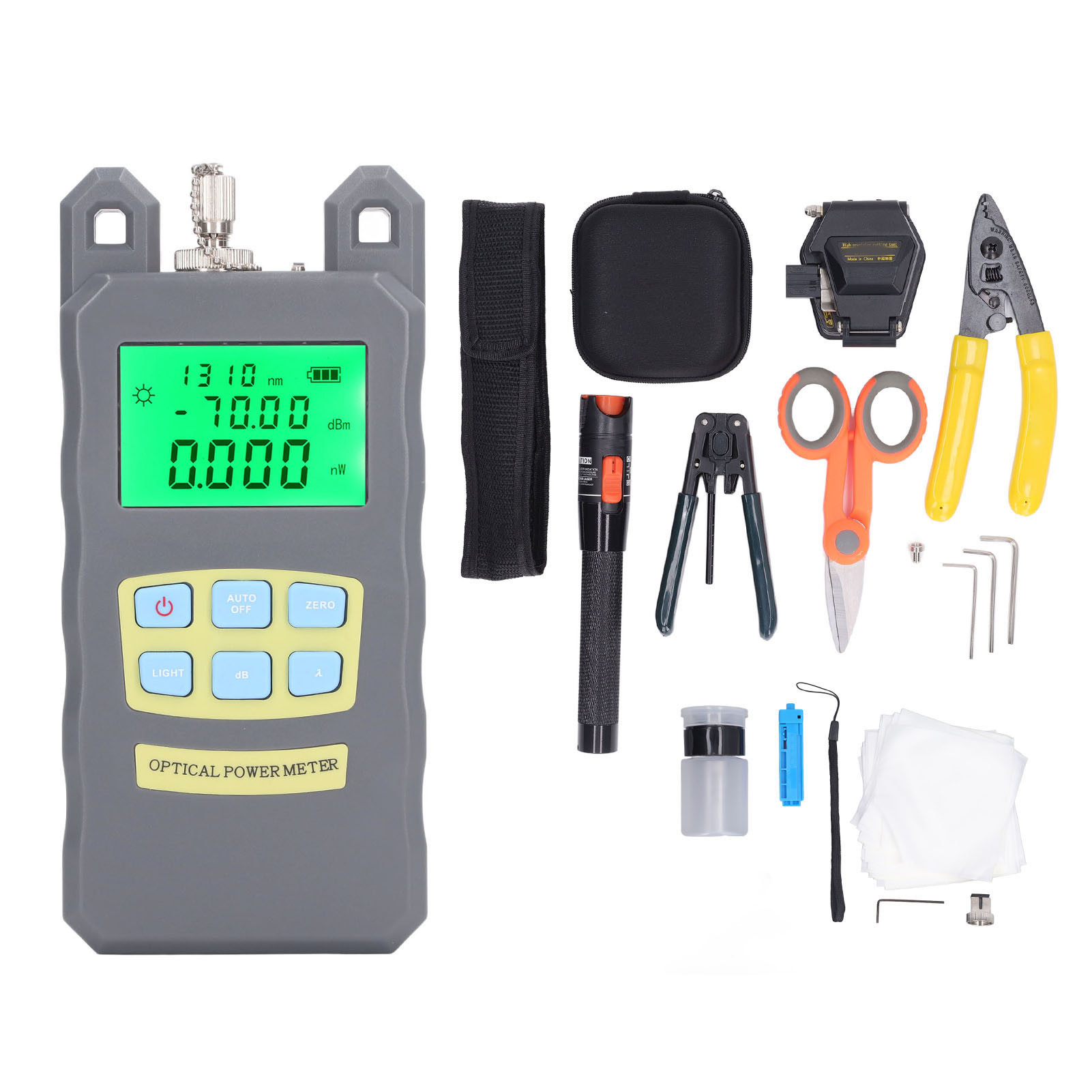

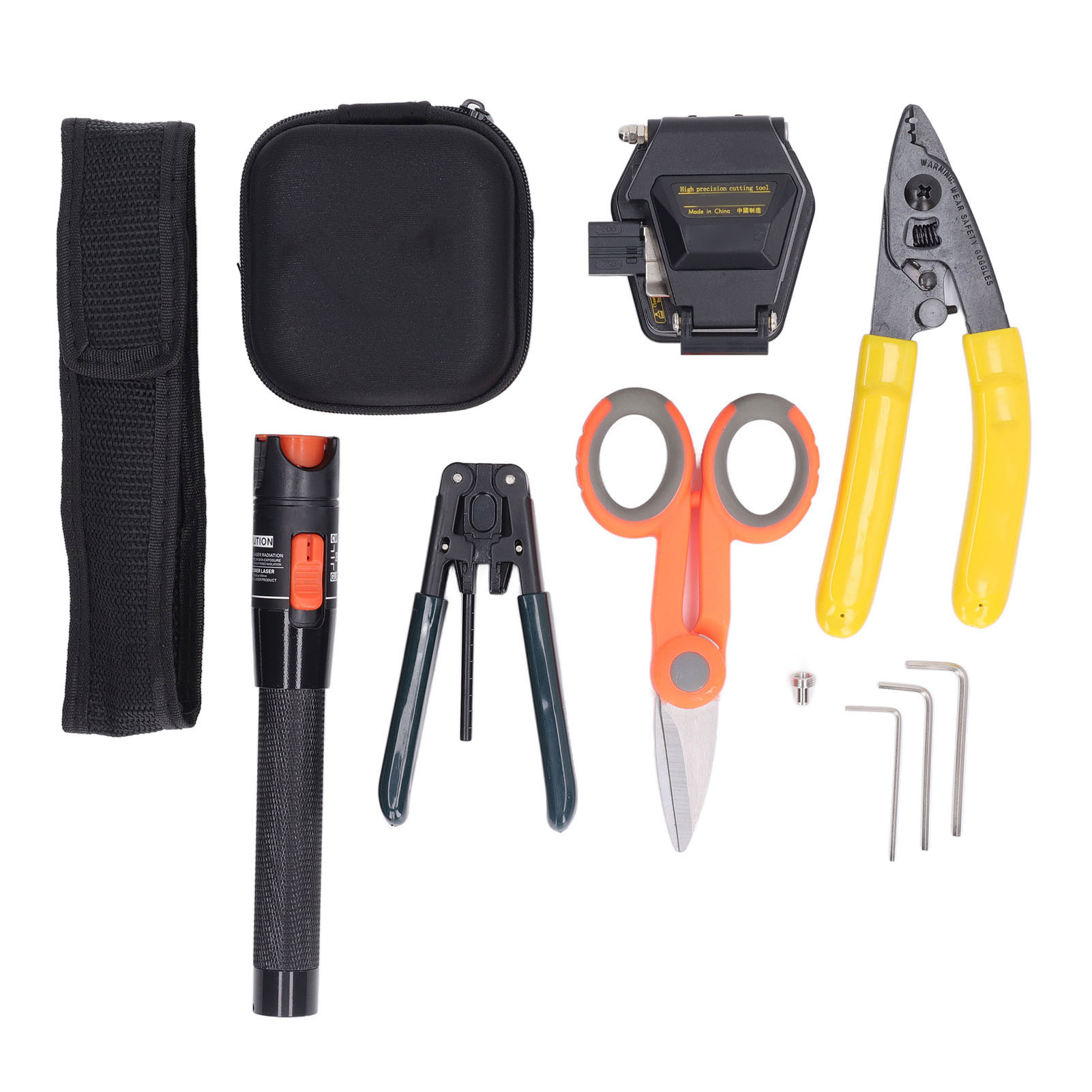

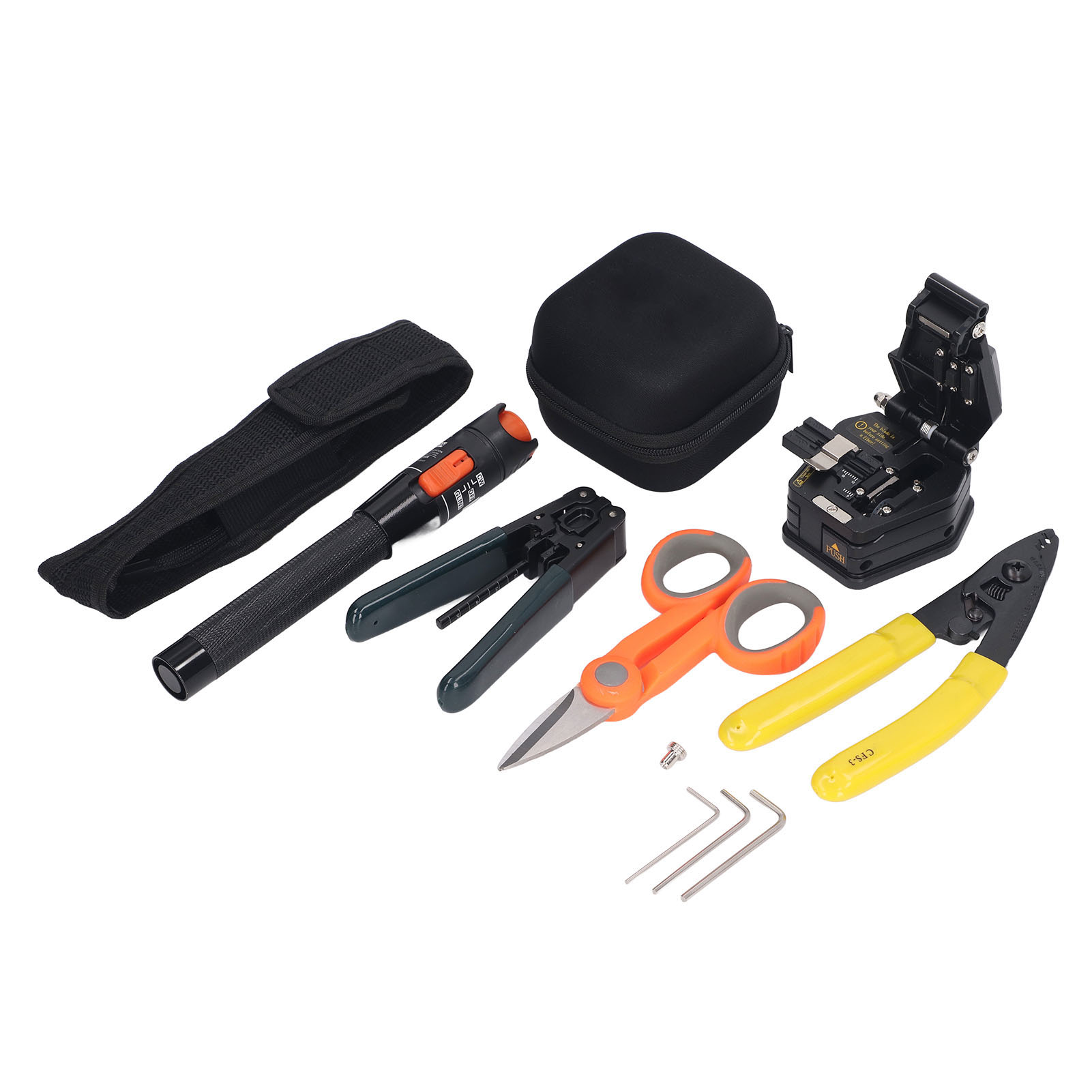

1. PACKAGE INCLUDE: This complete FTTH fiber optic tool kit includes DXP20B optical meter, fiber , stripper, pliers, wrench, length fixer and other accessories, as well as tool storage package

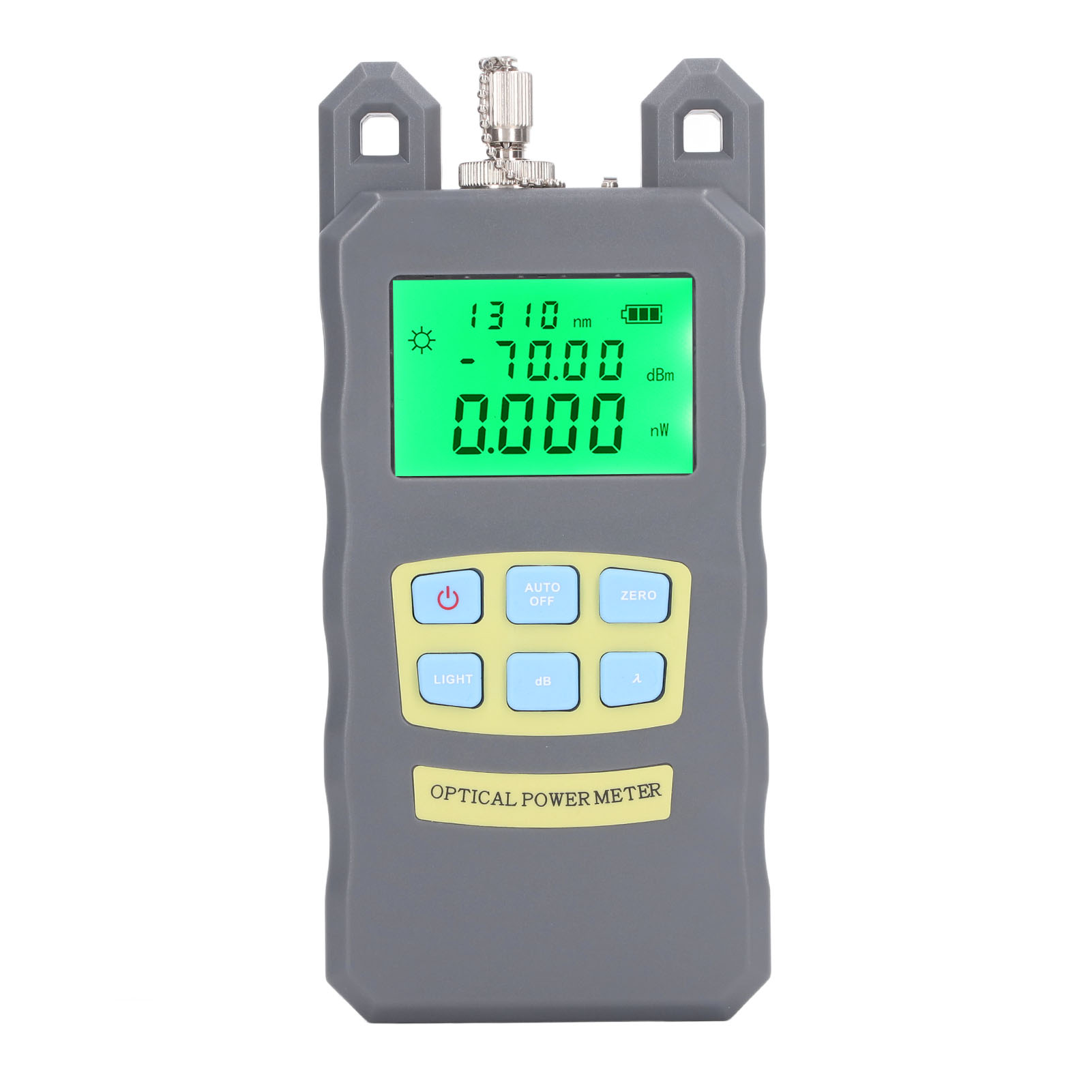

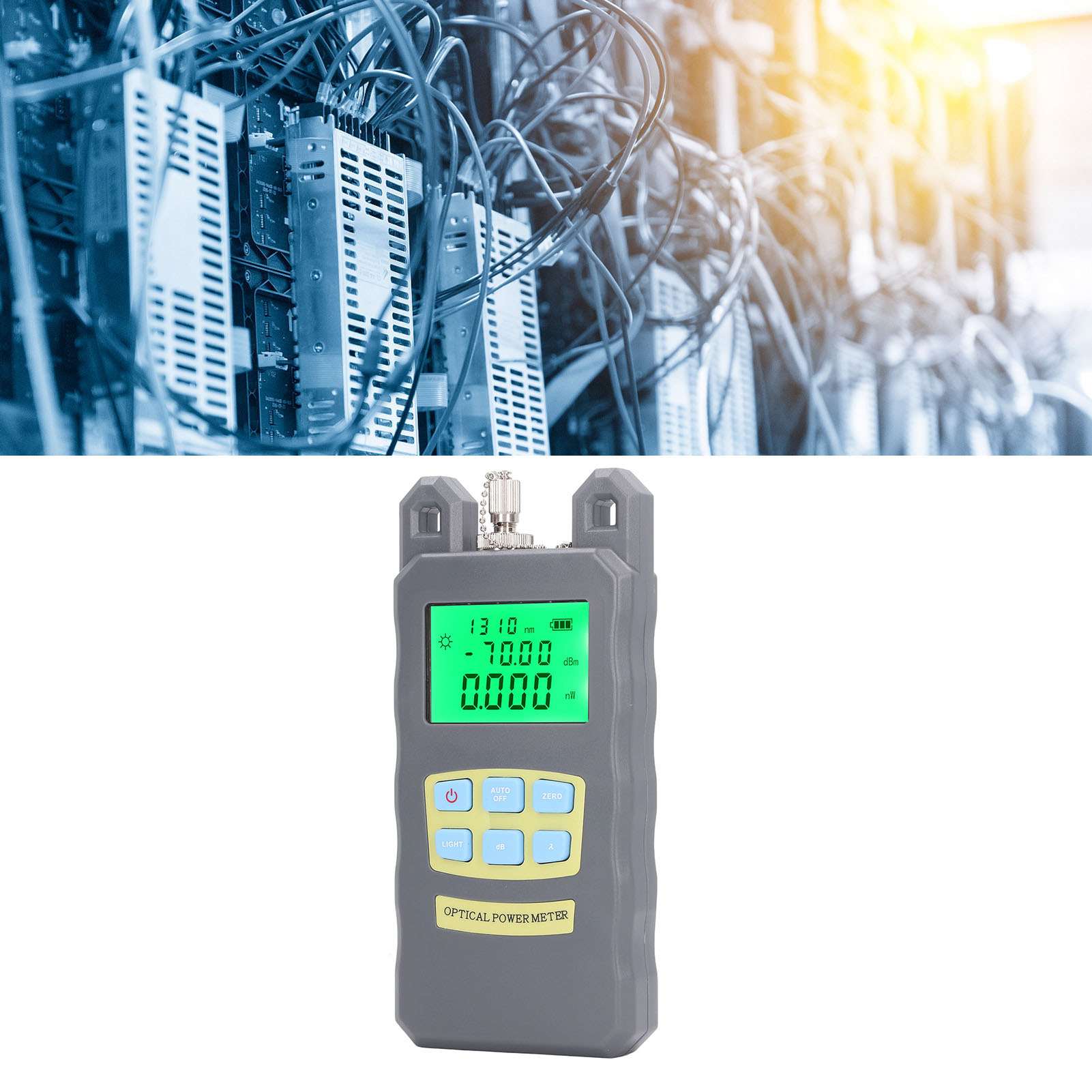

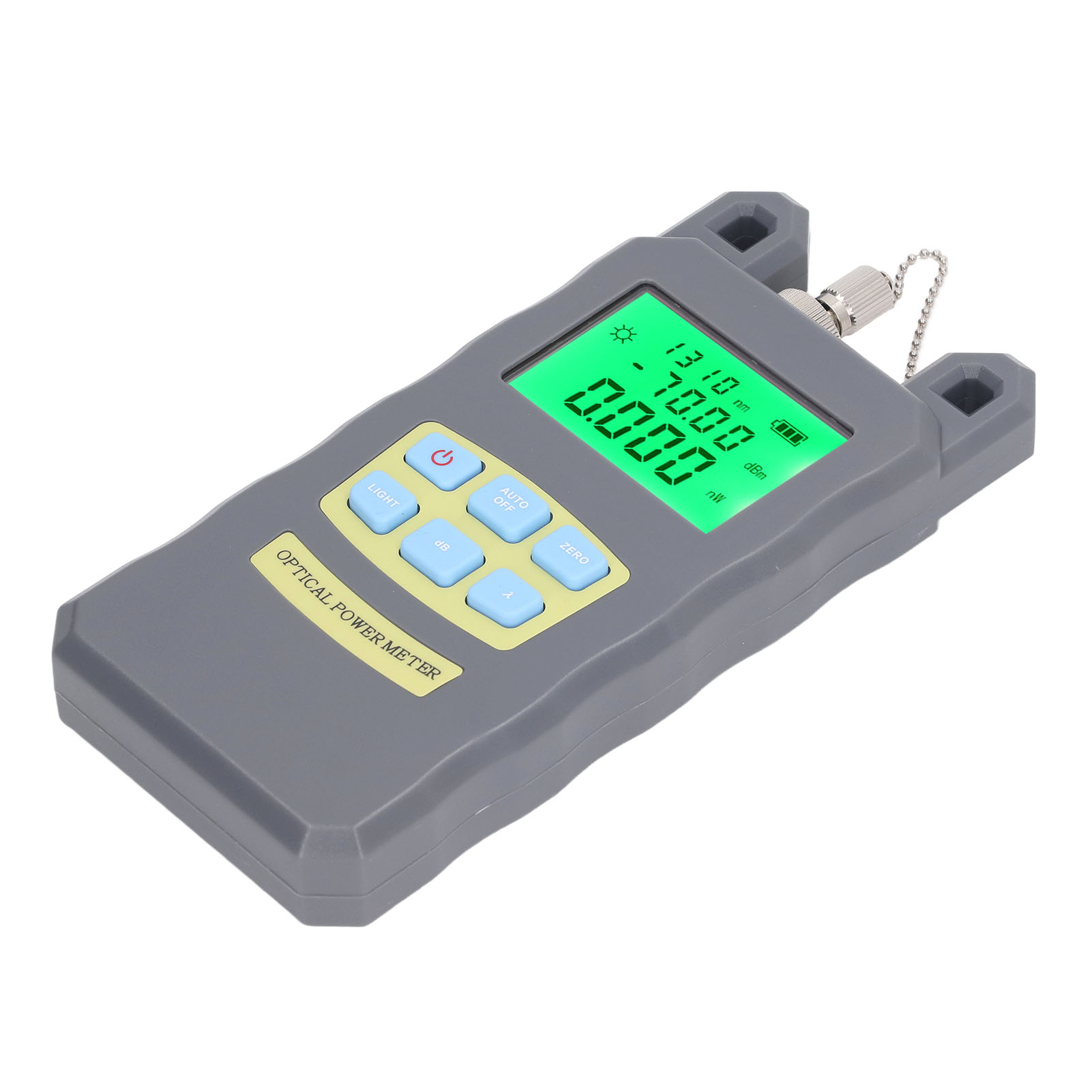

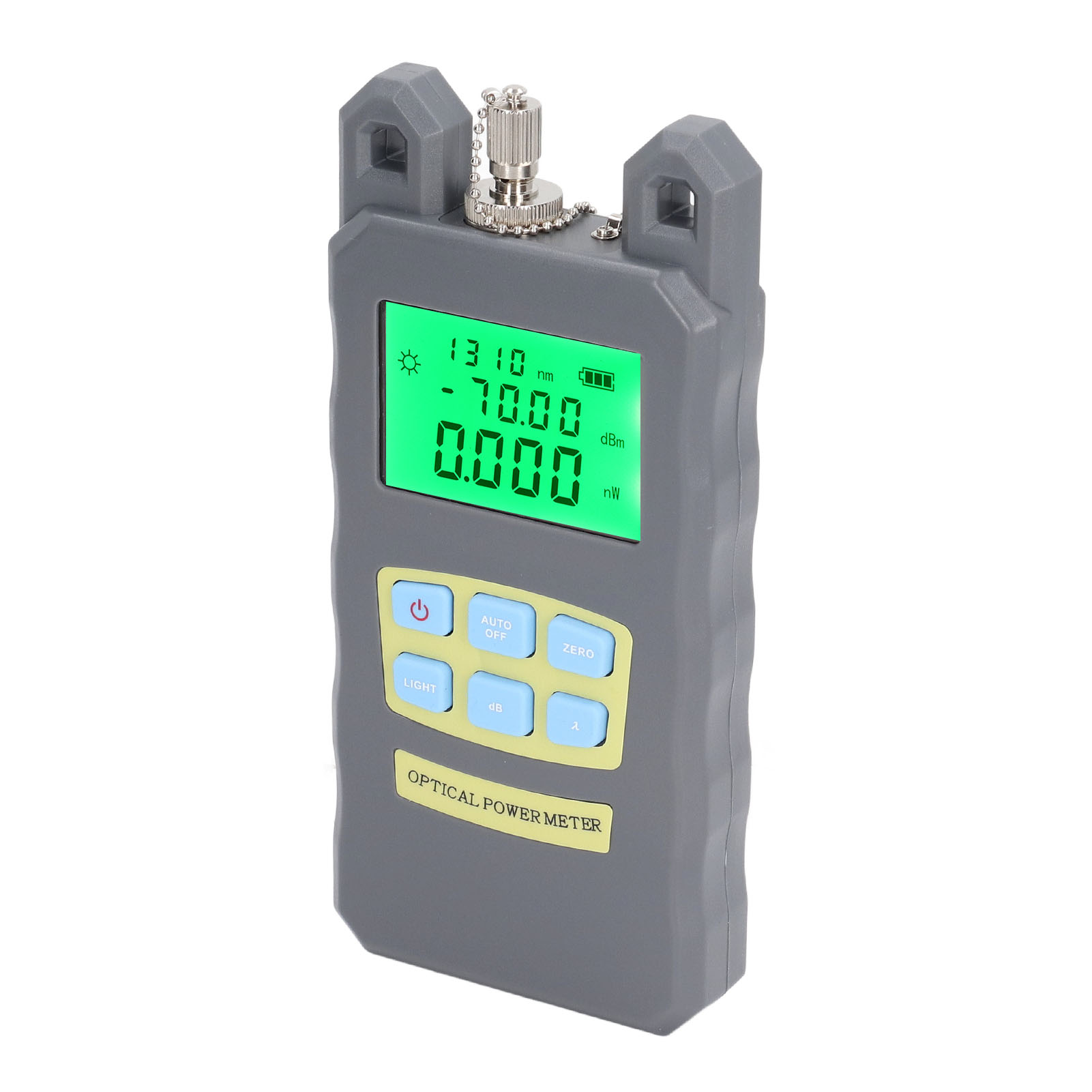

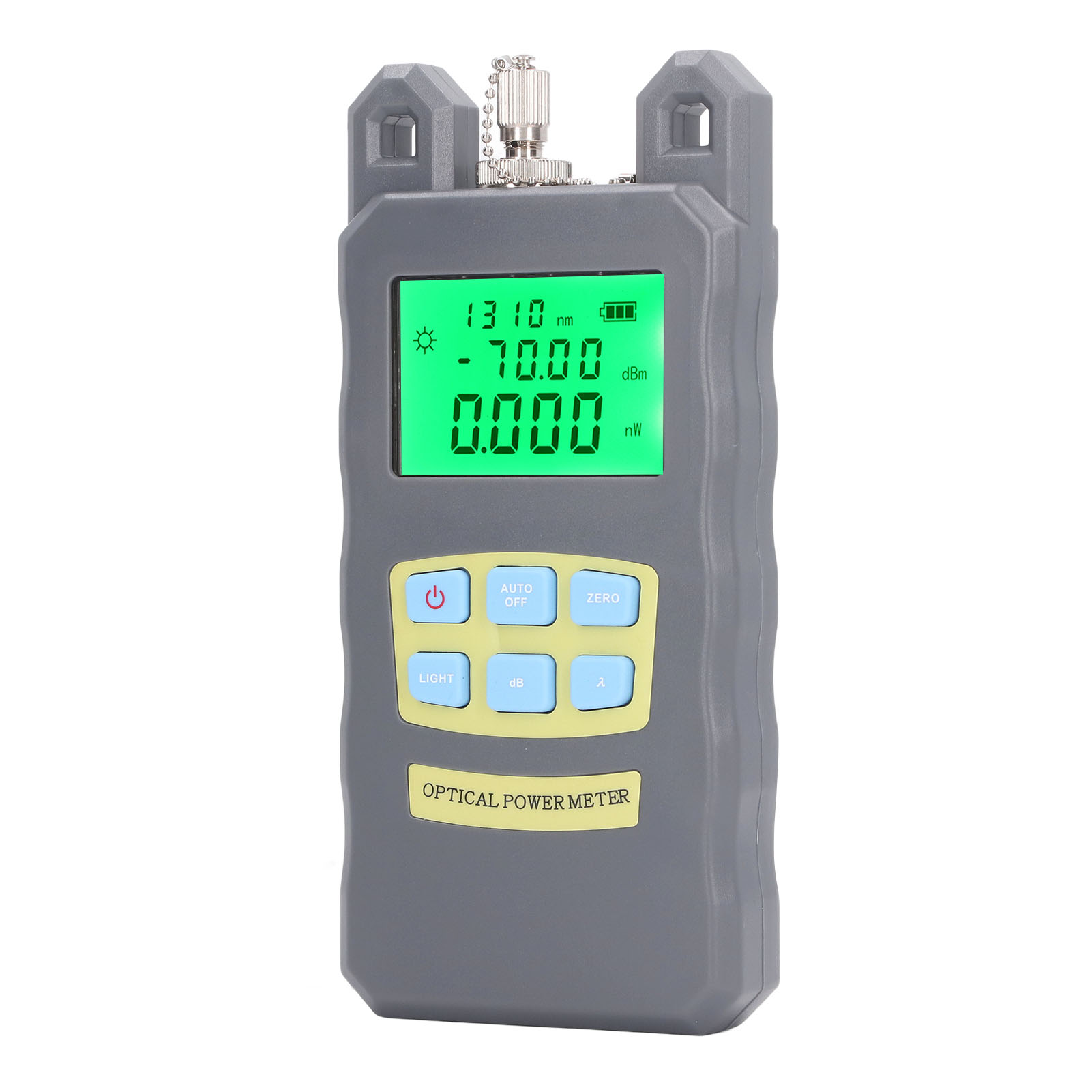

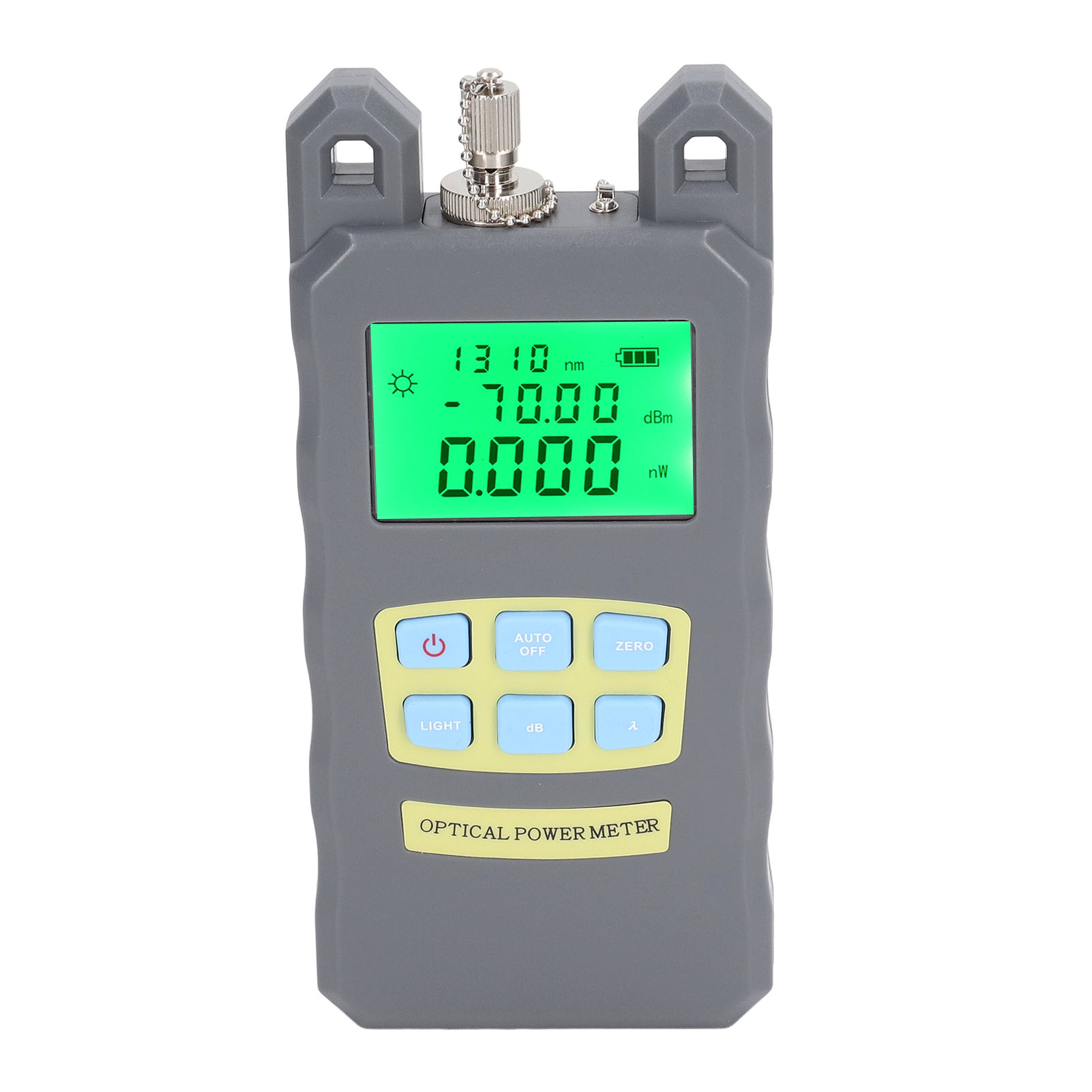

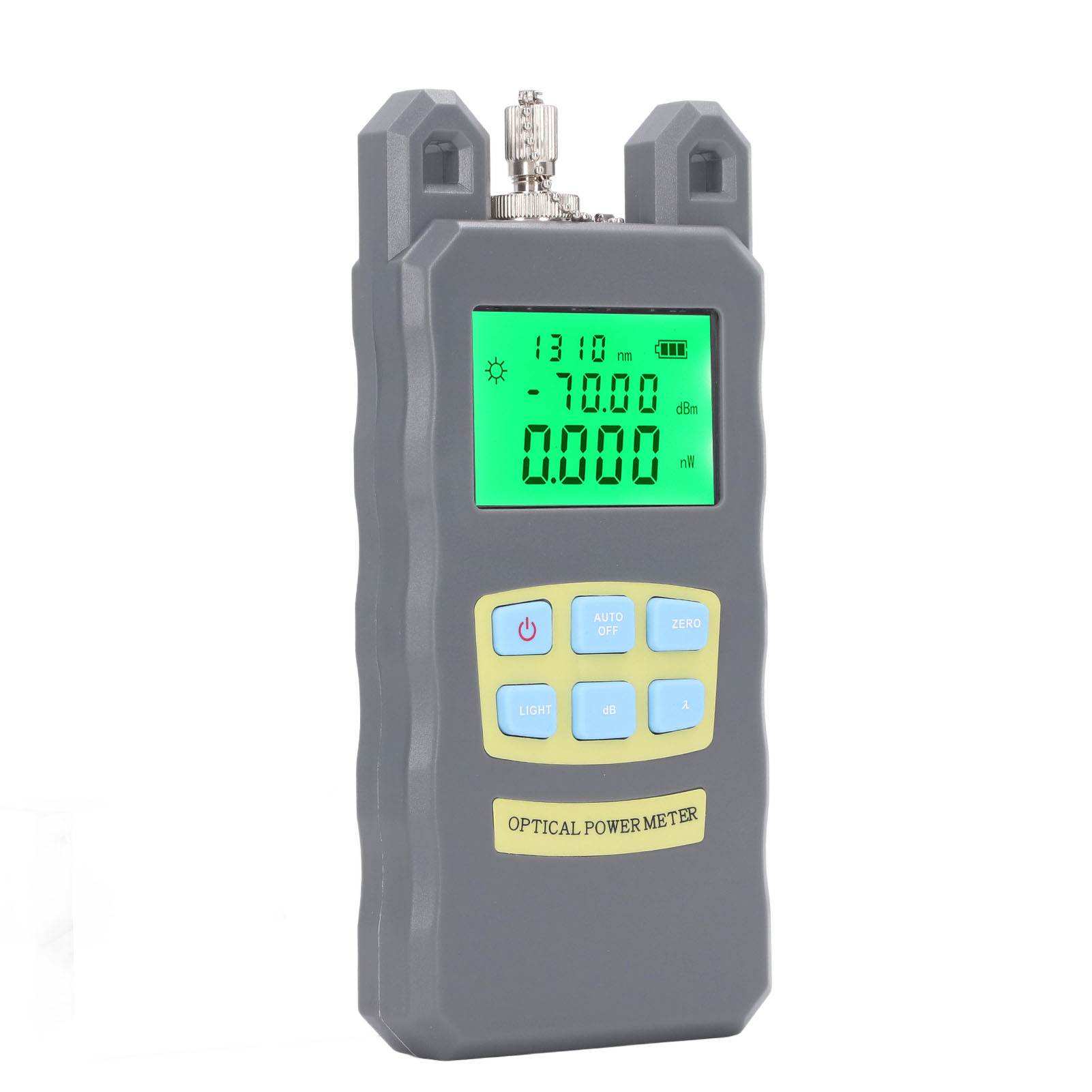

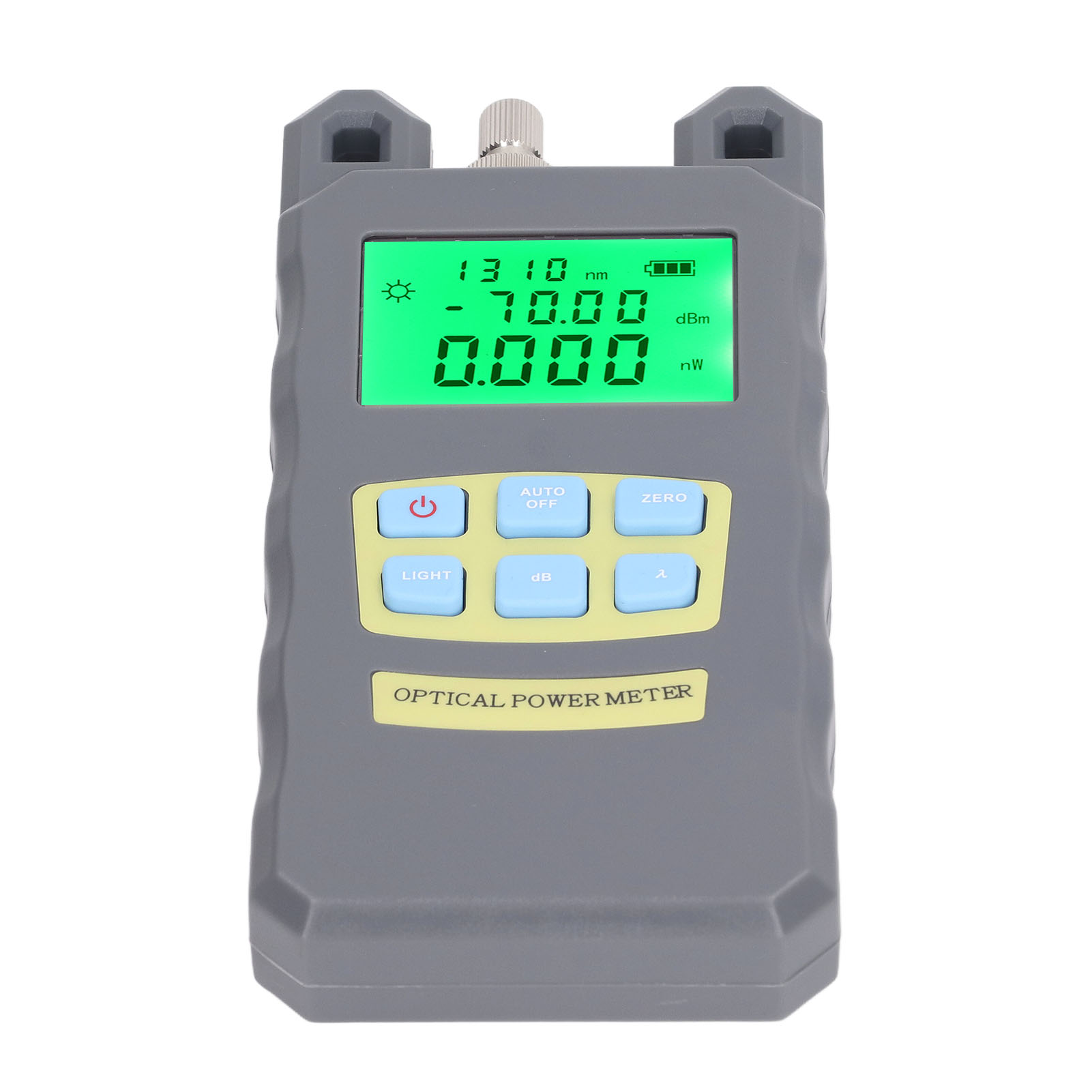

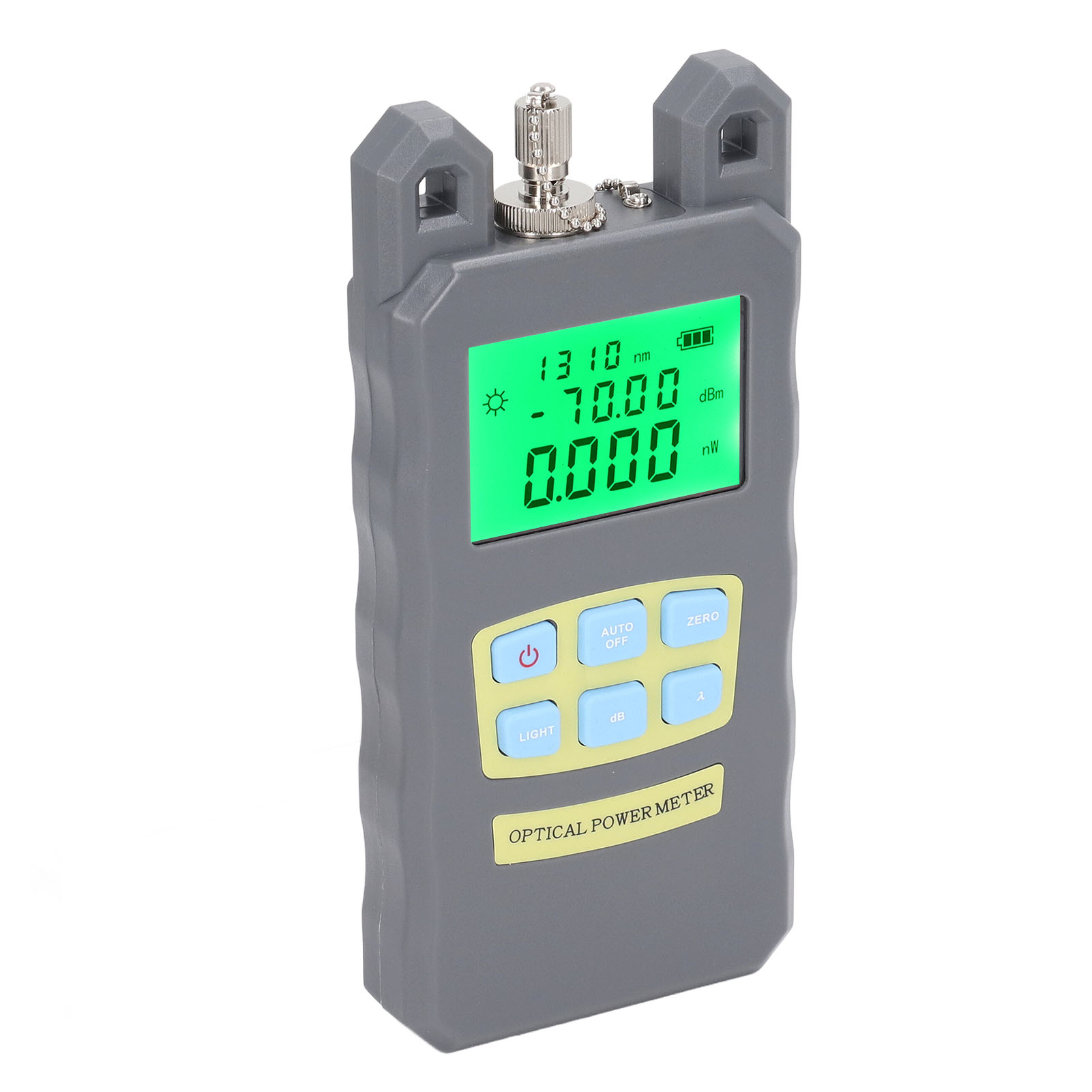

2. OPTICAL POWER METER AND LOCATOR: DXP 20B optical power meter test range from ‑70~+10 DBM, with FC and SC adapter, test wave 850, 980, 1300, 1310, 1490, 1550, 1625nm. HT 10 locator with a standard 2.5mm interface, test to 650nm ± 10nm, stable and strong, compatible with SC, ST, and FC interfaces

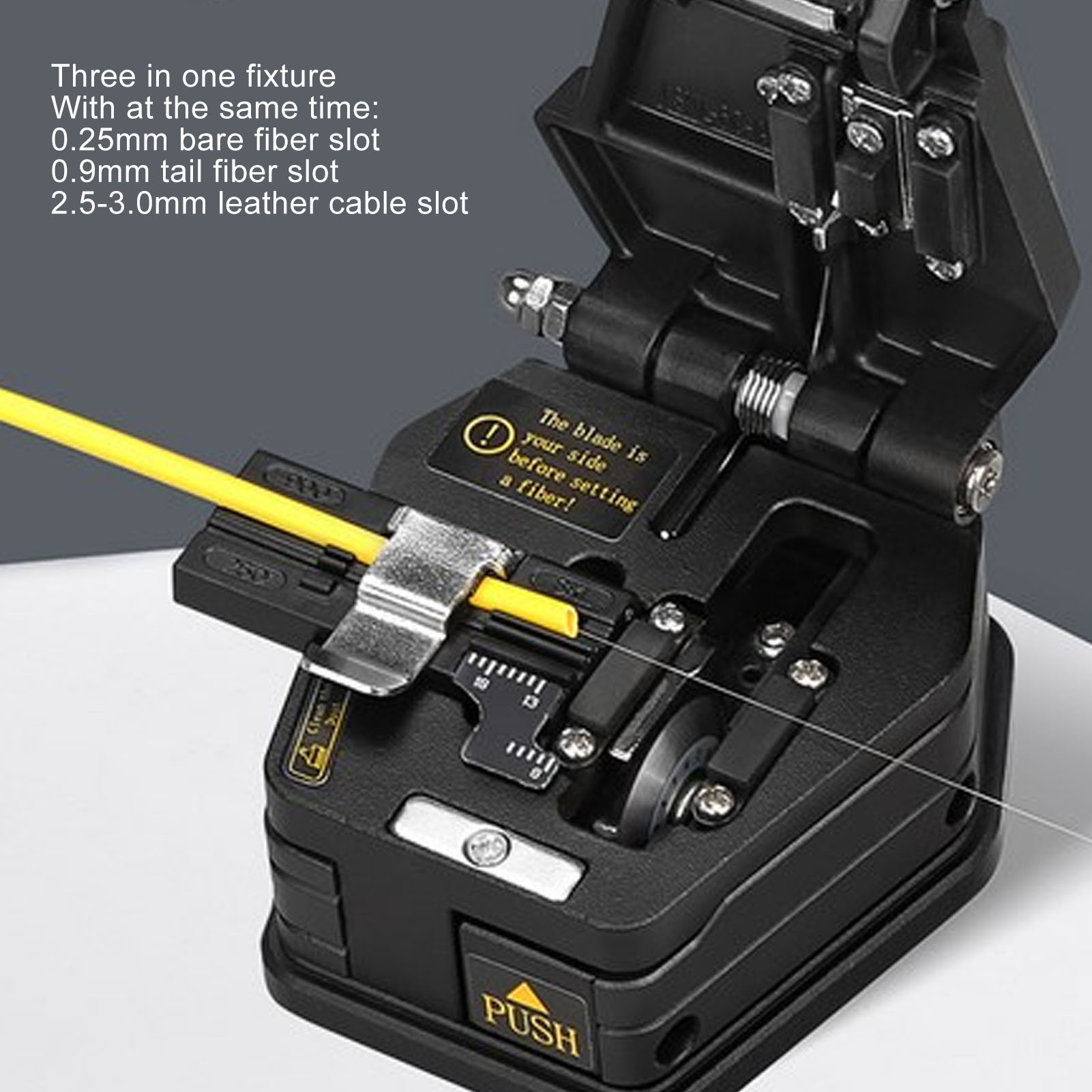

3. SKL 6C OPTICAL FIBER CABLE : Equipped with adjusting 3 spanner, suitable for rod fiber, suitable for 125um diameter; The number of applicable fiber cores is a single (dia 0.25 and 0.9mm), 12 strip fiber, 2.5 leather line, fiber length 18mm
4. THREE WAY PLIERS: Equipped with one adjusting wrench without damaging optical fibers. Large hole for peeling 2-3mm optical fibers, medium hole for peeling 900um-250um optical fibers, and small hole for peeling 250um-125um optical fibers
5. LEATHER CABLE STRIPPING DEVICE: Can be transverse and longitudinal stripping, possess clear scale, fast stripping does not hurt the fiber, with length positioning. Suitable for indoor leather cable, used for 1~2 3.0x2.0mm, leather cable with metal or non metal reinforced , suitable for twisted pair, CATV cable, tightly clad stranded cable, CB antenna cable, sO, sJ, SjT, etc., or other forms of cable

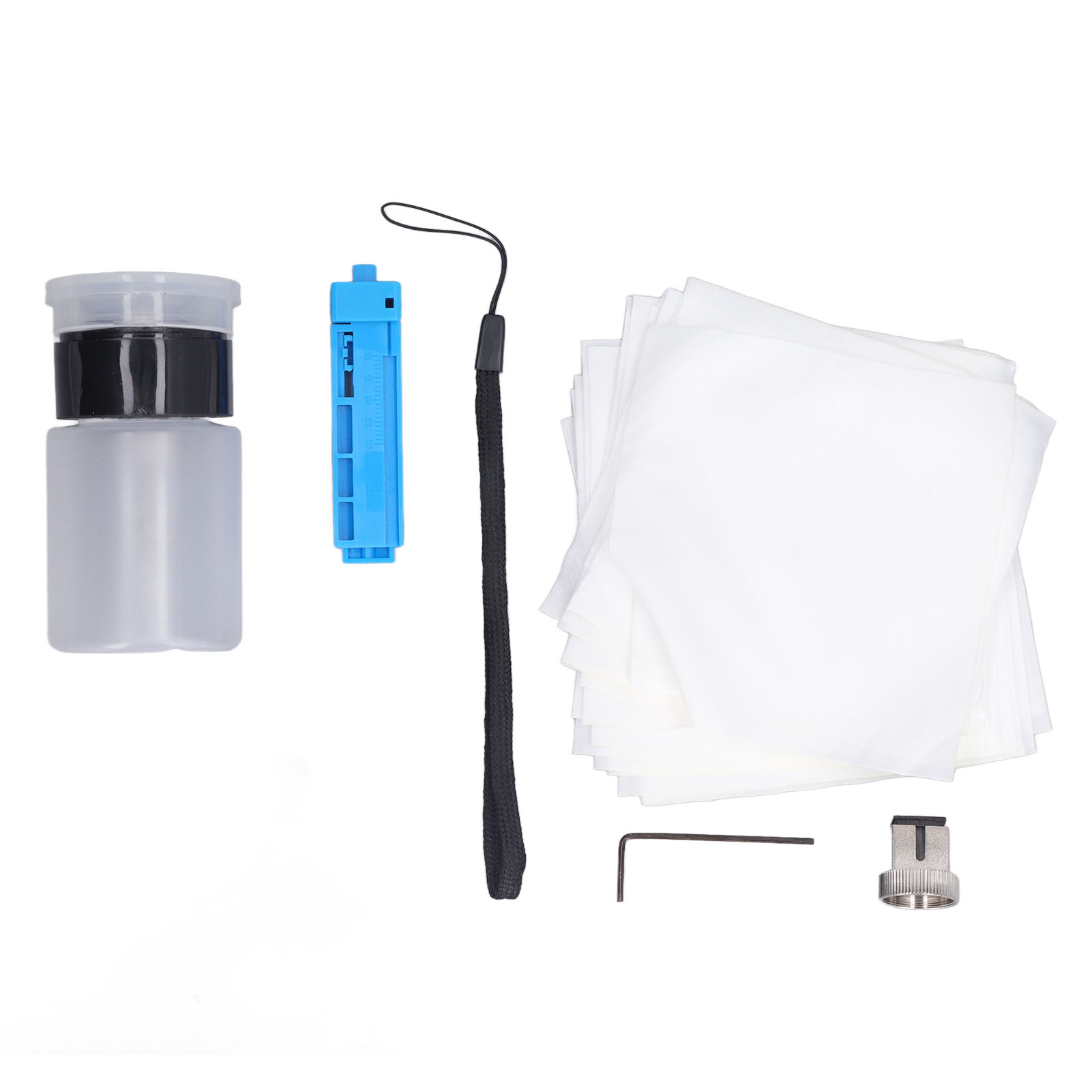

6. ALCOHOL BOTTLE: Possess 60mL capacity, not volatile, prevent corrosion and spill, with blowout prevention function, used to clean the fiber head and . With 20 dust free cloth(included), more convenient to use
7. OPTICAL FIBER LENGTH FIXER: Optical fiber quick connector matching tool, positioning optical fiber length, easy to carry and use, strip coating span is 10-30mm, guide strip bare fiber span is 5-40mm

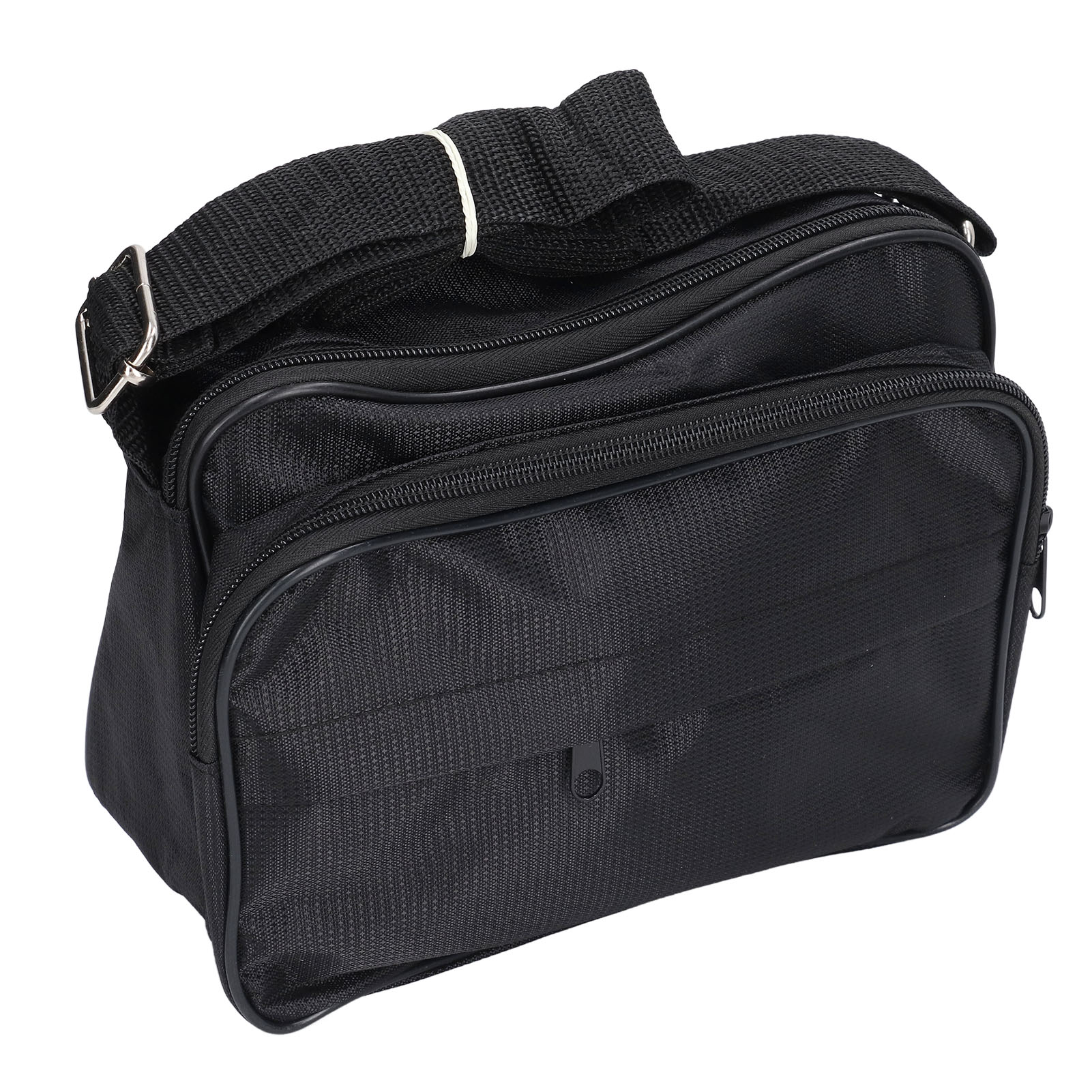

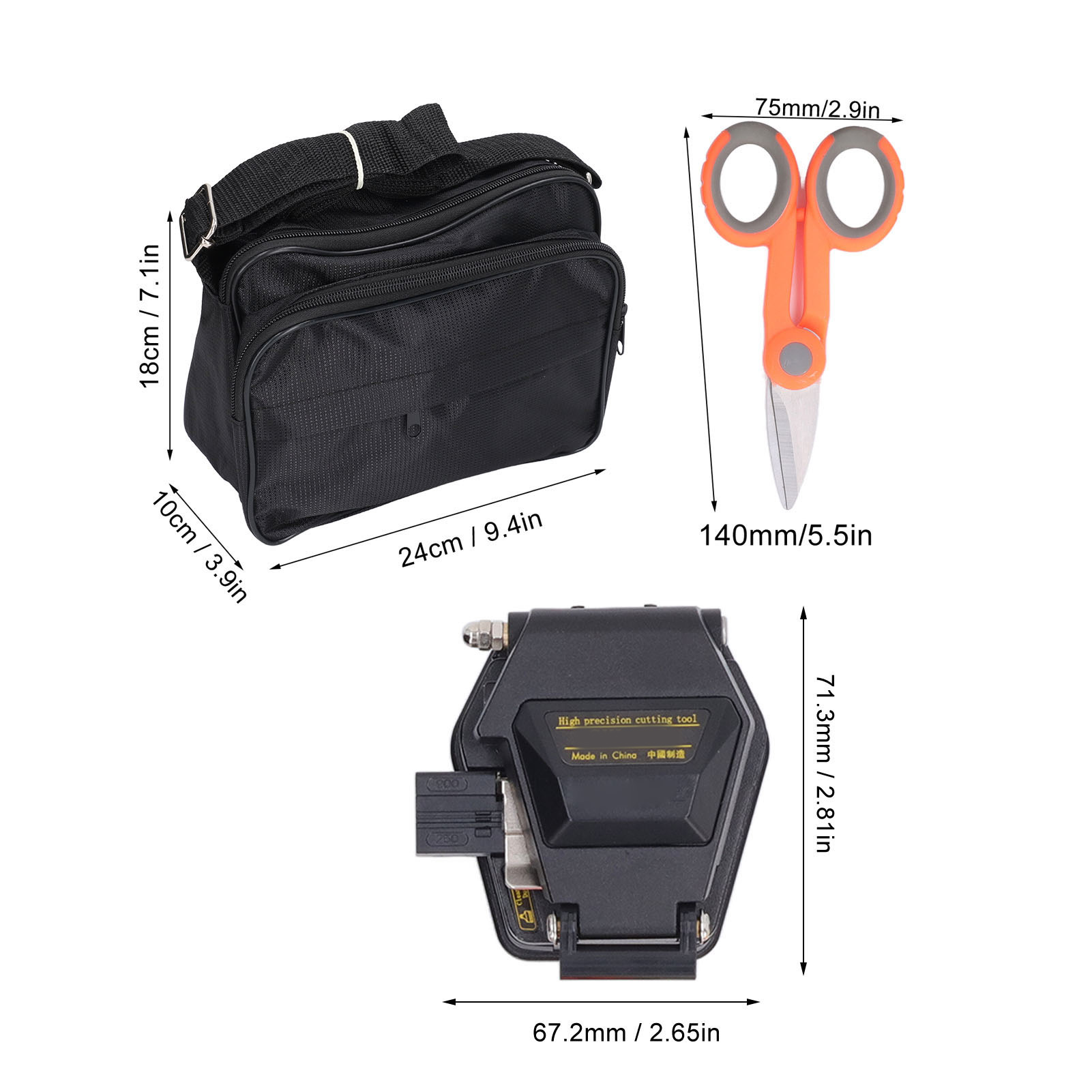

8. AND TOOL KIT: Fiber optic adopt zigzag design, strengthen the thickness design, incisive and lasting, with elastic handle, prevent corrosion loss. With thickened three layer tool kit, waterproof, fall resistant, durable, large capacity, easy to carry out

Specification:

Item Type: FTTH Fiber Optic Tool Kit

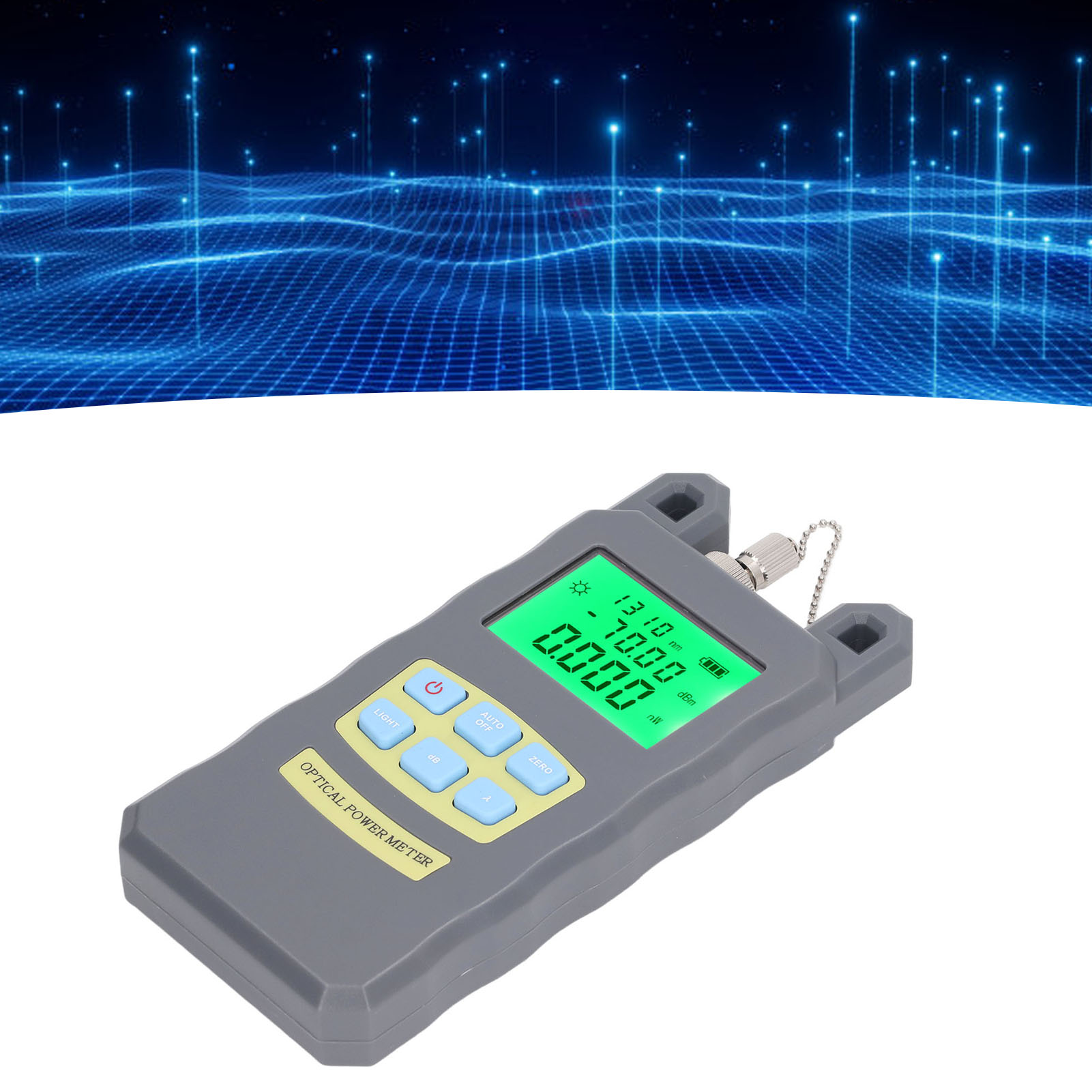

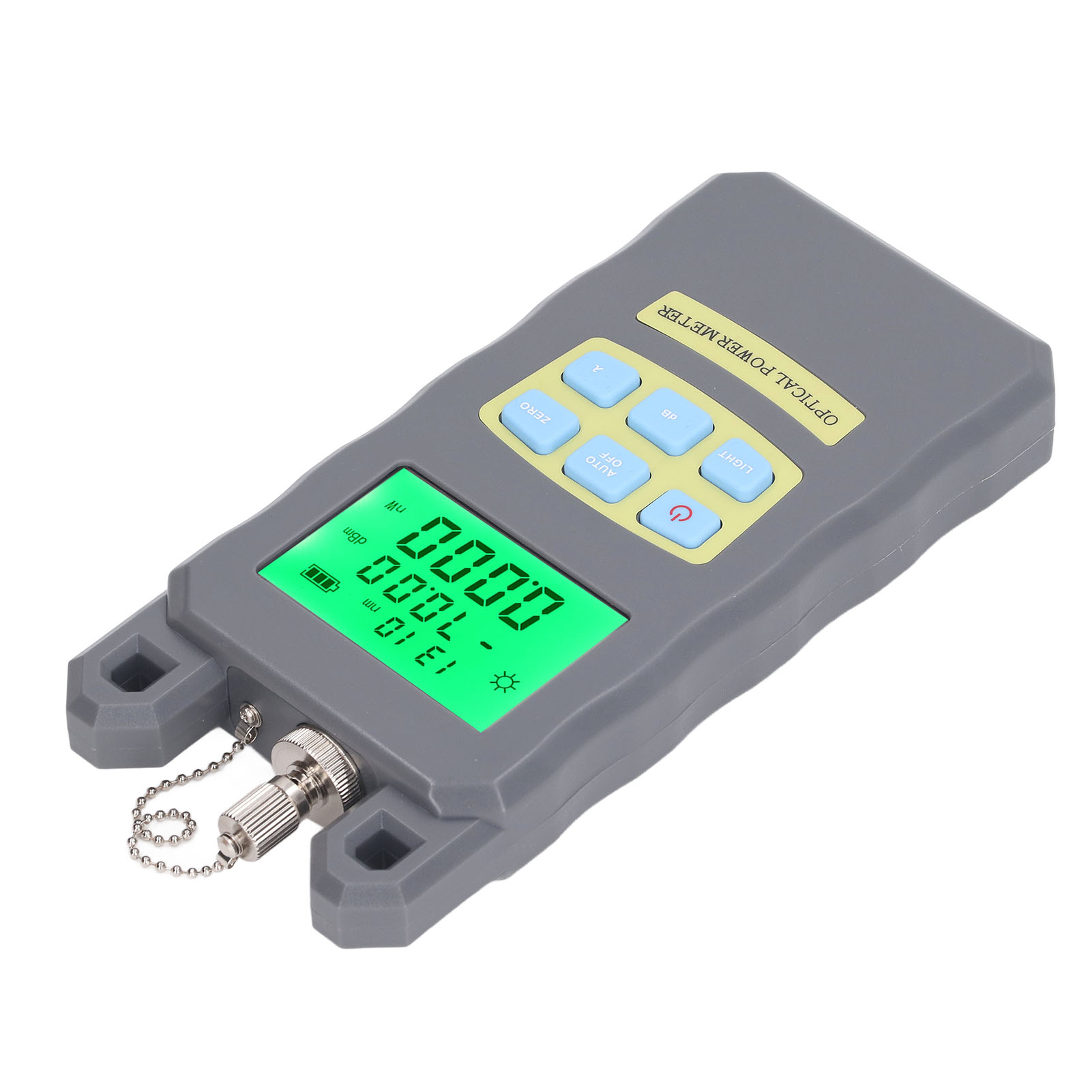

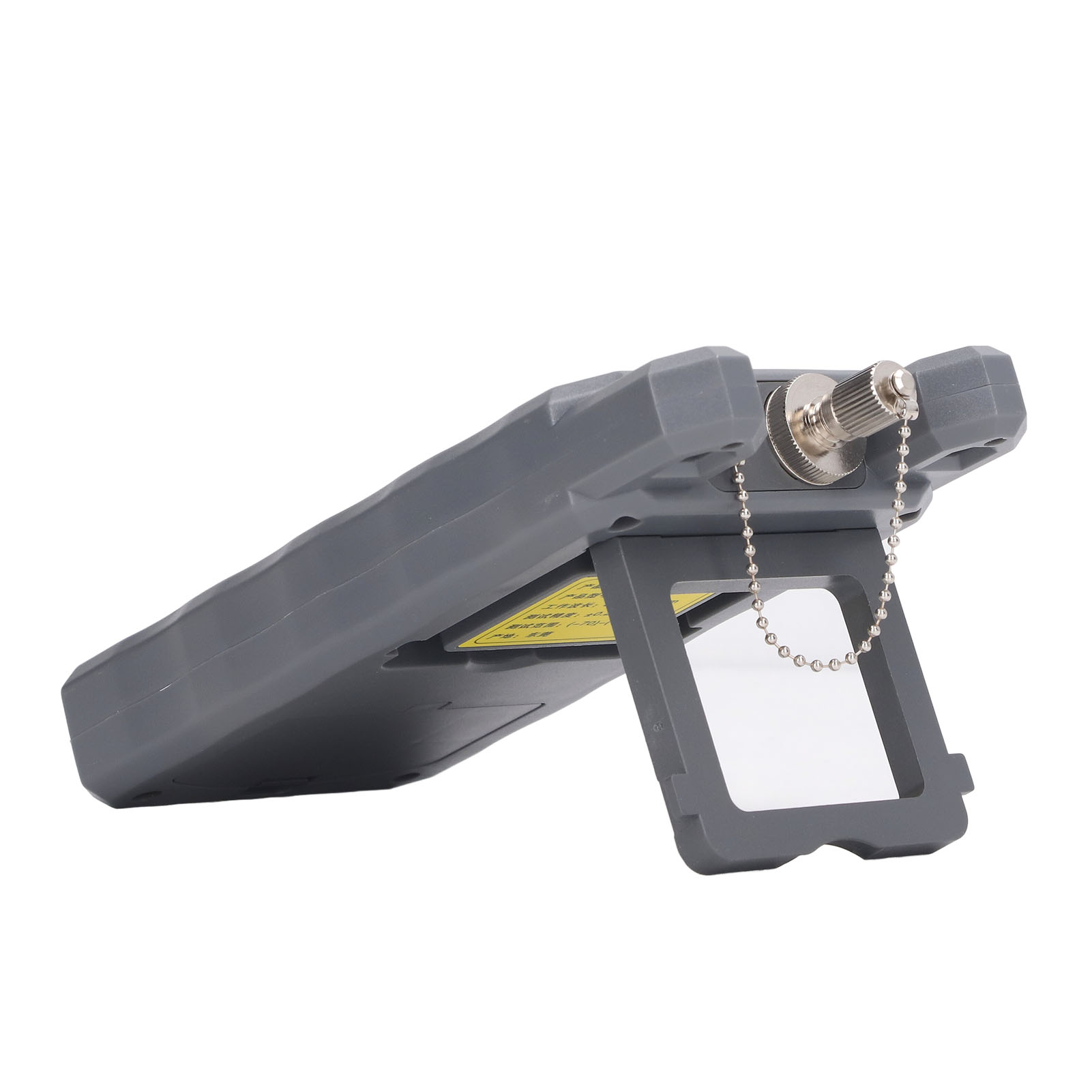

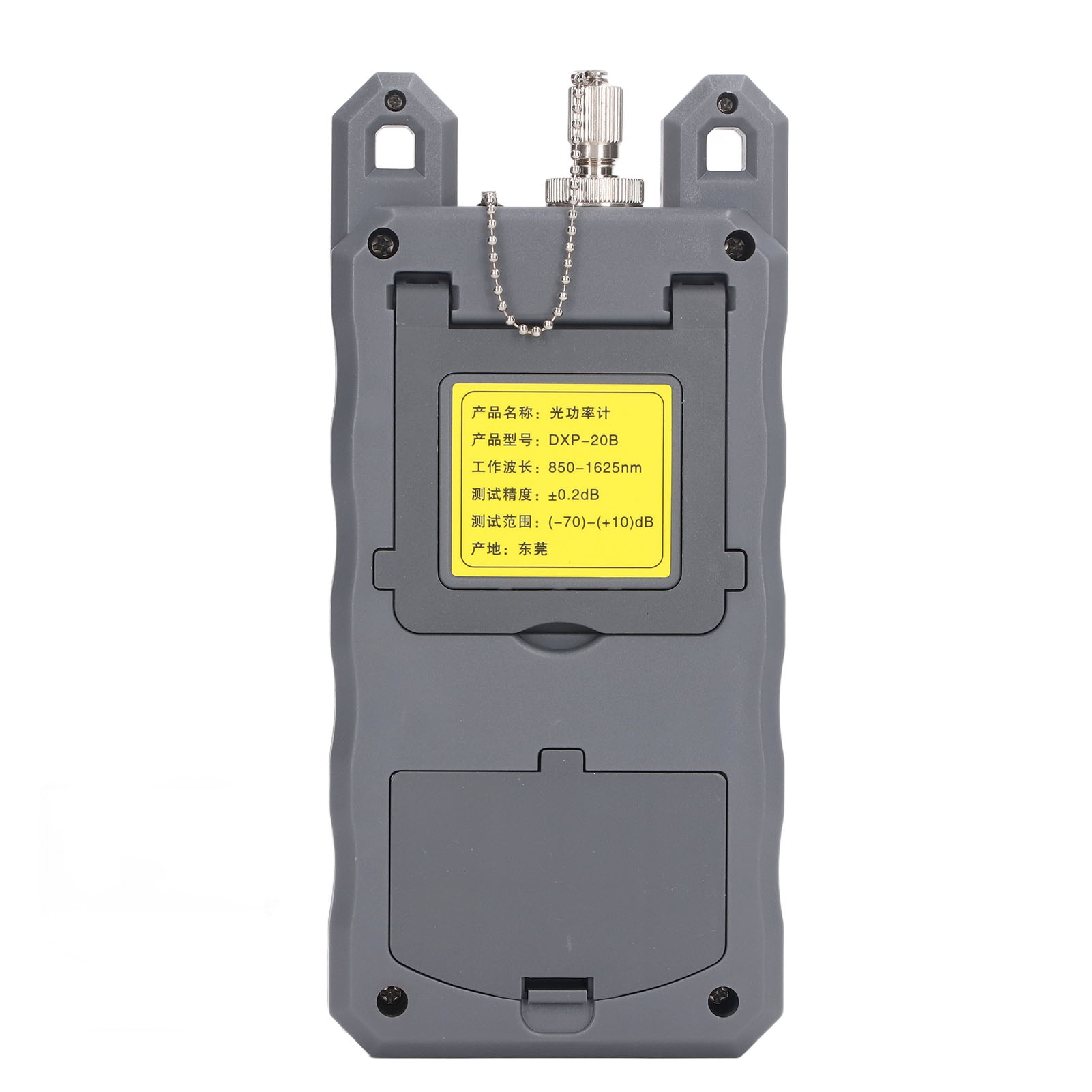

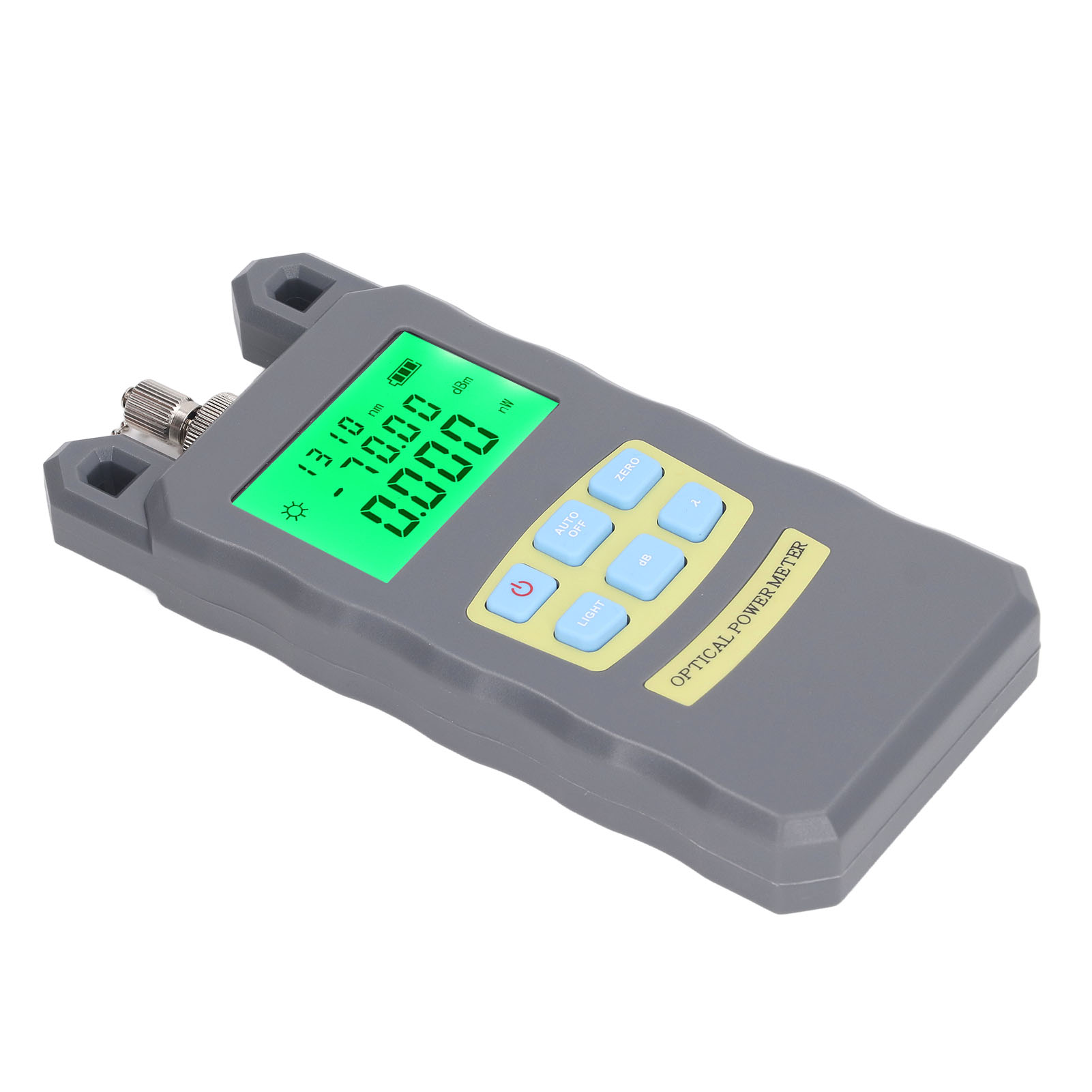

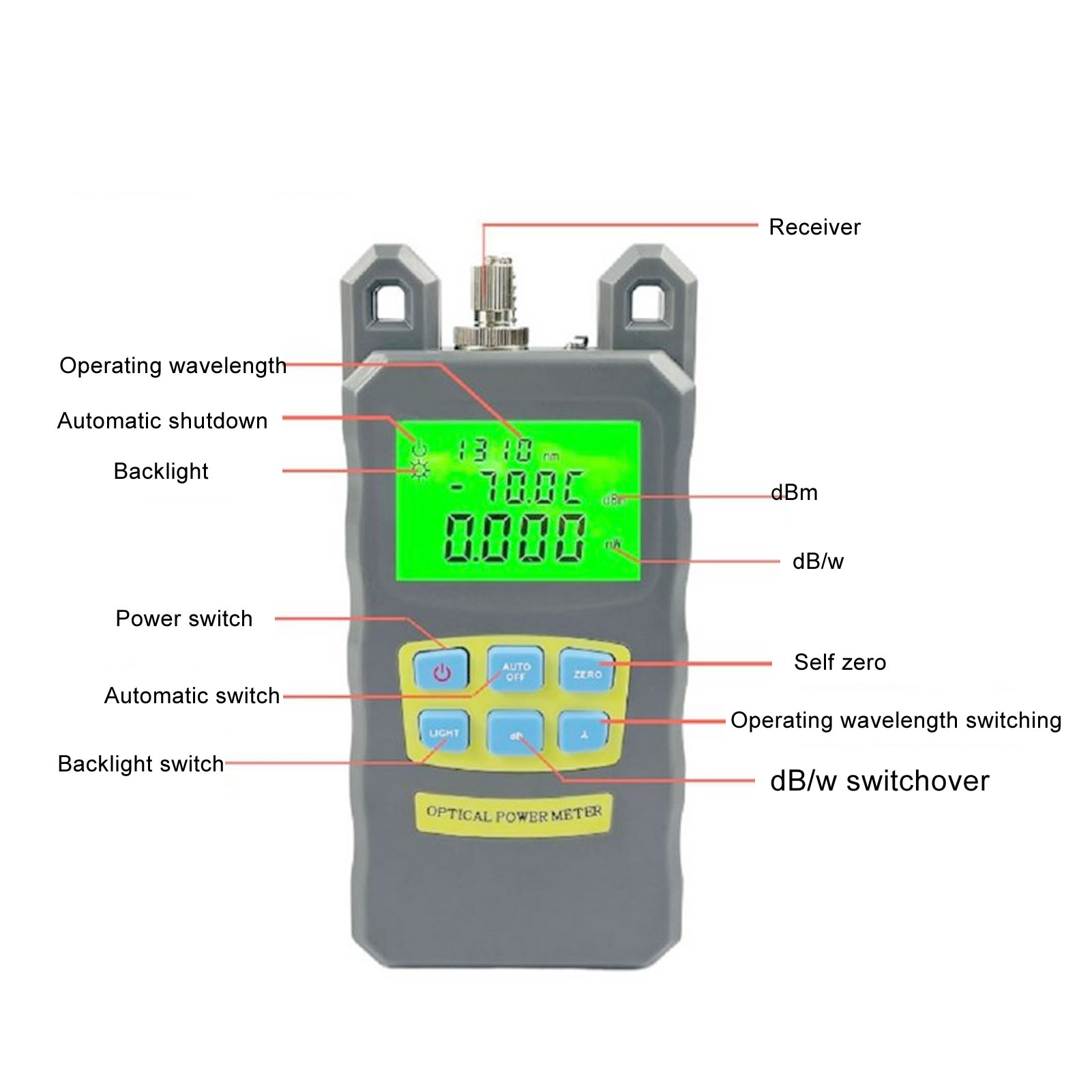

DDRP 20B Optical Power Meter Parameters:
Test Wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625nm
Test Range: -70~+10dbm
Test Accuracy: ±0.2dbm
Batteries: 2 x AA batteries(not included)
HT 10 Locator Parameters:
Port: Standard 2.5mm port, compatible with SC, ST, FC ports
Batteries: 2 x AA batteries(not included)
SKL 6C Fiber Parameters:
Rod Optical Fiber Applicable Diameter: 125um
Number of Applicable Fiber Cores: Single (dia 0.25 and 0.9mm), 12 strip fiber , 2.5 leather wire
Length of Optical Fiber : Approx. 18mm / 0.71in

Package List:

1 x DXP 20B Optical Power Meter

1 x Adapter

1 x HT 10 Locator

1 x HT 10 Locator Lanyard

1 x HT 10 Locator Storage Bag

1 x SKL 6C Optical Fiber

1 x SKL 6C Storage Bag

3 x Adjusting Wrench

1 x Fiber Optic

1 x Green Leather Wire Stripper

1 x Yellow 3 Way Pliers

1 x Pliers Adjusting Wrench

1 x Blue Length Setter

1 x Alcohol Bottle

20 x Dust Free Cloth

1 x Pen Head

1 x Ceramic

1 Storage Bag

3 x User Manual
