Feature:

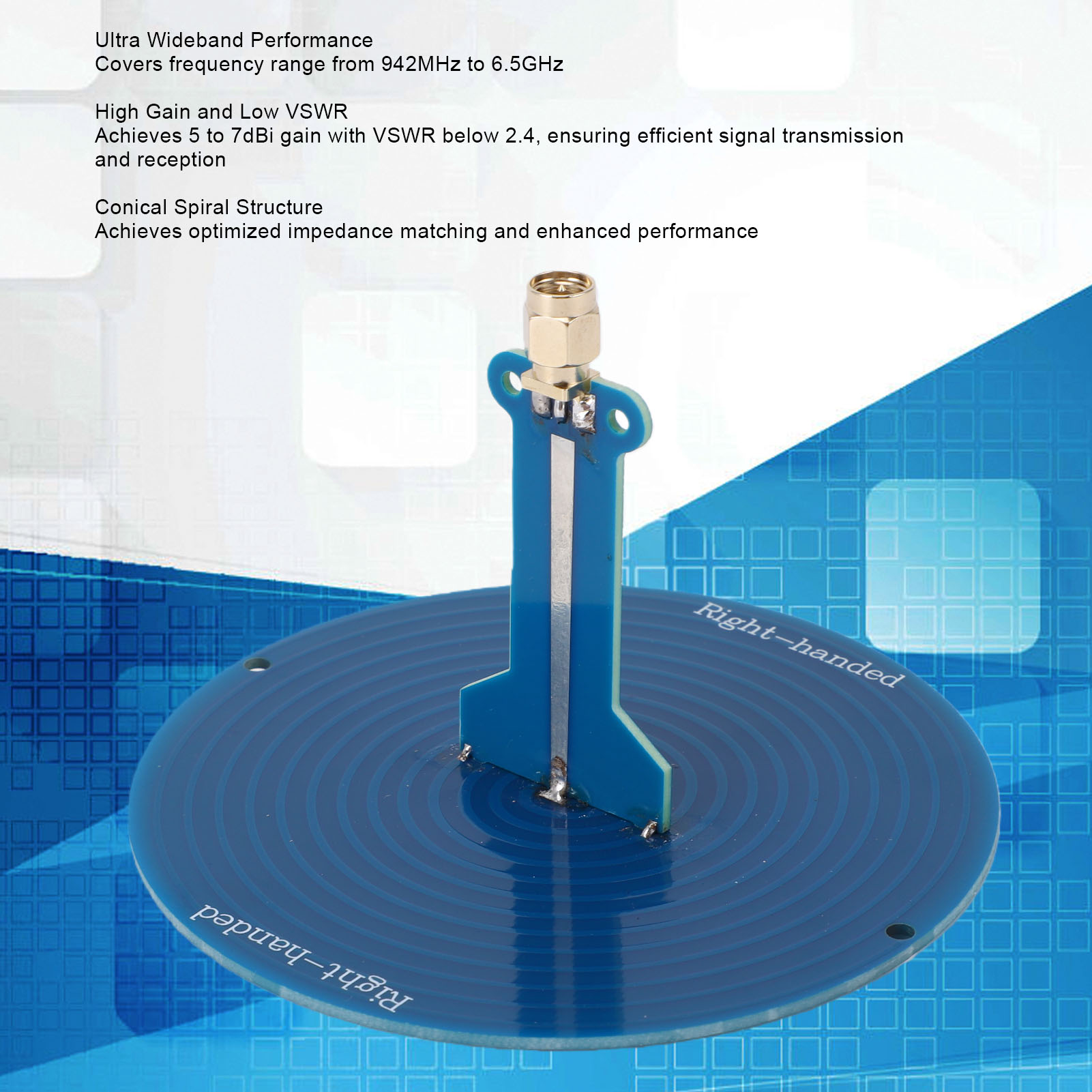

1. Ultra Wideband Performance: The UWB antennae covers a frequency range from 942MHz to 6.5GHz, making it suitable for direction finding, signal analysis, and various other applications.
2. High Gain and Low VSWR: Achieving a gain of 5 to 7dBi with a VSWR below 2.4, this antennae ensures efficient signal transmission and reception, enhancing communication performance.

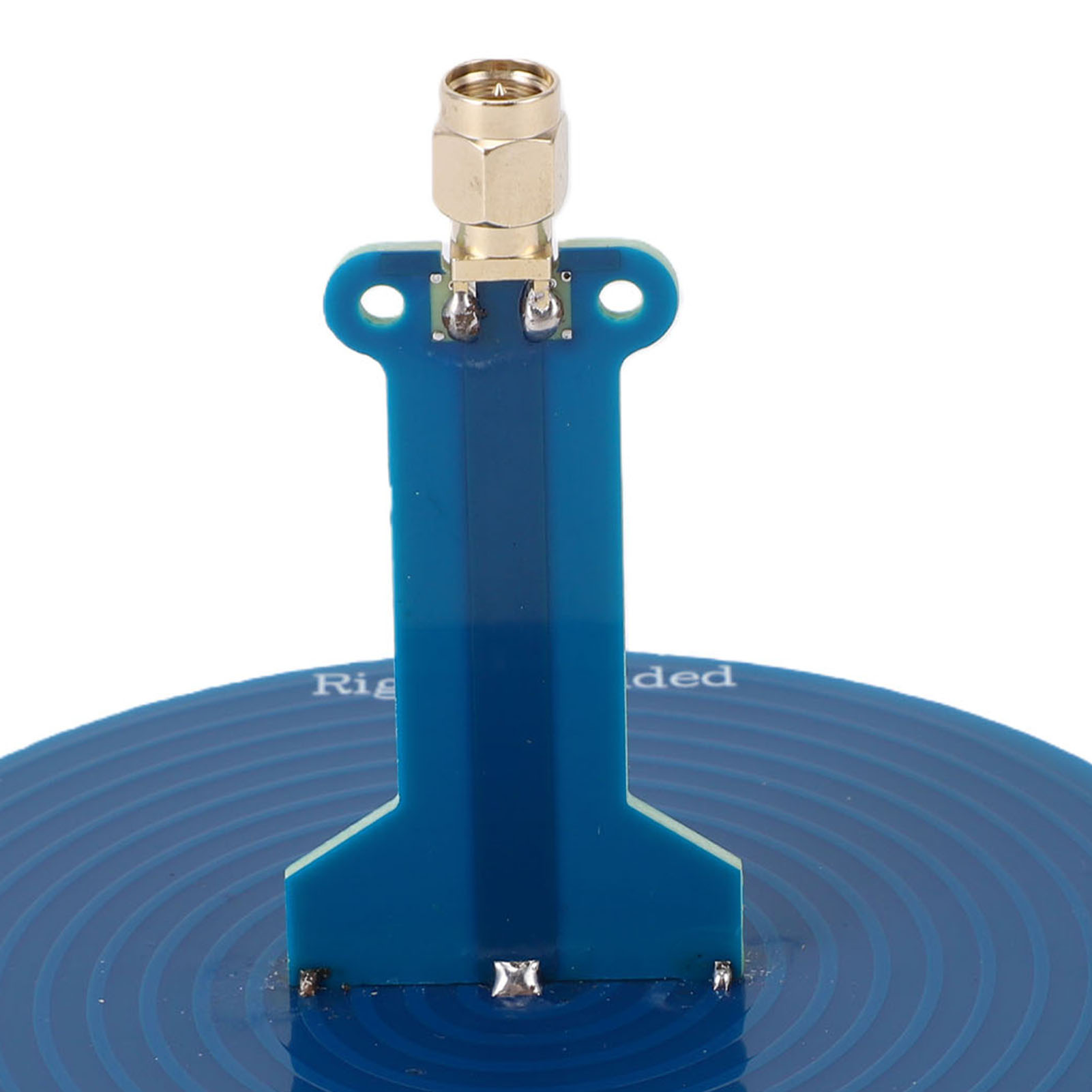

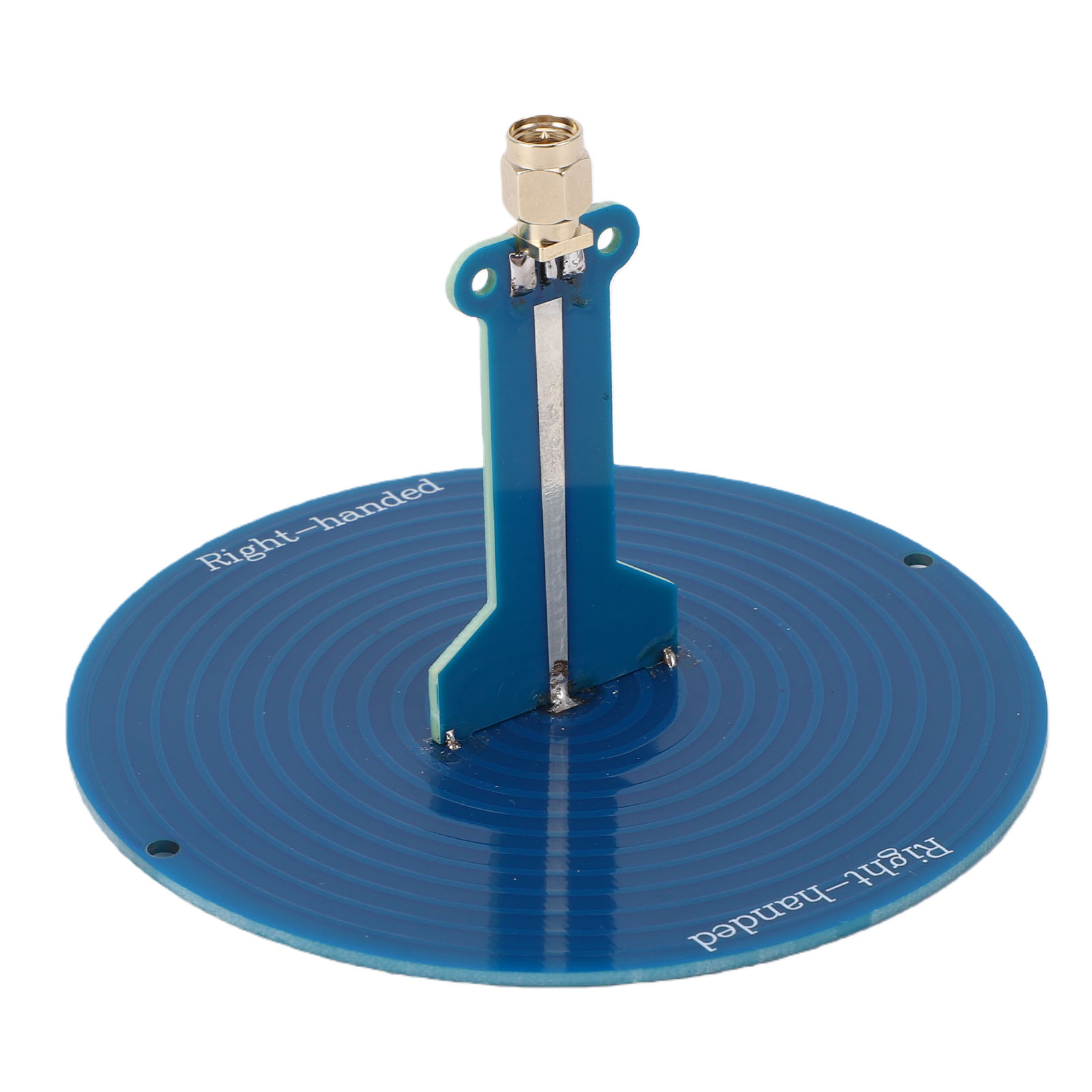

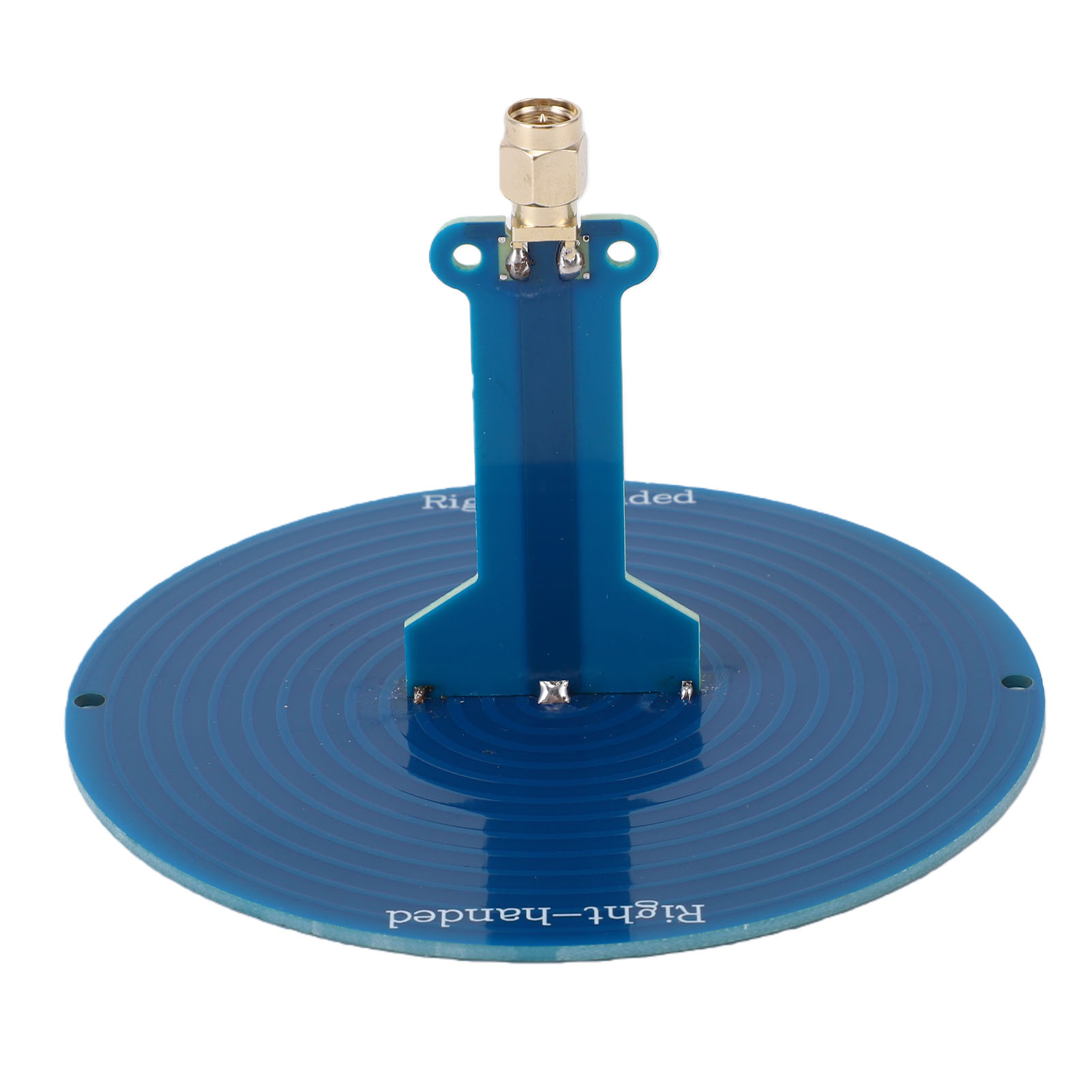

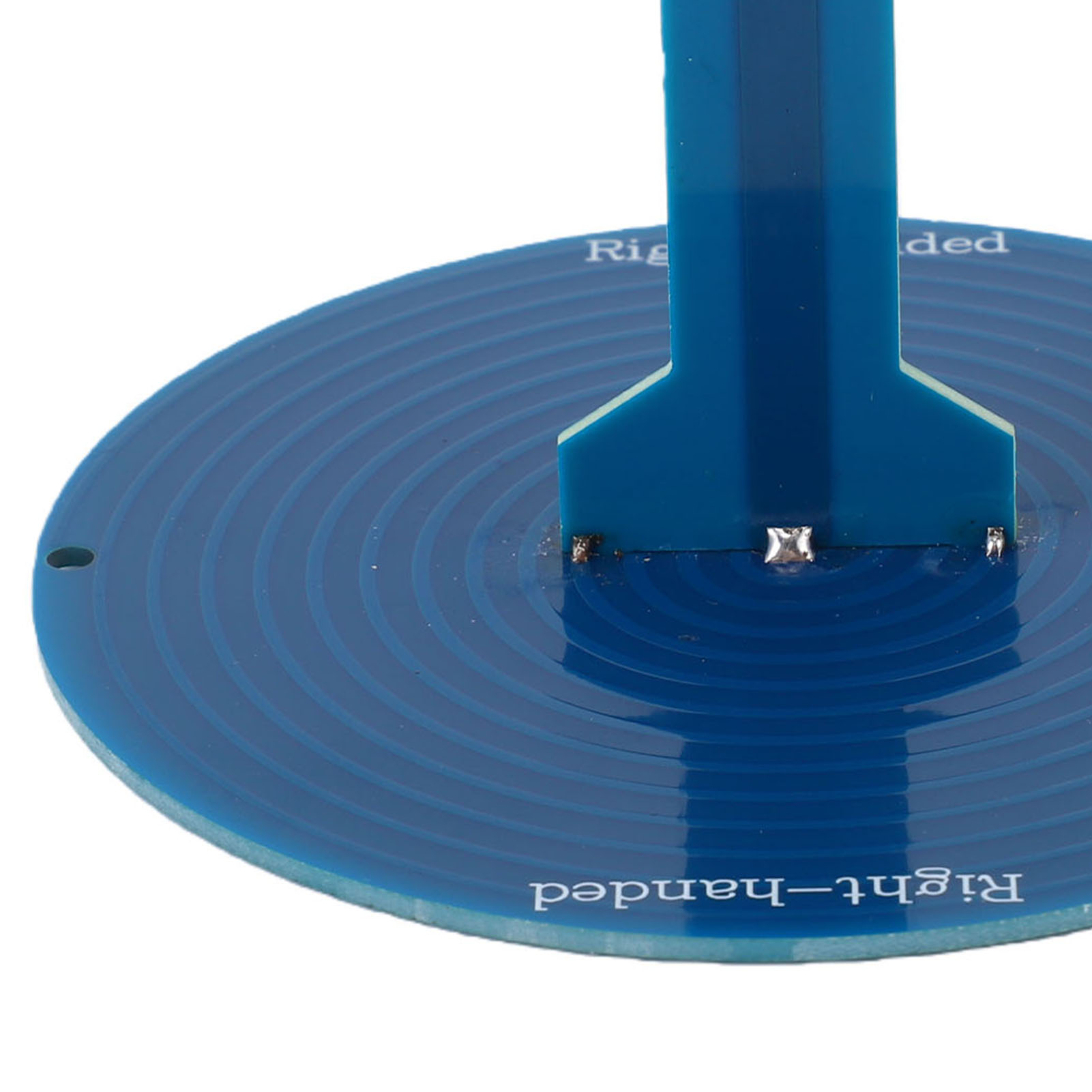

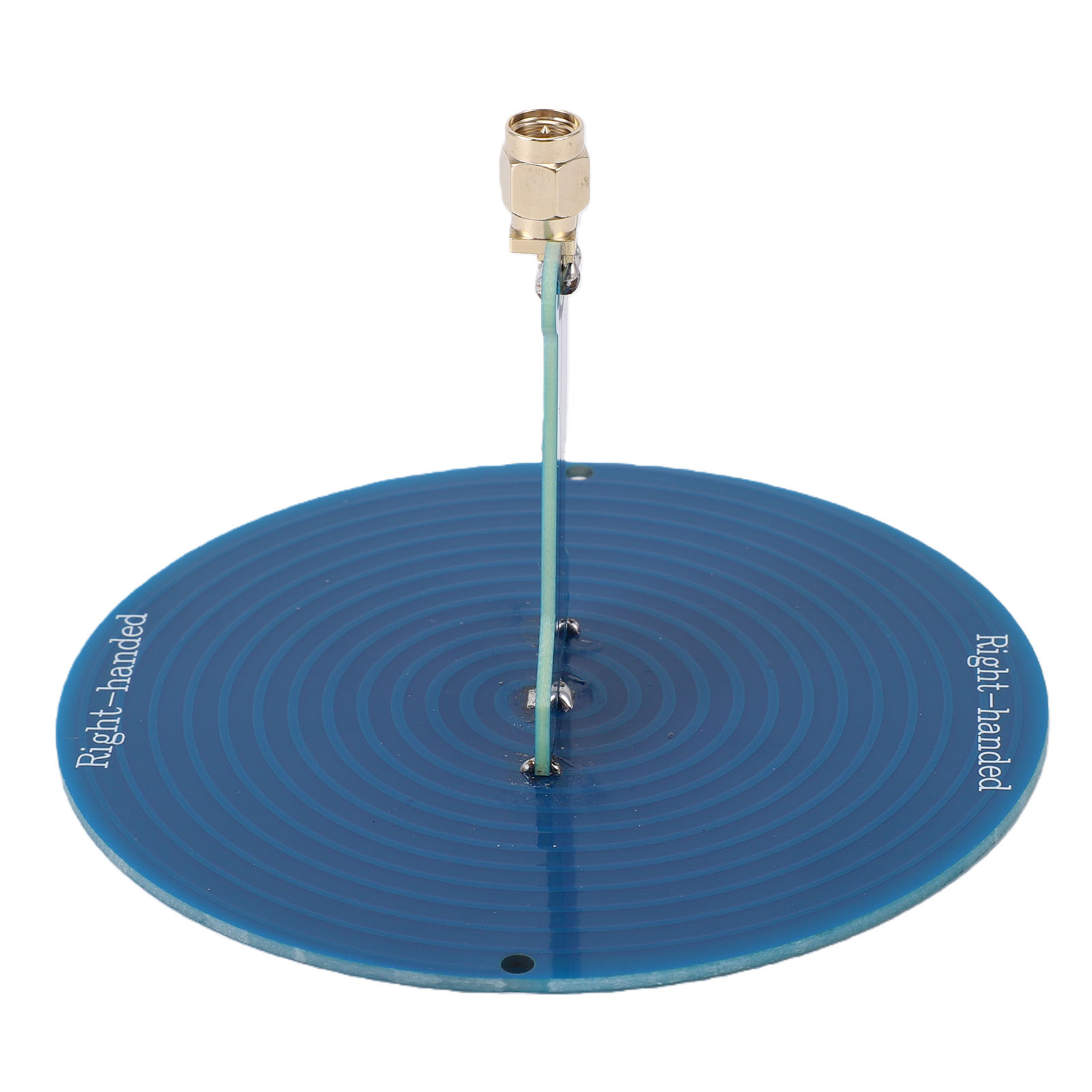

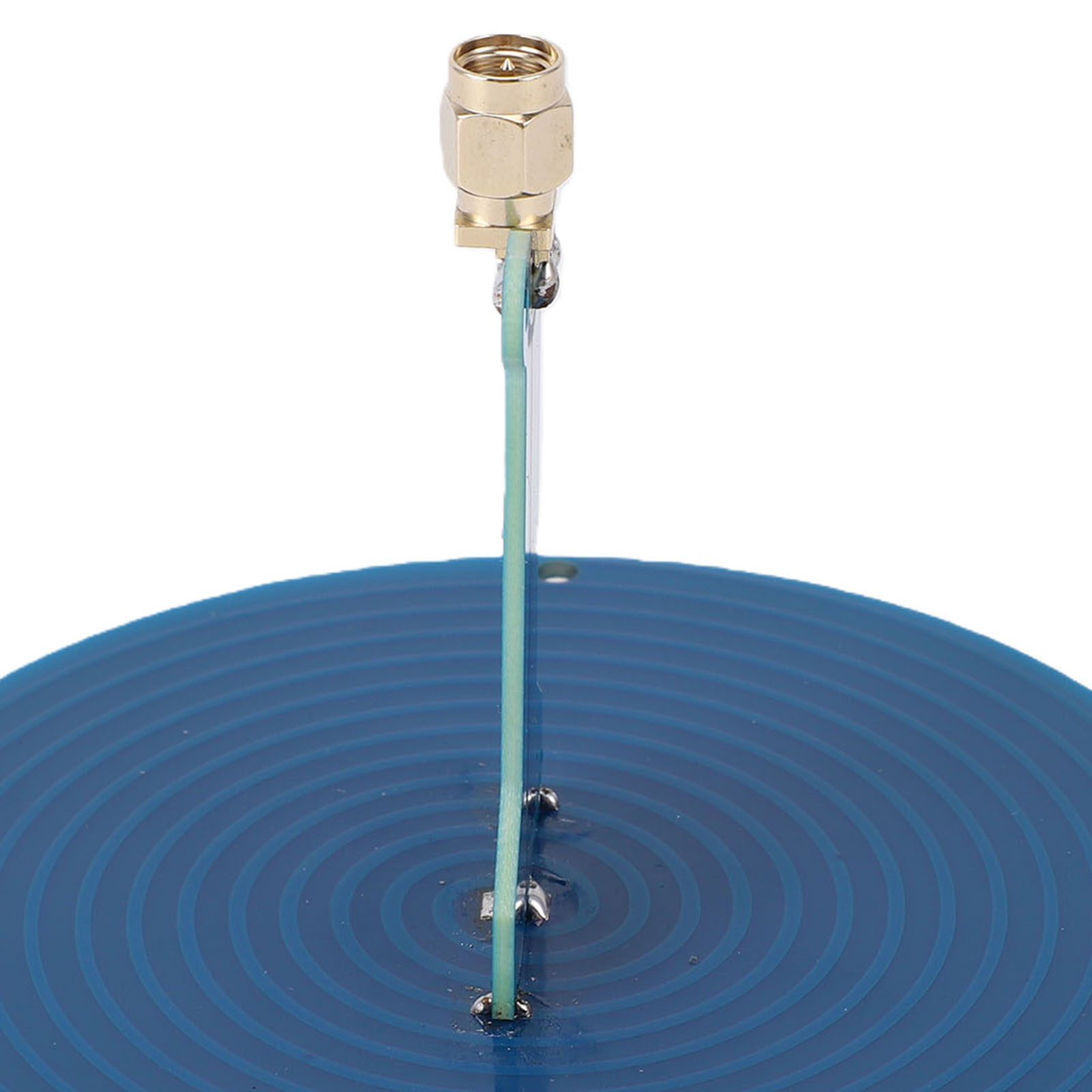

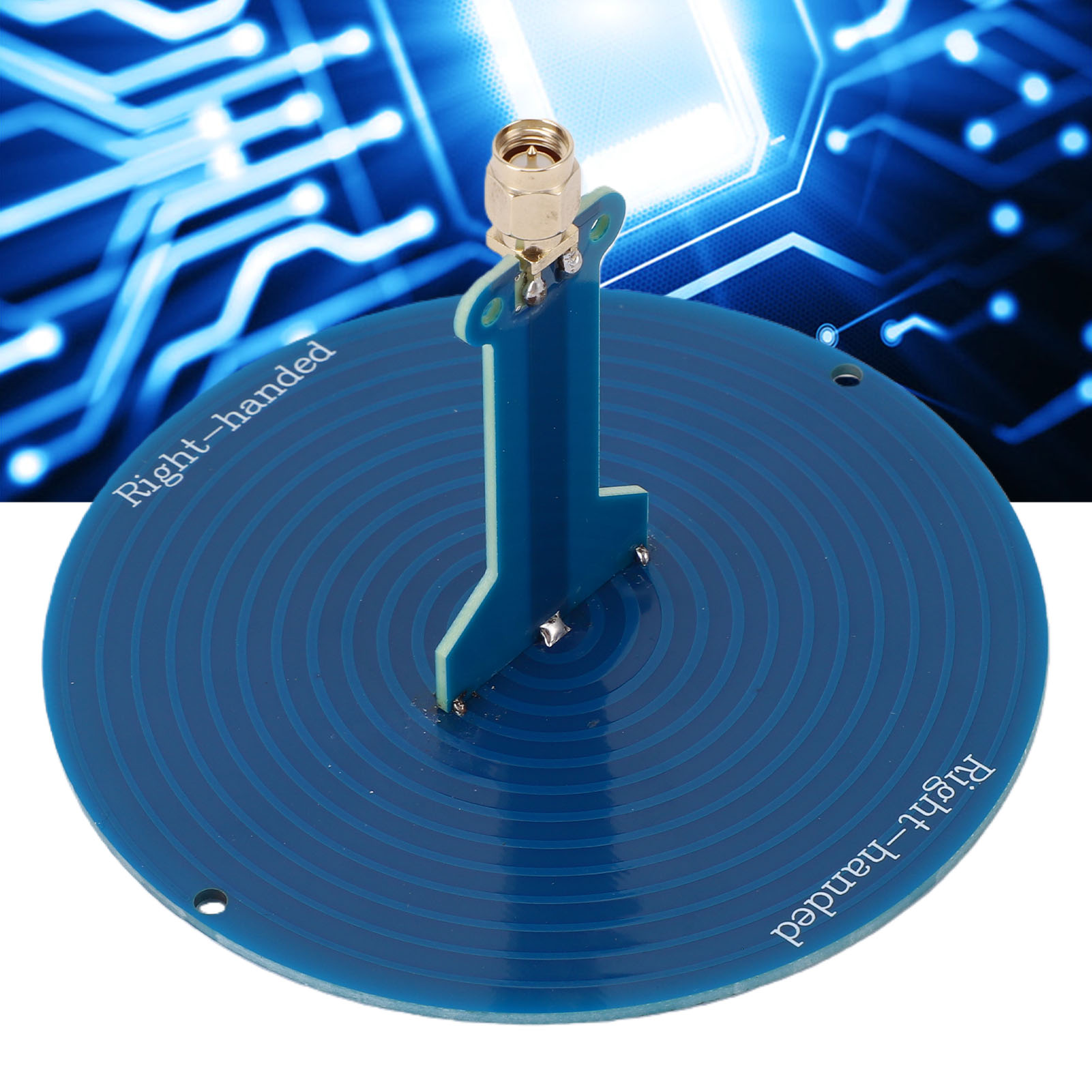

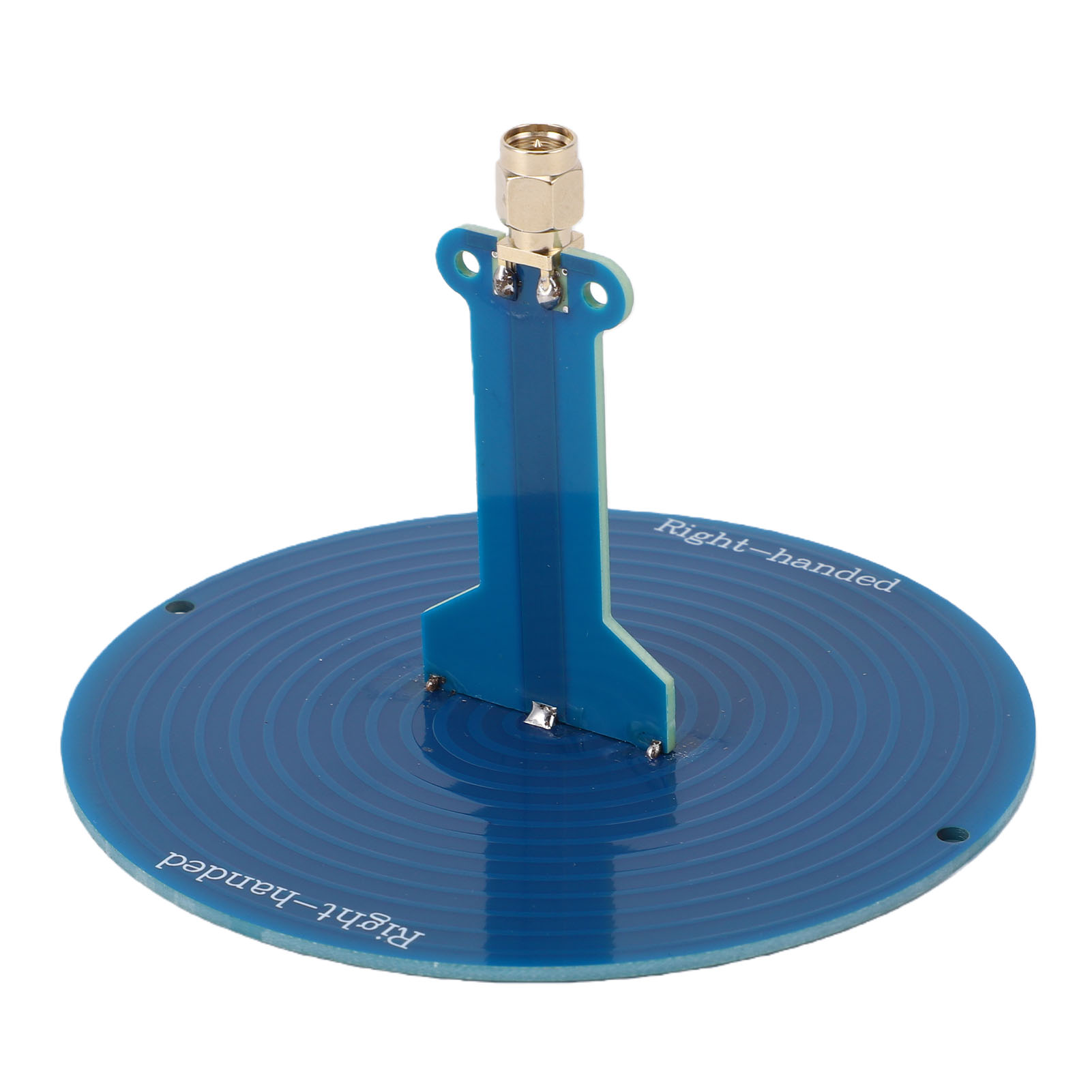

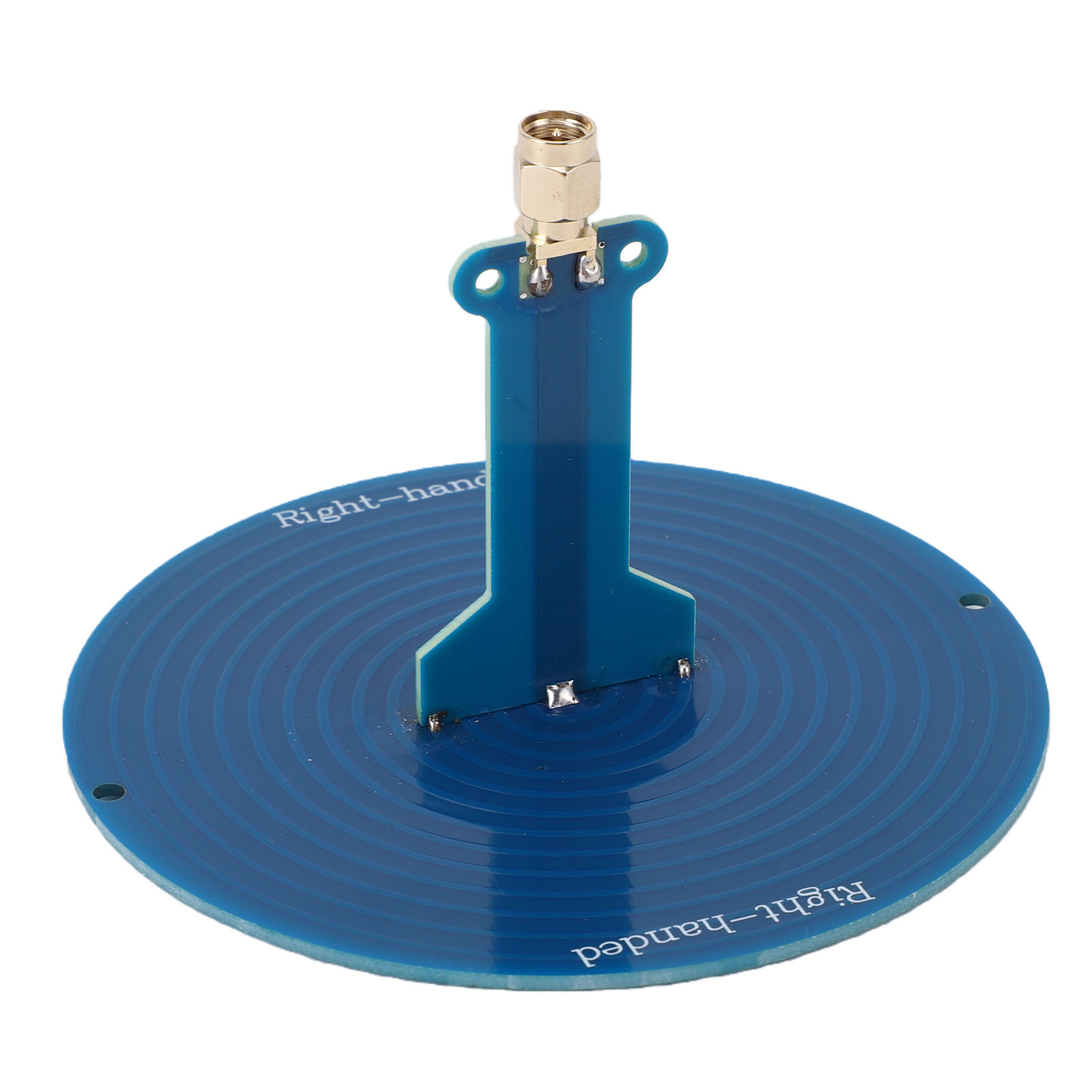

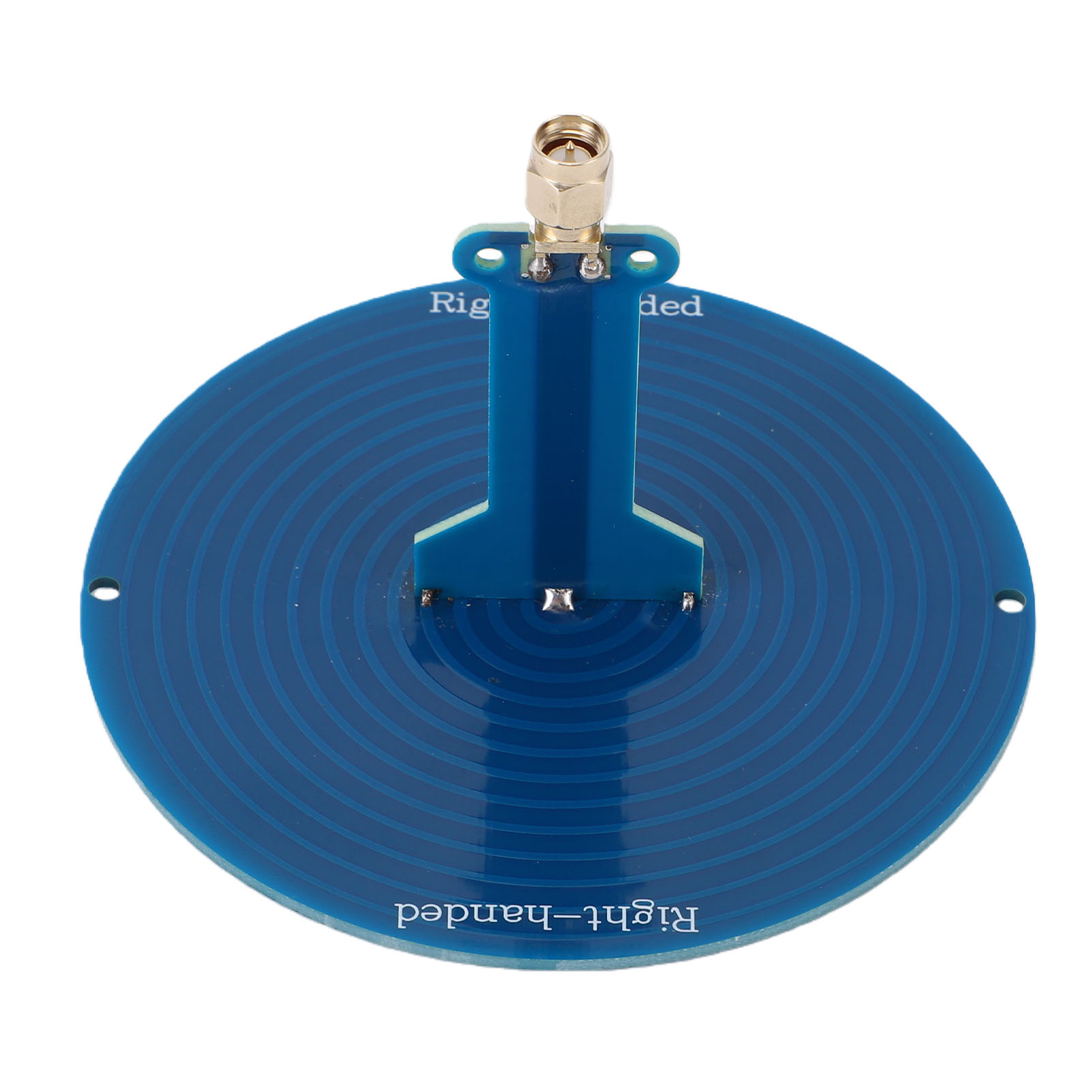

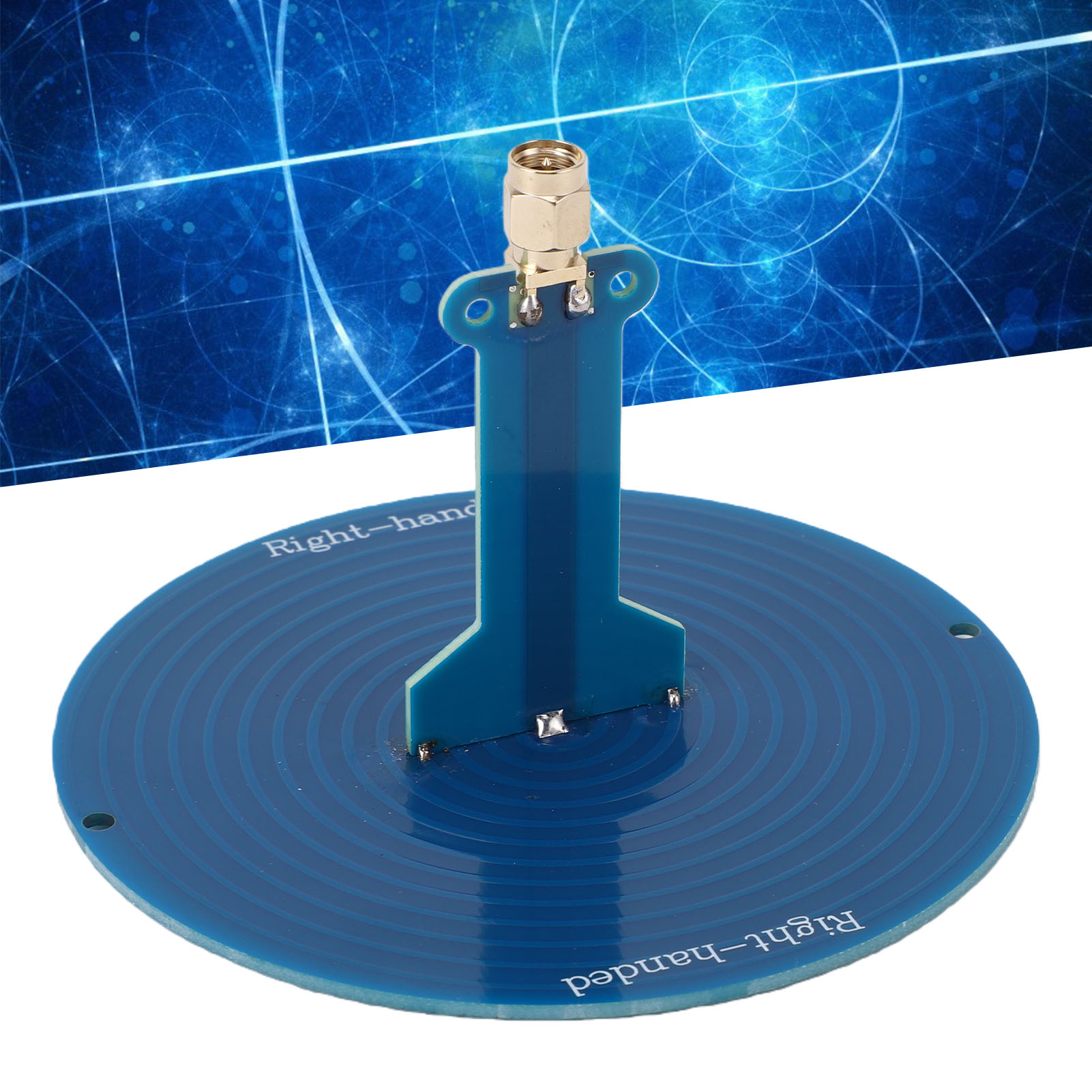

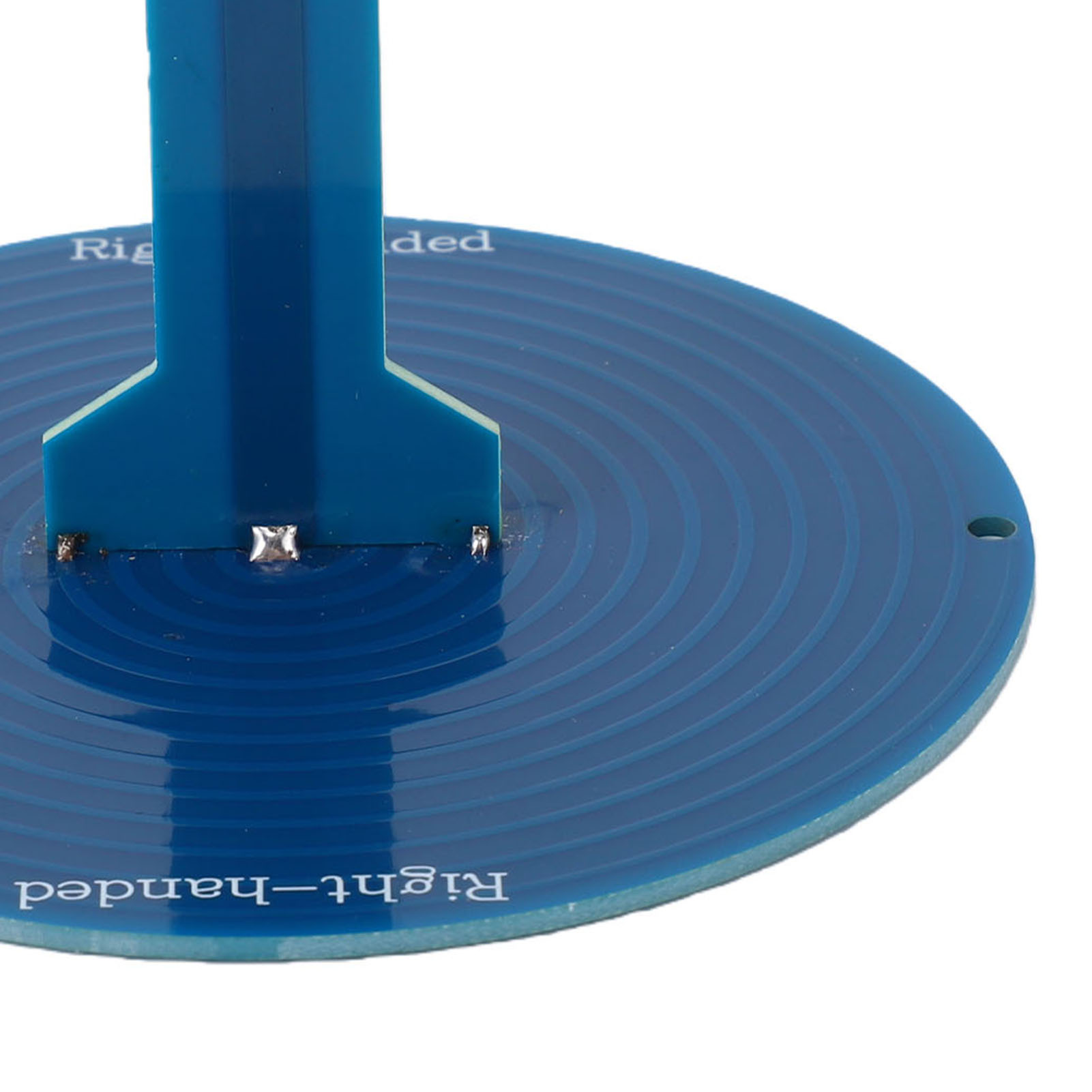

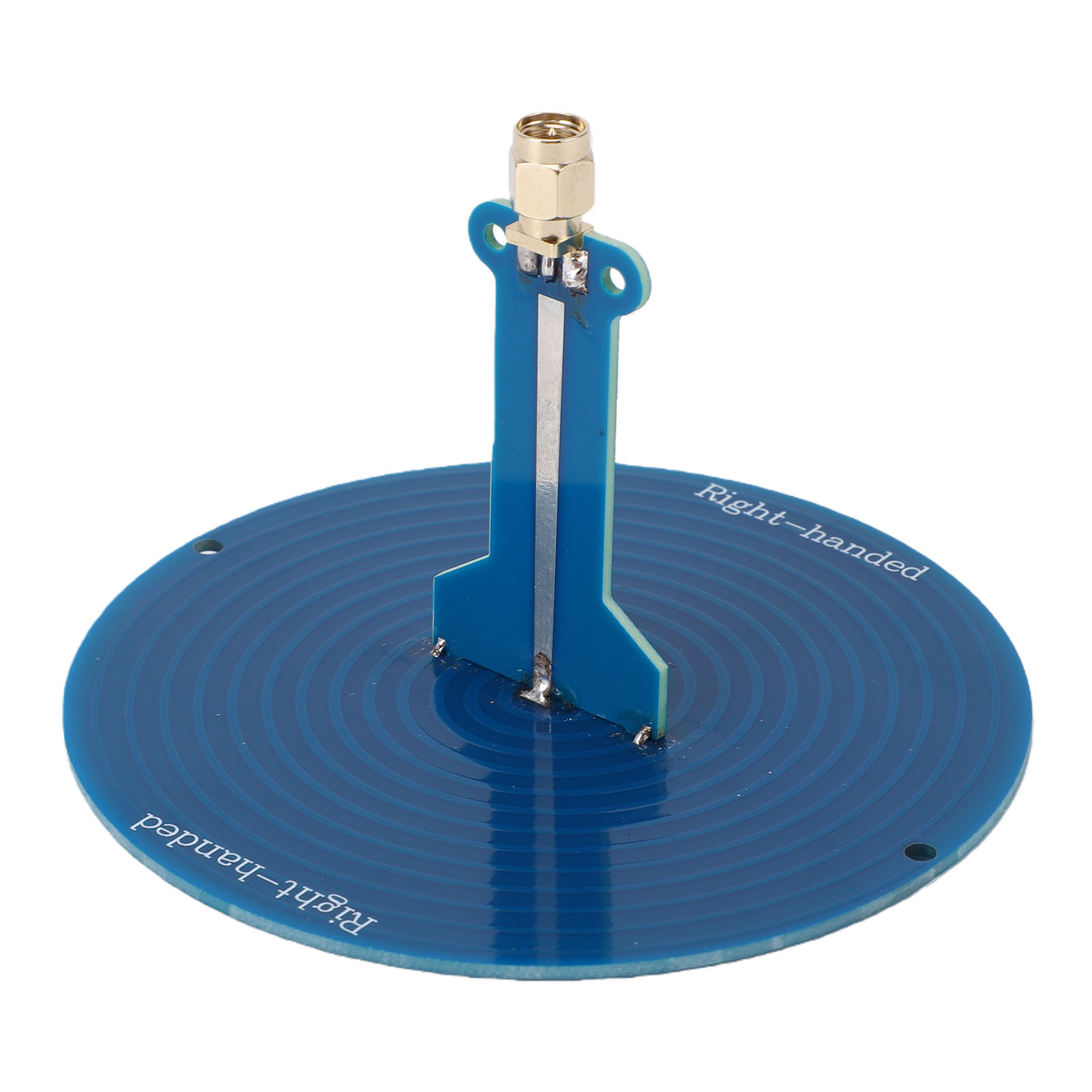

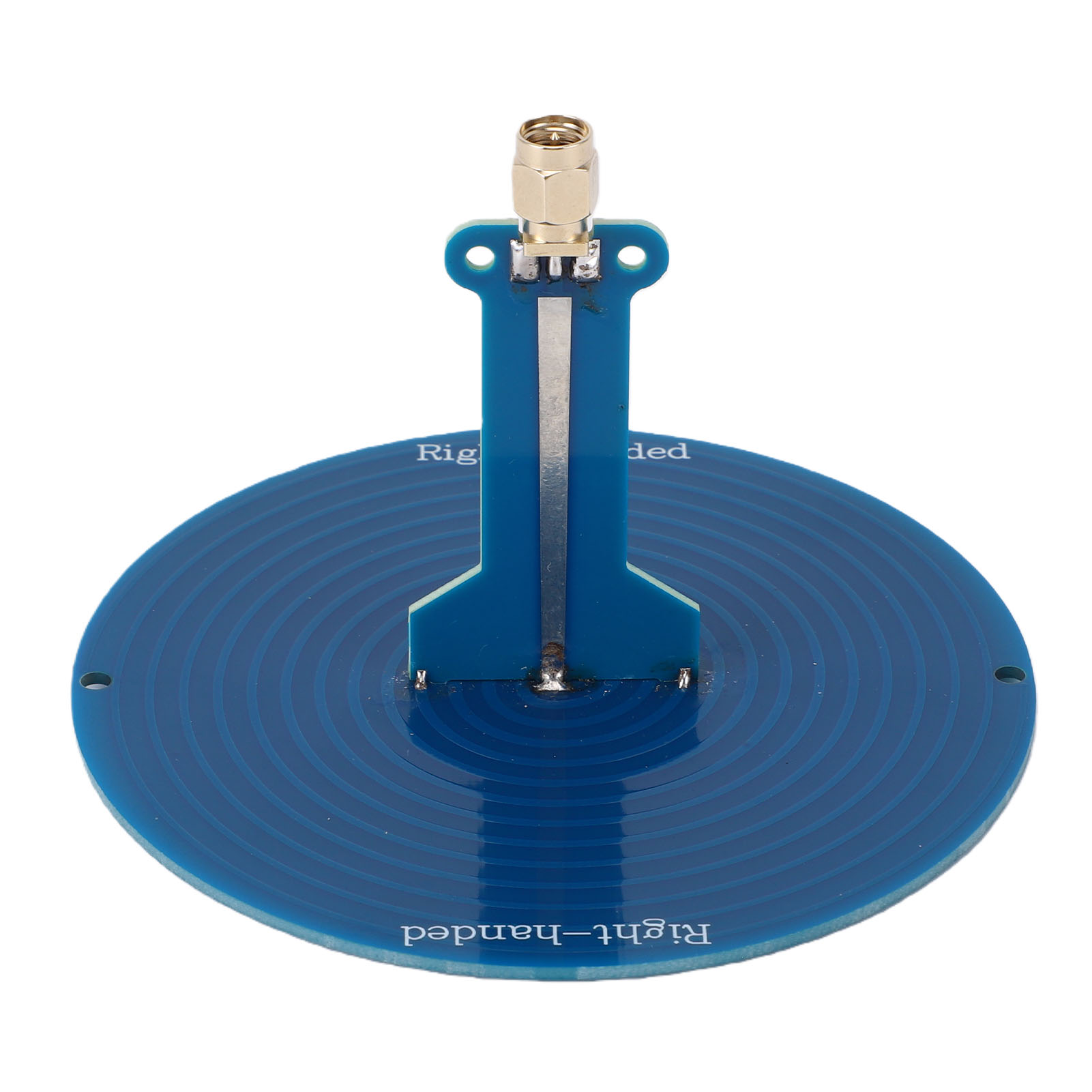

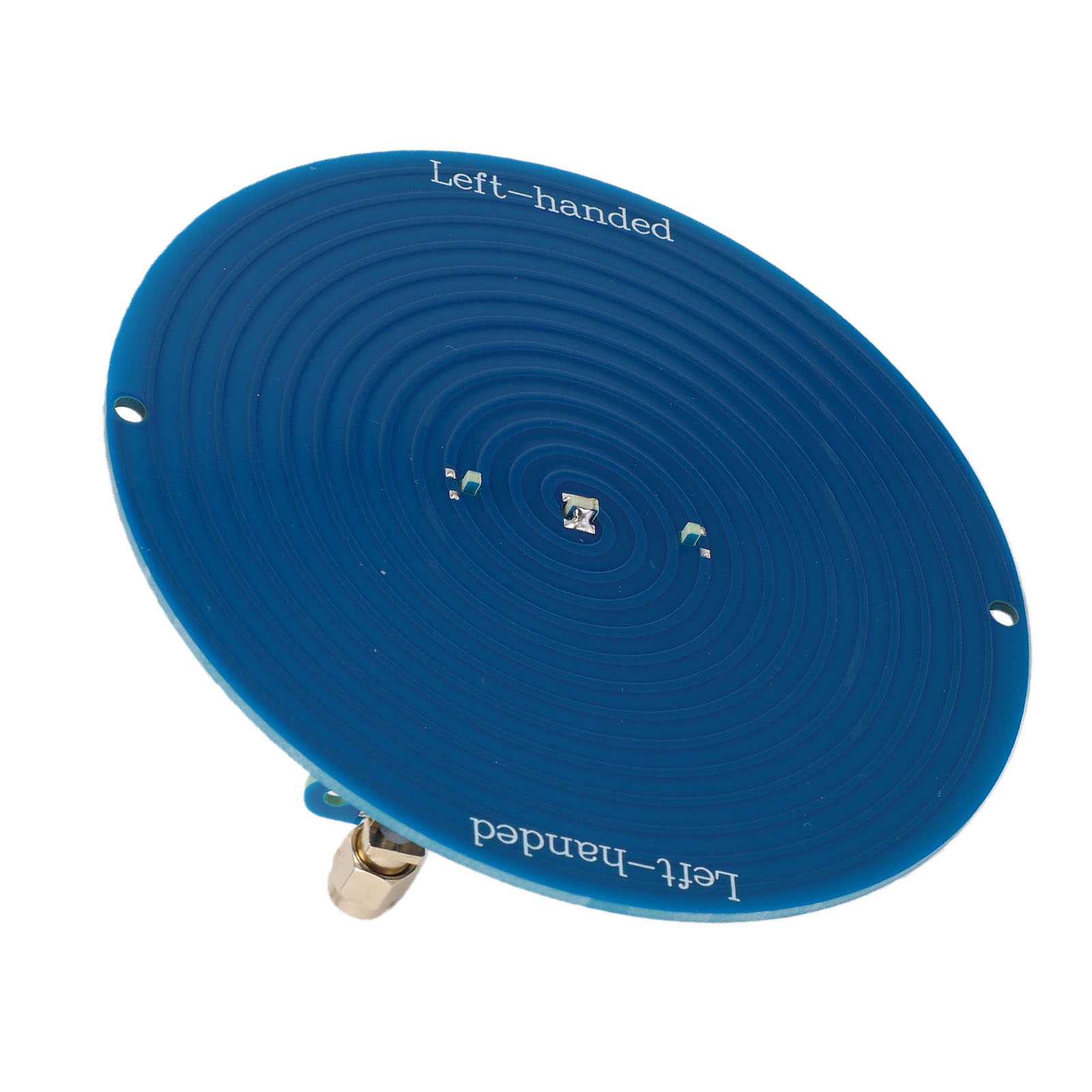

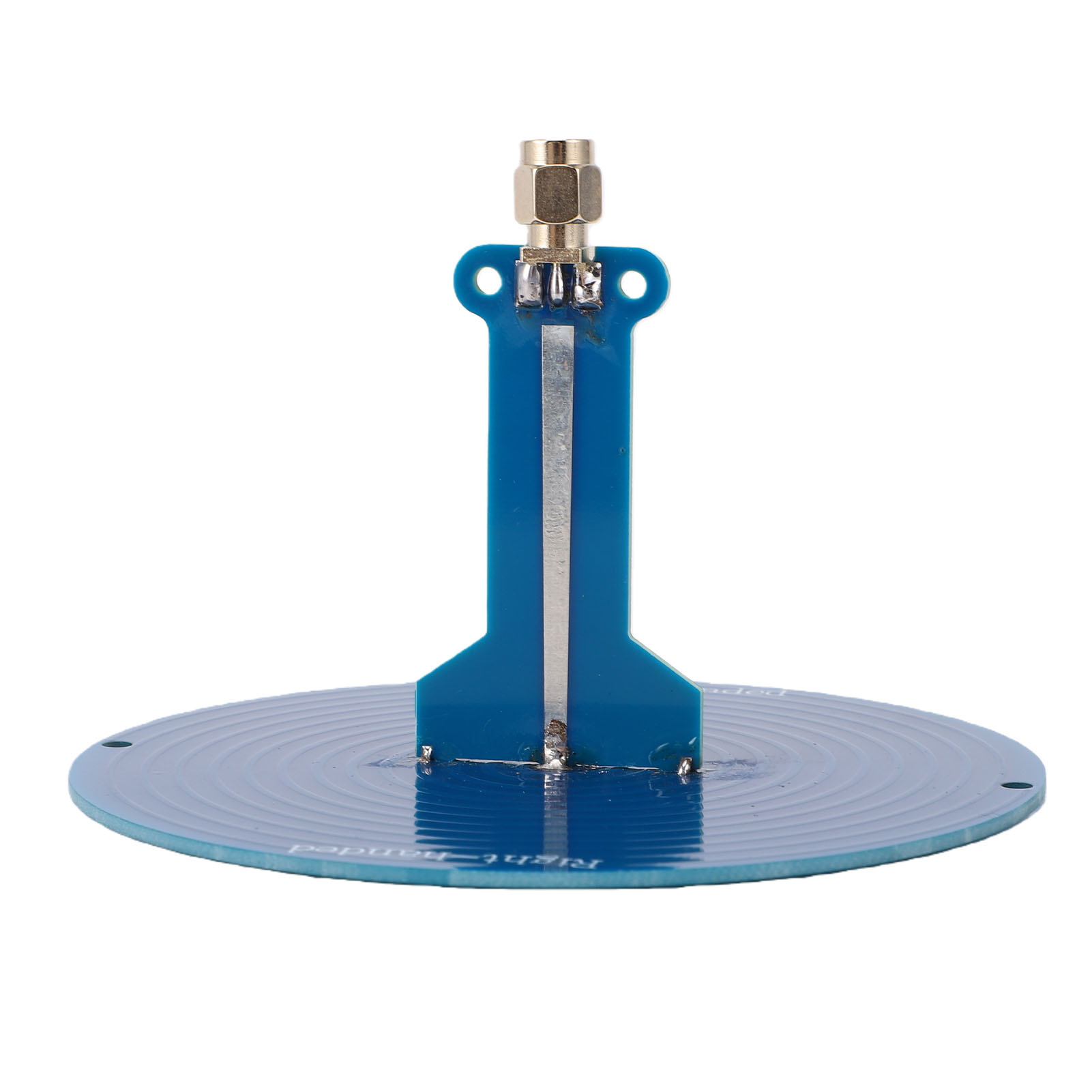

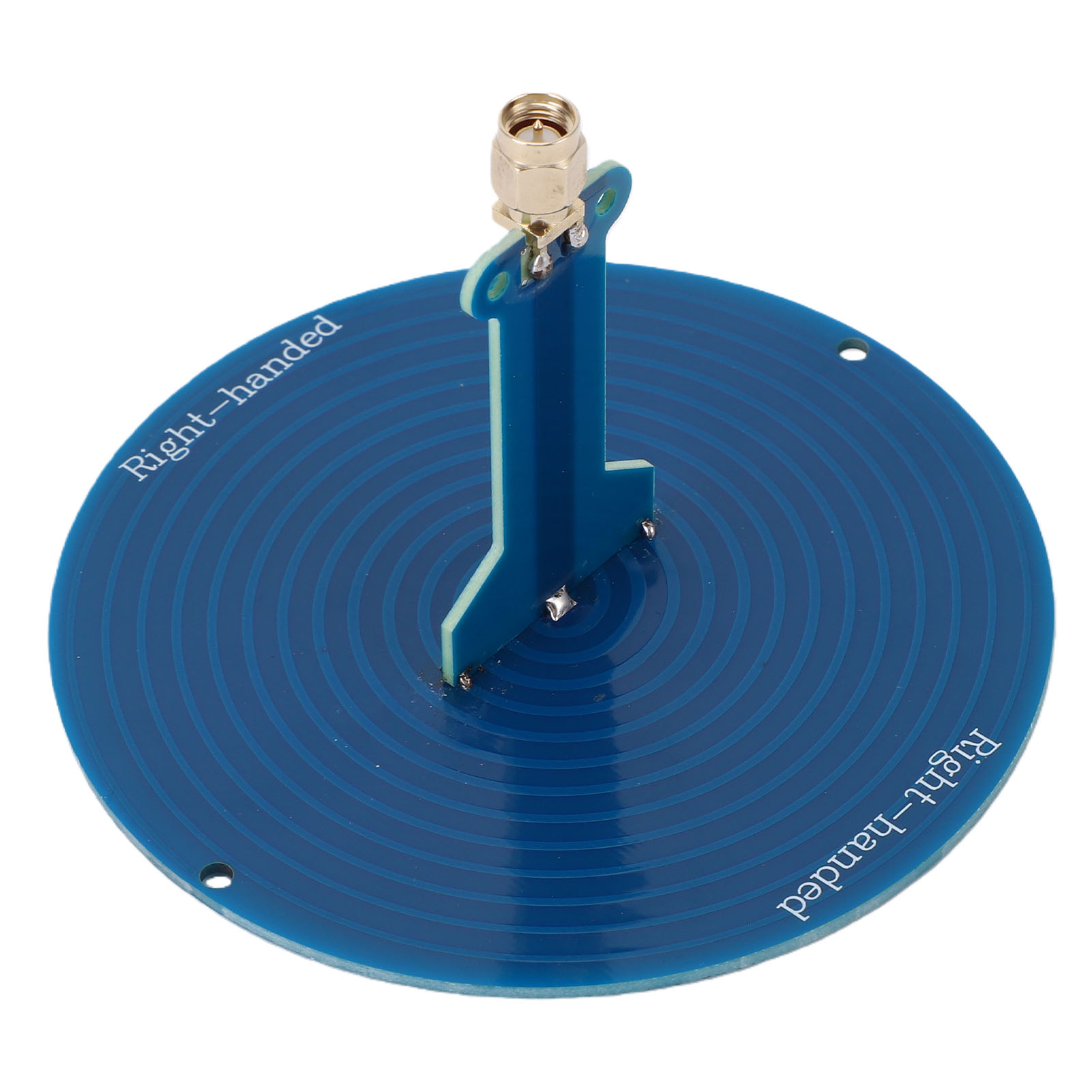

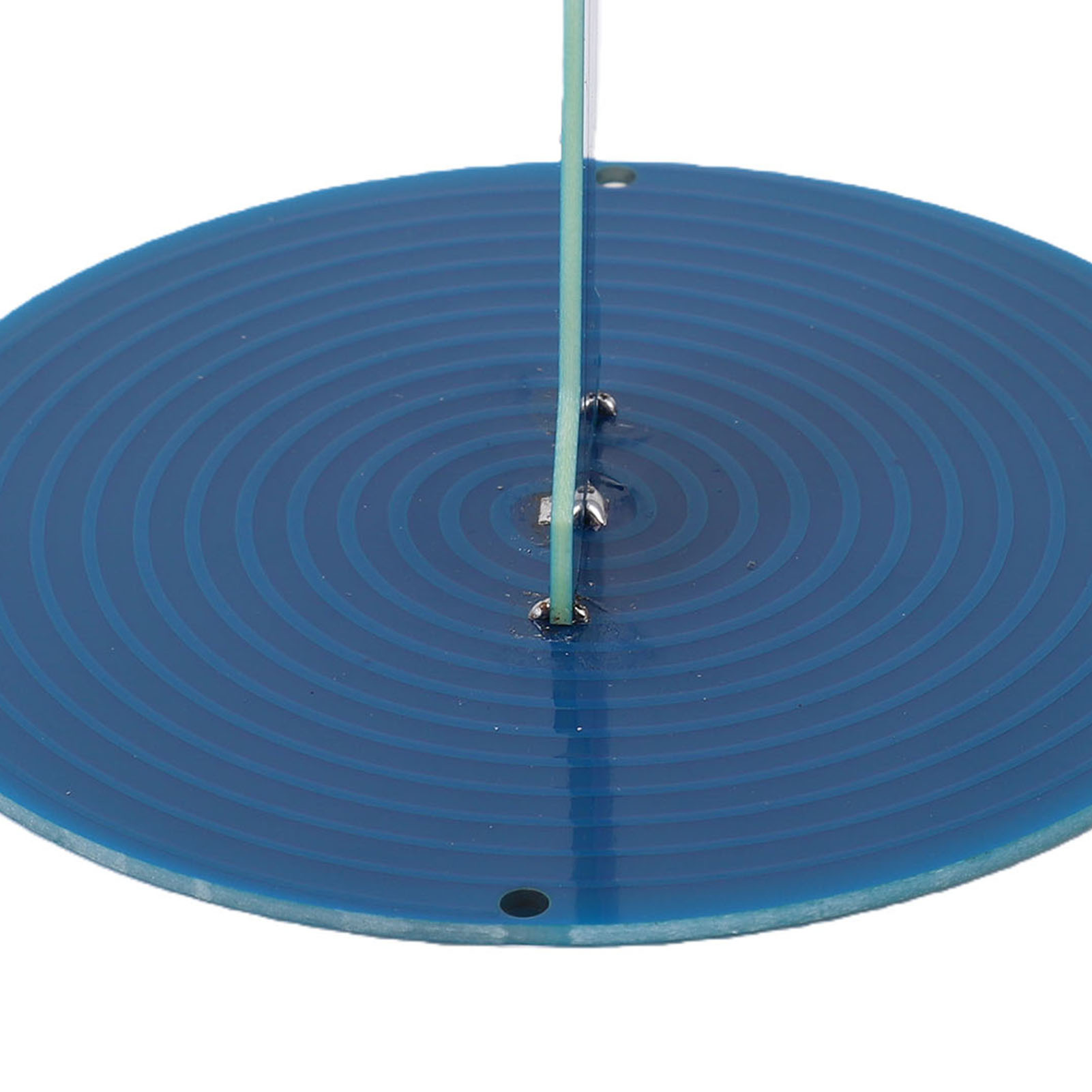

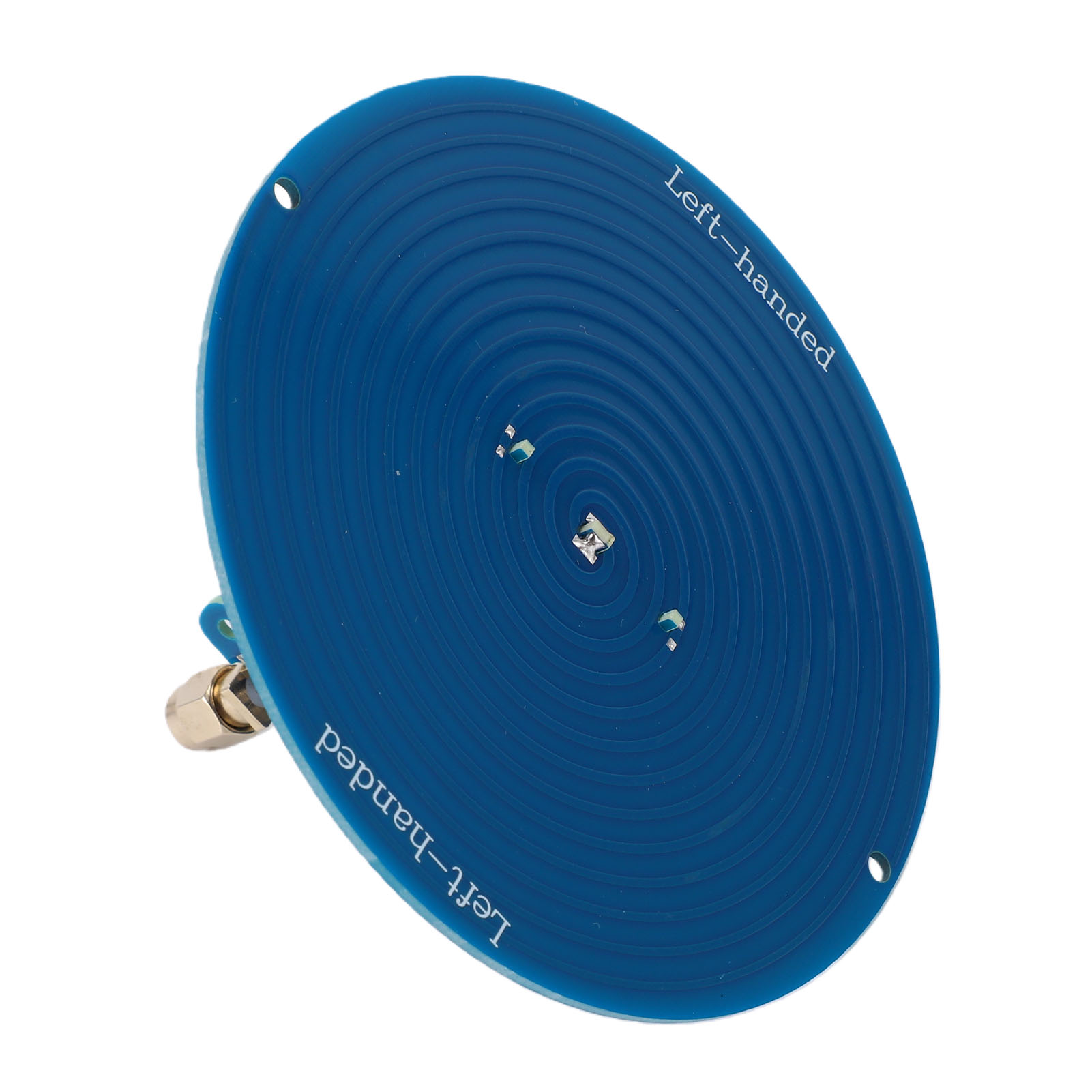

3. Compact Helical Design: The use of a spiral equiangular gradient structure optimizes impedance matching and boosts performance, with a compact size of just 3.9 inch.
4. PCB Material: Made from premium PCB material, the ultra wide band antennae is damage proof, ensuring reliable performance across diverse environmental conditions.
5. Professional Applications: Ideal for navigation, spectrum analysis, and broadband measurements, this SMA UWB antennae is an invaluable tool in various fields.
Specification:
Material: PCB
Working Bandwidth: 942MHz to 6.5GHz

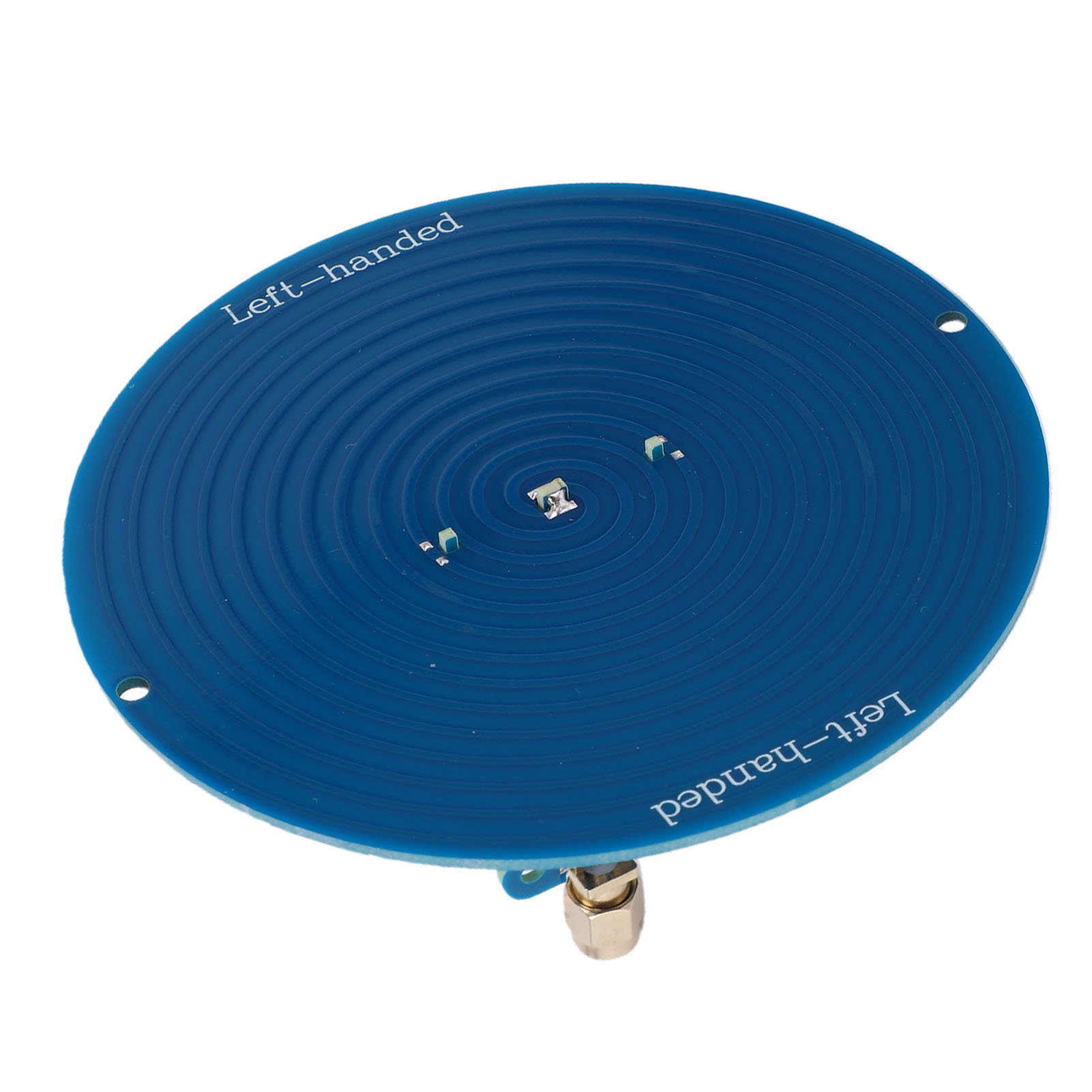

Polarization: Left Hand Circular Polarization (LHCP)
Axial Ratio: <1.5dB (Typical)
Radiation Angle: H=E=70°
Gain: 5dBi to 7dBi
Impedance: 50Ω
VSWR: <2.4 (Typical)

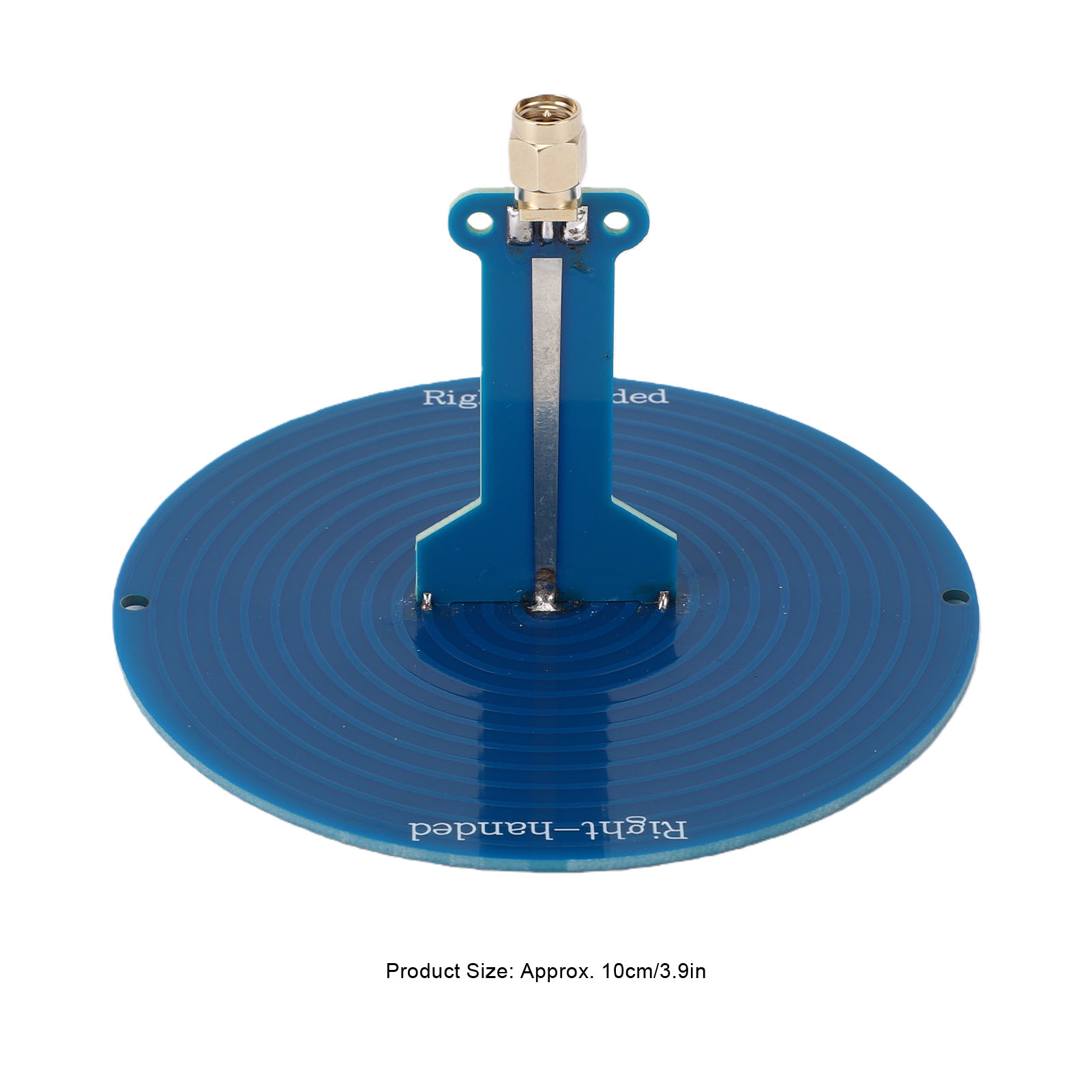

Product Size: Approx. 10cm/3.9in
Package List:
1 x UWB Antennae
