Feature:
1. Capable of measuring inductors below 1uH and capacitors less than 1pF.
2. Wide measurement range and high accuracy.
3. Small size, light weight, easy to carry.
4. The frequency display function can view the current measurement frequency while measuring the component to be tested.
5. With four measuring gears, it is easy to use.
Specification:
Item Type:Power Meter Module
The main function
1, measurement function
C level ------ capacitance level (0.01pF~10uF)
L level ------Inductive level (0.001uH~100mH)
Hi.L level ---large inductance level (0.001mH~100H)
Hi.C level ---large capacitance level (1uF~100mF)
2, clear correction function
Capacitor mode ----- Open circuit correction;
Inductance mode ----- Short circuit correction.
3, display mode
Direct reading ---- Direct reading display.
1, measurement function
C level ------ capacitance level (0.01pF~10uF)
L level ------Inductive level (0.001uH~100mH)
Hi.L level ---large inductance level (0.001mH~100H)
Hi.C level ---large capacitance level (1uF~100mF)
2, clear correction function
Capacitor mode ----- Open circuit correction;
Inductance mode ----- Short circuit correction.
3, display mode
Direct reading ---- Direct reading display.
| Project | Parameter | ||
| Capacitance Measurement (C Level) | Accuracy | 1pF~luF | 0.01 |
| 1uF~10uF | 0.05 | ||
| Resolution | 0.01pF | ||
| Inductance Measurement 1 Level) | Accuracy | 1uH~100mH | 0.01 |
| Resolution | 0.001uH | ||
| Large Inductance Measurement (Hi.1 Level) | Accuracy | 100mH~1H | 0.01 |
| 1H~100H | 0.05 | ||
| Resolution | 0.001mH | ||
| Large Capacitance Measurement (Hic Level) | Accuracy | u~100mf | 0.05 |
| Resolution | 0.01uF | ||
| Test Frequency | L Level,C Level | 500kHz | |
| Hi. C Level | 500HZ~50KHz | ||
| Inductance, capacitance and large inductance measurement | LC resonance | ||
| Large capacitance measurement method | Charge and discharge | ||
| Display method | 1602 LCD screen | ||
| Effective display digit | 4 | ||
| Power supply interface | MiniUSB and 5.5DC socket | ||
| Supply voltage | 5V | ||

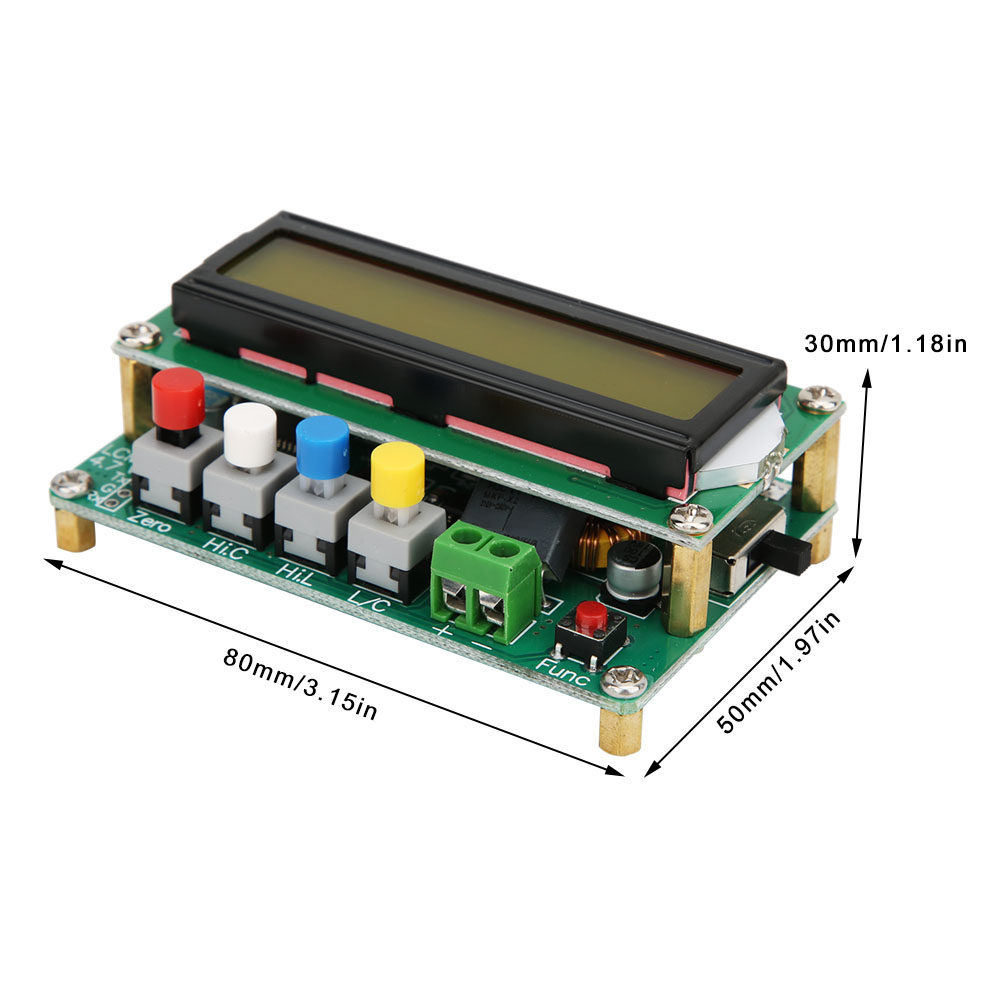

| Product Size | 80 x 50 x 30mm / 3.15 x 1.97 x 1.18in | ||
| Product weight | 80g (Main Unit) + 28g (MiniUSB cable) |

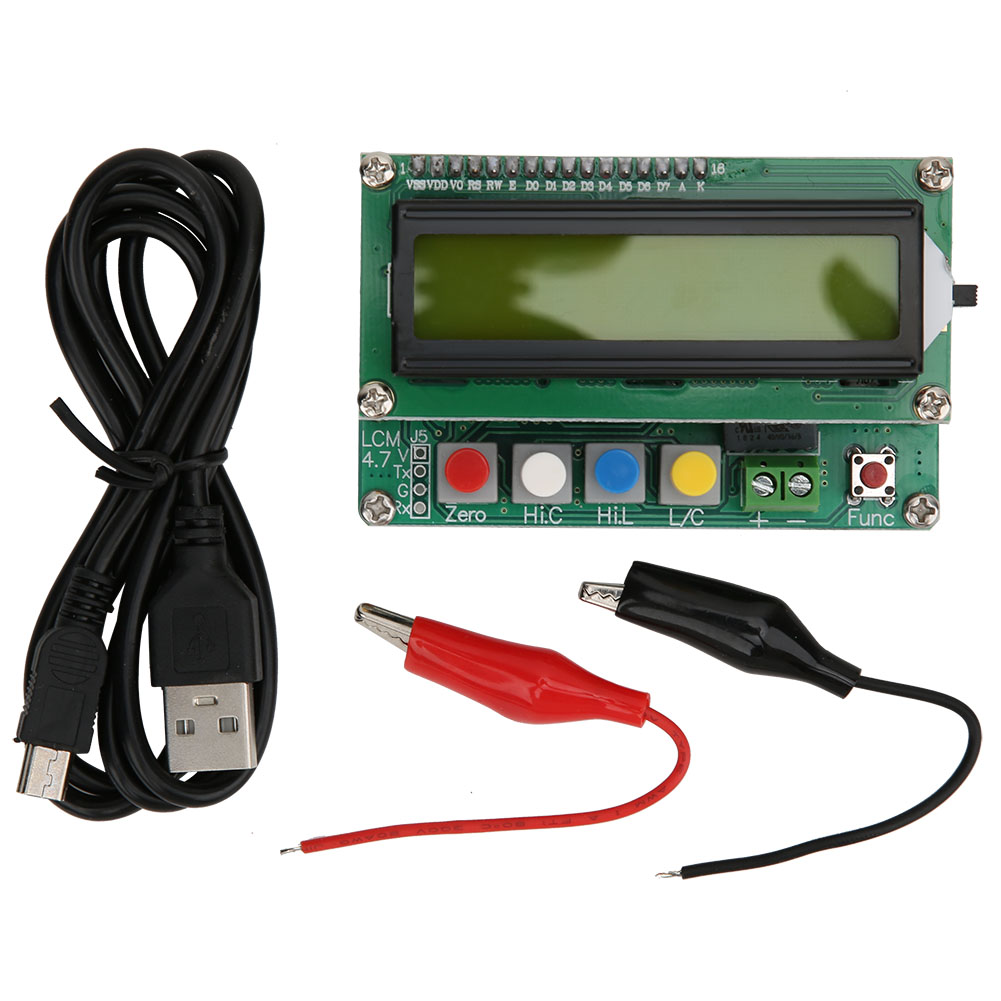

Package List:
1 x Meter

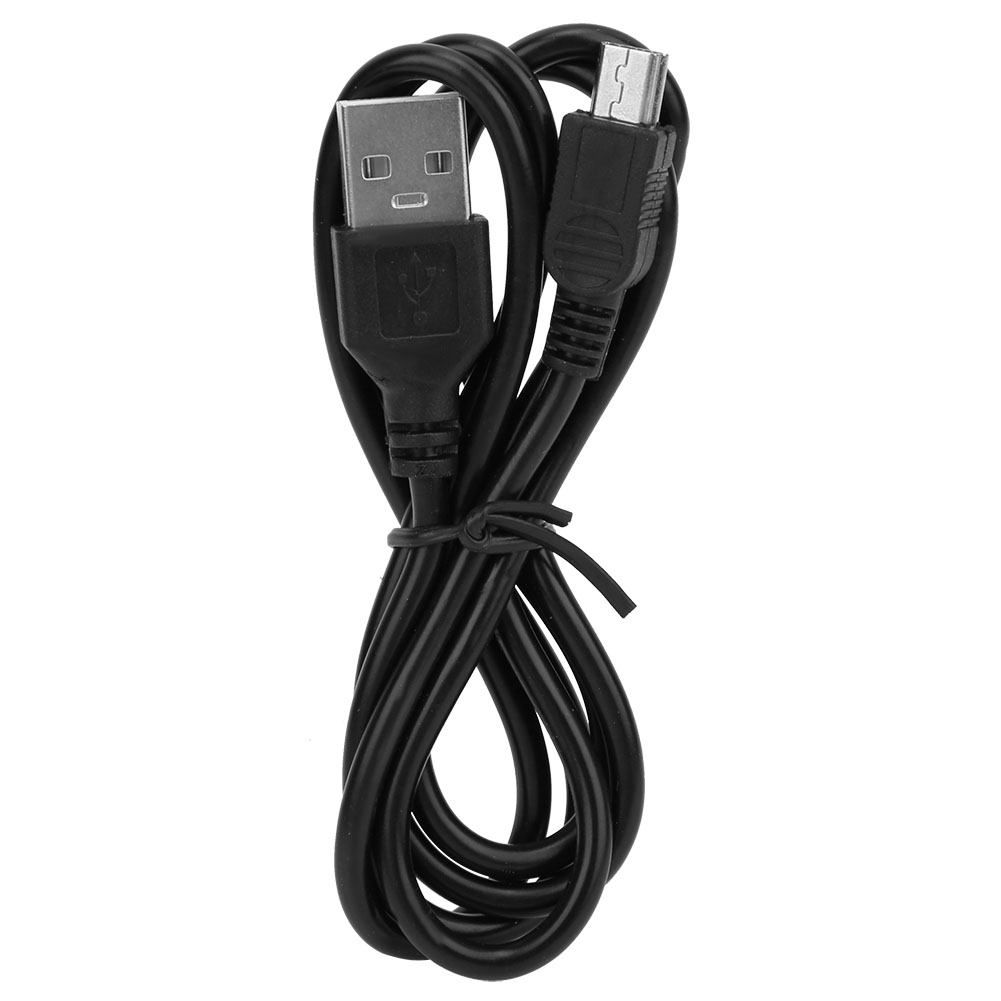

1 x Data Cable
1 x Red Crocodile Clamp
1 x Black Crocodile Clamp
