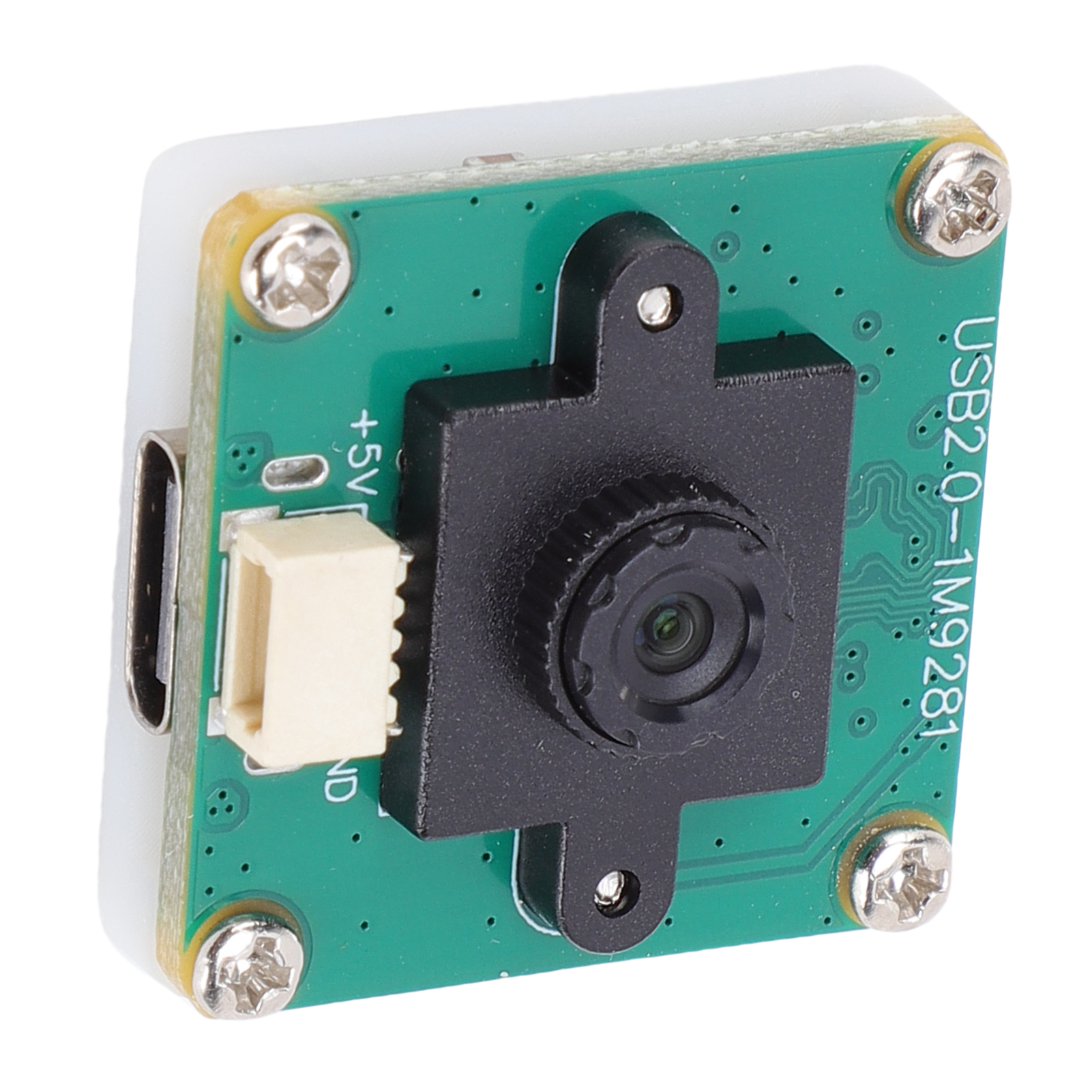

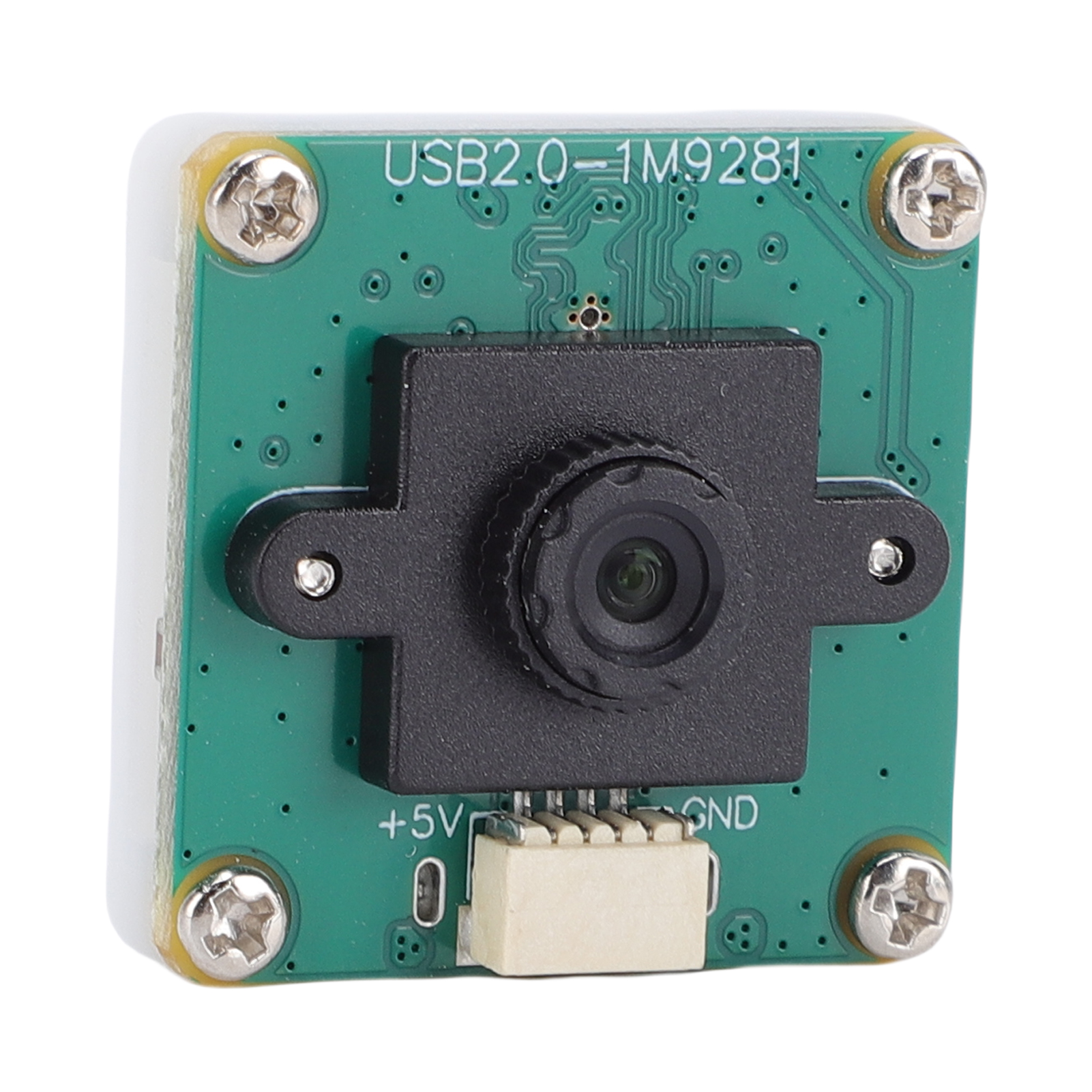

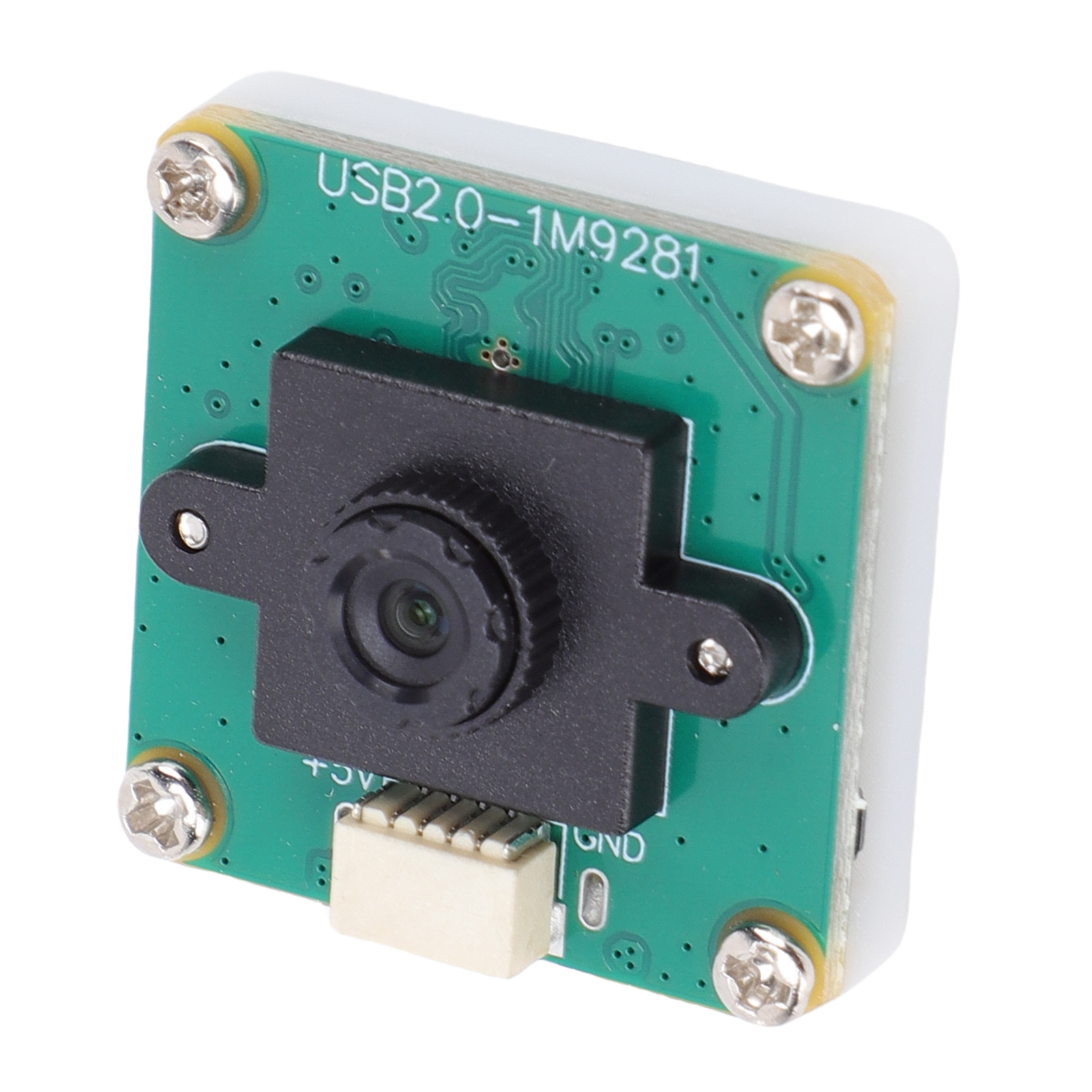

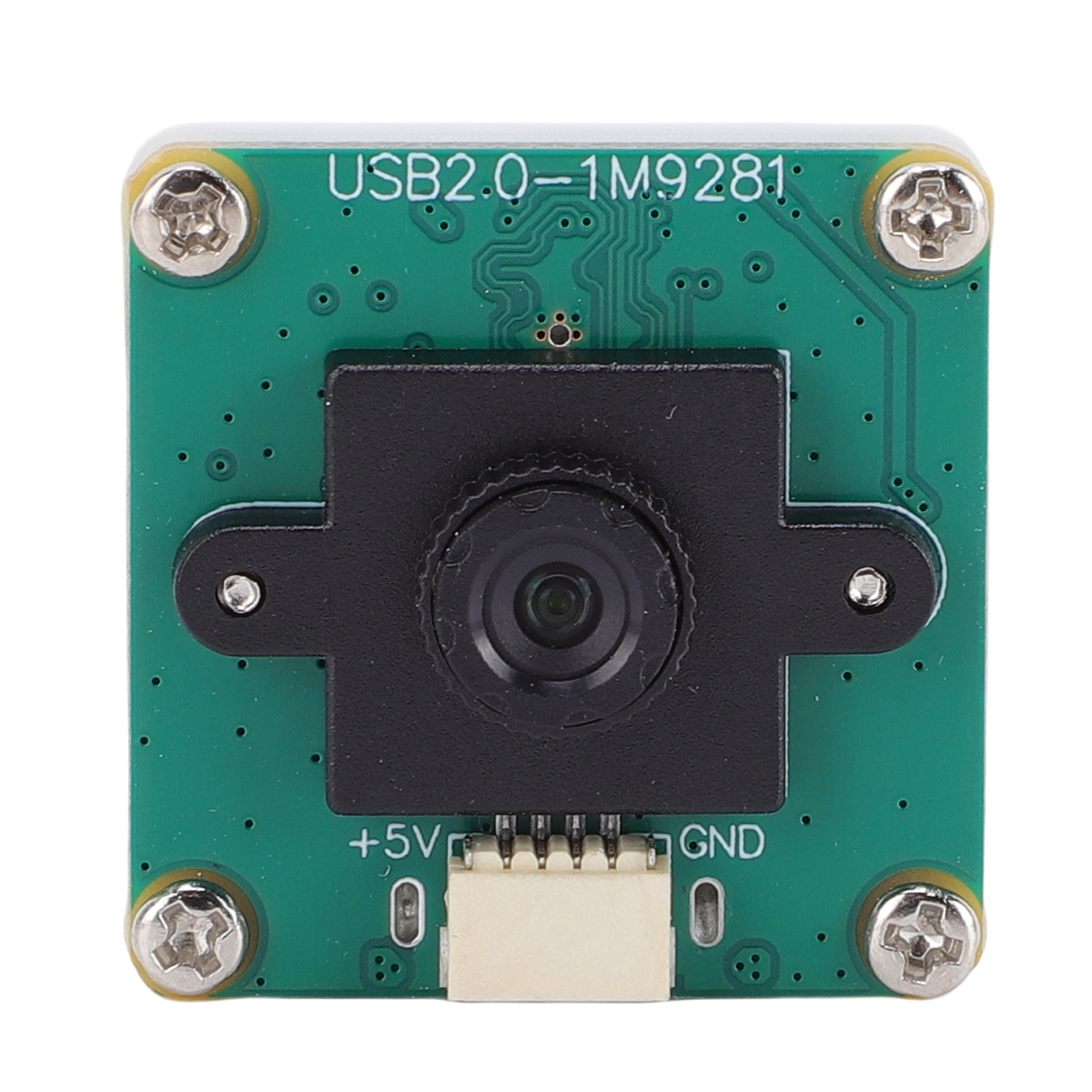

Feature:

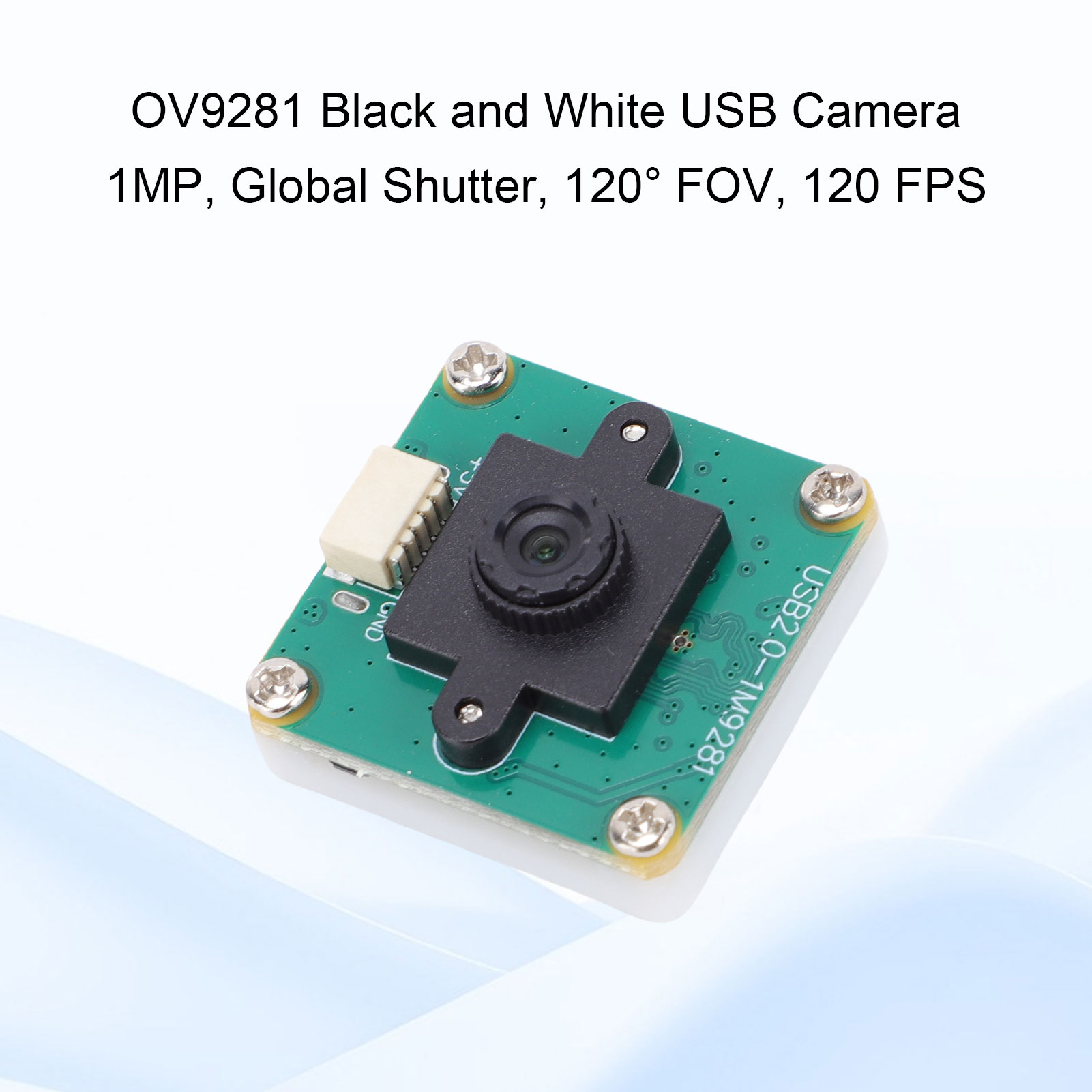

1. [Global Shutter Camera] This USB camera module features a global shutter mechanism that eliminates the rolling shutter effect when taking fast moving objects, making it ideal for high speed imaging applications.
2. [High Frame Rate Camera] With 120FPS recording capability, this OV9281 camera module takes dynamic scenes with exceptional clarity, ensuring no details are missed during rapid motion.

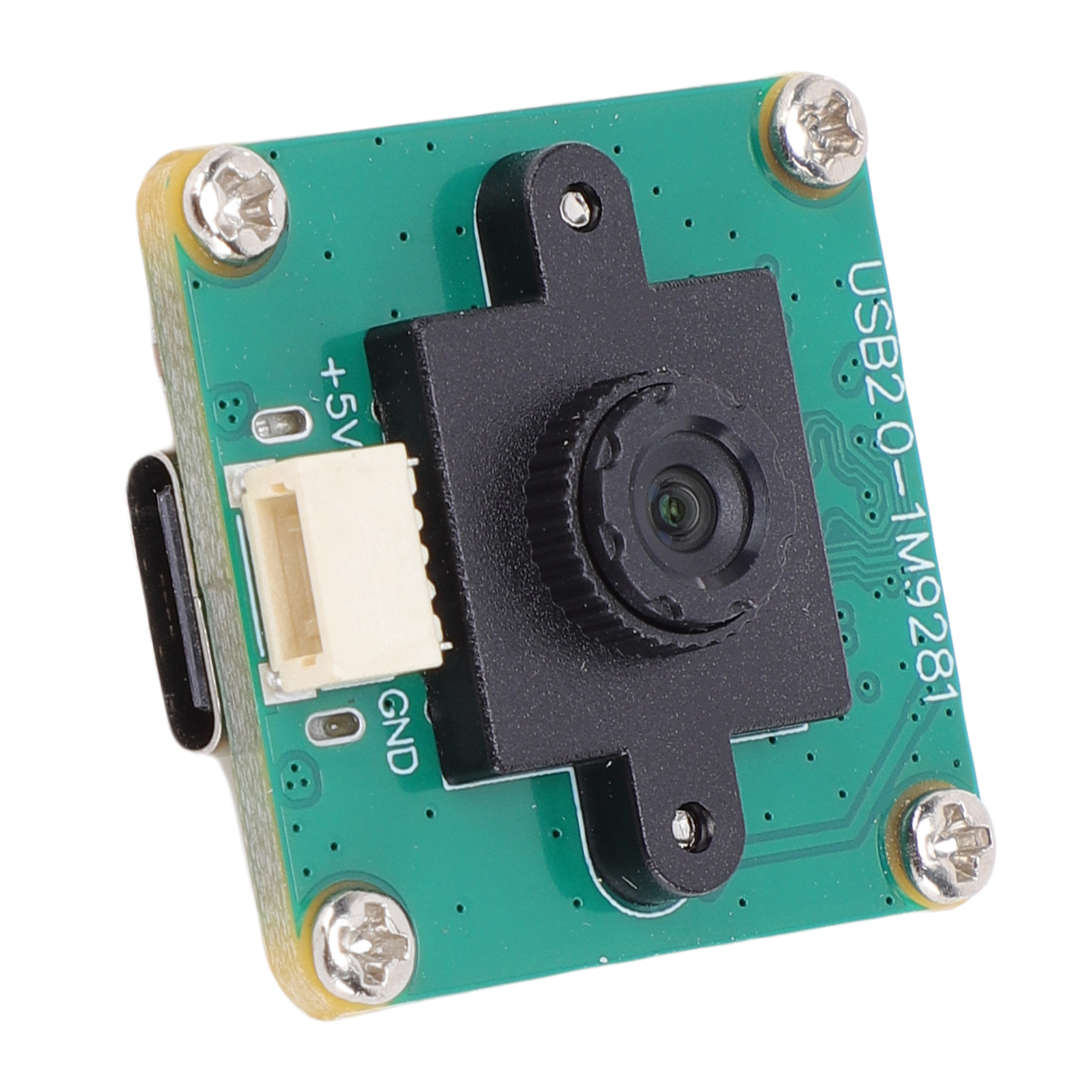

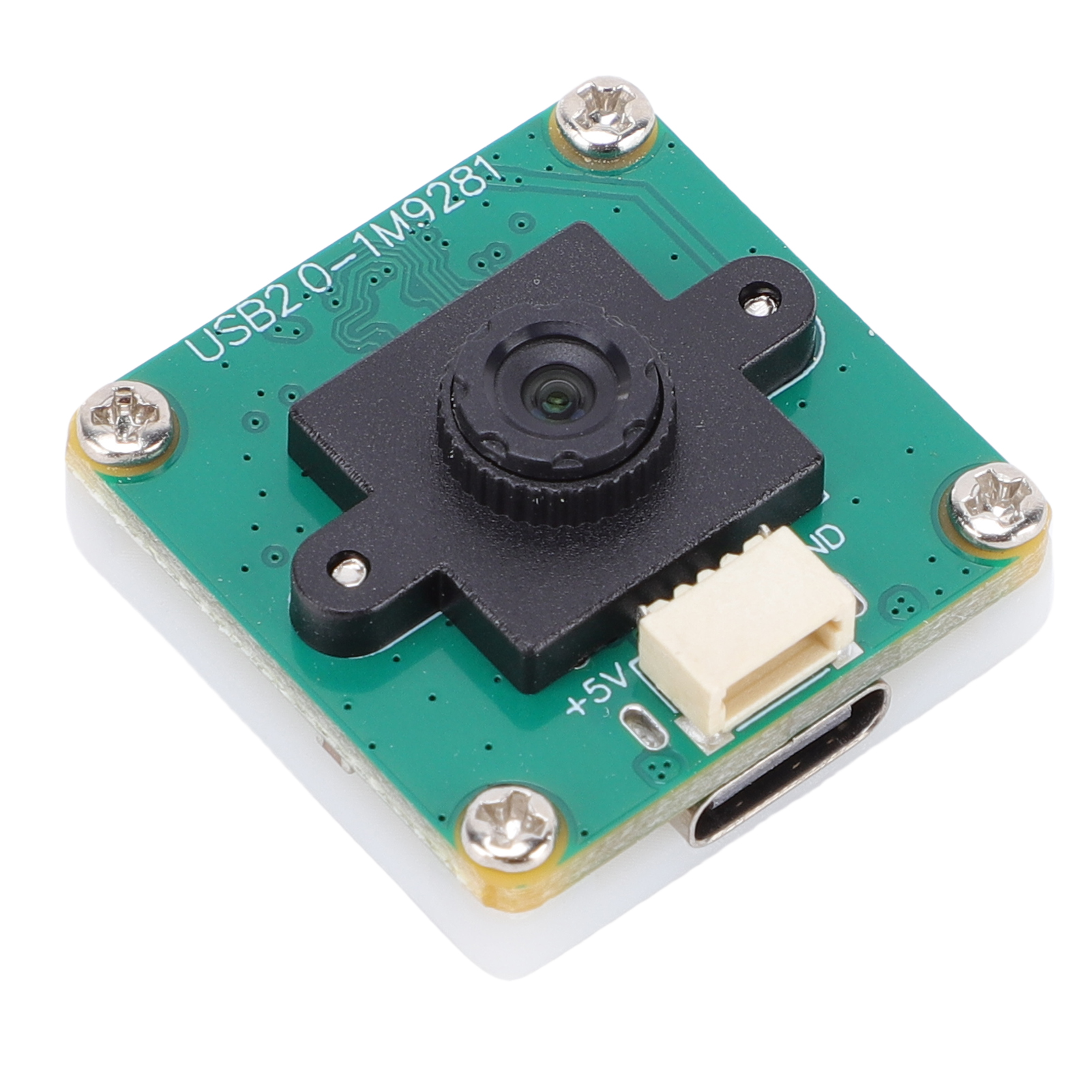

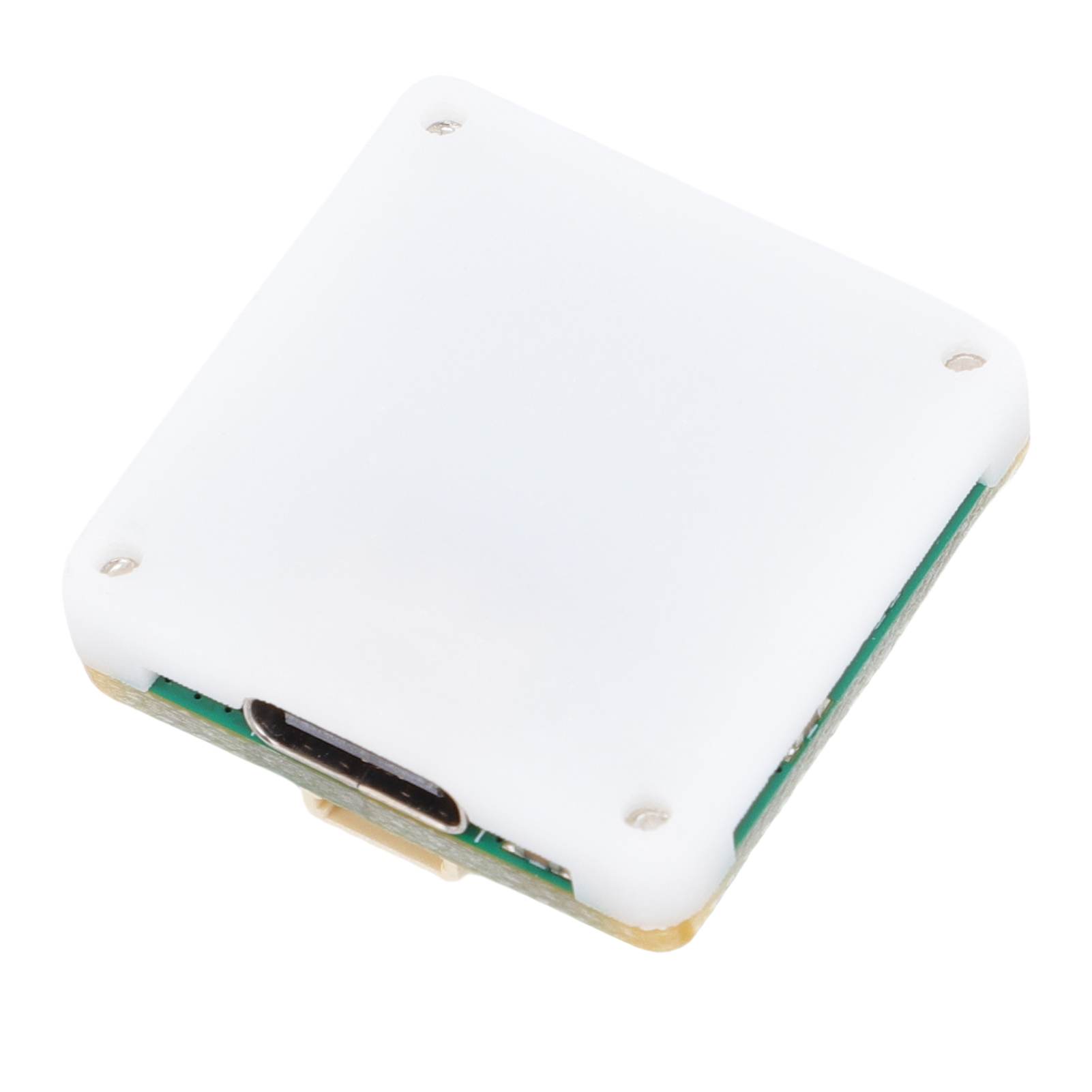

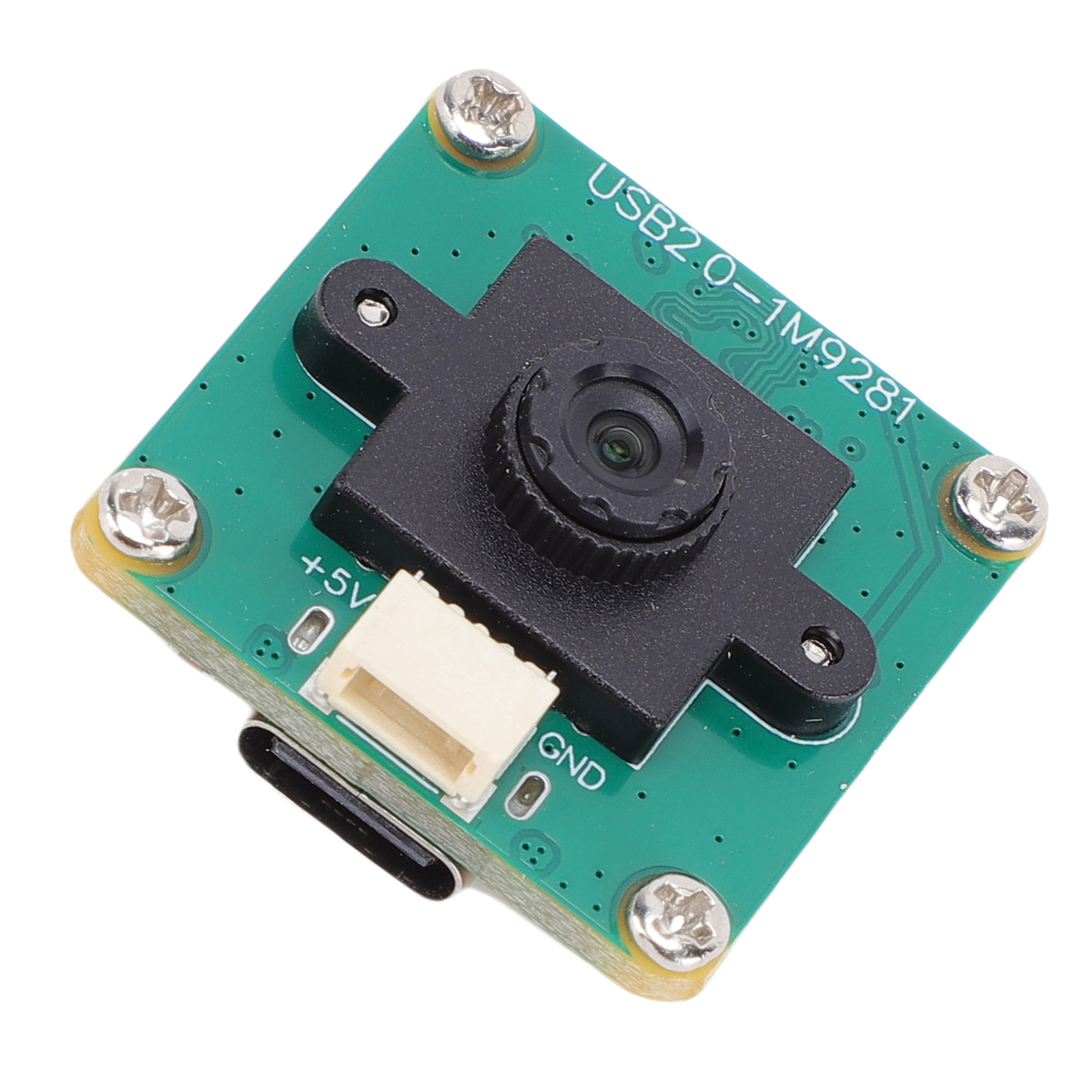

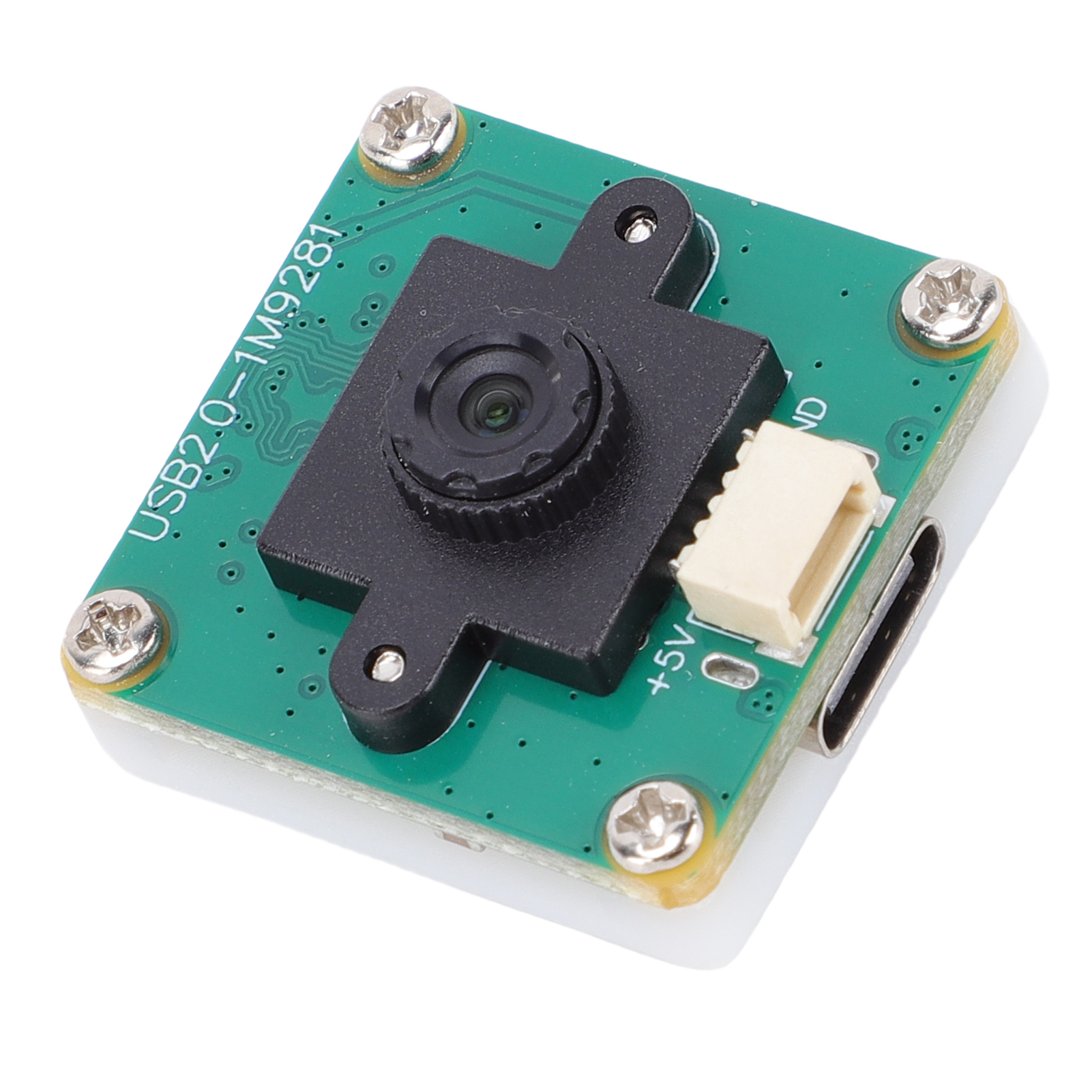

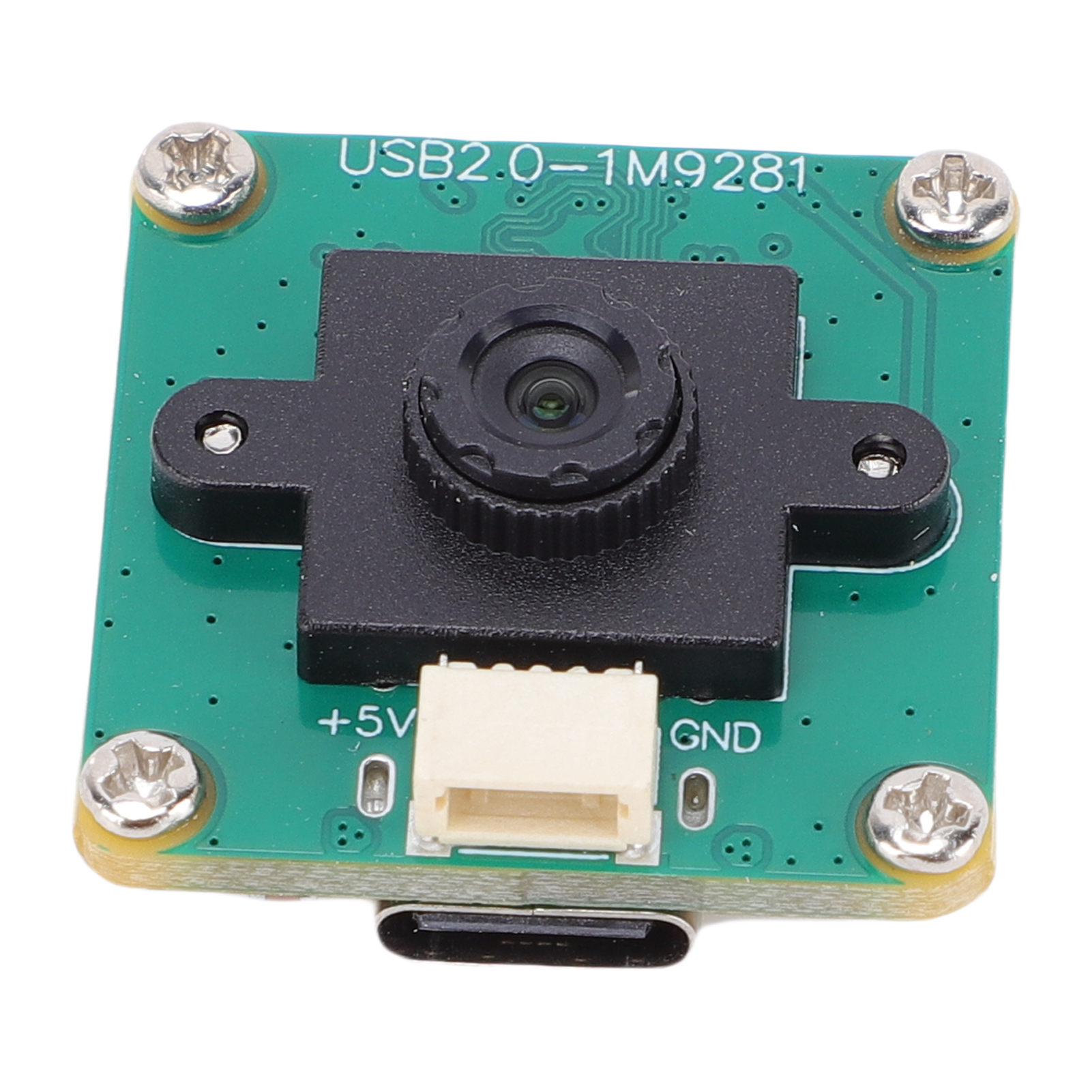

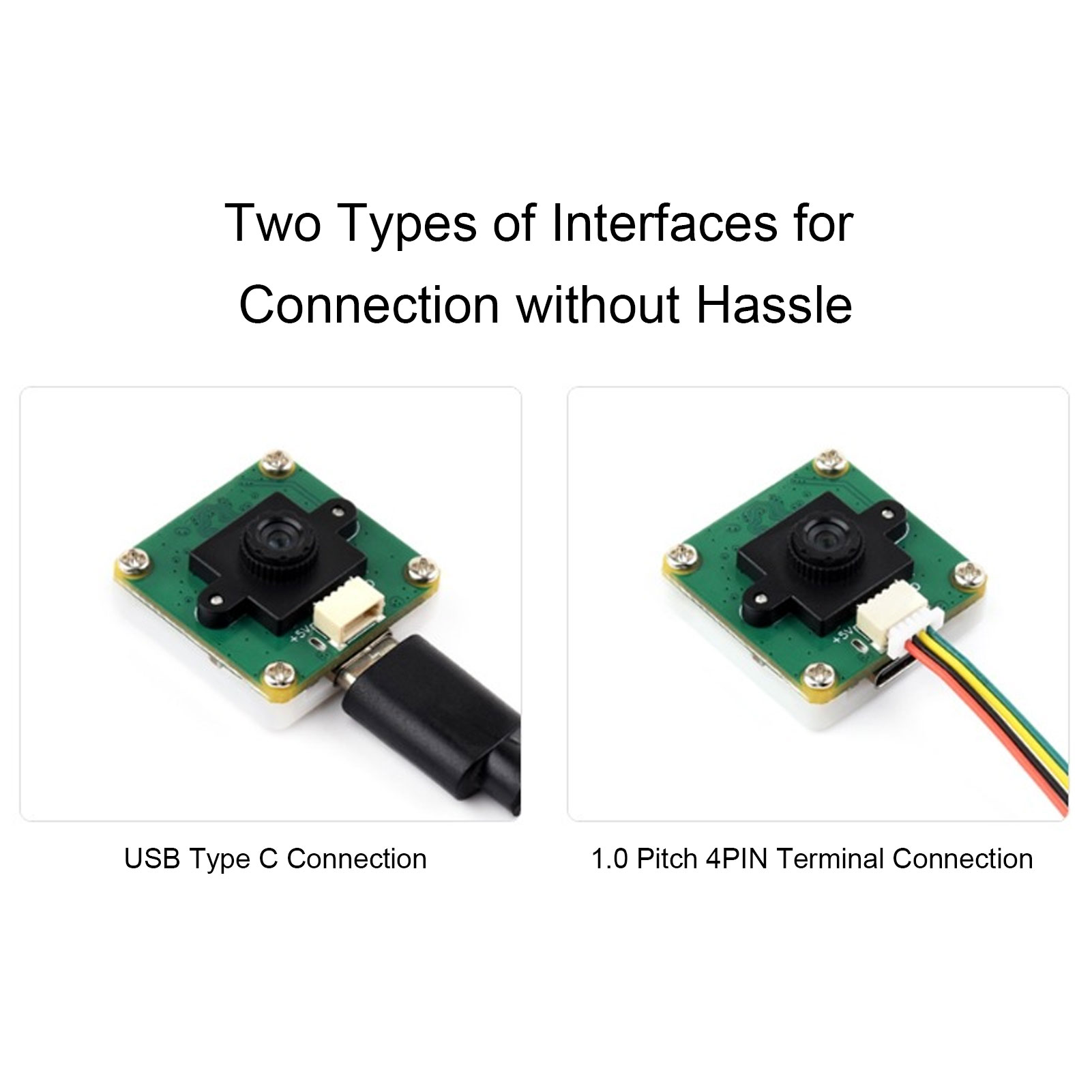

3. [Dual Interface Camera] The USB webcam board offers flexible connection options with both USB Type C and 1.0mm 4PIN terminal interfaces for versatile integration with various systems.
4. [Monochrome Sensor Camera] Designed with a black and white sensor, this camera delivers enhanced contrast and low light performance compared to standard color cameras.

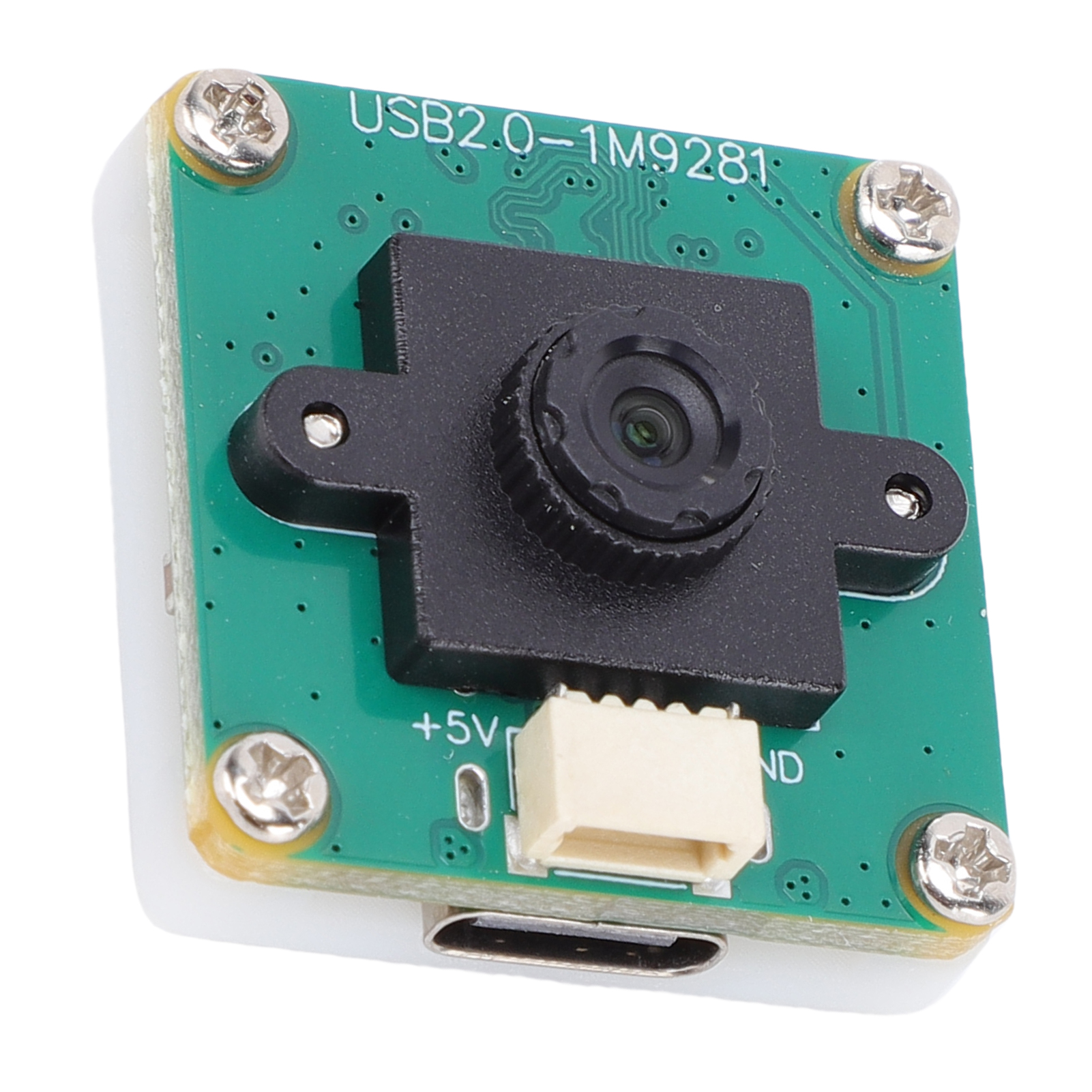

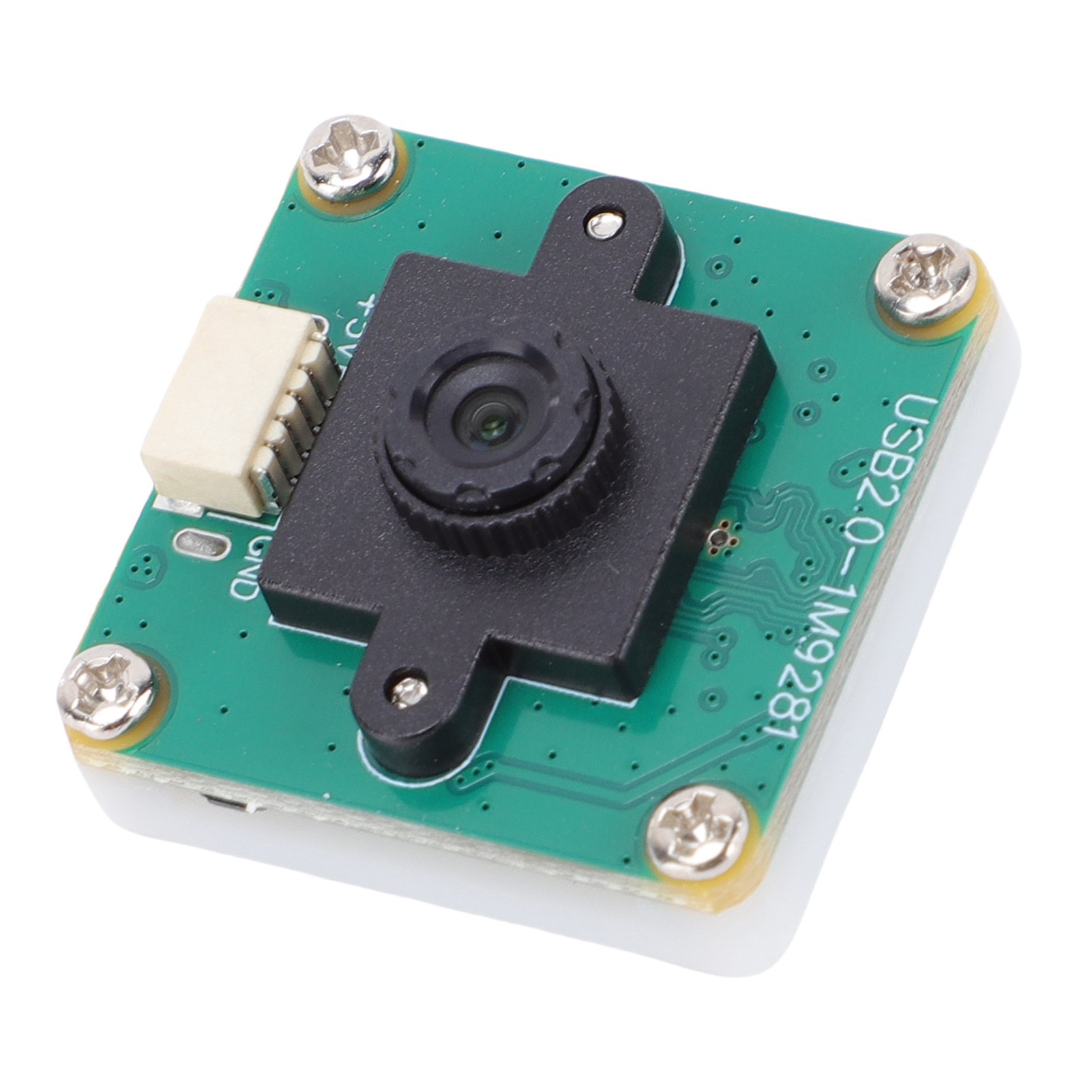

5. [Compact USB Camera] Measuring just 25x25mm, this lightweight module is fit for RasPi and for Nano embedded systems, featuring plug and play functionality for easy setup.
Specification:
Material: PCB
Pixels: 1MP (Monochrome)
Resolution: 1280x720
Image Sensor: OV9281
Digital Signal Processor: Auto Gain/Exposure/White Balance
Shutter Type: Global Shutter
CCD Size: 1/4inch
Aperture (F): 2.2
Focus Length (EFL): 1.65mm
Field of View (FOV): 120°
Dynamic Range: 52dB
Interface Type: USB2.0
Supported Image Formats: MJPEG, YUY2
Operating Temperature: 0°C - 50°C

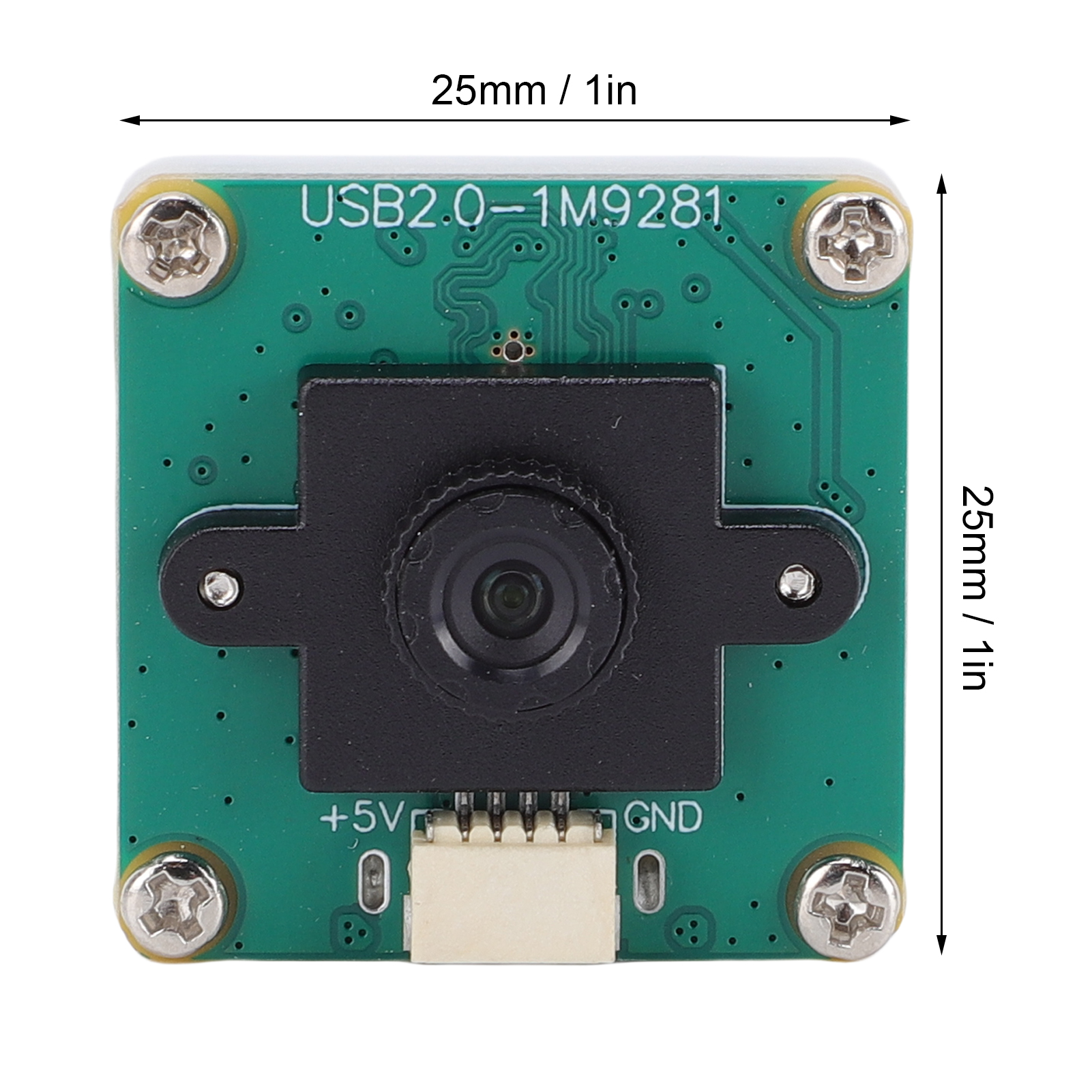

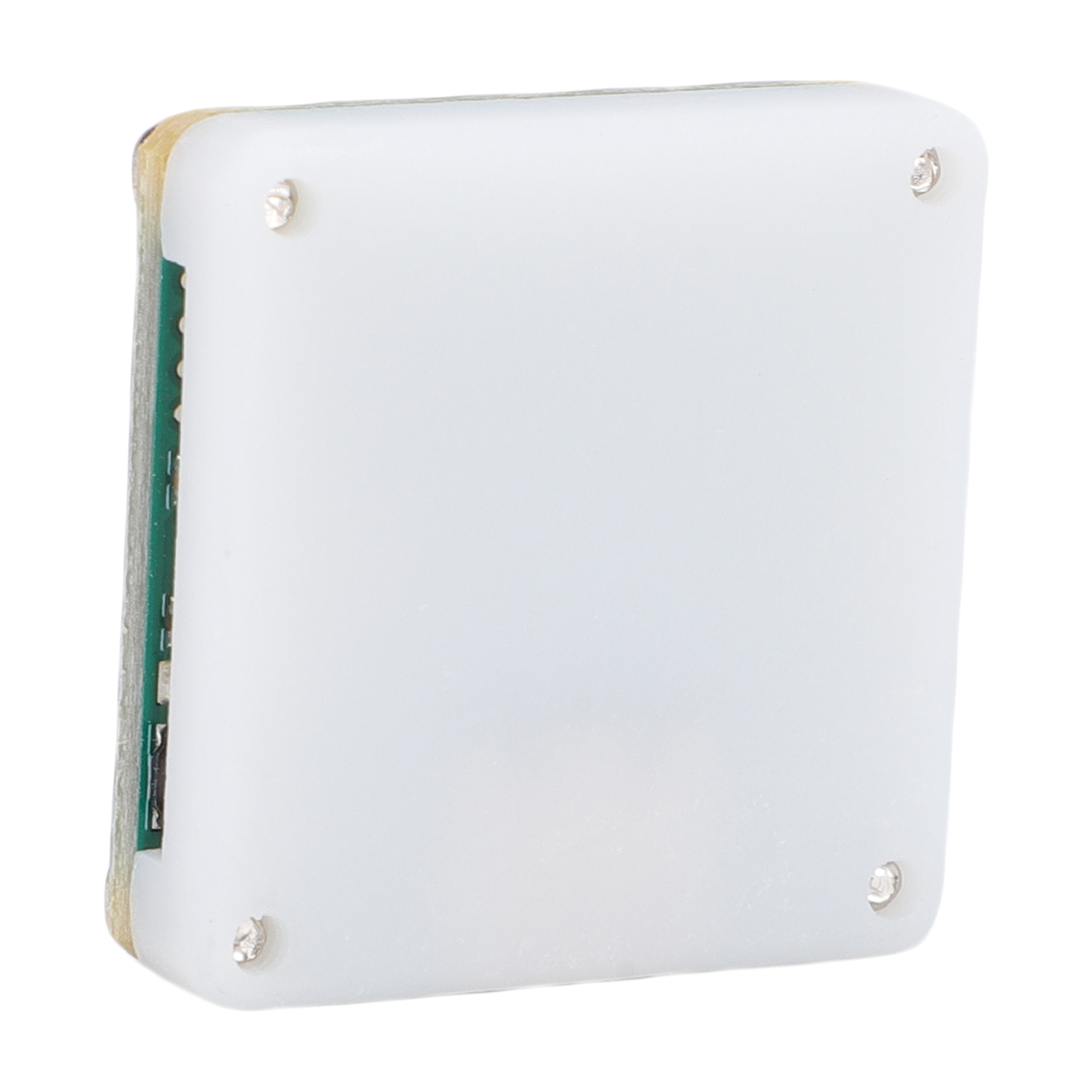

Product Size: Approx. 25 x 25mm / 1 x 1in
Supported Systems: Support for , Support for Systems

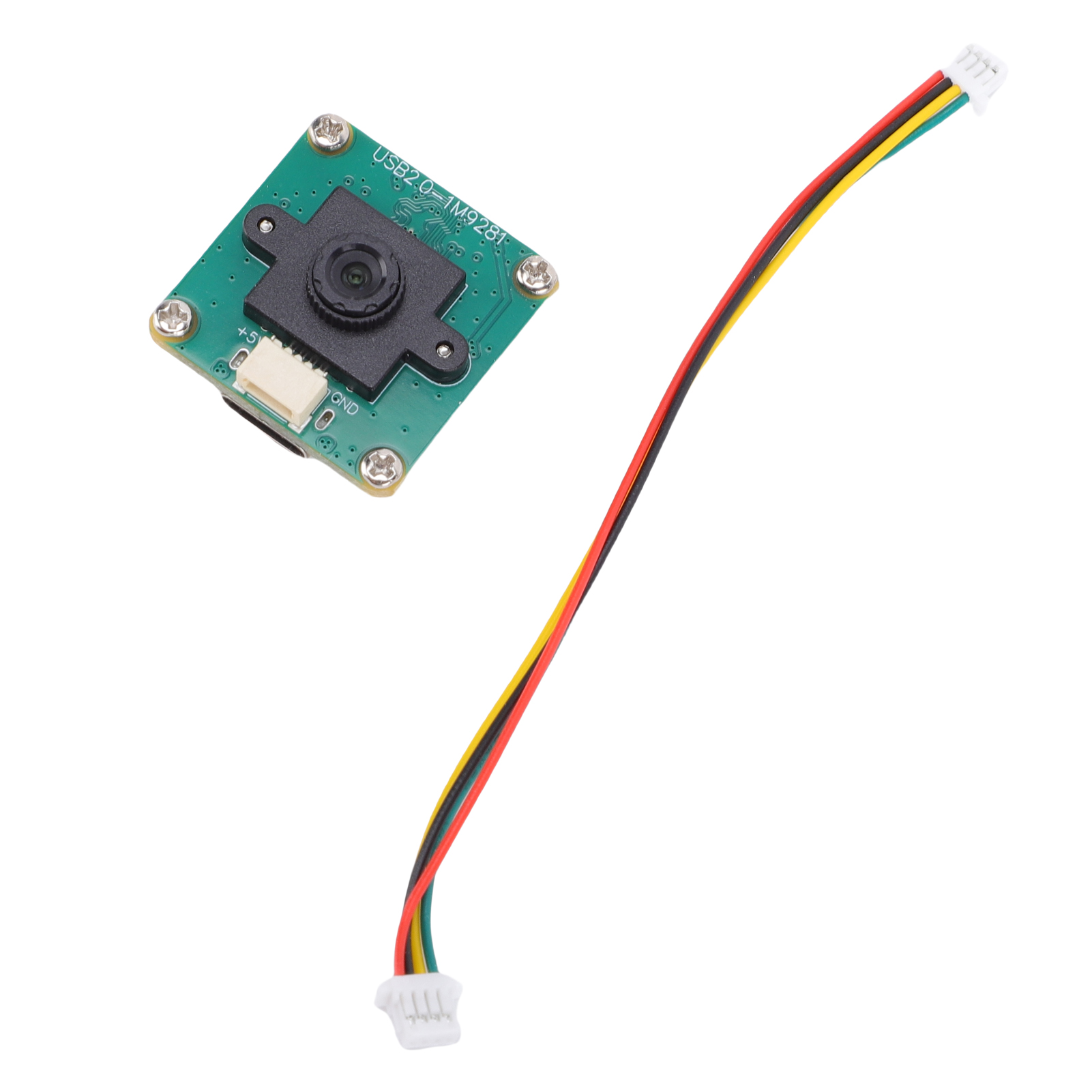

Package List:

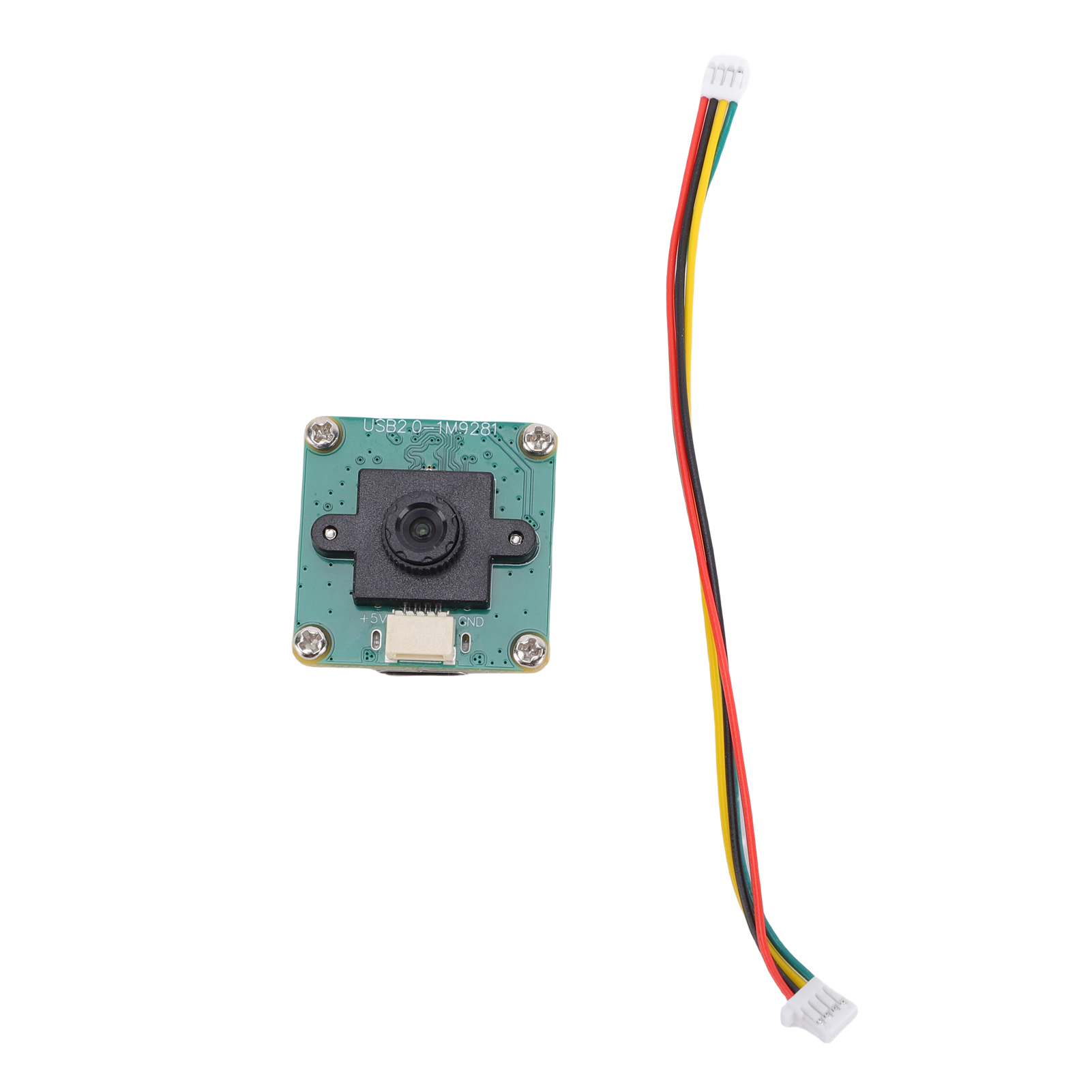

1 x USB Camera Module
1 x Connecting Cable
