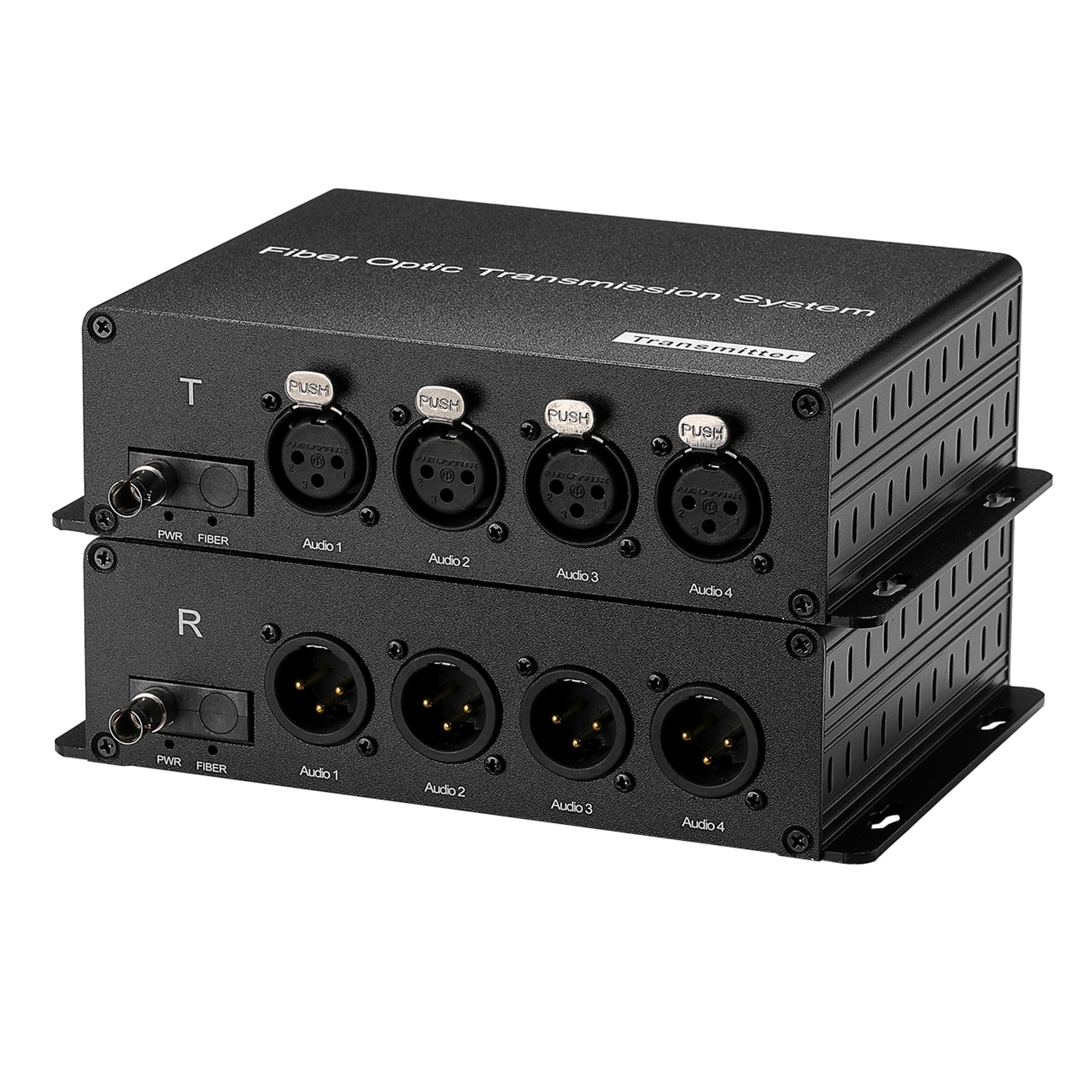

Hebbeko 4 Port XLR Audio Over Fiber Converter Extender ST Optical, A Pair
- 【Function】This XLR Audio over fiber extender can extend 4 channels of Balanced XLR Broadcast level high quality Audio over an optical fiber cable to far end. It allows 4 XLR audio device synchronous transmission, No debugging required. 4 XLR Audio signal is transmitted from T (TX) in the direction of R (RX)
- 【Universal for Fiber Types】The unit can work on both universal single-mode and universal multi mode optical fiber cable, Long distance transmission: Singlemode single fiber up to 12.4 miles (20Km), Mutlimode single fiber up to 0.31 miles(500meters). with ST optical interface
- 【Crystal clear sound, No Loss, No Delay】Professional Quality ,Pure and Clean fiber optic audio signal transmission
- 【Wide Applications】Typically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and professional AV applications, etc., and are available for stand-alone and desktop type, or wall mounted, installations
- 【Plug and Play】No need to set up ,Simply plug in an Optical ST port and XLR audio connectors at TX and RX sides, it will have crystal clear sound instantly
Optical Port:
Optical connector: ST
Wavelength: 1310nm/1550nm.
Transmitting optical power: more than -7db.
Receiving sensitivity: more than -24db
Fiber: single fiber multimode (MM) or single mode (SM).
Transmission range: 0-20km for SM, 0-500meters for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5/125u multimode.
XLR Audio Ports:
Number of Channels: 4
Input Connector: XLR (Female).
Output Connector: XLR (Male).
Pin wiring diagram : "1" Shield, "2" MIC AUDIO (+), "3" MIC AUDIO (-)
Input / Output Impedance: 600 Ohm.
Max input/output voltage: 4.0Vp-p.
Signal level: 0.5-4Vp-p.
Sampling frequency: 192 KHz.
Audio A/D sampling: 24 Bit
SNR: 100dB.
Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20 μ s) Differential mode: 6KV.
General Spec:
Power Consumption: ≤8W.
Working temperature: -20°C ~ +70°C.
Relative Humidity: 0% ~ 95% (non-condensing).
MTBF: >100,000 hours.
Installation: stand-alone.
Support wide range working Voltage: AC100-240V 50/60Hz, DC12V
Power plug：US/EU/UK/AU standard is optional.
Dimension: 167mm(L)×114mm(W)×45mm(H).
Package include:
1x Balanced XLR Audio Fiber Transmitter
1x Balanced XLR Audio Fiber Receiver
2x Power supply adapter (US standard)
1x FREE 3M ST-ST Fiber patch cord
1x Manual.
