Product Name

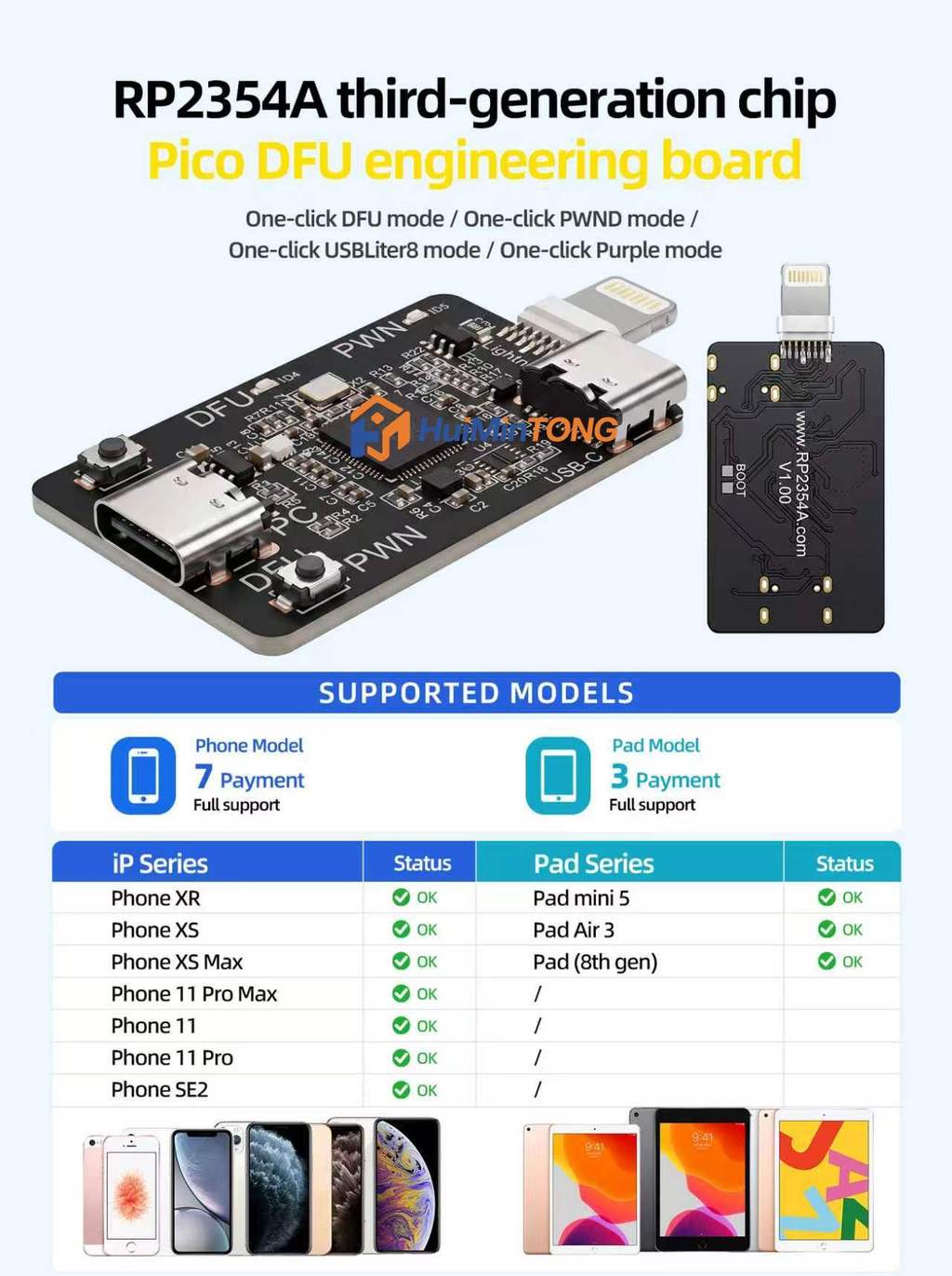

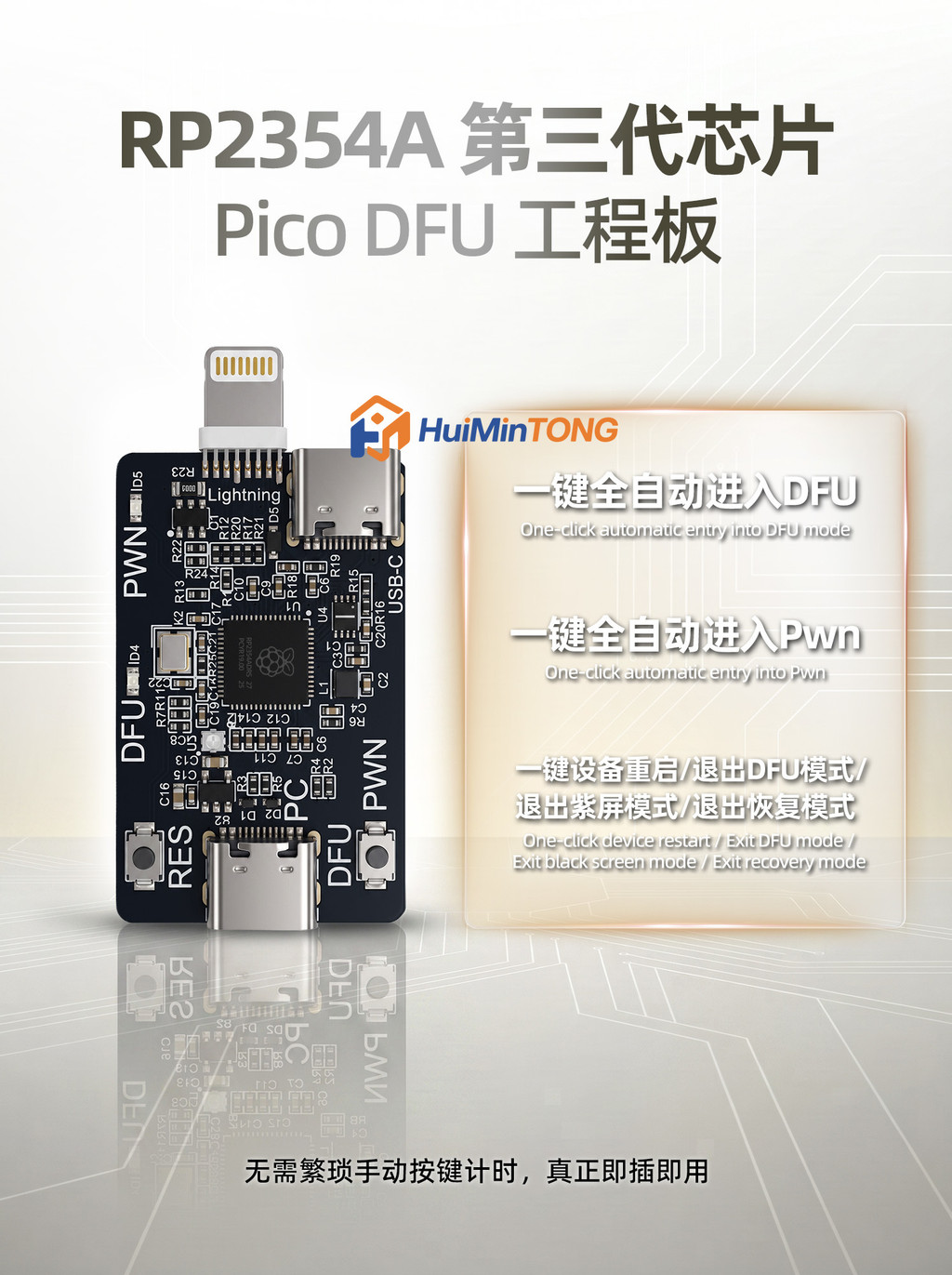

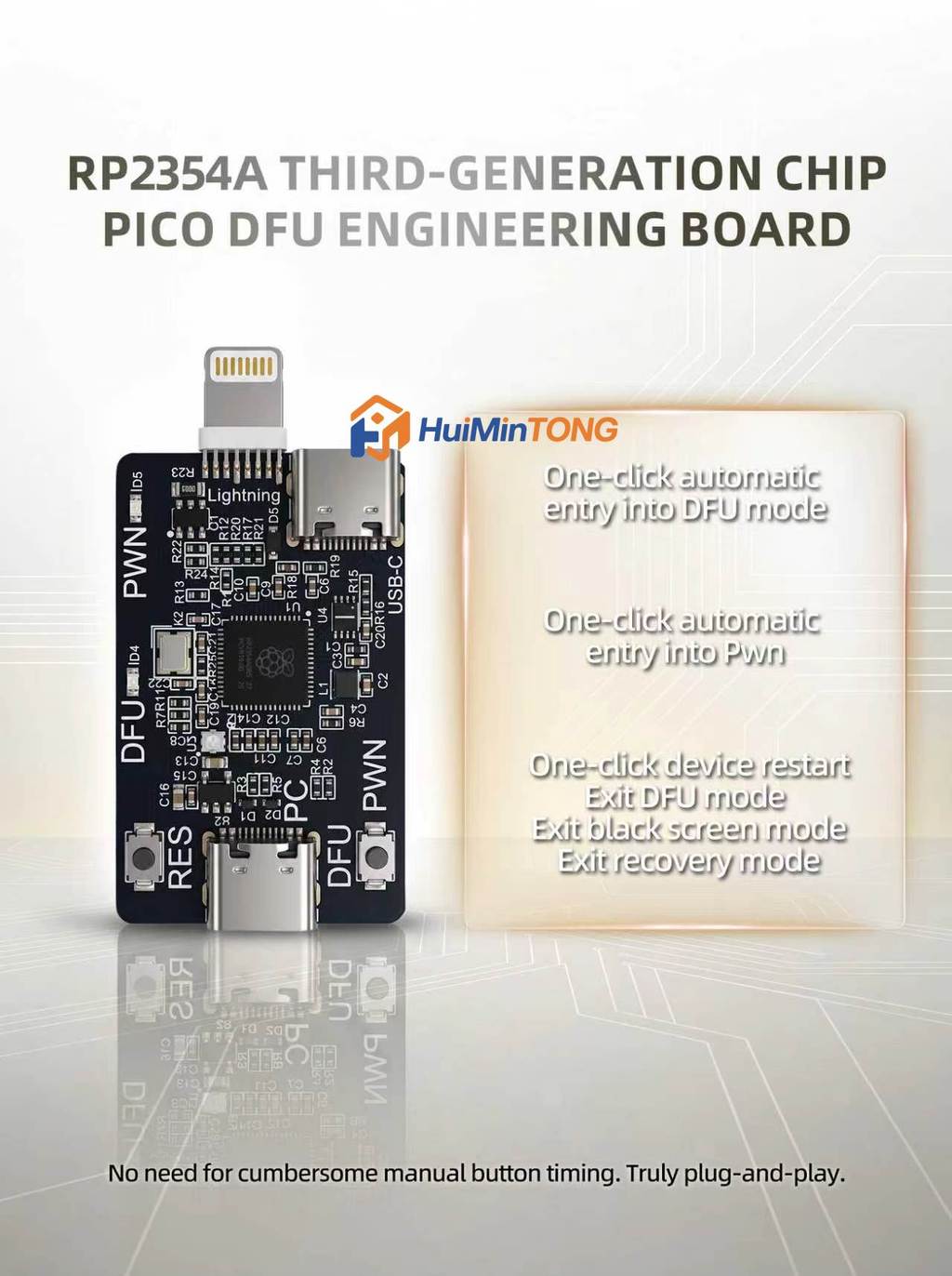

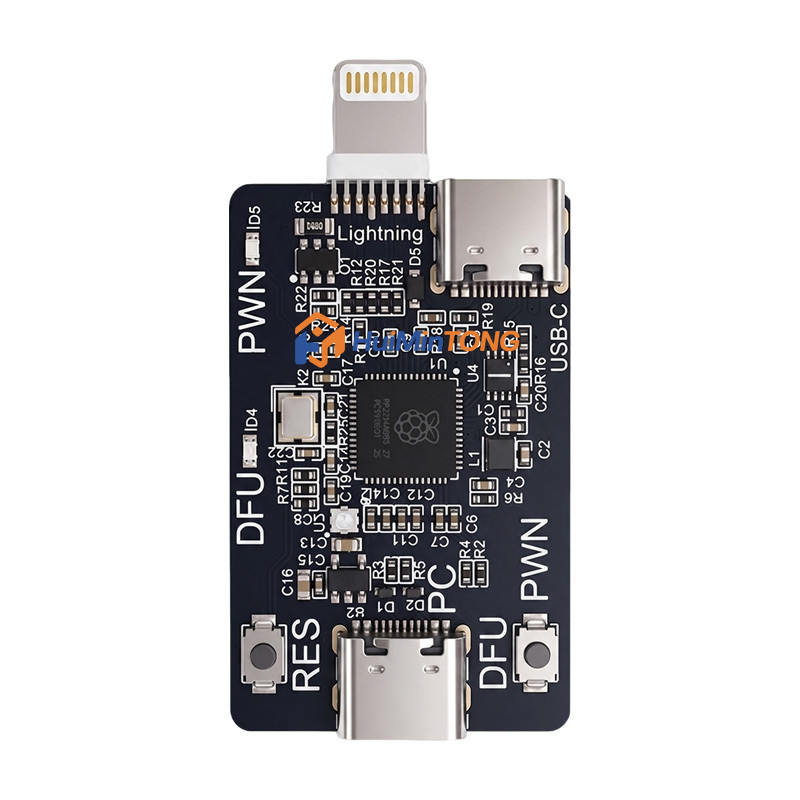

OSS RP2354A PICO DFU Engineering Board（Third Generation）

Introduction

Adopts Raspberry Pi RP2354A high-performance dual-core MCU chip, built-in 2MB onboard Flash. Professional maintenance engineering tool for iPhone series. Support one-click to enter DFU Mode, PWND Mode, Purple Mode, USB Writer Mode. Simplify the operation of mobile phone bypass, repair, data read-write and firmware flashing. No complicated manual button combination operation.

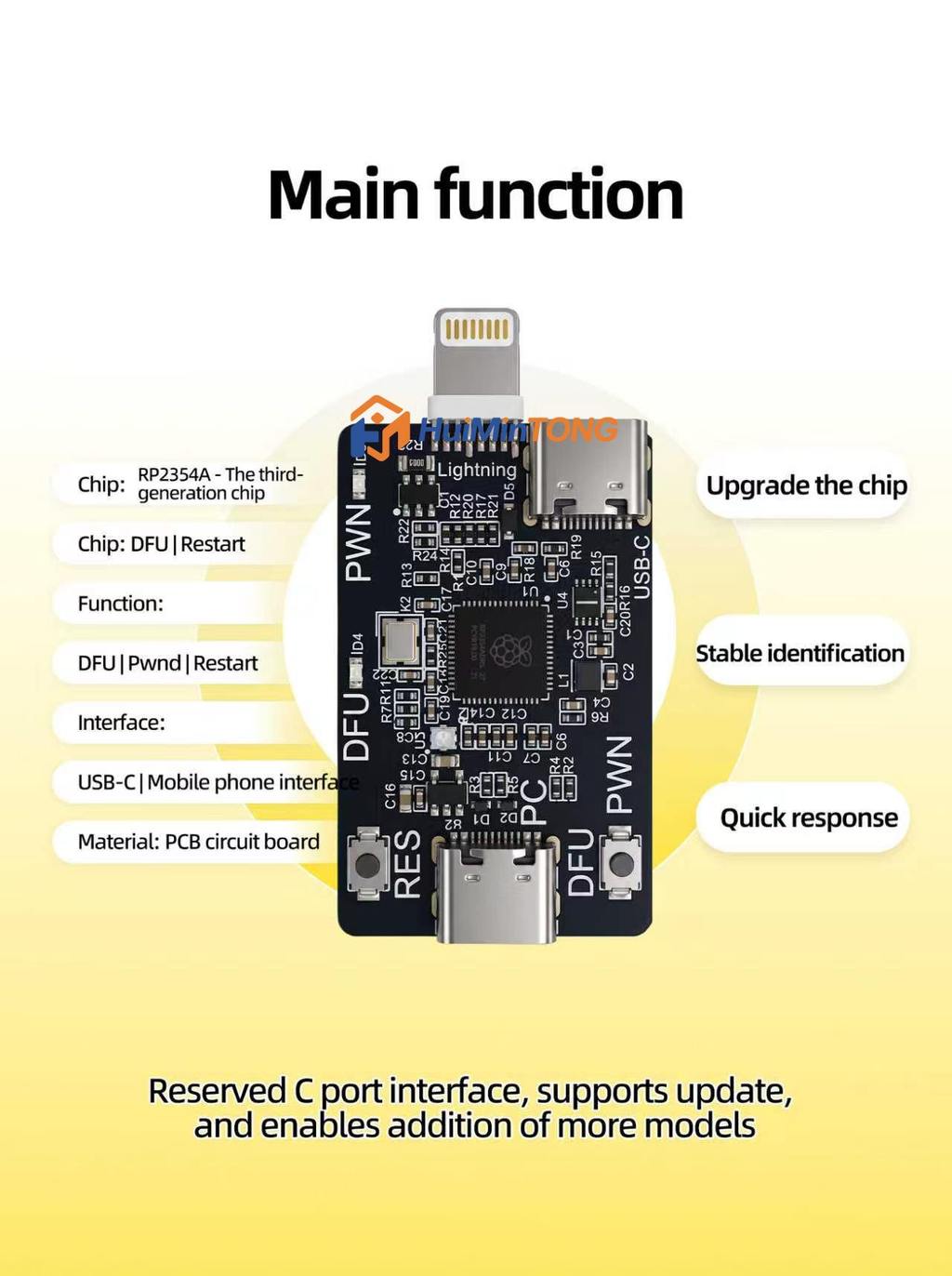

Main Features

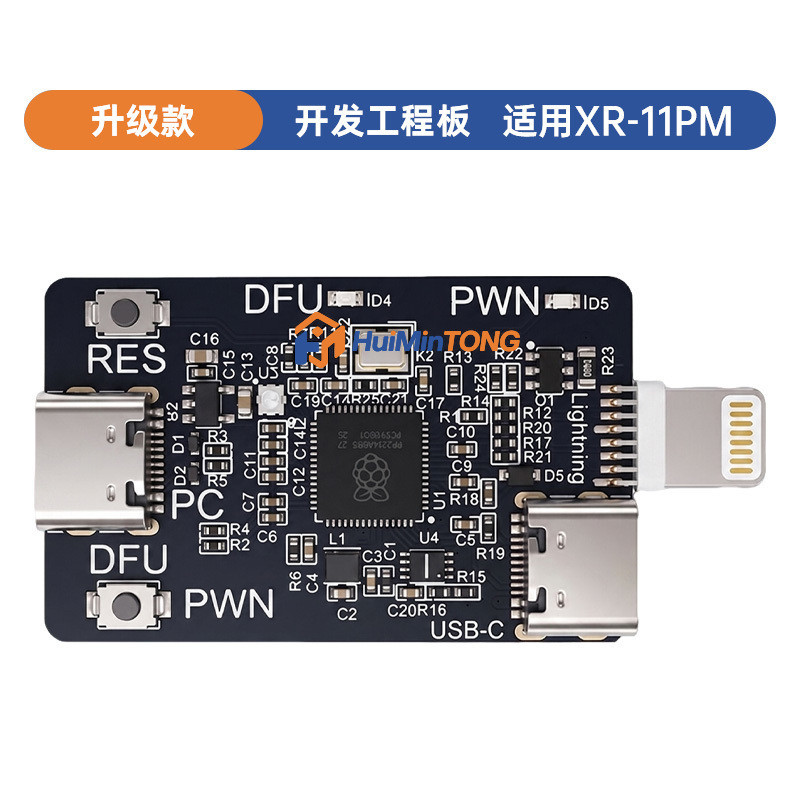

Built-in RP2354A Chip, 150MHz Dual-core Cortex-M33 processor One-click switch: DFU / PWND / Purple Mode / USB Writer Mode Independent RES reset button, quick restart the board USB Type-C interface for power supply & firmware upgrade Reserved expansion port, support future firmware update to adapt new iPhone models Compact size, easy to carry for field repair Stable signal, low failure rate for long time working

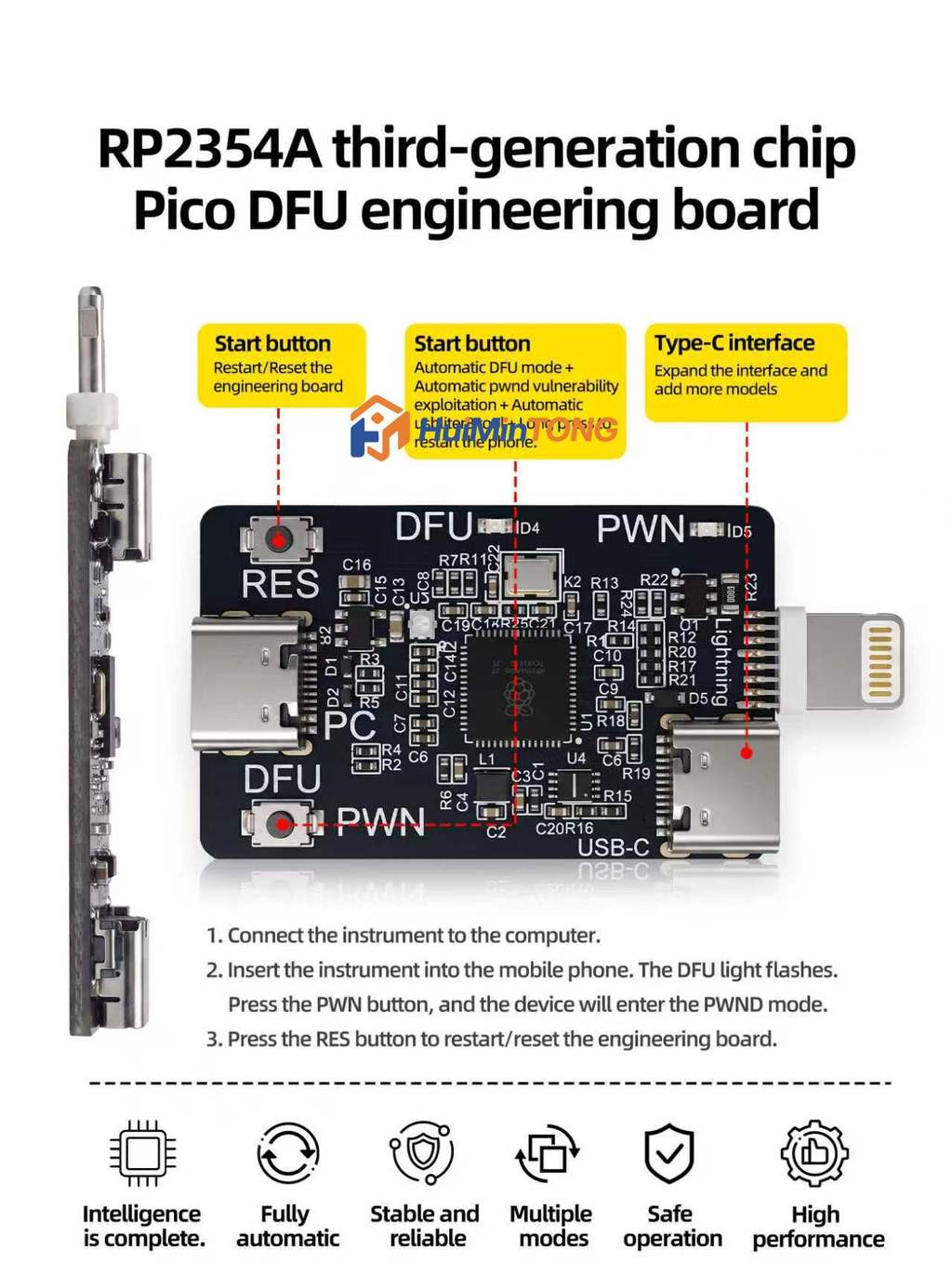

Operation Guide

Connect this engineering board to computer via USB-C cable

Connect Lightning terminal to iPhone

Press corresponding button to let mobile phone enter target mode

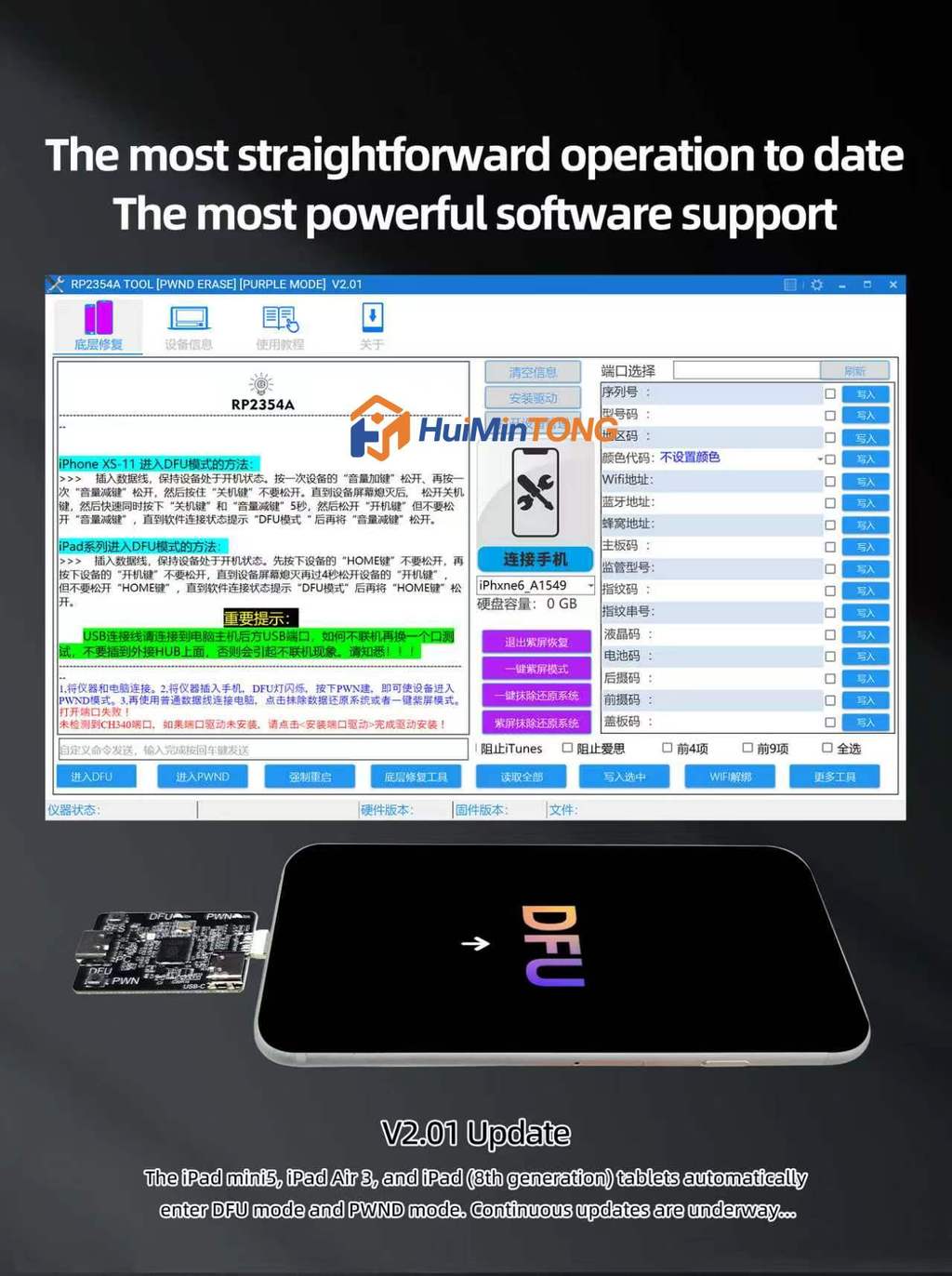

Complete bypass / flash / repair operation via computer software

Package List

1 × OSS RP2354A PICO DFU Engineering Board

Important Notice

▶ This tool is used for professional mobile phone maintenance. Users need basic iPhone repair knowledge.

▶ Please use standard USB-C data cable for connection.

▶ Do not short-circuit the interface during operation to avoid hardware damage.
