Aluminized Fiberglass Heat Shield Sleeve
Cable Wire Fuel Line Spark plug Heat Sheathing Wrap
An Aluminium Foil Coated Heat Shield Sleeve is a specialized protective covering engineered to insulate and shield various components
—such as wires, cables, hoses, or pipes—from extreme heat, radiant heat, and thermal damage. It is widely used in high-temperature environments

For automotive (Fuel lines, brake lines, engine wiring, turbo hoses)

Blocks 90%+ radiant heat, preventing fuel line vapor lock and brake fluid overheating.
- Flexible design conforms to curved hoses/wiring; resists oil, grease, and road debris.
- Lightweight (no extra weight on vehicle components) and easy to install over existing lines.

Fights both Australia’s winter chills and summer scorch!

Winter: Shields hoses/wiring from cold-brittleness, condensation & road salt.
Summer: Reflects 90%+ heat (stops vapor lock/melting) and blocks UV damage.
Easy to install, fits most car parts—keeps your car smooth 365 days!

Description

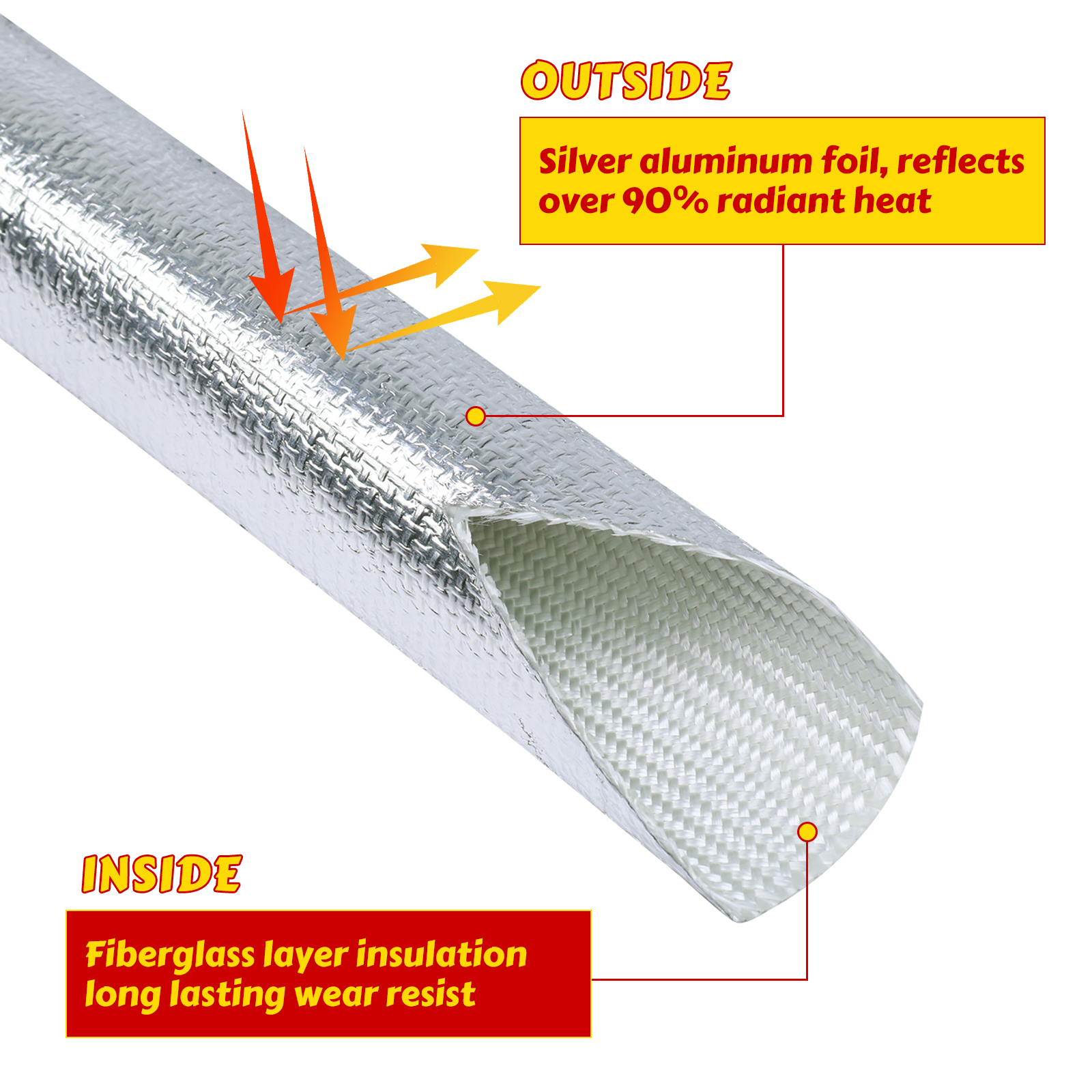

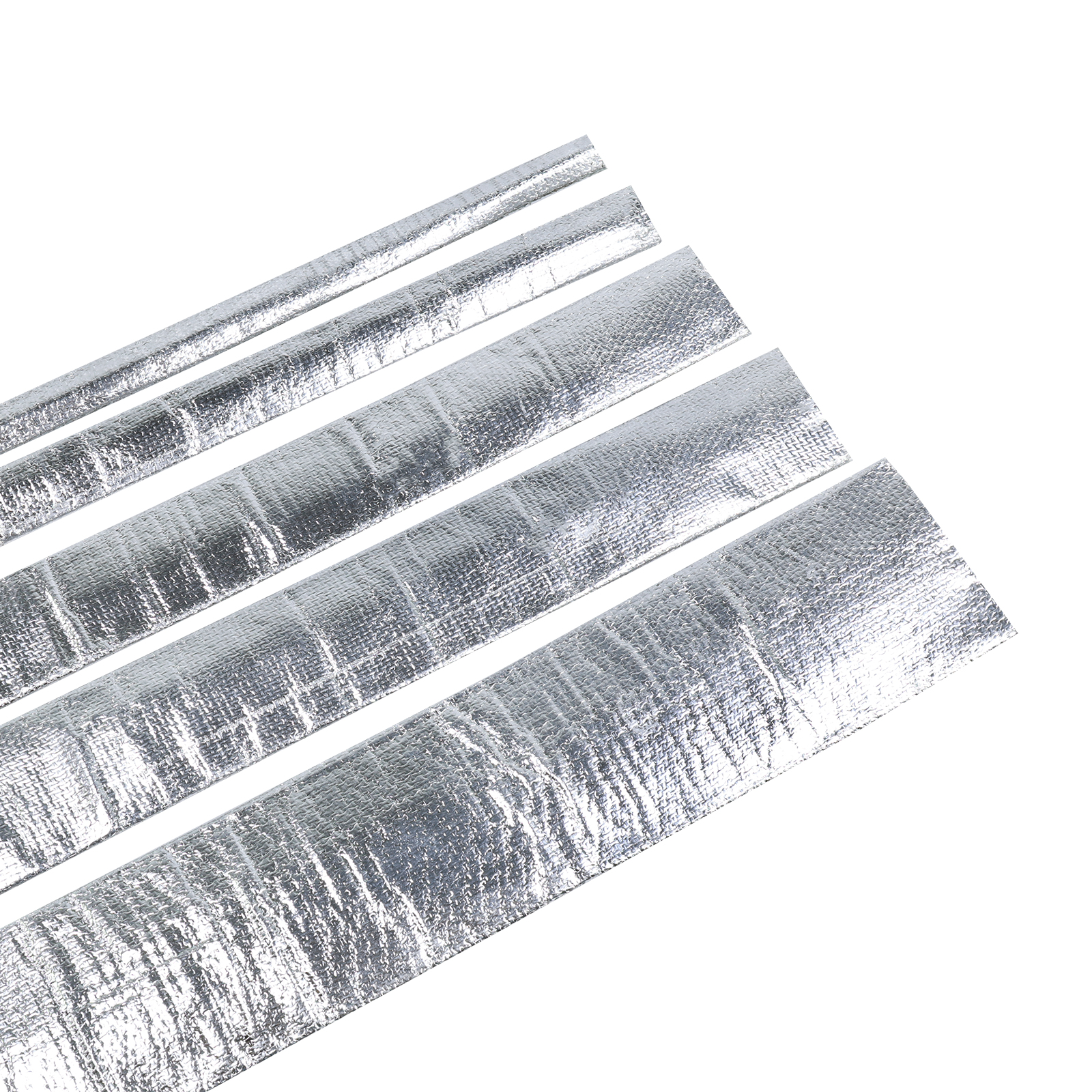

Aluminium Foil Coated Surface which can Reflects over 90% radiant heat

protecting both the enclosed components wire hose fuel line and surrounding materials from heat damage.

Weave Fiberglass inside Heat Insulation: Blocks conductive and convective heat transfer, preventing sensitive components (e.g., wires, fuel lines) from overheating or melting when near hot surfaces like exhaust manifolds, engines, or industrial furnaces.

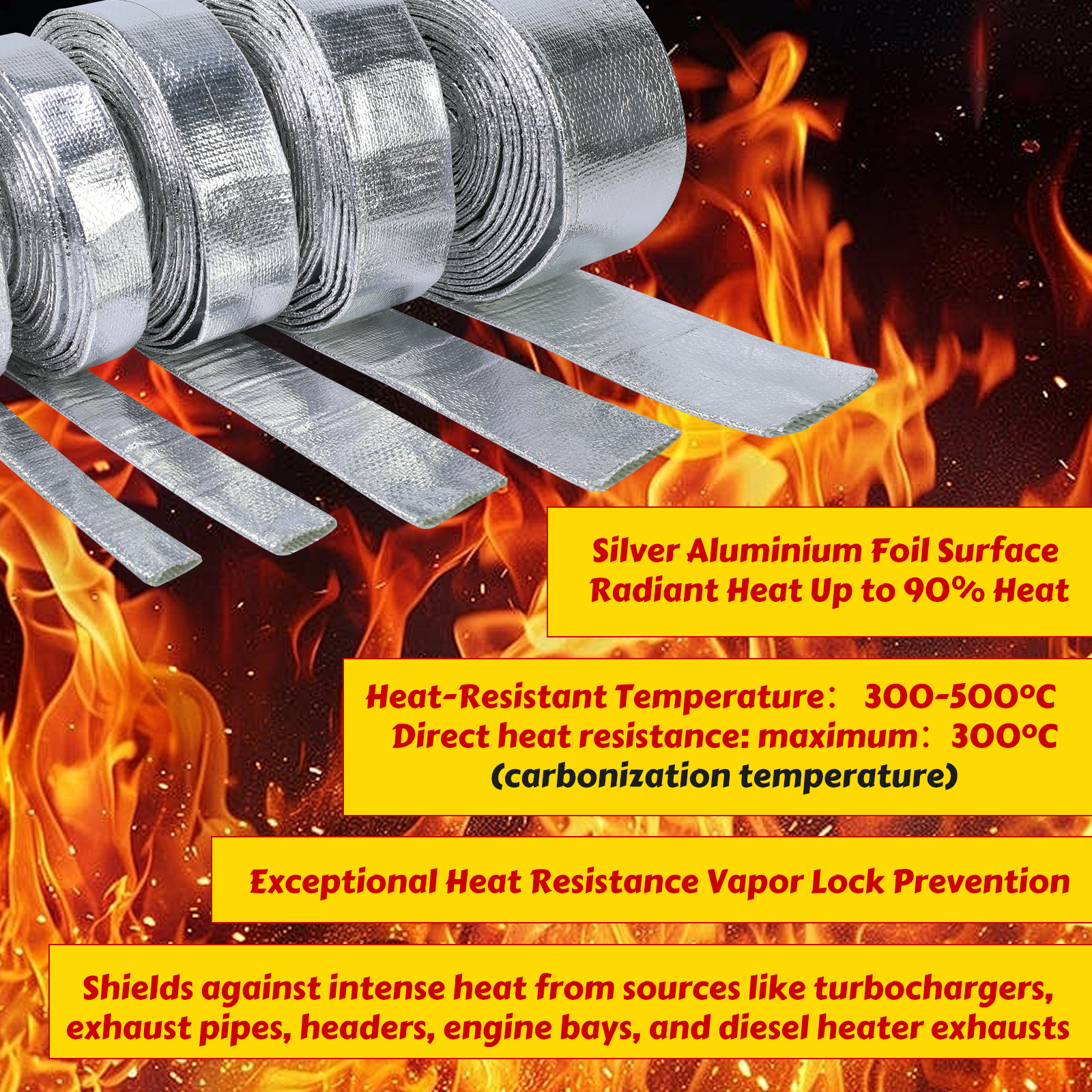

Heat-Resistant Temperature 300-500°C

Direct heat resistance: maximum 300°C (carbonization temperature)

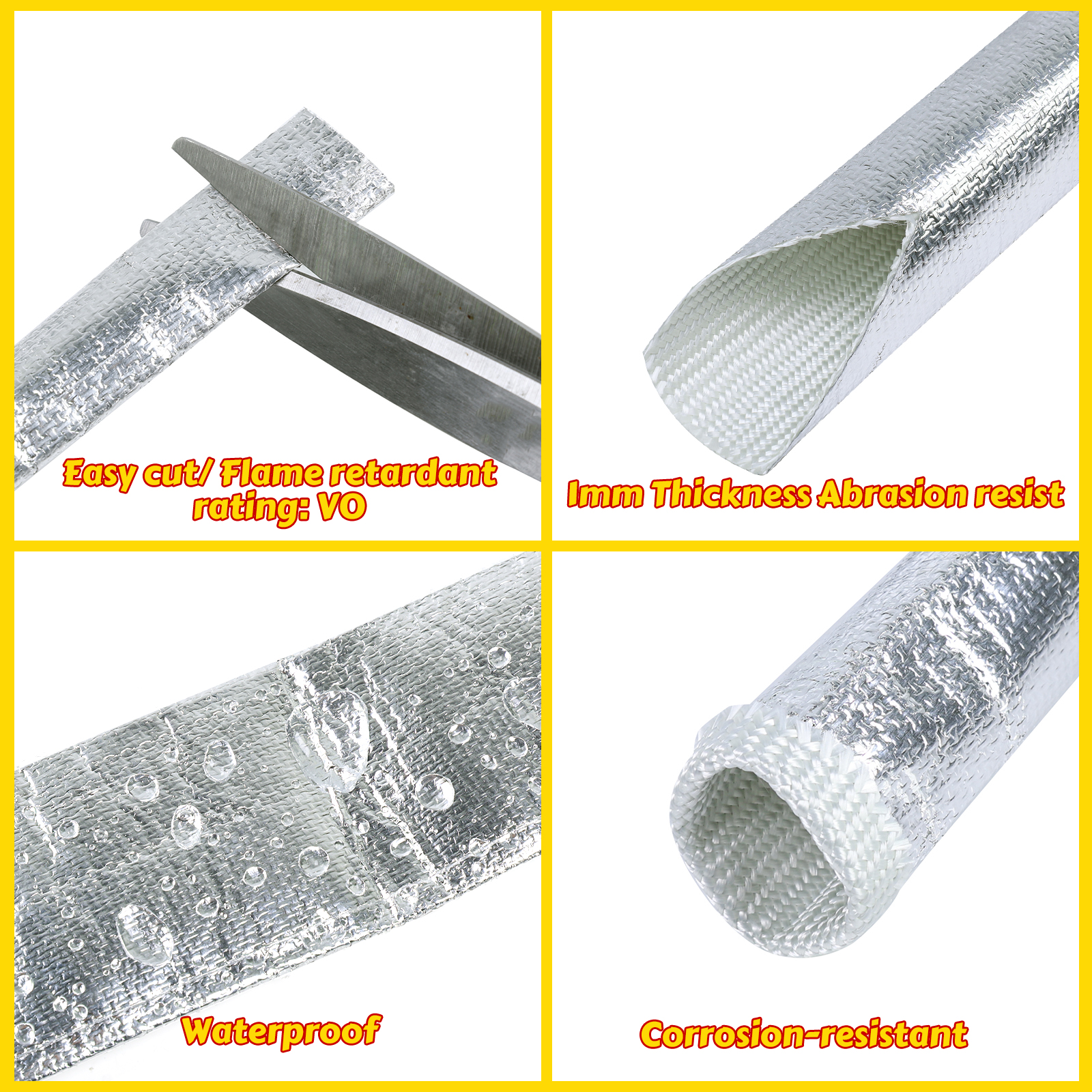

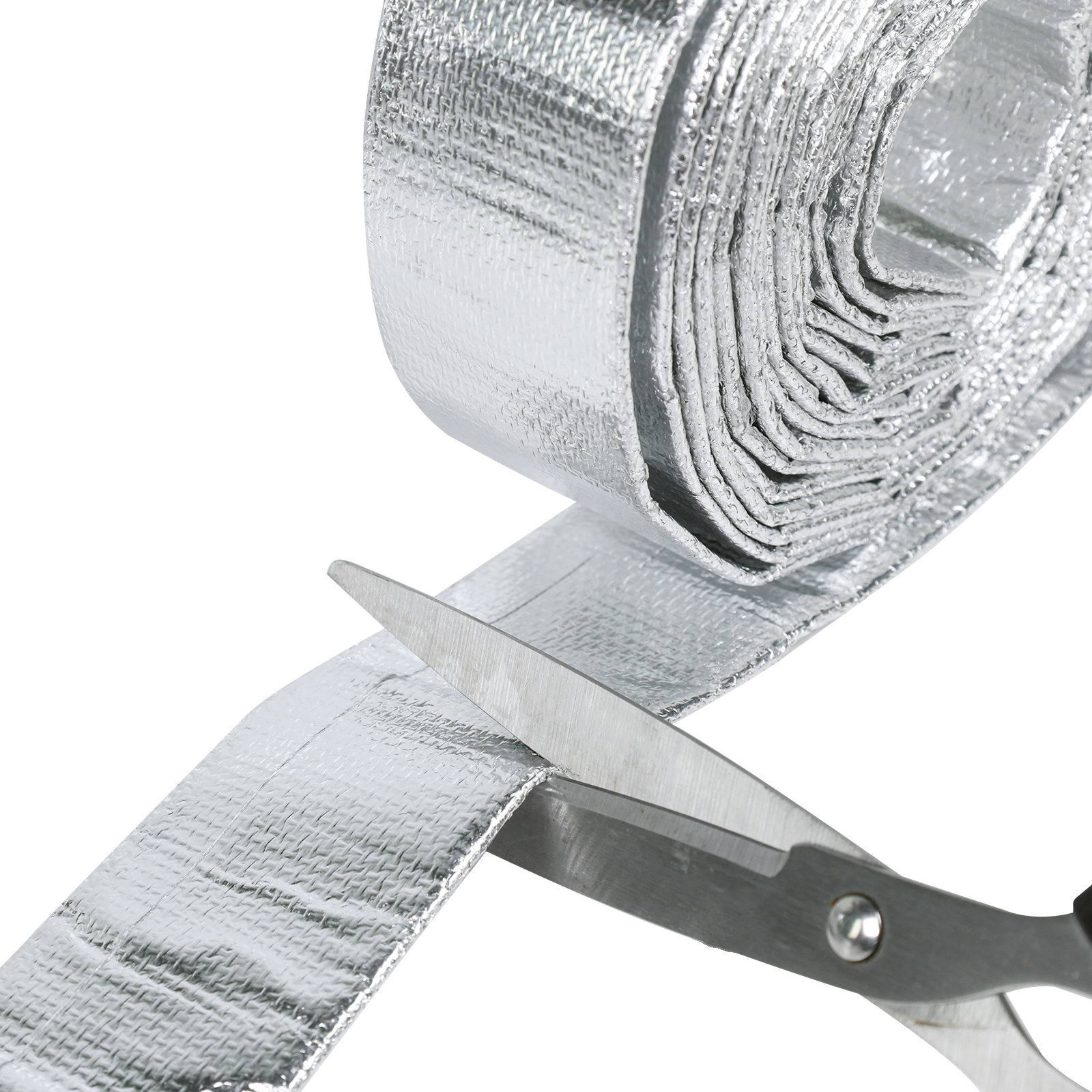

Easy cut/ Flame retardant rating: V0
1mm Thickness wrap protects the wire from abrasion heat
Waterproof Oil Proof surface
corrosion-resistant

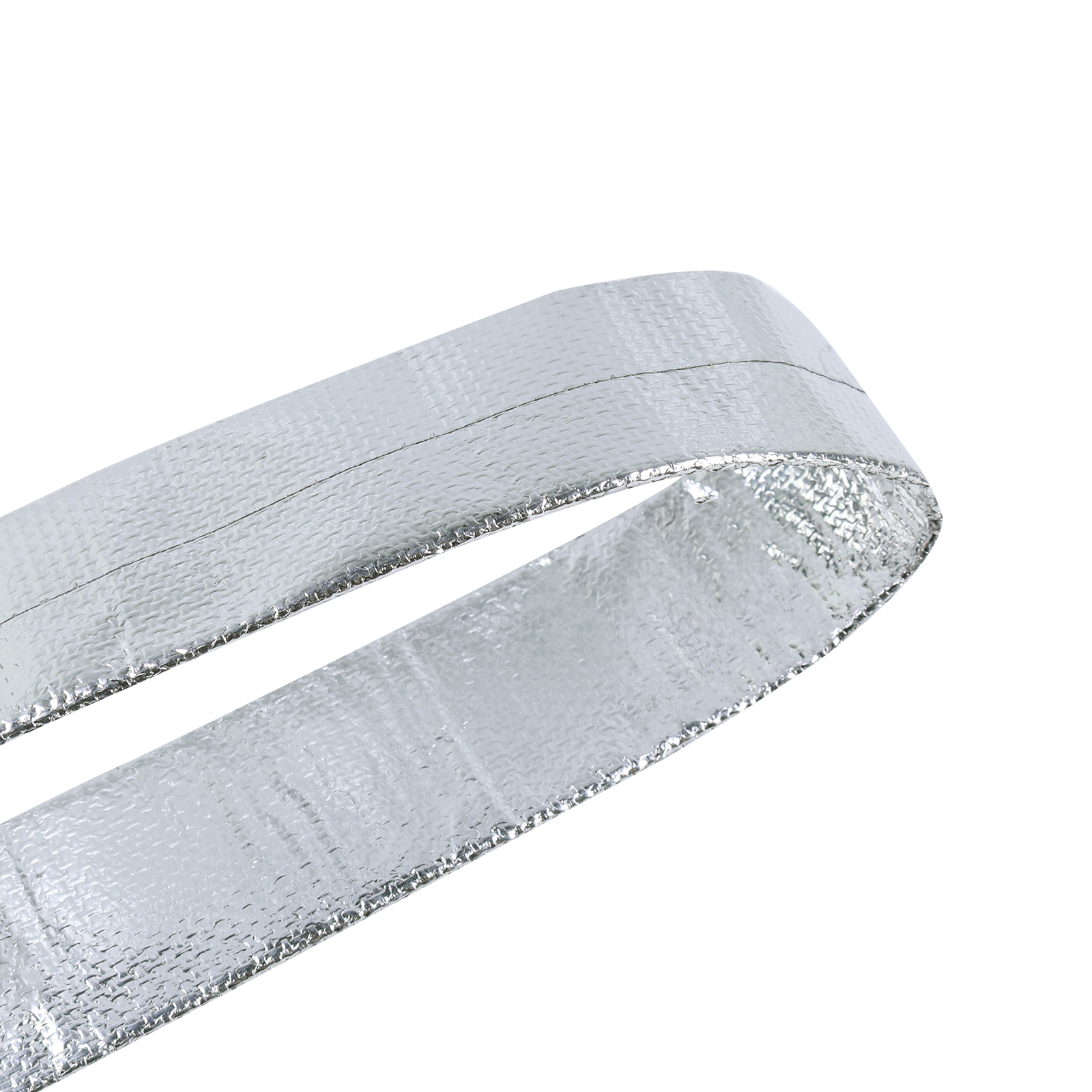

Seamless heat shield sleeve
Flame Resistance: The fiberglass/silica base is inherently flame-retardant, reducing the risk of fire spread and withstanding short-term exposure to open flames.
Mechanical Protection: Shields enclosed items from abrasion, corrosion, or damage from debris, oils, water or chemicals

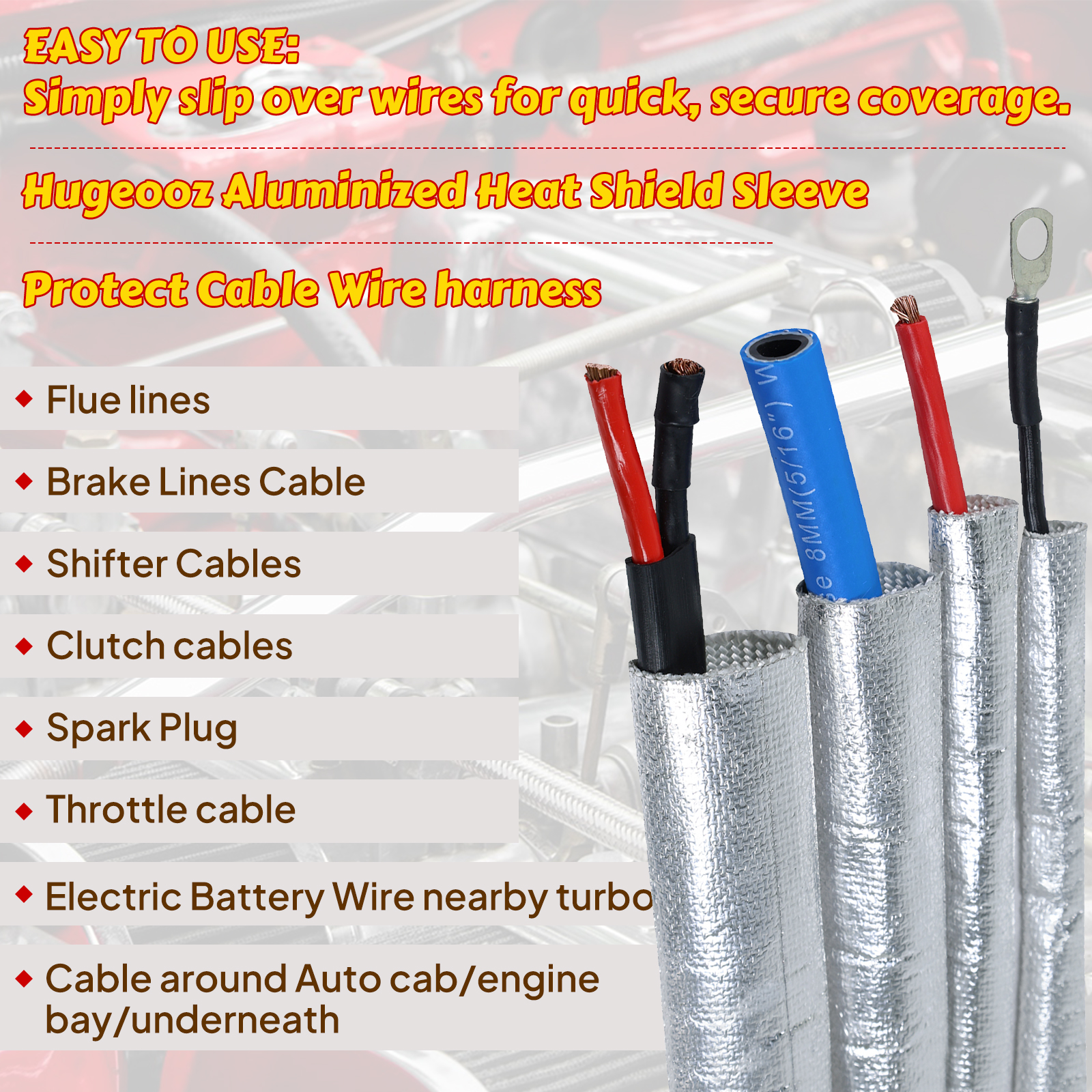

Easy to use : Simply slip over wires for quick, secure coverage.

Wide Application
Hugeooz Aluminized Heat Shield Sleeve

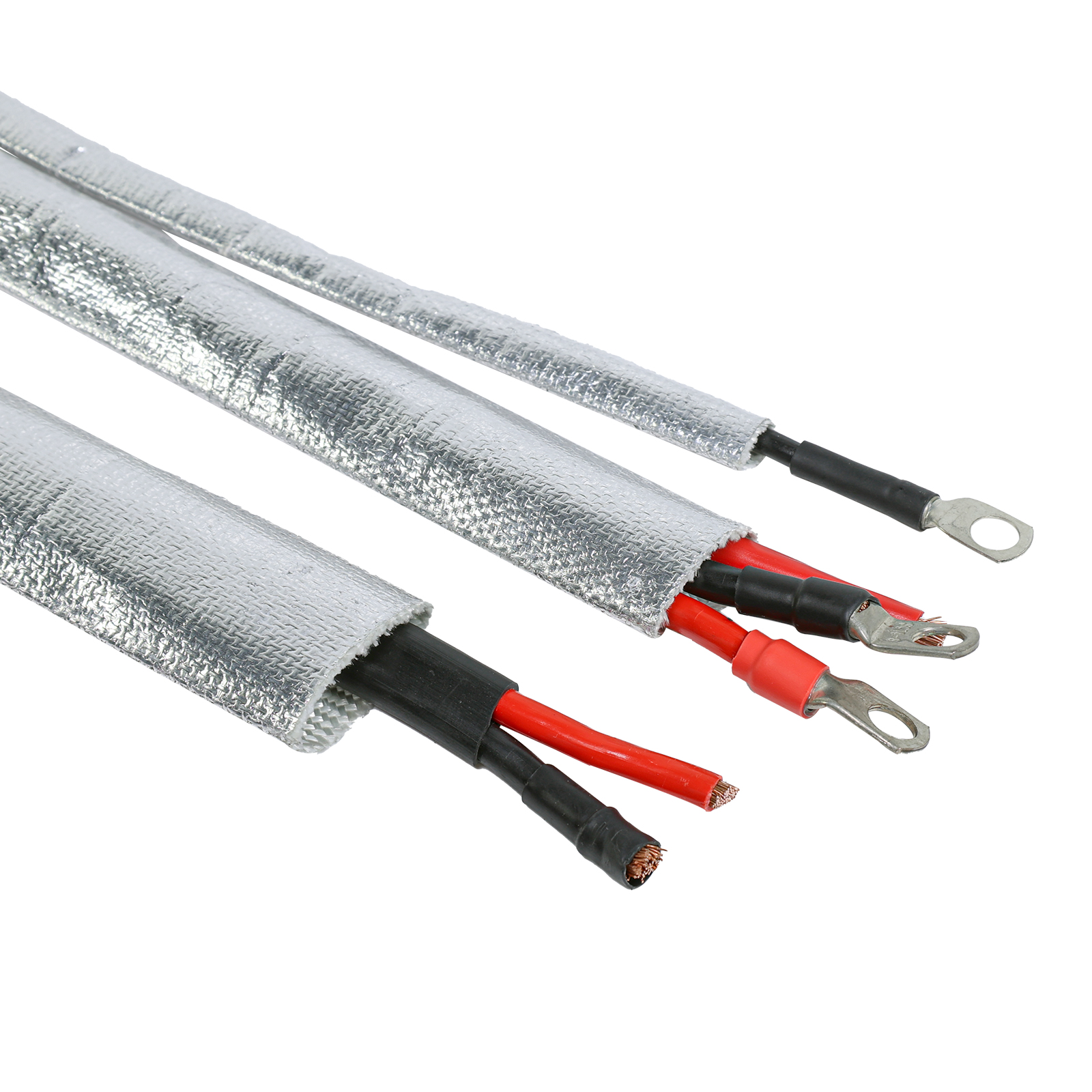

Protect Cable Wire harness electical wires
Flue lines/Transmission oil lines/Brake lines
Brake Lines Cable
Shifter Cables
clutch cables
Spark Plug/spark plug wires
Throttle cable
Electric Battery Wire nearby turbo

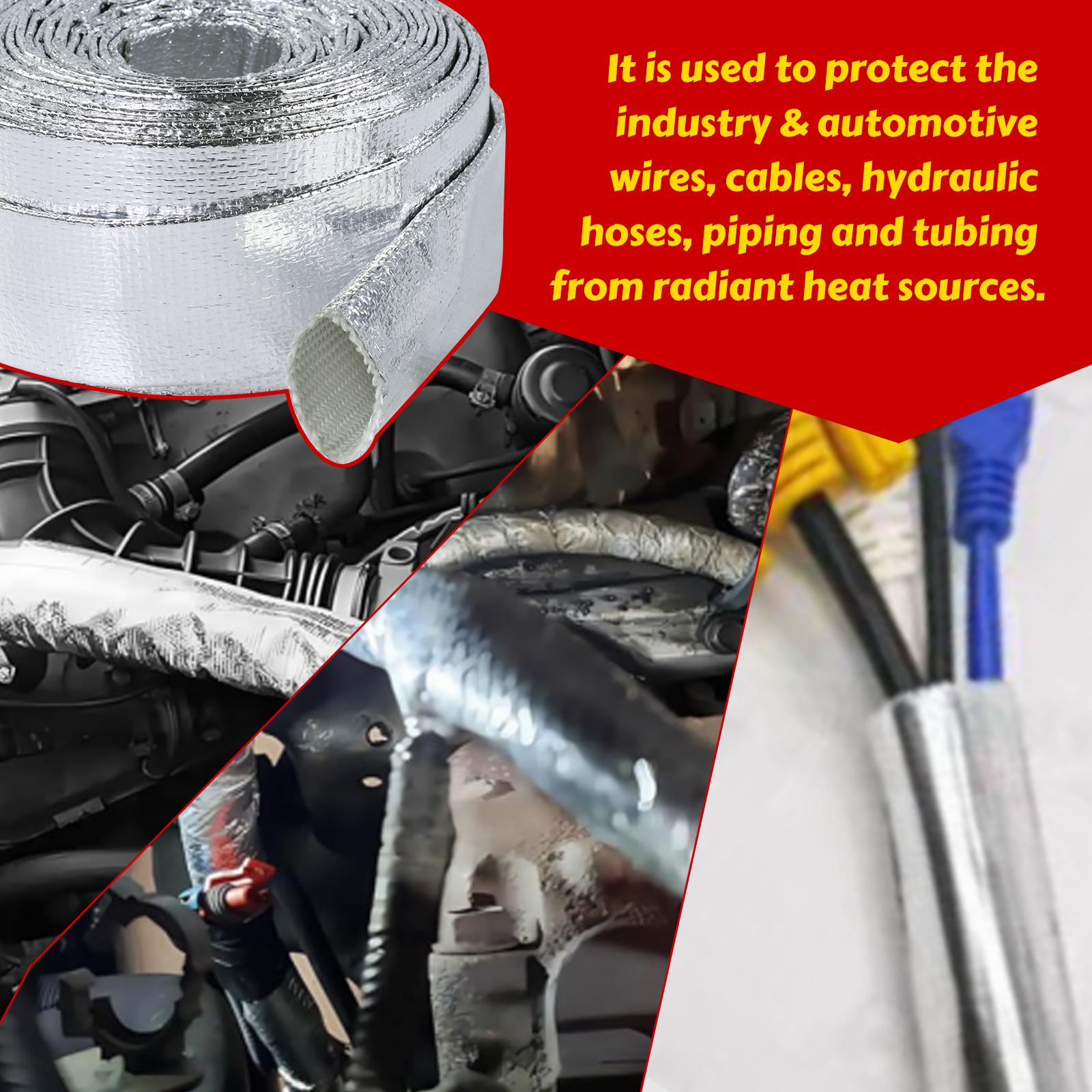

intake pipes, intercooler hoses, battery cables, AC hoses, and radiator hoses in automotive engine bays. It also applies to industrial settings, protecting industrial wires, cables, hydraulic hoses, pipes, and fittings from radiant heat sources.
Cable around Auto cab/engine bay/underneath
protect wiring from excessive heat in an engine compartment or adjacent to hot exhaust pipes.

Generator cables, transformer wiring, control panel wires

Automotive wiring harness protection - Shields cables from exhaust heat
Fuel line vapor lock prevention - Keeps fuel lines cool to prevent vapor formation
Spark plug wire protection - Prevents wire insulation damage near headers
Brake line protection - Protects hydraulic lines from high-temperature damage
Industrial cable management - Safeguards electrical systems in high-heat environments

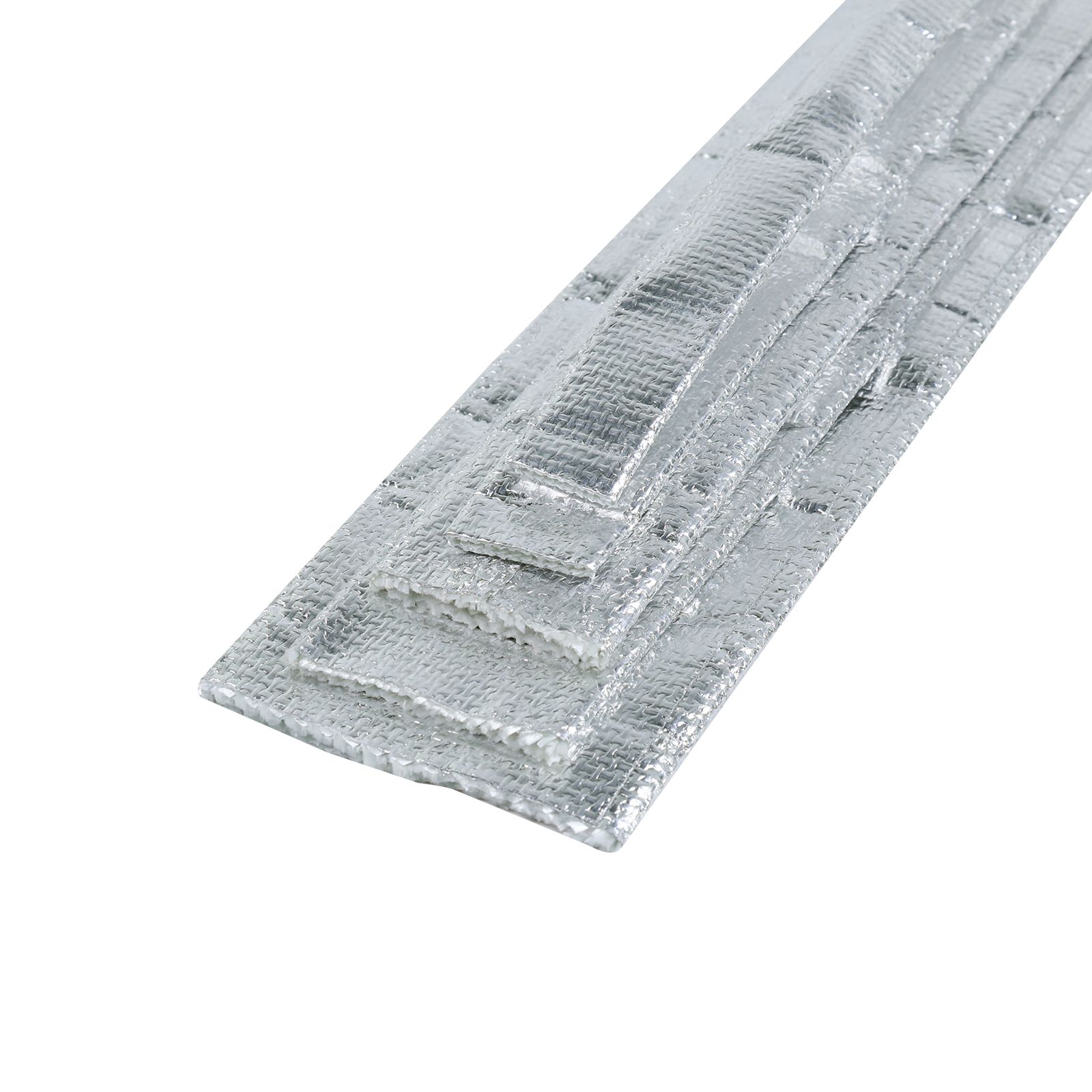

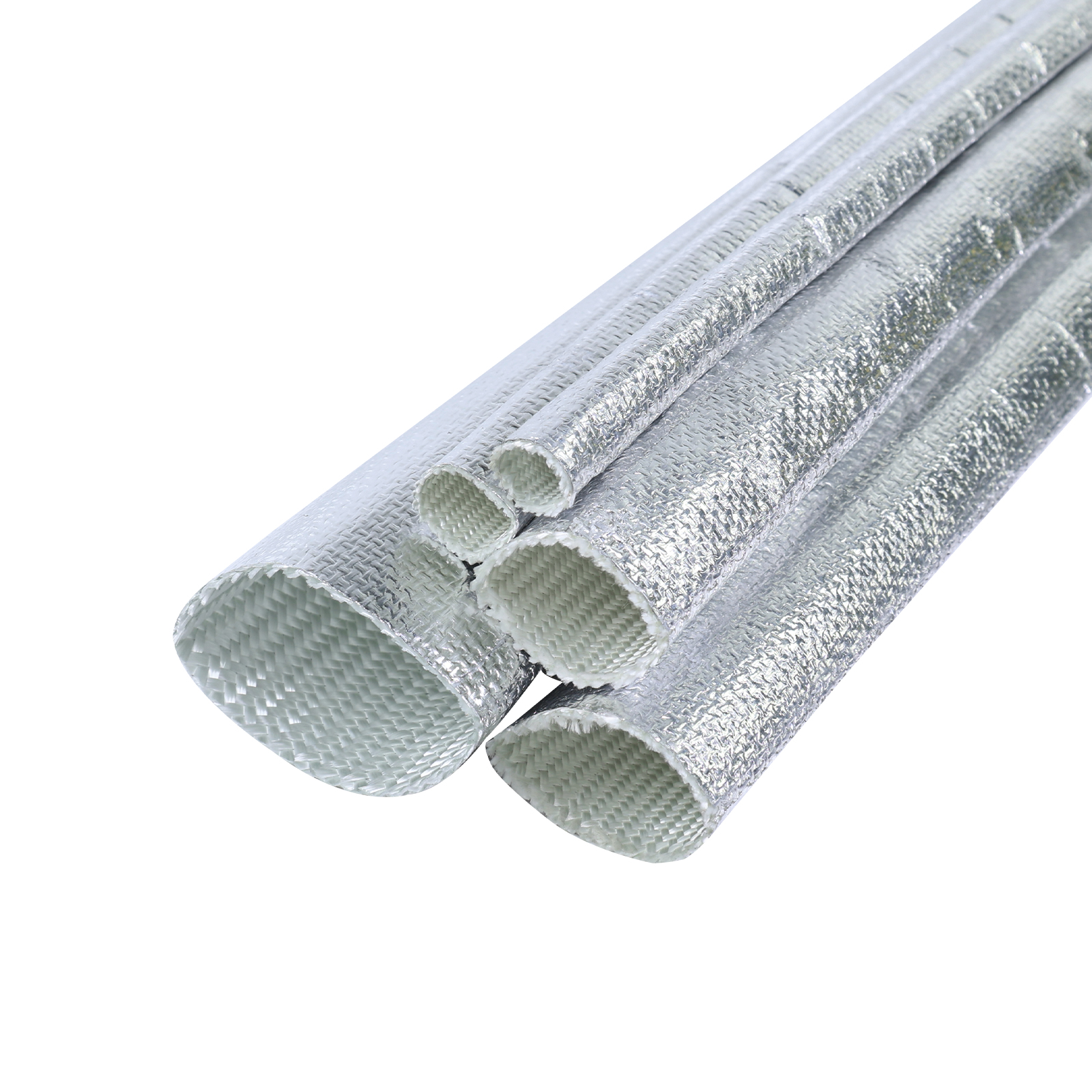

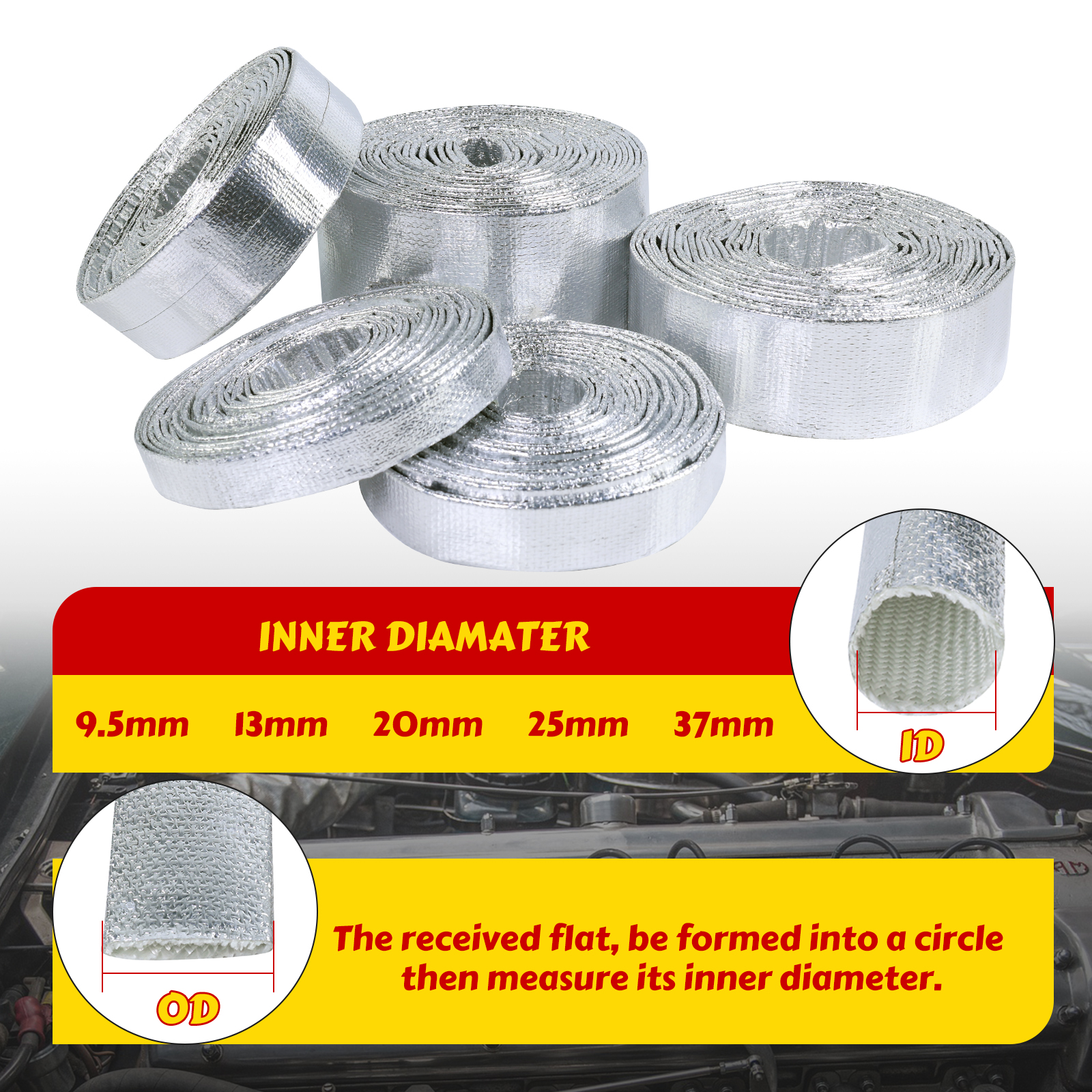

Note :it is round inner dia size Not the flat size

Heat Shield Sleeve inner dia :9.5mm

Heat Shield Sleeve inner dia :13mm

Heat Shield Sleeve inner dia :20mm

Heat Shield Sleeve inner dia :25mm

Heat Shield Sleeve inner dia :37mm

To help you choose the right aluminum foil fiberglass sleeve for wires /cable

it’s simple:Pick a sleeve whose inner diameter is slightly larger than the outer diameter of their wire (about 0.5mm–2mm bigger) so it slides on easily.
Here’s the match:
9.5mm inner diameter: Fits wires with an outer diameter of 7.5mm–9mm
13mm inner diameter: Fits wires with an outer diameter of 11mm–12.5mm
20mm inner diameter: Fits wires with an outer diameter of 18mm–19.5mm
25mm inner diameter: Fits wires with an outer diameter of 23mm–24.5mm
37mm inner diameter: Fits wires with an outer diameter of 35mm–36.5mm

Just measure the wire’s outer diameter and choose the closest slightly larger sleeve!
Measure the wire’s outer diameter (use a ruler or caliper).
For a single wire: measure its thickness.
For multiple wires together: measure the total thickness when they’re bundled.
Match the size
Pick the sleeve where the wire’s outer diameter fits in the "Fits wire outer diameter" range above.
Tips
If the wire has bumps (e.g., connectors), choose a slightly larger sleeve.
Don’t pick a sleeve that’s too big—it might not protect well.

To ensure it stays in top condition long-term and prevent wear or separation between the aluminized outer layer and fiberglass core, please note these installation tips:
Handle gently during installation—avoid over-stretching or forcing bends.
Keep away from sharp edges or rough surfaces to prevent scraping.
If cleaning is needed, wipe lightly with a soft cloth.

Note:
Pls know that

For more than 5 meter long,the Aluminum foil Heat sleeves are supplied in separate cut lengths, rather than as a continuous Length
1:It is very normal that the size will be 1-2mm error allow caused by manual measurement and Sometimes the goods may squeezed in the term of delivery
