Application

For Ford Fiesta CVH 1.6L RS Turbo


Fitment

1980-1986 for Ford Escort Mk 3 (Europe)1.6 L Turbo
1986-1990 for Ford Escort Mk 4 (Europe)1.6 L Turbo
1989-1995 for Ford Fiesta Mk 3 1.6 L Turbo


Pin Type: Floating Pin Piston

Specification


*Type: Forged 4340 aircraft chrome moly quality steel for racing

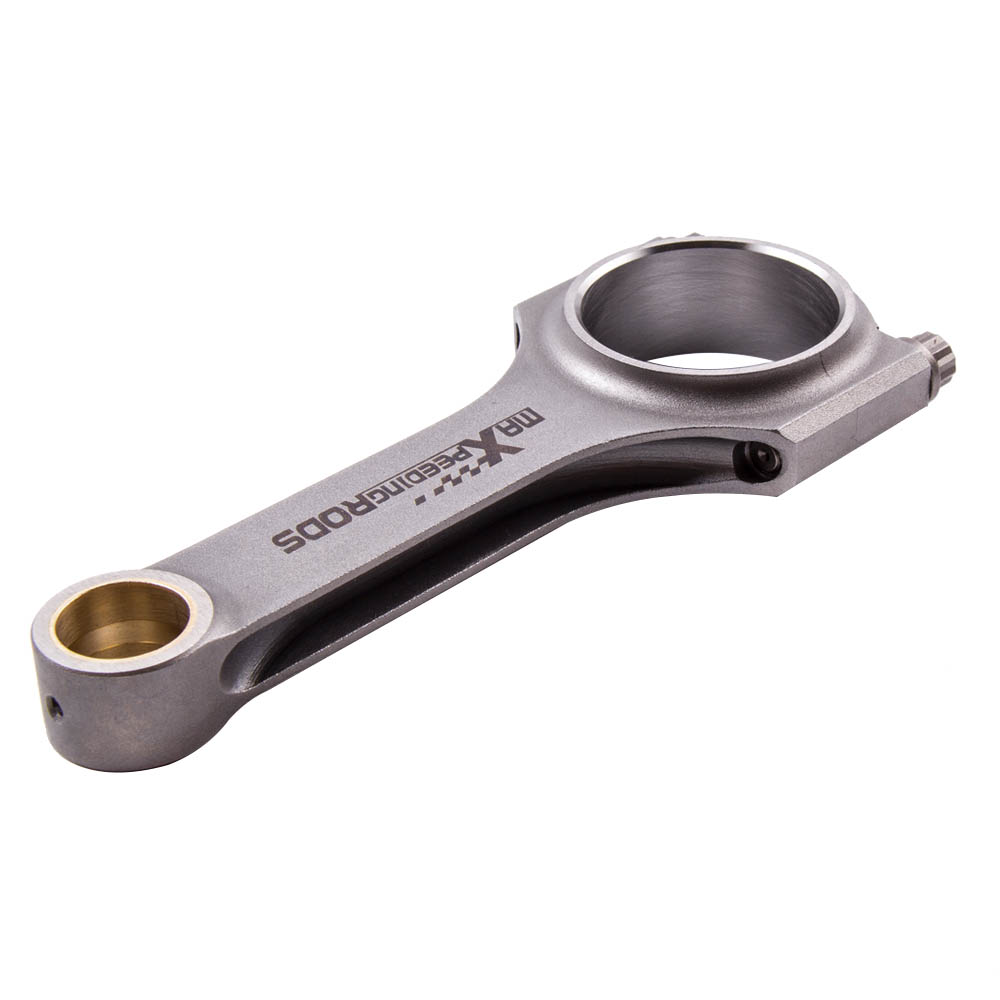

*H-beam Conrods Quantity: 4 Pieces as showing in picture

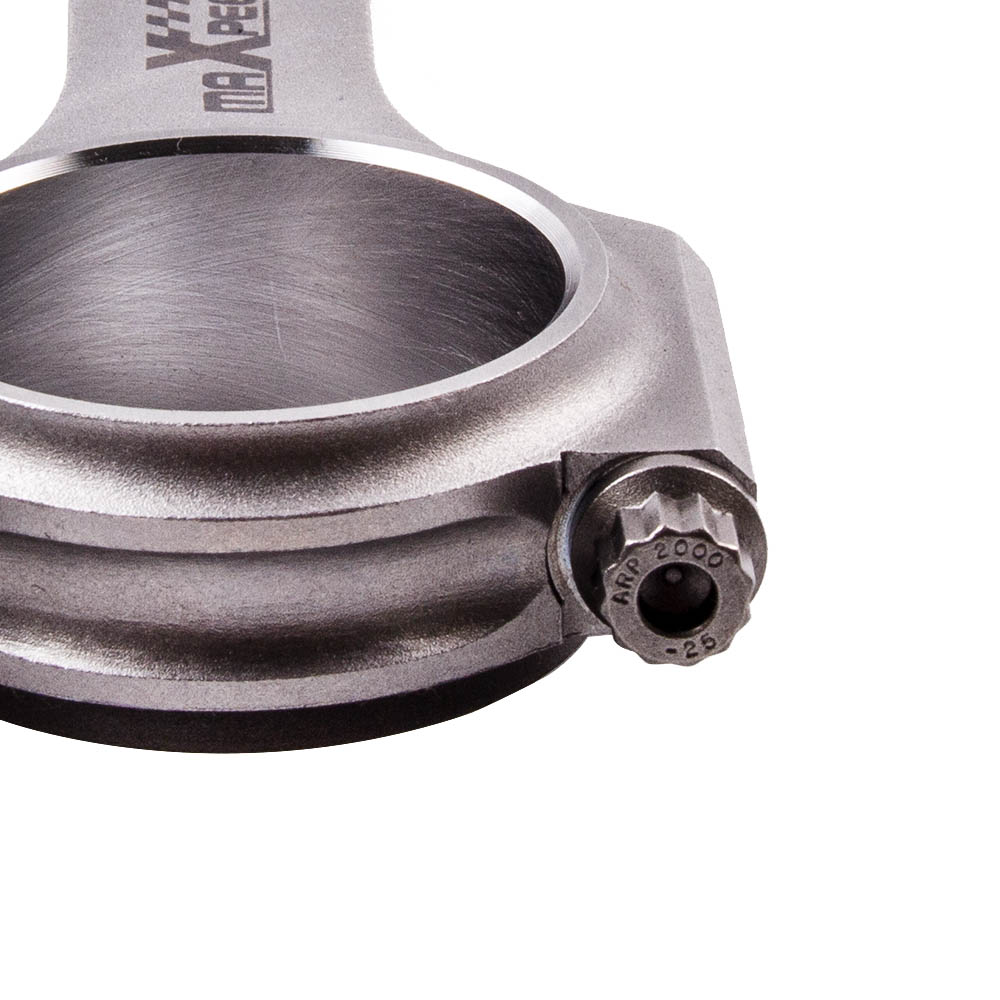

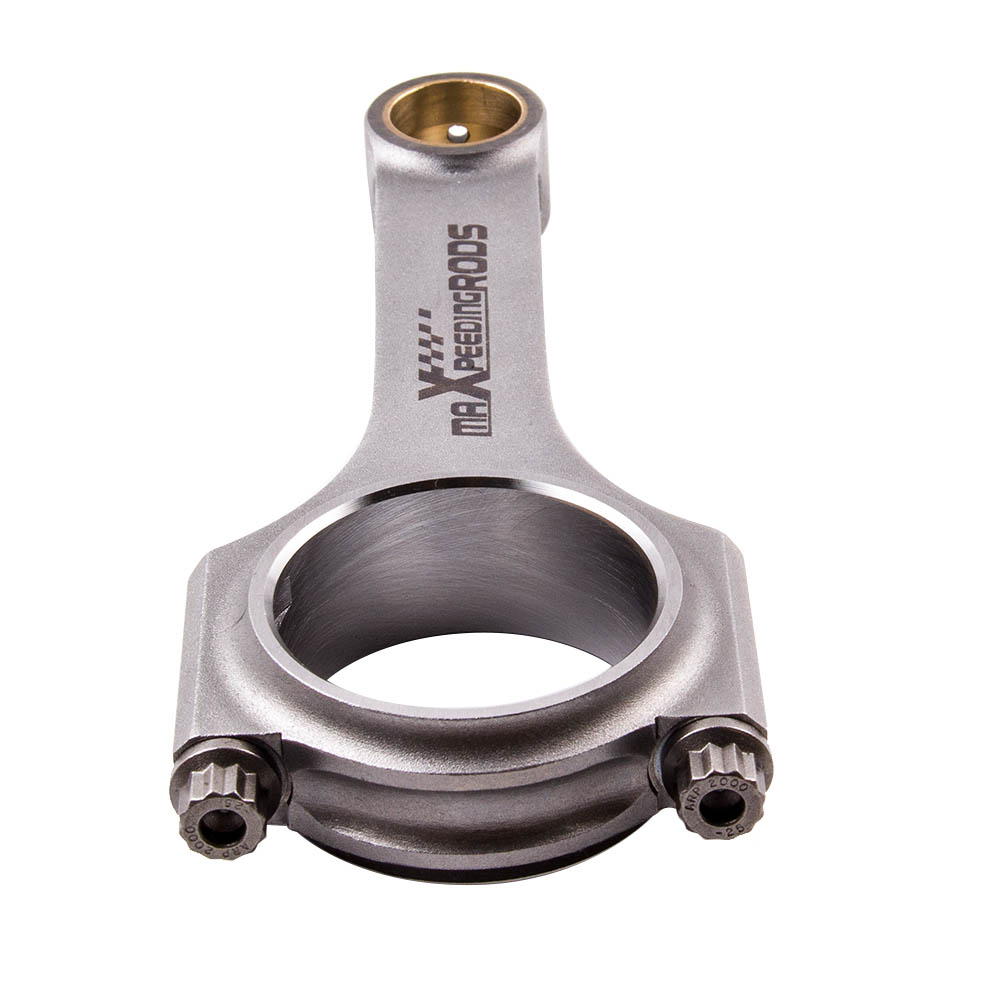

*Bolts: Including ARP 2000 5/16" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimensions

Center to center length:132mm/5.197"
Big end diameter:50.91mm/2.004"
Small end diameter:20.63mm/0.812"
Big end width:24.3mm/0.957"
Small end width:24.3mm/0.957"

Feature

1. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
2. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

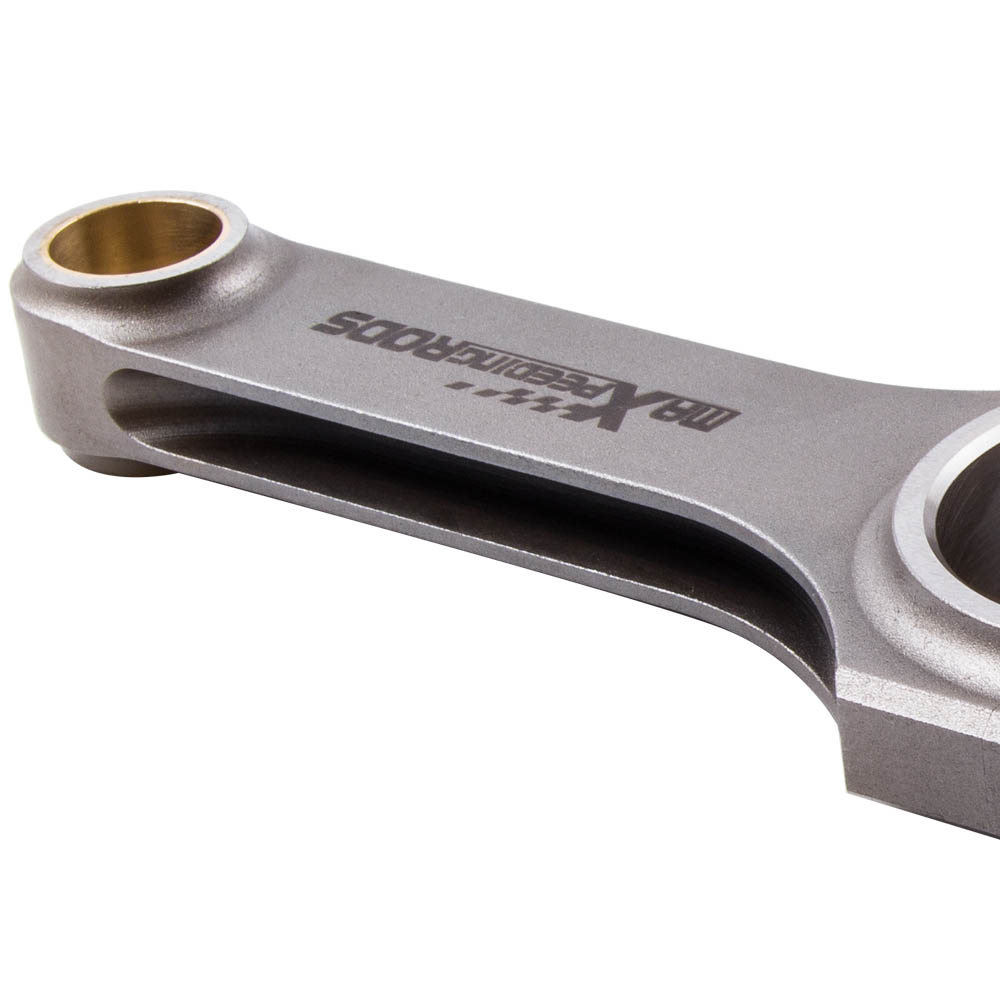

3. H-Beam design reduces weight without compromising strength；
4.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
5.High precision CNC machined,Precision rod cap alignment dowels；
6.Bores finished to +/- .005mm；
7.Balanced to within +/- 1 g per rod；
8. Each rod is magnetic particle tested to ensure free of flaws；
9.Use X-rayed, sonic tested；
10.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
