All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application

For Honda Engine  L15B L15B2
--
For Honda  Fit / Jazz GK5 2014
For Honda  L15Z5/2 i-VTEC SOHC 16 valve i-VTEC, 1.5L

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

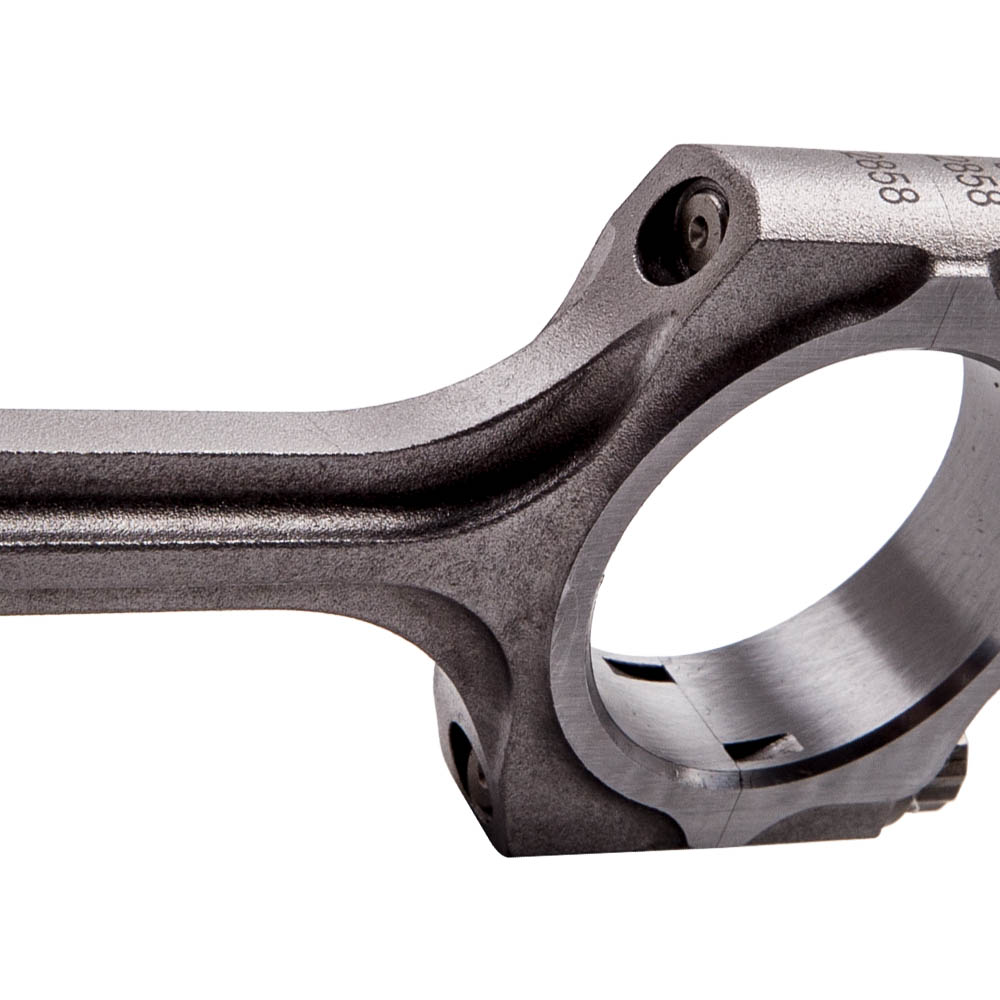

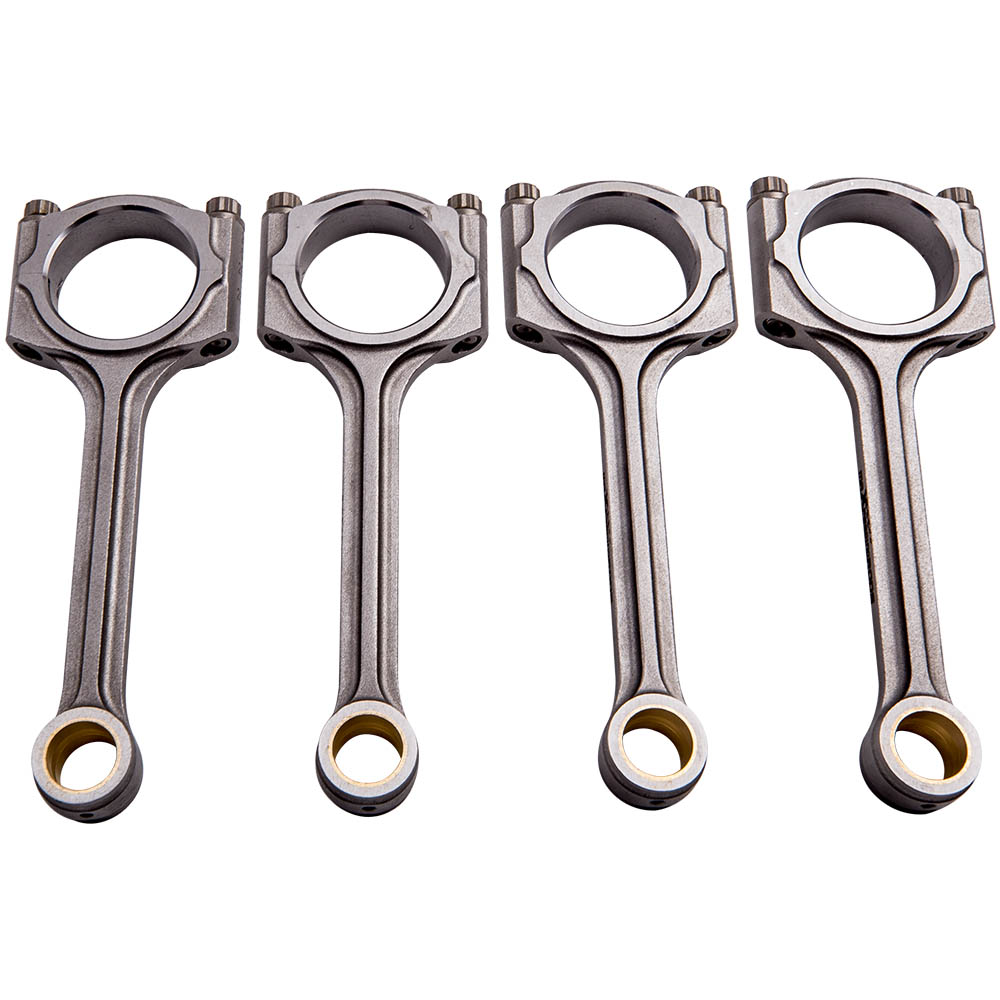

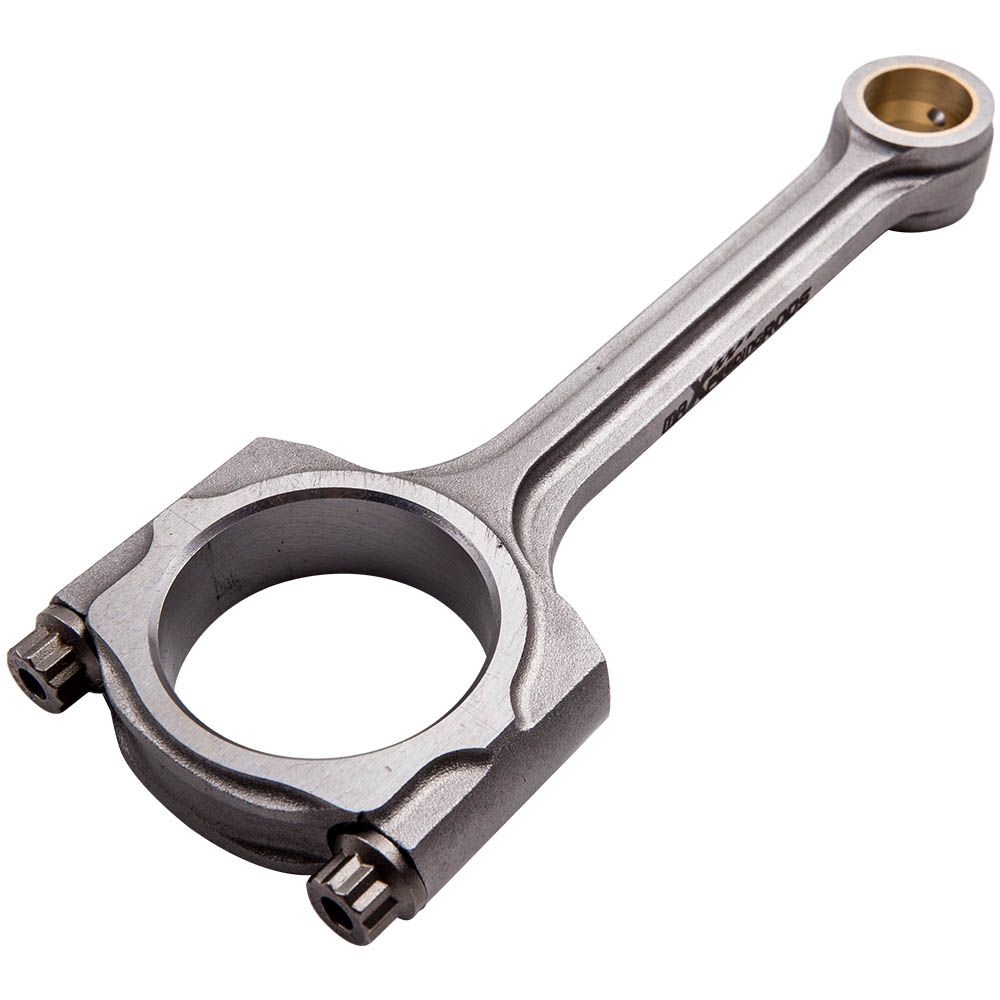

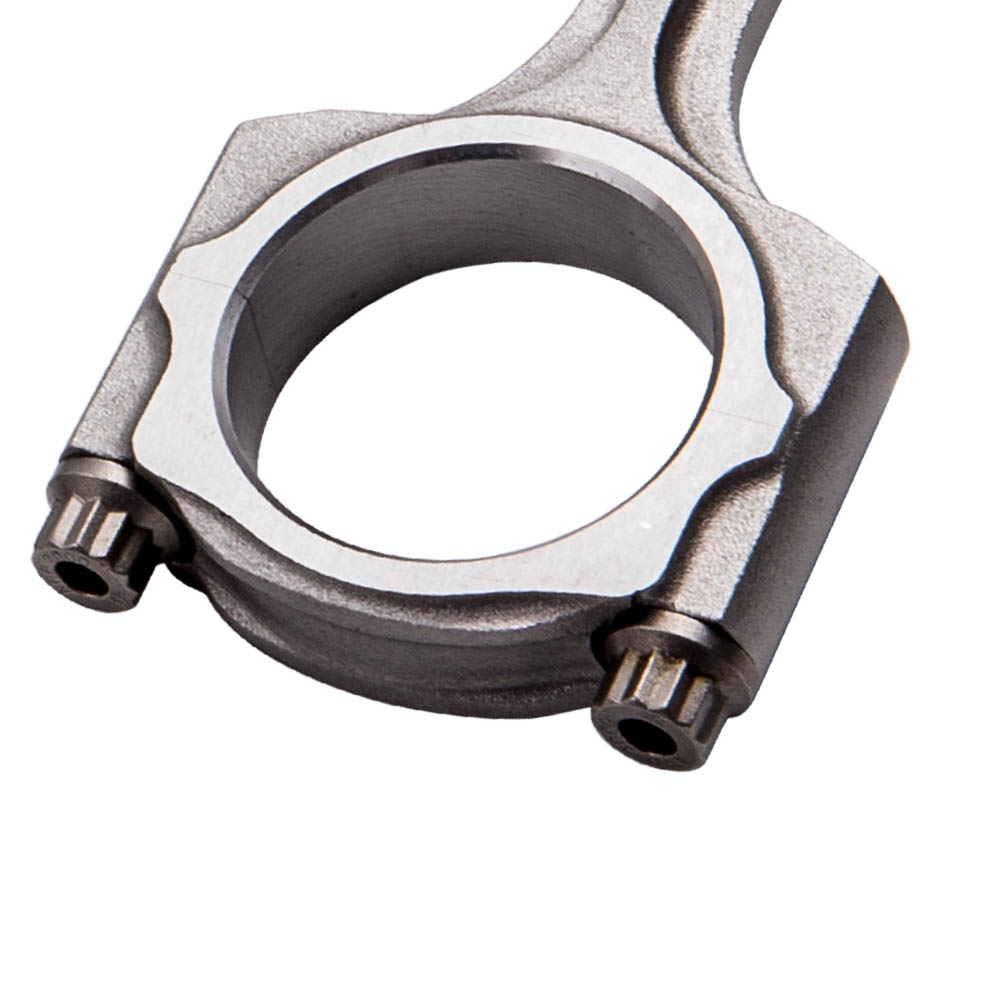

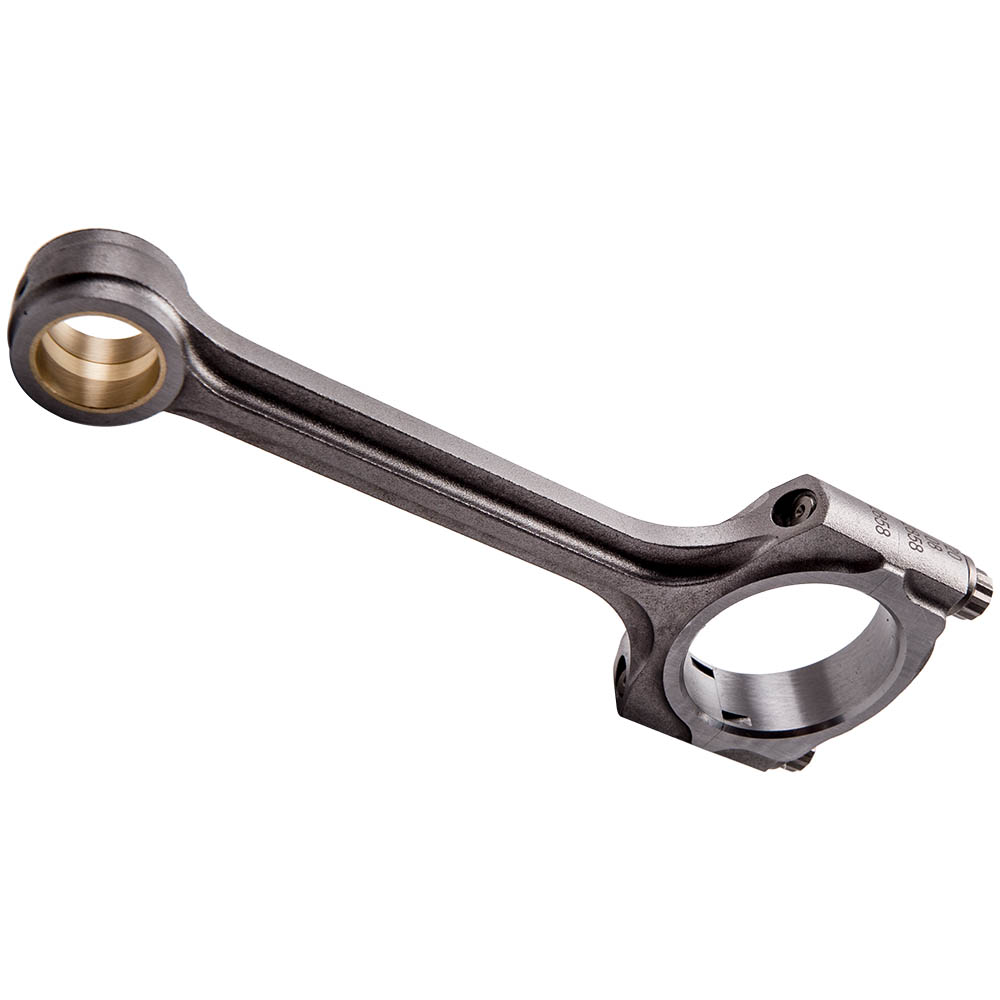

*X-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 5/16" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*X-beam Advertised Horsepower Rating:400HP/set
*X-beam Top acceleration: 8000rpm
*package size：28CM*21CM*10CM

Dimensions

Center to center length:142.5mm/5.61"
Big end diameter:43mm/1.693"
Small end diameter:18mm/0.709"
Big end width:17.9mm/0.705"
Small end width:17.9mm/0.705"

(Note: Please confirm the dimensions before purchase the connecting Rods)

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
5.High precision CNC machined,Precision rod cap alignment dowels；
6.Bores finished to +/- .005mm；
7.Balanced to within +/- 1 g per rod；
8. Each rod is magnetic particle tested to ensure free of flaws；
9.Use X-rayed, sonic tested；
10.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
