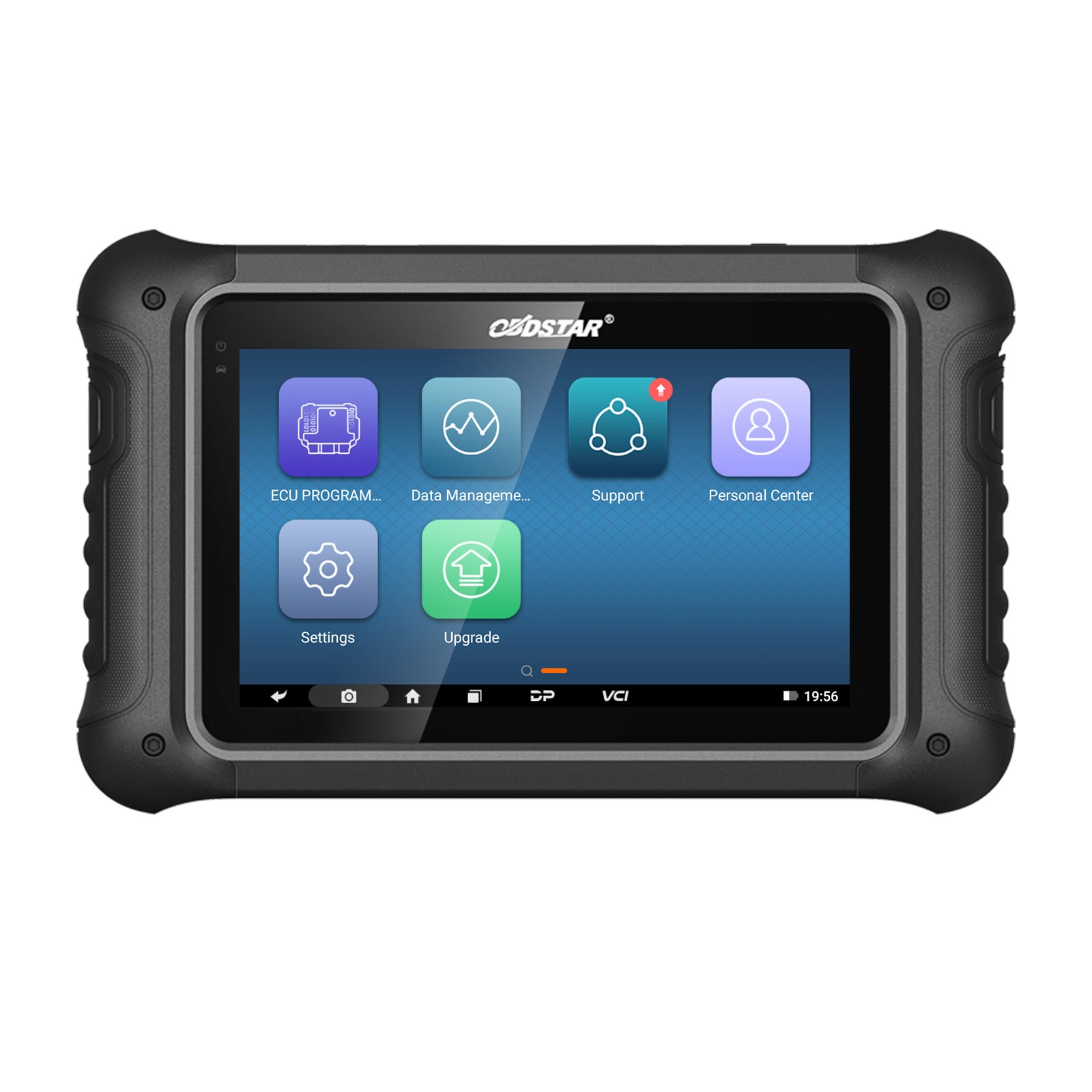

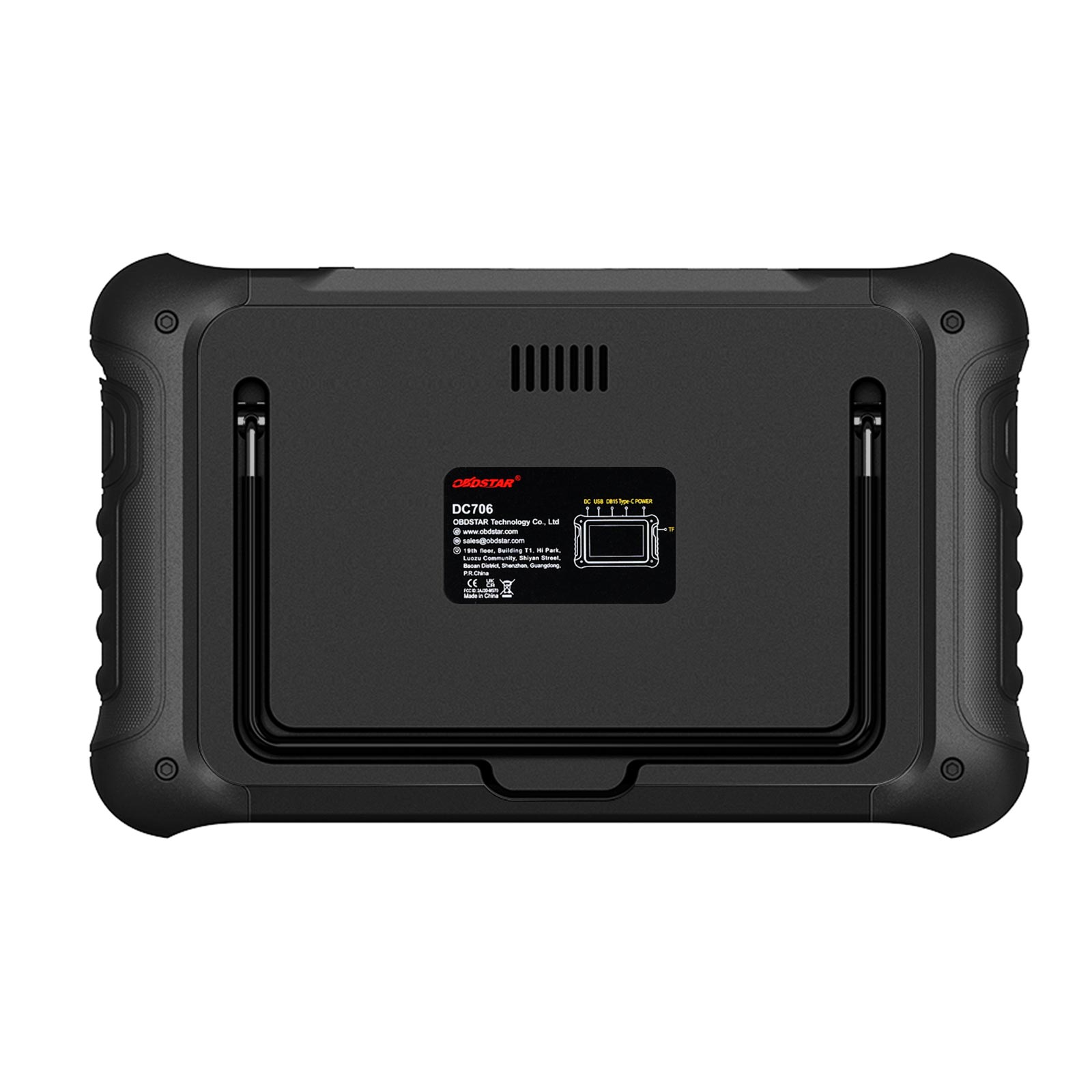

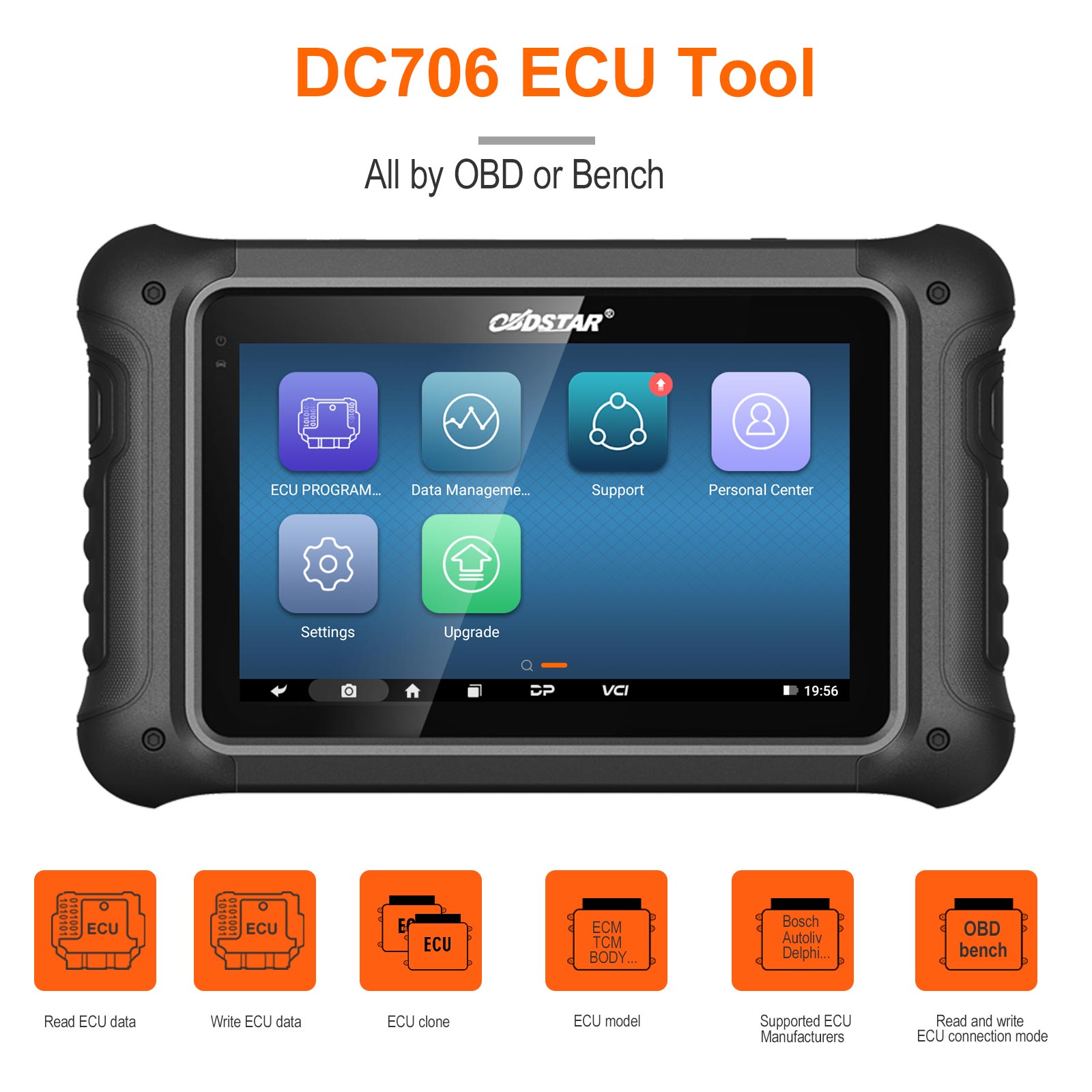

OBDSTAR DC706 E-CU Tool Full Version for Car and Motorcycle EC/M & TCM & BODY & Clone by OBD or BENCH

OBDSTAR DC706 E-CU tool, with 1-year free upgrade, is designed for vehicle E-C-M, TCM and body/other system for E-CU flasher. It can read E-CU info, R/W Eeprom/Dflash/Pflash/MAP, reset E-CU(Virgin), calibrate mile-age, read IMMO pincode, E-CU recovery... It's all by OBD or bench mode and makes E-CU cloning easy.

OBDSTAR DC706 Full Version Highlights:

1. R/W eeprom/dflash/pflash/Map, reset E-CU(Virgin), calibrate mileage, read IMMO pincode, E-CU recovery...

2. Support 1980+ EC-M types(Partial functions require P003 adapter.)

3. Support 480+ TCM types

4. Support 180+ body/other E-CU types(AIRBAG, BC/M, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)

5. Support for V.W DQXXX (TCM) calibrate mileage

6. Support motorcycle Delphi MT05, MT05.2, MT05.3 E-CU clone

7. Support motorcycle BRP ME17.8.5 E-CU clone (works with P003 adapter)

8. Support Piaggio series engine E-CU clone(such as MIU G4 (M4G1))

9. Support intelligent search by brand, model, part No., E-CU manufacturer, MCU controller type

10. Support automatic identification

11. Strong help data files

12. All by OBD or Bench mode

13. Please download OBDSTAR DC706 Full Version Support List on the official website

14. One Year Free Update Onine,249 USD for another year of update

15. Language：Support English only
16. Read, write and clone successfully for a HYUNDAI KIA SIM2K-341
17. When using boot mode to read E-C-U, you can also use with BDM frame.
18. The sim2k-341 protocol is newly added, support TC1766.

Notice:

1. Our Distributor Code: 0086A002

2. Not support Clone V-A-G DQ250 before Year 2008 with the old protocol

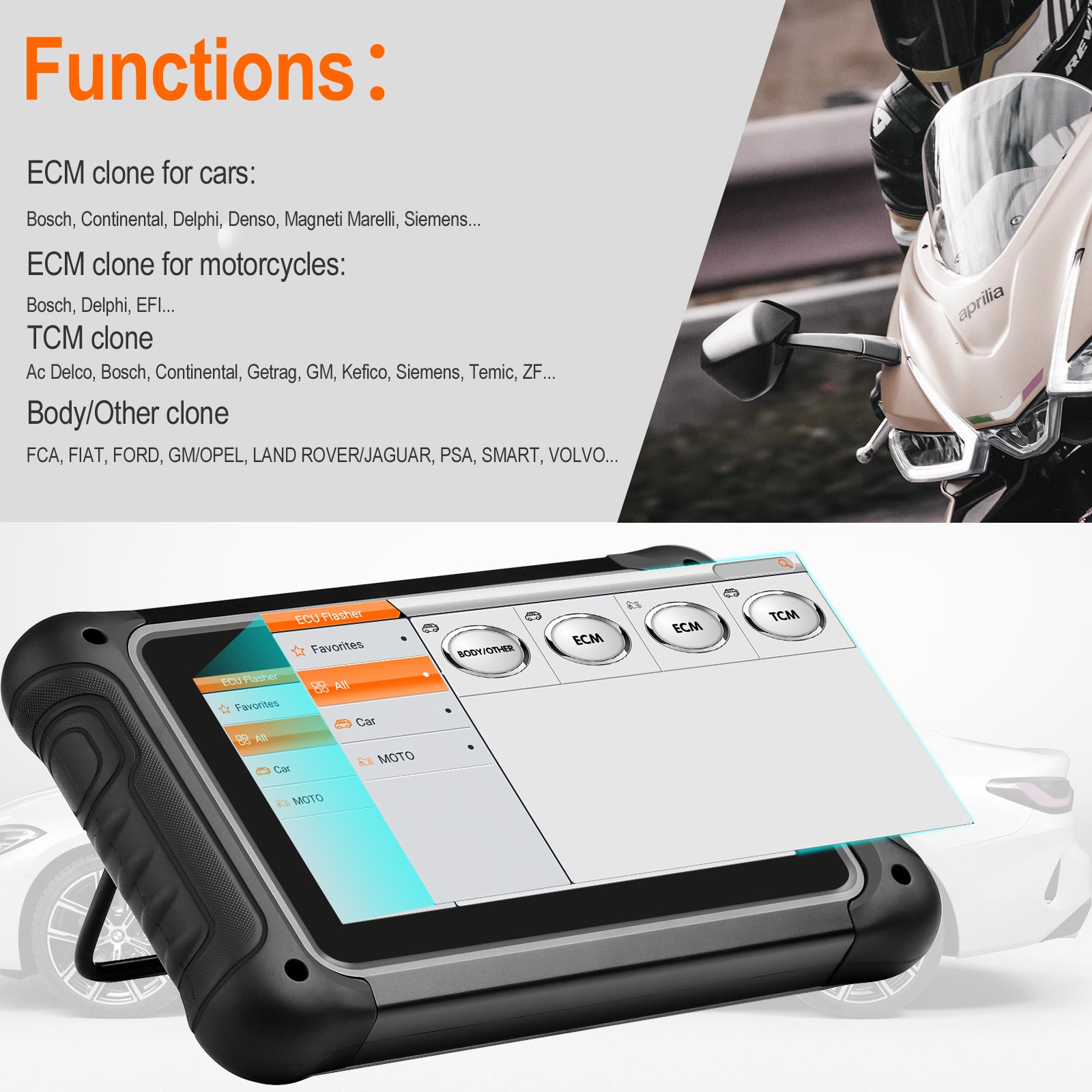

OBDSTAR DC706 Functions:

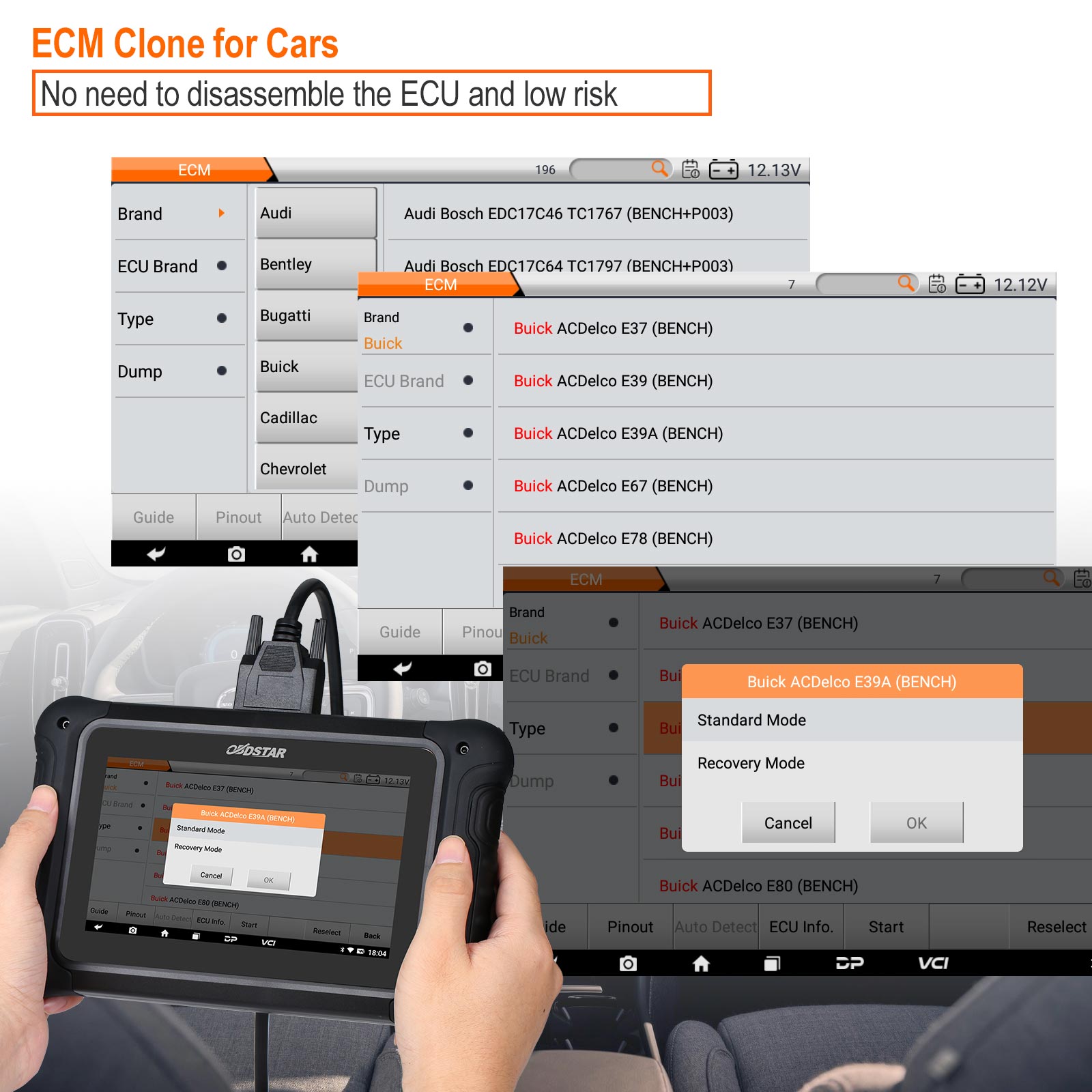

E-CU Clone/ All by OBD or Bench

• E-C-M clone for cars(Bo-sch, Continental, D-elphi, D-enso, Magneti Marelli, S-iemens...)

• E-C-M clone for motorcycles(B-osch, D-elphi, EFI...)

• TCM clone(Ac Delco, Bo-sch, Continental, Getrag, GM, Kefico, S-iemens, Temic, ZF...)

• Body/Other clone(for FCA, for FIAT, for FORD, for GM/OPEL, for LAND ROVER/JAGUAR, for PSA, for SMART, for V-OLVO...)

Supported E-CU Manufacturers:

• ACDELCO

• ALPS

• ATE


• AUTOLIV

• BO-SCH

• CONTINENTAL

• DELPHI

• DENSO

• DENSO DECE1C

• EFI

• GETRAG

• For GM

• JC

• KEFICO

• LEAR

• MAGNETI MARELLI

• Marelli

• SIEMENS

• SIEMENS/CONTINENTAL

• SIMTEC

• TEMIC

• VALEO

• VISTEON

• YAZAKI

• ZF

Supported Brands:

Car

Fit For ASTON MARTIN

Fit For BMW

Fit For FAW

Fit For FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)

Fit For FORD/LINCOLN

Fit For GM/OPEL

Fit For HYUNDAI/KIA

Fit For LAND ROVER/JAGUAR

Fit For LUXGEN

Fit For MASERATI

Fit For MAZDA

Fit For MITSUBISHI

Fit For NISSAN

Fit For OPEL

Fit For PSA

Fit For SMART

Fit For SUBARU

Fit For SUZUKI

Fit For V-OLVO

Fit For V-W/AUDI/SEAT/SKODA

Motorcycle:

Fit For APRILIA

Fit For BRP

Fit For CFMOTO

Fit For DERBI

Fit For GILERA

Fit For GUZZI

Fit For ITALJET

Fit For PEUGEOT

Fit For PIAGGIO

Fit For QJBENELLI

Fit For VESPA

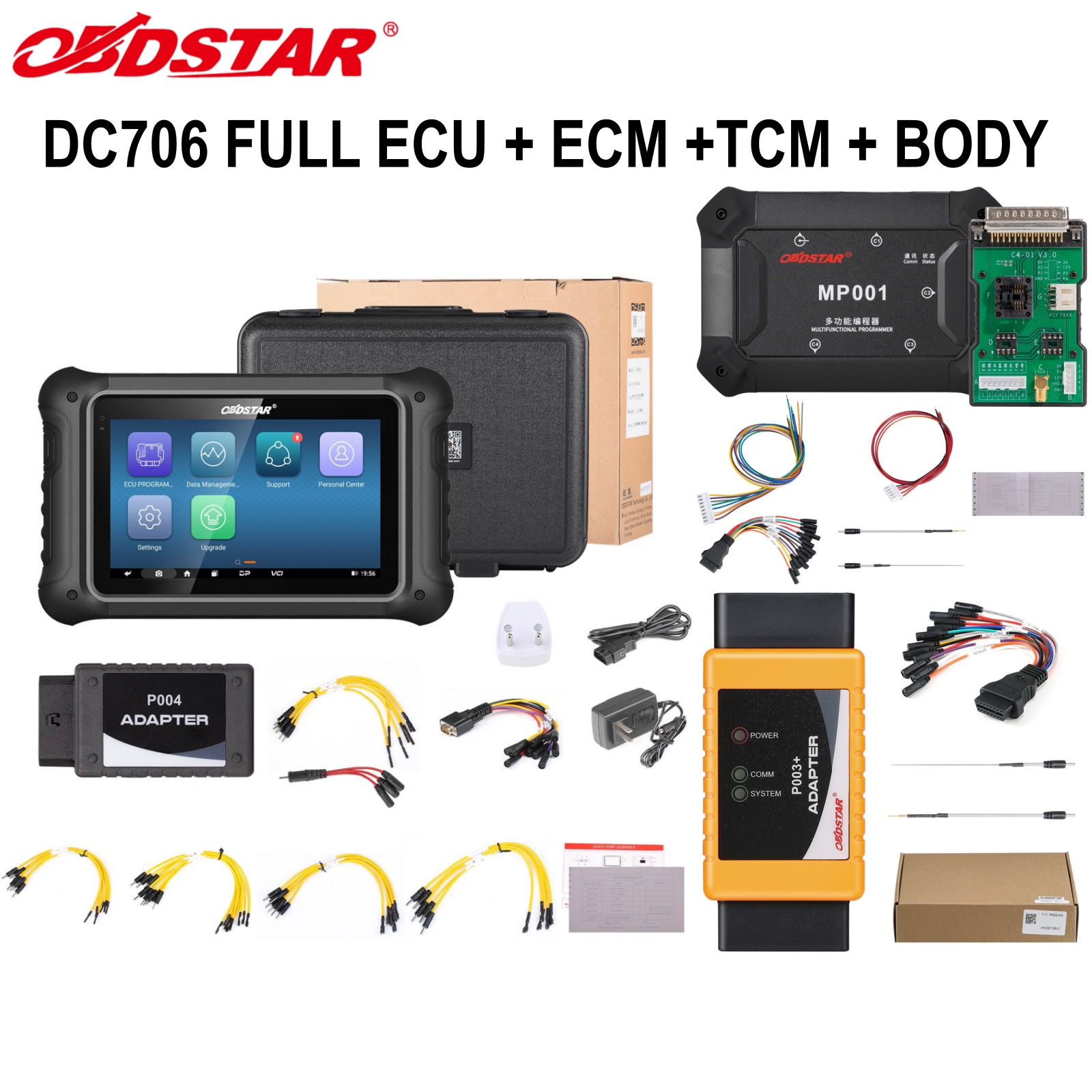

OBDSTAR DC706 Different Configurations

OBDSTAR DC706 E-CU Tool Latest Update Information:

DSG MILEAGE RESET UPGRADE

Add DSG mileage reset functions for belpw models:

DQ380(0DE)   DQ500(0DE)  DQ381(0DE)

Function Display:

1) Main Page/Brand Supported

DC706 Specifications:

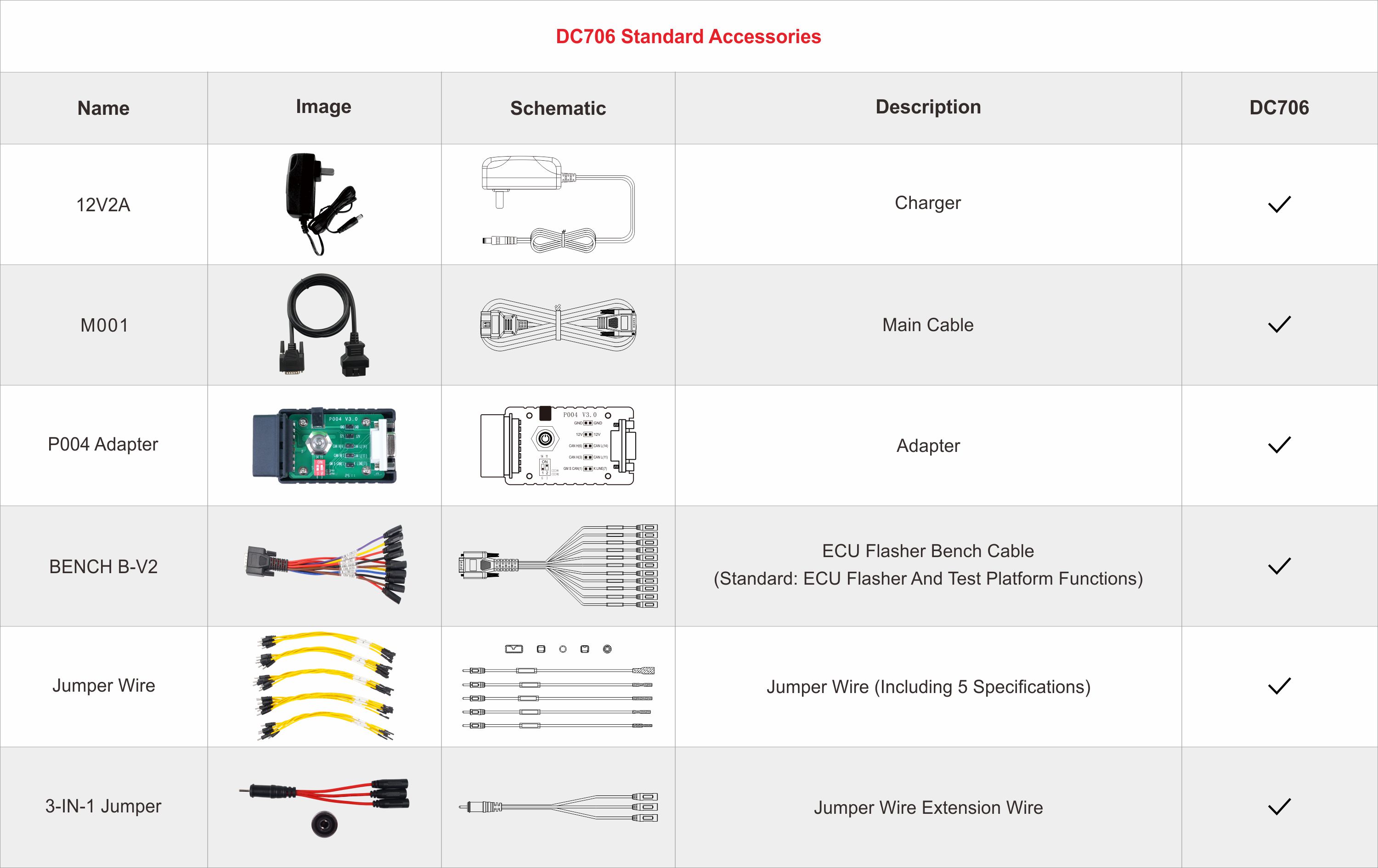

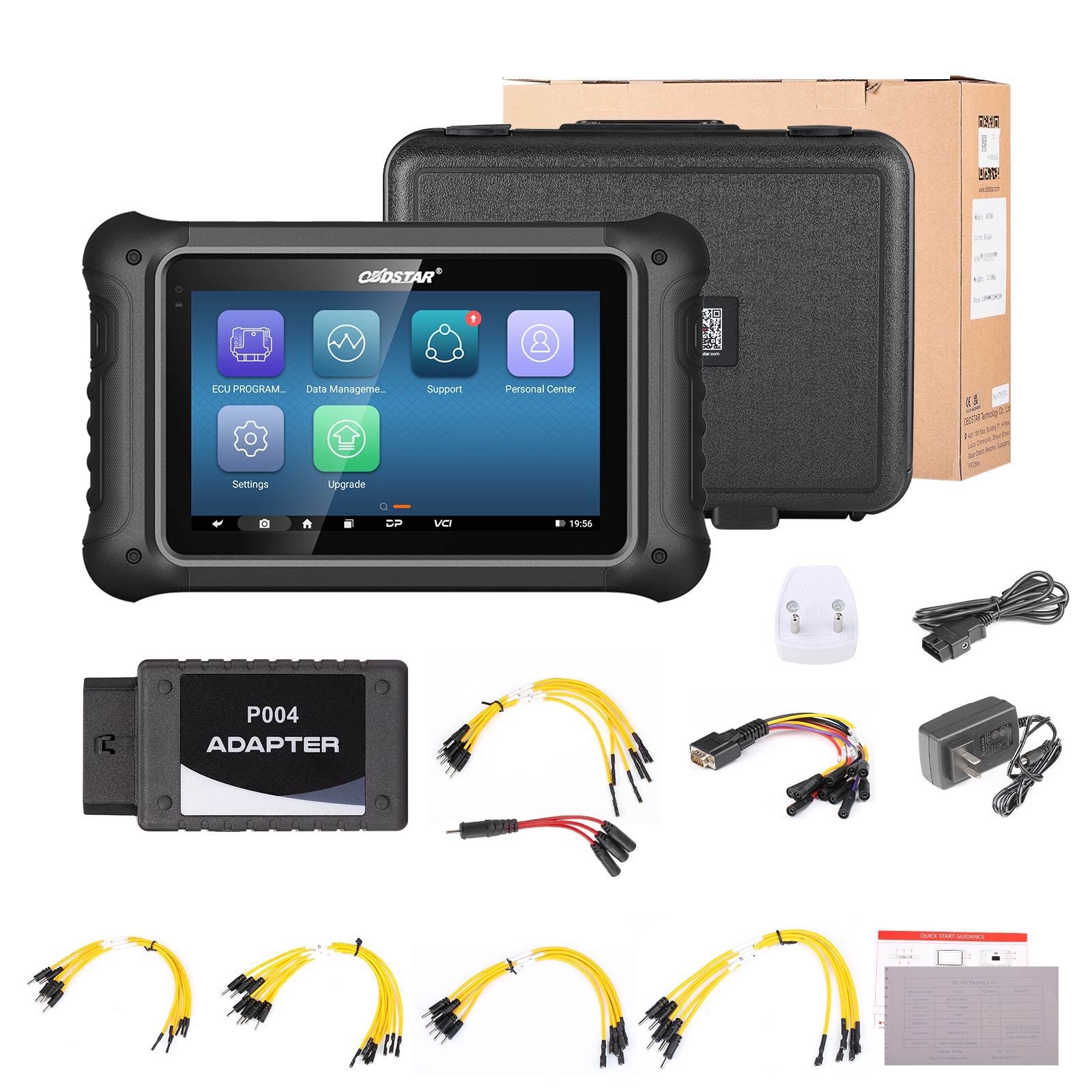

Package Includes:

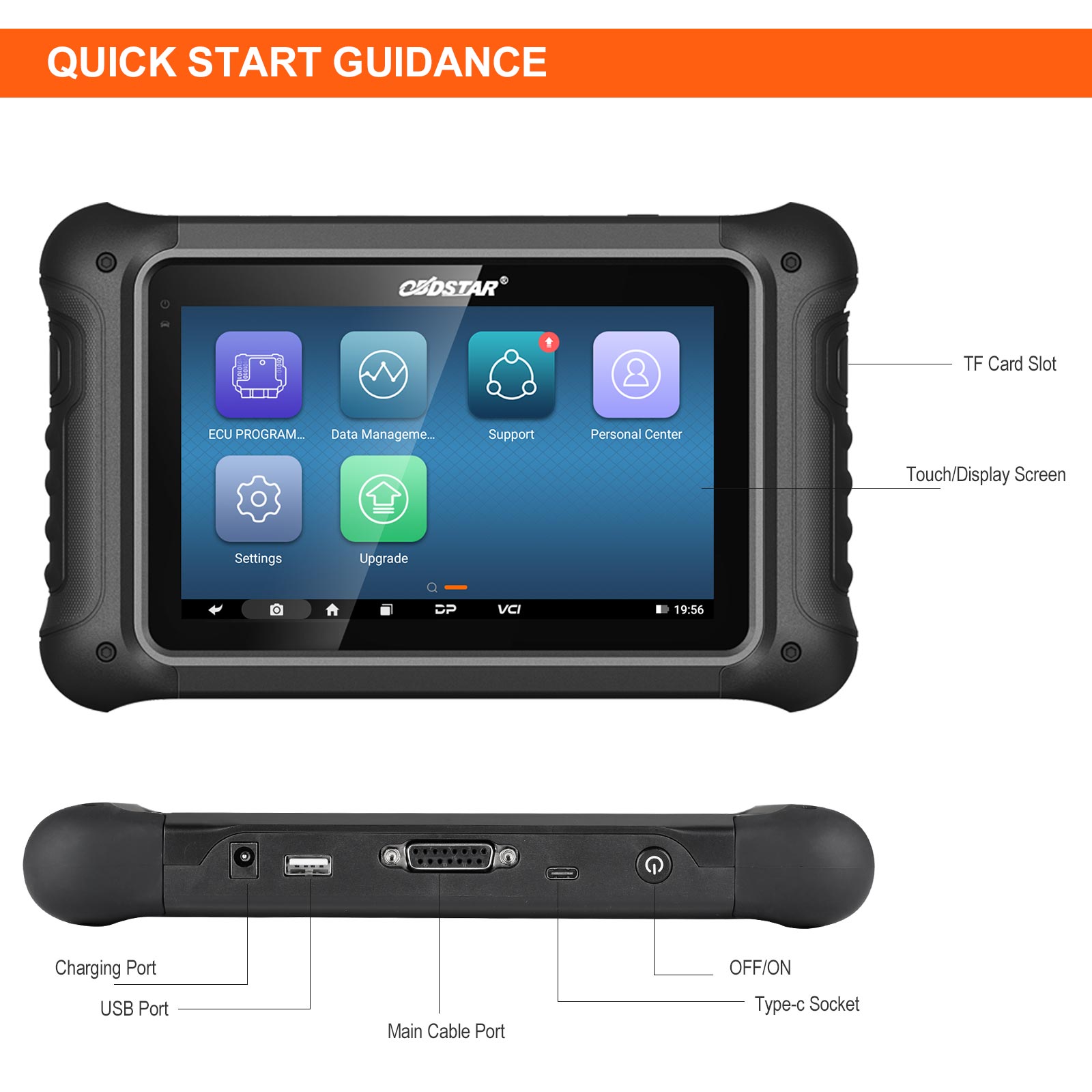

1pc x DC706 tablet
1pc x 12V2A charger
1pc x M001 main cable
1pc x P004 adapter

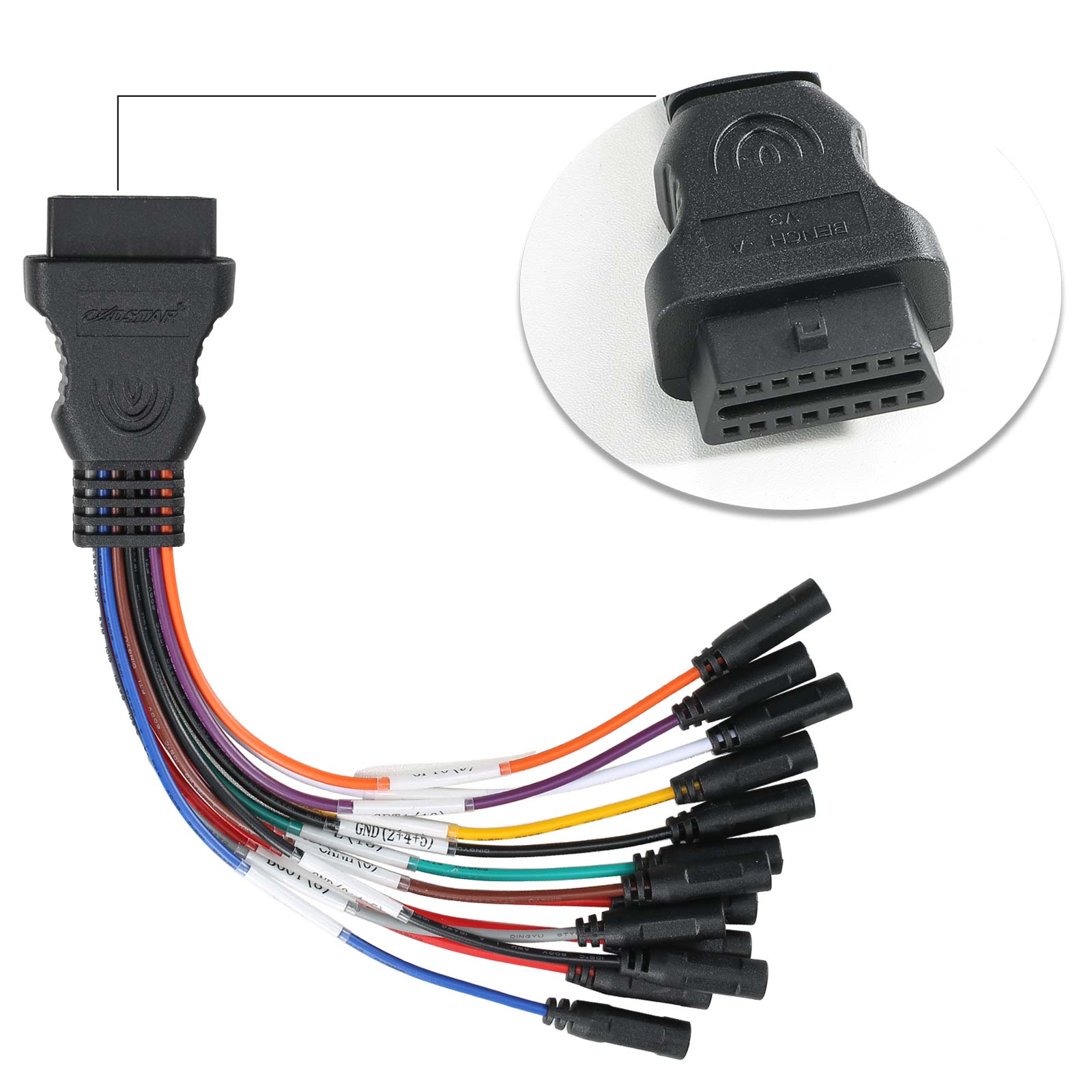

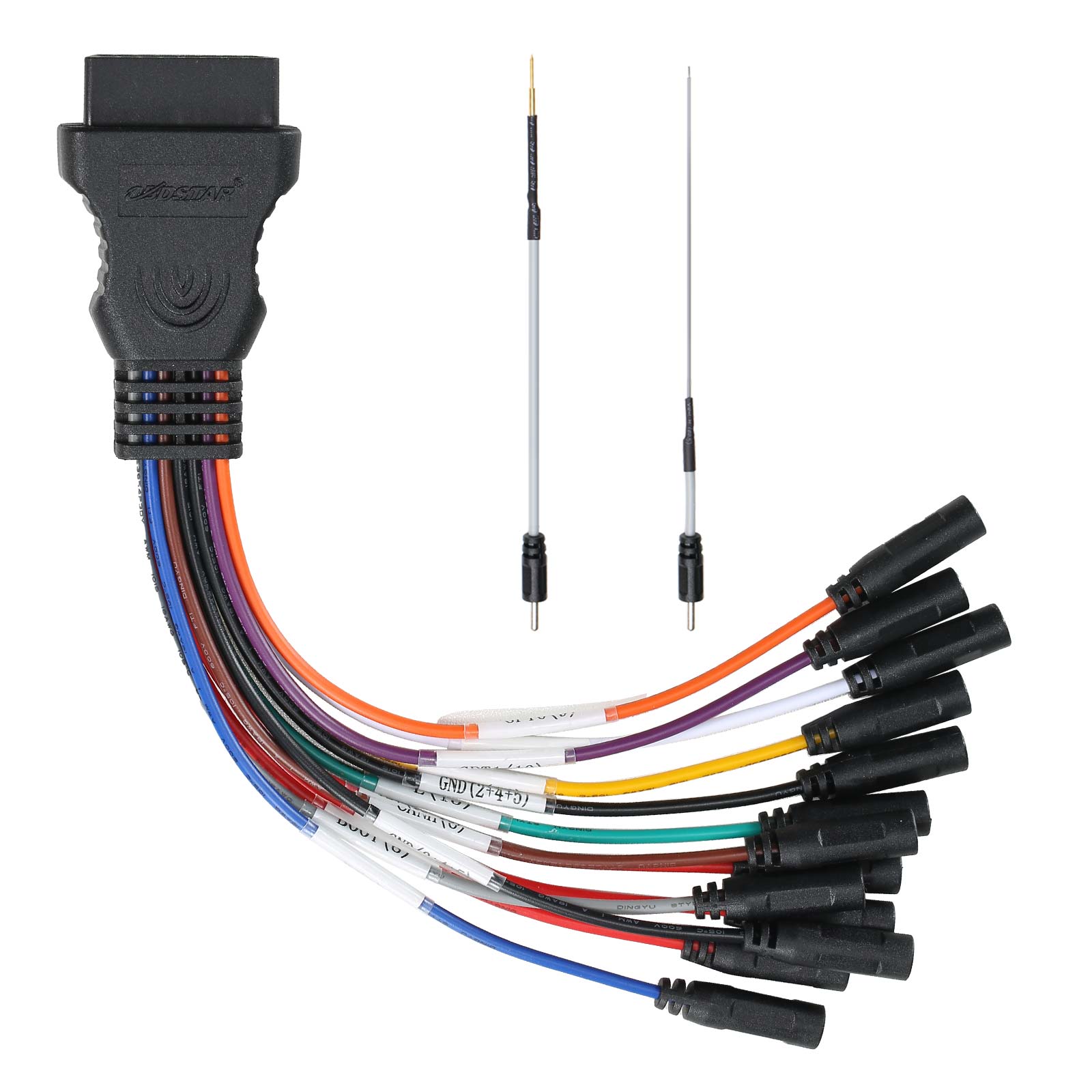

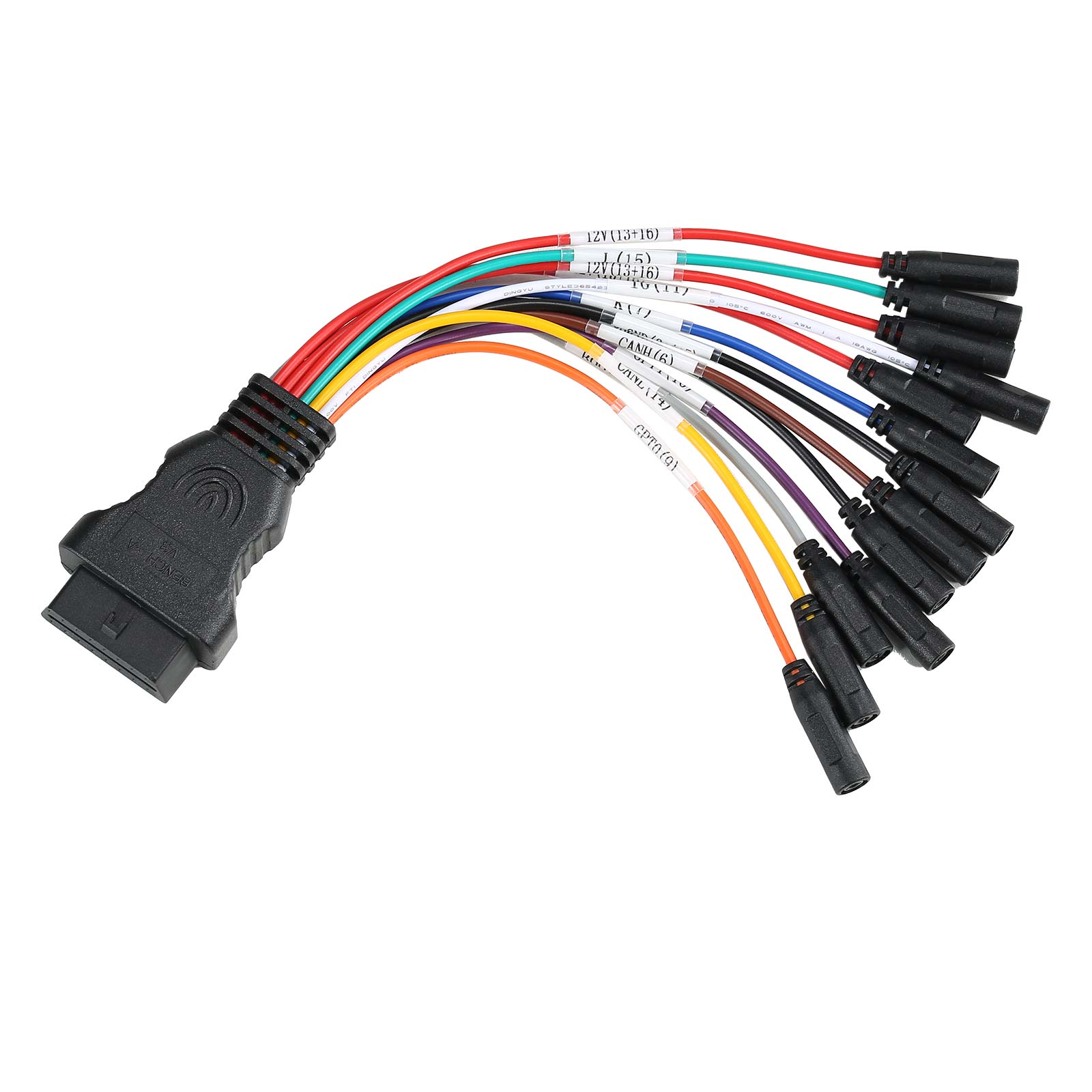

1pc x BENCH-B V2 Cable
1pc x jumper wire
1pc x 3-in-1 jumper
1pc x Quick start guide/certificate

Note: Optional accessories not included !

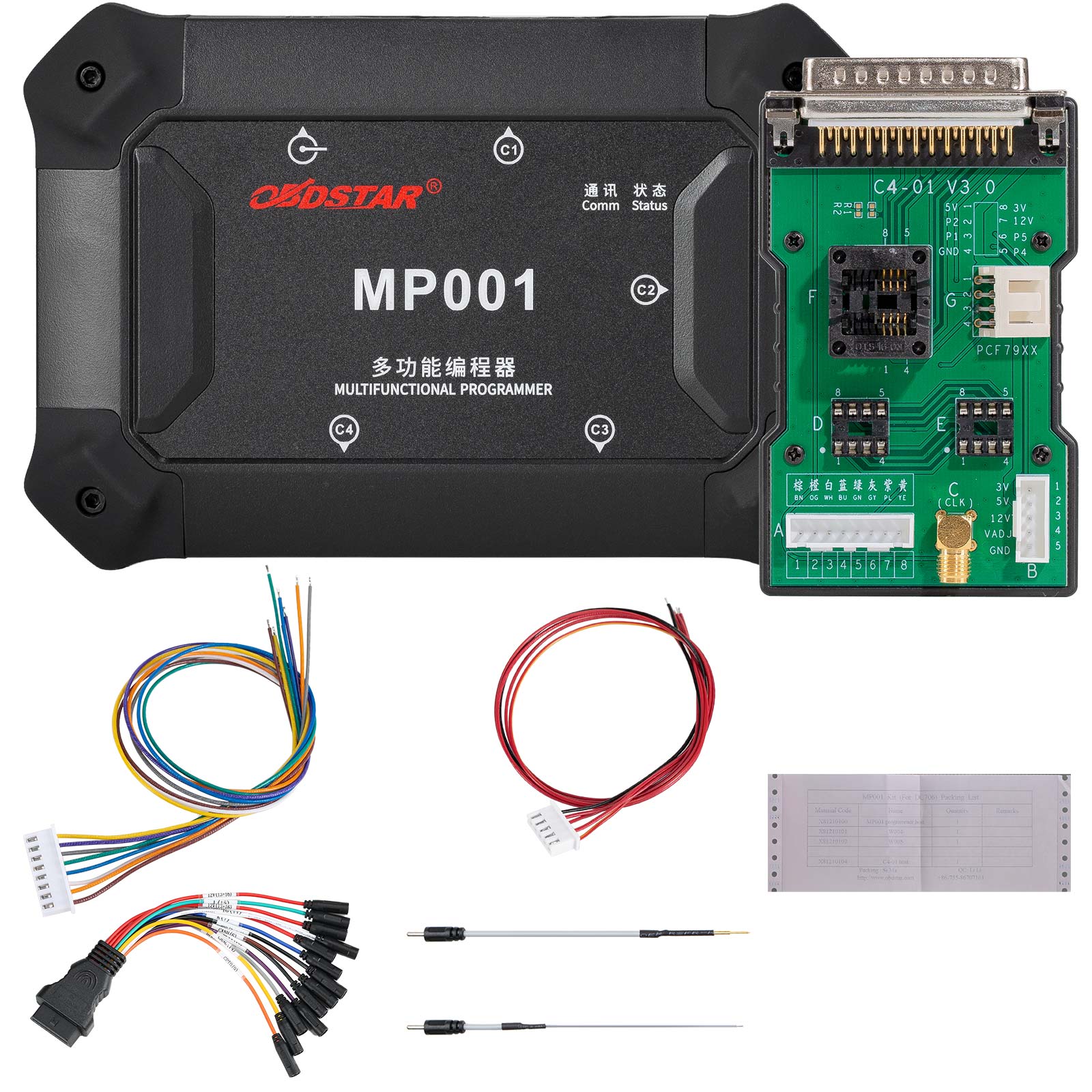

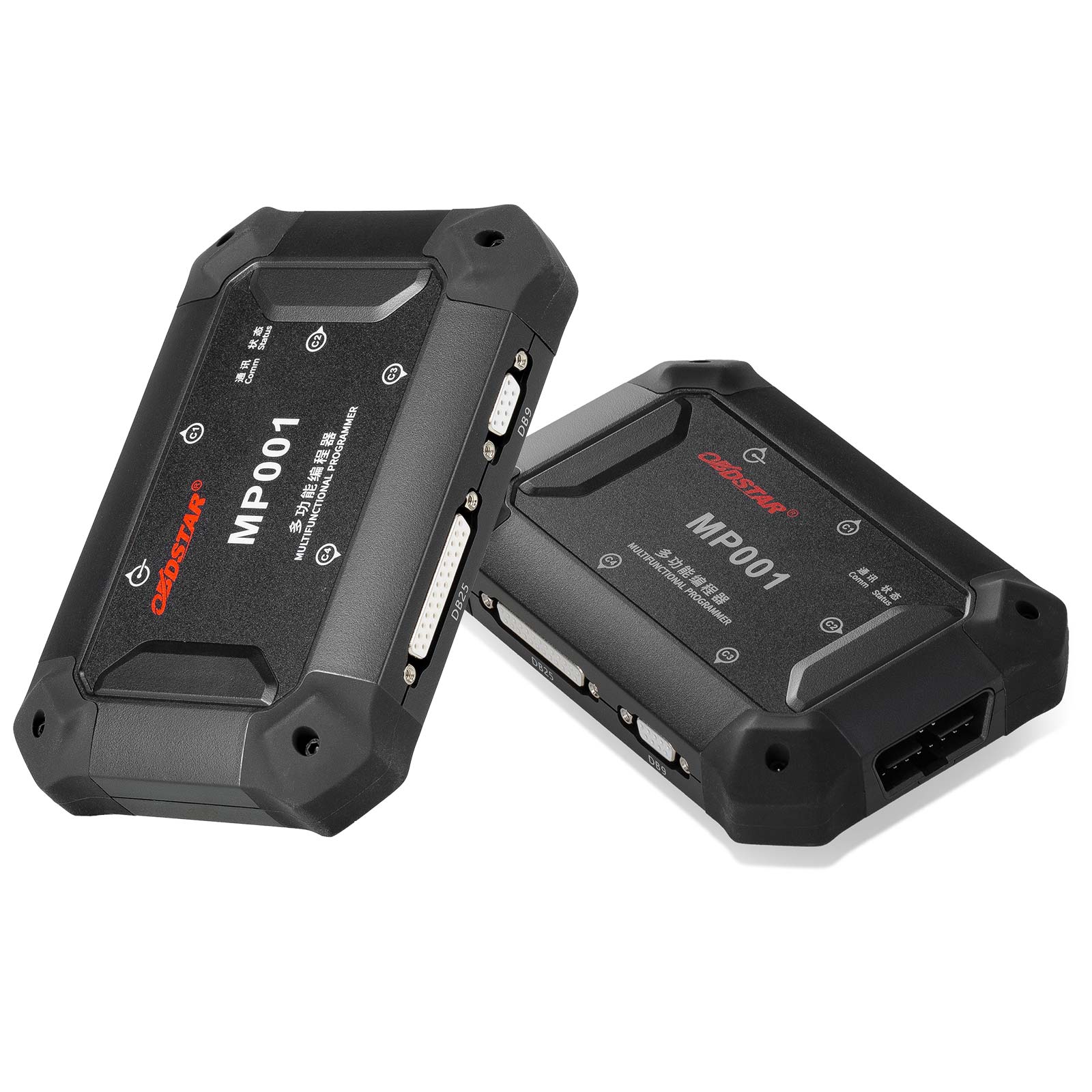

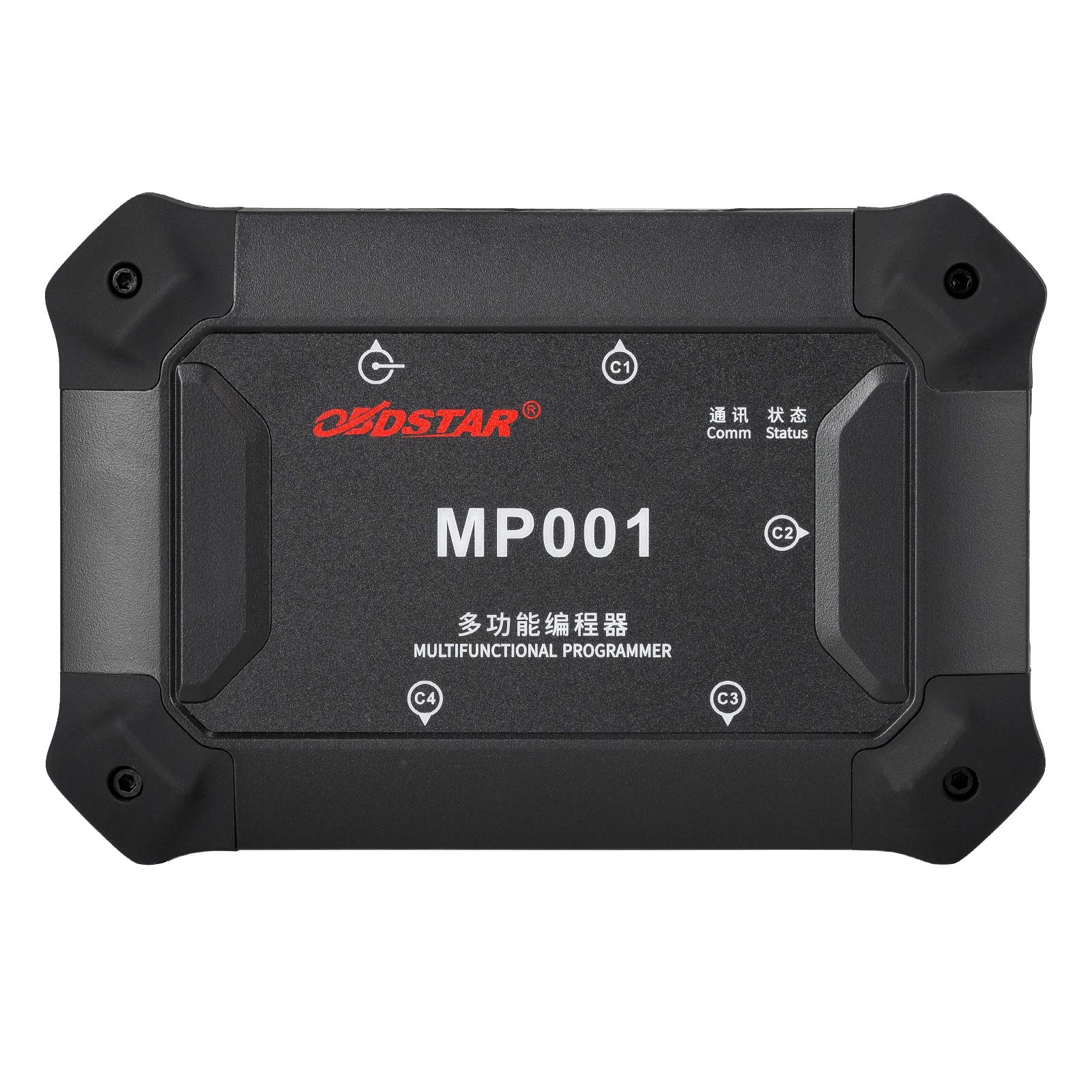

OBDSTAR MP001 Set（MP001 Progarmmer+C4-01Host + W004/W005/E-C-U Bench Jumper）FOR DC706

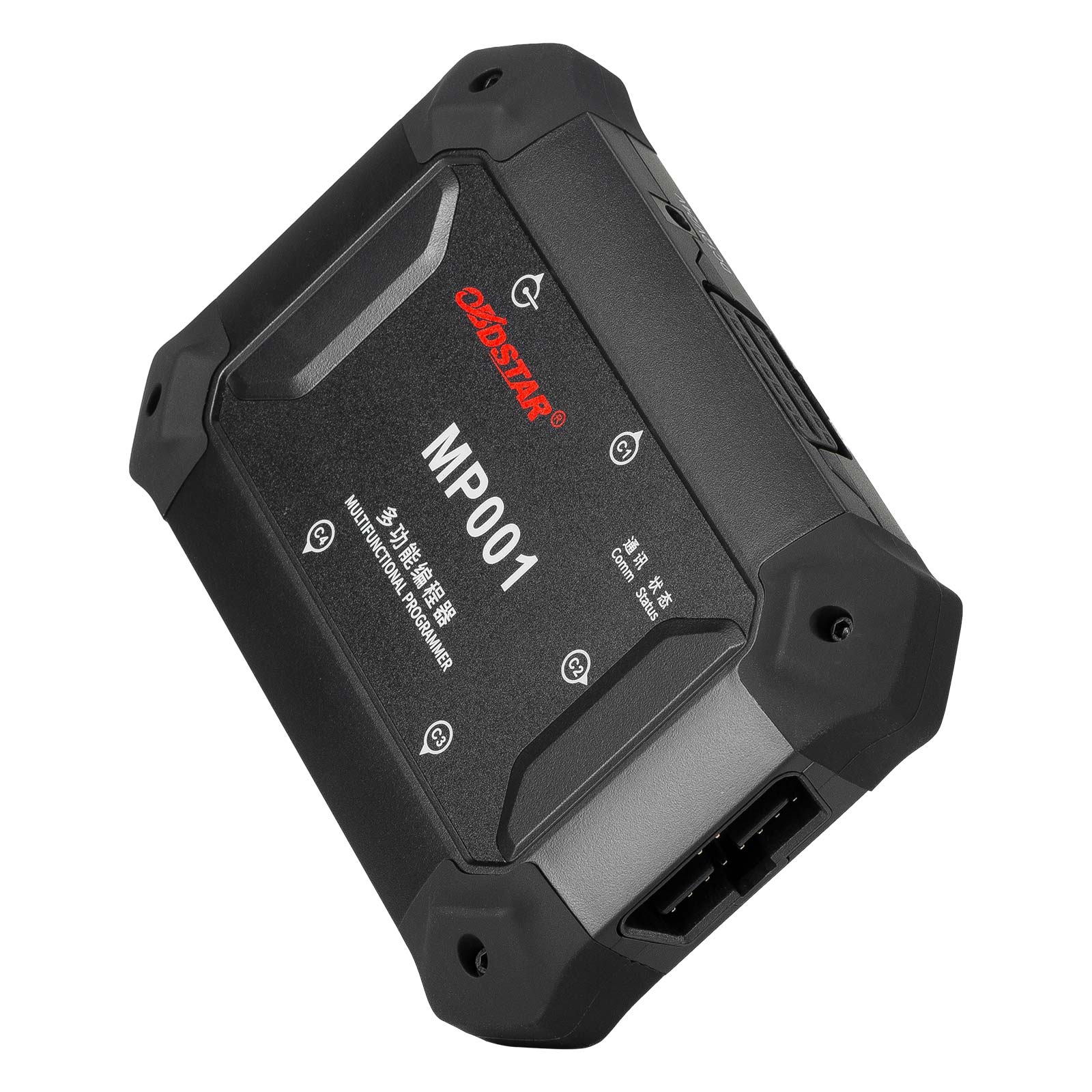

MP001 is the latest multifunctional progarmmer developed by OBDSTAR, which fully supports data read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski).

Product Features:

1. MP001 is compatible with P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future E-C-M requirements.

2. MP001 can replace P002 adapter as well.

Specifications

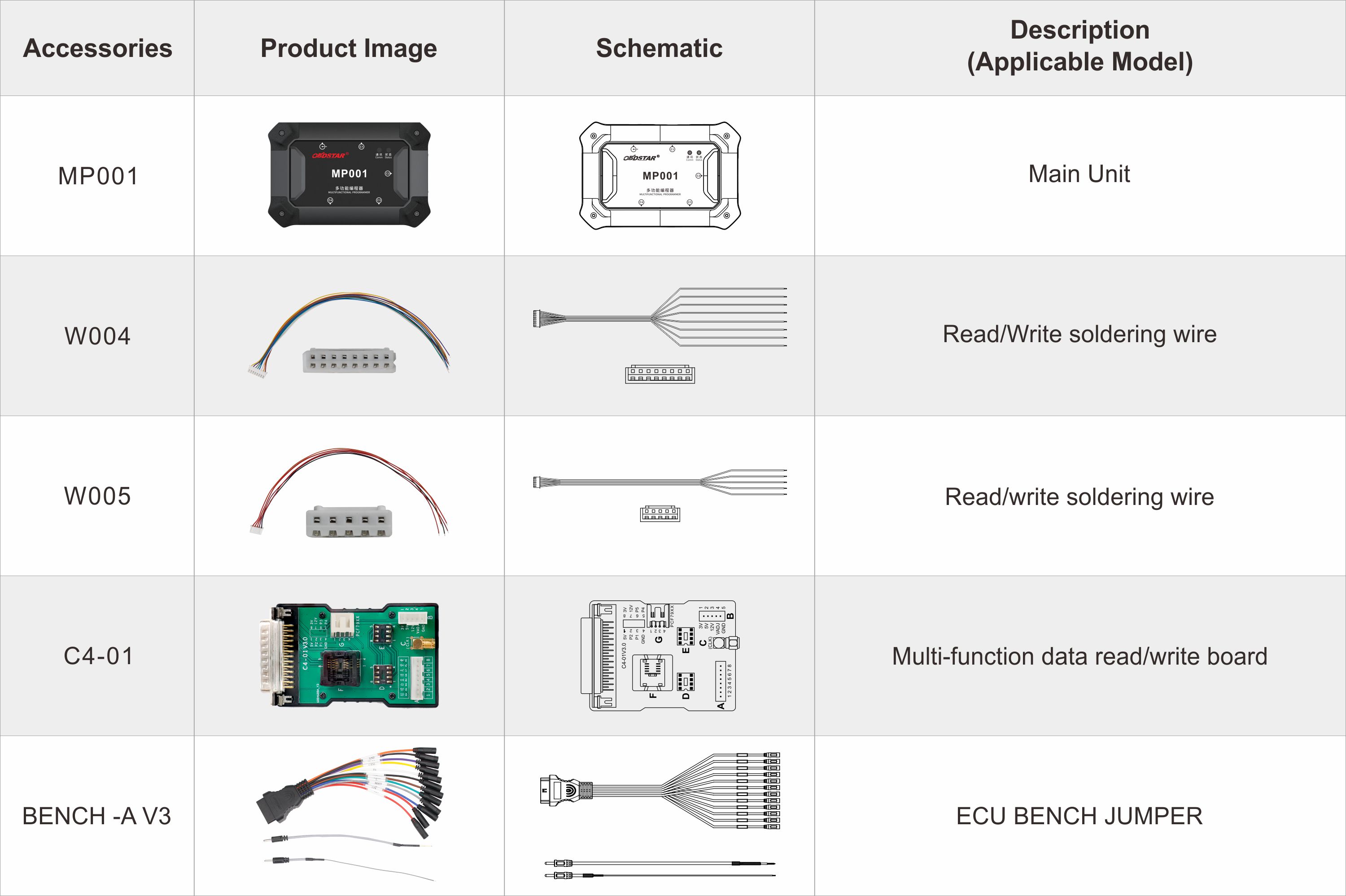

Package Includes:

1pc x OBDSTAR MP001 Main Unit

1pc x W004 Read/Write soldering wire

1pc x W005 Read/Write soldering wire

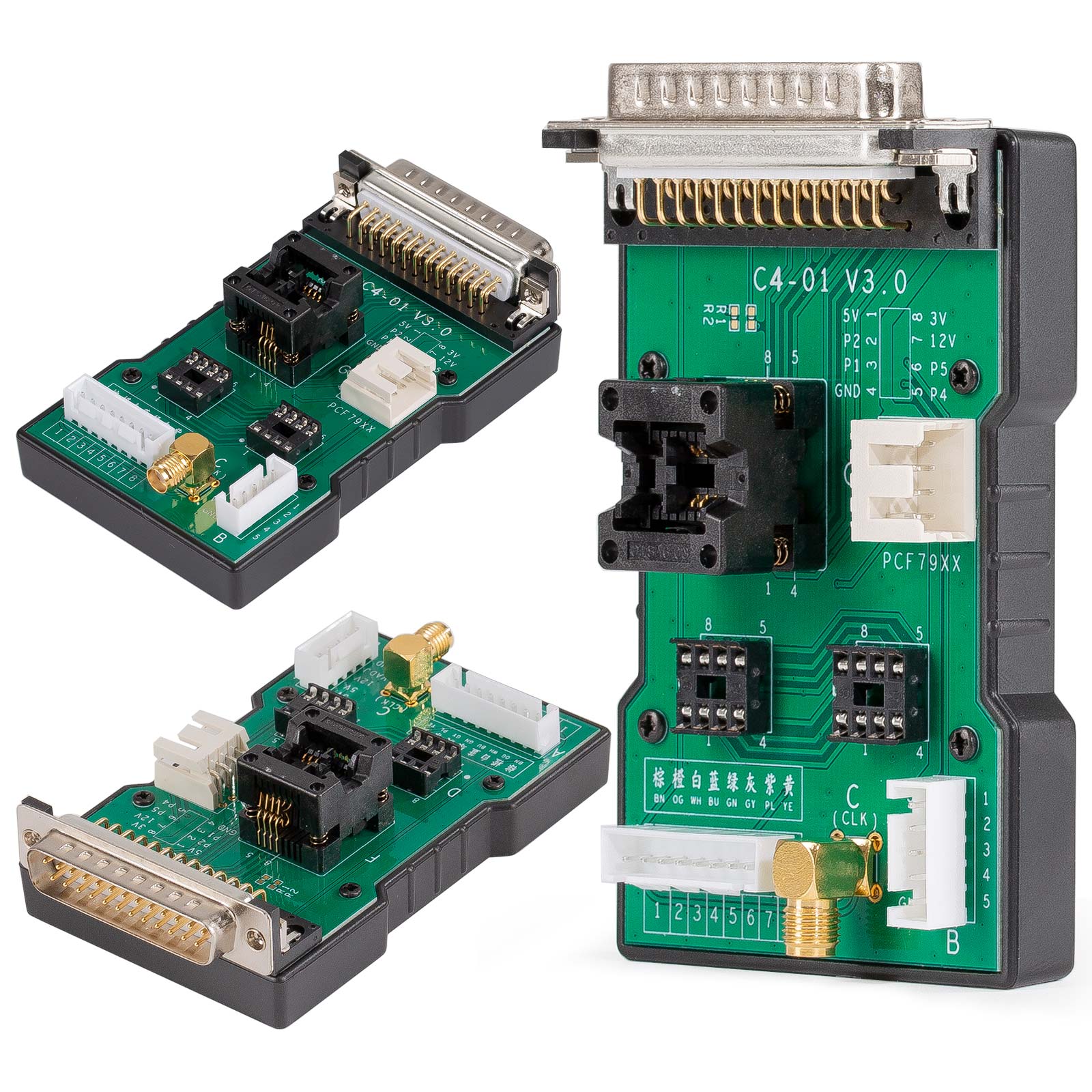

1pc x C4-01 Multi-function data read/write board

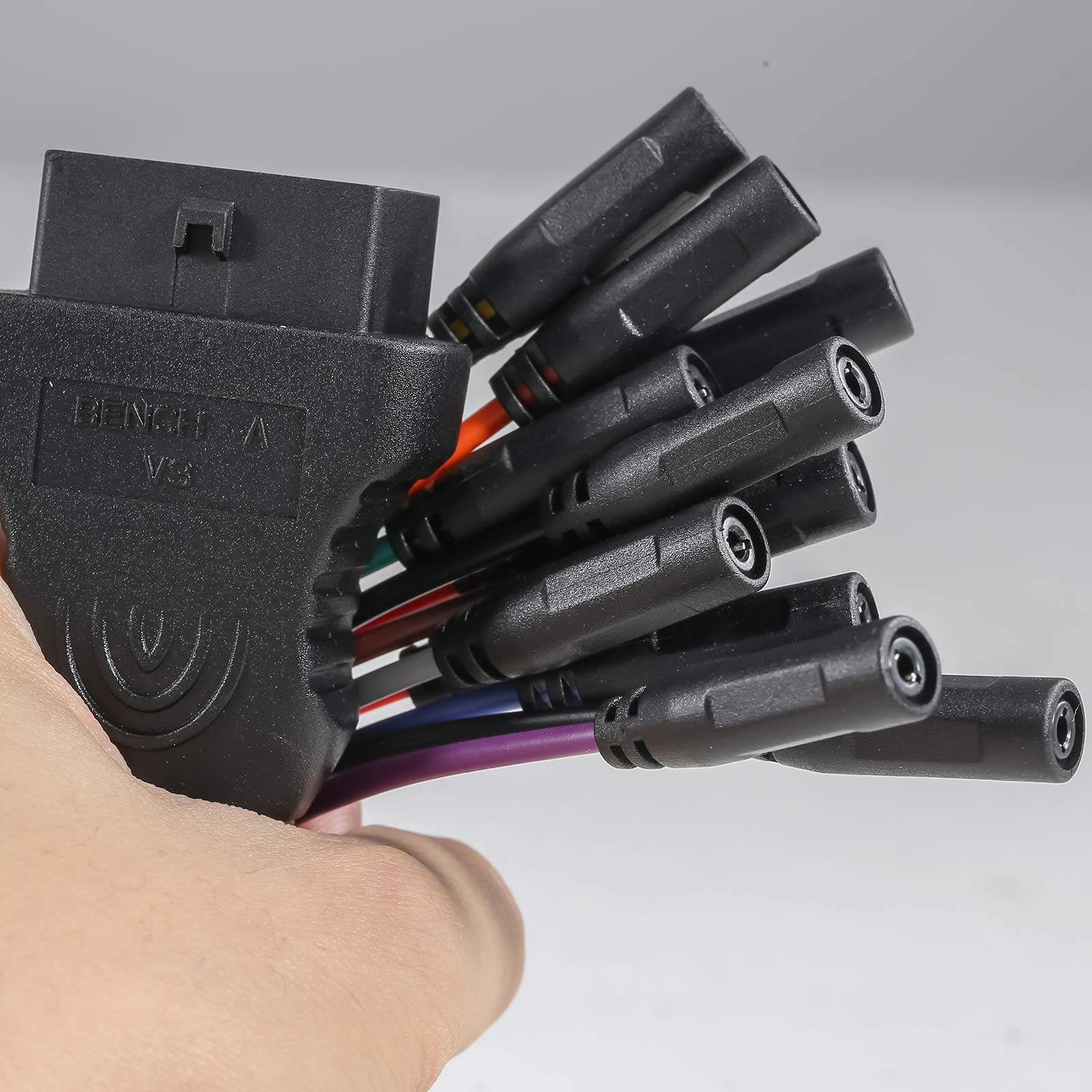

1pc x BENCH -A V3 E-C-U BENCH JUMPER

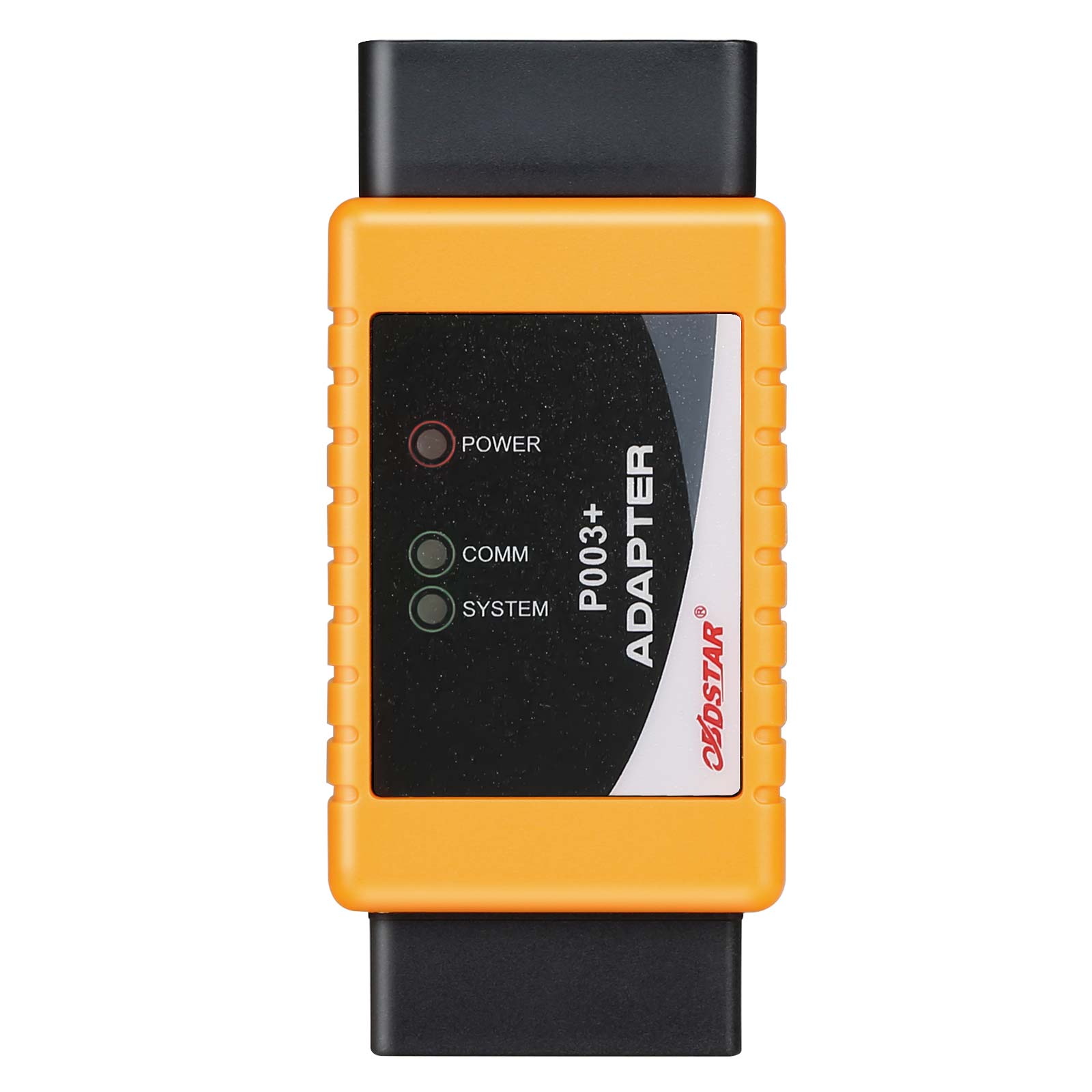

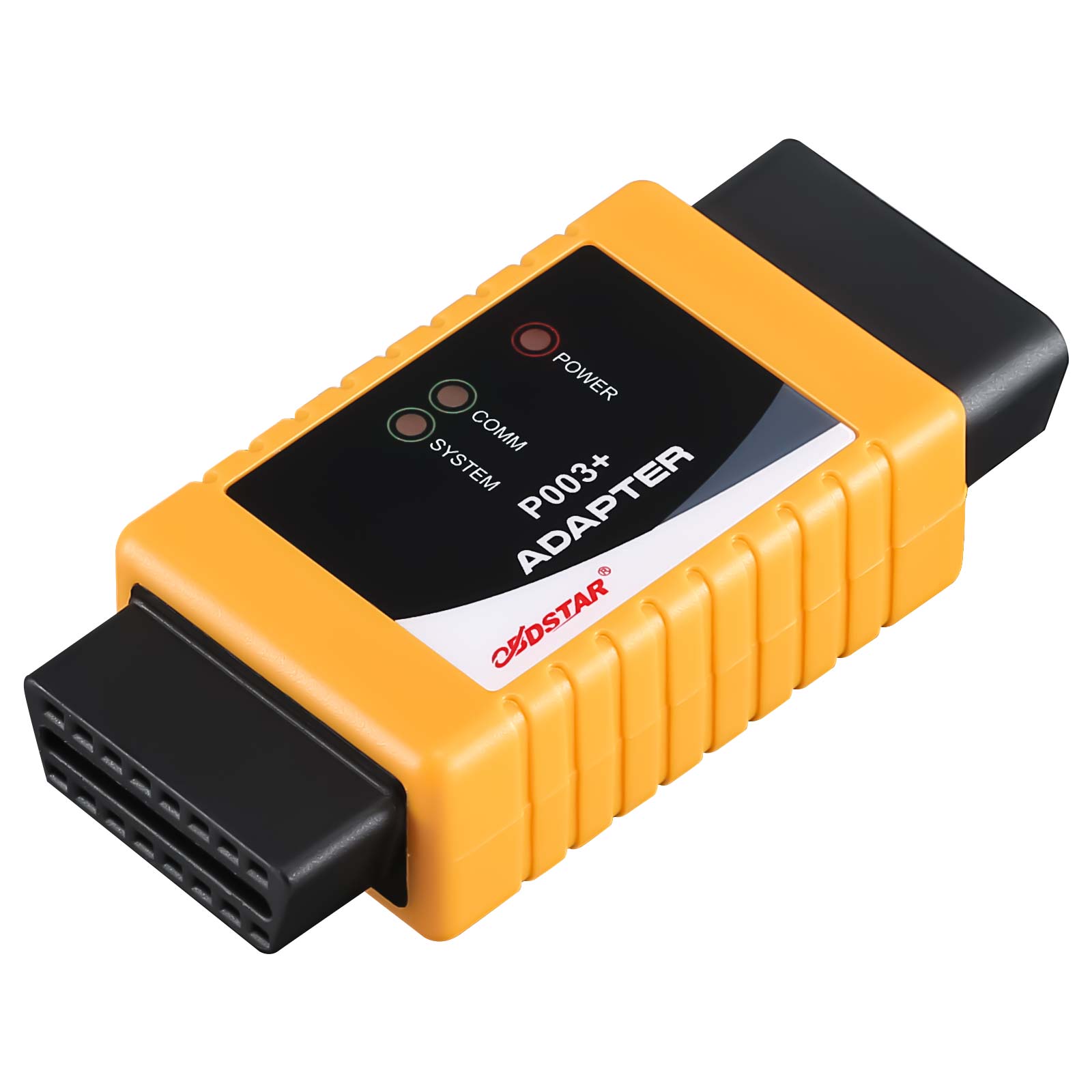

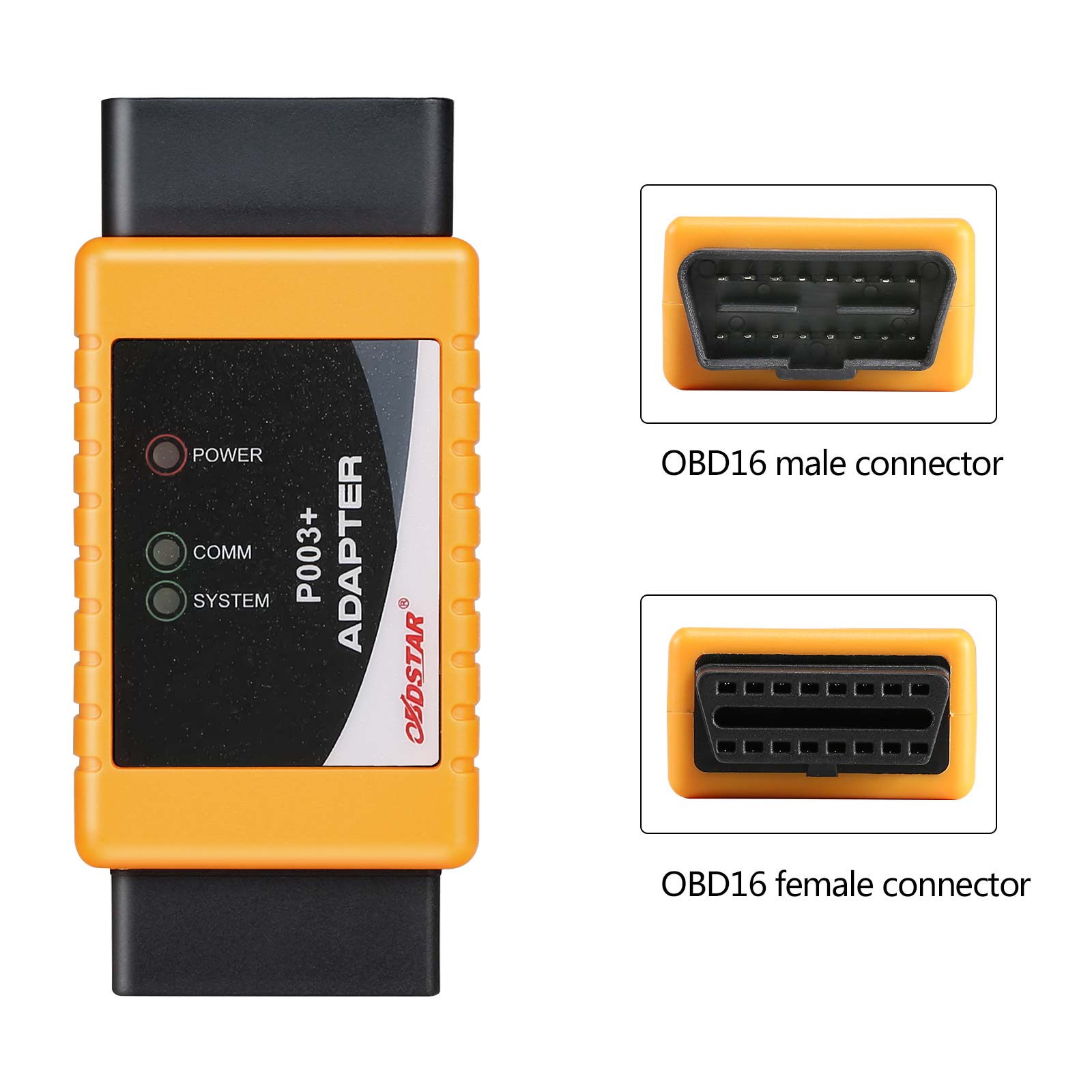

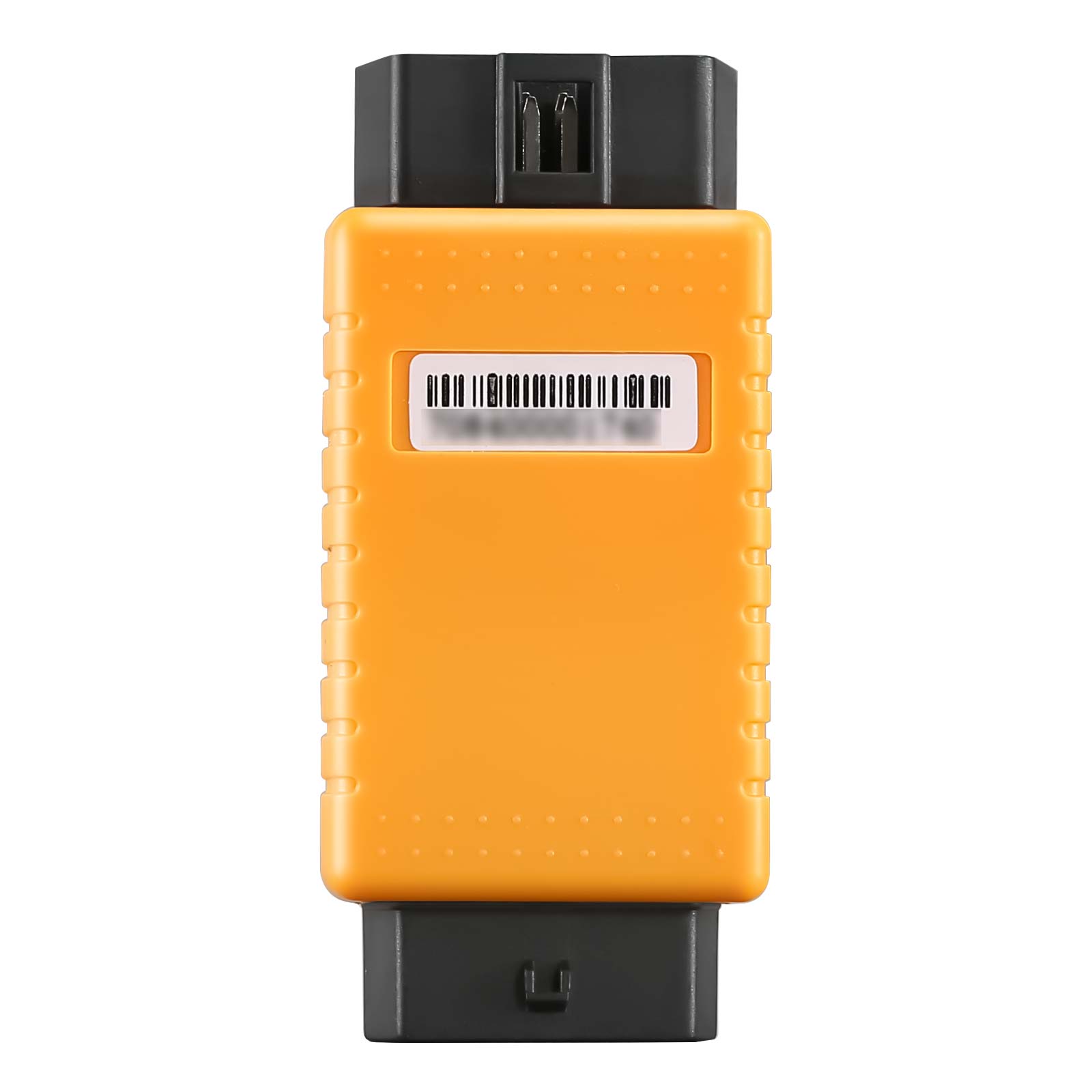

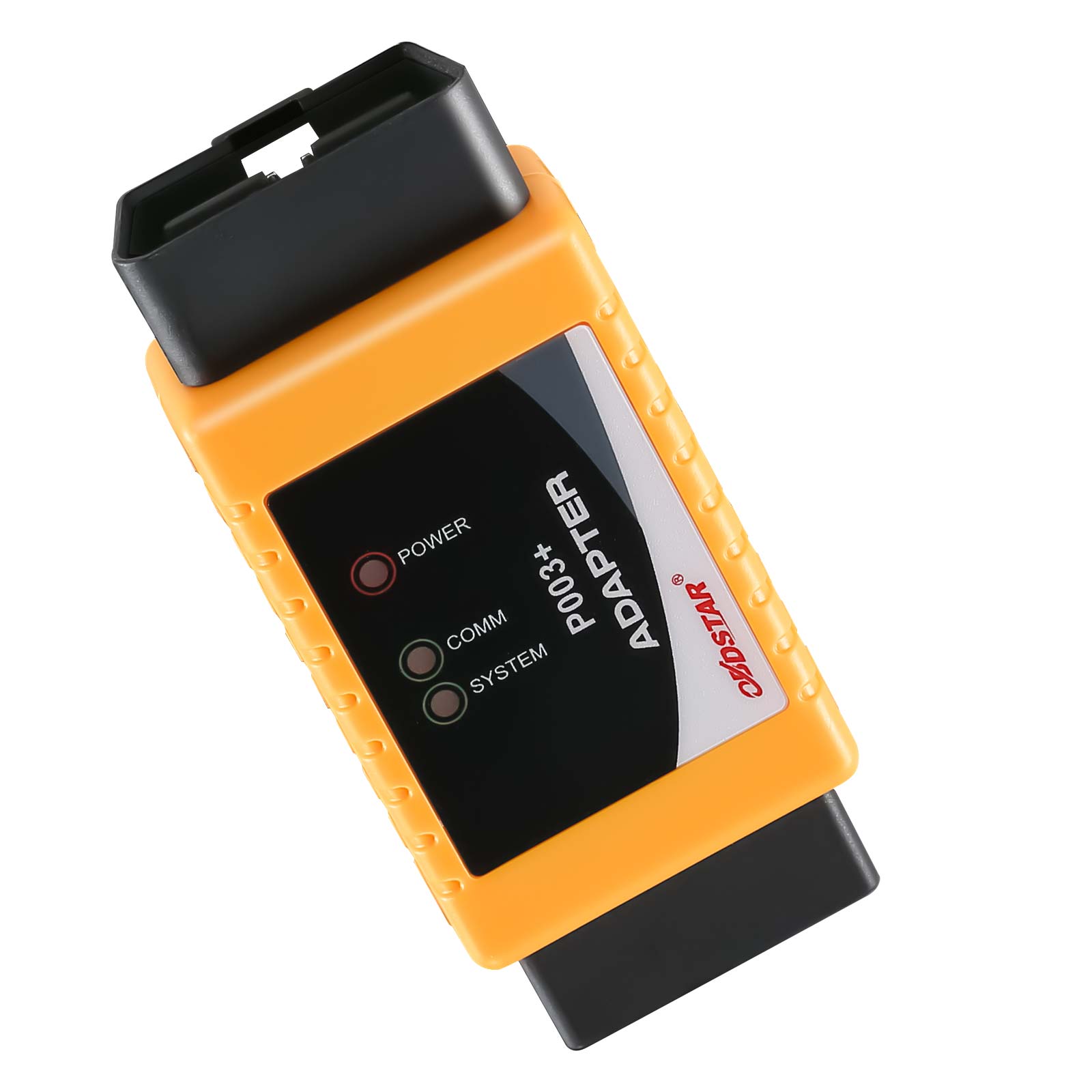

OBDSTAR P003+ Kit Working with OBDSTAR DC706 Series Tablets

P003+ Kit, working with OBDSTAR IMMO series tablets, supports reading and writing E-CU eeprom & flash data and calculating IMMO data of B-OSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for V-W/for Skoda/for Audi/for Seat, for Bentley, for Peugeot/for Citroen/for DS, for Lamborghini, for Porsche, for Mahindra etc.

Product Advantages:

1. Portable Design        2. Easy Operation       3. High Performance

Functions

1. Continental PCR 2.1 reading CS, PinCode, MAC value

2. B-osch MED17.4.4 reading eeprom , PinCode

3. B-osch EDC17C60 reading eeprom , PinCode

4. B-osch MD1CS018 reading eeprom, PinCode

5. B-osch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value

6. B-osch ME17XX reading & writing eeprom, flash

7. T87A, 6HP reading & writing TCM eeprom, flash

8.Support below IMMO functions:

1) Support for TOYOTA 8A non-smart k-ey All k-eys lost(OBD or BENCH mode)

2) Support for FORD/LINCOLN/MUSTANG All k-eys lost in alarm active (no need to repeatedly disconnect/connect battery cables)

3) Support for HONDA/SUZUKI/YAMAHA proximity k-ey progarmming

Notes: It needs to be used with M053(HONDA smart card dedicated connector) or M054(SUZUKI/YAMAHA smart card dedicated connector), if you need to read the pincode, you need to use it with P001 progarmmer.

9. Support below special models:

ME9.0

MED9.1

MED9.6.1

ME9.6.1

MED9.5.10

EDC16C39

EDC16CP35

EDC16C8

Supported list

1. Continental PCR2.1(TC1796)

2010-2014 for Audi A1 (8X) 1.6L Diesel

2009-2012 for Audi A3 (8P) 1.6L Diesel

2009-2013 for Seat Altea 1.6L Diesel

2010-2016 for Seat Ibiza IV (6J) 1.6L Diesel

2010-2012 for Seat Leon II 1.6L Diesel

2014 Seat for Toledo (KG) 1.6L Diesel

2010-2013 for Skoda Octavia II (1Z) 1.6L Diesel

2010-2013 for Skoda Fabia II (5J) 1.6L Diesel

2010-2011 for Skoda Roomster (5J) 1.6L Diesel

2013-2014 for Skoda Rapid (NH) 1.6L Diesel

2011-2013 for Skoda Superb (3T) 1.6L Diesel

2012/2015 for Skoda Yeti (5L) 1.6L Diesel

2010-2015 for V-W Caddy (2K) 1.6L Diesel

2009-2013 for V-W Golf VI 1.6L Diesel

2010-2013 for V-W Golf Plus 1.6L Diesel

2011-2014 for V-W New Beetle (9C) 1.6L Diesel

2011 for V-W Passat (B7) 1.6L Diesel

2009-2014 for V-W Polo V 1.6L Diesel

2010-2015 for V-W Touran (1T) 1.6L Diesel

2. B-osch MED17.4.4(TC1793)

For Citroen C3 Mk2

For Citroen C4 Gran Picasso

For Citroen C4 MK2

For Citroen C5 (RD/TD)

For Citroen C6

For DS DS3

For DS DS5

For DS DS6

For Peugeot 2008

For Peugeot 208

For Peugeot 3008 (P84)

For Peugeot 3008 (T84)

For Peugeot 308 (T9)

For Peugeot 4008

For Peugeot 408

For Peugeot 508

3. B-osch EDC17C60(TC1793)

For Citroen Berlingo

For Citroen C-Elysee

For Citroen C3 Aircross

For Citroen C3 MK2

For Citroen C3 Picasso

For Citroen C4 Cactus

For Citroen C4 MK2

For Citroen C4 Picasso

For Citroen Jumpy

For Citroen Spacetourer

For DS DS3

For DS DS4

For DS DS5

For Peugeot 2008

For Peugeot 208

For Peugeot 3008 (P84)

For Peugeot 308 (T9)

For Peugeot 5008 (T87-P87)

For Peugeot 508

For Peugeot Expert

For Peugeot Ranch/Partner

For Peugeot Traveller

For Opel/Saturn/Vauxhall Combo E

For Opel/Saturn/Vauxhall Crossland X

For Opel/Saturn/Vauxhall Grandland X

For ToyotaProace

4. B-osch MD1CS018

For Mahindra BS-6

5. B-osch MED17XX/EDC17XX

EDC17U01(TC1766)

EDC17C46(TC1767)

EDC17C54(TC1797)

EDC17C64(TC1797)

EDC17CP44(TC1797)

EDC17CP44 MS(TC1797)

MED17.5(TC1766)

MED17.5.1(TC1766)

MED17.5.20(TC1766)

MED17.5.5(TC1766)

MED17.5.5 HW2(TC1766)

MED17.5.2(TC1767)

MED17.5.5(TC1767)

MED17.5.5 HW2(TC1767)

MED17.5.21(TC1782)

MED17.5.25(TC1782)

MED17.1.1(TC1797)

MED17.1.1 MS(TC1797)

MED17.1.6(TC1797)

For V-W/for Skoda/for Audi/for Seat, for Bentley, for Lamborghini, for Porsche...

6. B-osch ME17XX

ME17.5.6(TC1767)

ME17.5.20(TC1767)

ME17.1.1(TC1797)

ME17.1.6(TC1797)

For V-W/for Audi/for Skoda/for Seat, for Bentley...

Supporting car models and functions: (Operation steps pls refer to files in Manual column)

FAQ

Q: What is the difference between P003+ and P003?

A: There are two main differences between P003+ and P003

1. P003 + is the upgraded model of P003, P003 + supports all the functions of P003, and at the same time, due to the higher frequency clock used inside the P003 +, so it supports more types of E-CU than P003, and more specific models are as follows:

ME9.0

MED9.1

MED9.6.1

ME9.6.1

MED9.5.10

EDC16C39

EDC16CP35

EDC16C8 etc.

2. Meanwhile, the compatibility of P002 adapter has been added(need to use with OBDSTAR IMMO series tablets).

Specifications:

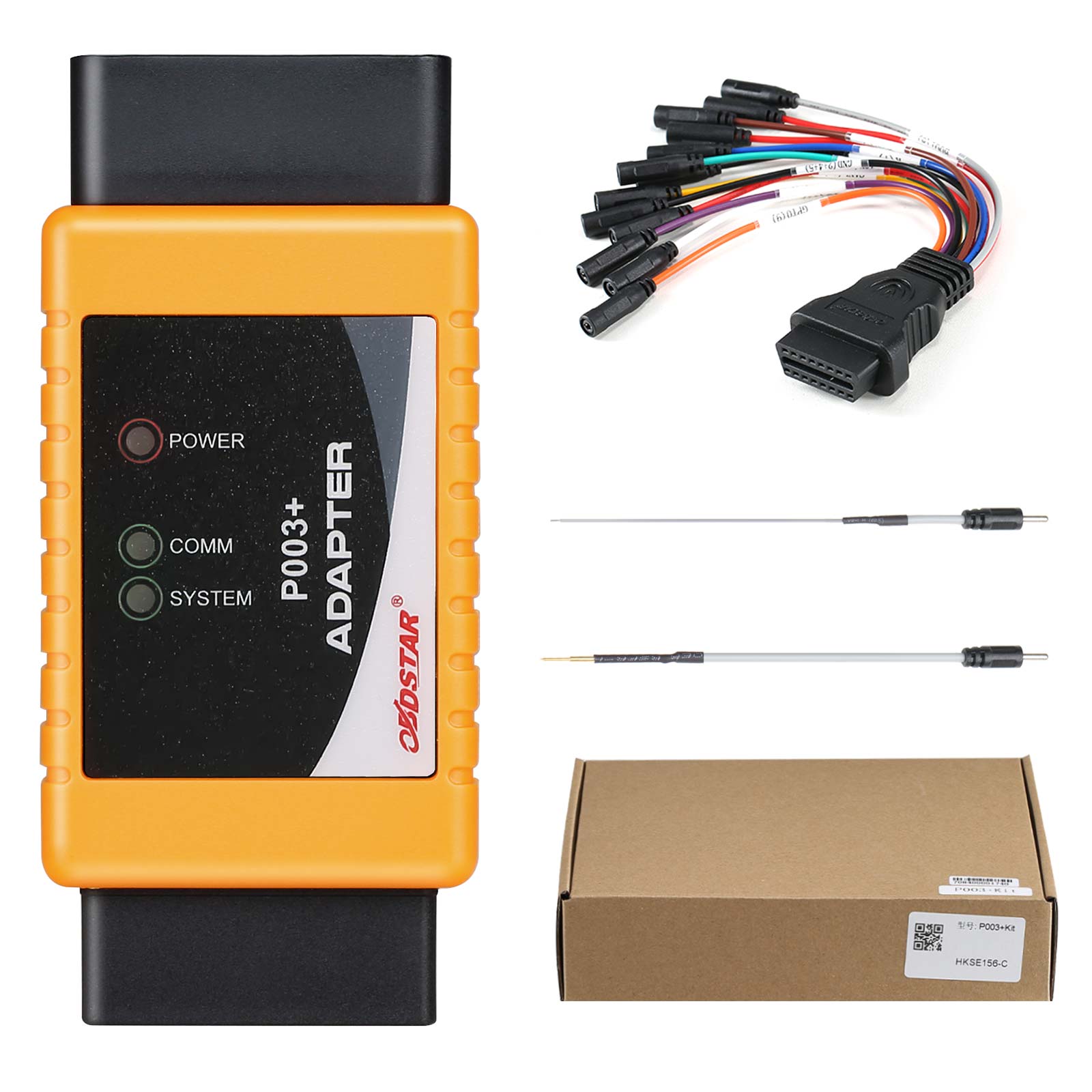

Package Includes:

1pc x OBDSTAR P003+ Adapter

1pc x E-CU BENCH Jumper
