Feature:
1. Single phase, single output, low ripple and noise.

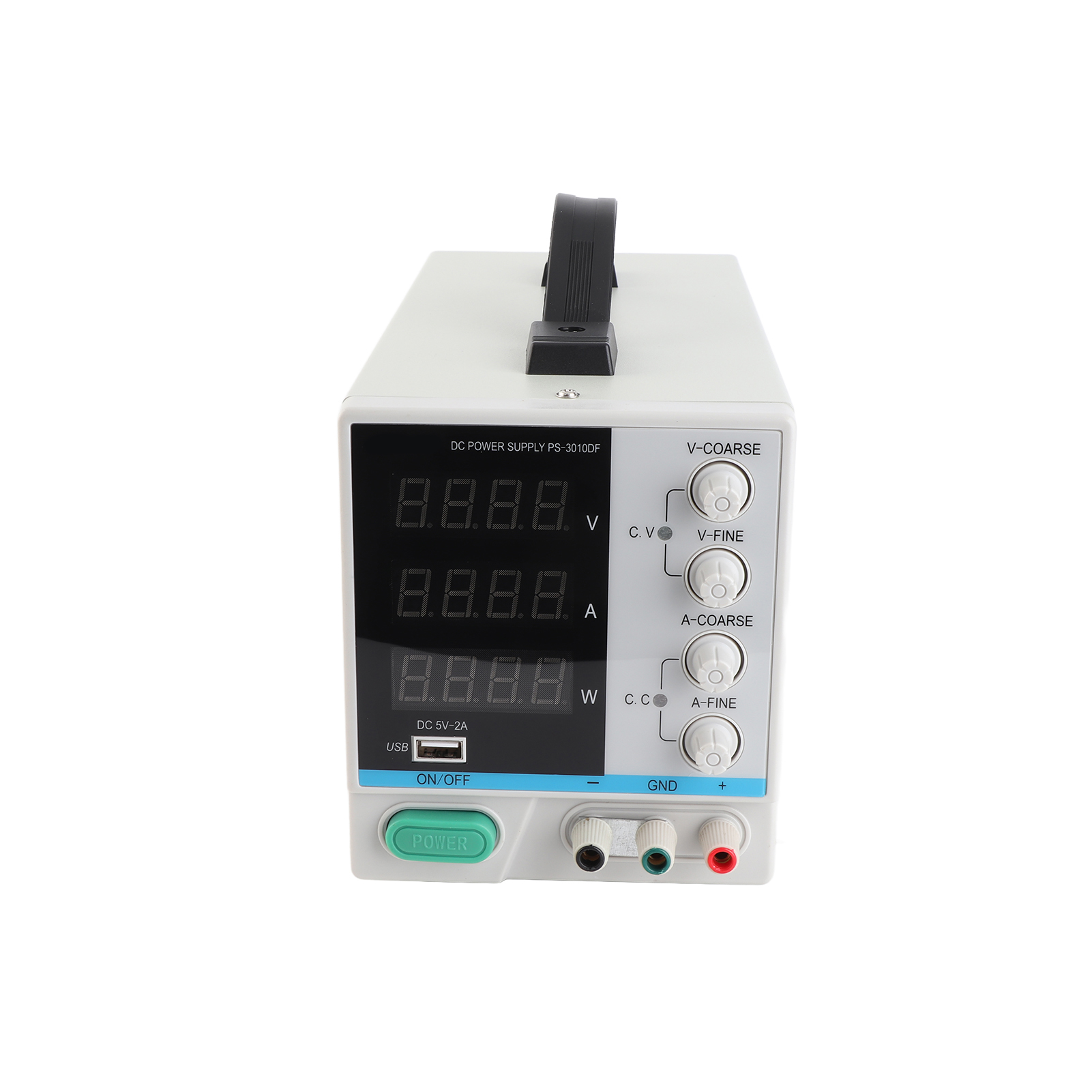

2. High- three-group four-and-a-half LED digital display: current + voltage + power, intuitive and clear.

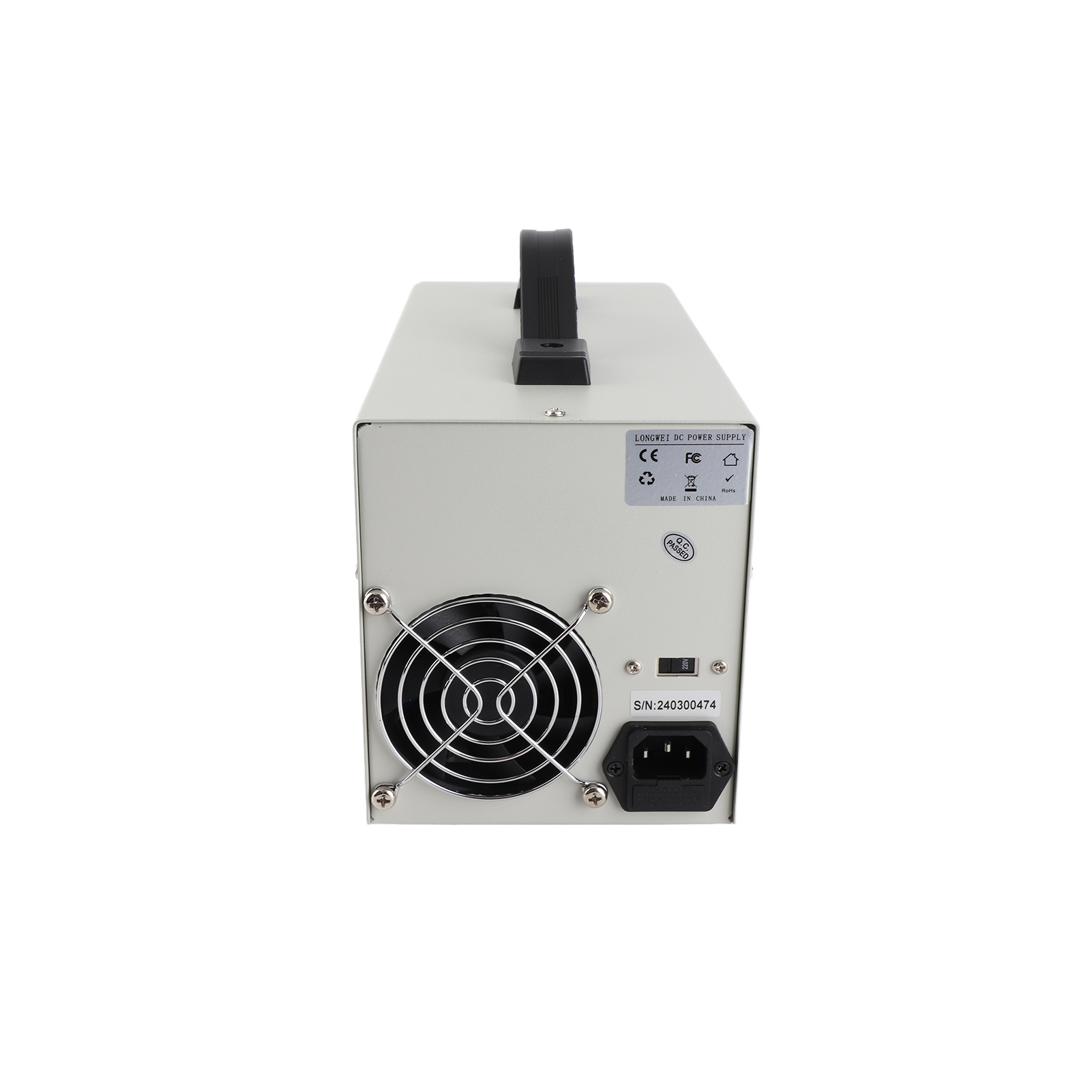

3. Intelligent fan, excellent heat dissipation, effectively extending fan life and reducing noise.
4. USB interface, 5V/2A output.

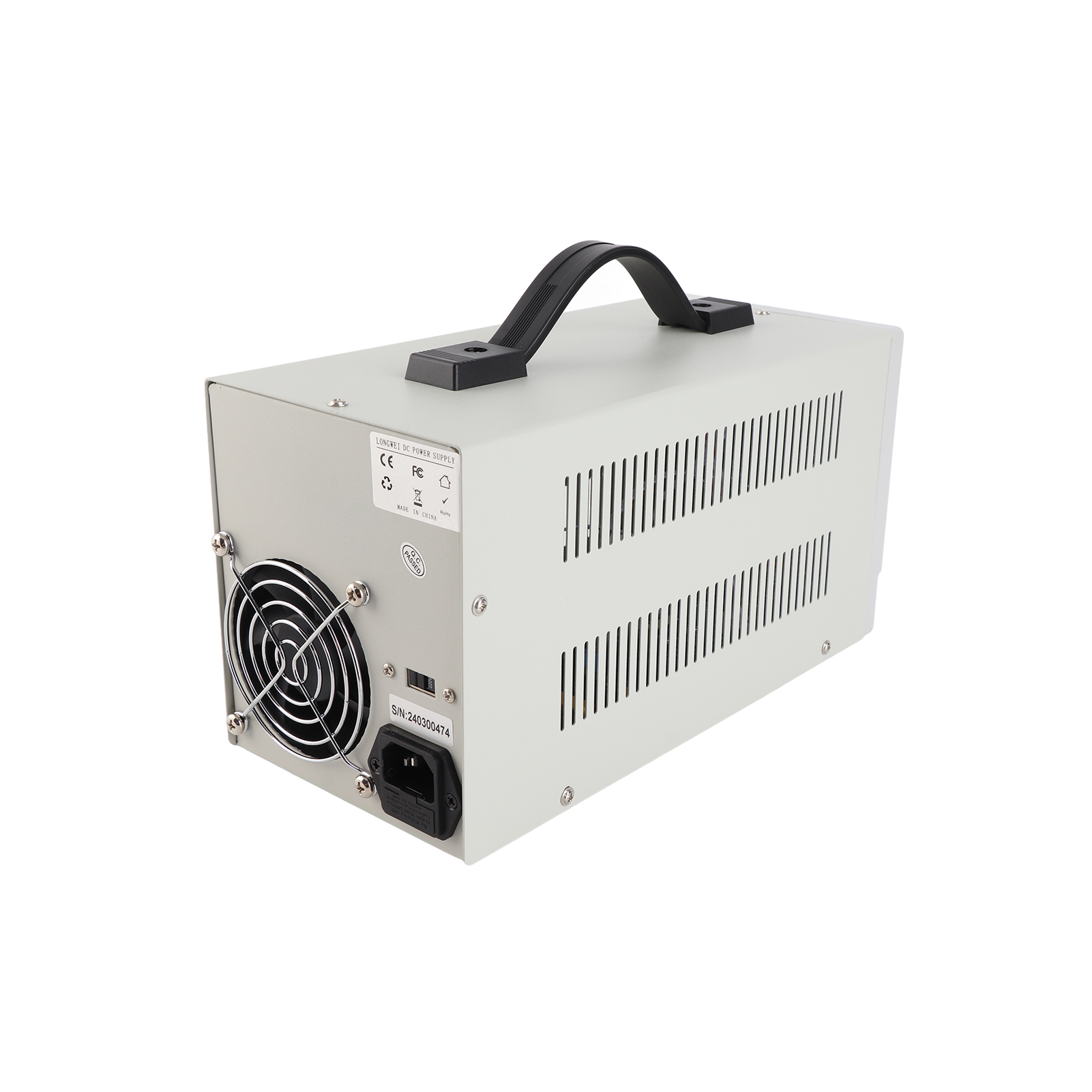

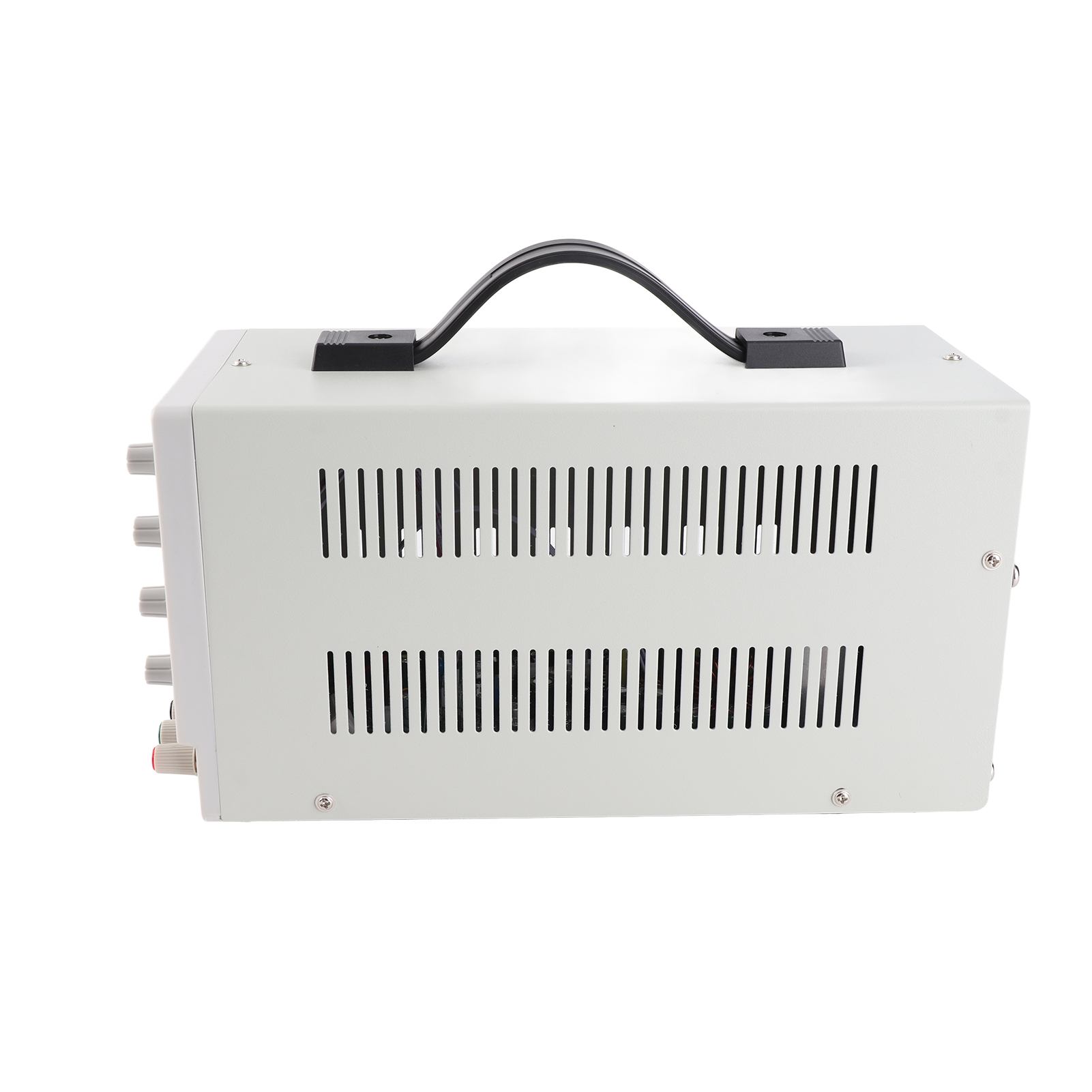

5. Adopt advanced technology, effectively reduce the weight of the power supply, lengthen the handle design, and facilitate the power movement.
6. Regulated steady current constant current constant voltage multiple modes can be switched.
7. Set the coarse and fine adjustment knobs for voltage and current to make the setting more precise.
8. Multiple protection functions, current limit protection (OCP), over temperature protection (OTP), over power protection (OPP).
9. Application areas: Laboratory, factory, maintenance power supply, product aging, such as resistors, capacitors, relays, DC motors, LEDs, etc.
Specification:
Input voltage: 220V±10% @50Hz±5Hz 110V±10% @60Hz±5Hz (switching or single voltage input)
Output voltage: 0-30V continuously adjustable
Output current: 0-10A continuously adjustable
Display accuracy: 4-digit LED digital display, display accuracy ±0.1% ± 1 word
Power supply effect: CV≤0.1%+10mV CC≤0.1%+10mA
Load effect: CV≤0.1%+5mV CC≤0.1%+10mV
Noise: CV≤10mV r.m.s. CC≤20mA r.m.s.
Machine efficiency: ≥80% (tested under full load)
Working environment: -10 °C - +40 °C Relative humidity 20% -80% (non-condensing)
Storage environment: -20°C- +80°C Relative humidity 20%-70% (non-condensing)
Pressure test:
Input-output: 1.5KVAC/1 minute
Input - Housing: 1.5KVAC / 1 minute
Output - Housing: 500VAC / 1 minute
Grounding resistant: <20mΩ

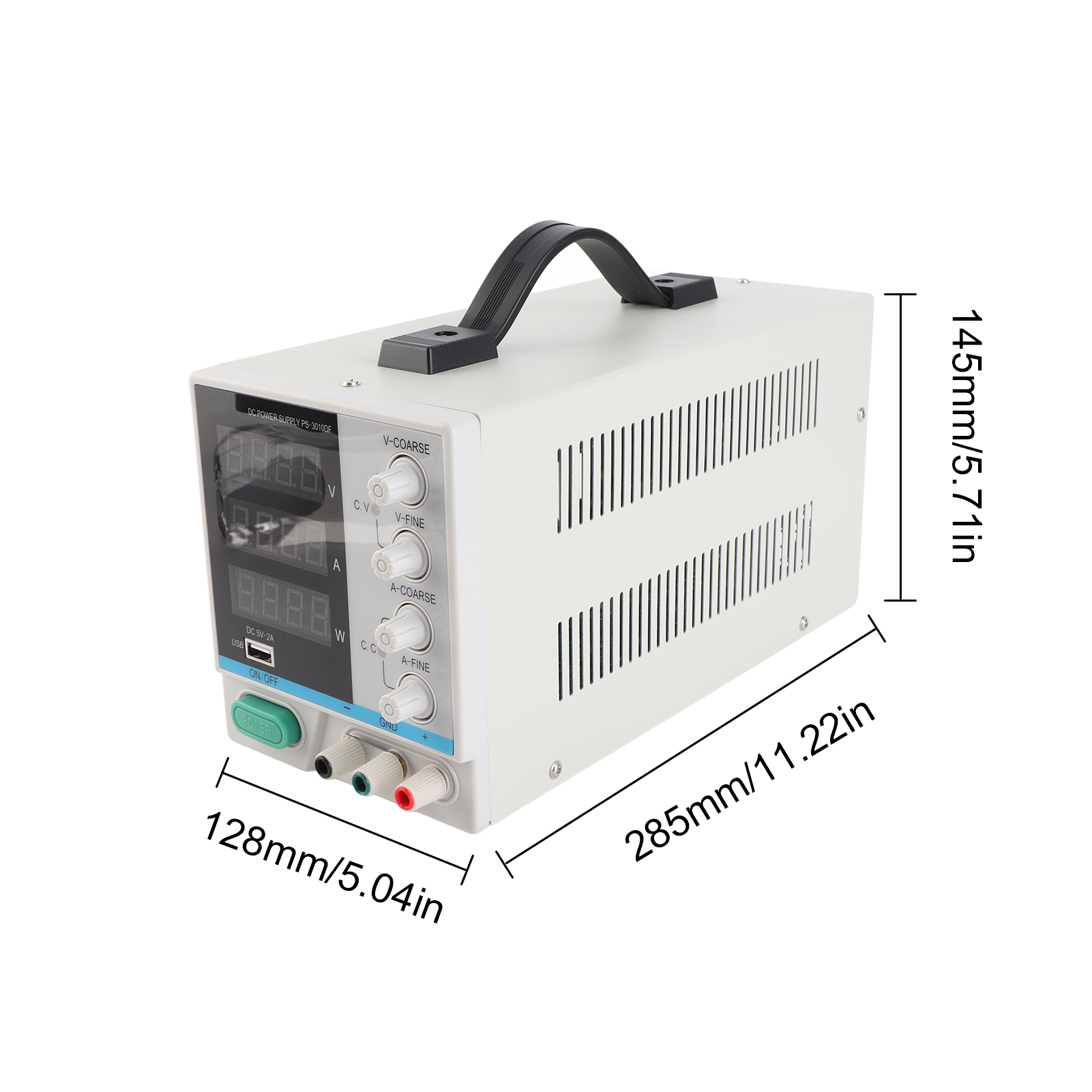

Appearance size: length 285mm, width 128mm, height 145mm (excluding protruding parts)

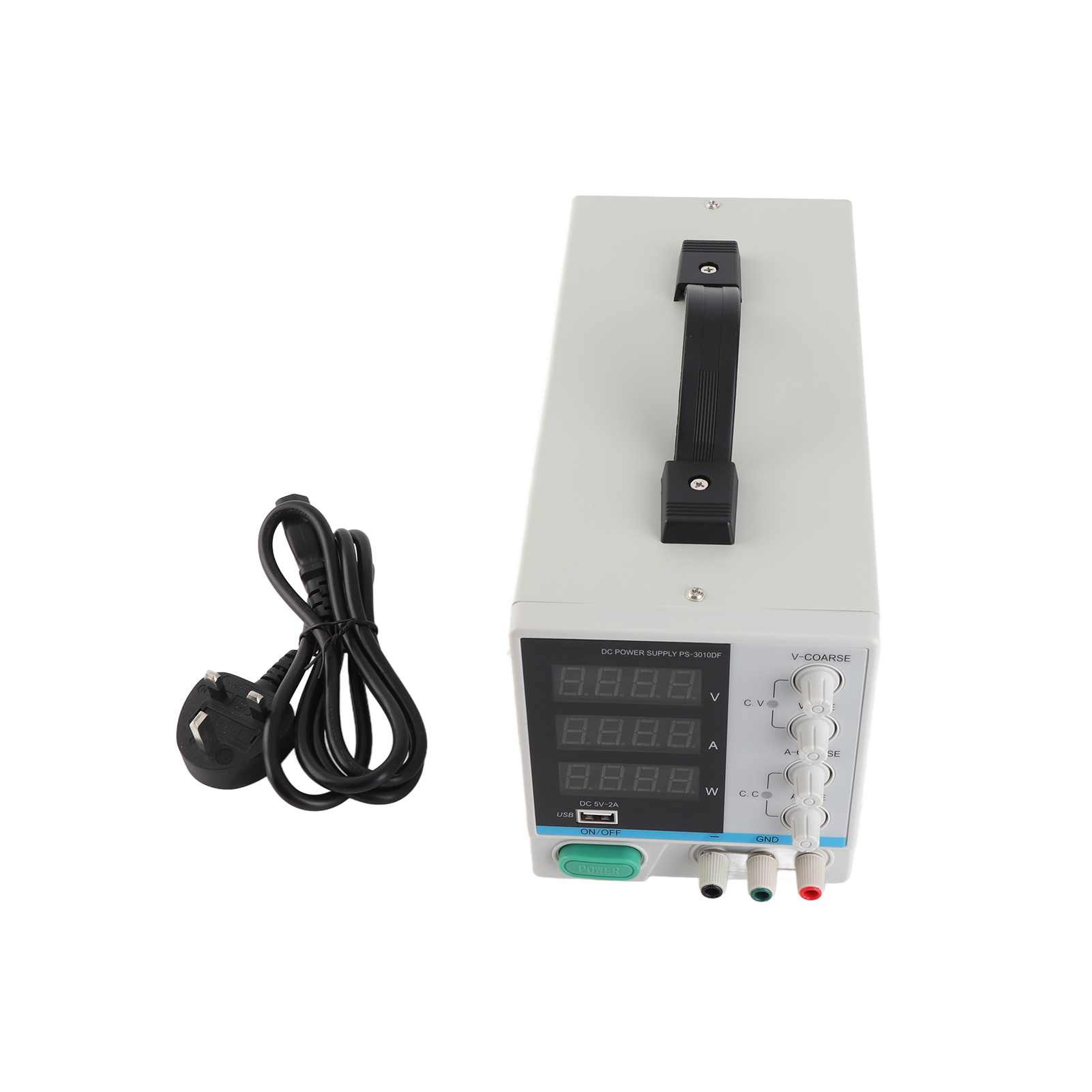

Package List:
1 x Adjustable Power Supply
1 x User Manual
1 x Power Adaptor
Note:
Item color may show sight aberration due to different light and display.
