Feature:

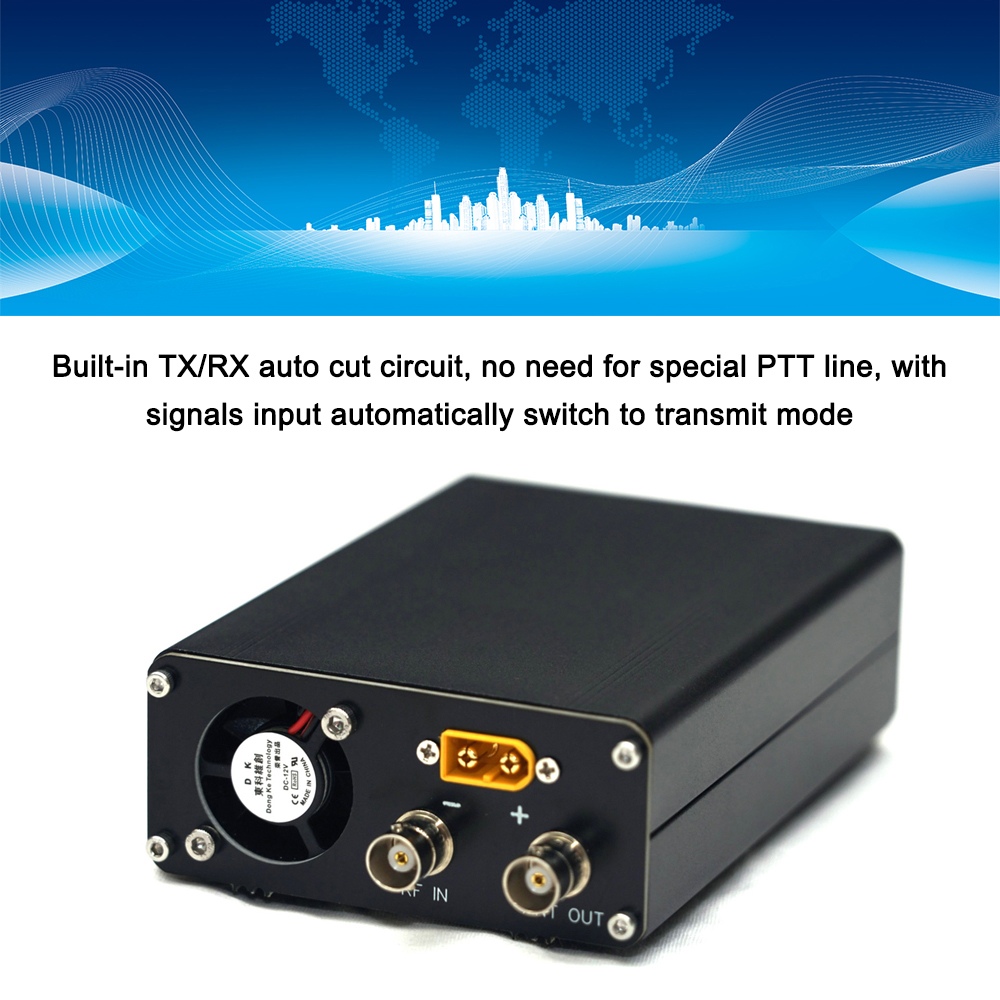

1. Built-in TX/RX auto cut circuit, no need for special PTT line, with signals input automatically switch to transmit mode.
2. Built-in powerful fan, the temperature reaches the set value automatically open cooling, which can prolong the service time of the tool.

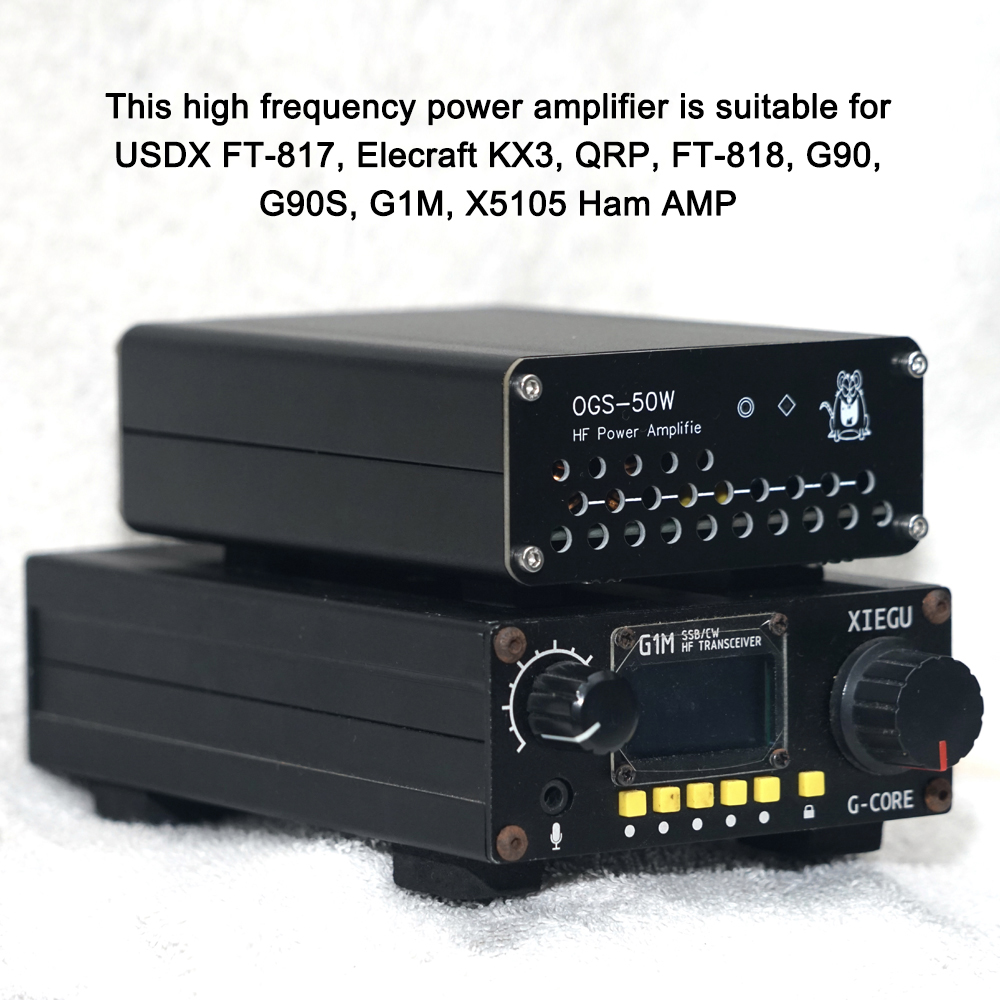

3. This high frequency power amplifier is suitable for USDX FT-817, Elecraft KX3, QRP, FT-818, G90, G90S, G1M, X5105 Ham AMP.
4. The operating frequnecy is 3~24MHz, and transmission and pulling power is 1～5W.

Specification:

This power amplifier built-in TX/RX auto cut circuit, no need for special PTT line, with signals input automatically switch to transmit mode. The perating frequnecy is 3~24MHz.

Features:
Built-in TX/RX auto cut circuit, no need for special PTT line, with signals input automatically switch to transmit mode.
Built-in powerful fan, the temperature reaches the set value automatically open cooling, which can prolong the service time of the tool.
This high frequency power amplifier is suitable for USDX FT-817, Elecraft KX3, QRP, FT-818, G90, G90S, G1M, X5105 Ham AMP.
The operating frequnecy is 3~24MHz, and transmission and pulling power is 1～5W.

Specifications:
Material: metal
Operating frequency: 3~24MHz
Transmission and pulling power: 1～5W
Output power: 50W
Interface impedance: 50Ω
Operating voltage: 13.8V
Package size: 180 * 100 * 20mm / 7.1 * 3.9 * 0.8in
Package weight: 300g / 10.6ounce

Packing List:
1 * Power Amplifier

Package List:

1 * Power Amplifier
