High Contrast Display KWS303 Multifunctional Energy Monitor for Home Use
DESCRIPTION

Features:

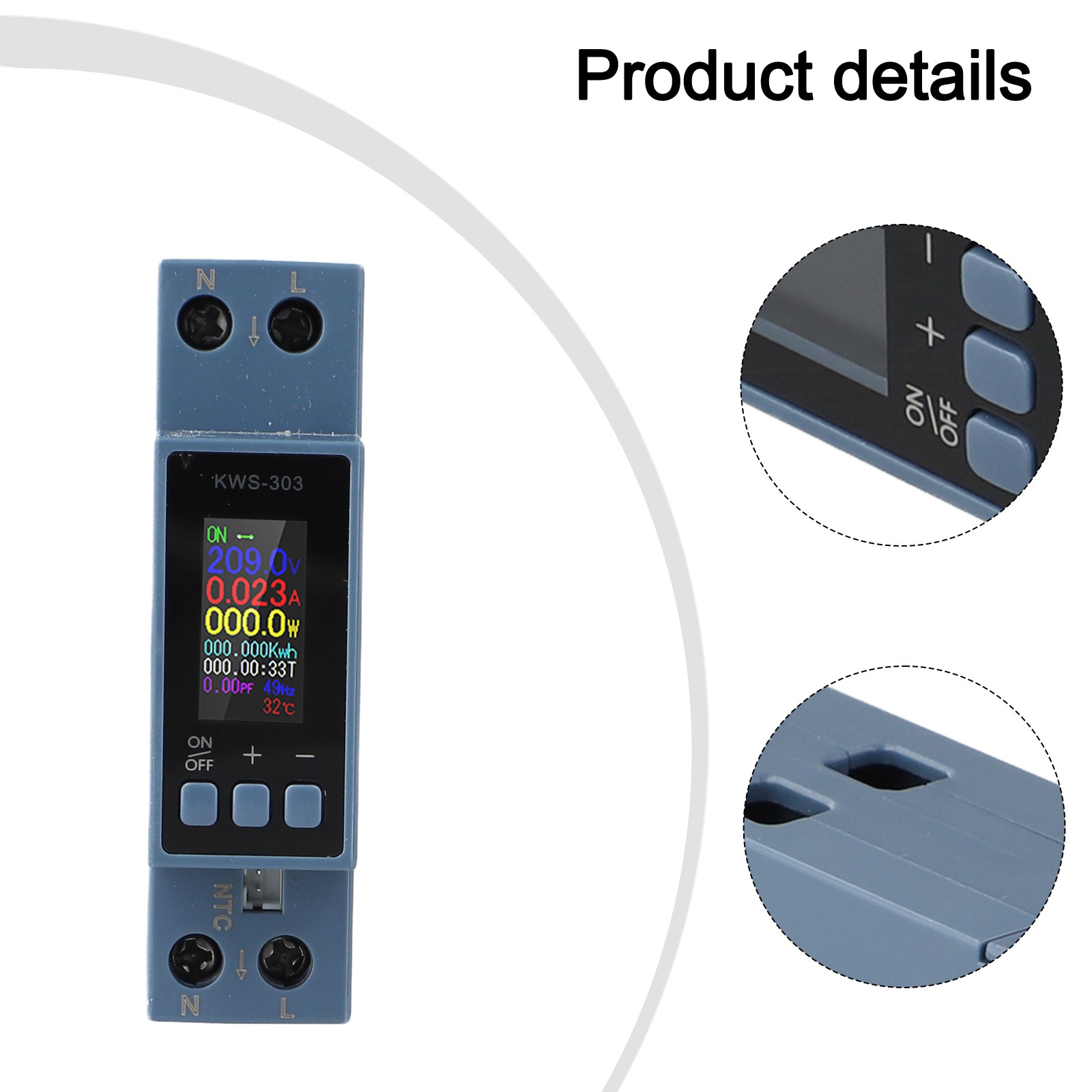

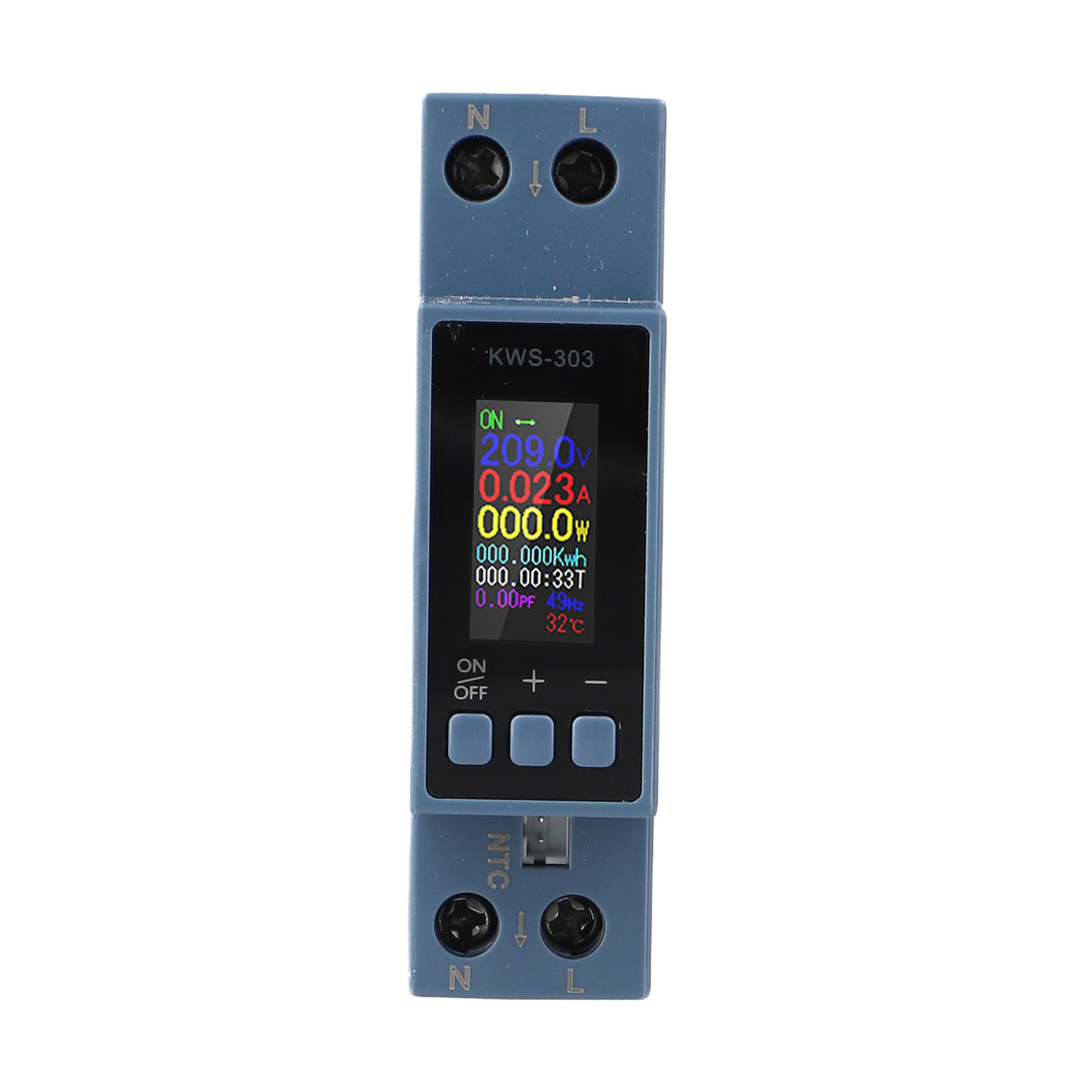

High-Definition Color Display & for Multi-Functionality: This single-phase AC energy meter features a 0.96-inch TFT color screen with high-definition resolution, offering clear and wide-angle visibility even in dimly lit environments. It simultaneously displays eight key electrical parameters, including voltage, current, power, for Frequency, power factor, active energy, time, and temperature, providing comprehensive and real-time monitoring.
Lasting & Safe Construction: Made from flame-retardant PC material, this energy meter ensures safety and durability. Its for robust design is built to withstand harsh conditions, making it a reliable choice for both residential and light commercial use.
Easy Installation & Space-Saving Design: Designed for standard for DIN rail mounting, this compact meter can be effortlessly installed in electrical cabinets without the need for screws. Its small size and simple for - installation make it for space-constrained environments.
User-Friendly & for Accurate Measurement: With copper terminals for strong conductivity and high sensitivity, this meter ensures precise energy measurement. Its straightforward wiring and intuitive interface make it easy to use, even for non-electricians.
for Versatile & Efficient Performance: Combining functionality and aesthetics, this energy meter is for use. Its low-power consumption and high-contrast display ensures efficient , while its sleek design adds a modern touch to any electrical setup.

Specification:
Part Name: Multifunctional rail voltage and current meter
Color: as show
Material: Flame-retardant PC material

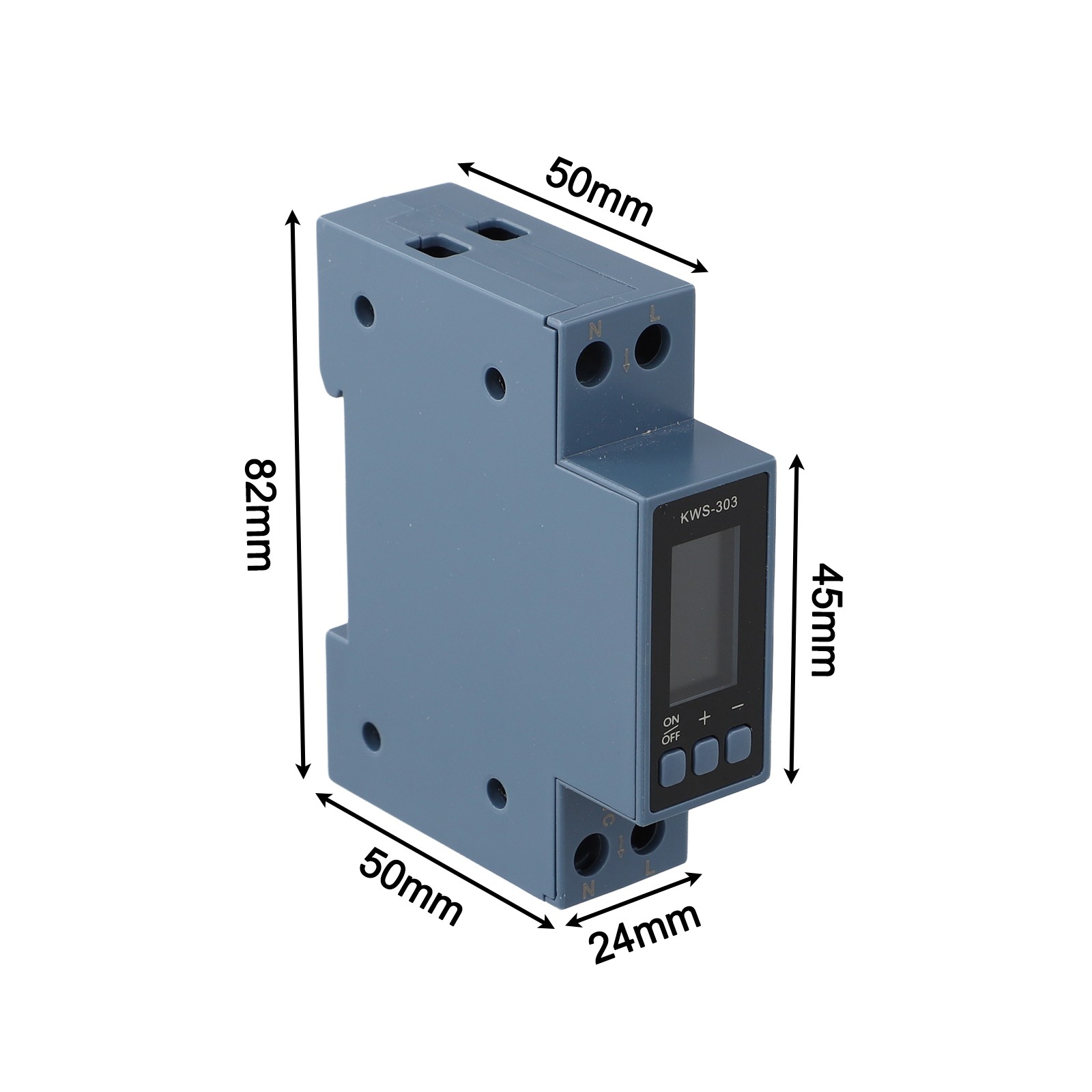

Size：82*50*24mm
Model: KWS-303
Voltage range: AC 85-290V
Current range: 0-40A
Power range: 0-12KW
Timing range: 99 days
Energy range: 0-9999KWH
Temperature range: -20-150℃
for Frequency range: 50-60HZ
Power factor: 0.00-1.00PF
for Power-off memory: Yes
Overvoltage for protection: Yes
Undervoltage for protection: Yes
Overtemperature for protection: Yes
Timer switch: No
Screen brightness: Yes
Screen flip: Yes
Power for reset: Yes
Timing for reset: Yes
: No
Graph: No
485 communication: No

Package Contents:
1*Multifunctional rail voltage and current meter


Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
for 2. Please allow slight manual measurement deviation for the data.
