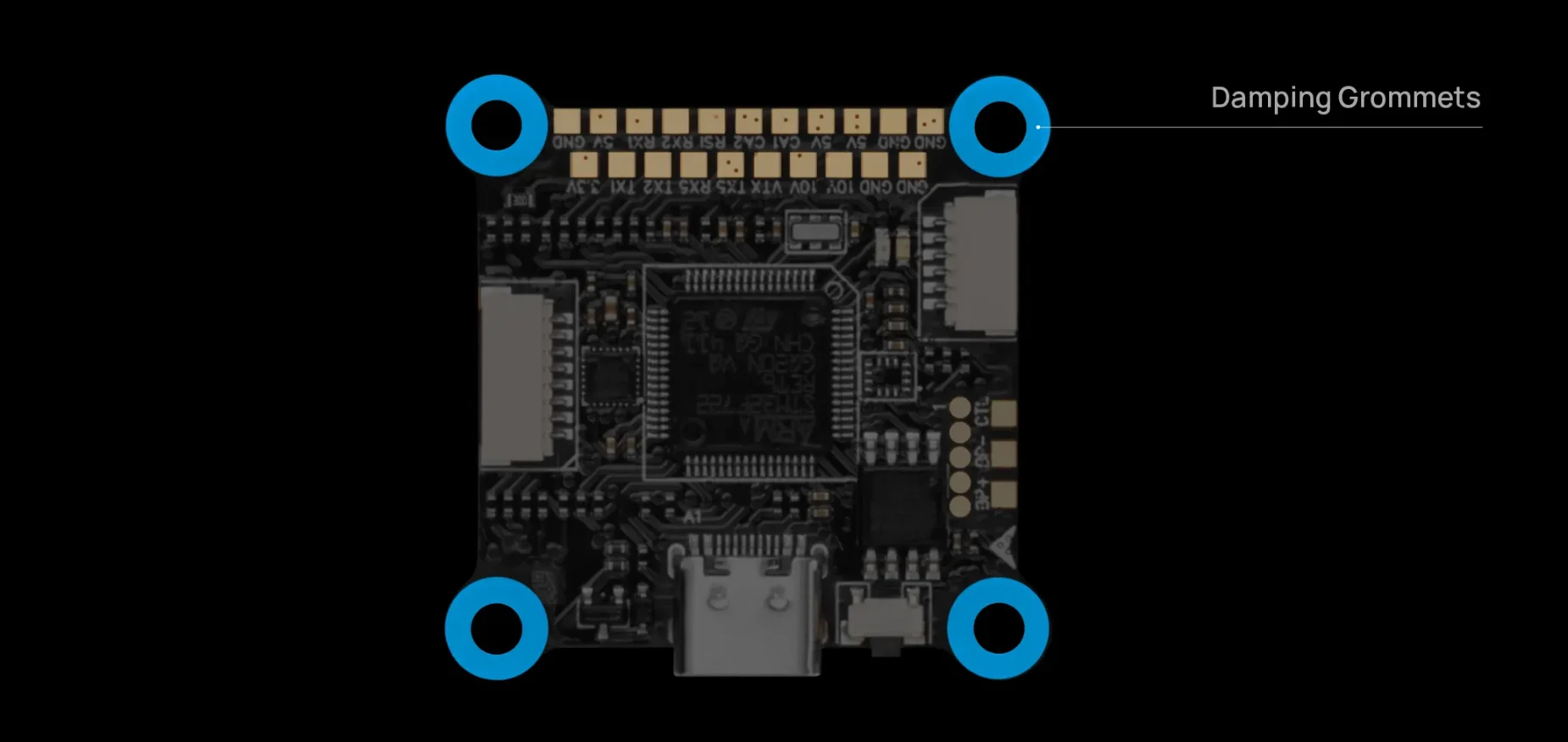

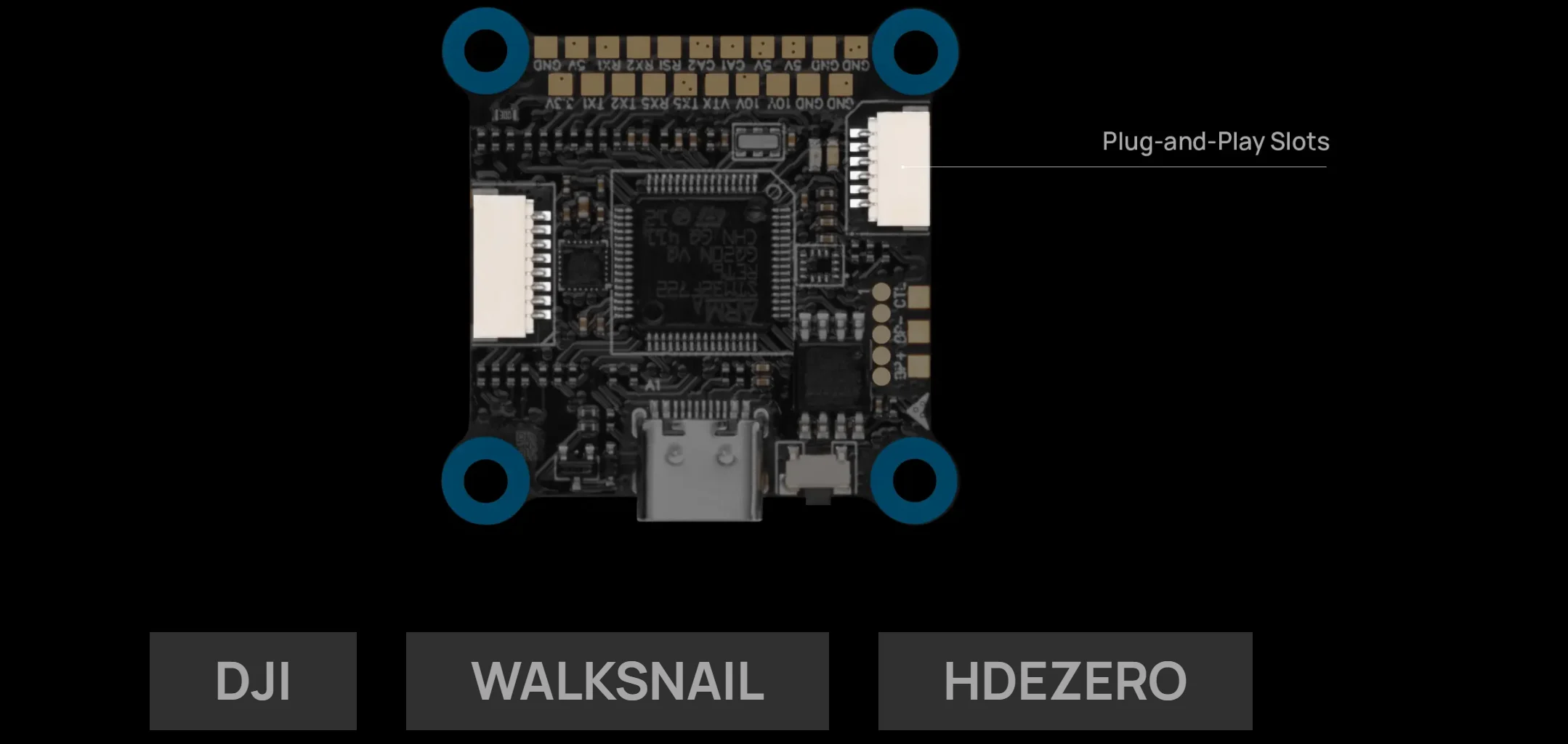

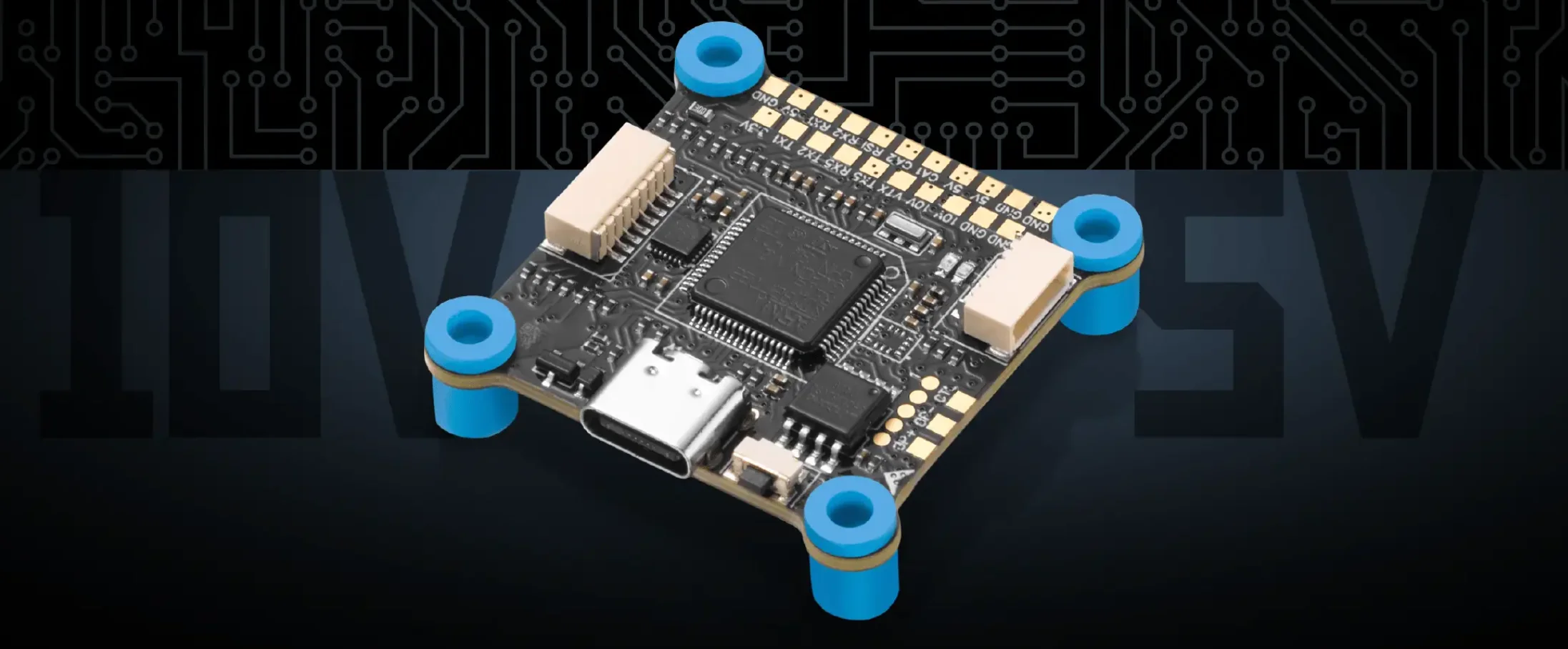

RTF F7 FC 8S Lite

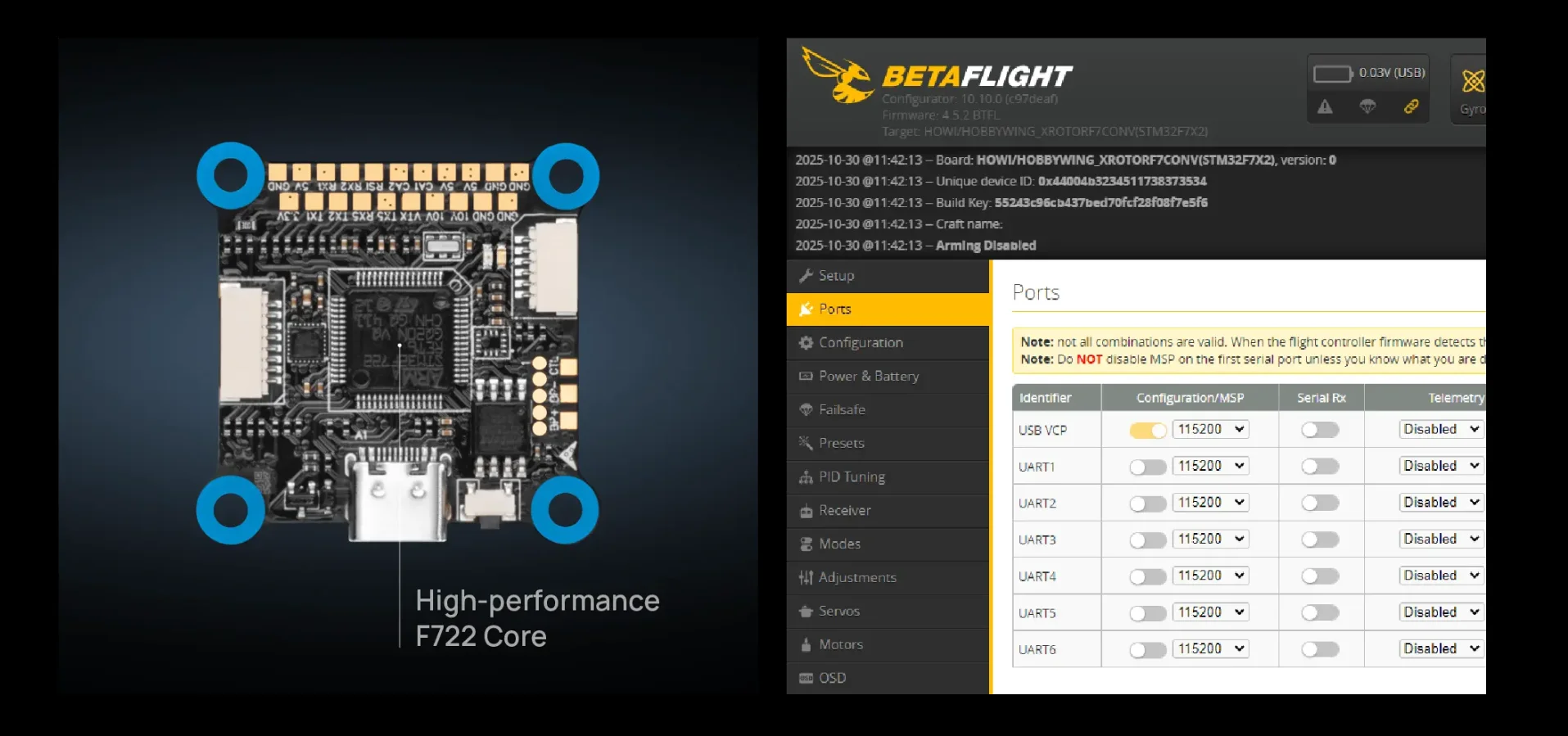

Betaflight target : HOBBYWING_XROTORF7CONV
Supported VTX protocol : Smart audio & Tramp
Motor signal output :Default 4 road,additional 2 road（ch5.ch6)

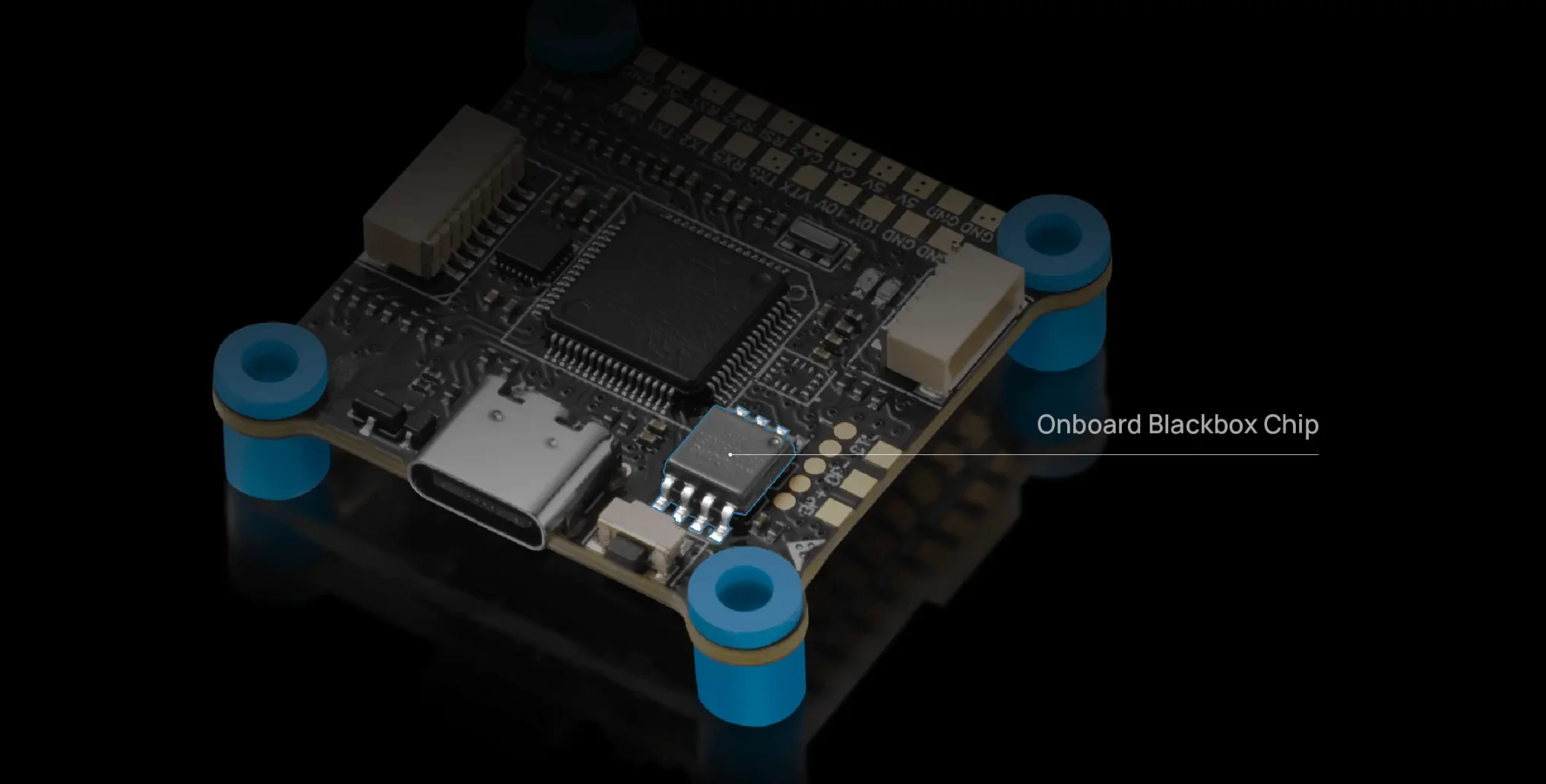

BlackBox size : 16Mb
OSD chip : AT7456E
Board chip : Install High-Precision Barometer
Gyro chip : ICM-42688
Gyro LDO supported : None
Main MCU : STM32F722
LED control : Yes
Beeper supported : Yes
UARTS : 6
BEC : 5V 3A & 10V 3A
Size : 35x35x7.7mm
Install holes : 30.5x30.5mm(φM4)
Weight : 10g

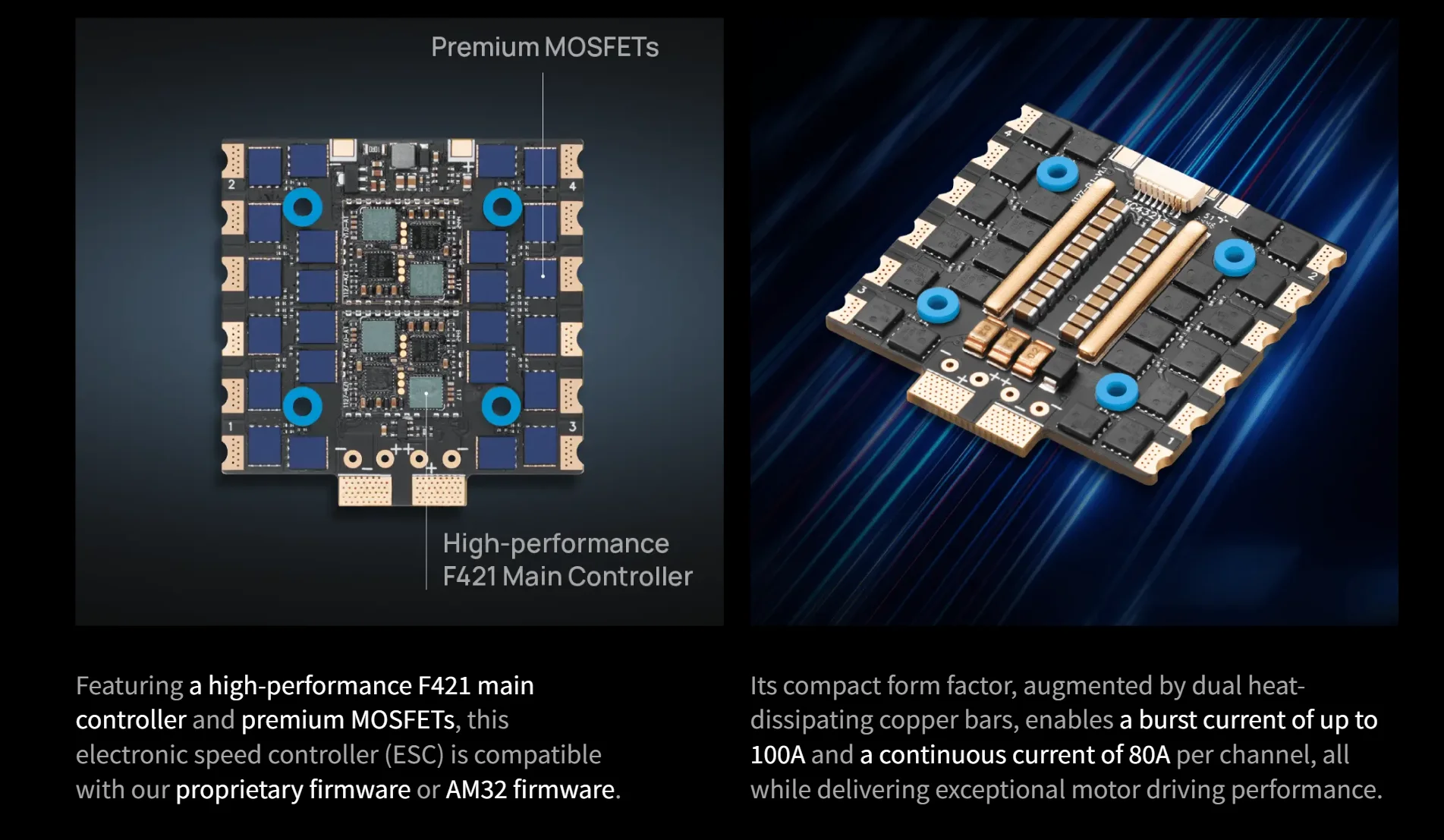

RTF 80A 4in1 8S Lite AT
Cont./Peak Current :80Ax4/100Ax4
Input Voltage : 4-8S LiPo
Wires & Connectors

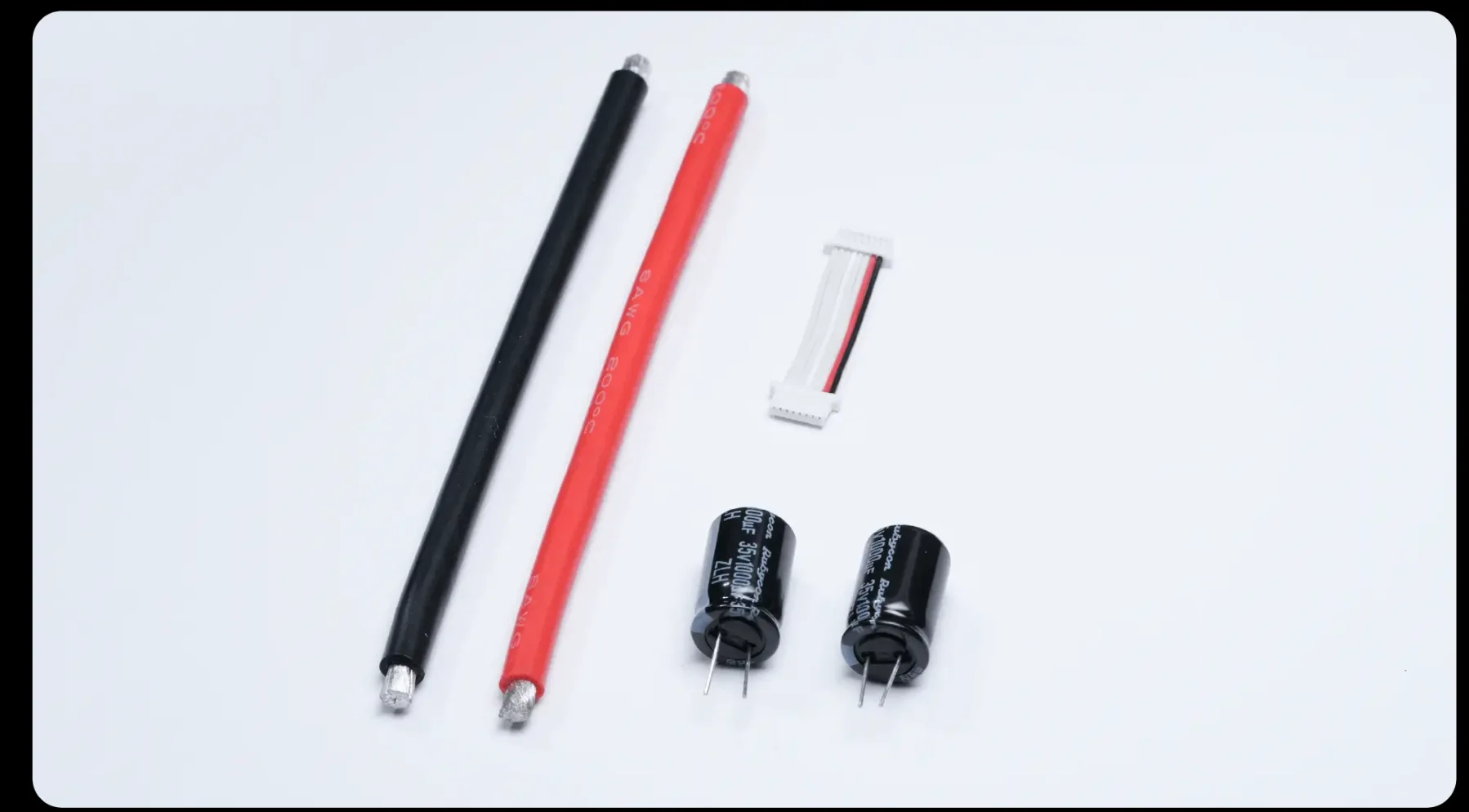

Input Wires : Red-10AWG-135MMx1,Black-8AWG-135MMx1

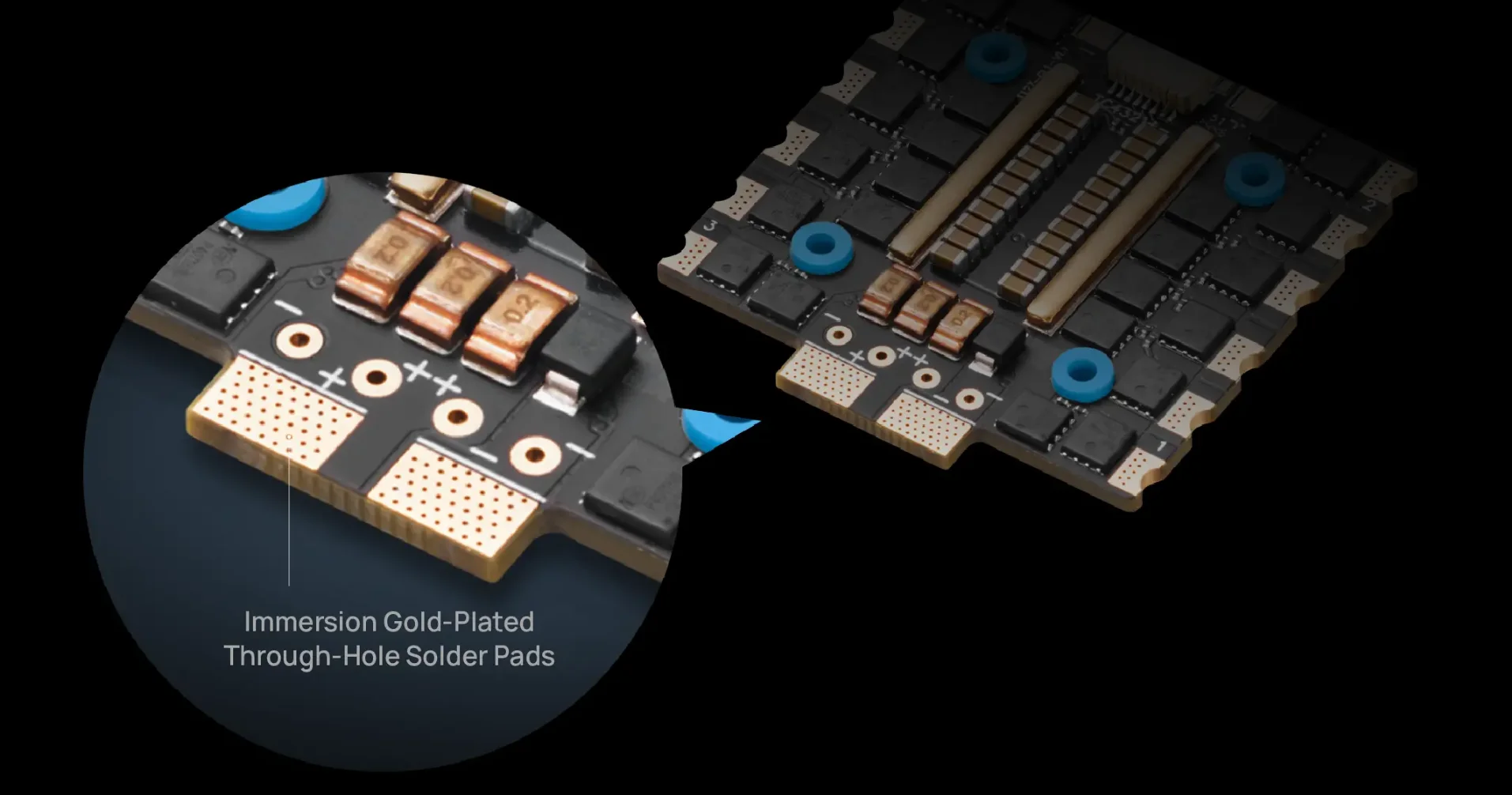

Output Wires : No wires but solder tabs
Input Connectors : No
ESC signal interface : 8Pin-SH1.0
Size :56x57x7mm
Weight : 39g
Features
Firmware : Self-developed 32-bit ESC firmware
ESC Programming : Compatible with BLHeliSuite configuration software
Throttle signal supported :PWM,DSshot300/600
Bidirectional DShot supported:Supported
Motor Rotation :Supported
Driving Frequency Setting : 48kHz
Applications :15-18 inch,4-axis FPV

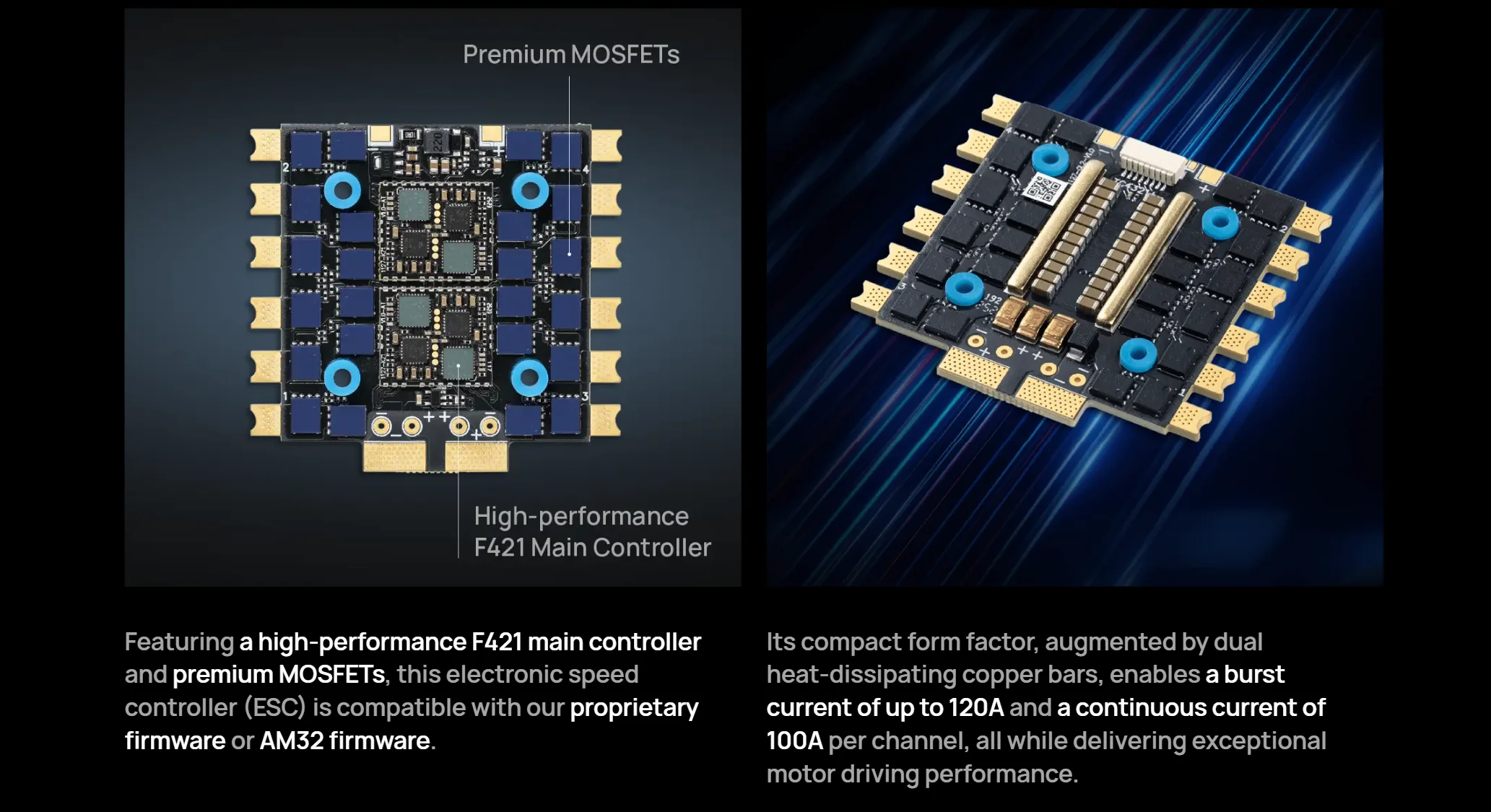

RTF 100A 4in1 8S Lite AT
Cont./Peak Current : 100Ax4/120Ax4
Input Voltage : 4-8S LiPo
Wires & Connectors
Input Wires : Red-8AWG-135MMx1,Black-8AWG-135MMx1
Output Wires : No wires but solder tabs
Input Connectors : No
ESC signal interface : 8Pin-SH1.0
Size : 60x57x7mm
Weight :39g
Firmware : Self-developed 32-bit ESC firmware
ESC Programming : Compatible with BLHeliSuite configuration software
Throttle signal supported : PWM,DSshot300/600
Bidirectional DShot supported :Supported
Motor Rotation : Supported
Driving Frequency Setting:48kHz
Applications:15-18 inch,4-axis FPV
