All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

notice:

pick up service is not available.

this is a universal turbo kit,some modification may be required based on individual vehicle.

application

compatible for 1.5l to 2.5l any 4/6 cylinder engine

specification

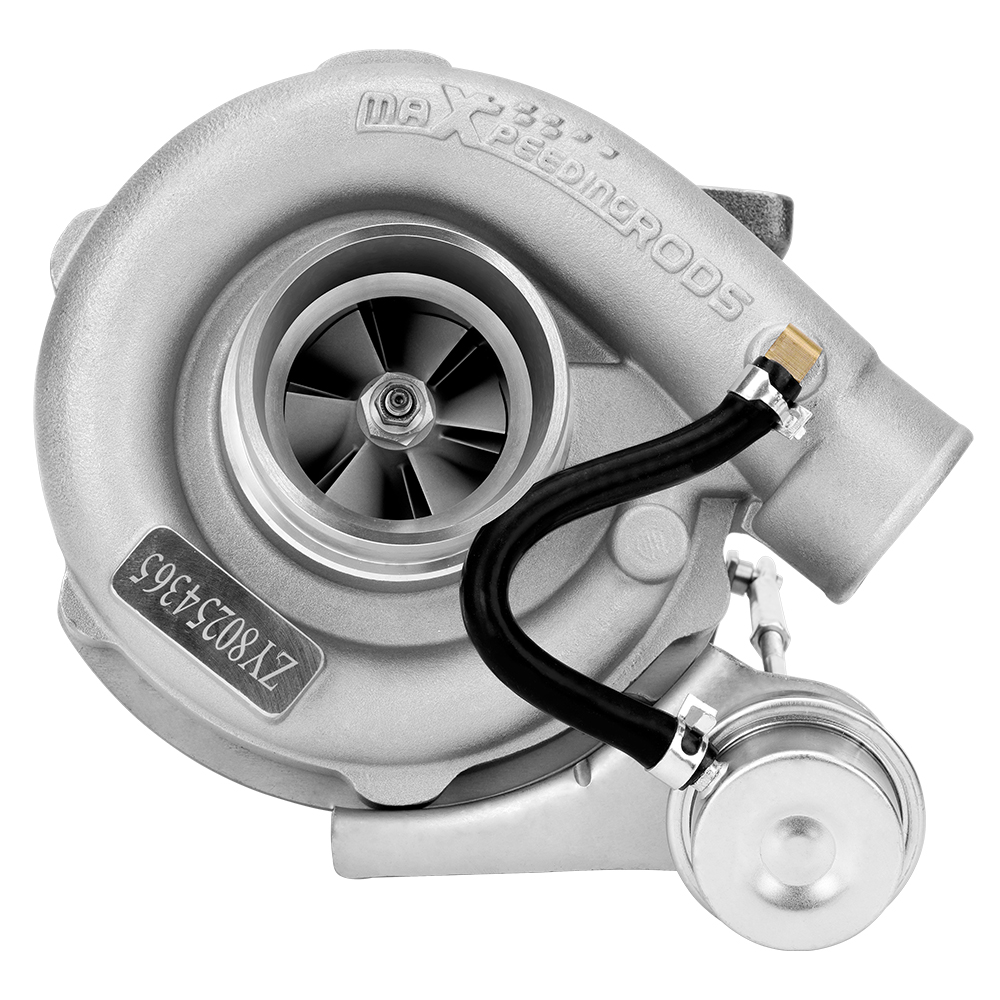

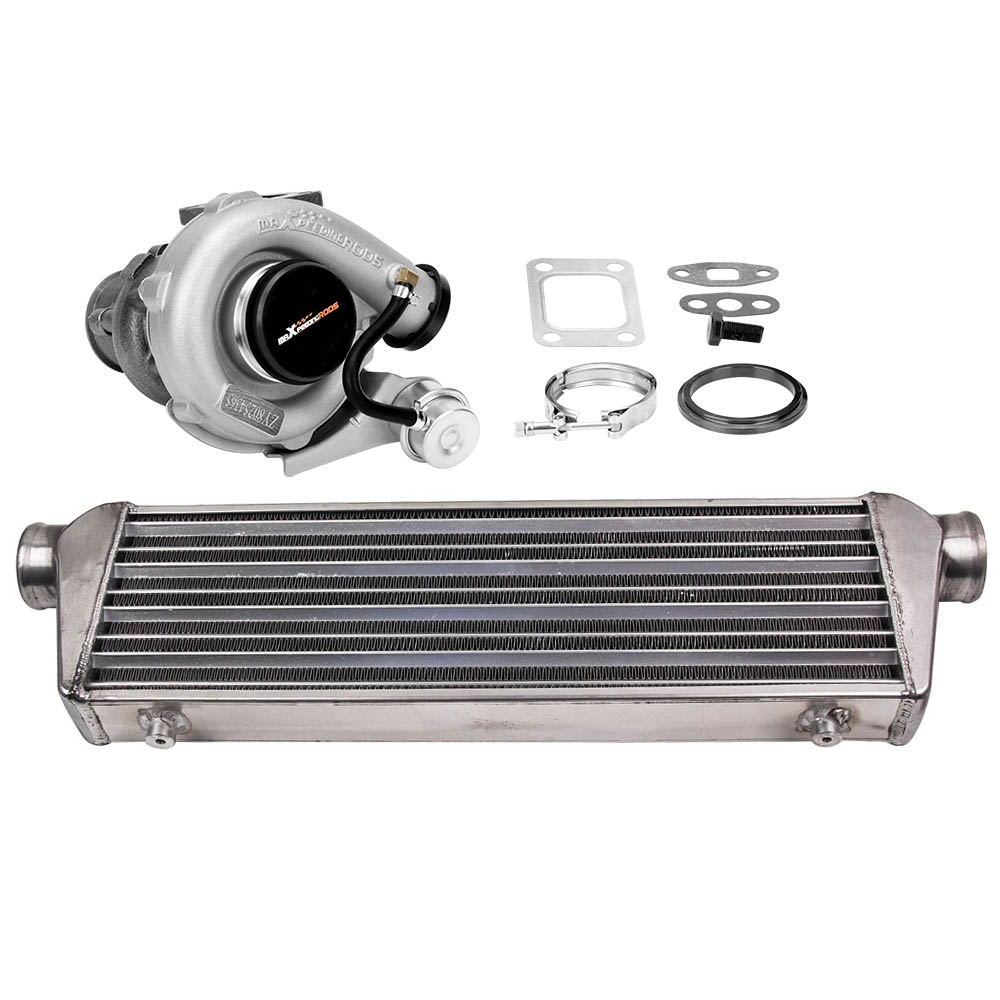

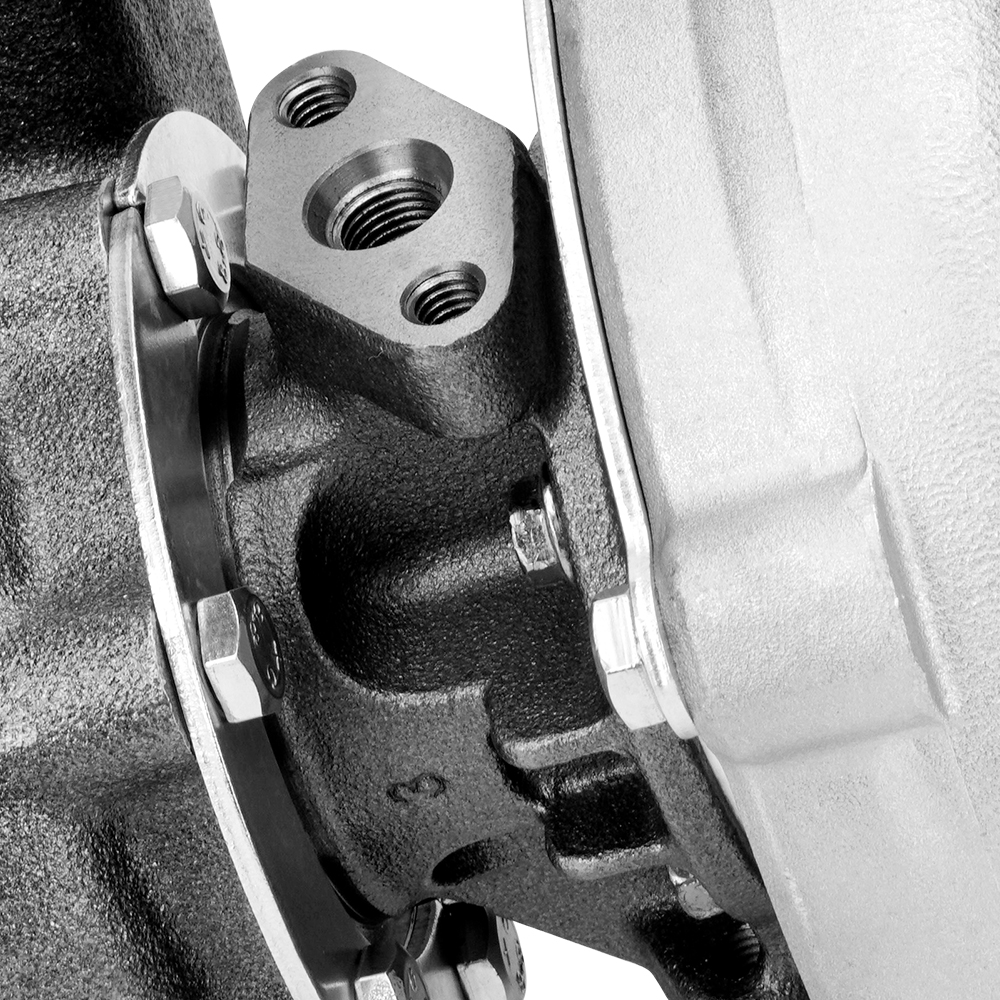

turbocharger

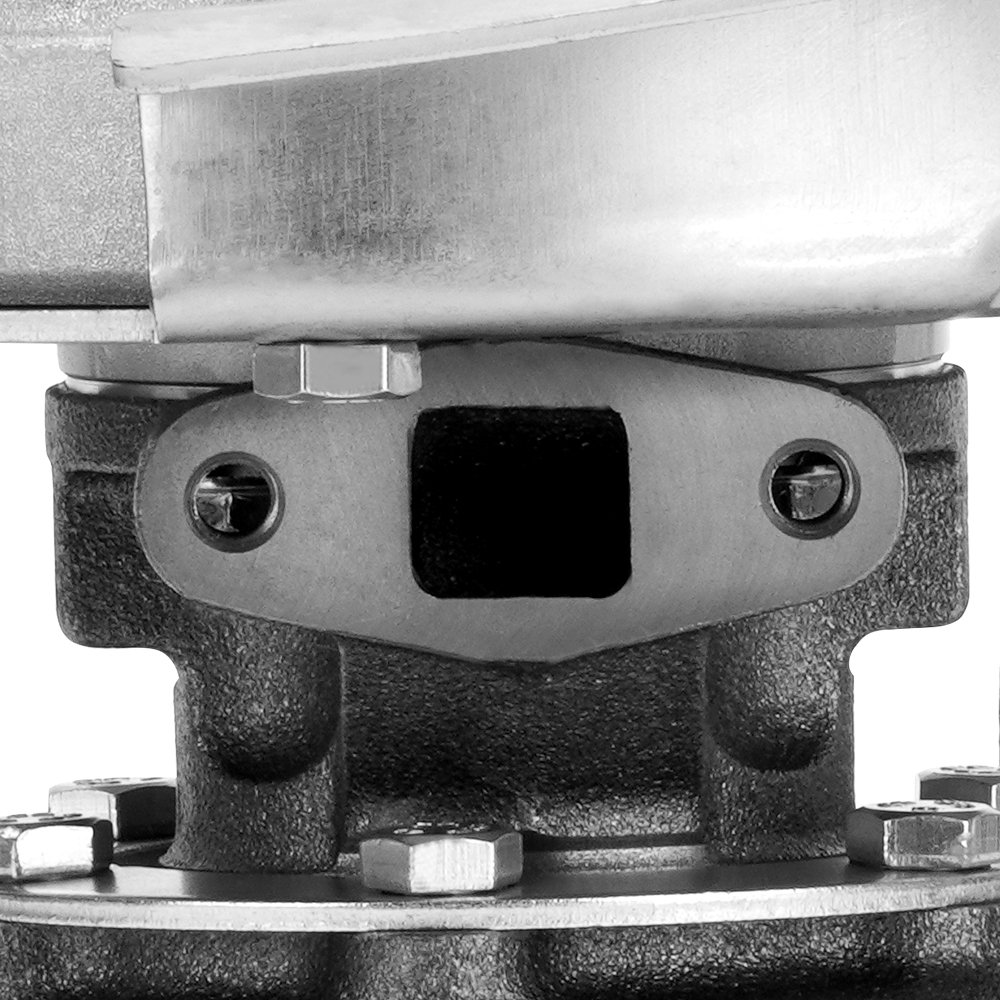

exhaust inlet (turbo manifold) flange: t3 4 bolt flange patterns
exhaust outlet () flange: v-band flange
turbine trim: 72.8
turbine inducer diameter:  65.5 mm
turbine exducer diameter: 55.9mm
turbine a/r: 0.63
compressor trim: 44.2
compressor inducer diameter: 50.5 mm
compressor exducer diameter: 76 mm
compressor a/r: 0.5
bearing: journal bearing
warranty: 2 year
internal wastegate: yes

cooling type: oil cooled

horse power: capable of boosting horse power up to 420hp

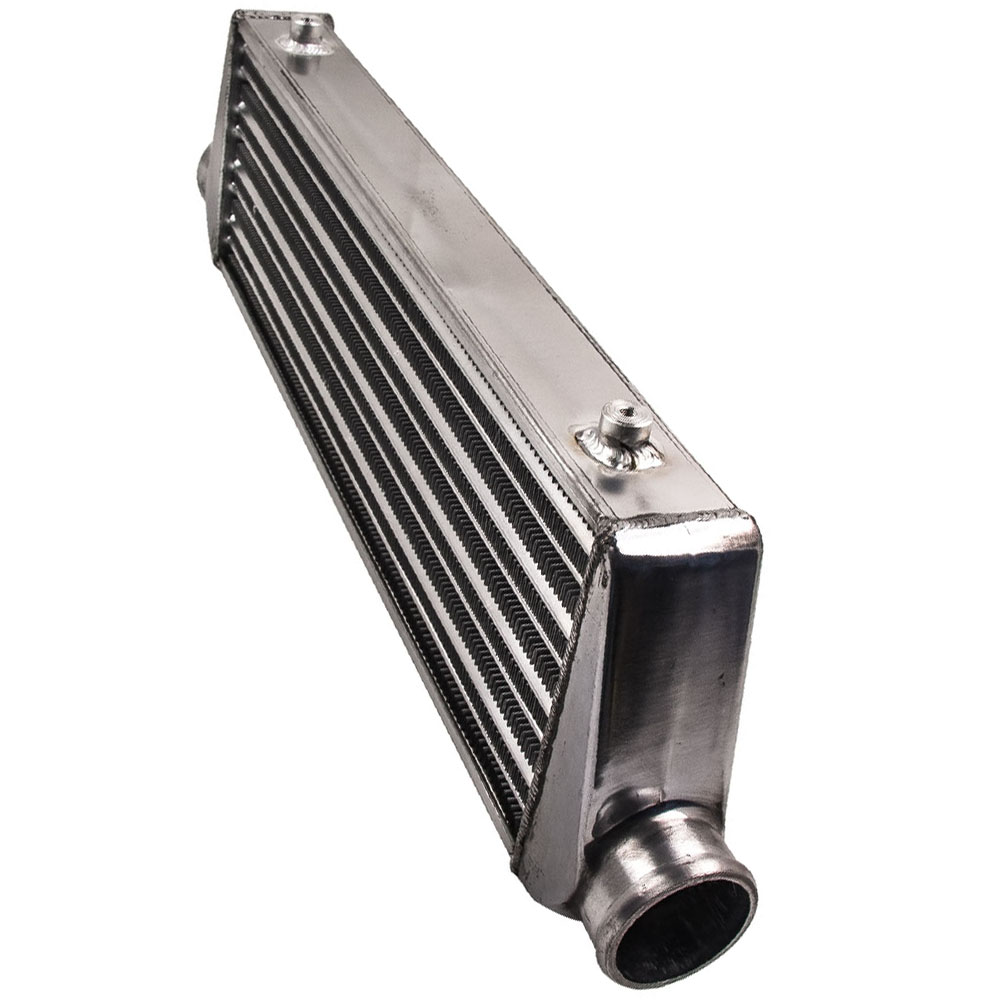

intercooler

inlet / outlet size :  2.5"

overall size :  27'' (l) x 7'' (h) x 2.5''  (w)

core size :  21'' x 7'' x 2.25''

core design:  tube & fin

compress air flow rate ＜350cubic feet/min，rated up to 500 max hp

pressure drop:  2~5psi at 35psi,  0.2~0.5psi at 15psi

material:  aluminum, light weight designed

notice
* please check the specifications carefully before bidding. .
* this is universal application turbo, so modification might be required for some vehicles
* professional installation is highly recommended (no instruction included)
