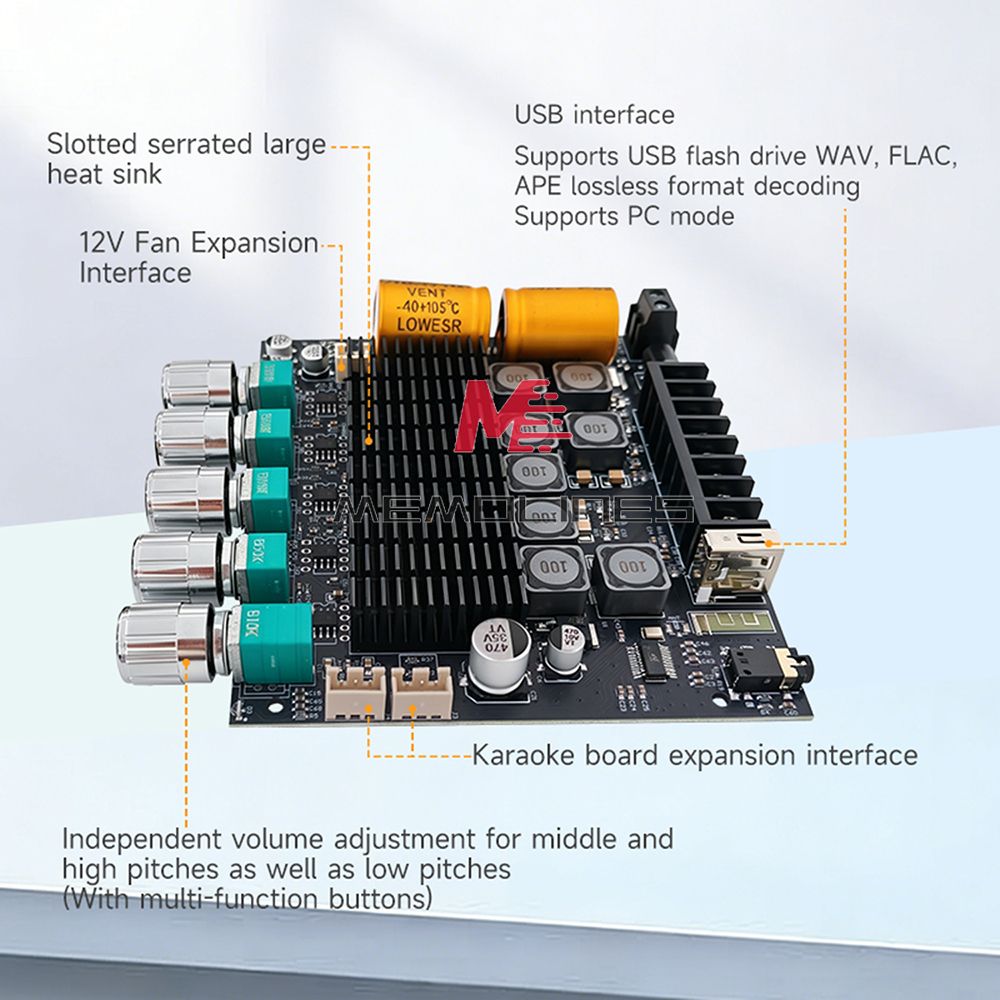

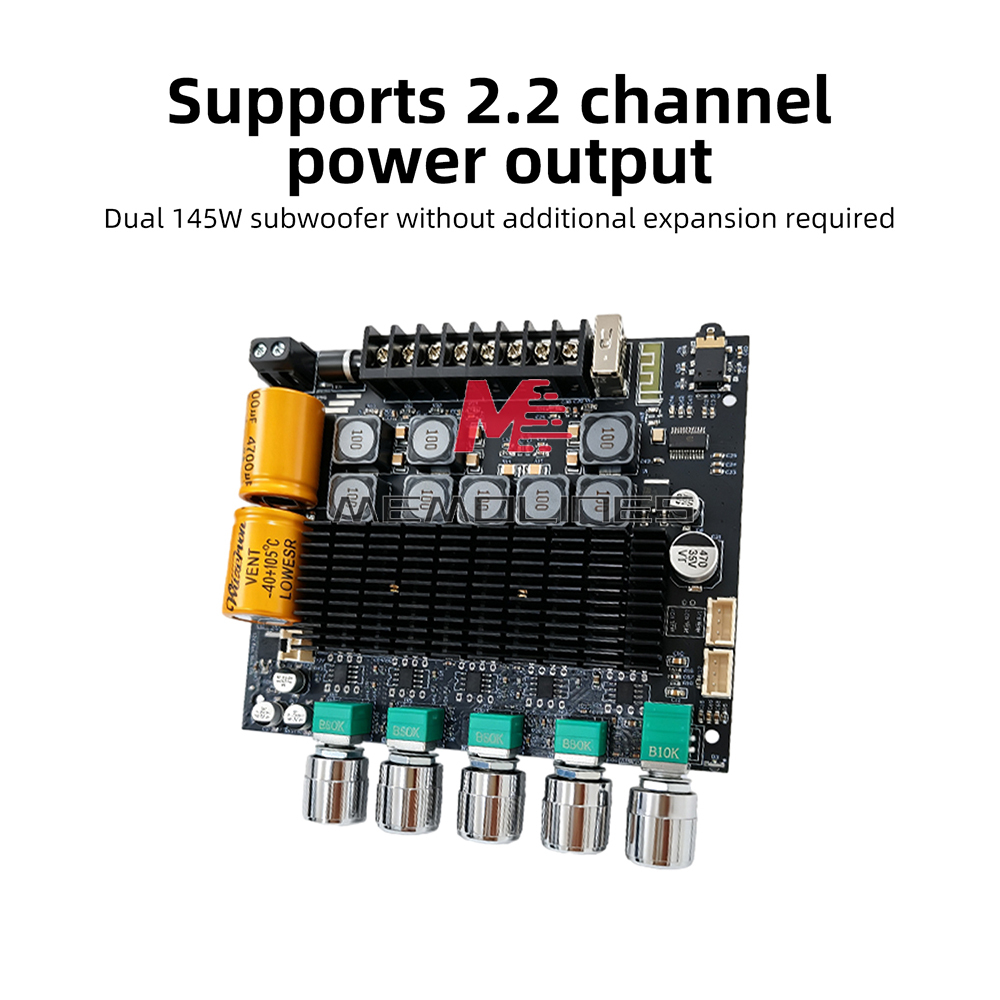

1. Supports 2.2-channel power output; dual 145W subwoofers require no additional expansion

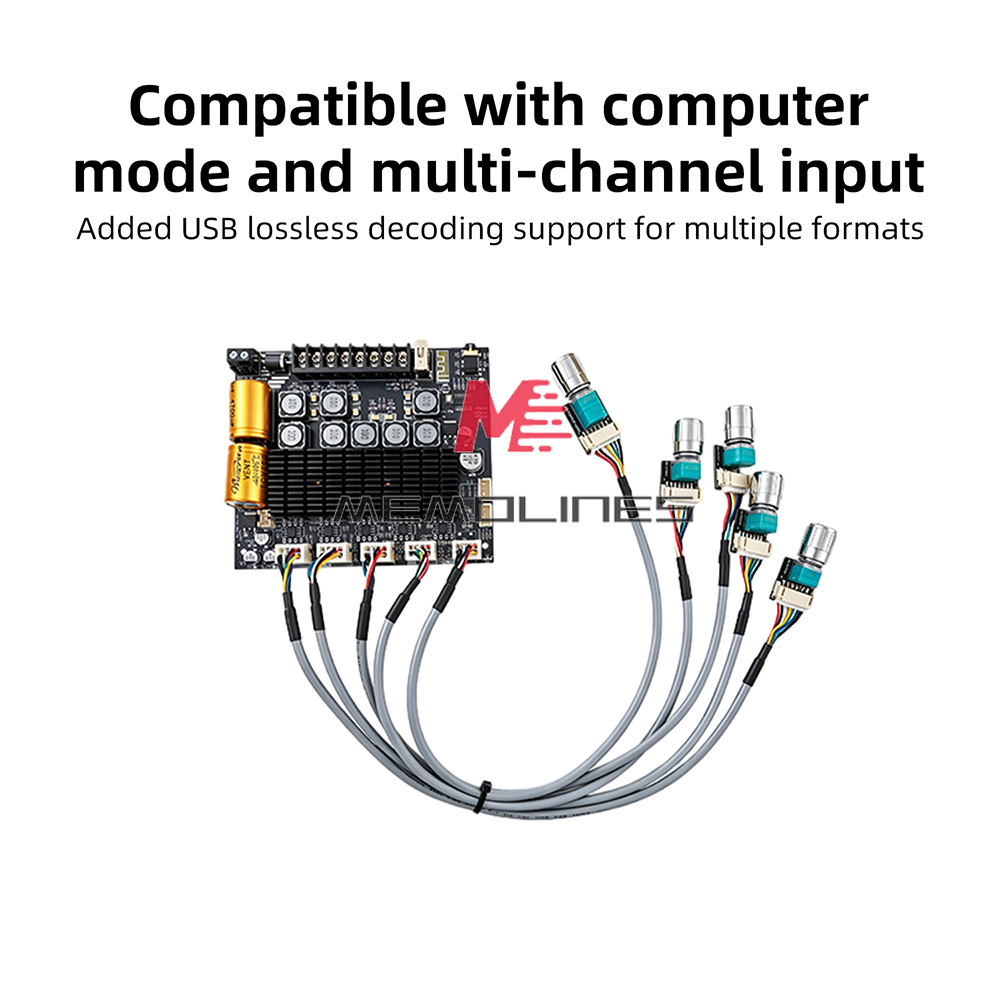

2. Lossless decoding supports multiple formats and is compatible with multi-channel inputs in PC mode

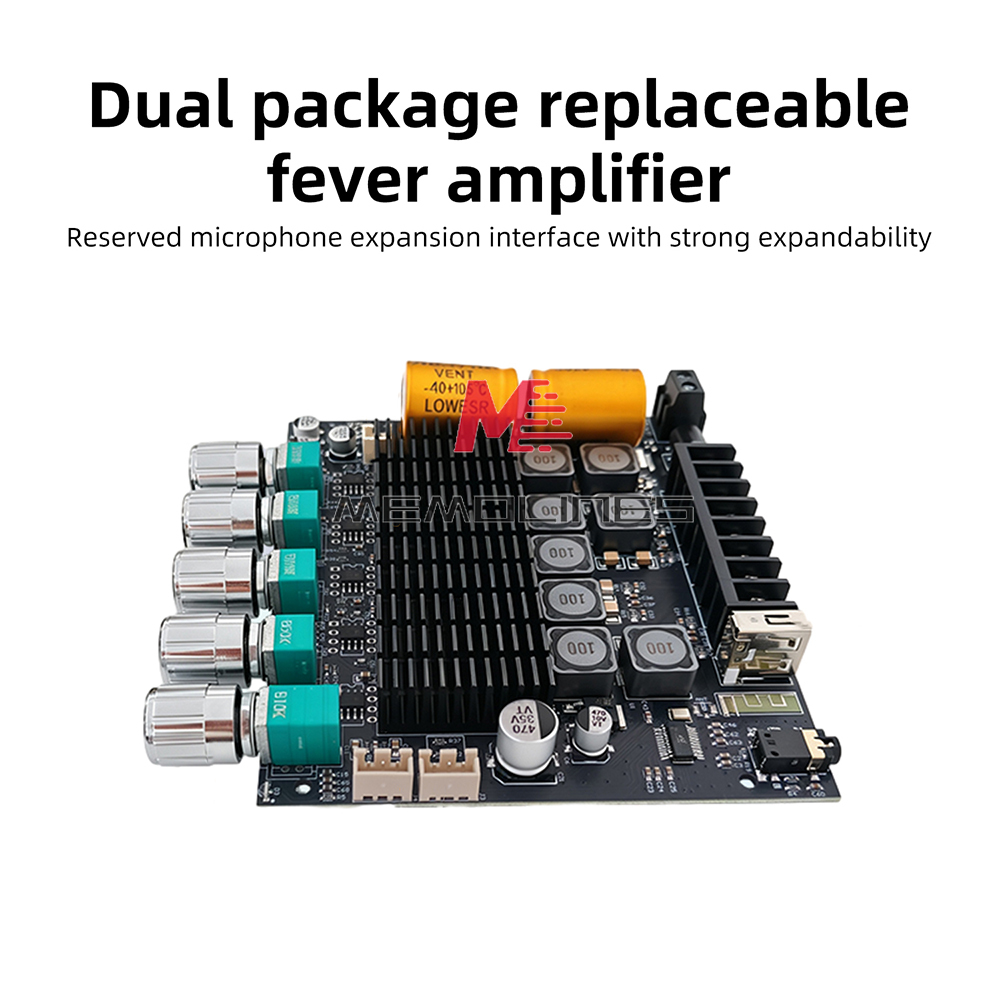

3. Dual-encapsulated, replaceable audiophile-grade operational amplifiers; includes a reserved microphone expansion port for strong expandability

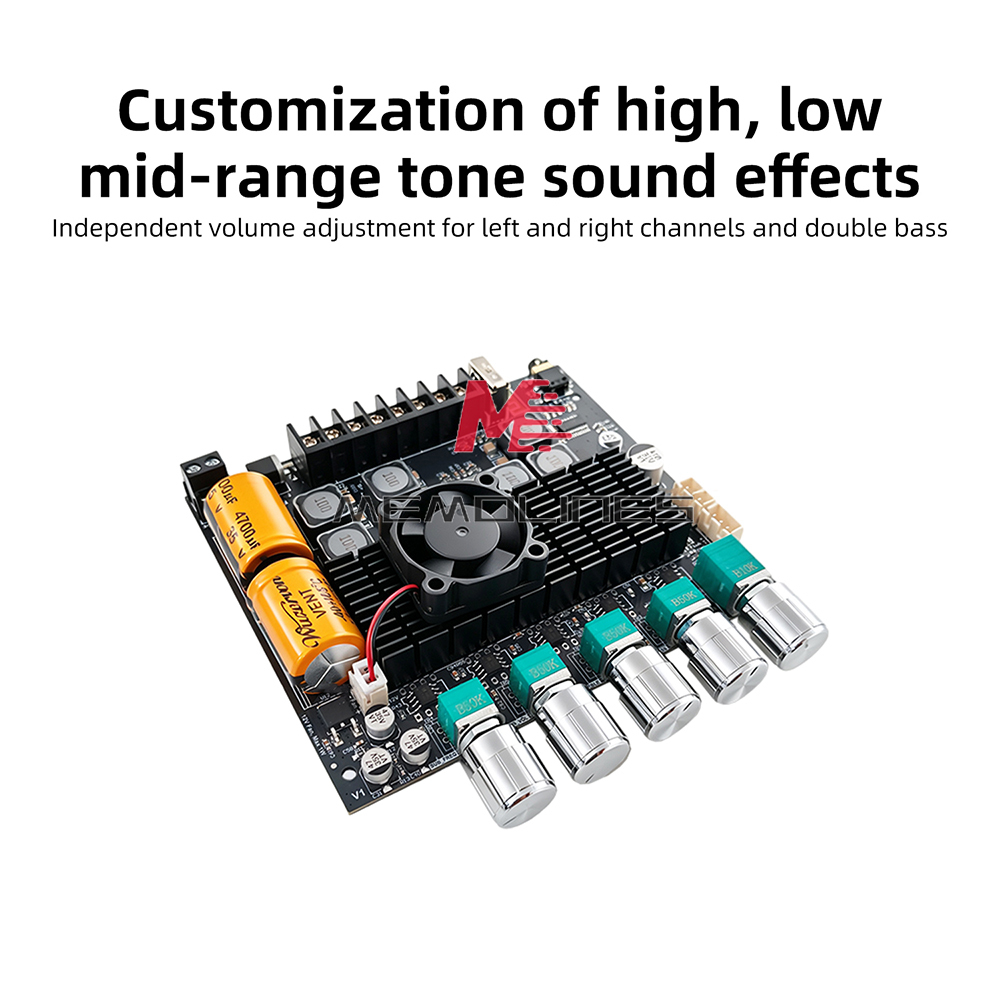

4. Independent volume control for left/right channels and dual subwoofers; customizable treble, midrange, and bass equalization

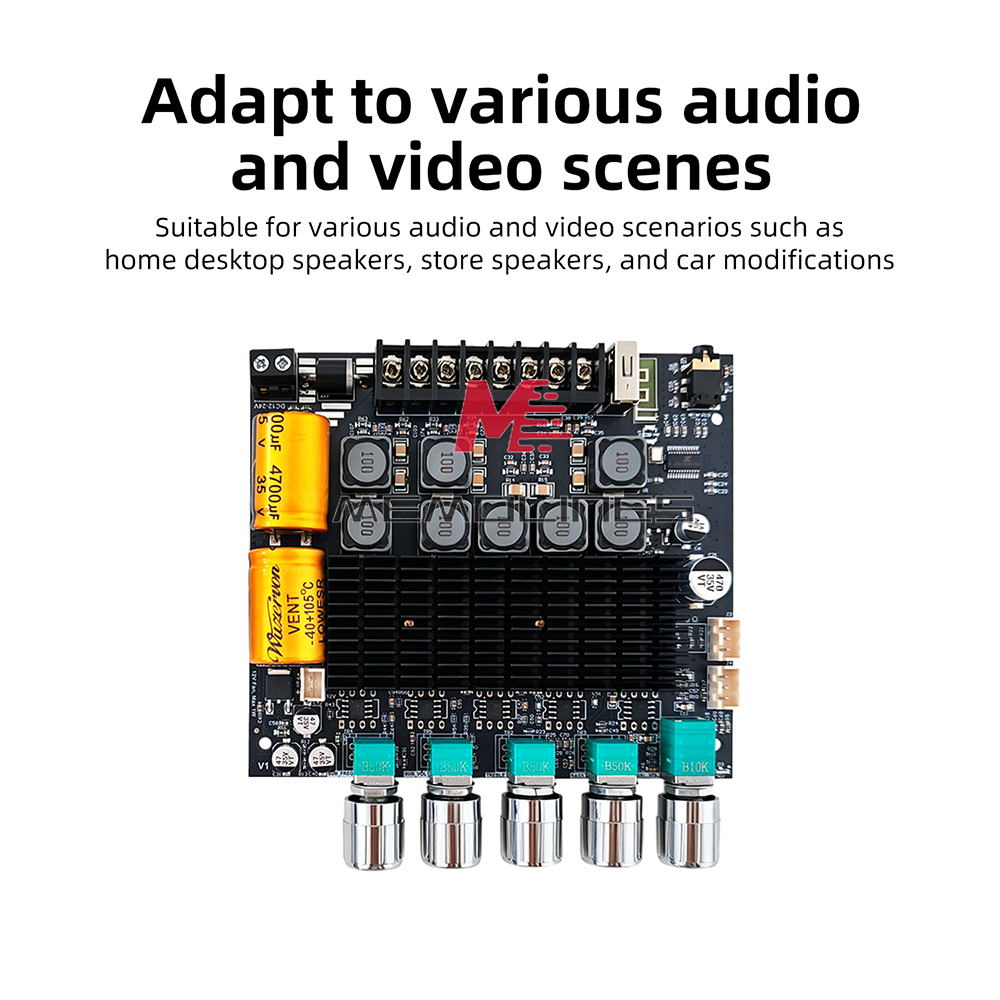

5. Suitable for various audio-visual scenarios, including home desktop audio systems, retail store speakers, and car audio upgrades

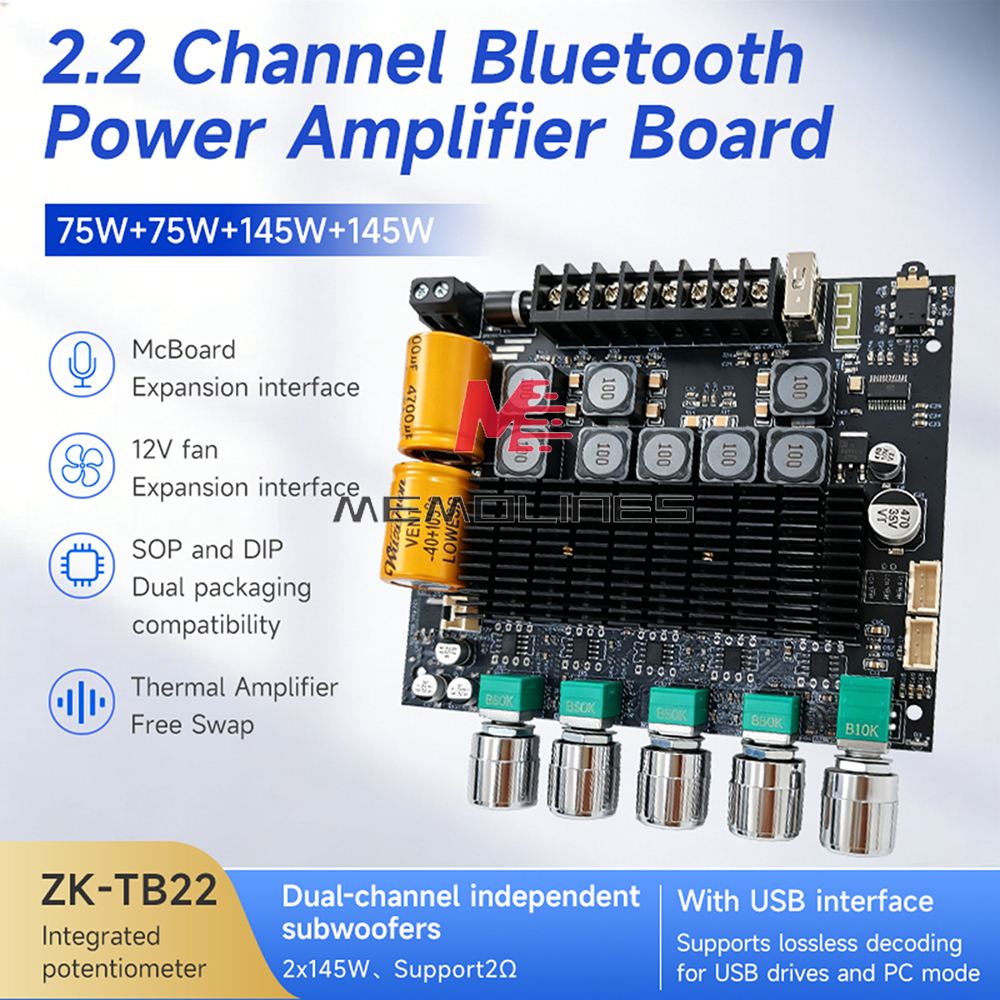

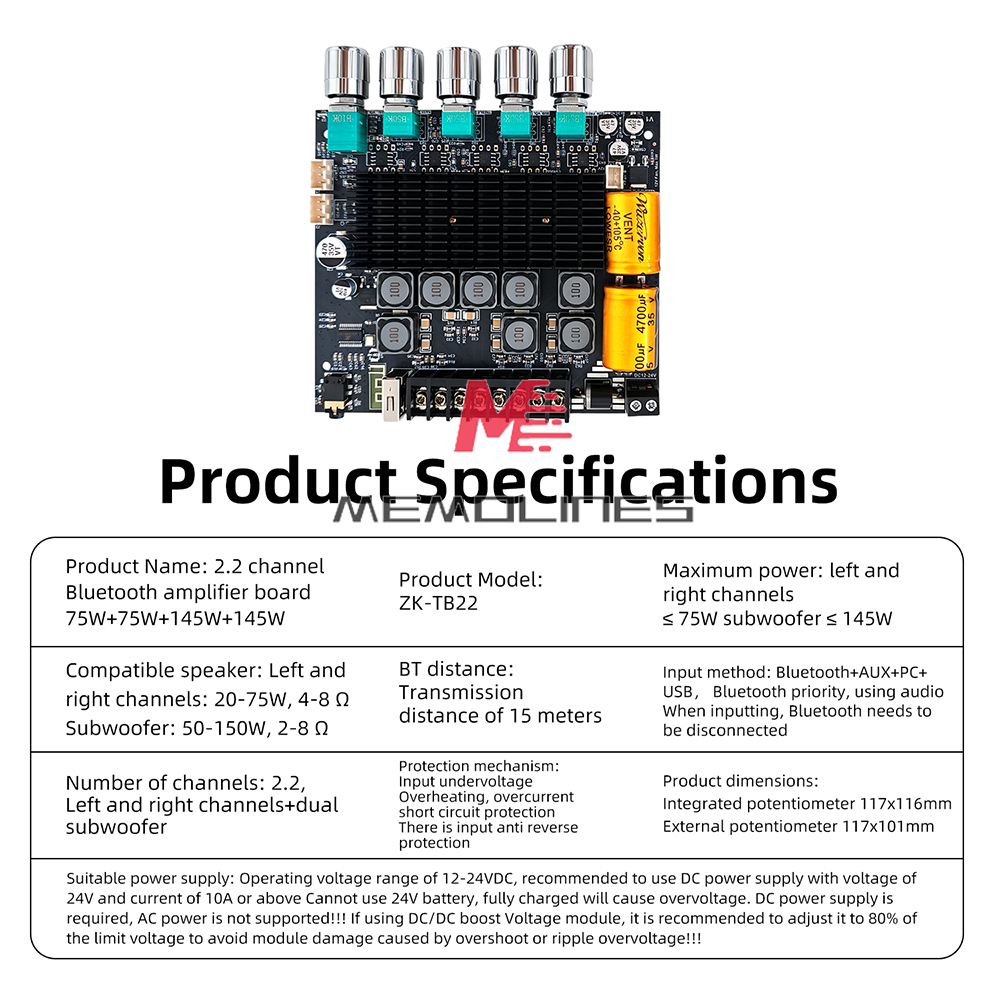

Product Name: 2.2-Channel Bluetooth Amplifier Board 75W+75W+145W+145W
Product Model: ZK-TB22
Power Supply Requirements: Operating voltage range 12–24 VDC; recommended voltage 24 V; current 10 A or higher DC power supply. Do not use a 24 V battery, as overvoltage may occur when fully charged. DC power supply is mandatory; AC power is not supported!!! If using a DC/DC boost module, it is recommended to set the output voltage to 80% of the limit voltage to prevent module damage caused by overvoltage due to overshoot or ripple!!!
Maximum Power: Left and Right Channels ≤ 75W; Subwoofer ≤ 145W
Compatible Speakers: Left and Right Channels: 20–75W, 4–8Ω; Subwoofer: 50–150W, 2–8Ω
Bluetooth Range: 15 meters

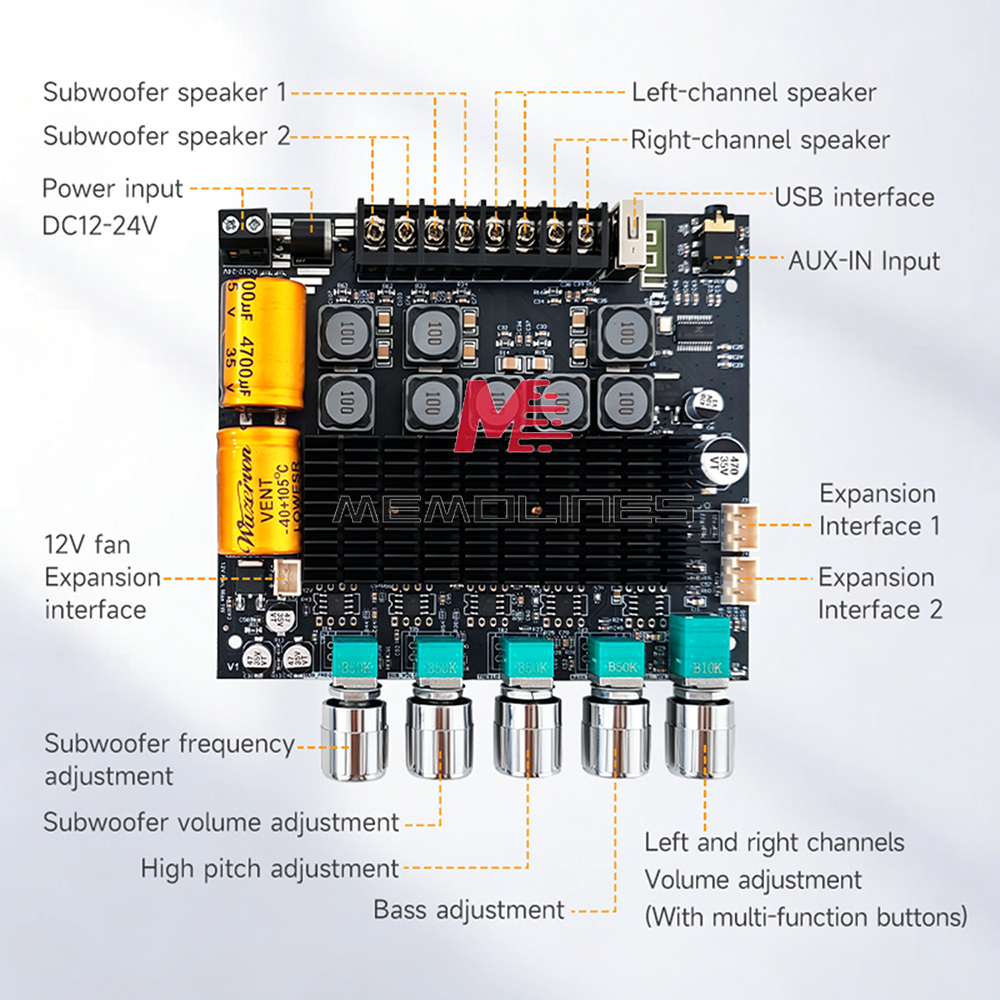

Input Methods: Bluetooth + AUX + PC + USB; Bluetooth takes priority; Bluetooth must be disconnected when using an audio cable
Number of Channels: 2.2 (left and right channels + dual-channel subwoofer)
Protection Mechanisms: Input undervoltage, overheating, overcurrent, and short-circuit protection; includes reverse polarity protection
Product Dimensions: 117 x 116 mm (with integrated potentiometer); 117 x 101 mm (with external potentiometer)
1 x Amplifier Board
1 x Screwdriver
