Feature:

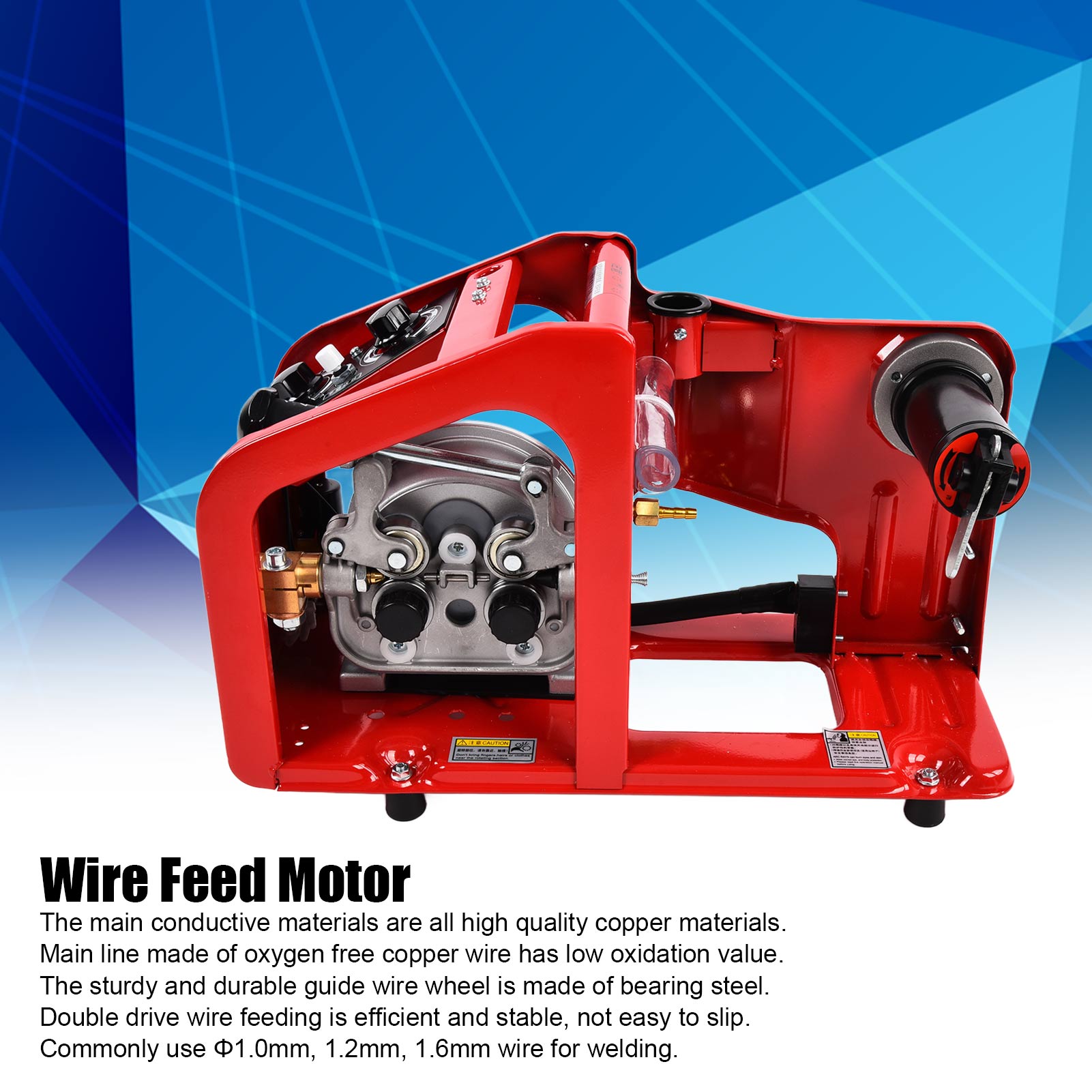

1. The main conductive material is all copper, and the main line uses oxygen free copper wire with and low oxidation value.

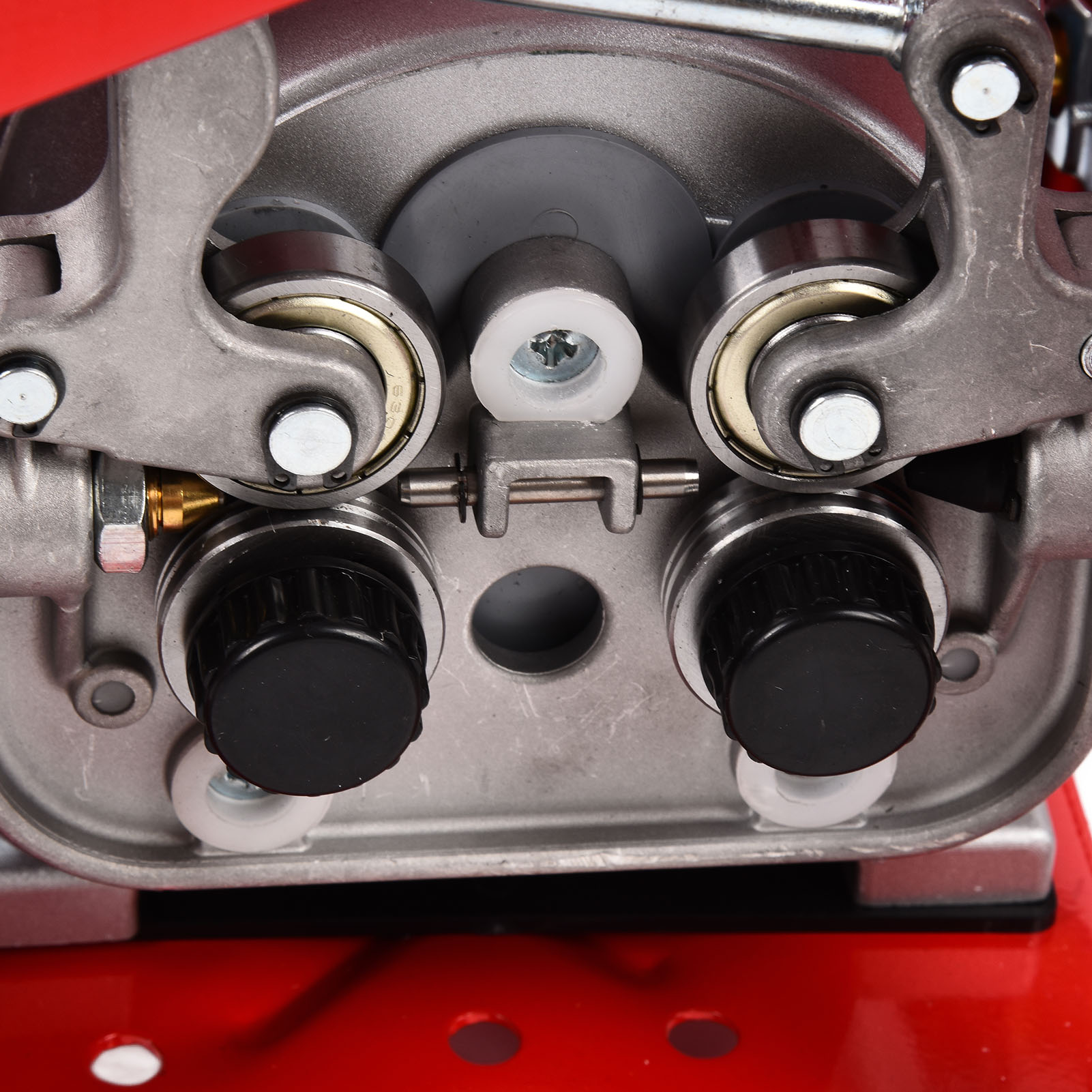

2. The guide wheel adopts bearing steel with sturdy structure, which ensures excellent stability as well as longer service life.

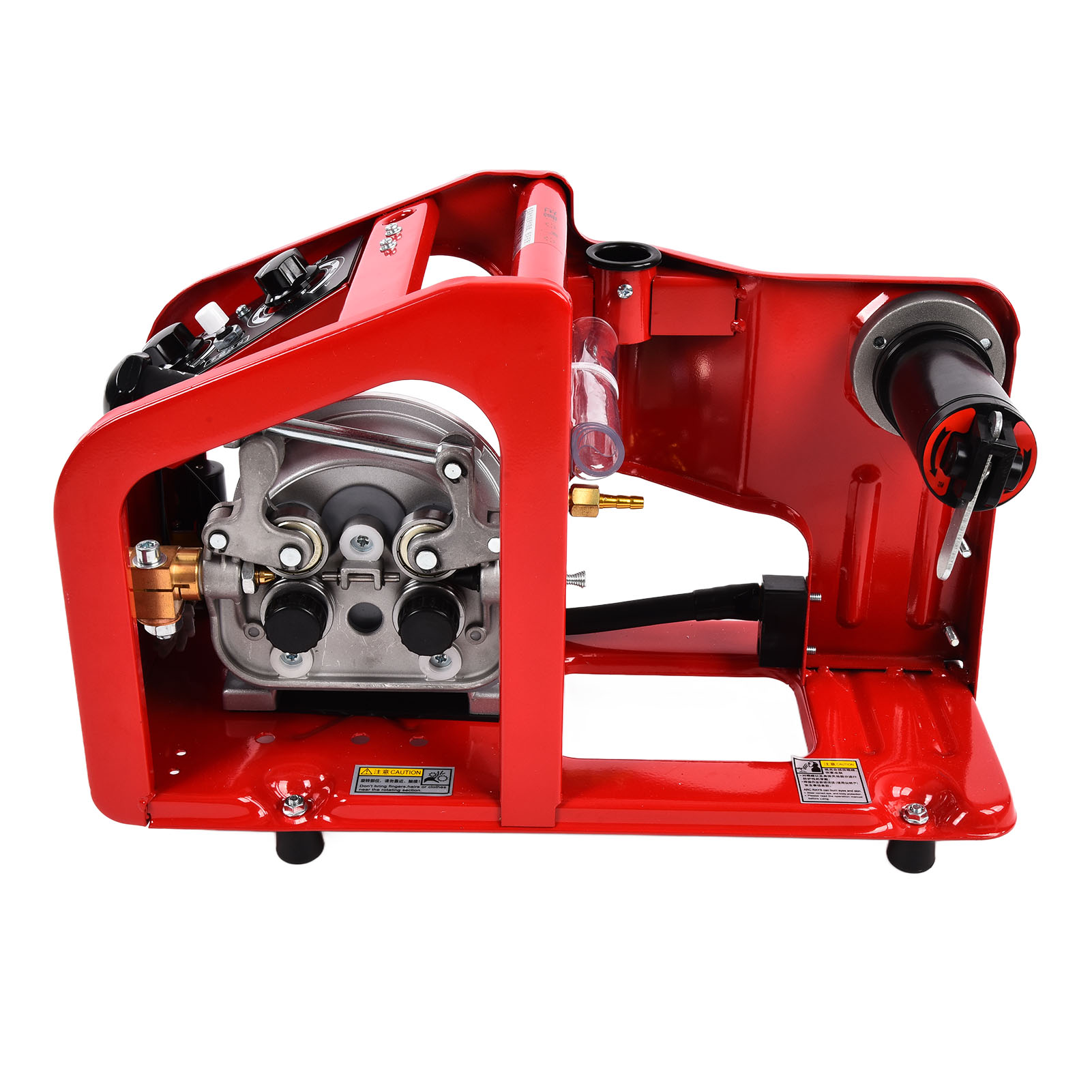

3. The wire feeding is very stable, and the double drive design promises efficient wire feeding that it's not easy to slip as well.

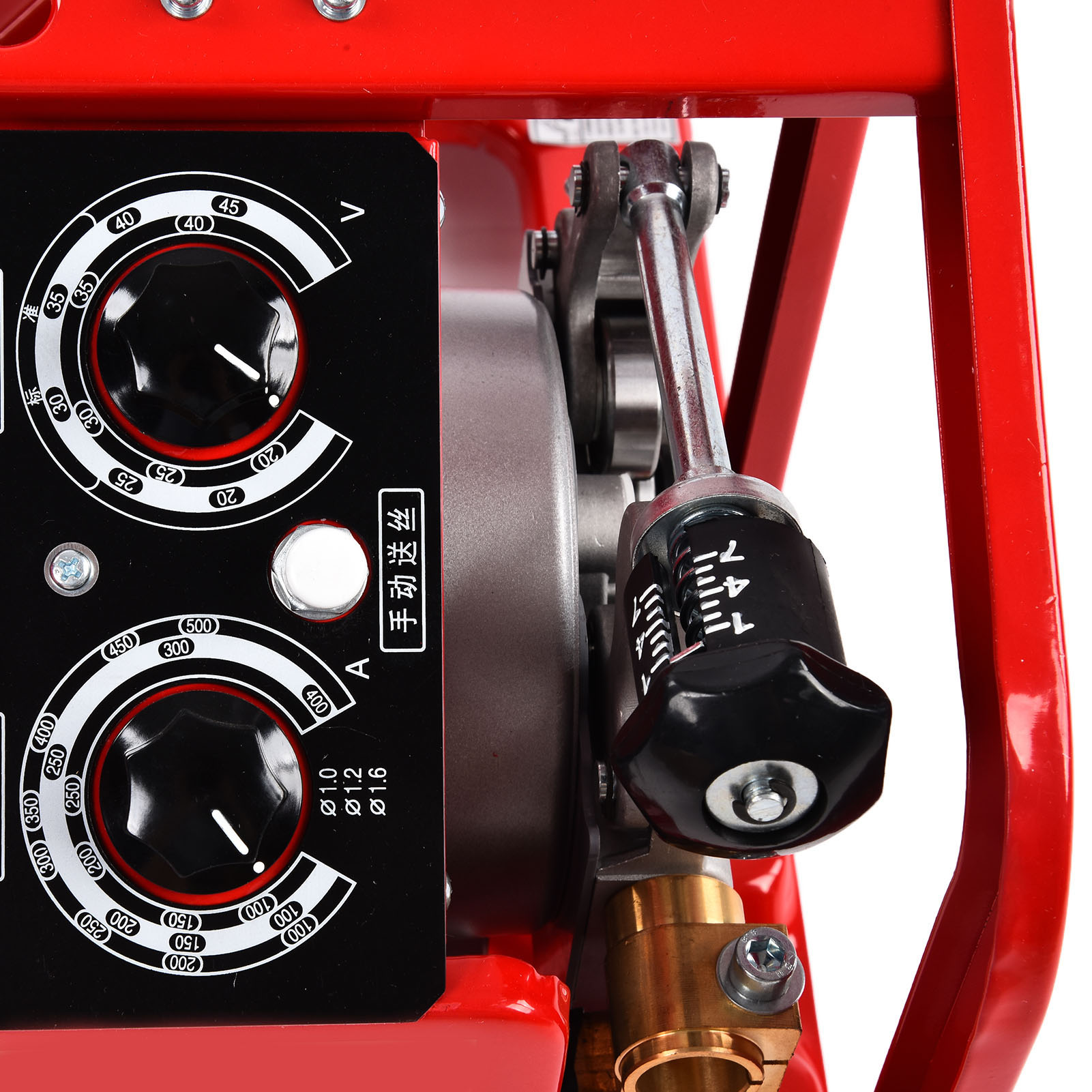

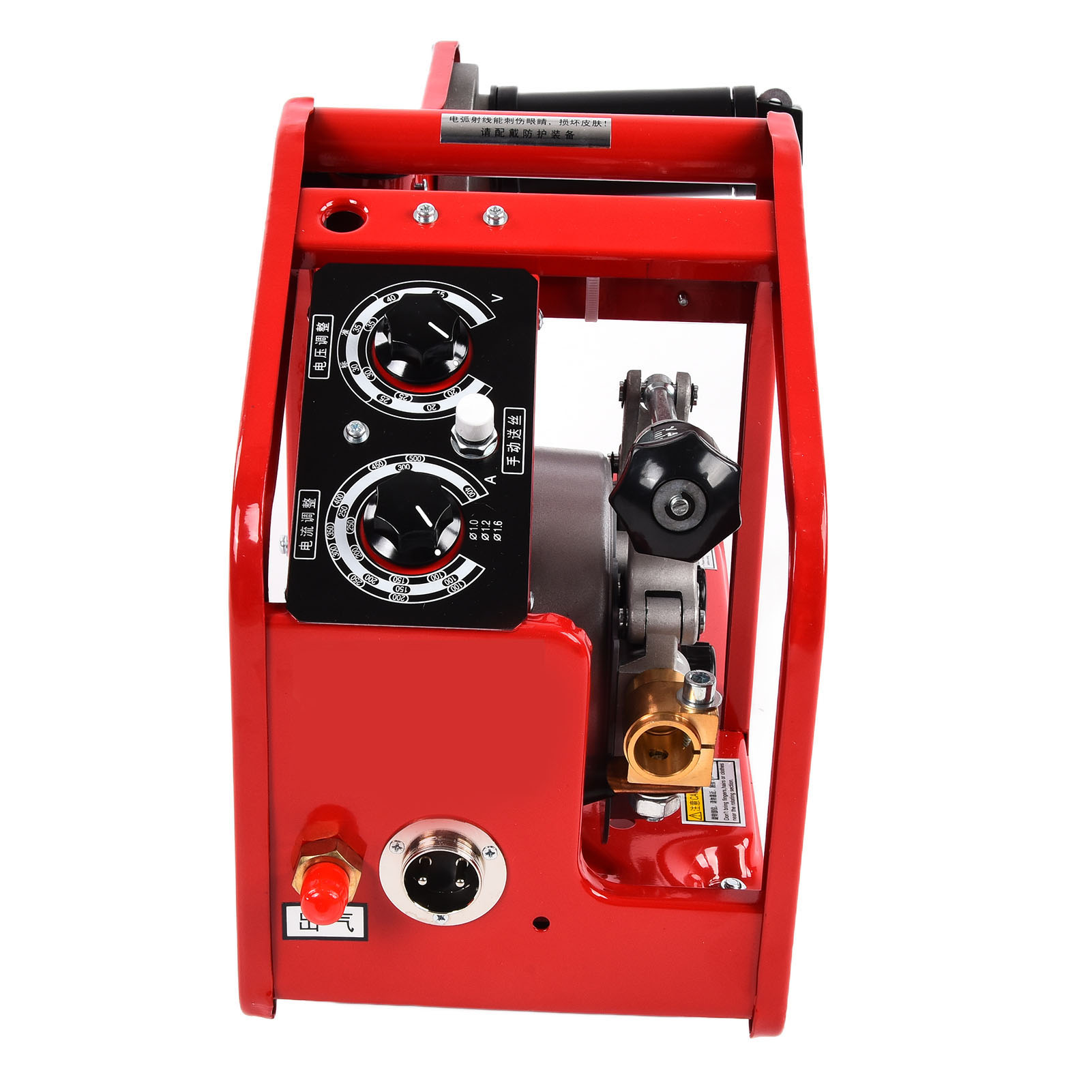

4. You can adjust the current and voltage on the wire feeder between 500A at 60% and 400A at 100%, easy and convenient.
5. Commonly use 1.0mm, 1.2mm, 1.6mm welding wire , can be applied to mild steel solid and flux welding wire.

Specification:

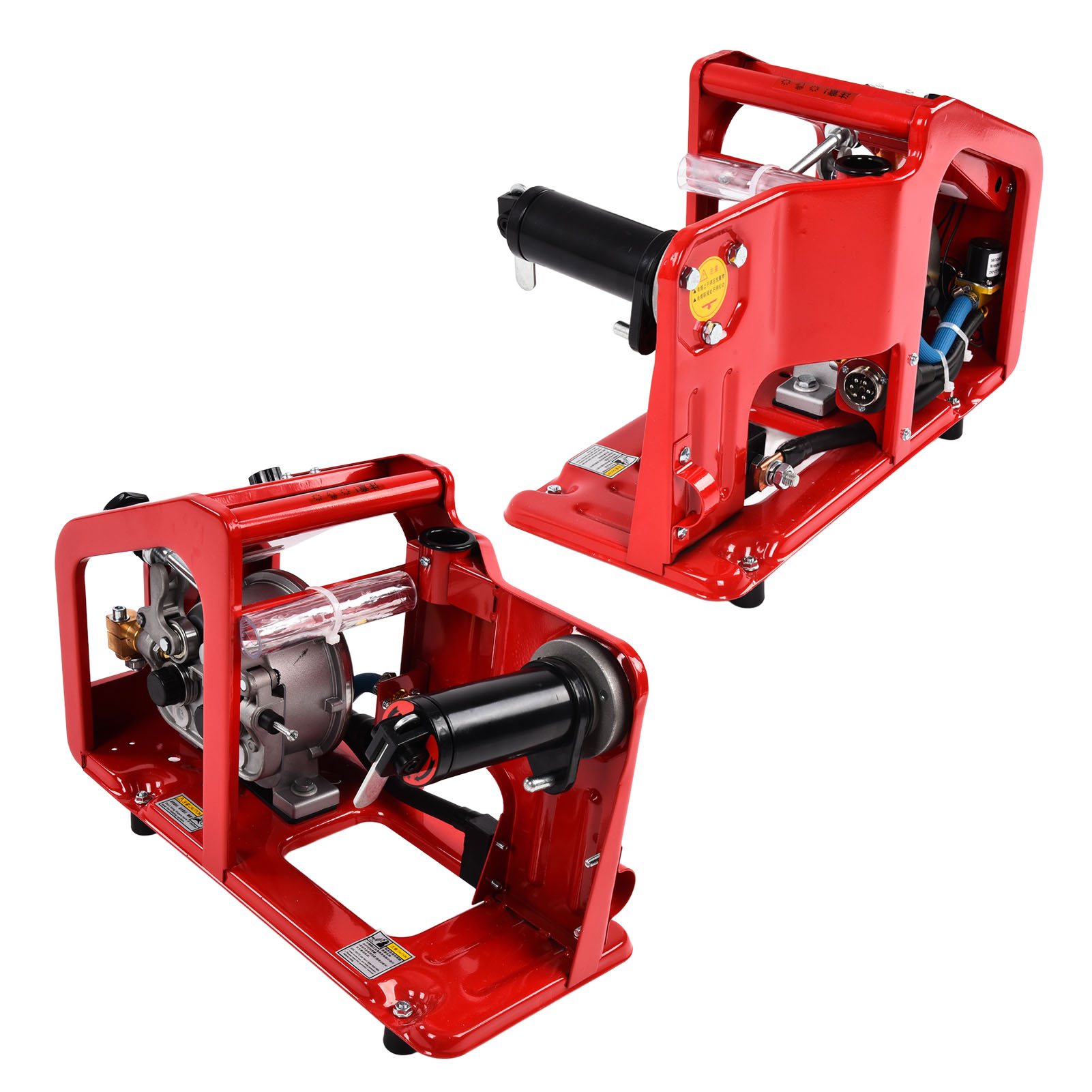

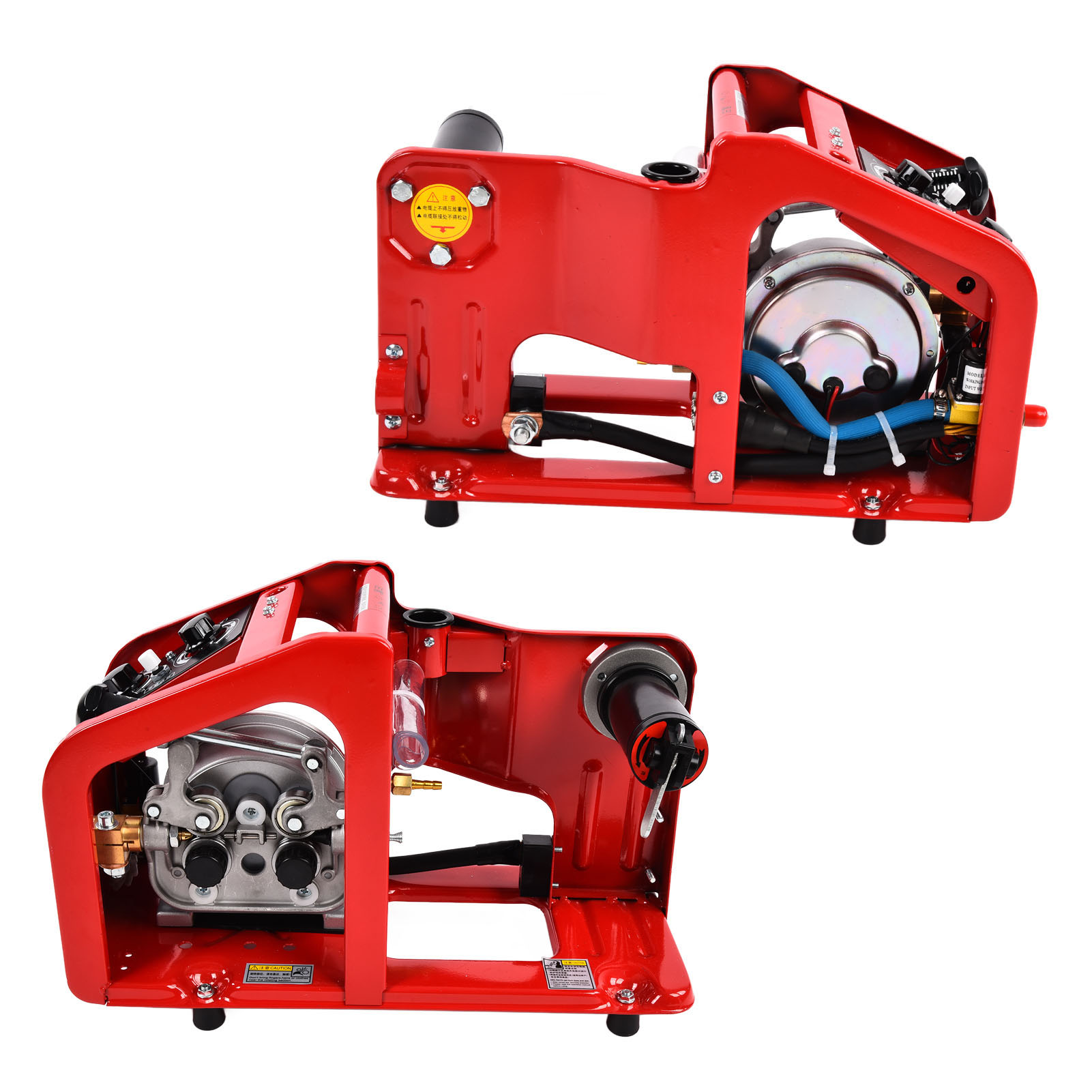

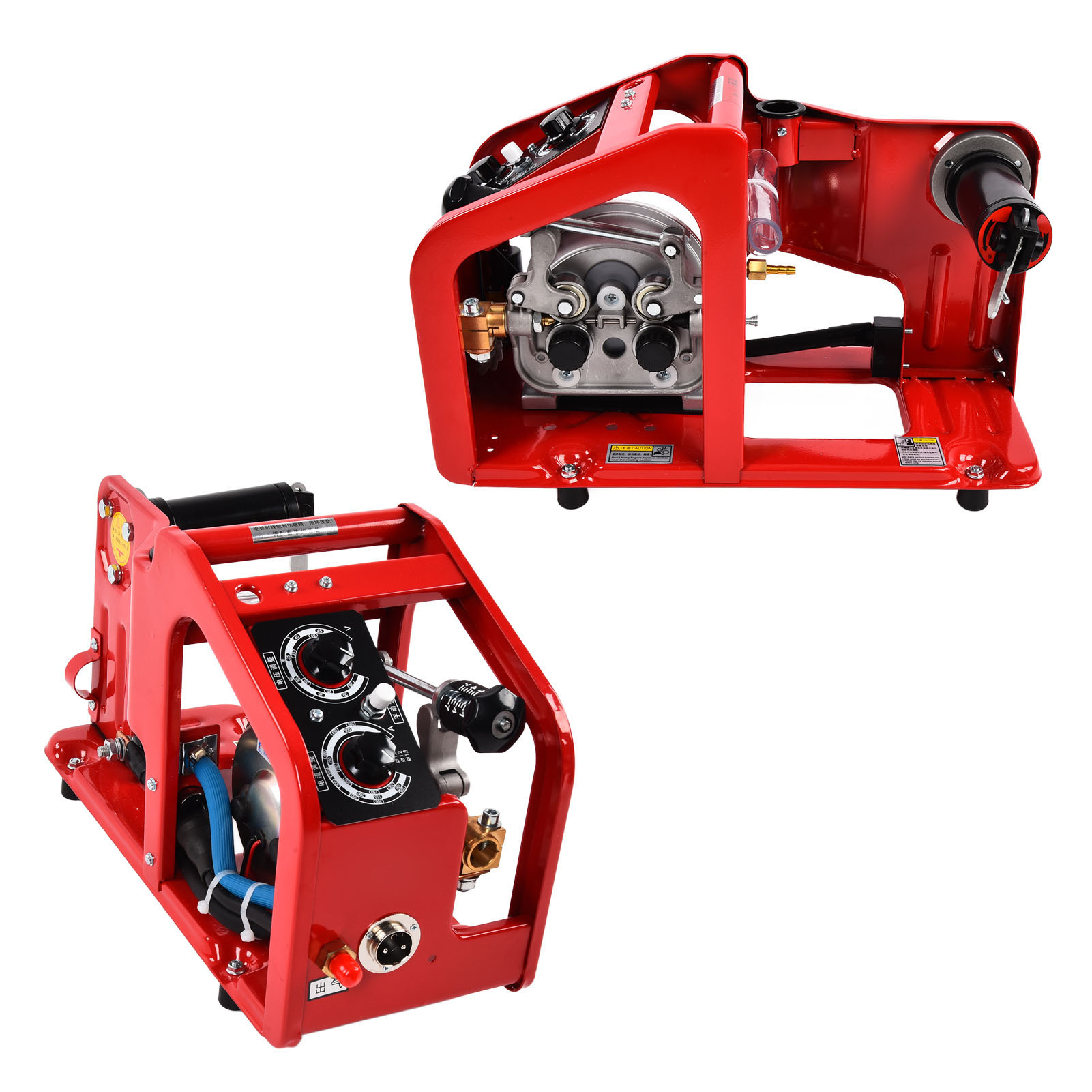

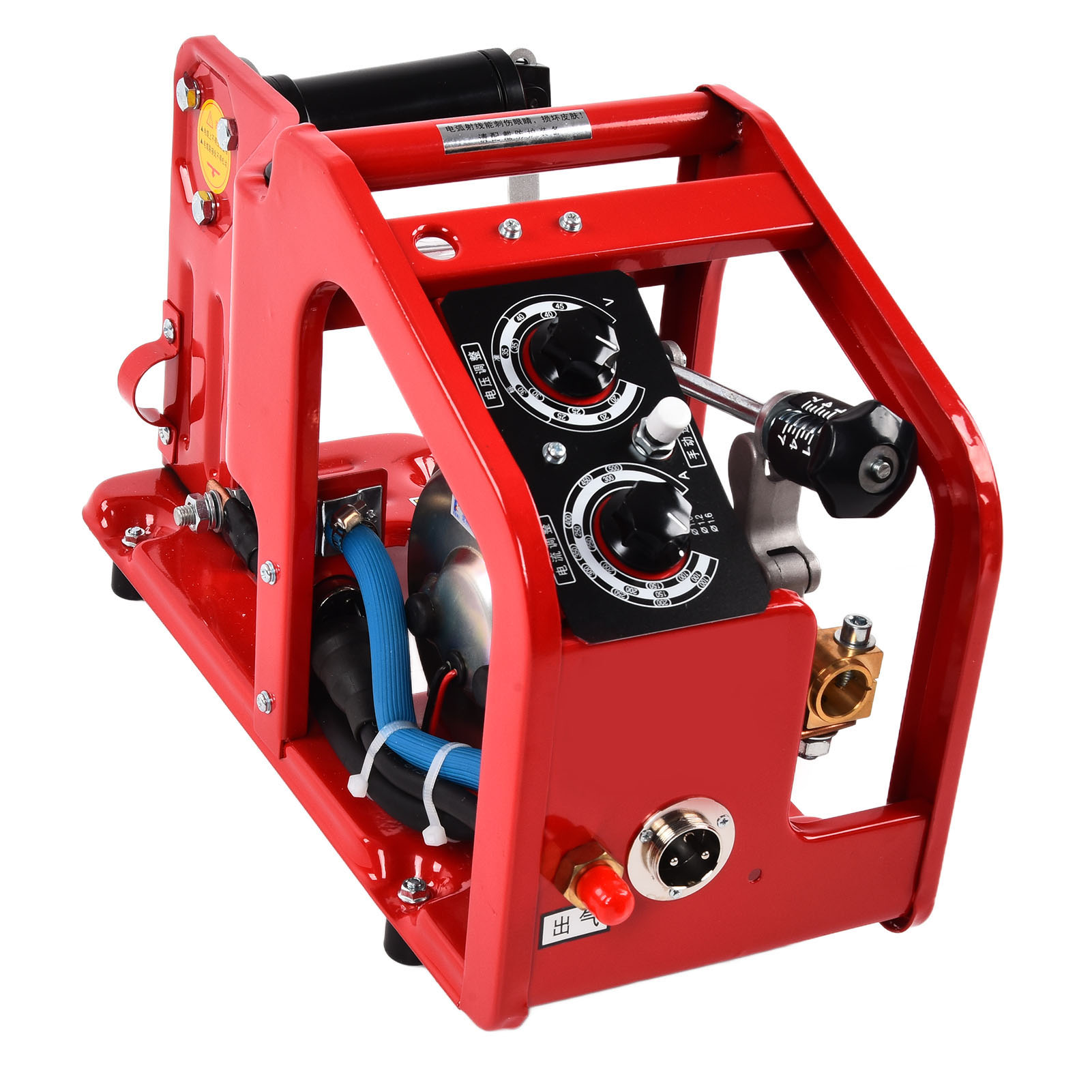

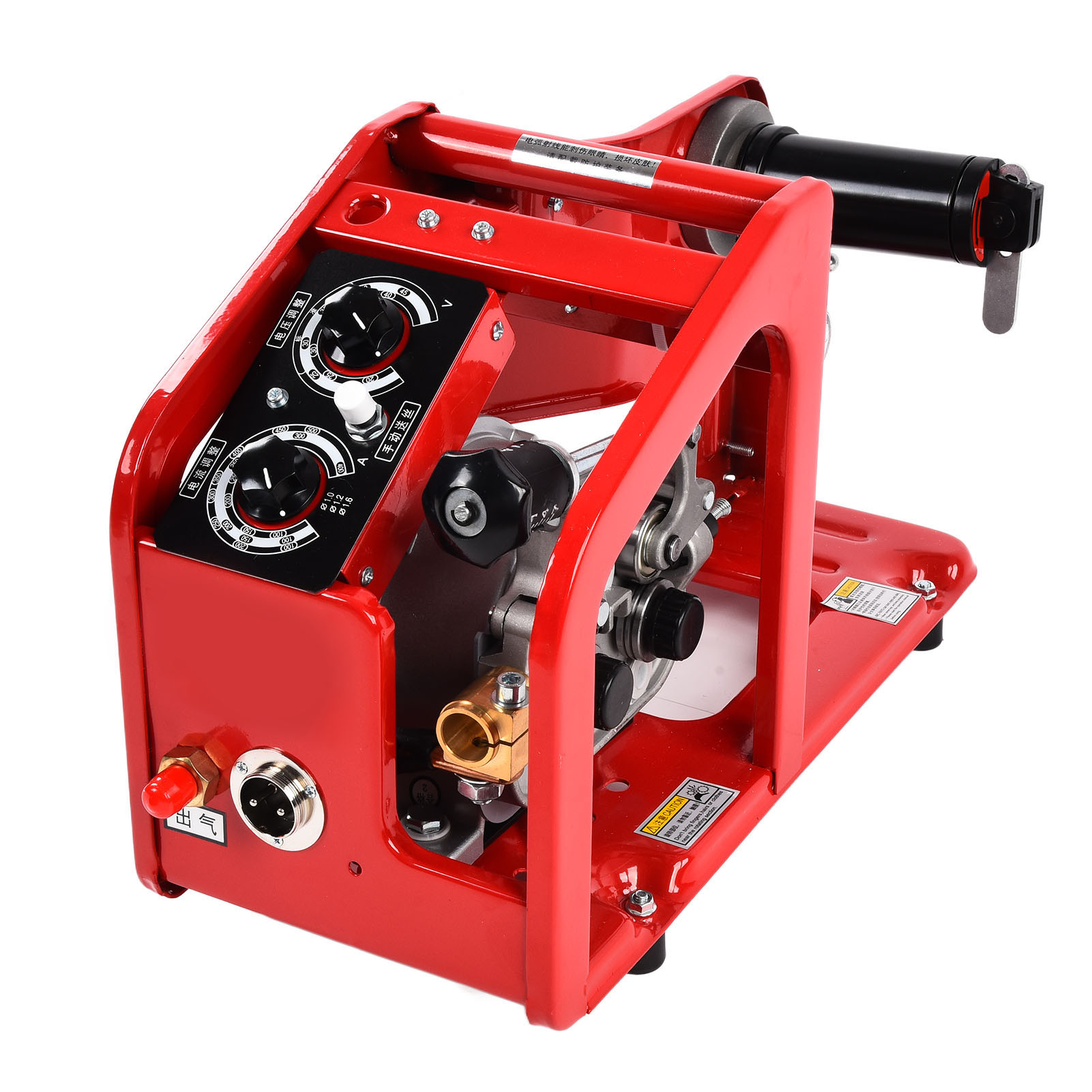

Item Type: Welding Wire Feeder
Model: LD-10-500A
Material: Cold Rolled Steel + Copper + Bearing Steel
Application: For guardrail installation, sheet metal processing, factory manufacturing.
Welding Current: 500A at 60%, 400A at 100%.
Wire Feeder Voltage: DC 24V
Applicable Welding Wire Diameter: Approx. Φ1mm / 0.04in, Φ1.2mm / 0.05in, Φ1.6mm / 0.06in.

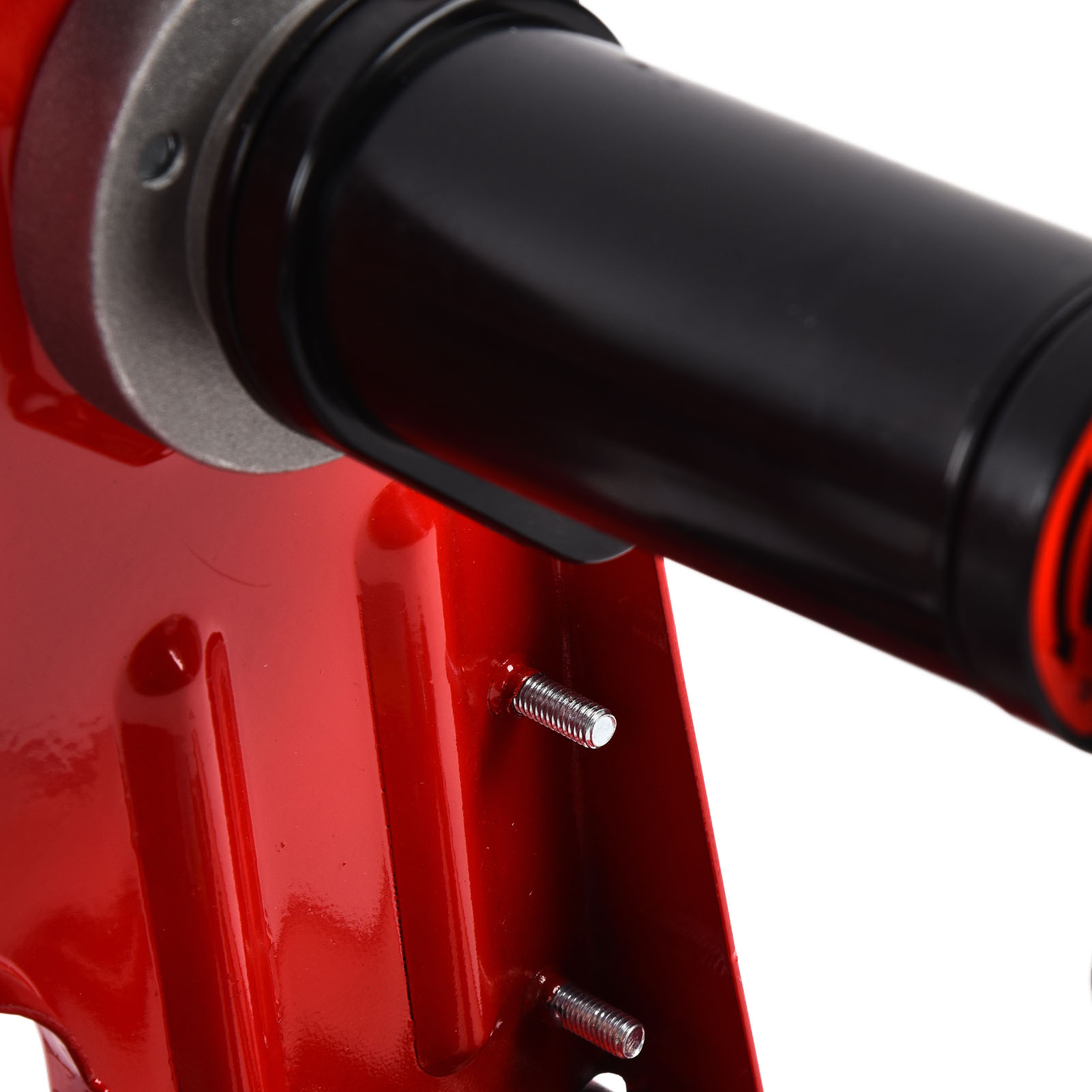

Applicable Wire Reel Shaft Diameter：Approx. Φ50mm / 2in.
Applicable Wire Reel Outer Diameter：Approx. Φ300mm / 11.8in.
Applicable Wire Reel Width：Approx. 105mm / 4.1in.
Rated Traction: 100N
Wire Feeding Speed: 1.5-20meter/min
Applicable Welding Wire Type: Mild steel solid , flux .

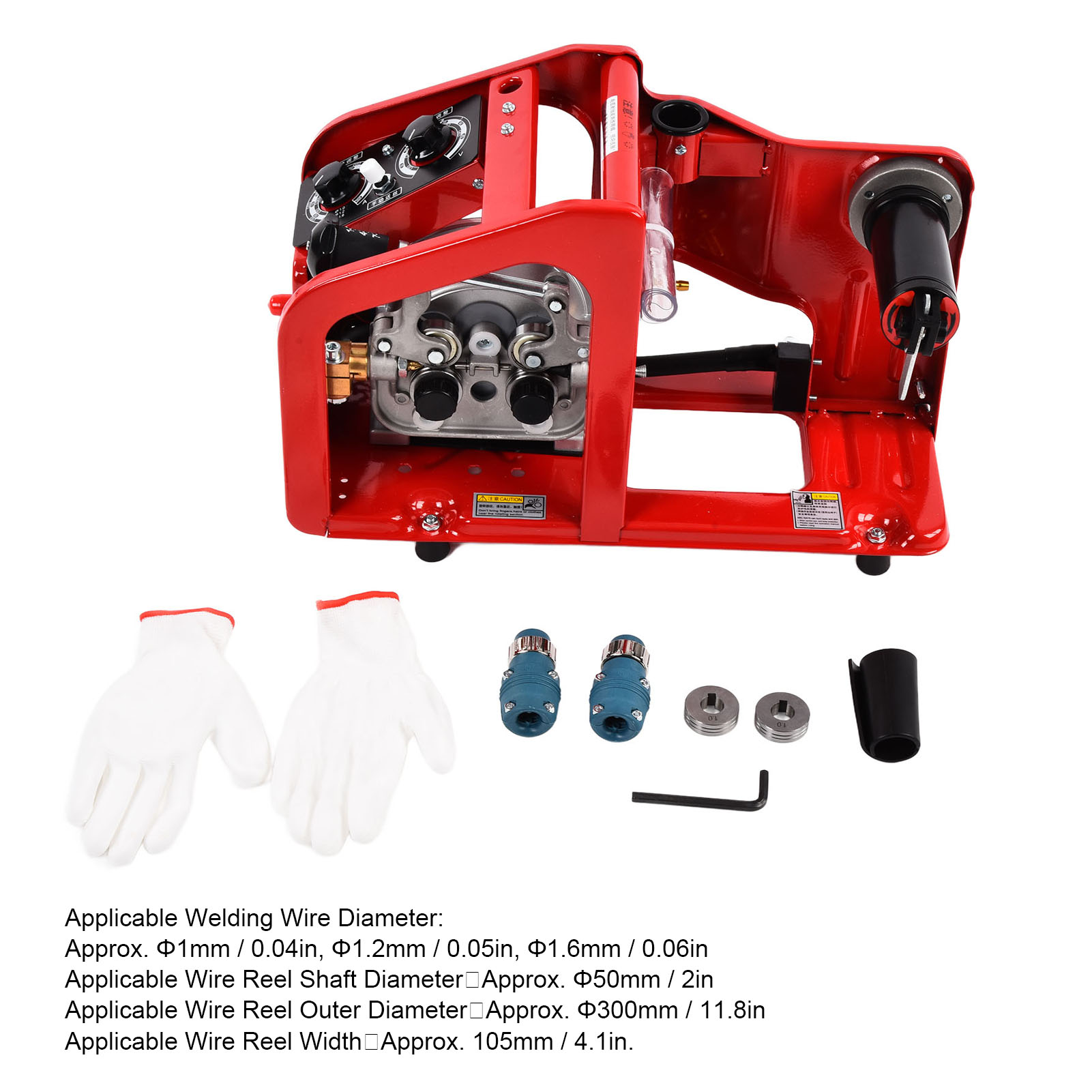

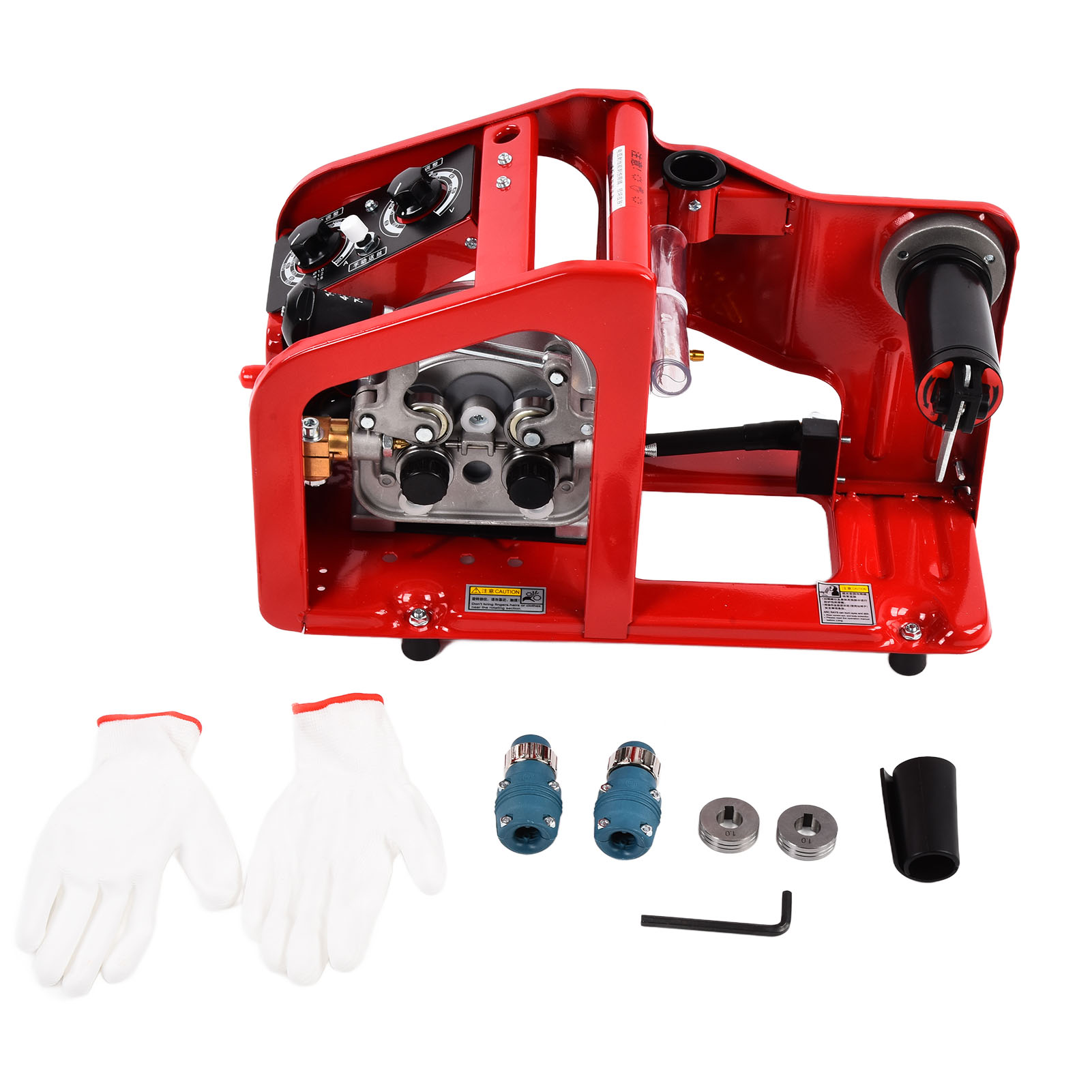

Package List:

1 x Welding Wire Feeder

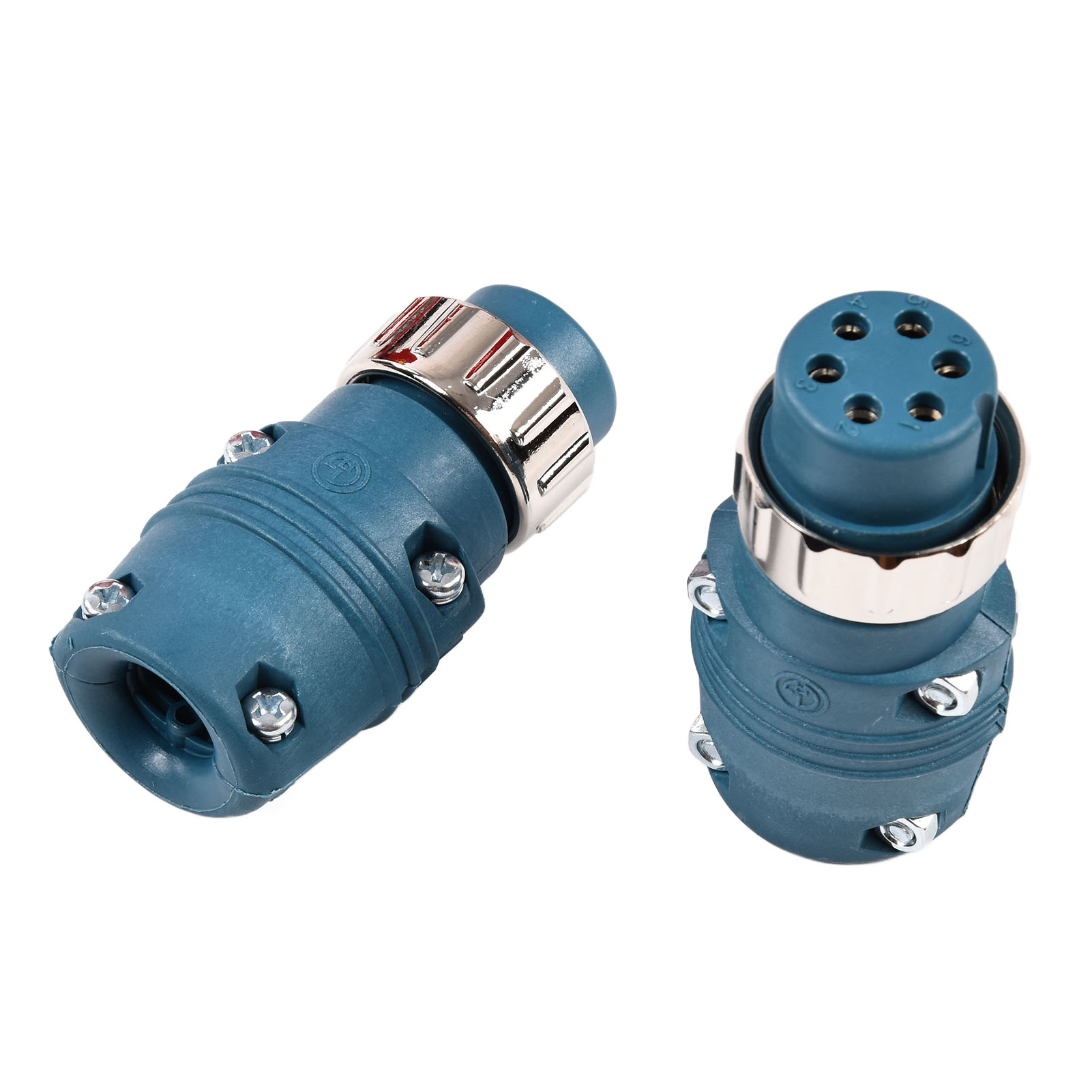

2 x 6 Pin Connector

1 x Glove Pair

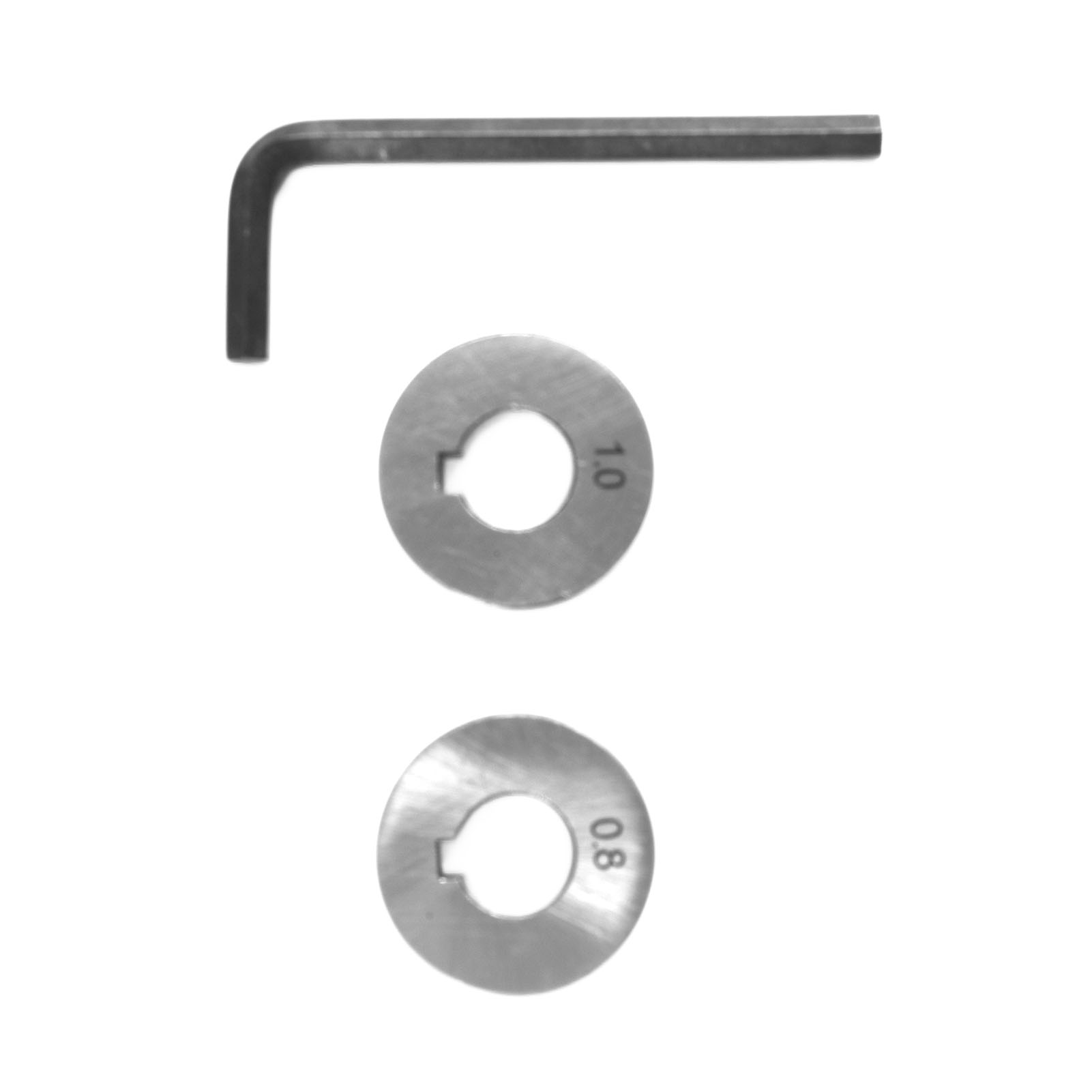

2 x Feeding Wheel

1 x Hex Wrench

1 x Rubber Pad

1 x User Manual

Note:

The arc rays can pierce the eyes and damage the skin. Please wear protective equipment for use.
