Feature:

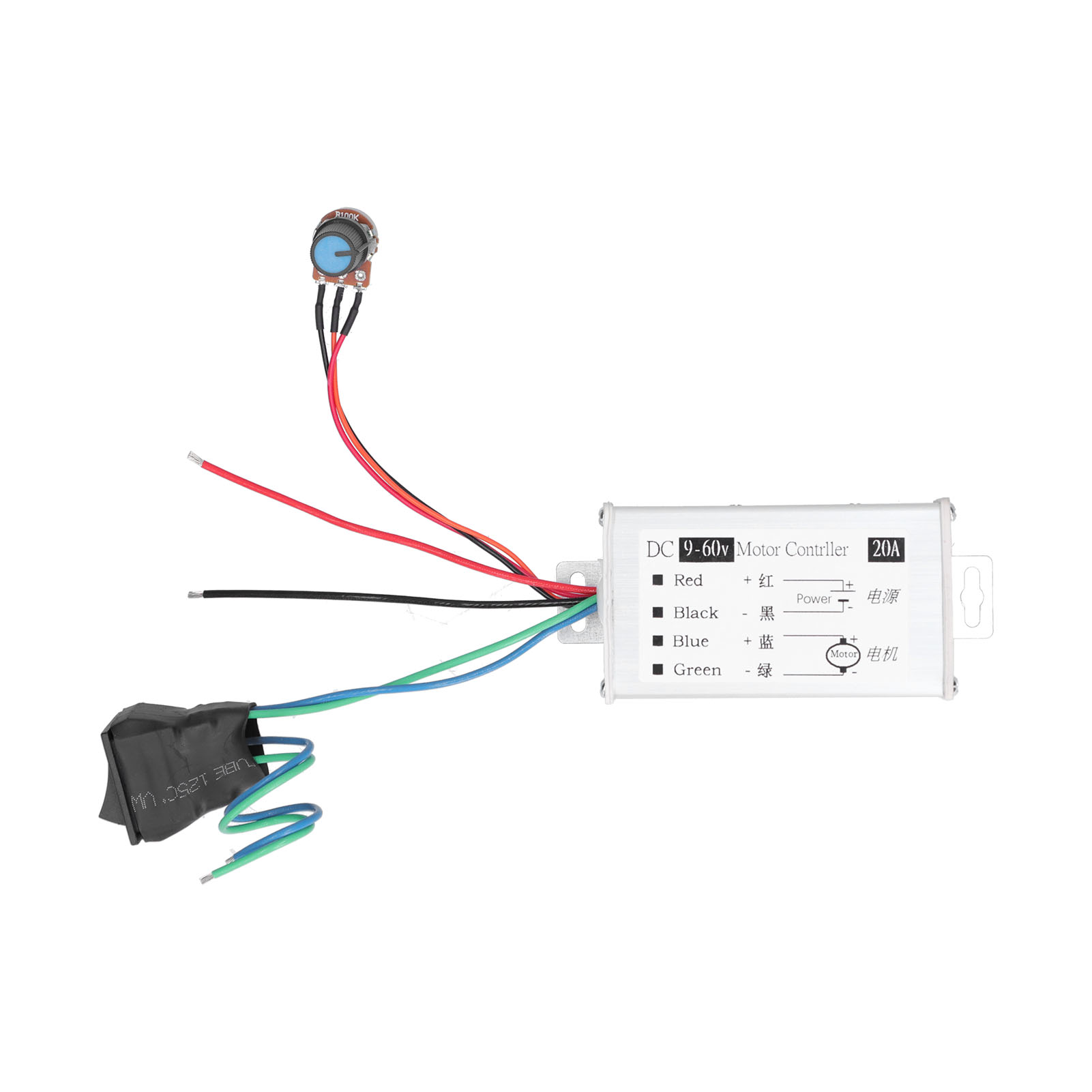

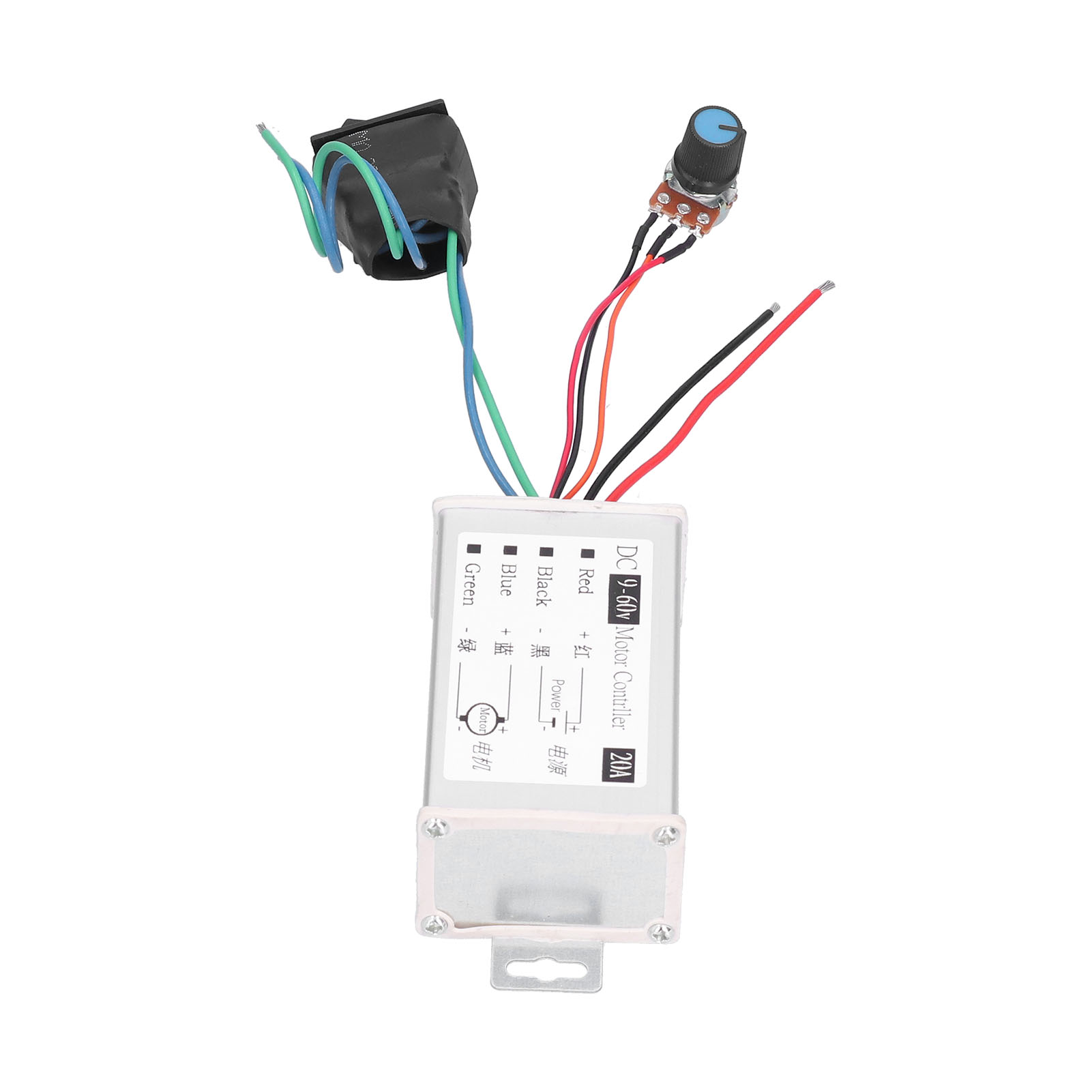

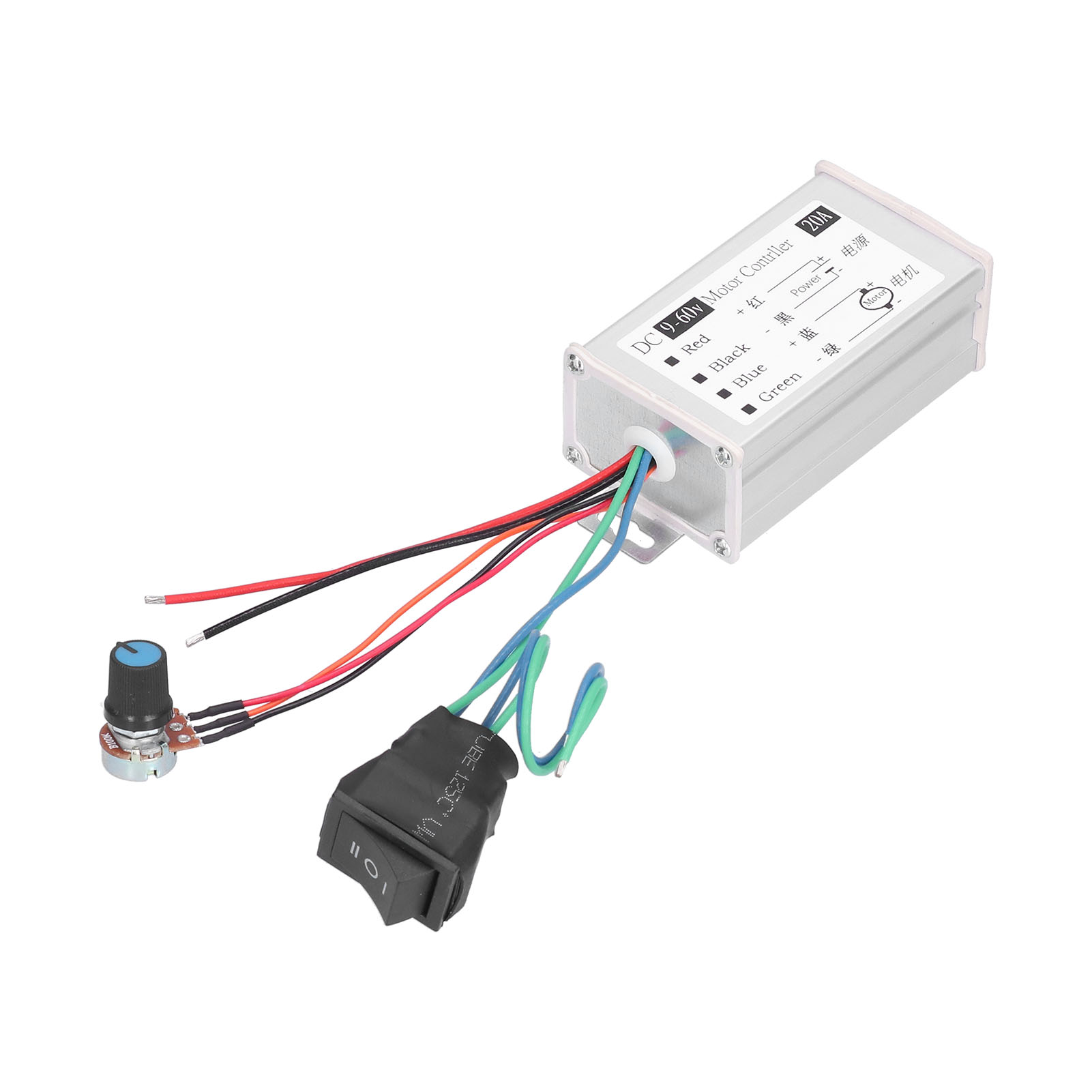

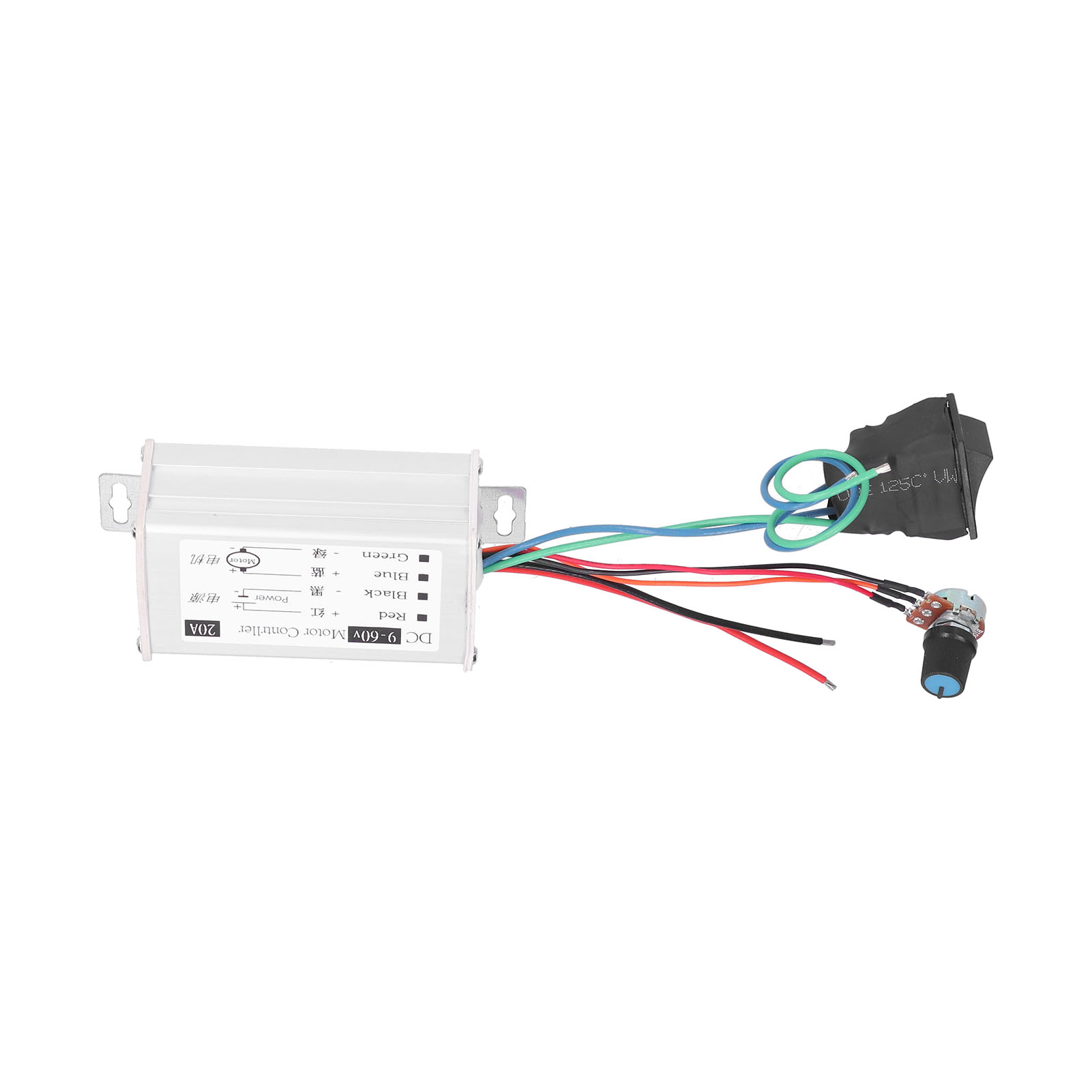

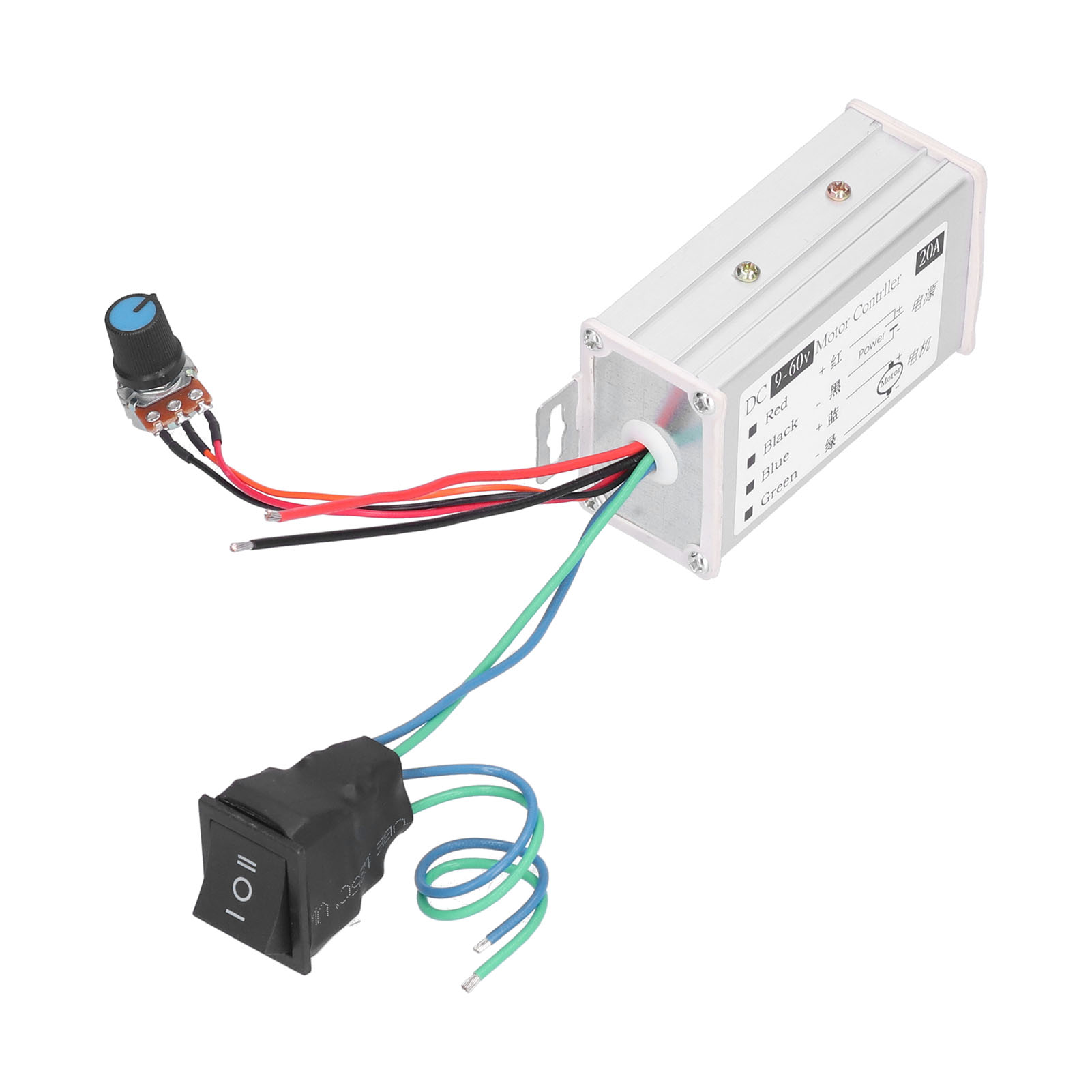

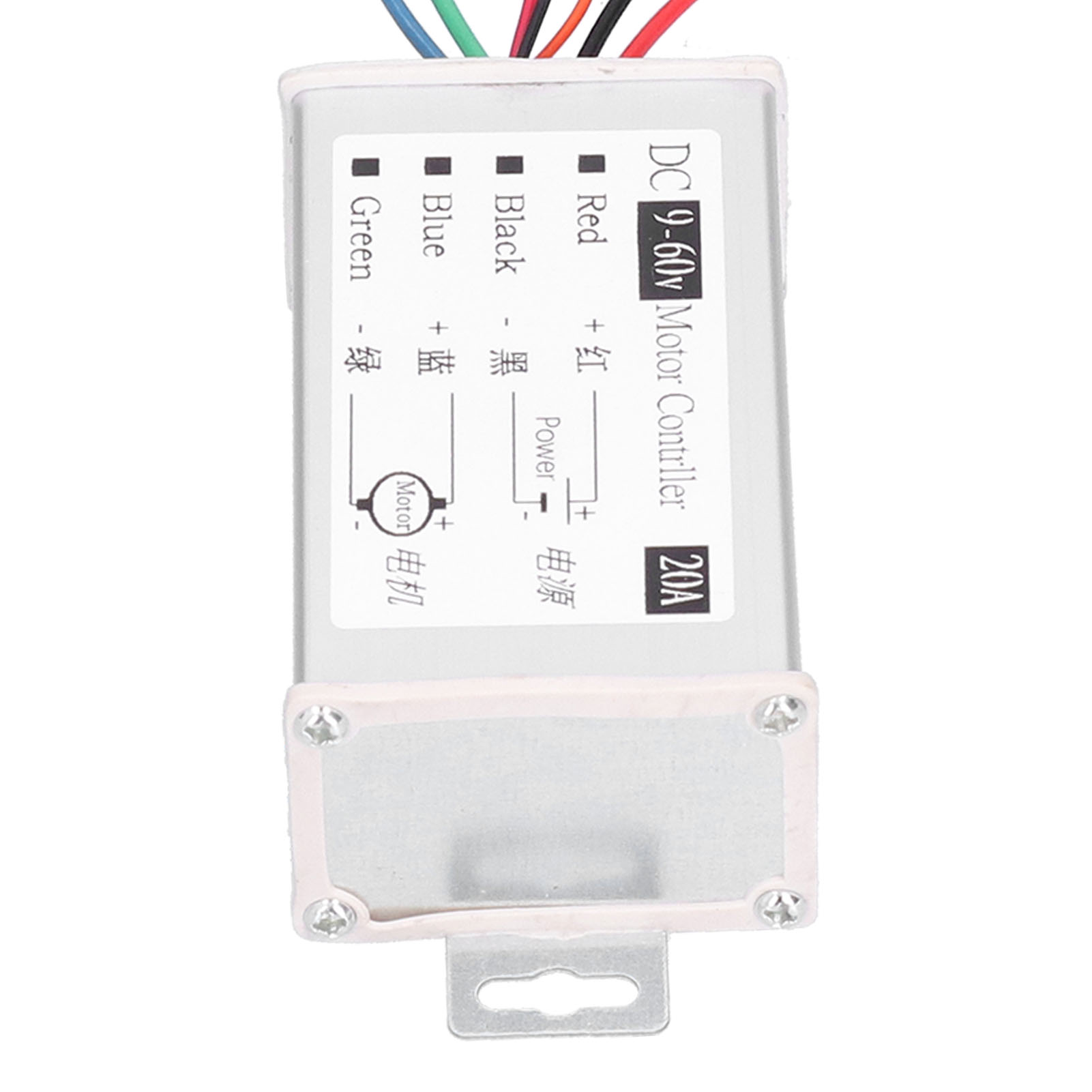

1. Convenient wiring, thick red wire for the positive pole of the power supply, thick black wire for the negative pole

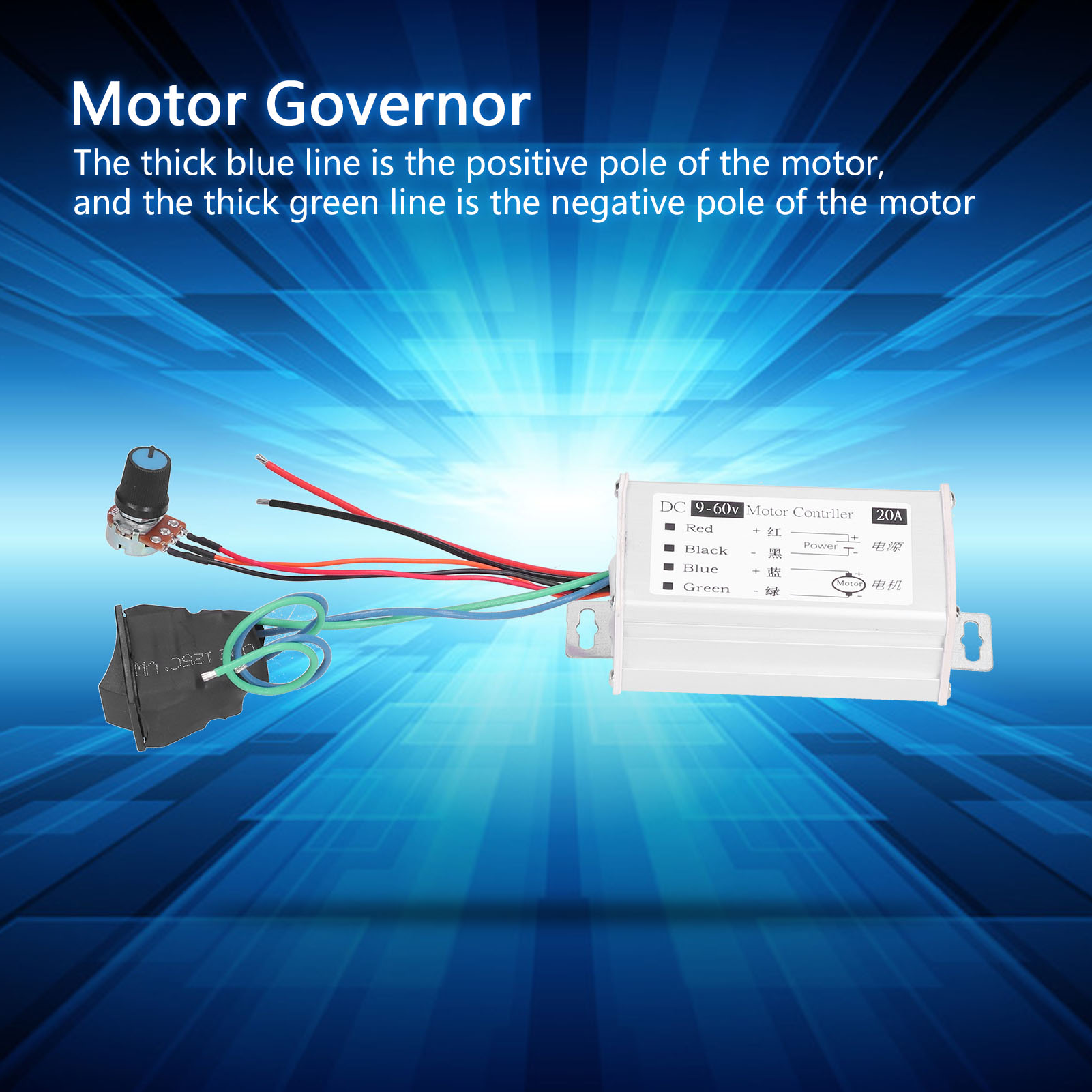

2. The thick blue line is the positive pole of the motor, and the thick green line is the negative pole of the motor
3. The advantage of using pulse width modulation (PWM) for dimming/speed regulation is that the energy of the power supply can be fully utilized and the circuit efficiency is high

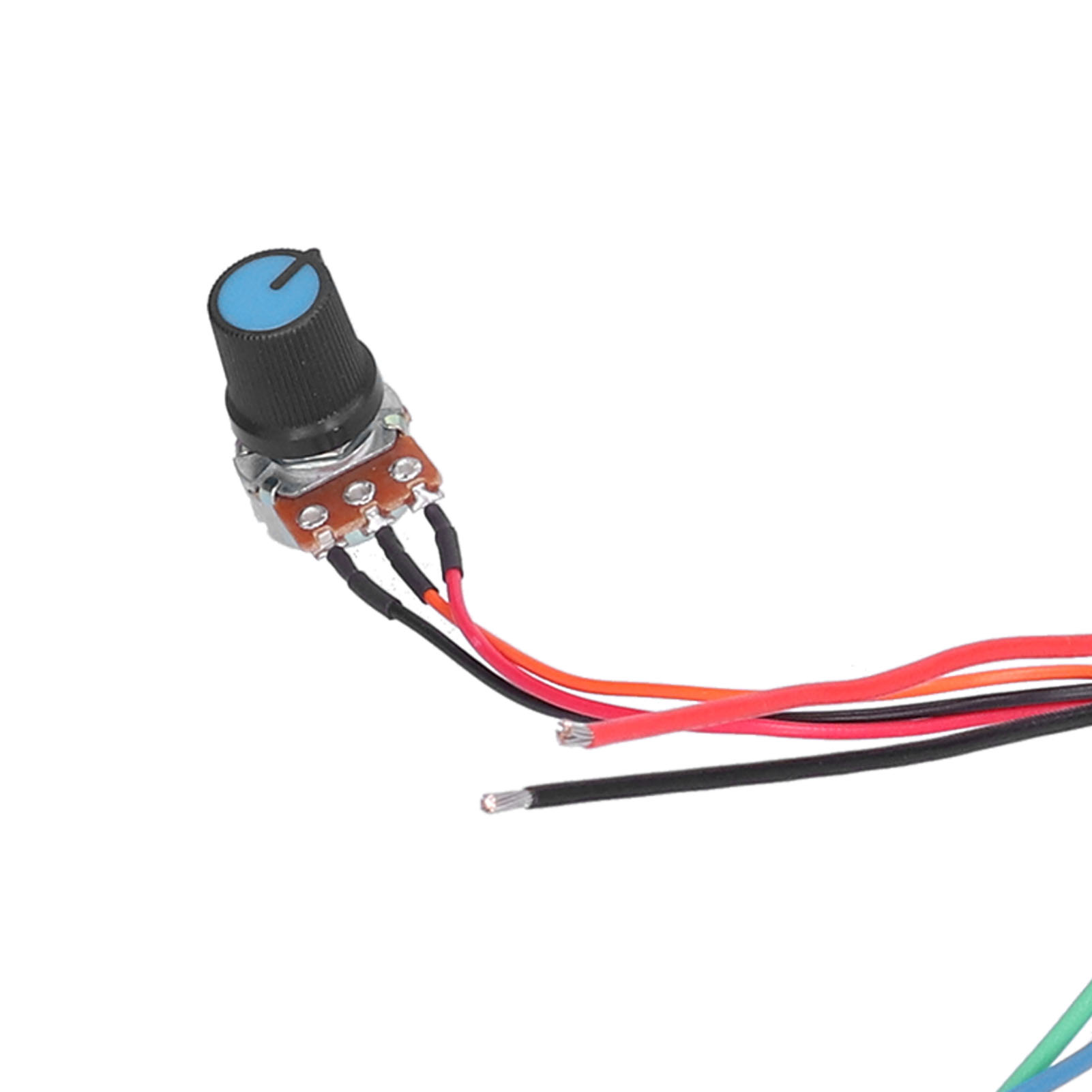

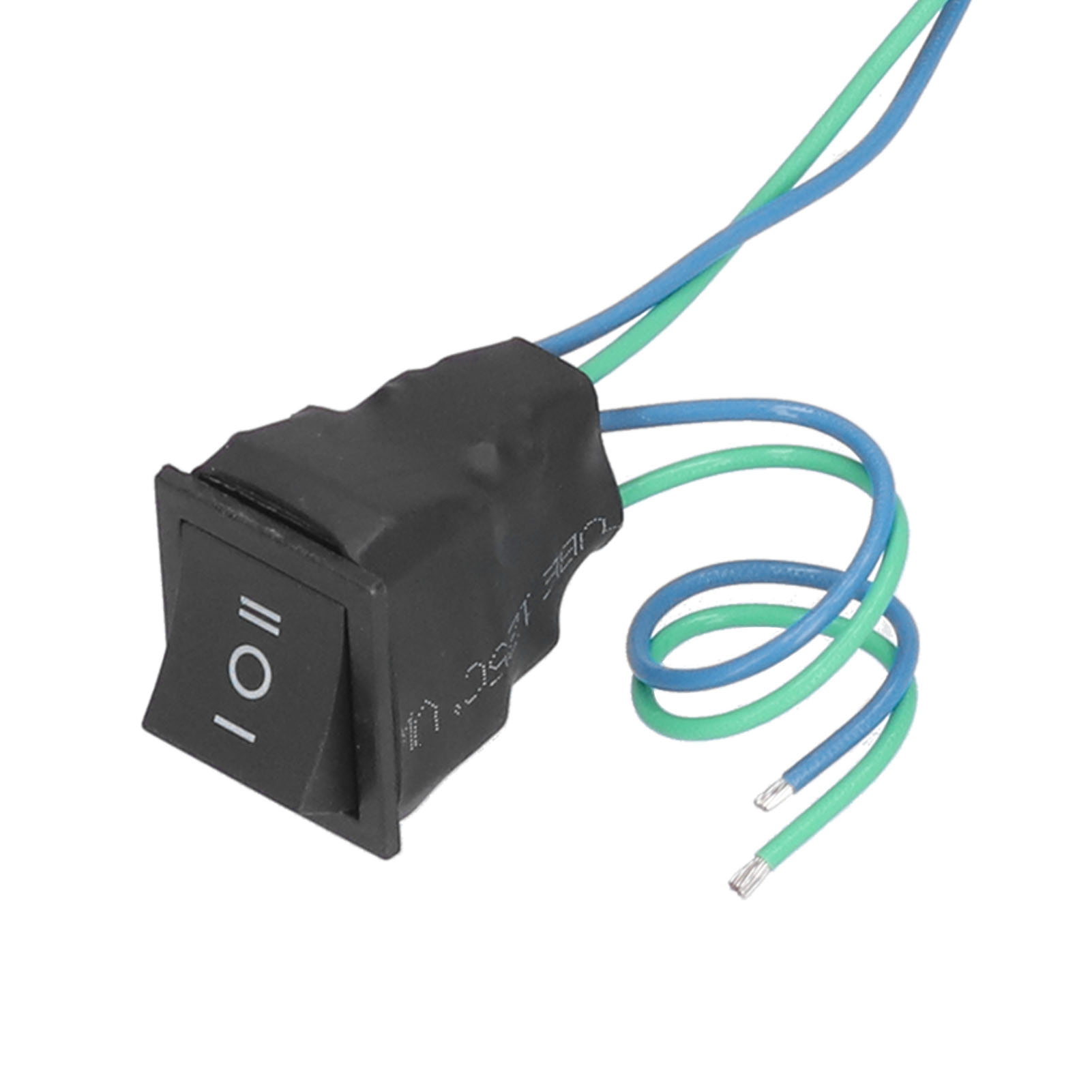

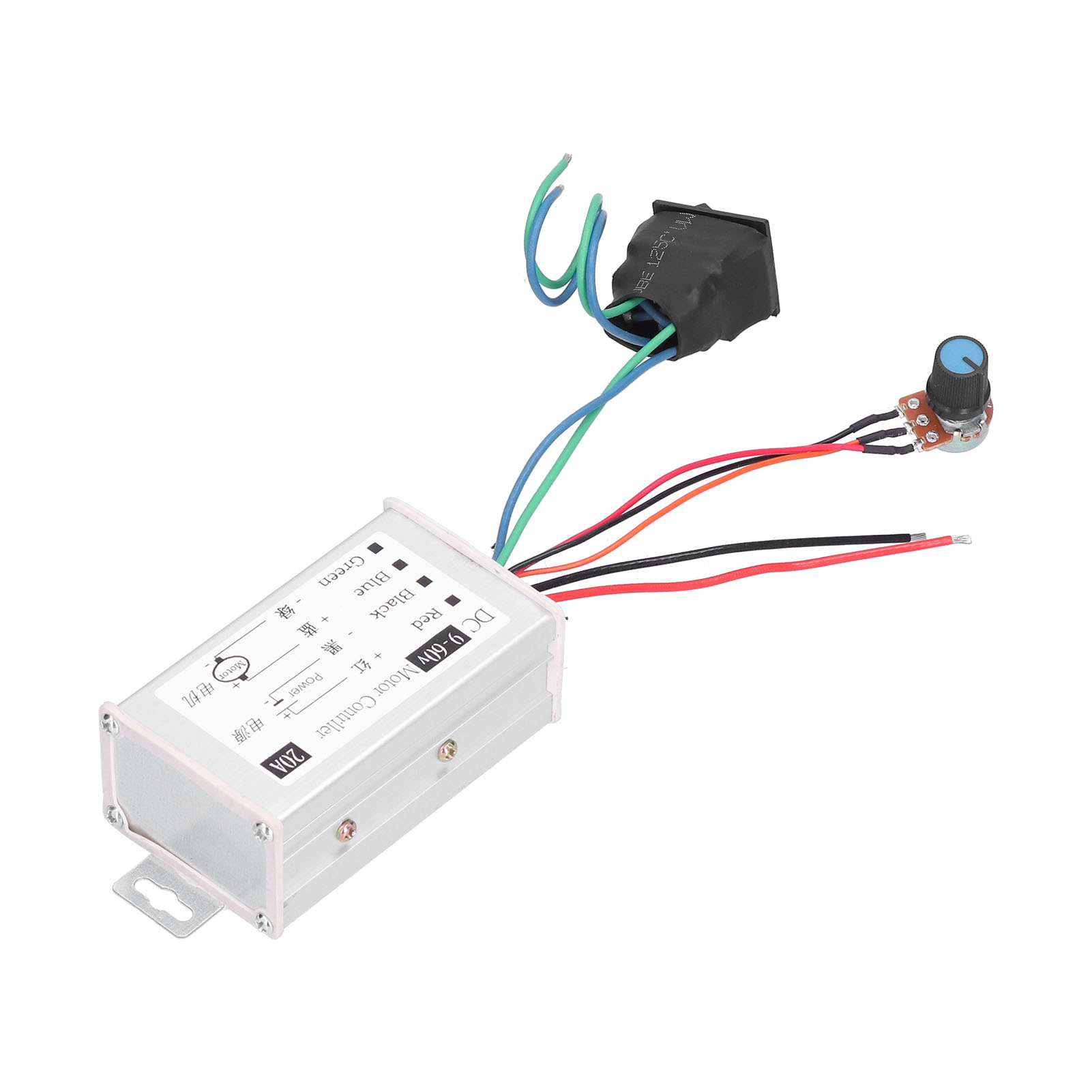

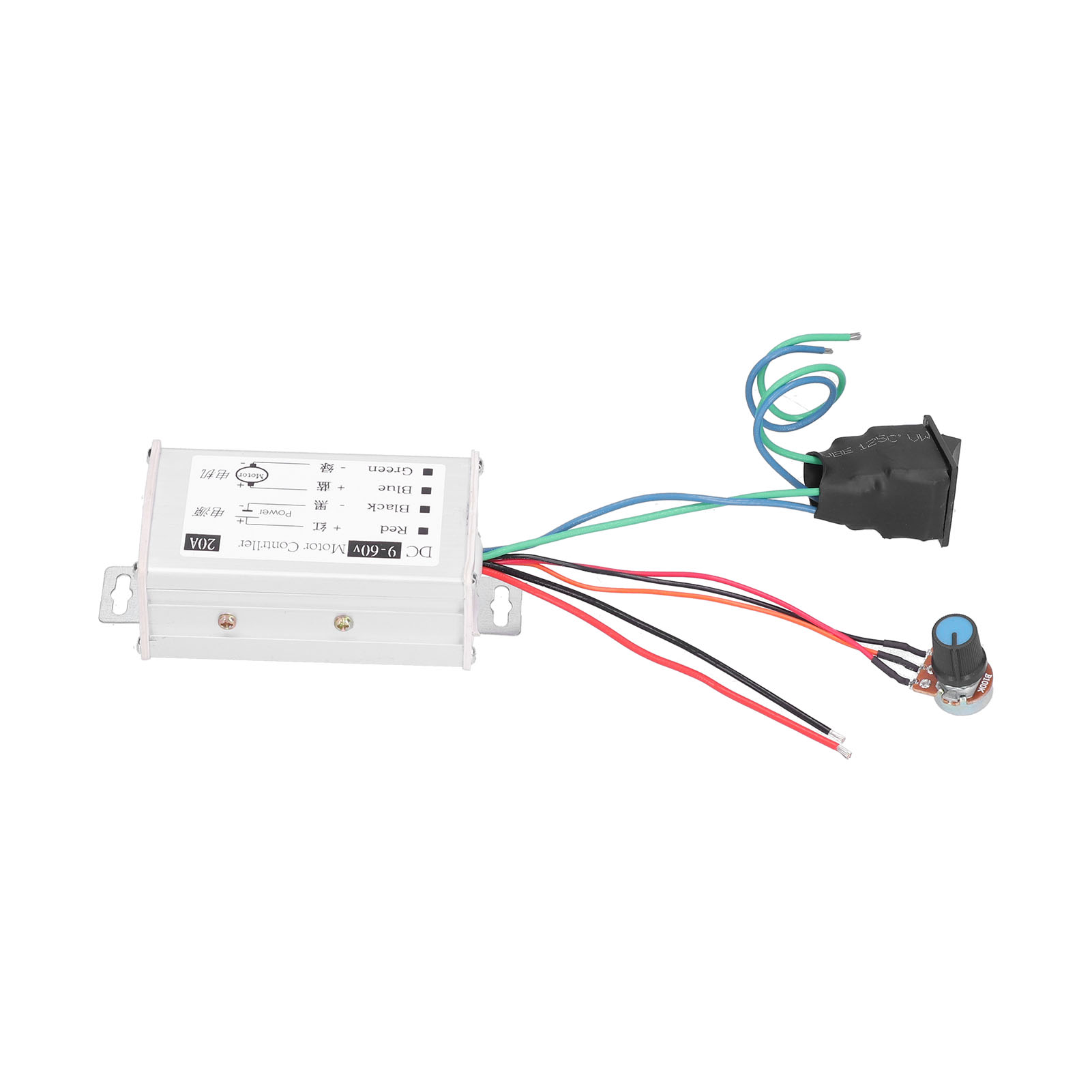

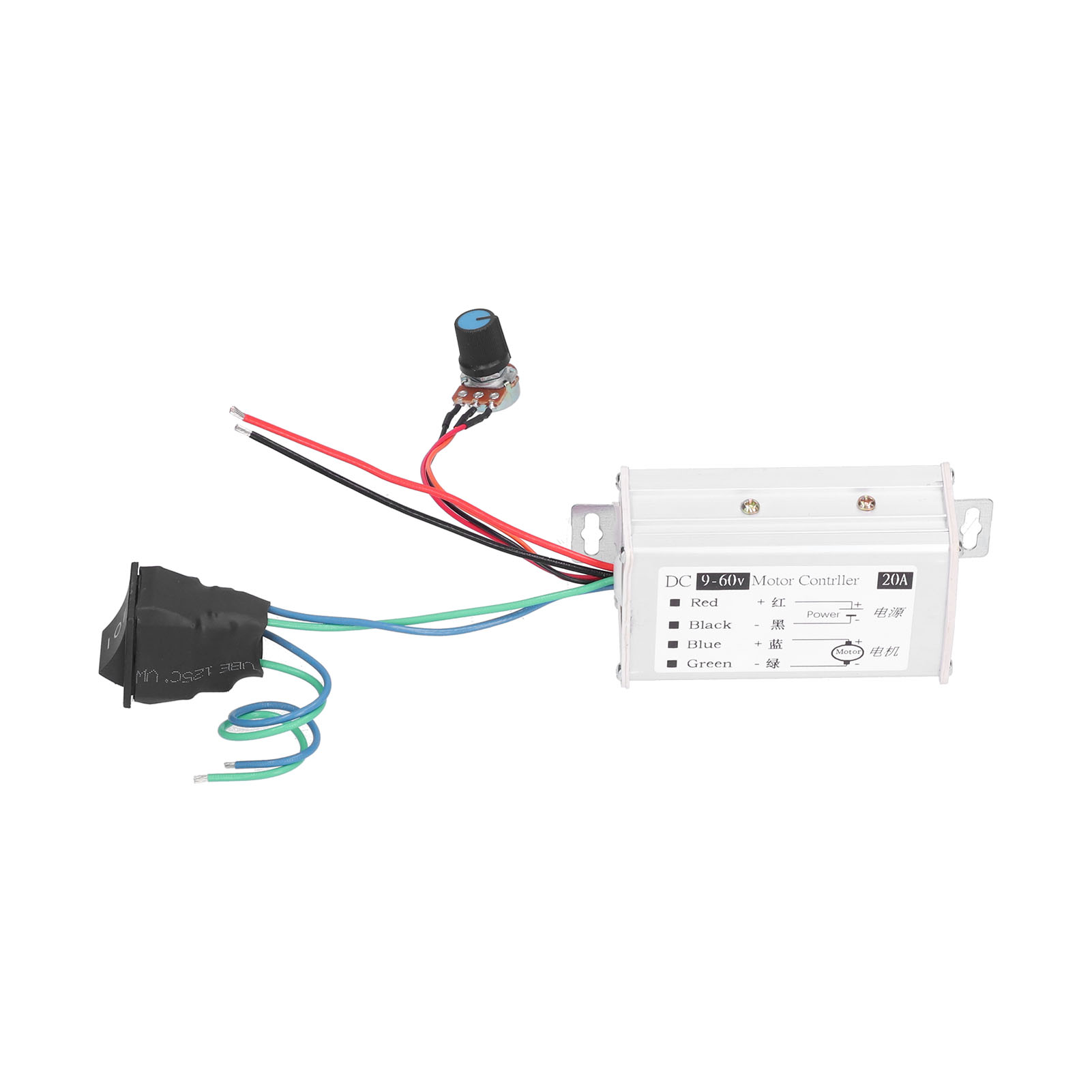

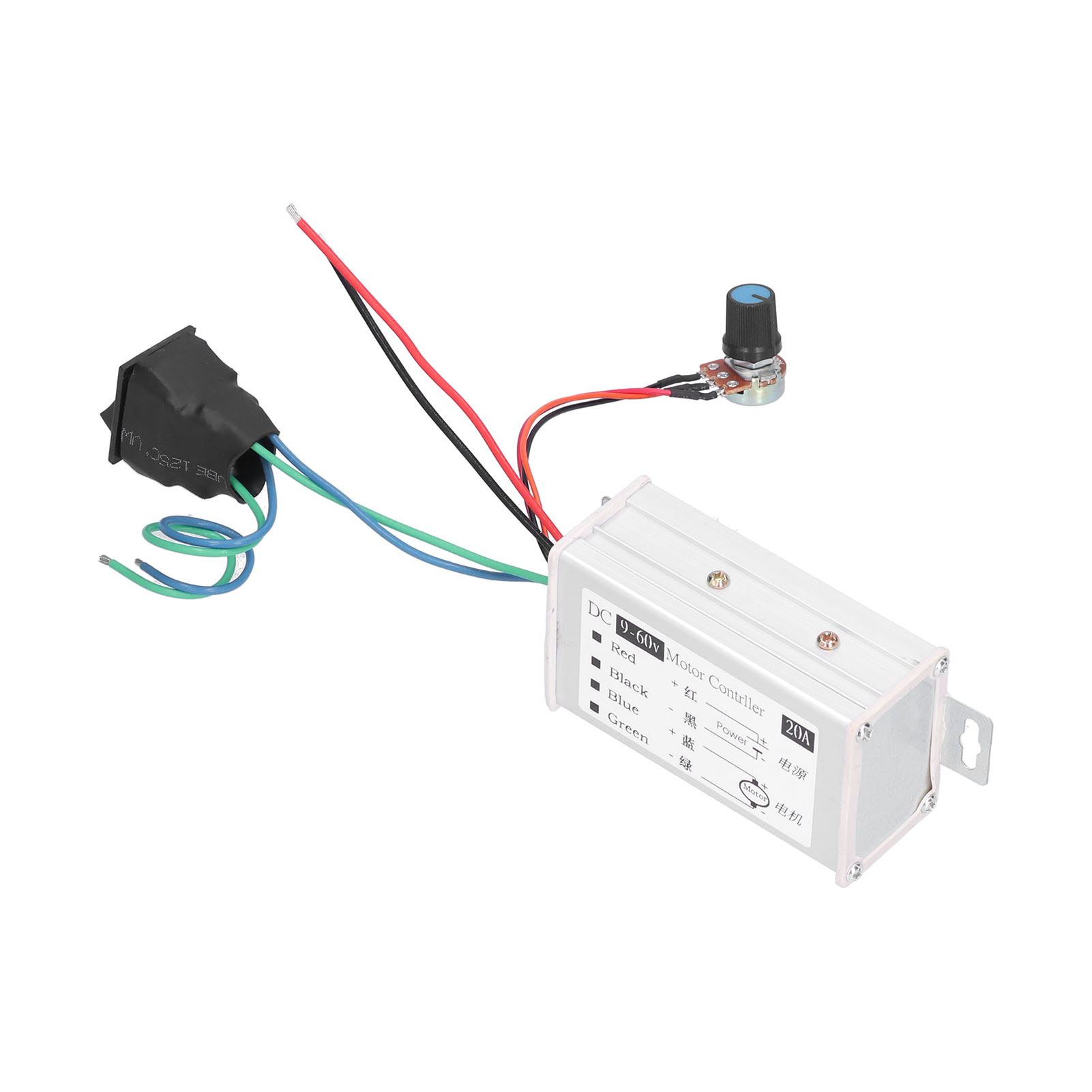

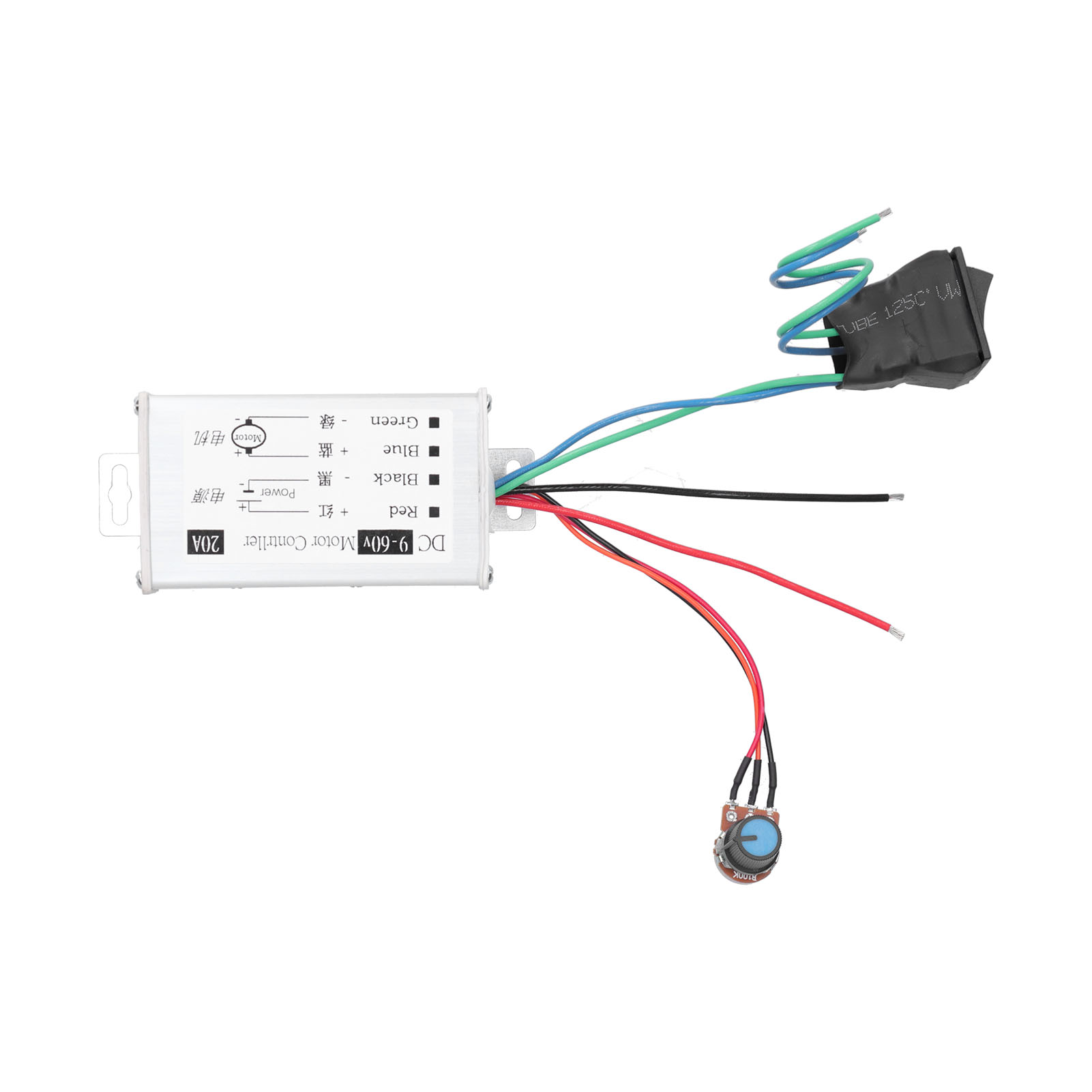

4. The motor control board can adjust the motor speed through the potentiometer; it supports clockwise/counterclockwise rotation adjustment

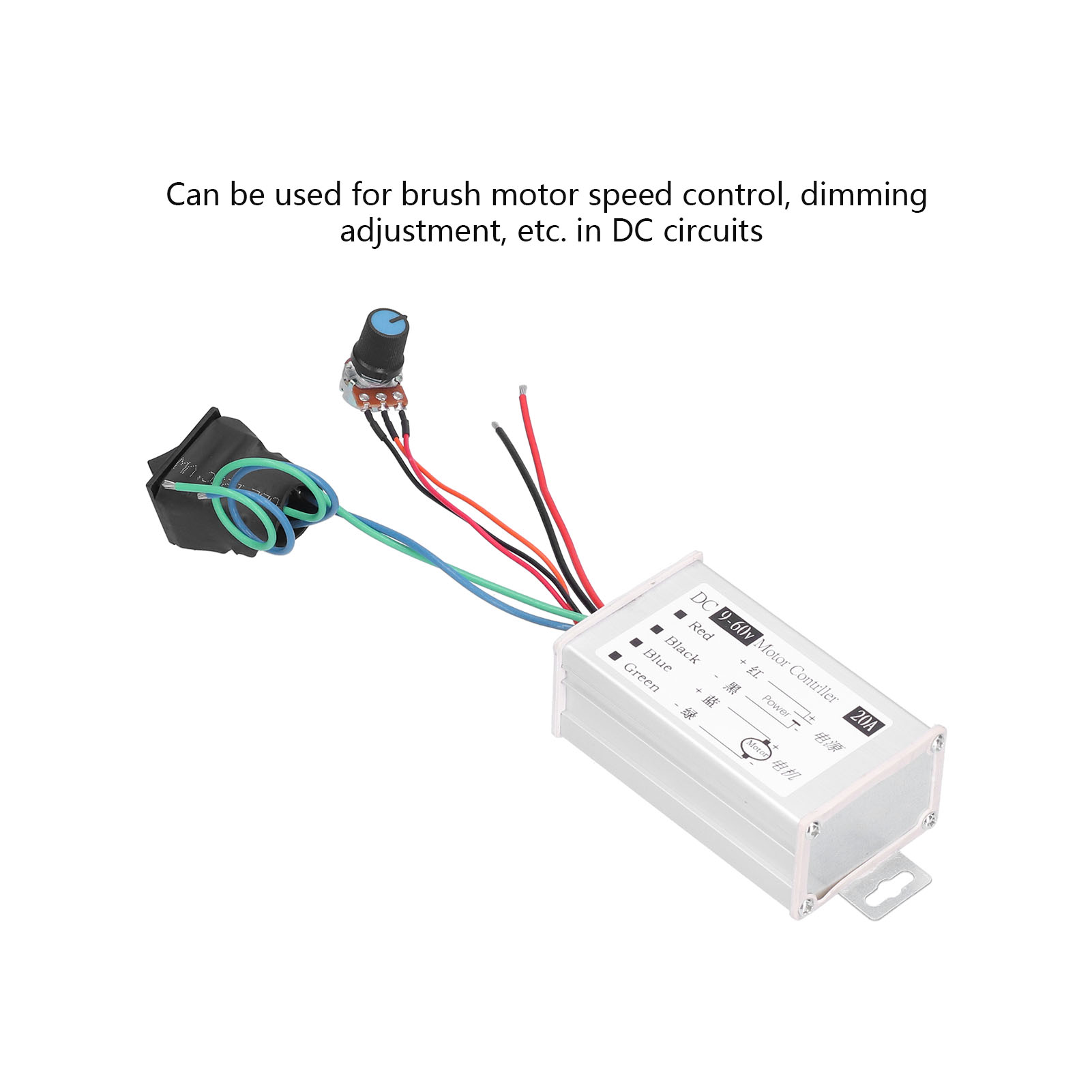

5. Can be used for brush motor speed control, dimming adjustment, etc. in DC circuits

Specification:

Item Type: Motor Governor
Material: Aluminum Alloy
Input Voltage: DC9-60V
Maximum Current: 20A
Continuous Power: 1200W
Speed Regulation Type: Current Regulation
Speed Adjustment Range: 0-100%, Working Frequency: 25KHZ, Support Forward and Reverse Rotation
Purpose: DC Motor Driver Can Be Used for Brush Motor Speed Adjustment, Dimming Adjustment, Etc. in DC Circuits

Package List:

1 x Motor Governor

Note:

The input voltage must be distinguished between "+" and "‑", otherwise it will be burned
