Feature:
1. The sensor probe adopts non‑contact induction, safe to use and long life.

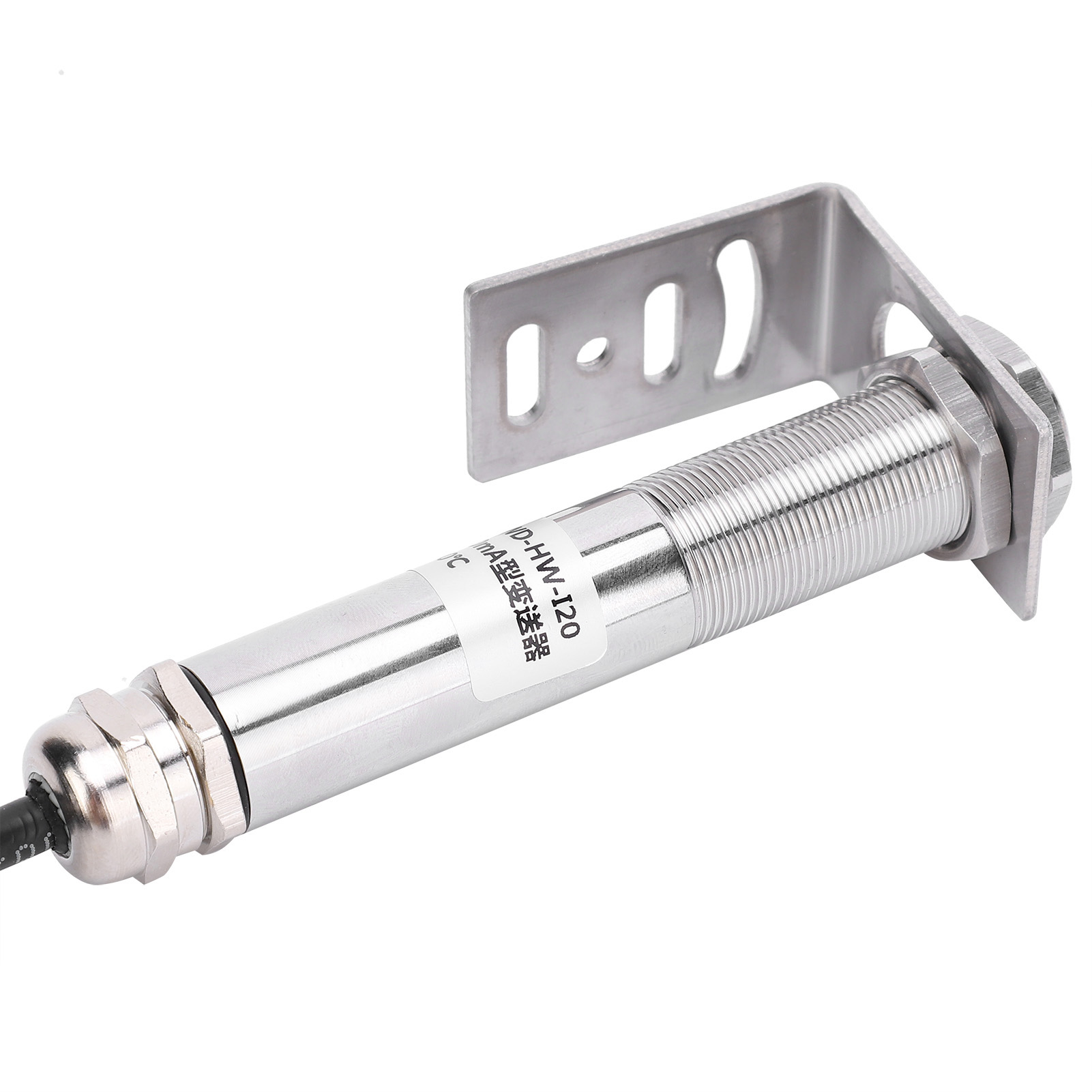

2. The stainless steel bracket is convenient to adjust the measuring head, and the light way must be unobstructed during adjustment.

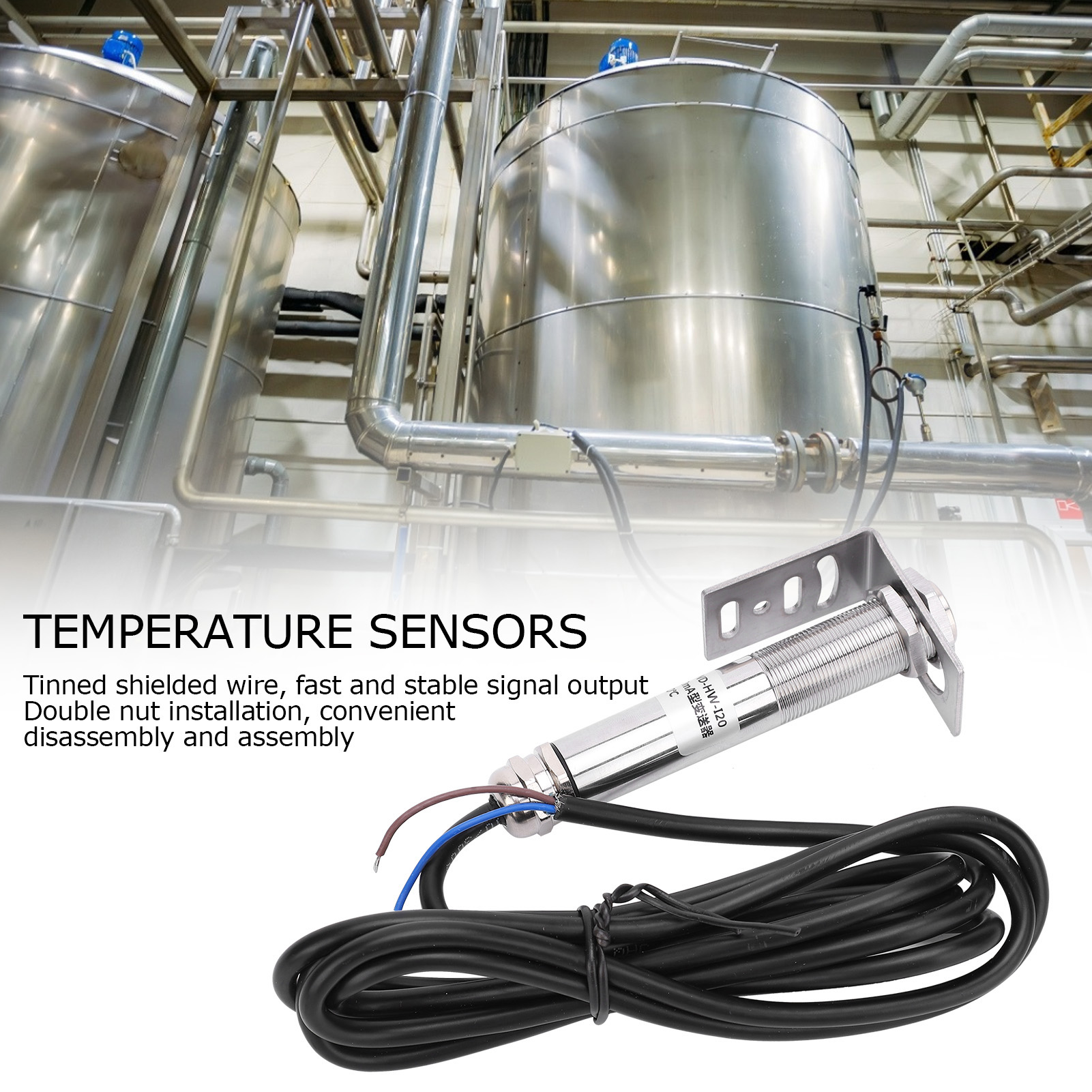

3. The electrical wire adopts high‑quality tinned shielded wire, and the signal output is fast and stable.

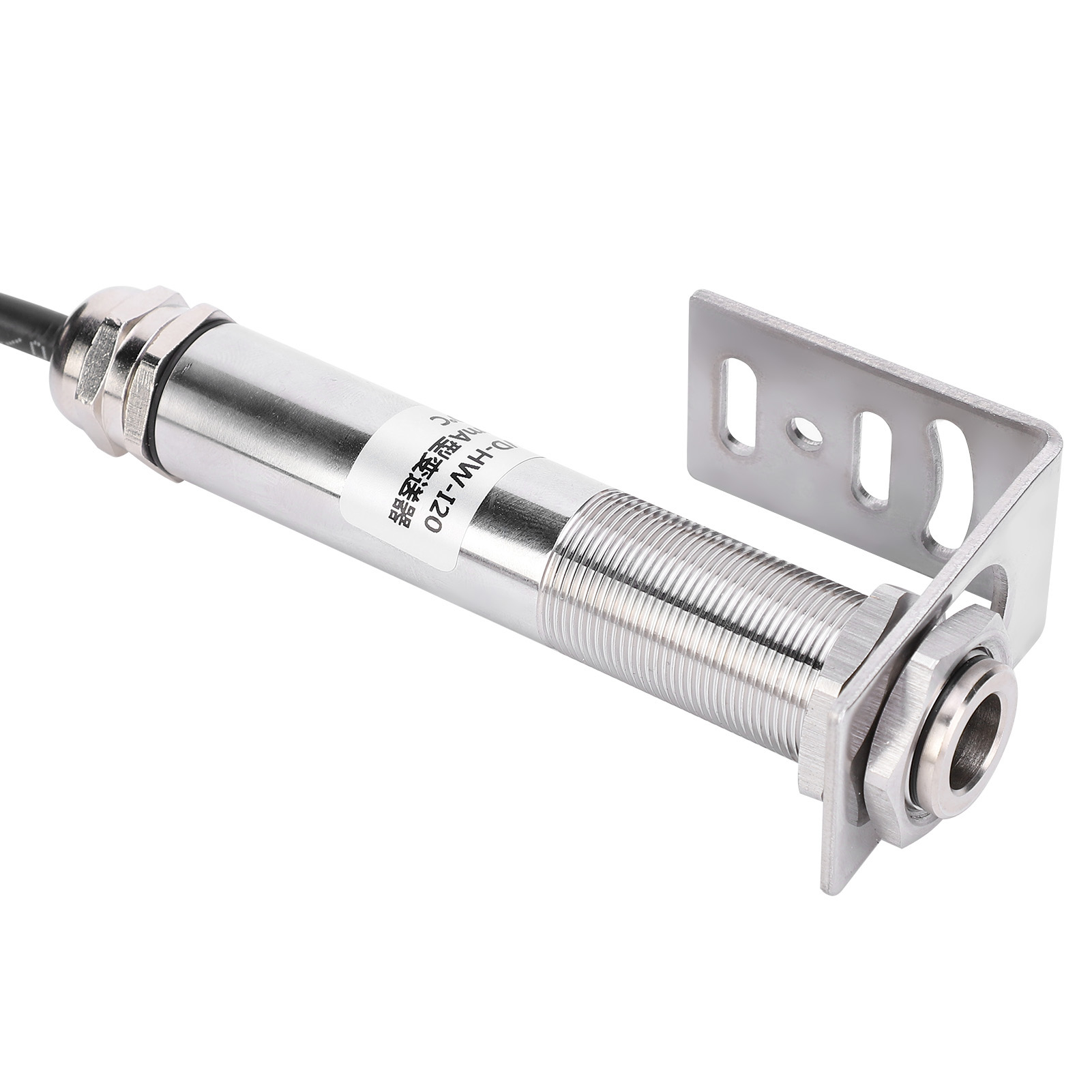

4. The metal shell comes with M18×1 threaded fixing installation, double nut installation, convenient disassembly and assembly.
5. With small size, easy to carry and store, convenient to use and with good performance.
Specification:

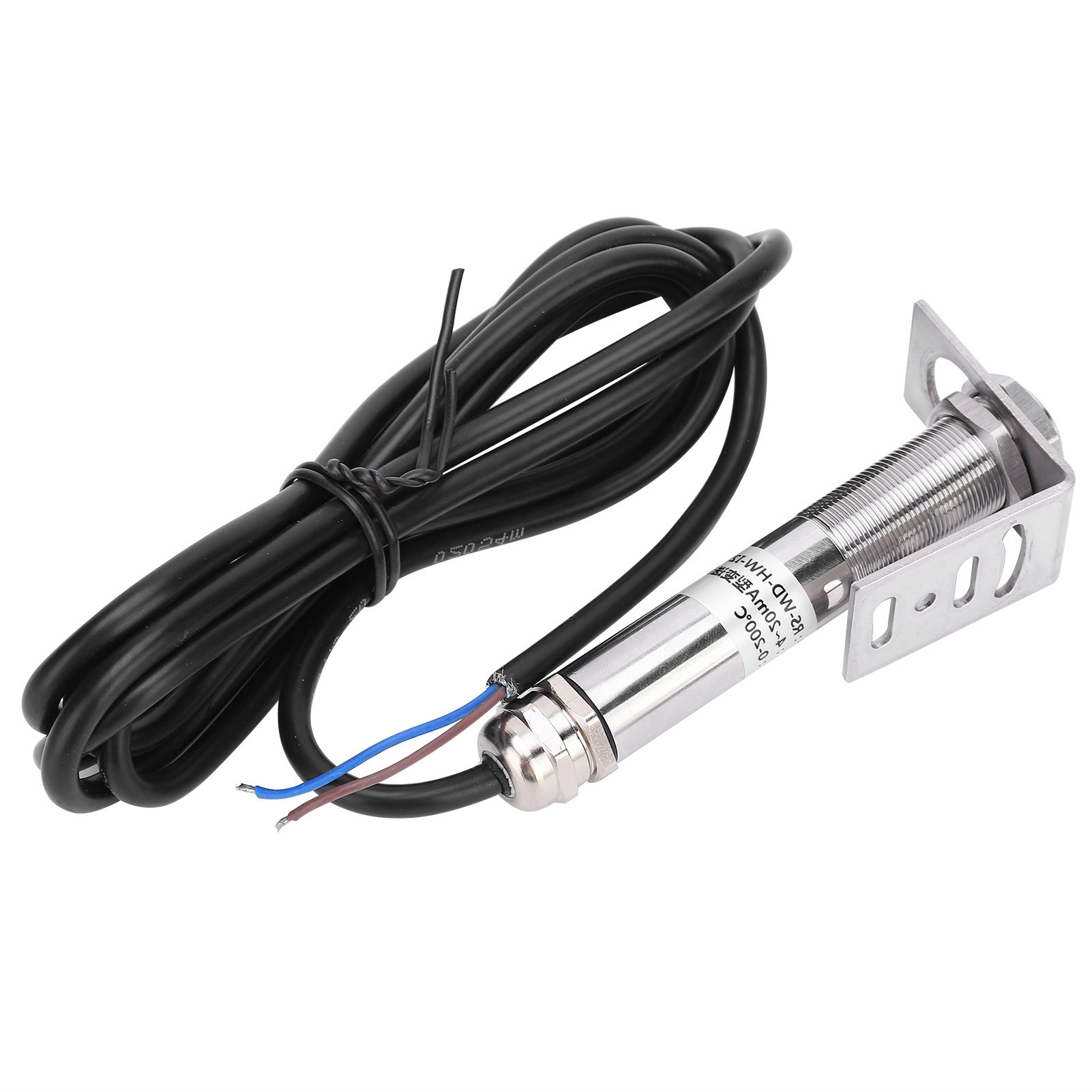

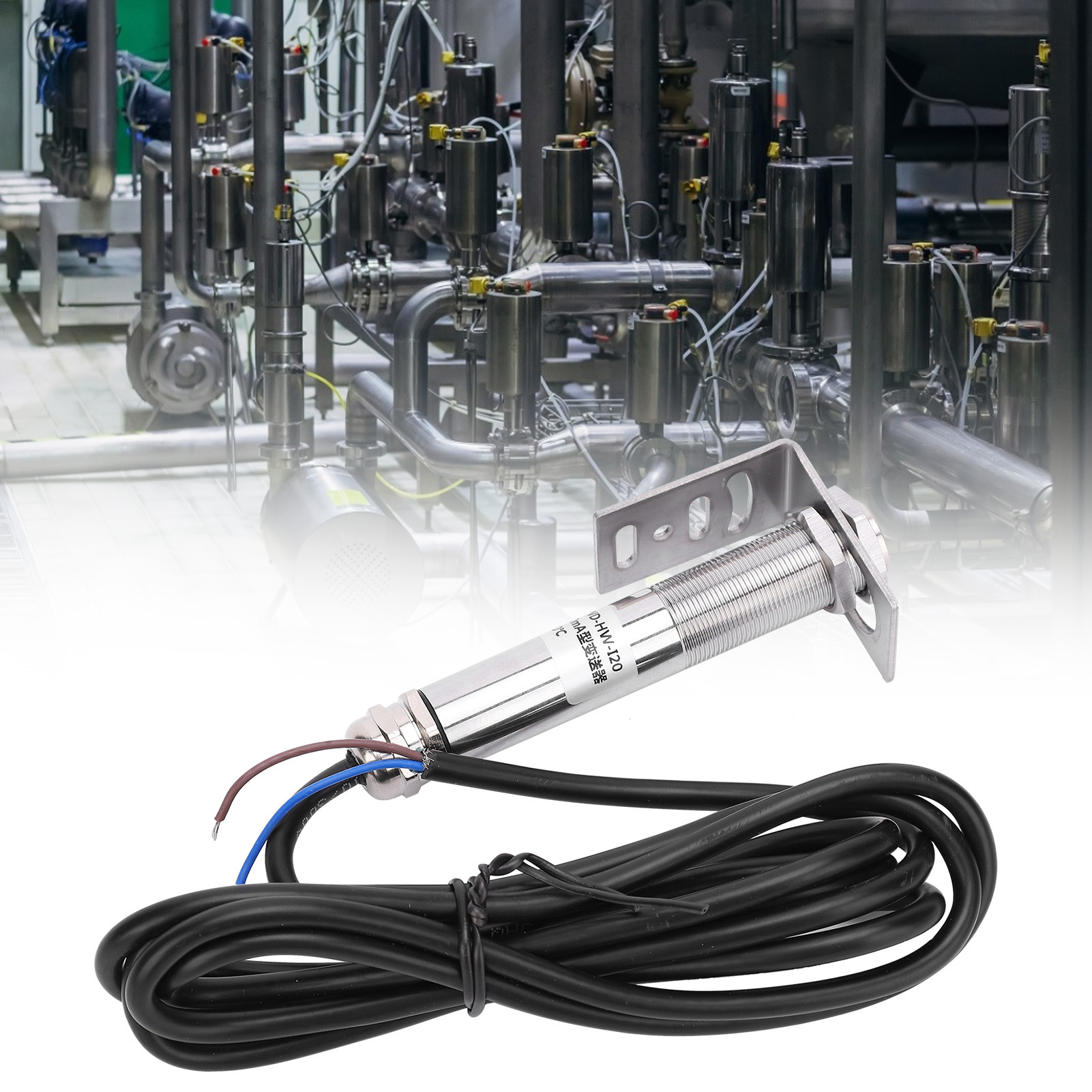

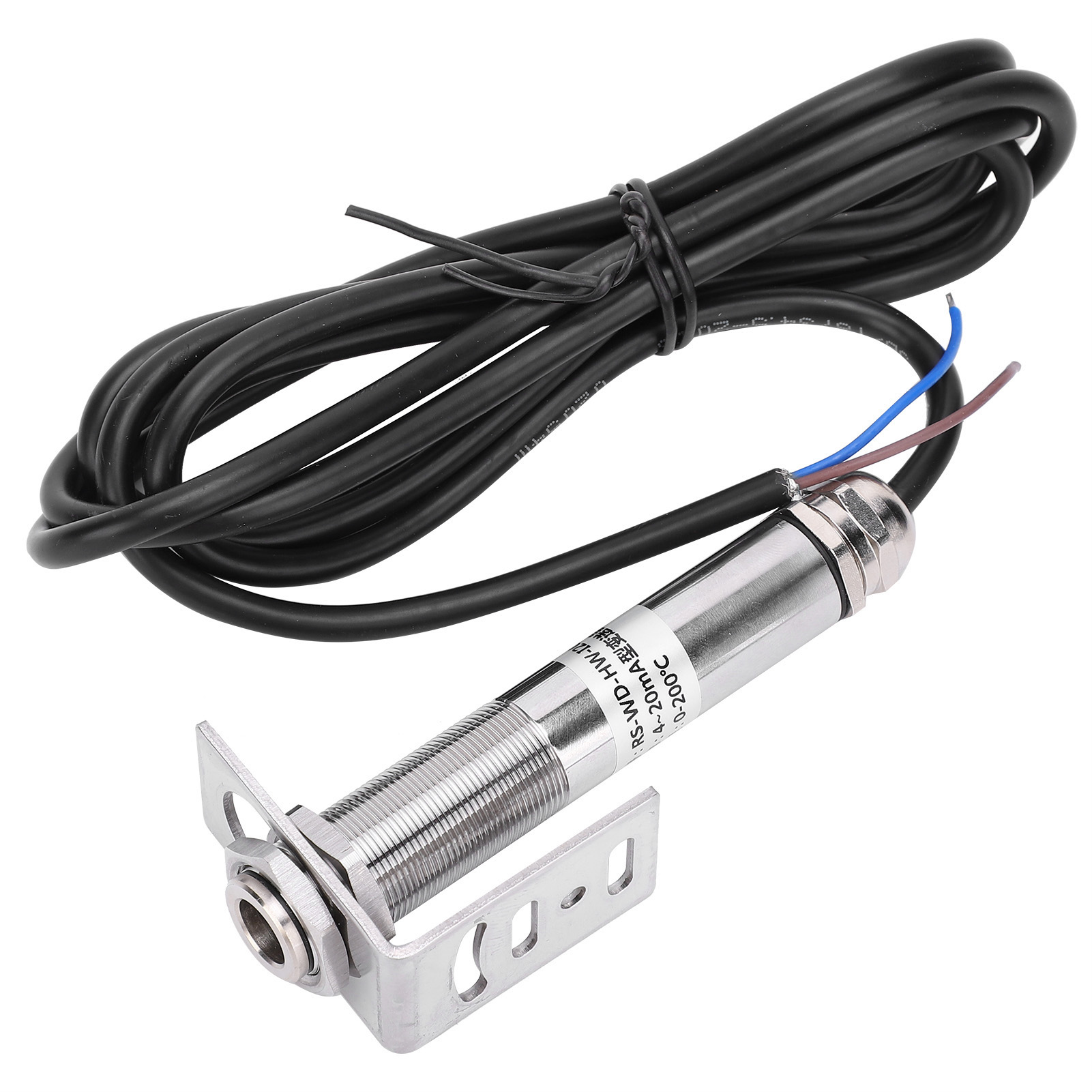

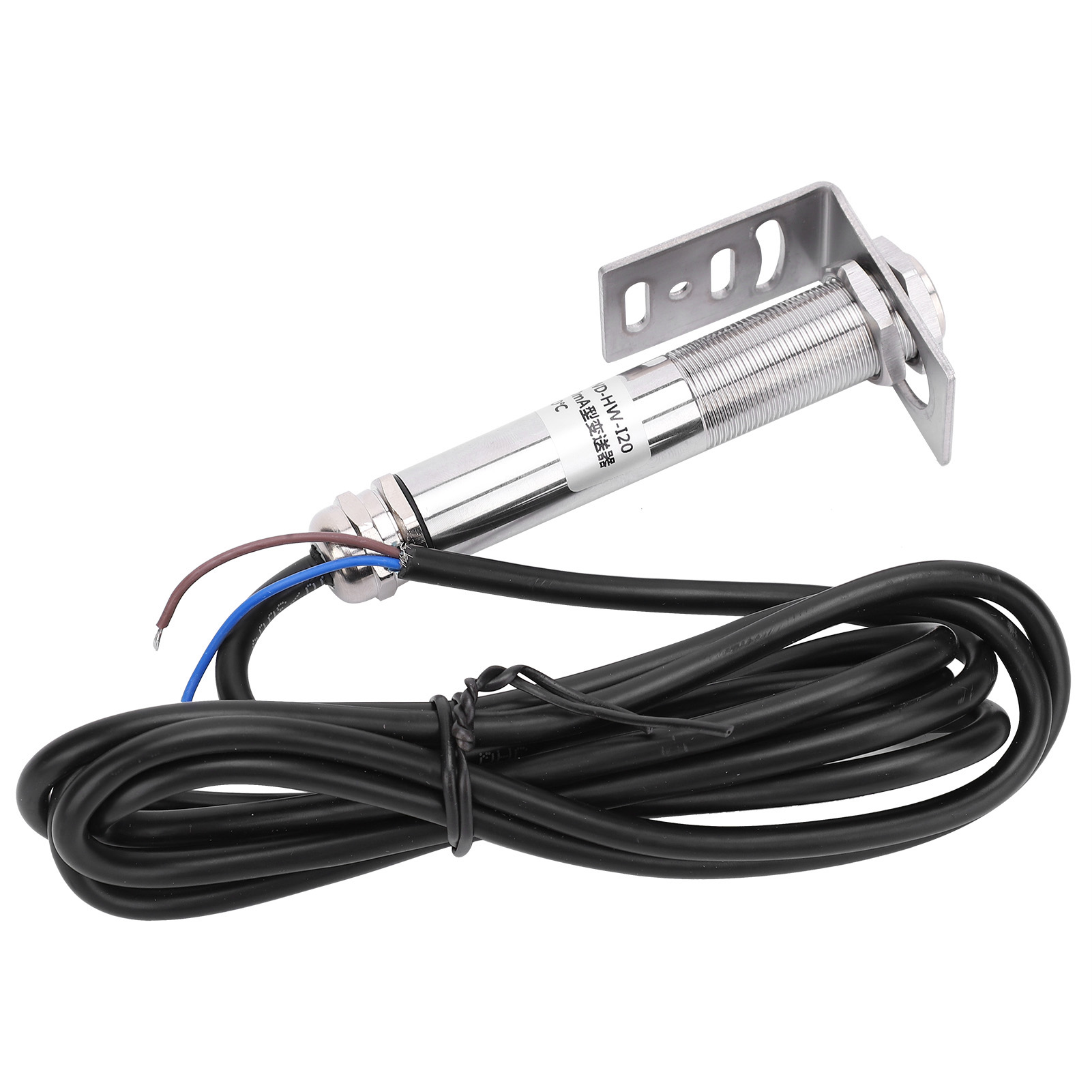

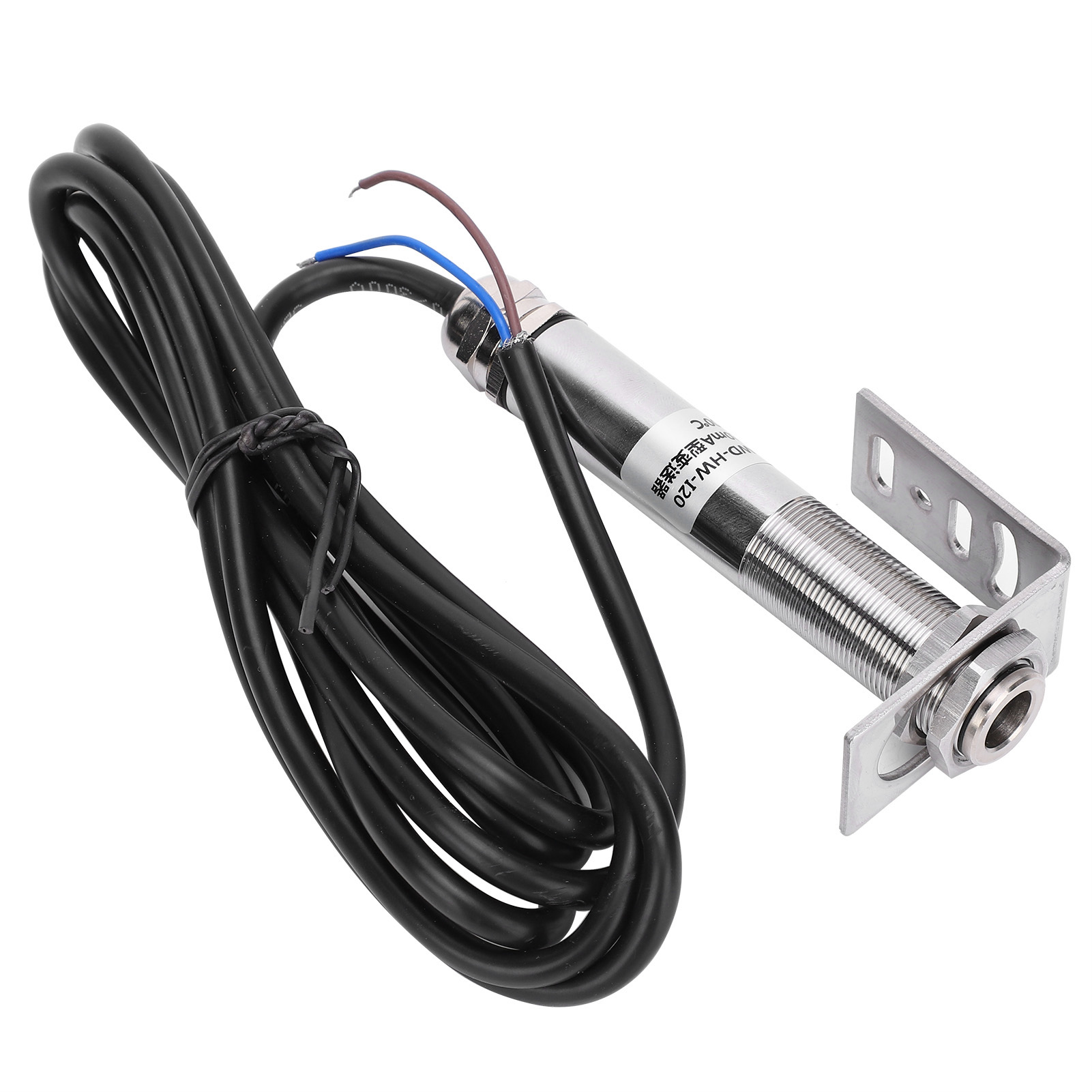

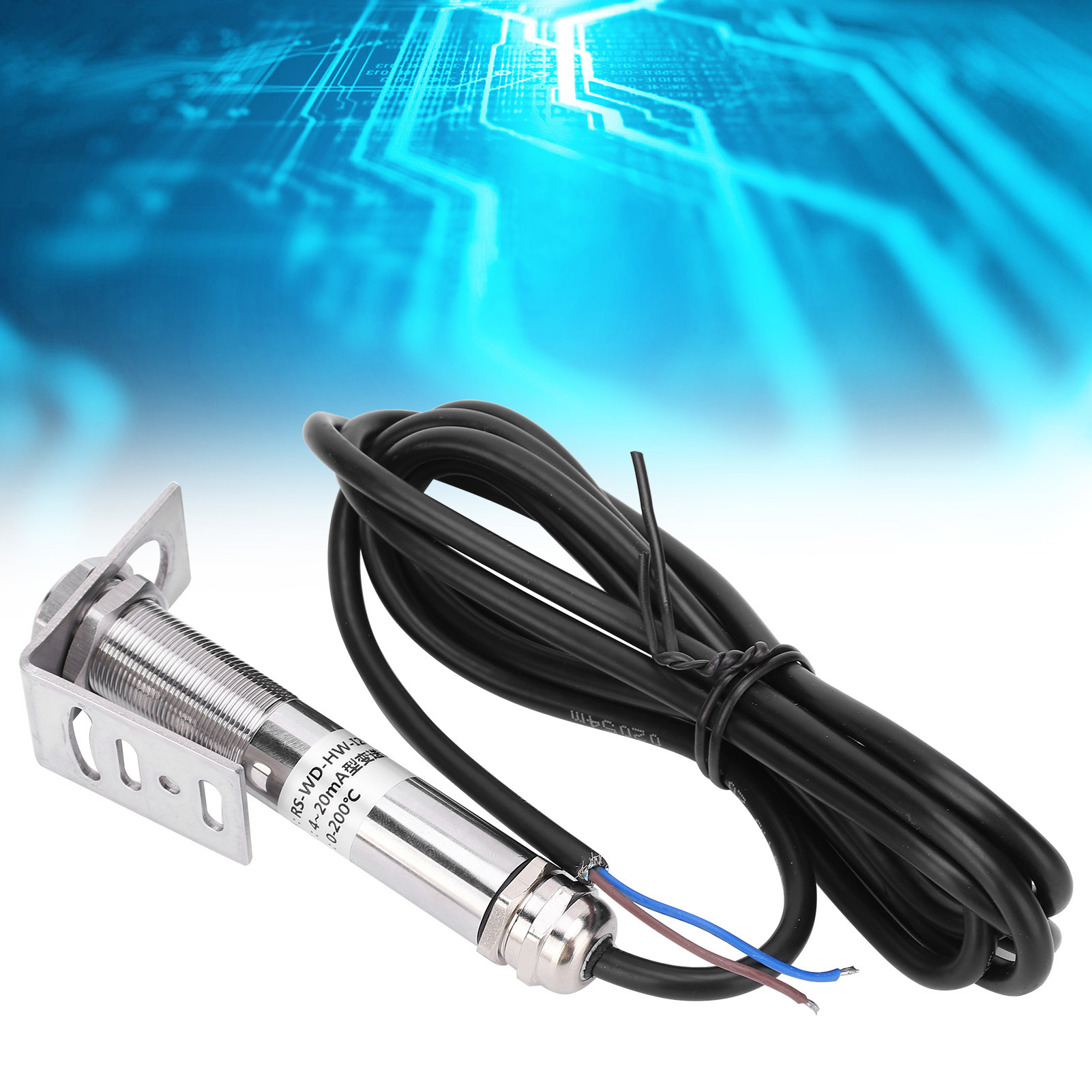

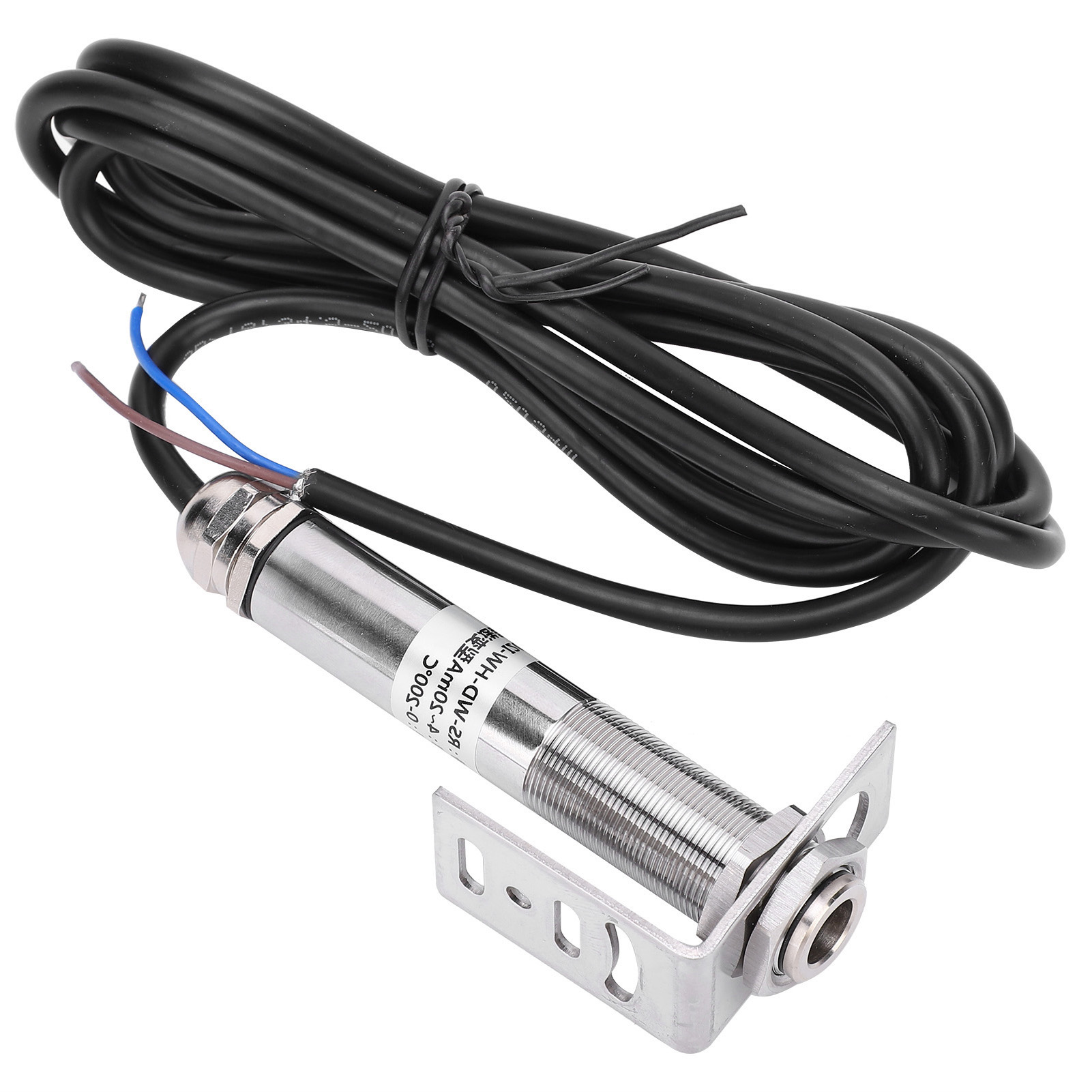

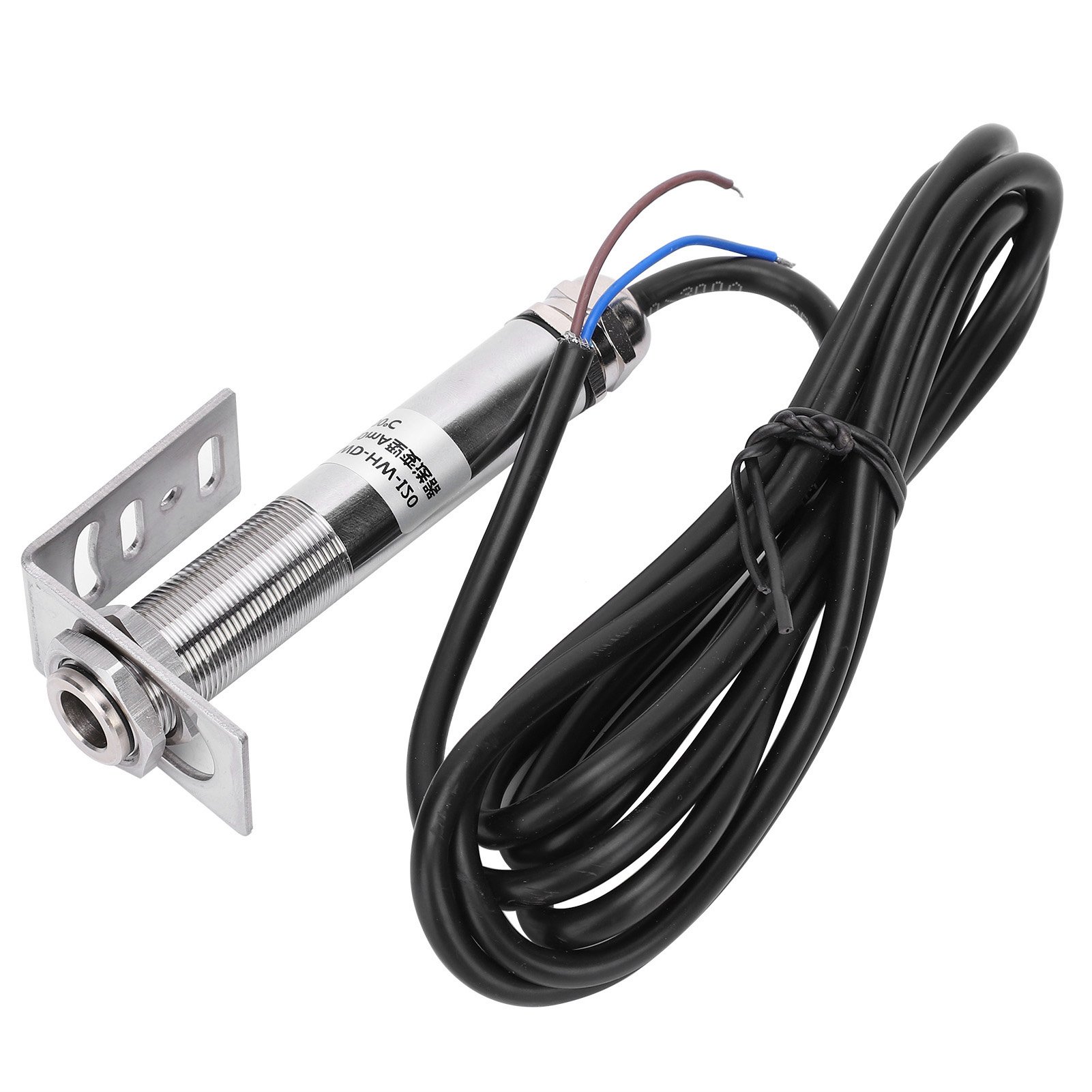

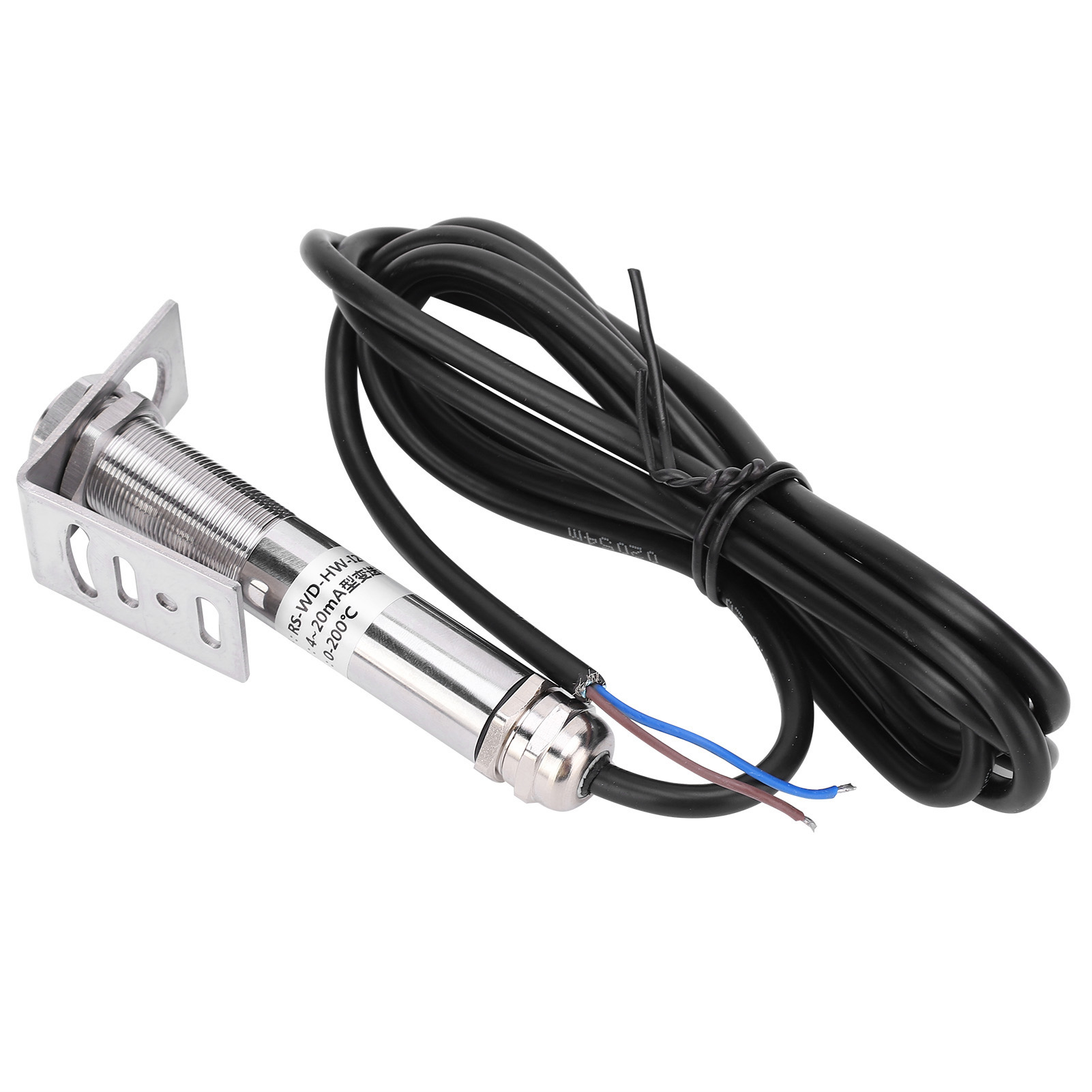

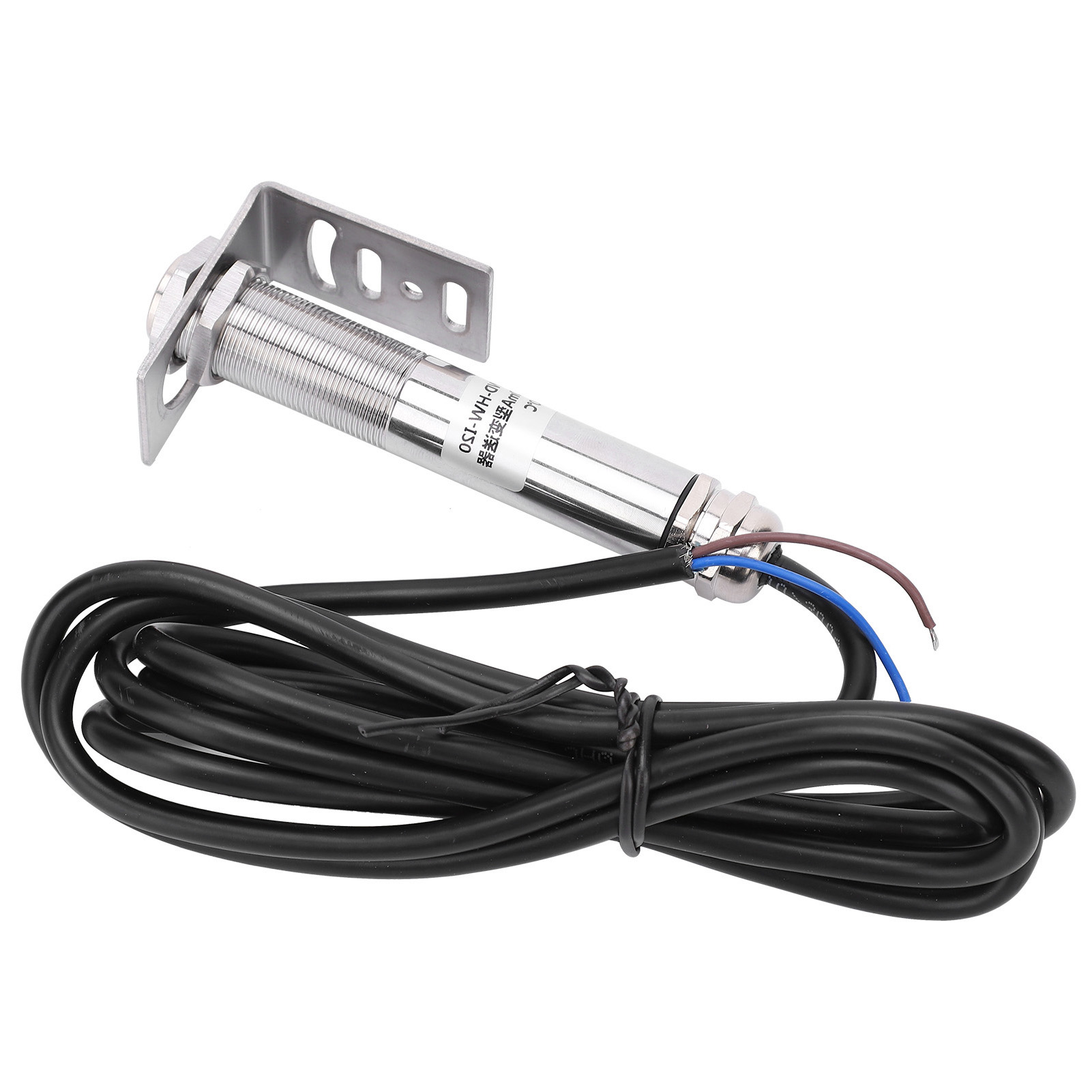

Item Type: Non‑Contact Infrared Temperature Sensors
Material: Stainless steel
Purpose: Measuring water temperature, oil temperature, food, human body, ceramics, asphalt, rubber, chemicals, coal, graphite, metal, glass, etc.
DC Power Supply: 10-30VDC
Maximum Current: 50mA
Output Signal: 4-20mA
Equipment Power Consumption: ≤0.5W
Measurement Accuracy: ±1% of the measured value or ±1.5℃, whichever is the largest
Spectrum Range: 8~14μm
Response Time: 150ms (95%)

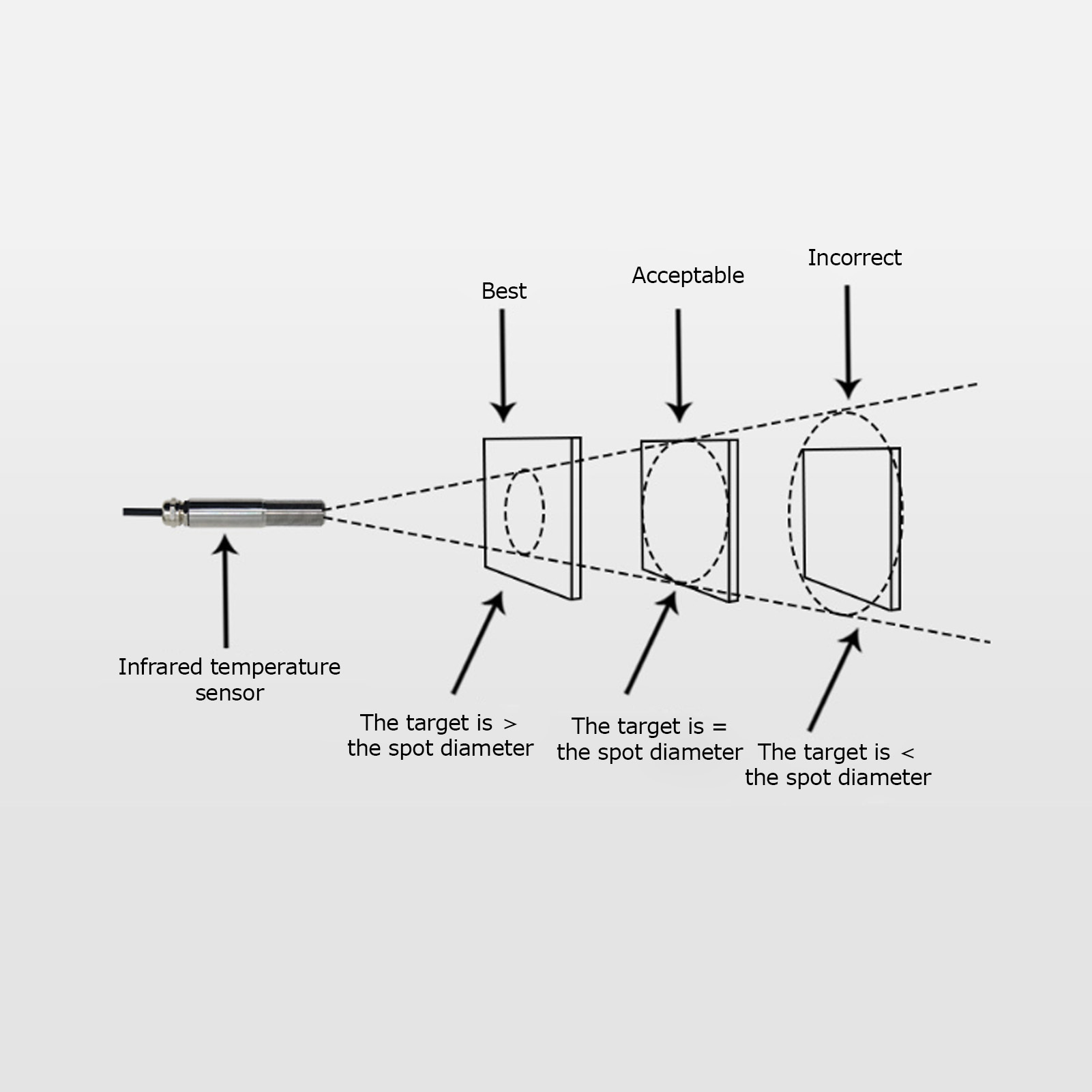

Optical Resolution: 20: 1
Emissivity: 0.95 fixed
Working Environment: 0~60℃; 10~95%RH (no condensation)

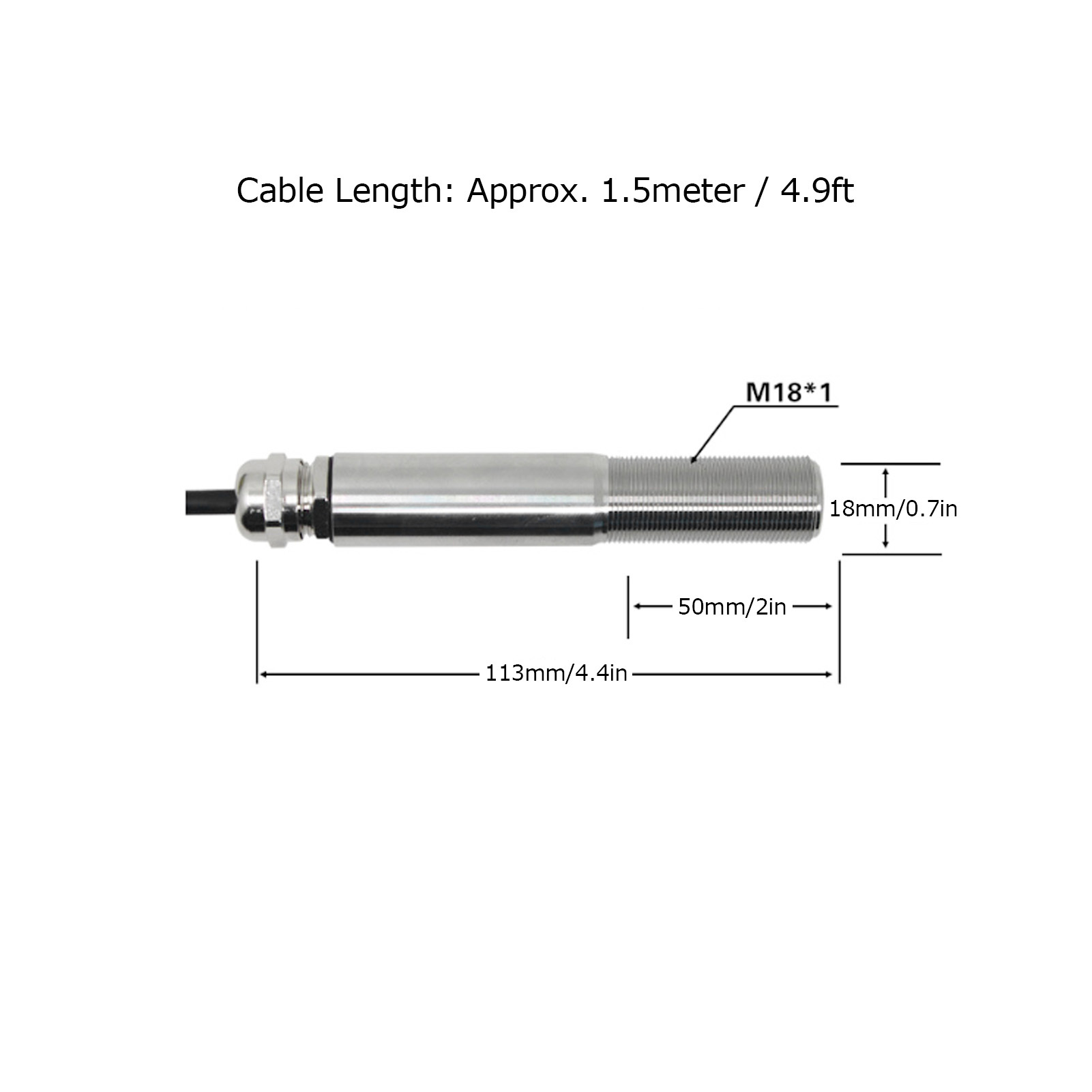

Cable Length: Approx. 1.5meter / 4.9ft
Size: Approx. 18mm / 0.7in
50mm / 2in
113mm / 4.4in

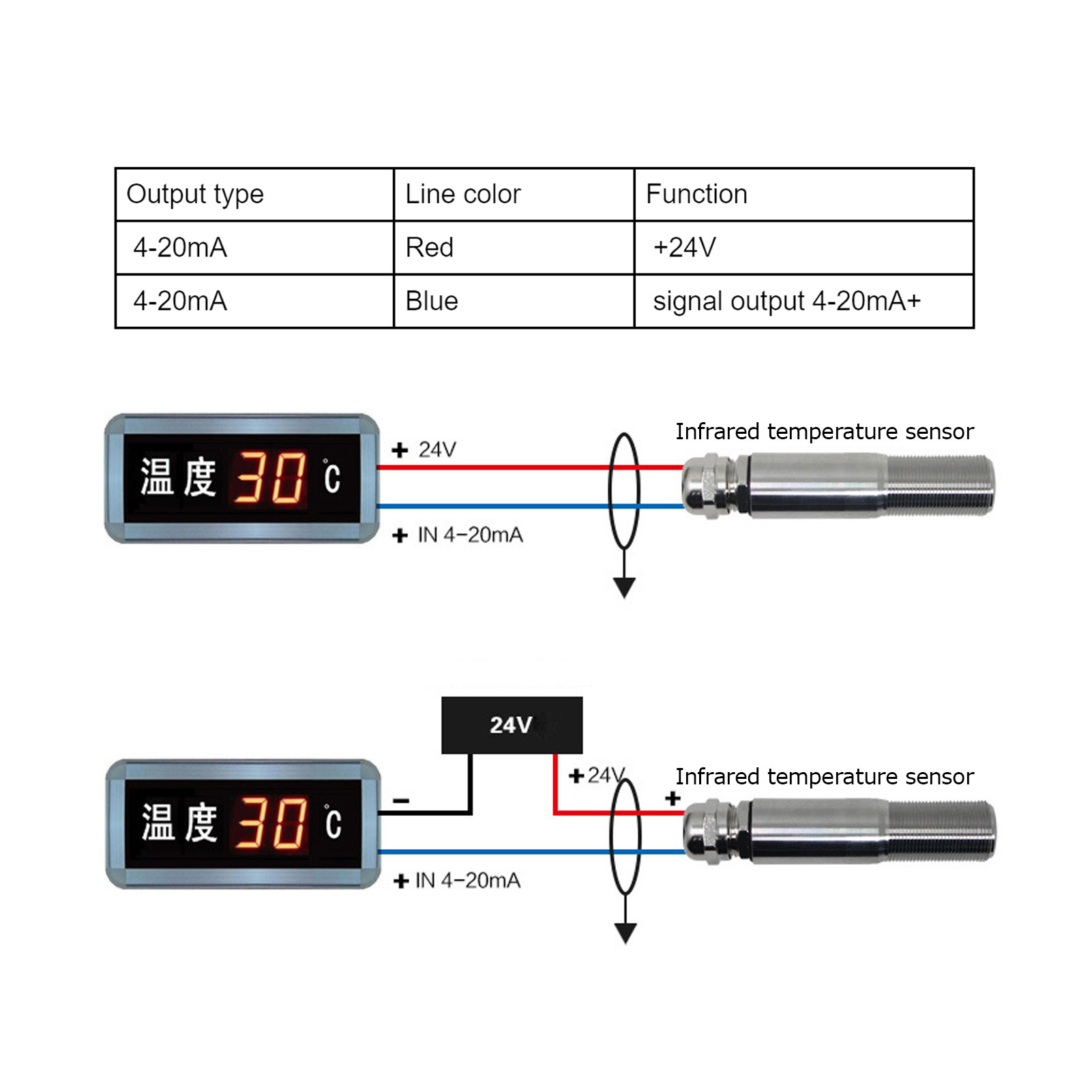

| Output type | Line color | Function |
| 4-20mA | Red | +24V |
| 4-20mA | Blue | signal output 4-20mA+ |
Package List:
1 x Sensor
1 x Bracket
Note:
1.This series of infrared temperature sensors have poor temperature measurement effects on bright or polished metal objects.
