Feature:

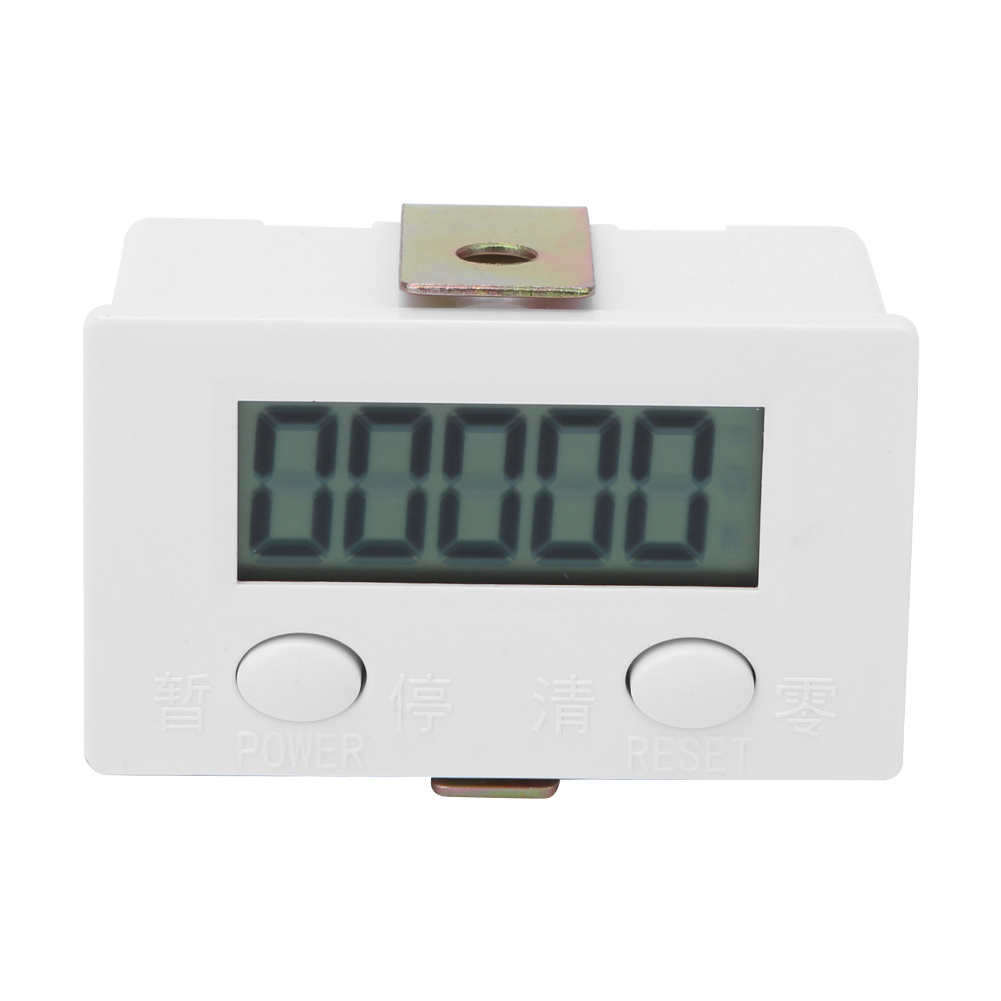

1. 5-digit large-screen LCD display with low power consumption and long battery life.

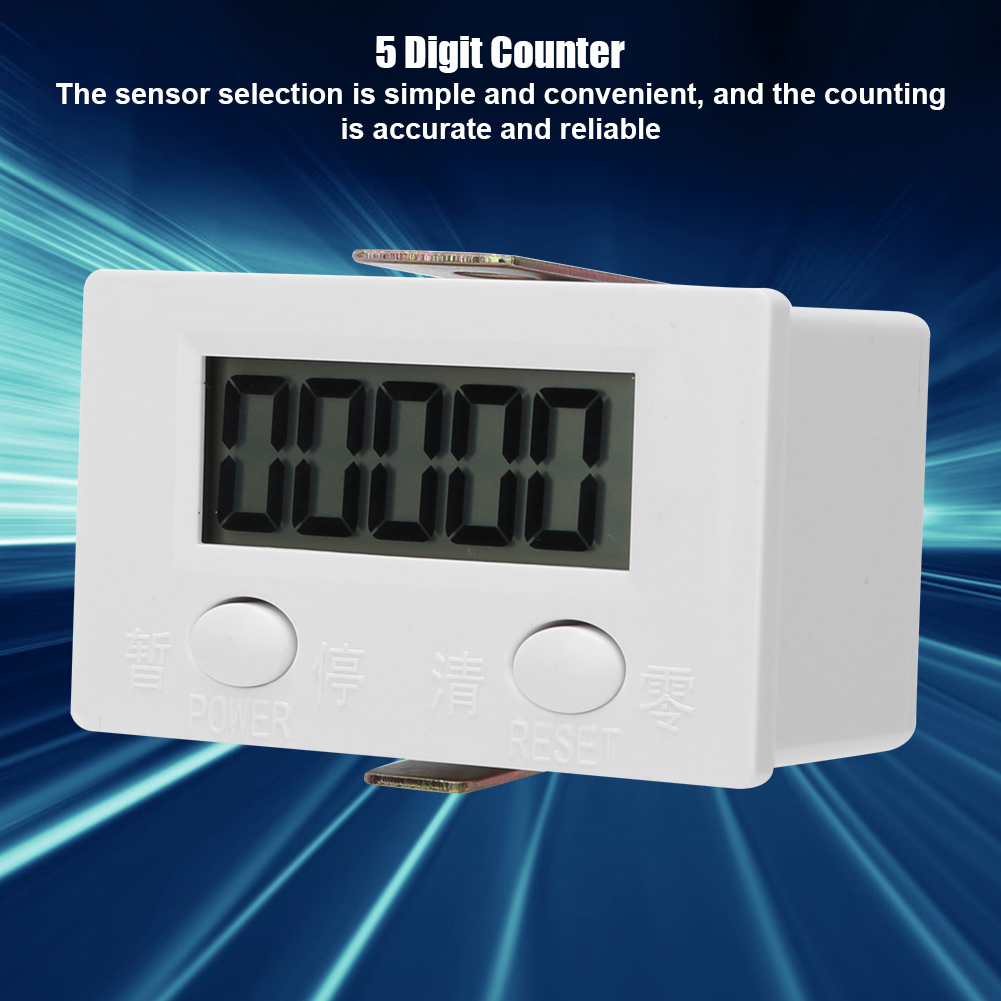

2. The input adopts the common contact signal, the selection of the sensor is simple and convenient, and the counting is accurate and reliable.
3. Maximum counting speed reaches 20 times / sec.
4. Both the panel and the outside can be 0 cleared.
5. Anti-shock design to prevent data loss,no mechanical wear, reliable operation and long service life.
Specification:

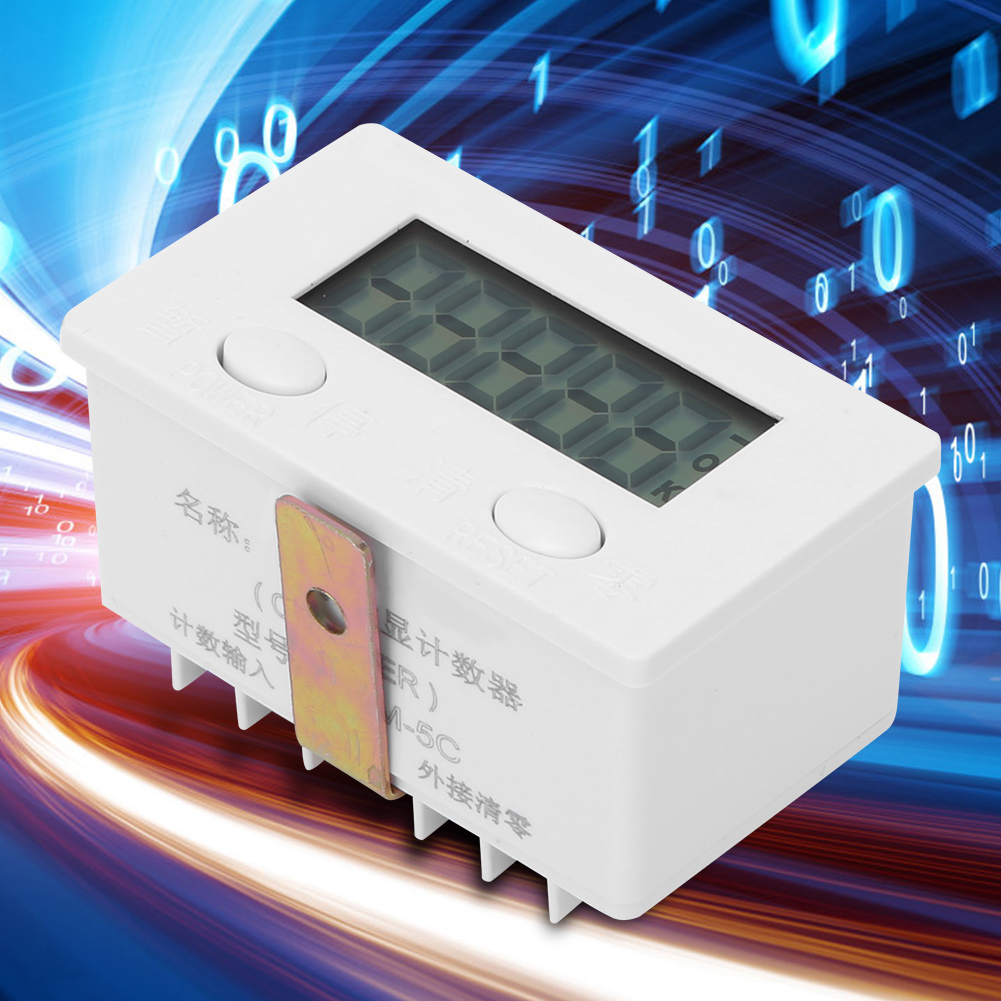

Item Type:Counter
Brand:BERM®
Product Model: BEM-5C
Power Supply Type: Built-In Battery
Battery Model: AA R6P Voltage: 1.5V Capacity: 1500mA
Counting Range: 0-99999 (5 Digits)
Counting The Highest Frequency: 50Hz
Count The Minimum Pulse Width: 1mS
Contact Maximum Resistance: ≤1KΩ
Contact Disconnection Minimum Resistance: ≥500KΩ
Clear Mode: Panel / External
Operating Ambient Temperature: -5℃ ~ 40℃

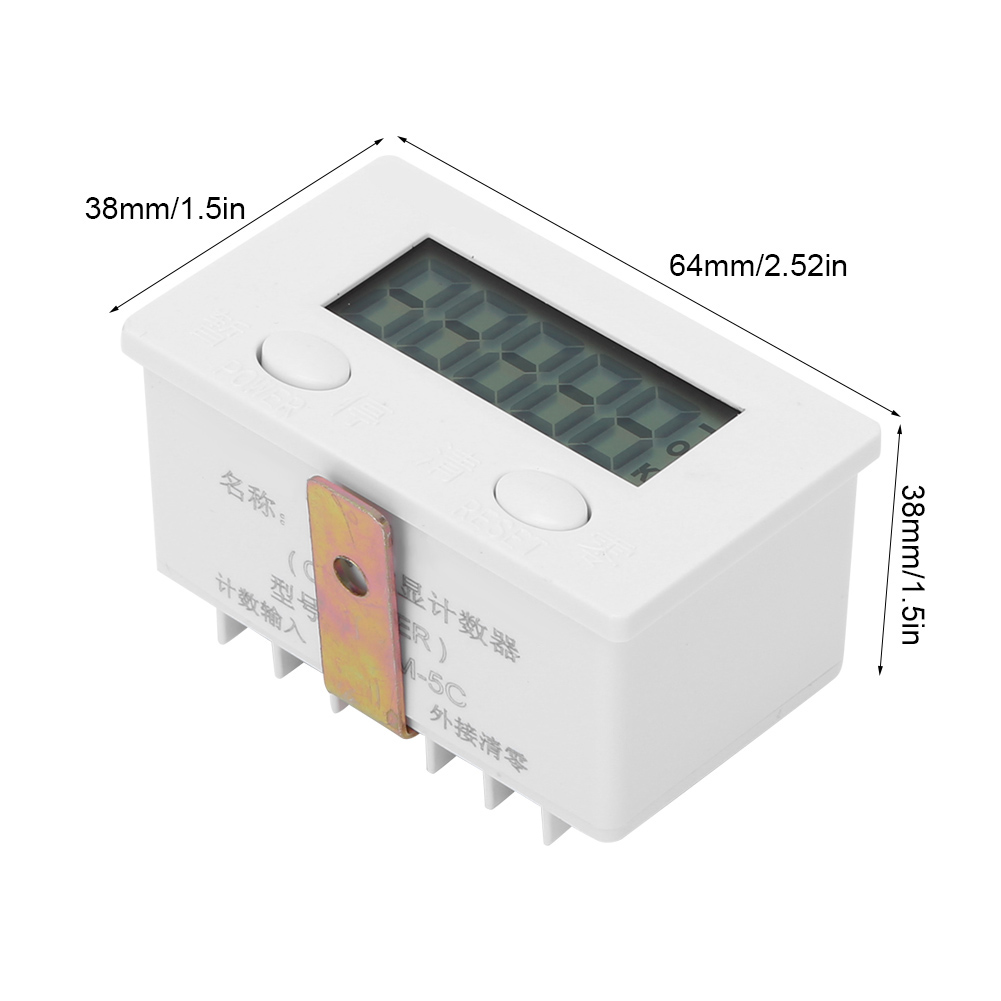

Size:64 x 38 x 38mm / 2.52 x 1.5 x 1.5in
Opening Hole Size:63 x 36mm / 2.48 x 1.42in
Brand:BERM®
Product Model: BEM-5C
Power Supply Type: Built-In Battery
Battery Model: AA R6P Voltage: 1.5V Capacity: 1500mA
Counting Range: 0-99999 (5 Digits)
Counting The Highest Frequency: 50Hz
Count The Minimum Pulse Width: 1mS
Contact Maximum Resistance: ≤1KΩ
Contact Disconnection Minimum Resistance: ≥500KΩ
Clear Mode: Panel / External
Operating Ambient Temperature: -5℃ ~ 40℃
Size:64 x 38 x 38mm / 2.52 x 1.5 x 1.5in
Opening Hole Size:63 x 36mm / 2.48 x 1.42in
Package List:
1 x Counter
