Feature:

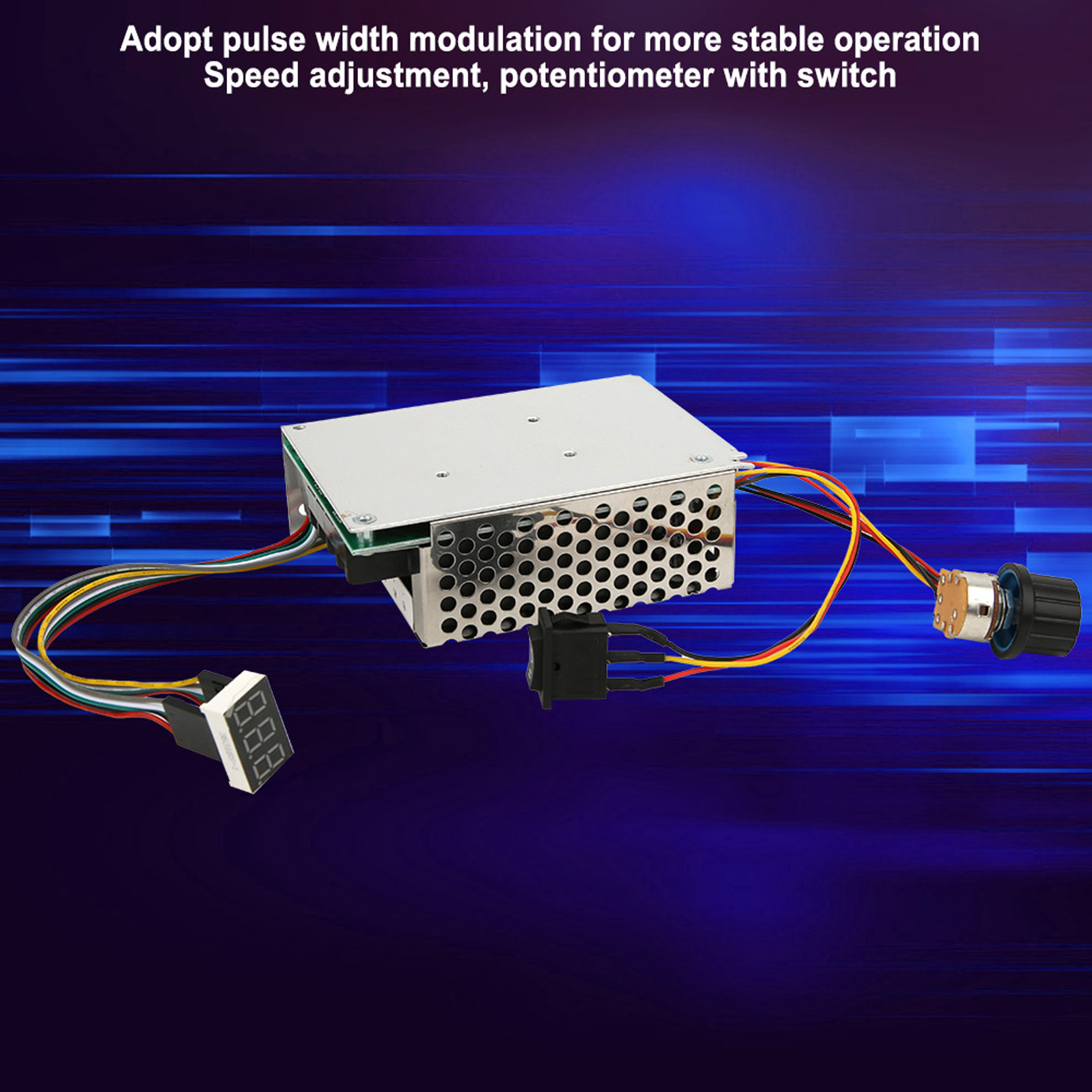

1. Adopt pulse width modulation for more stable operation
2. Speed adjustment, potentiometer with switch
3. The speed range is 0%--100%, it has good control ability

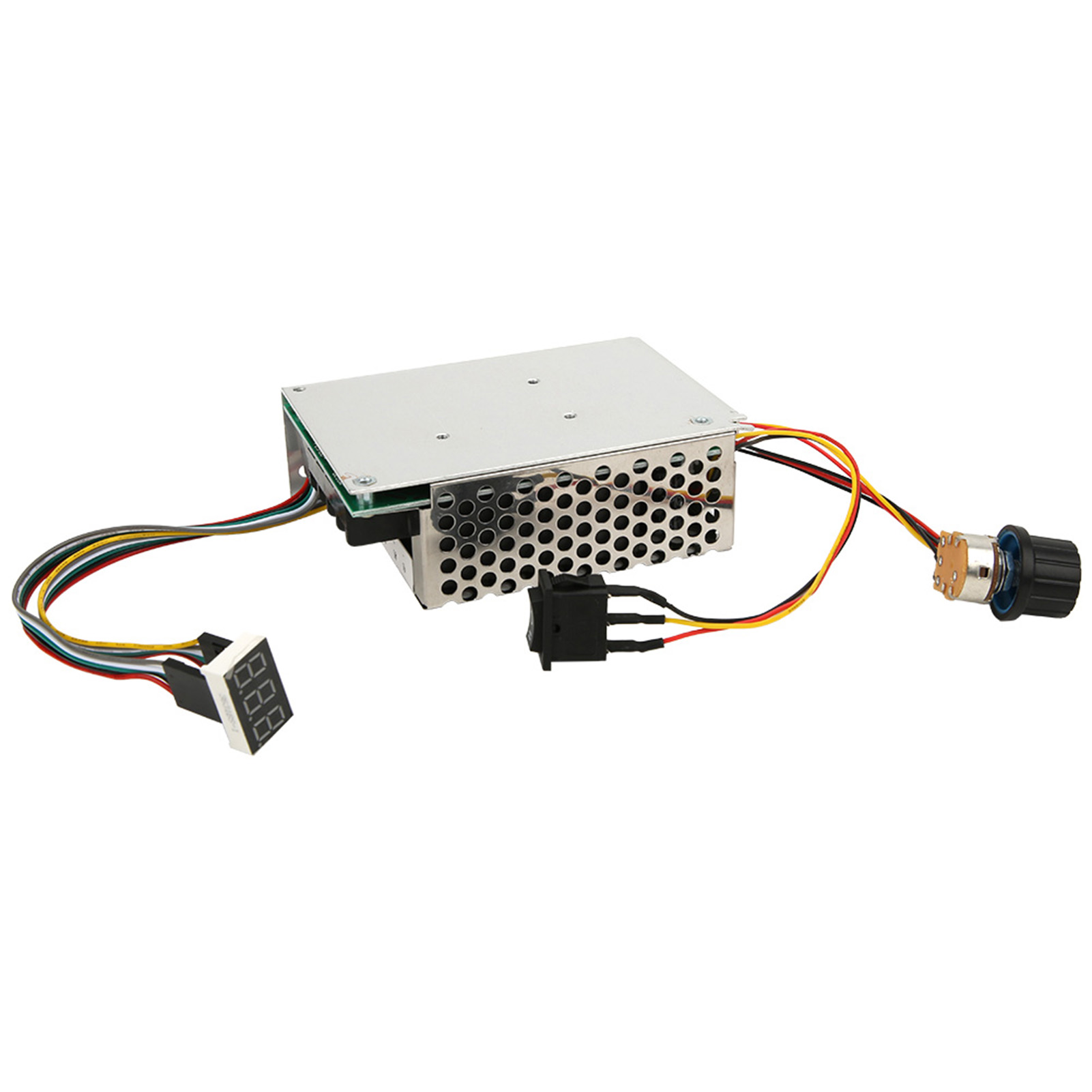

4. Digital display speed percentage, providing accurate values
5. Available in two styles for choice.


Specification:

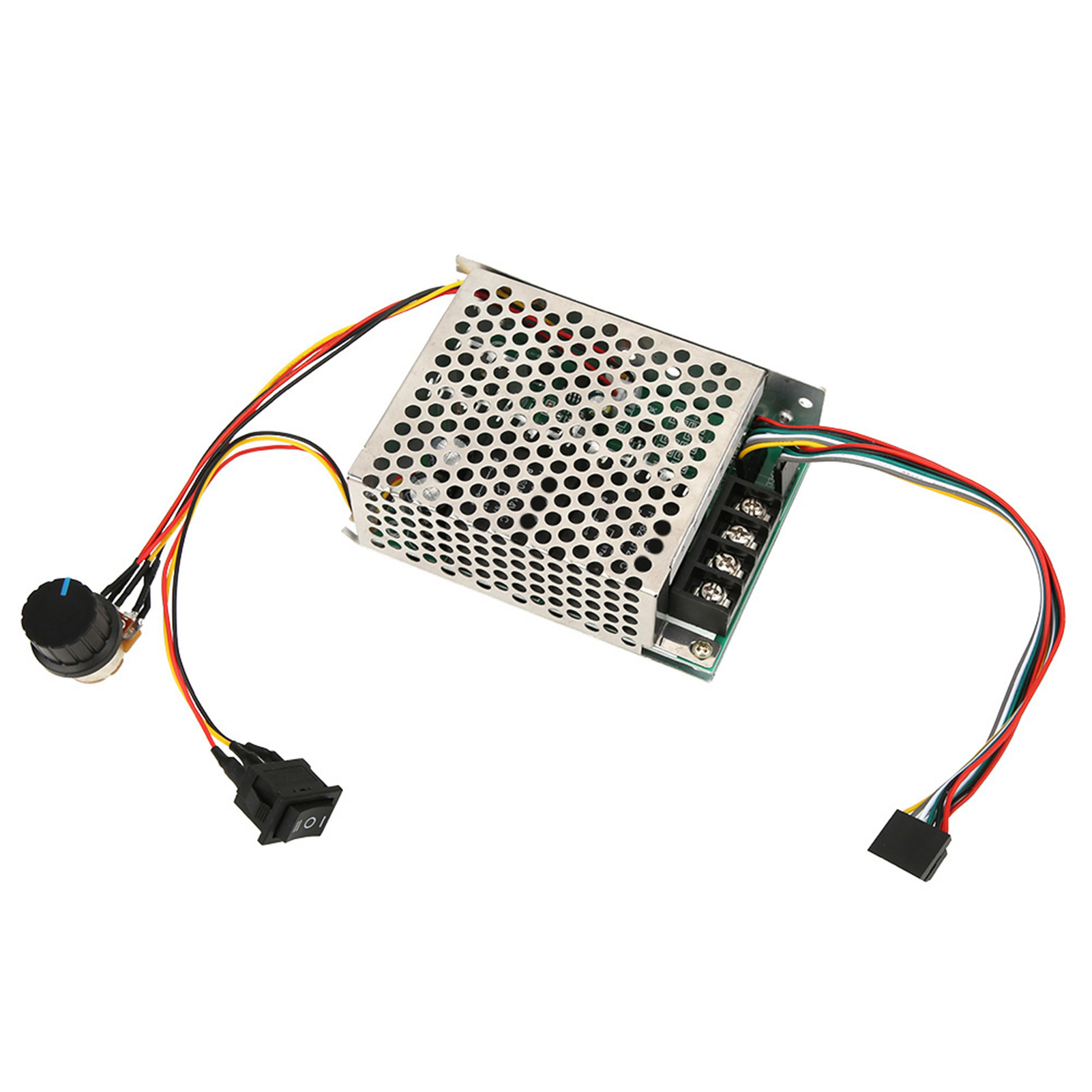

Item Type: Motor Controller

Input Voltage: DC10-55V (equal to the rated voltage of the motor)

Output Voltage: Linear Under Load

Maximum Current: 60A

Continuous Current: 40A (use for a long time to pay attention to heat dissipation or reduce current)

Speed Control Type: Current Adjustment

Speed Control Mode: Potentiometer (linear)

Support Motor: DC Brush Motor

Forward Rotation Reverse: Support

Speed Range: 0 - 100%

Control Frequency: 15Khz

Wiring Type: Terminal

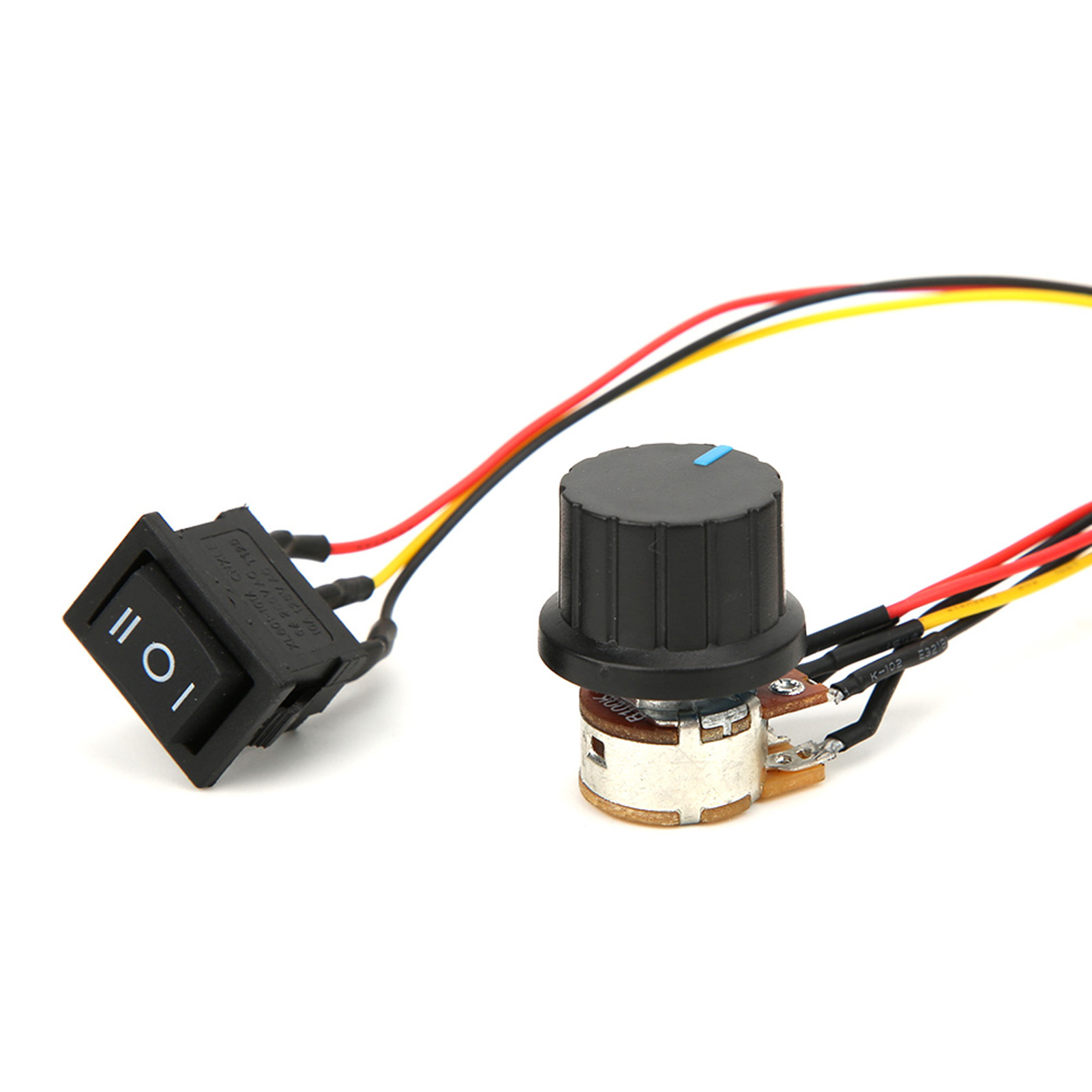

Knob Specification: 100K (With Switch)

Wiring Type: Terminal Block

Speed Range: 12V

Speed Change Rate: 0-100

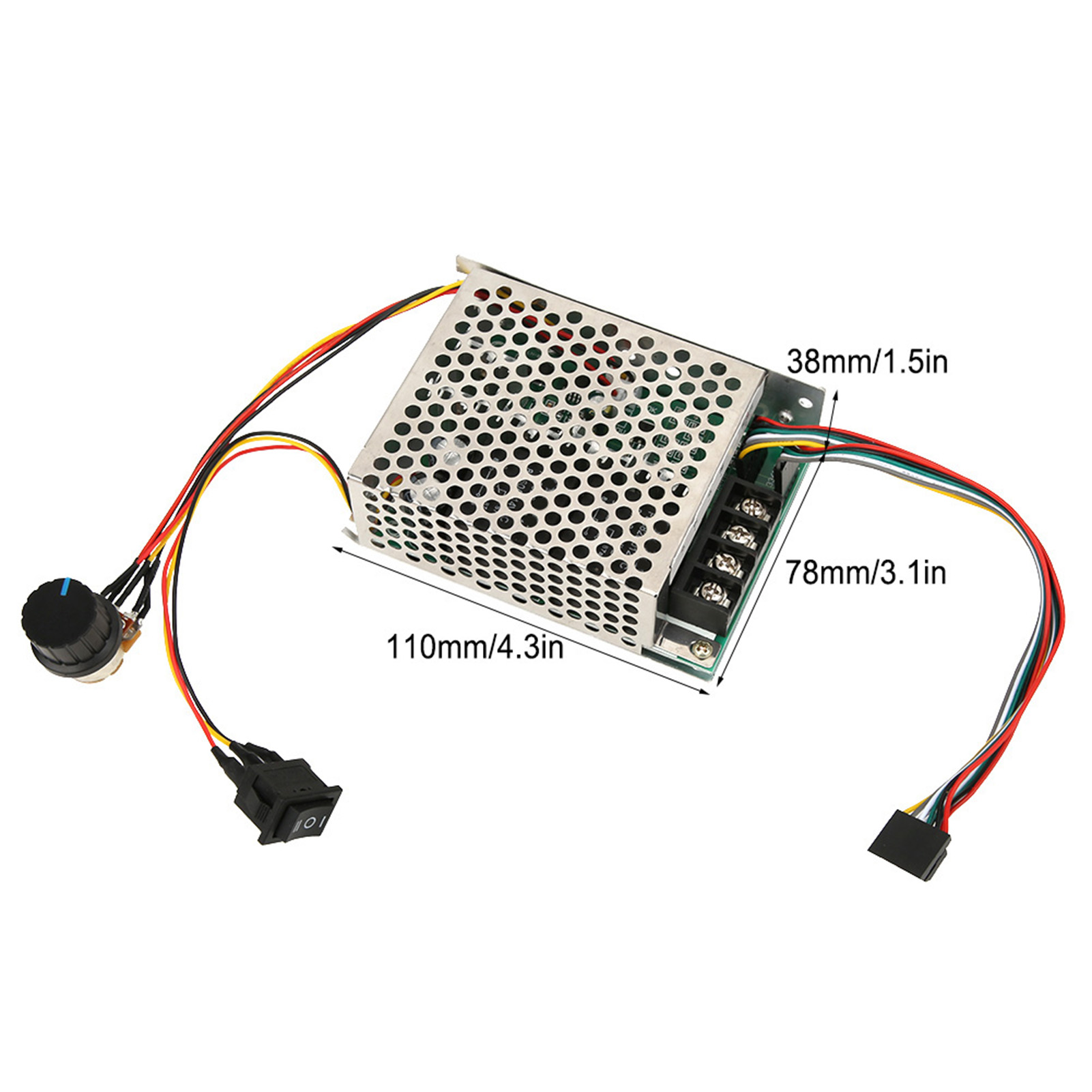

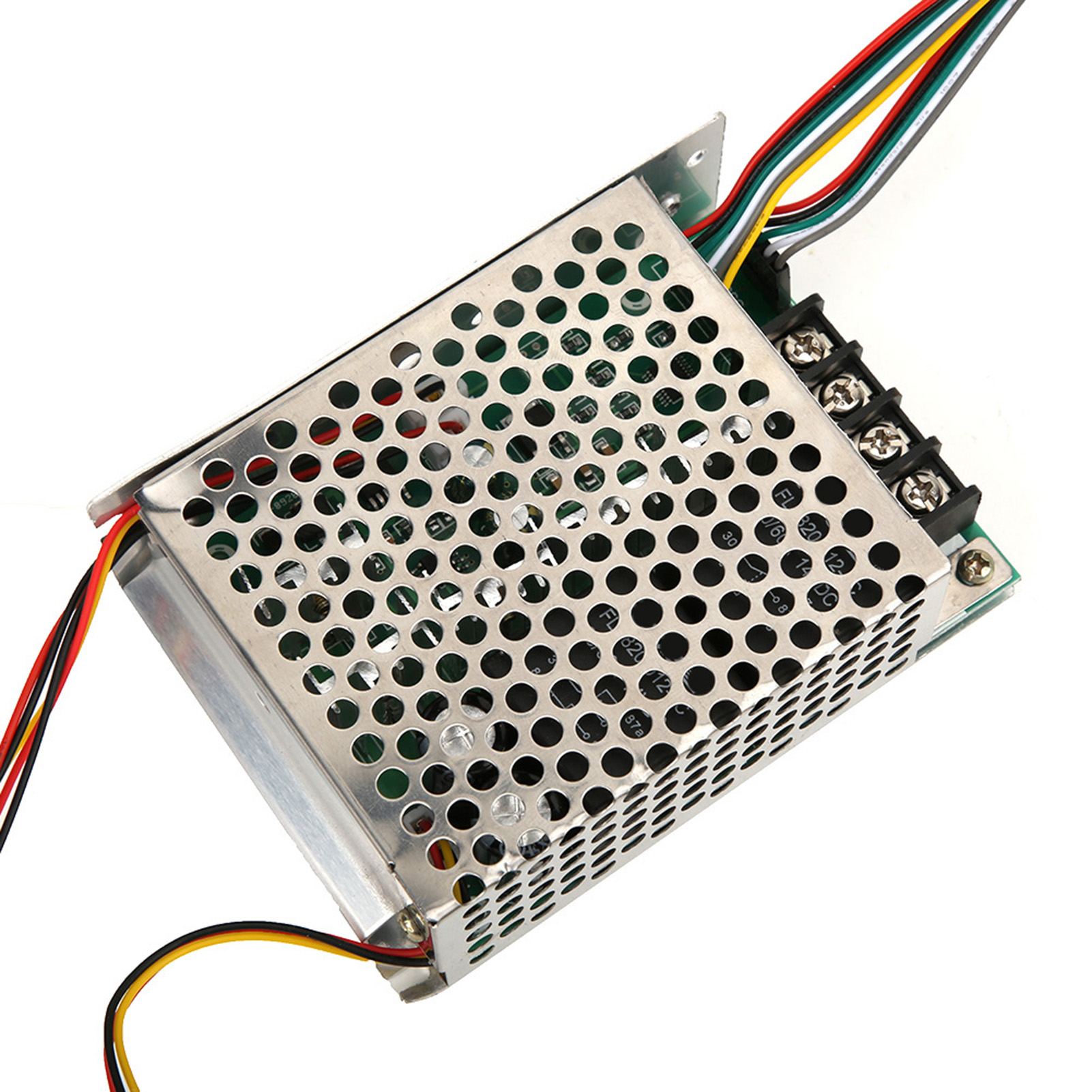

Optional Style: with Case, without Case


Package List:

1 x Motor Controller


Note:

1. The digital display is the motor speed percentage 0-100， not motor actual speed
2. The input voltage must be positive and negative
3. The input voltage is equal to the rated voltage of the motor within 10-55V DC.
