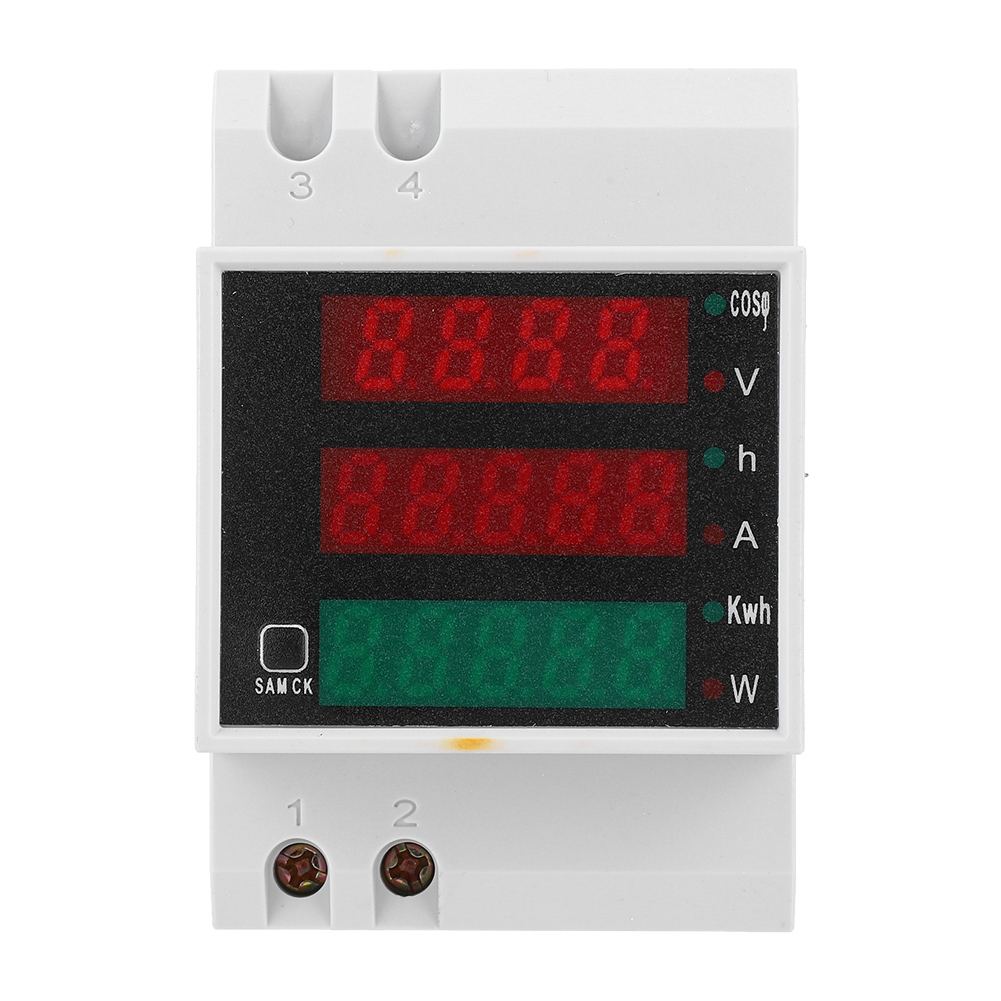

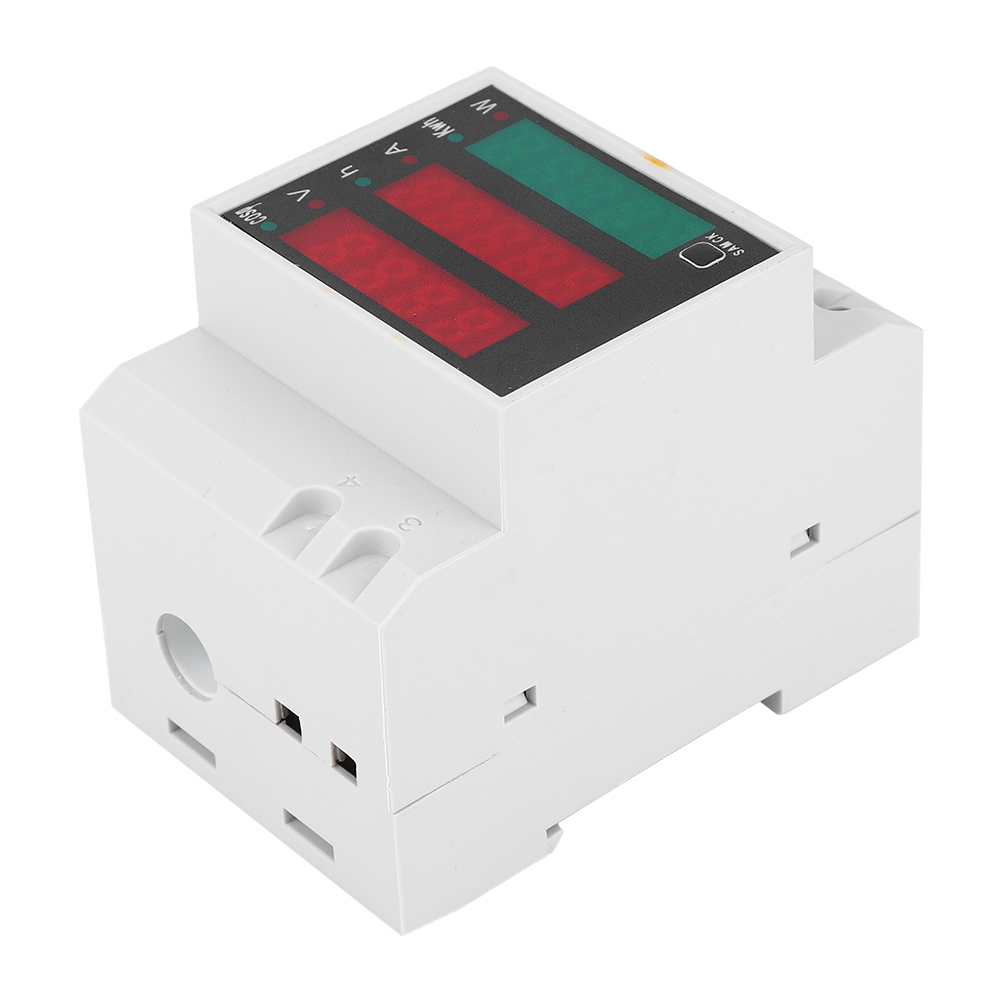

Feature:

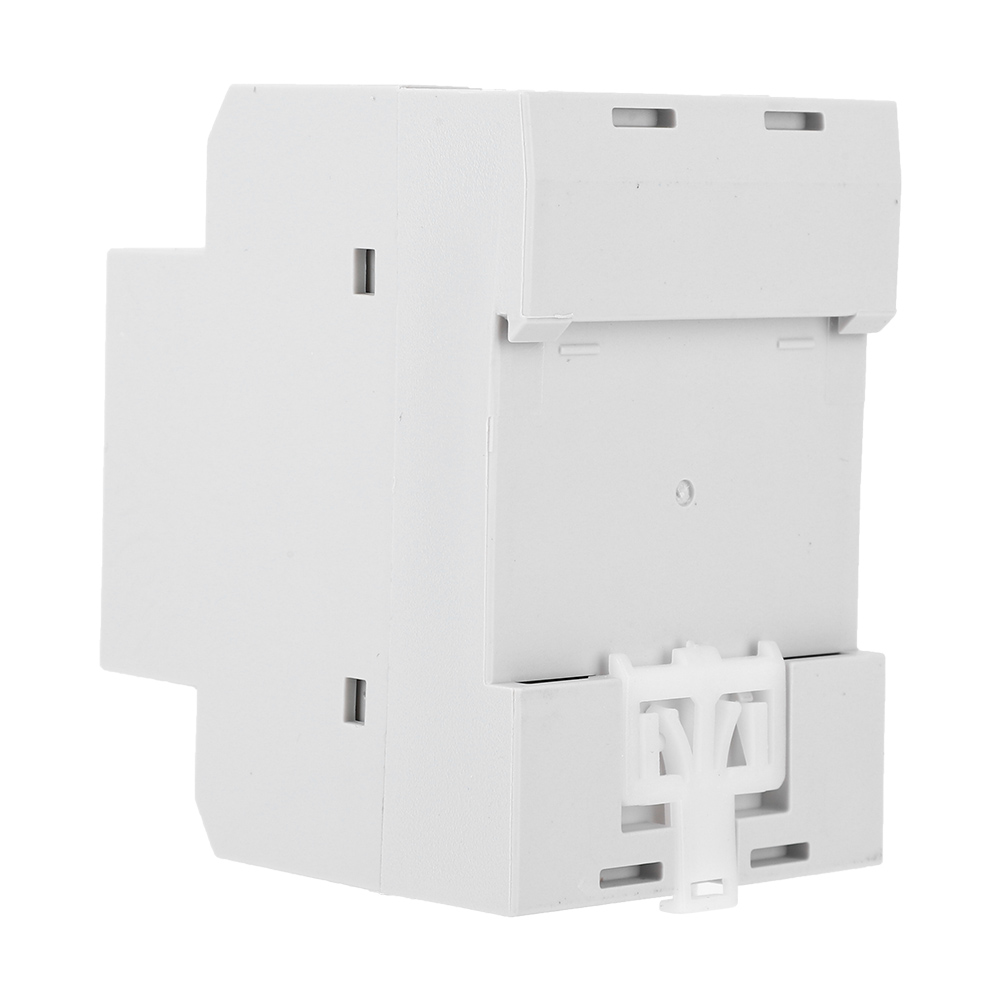

1. Rail mounted for easy installation,saves effort.

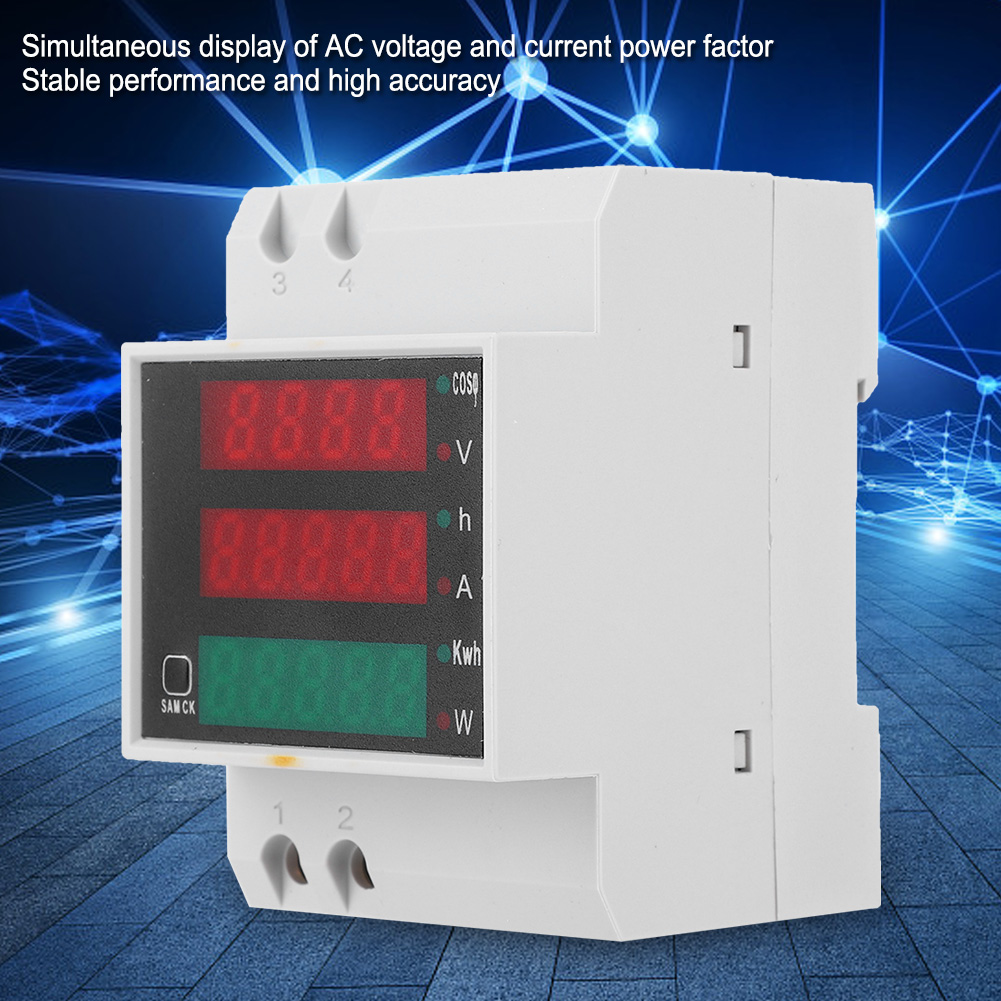

2. Simultaneous display of AC voltage and current power factor.
3. Stable performance and high accuracy.
4. When the current is less than 100A, the current display resolution is 0.01A. When the current is greater than 100A, the current display resolution is 0.1A, and the range is automatically converted.

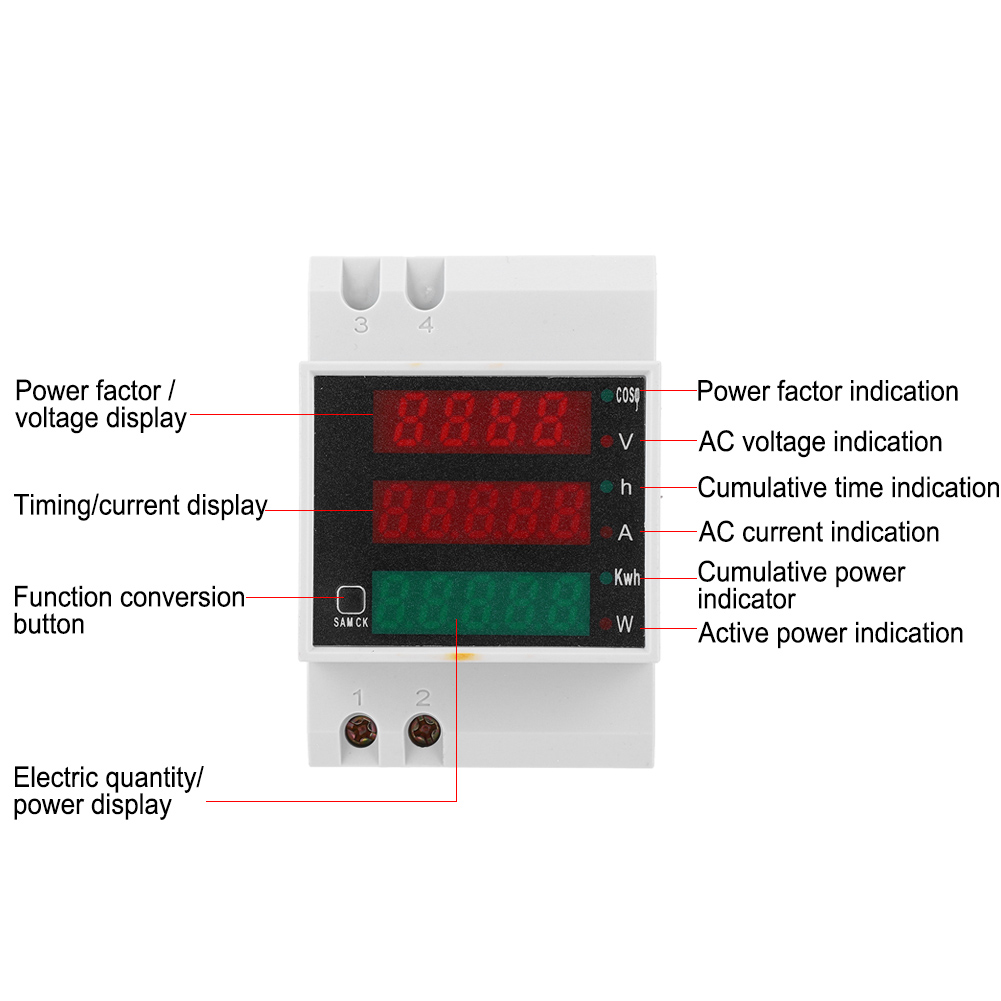

5. The voltage shows 4-digit red 0.31 inch LED digital tube, the current and time display adopts 5-digit red 0.31 inch LED digital tube active power, and the electric energy (electricity) display adopts 5-digit green 0.31 inch LED digital tube.
Specification:
Item Type:Multi-Function Meter
Product Model: D52-2047
Measurement Accuracy: 1% + 2 Digit
AC Voltage: AC200-450V
AC Current AC0-100.0A
Measuring Current: 0.01A Resolution when <100A,0.1A when >100A.
Active Power: 45000W
Electric Energy: 0.000-99999kwh, Decimal Point Free Conversion
Time Accumulation: 0.00-999.59h
Power Factor: 1000-0.000
Measuring Speed: About 2 Times Per Second
