Feature:
1. The external controller can input 0~5V/0~10V analog voltage input and 0~20mA current signal input to realize stepless speed control.
2. The inverter has a quick start and stop response. The low speed torsion is large. Immediately stop to protect the host from the short circuit (short circuit protection).
3. The internal protection functions include undervoltage, overvoltage, overcurrent, overheating, etc. The internal internal cooling function has low requirements for the external environment.
4. The maximum output frequency range of the inverter is 0.01~400Hz.

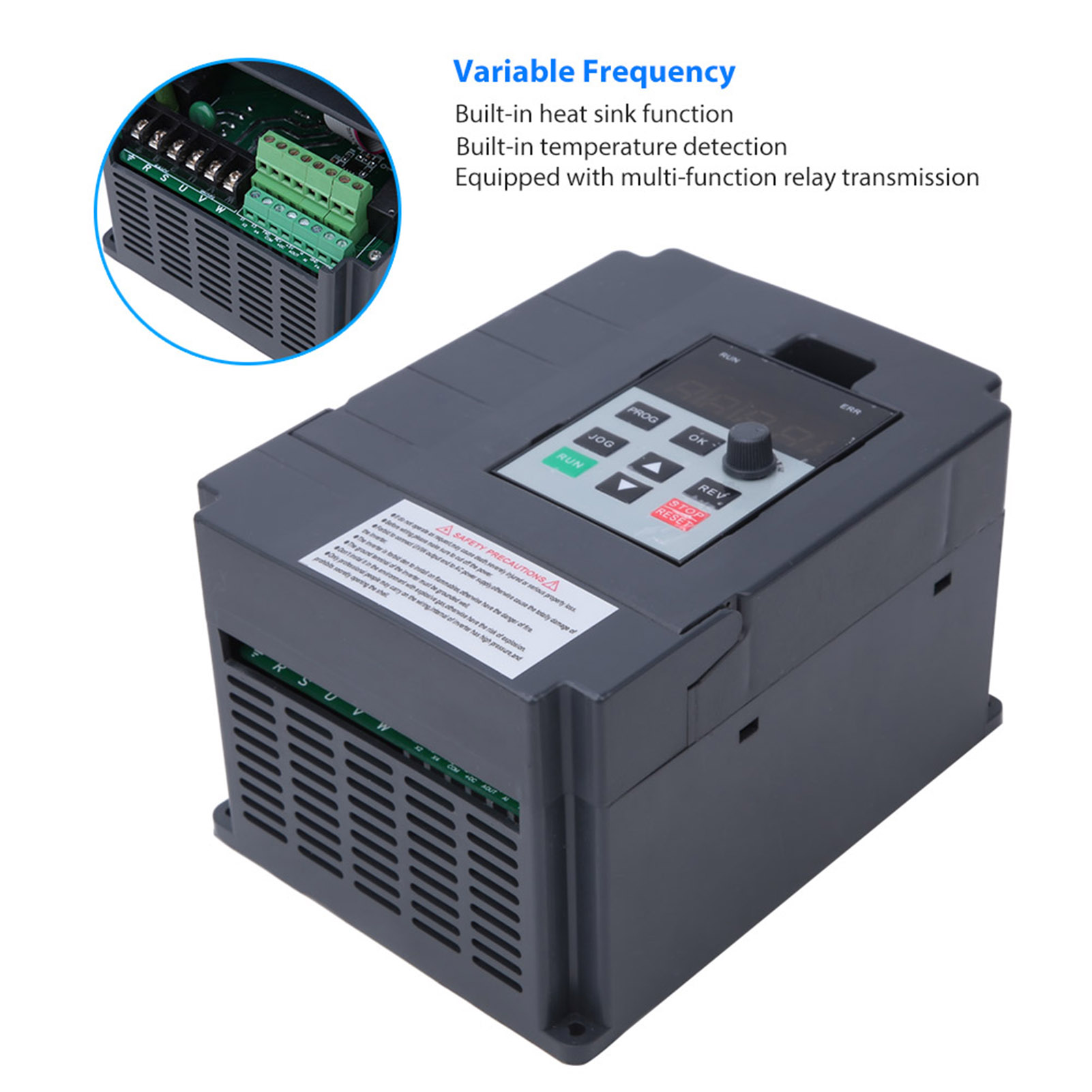

5. The inverter comes with multi-function relay transmission, PID function, constant pressure water supply function.
6. Inverter built-in temperature detection.
Specification:

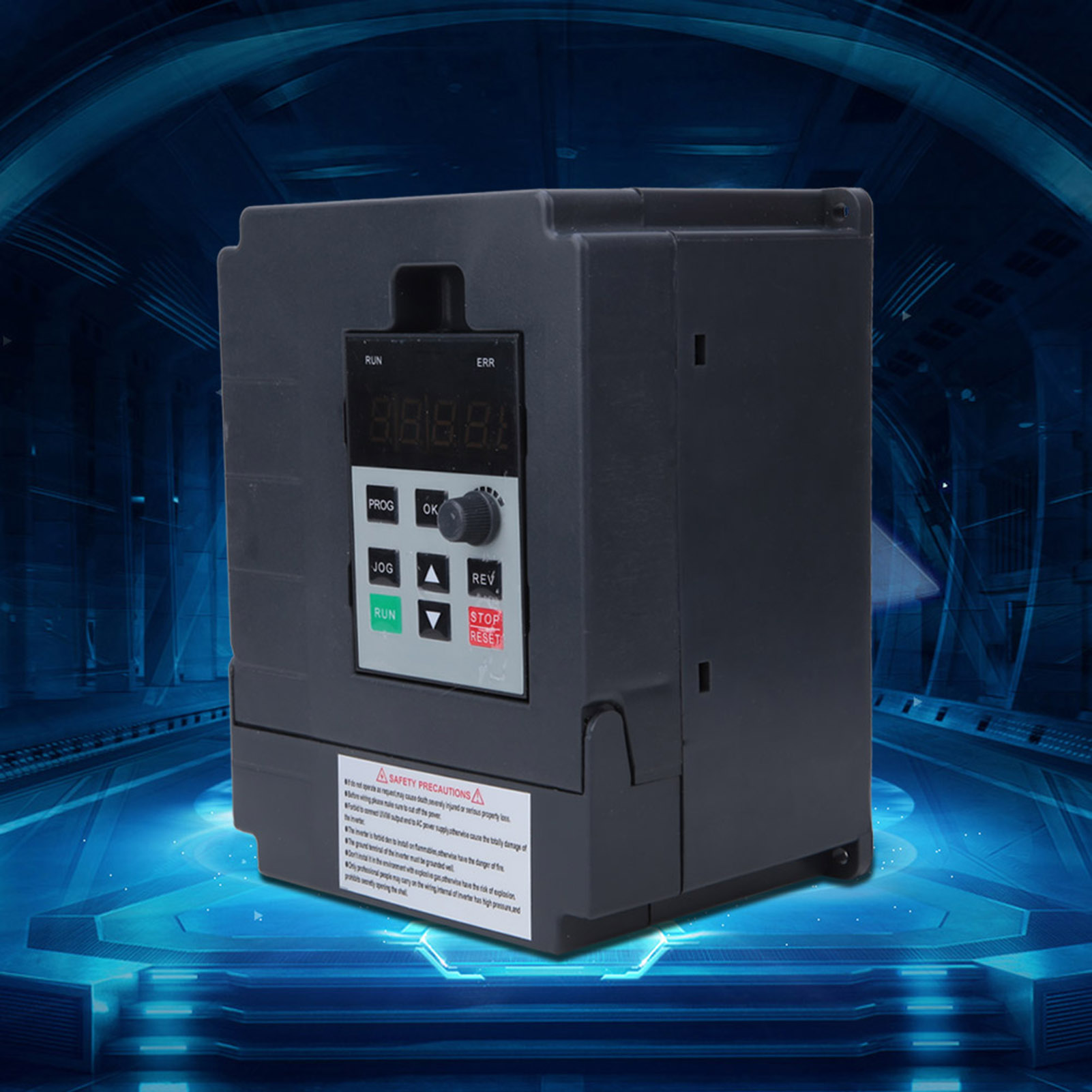

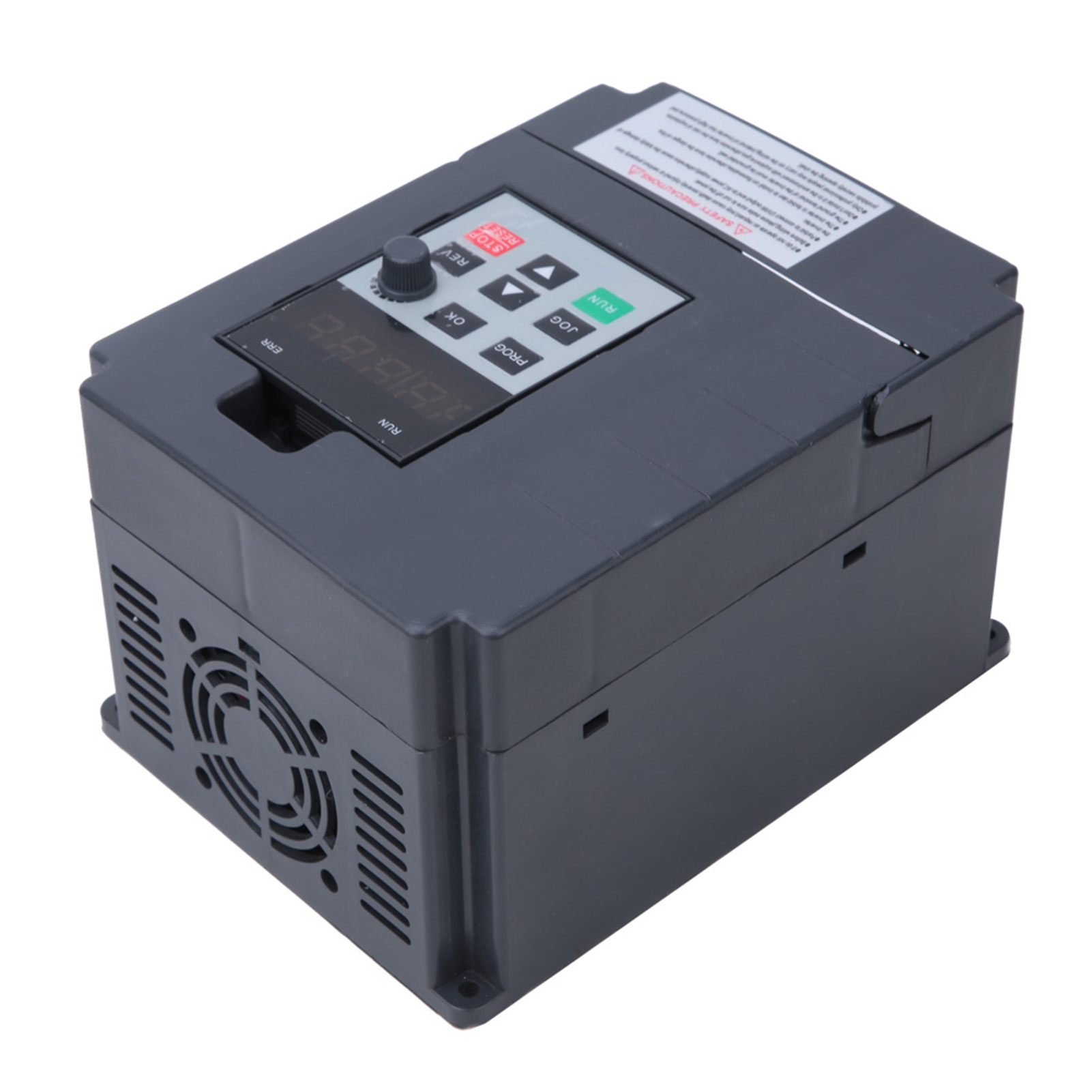

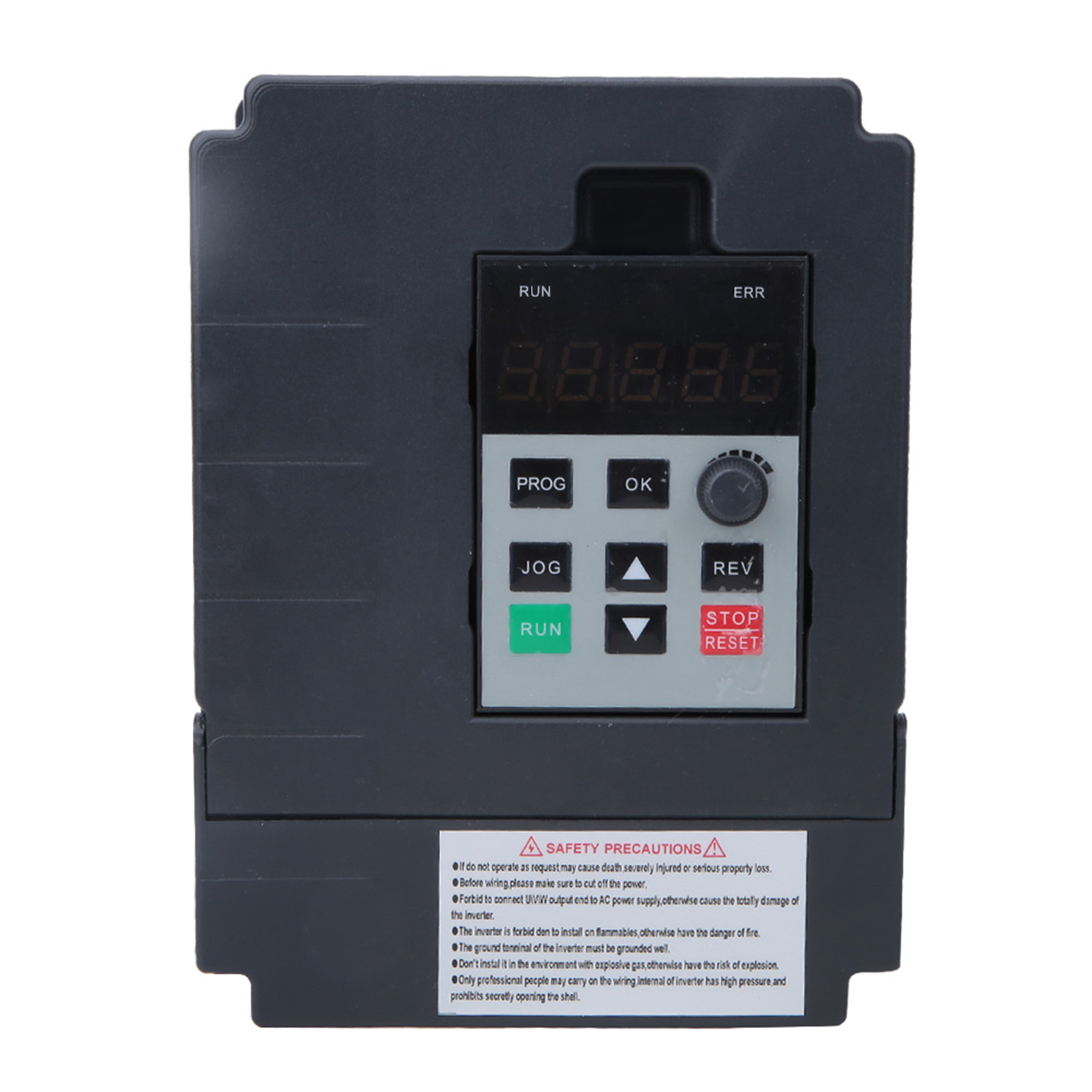

Item Type:Variable Frequency Driver Inverter
Model: JH-S2-2T
Adapted Motor Power: 0.75/1.5/2.2kW (Optional)
Input Voltage: Single Phase AC176-264V 50/60Hz
Output Voltage: 3-Phase 0-220VAC
Frequency Range: 0.01-400Hz
Application Range: Universal
Power Phase Number: Single Phase
Supply Voltage: Low Voltage
Filter: Without Filter
DC Power Supply Properties: Voltage Type
Control Mode: V/F Open Loop
Output Voltage Regulation Mode: PWM Control
Appearance: Molded Case
Rated Current: 12 (A)
Size: Approx. 160 x 120 x 95mm / 6.3 x 4.72 x 3.74in
Application: elevator industry, packaging industry, conveyor machinery, industrial production lines, automotive industry, printing machinery, video machinery, textile machinery, office equipment, machine tool industry, roasting whole sheep.

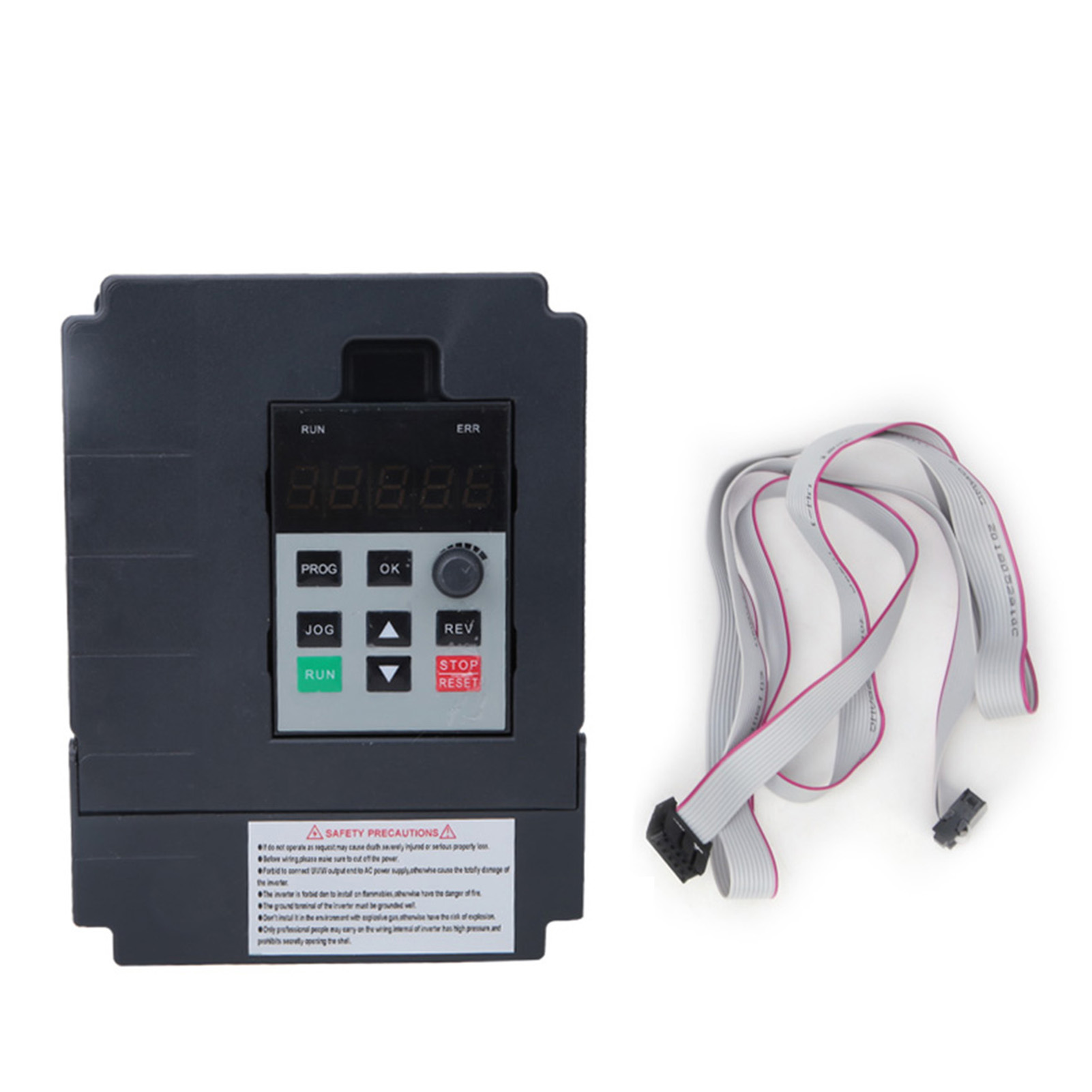

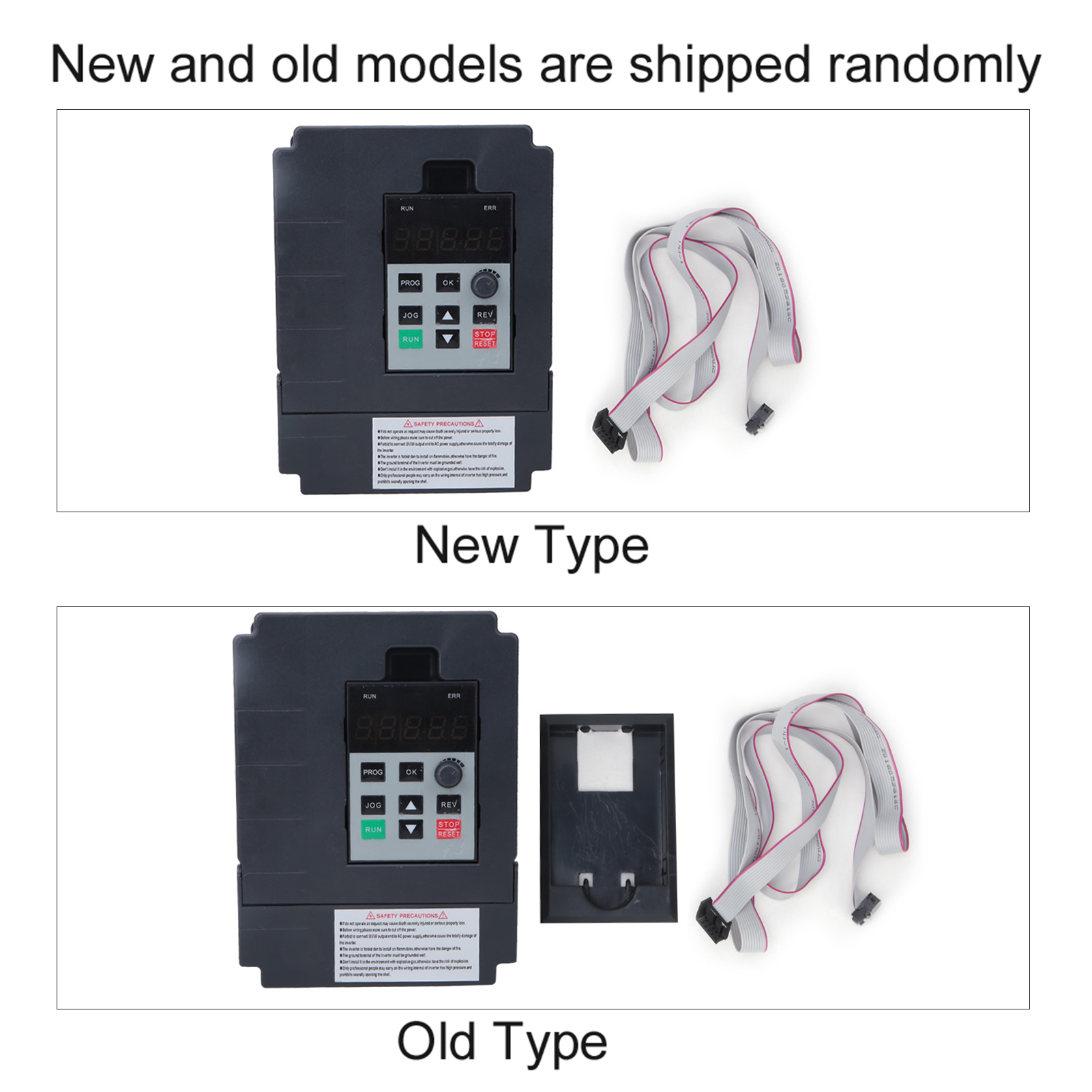

Package List:
Note:
