Features:

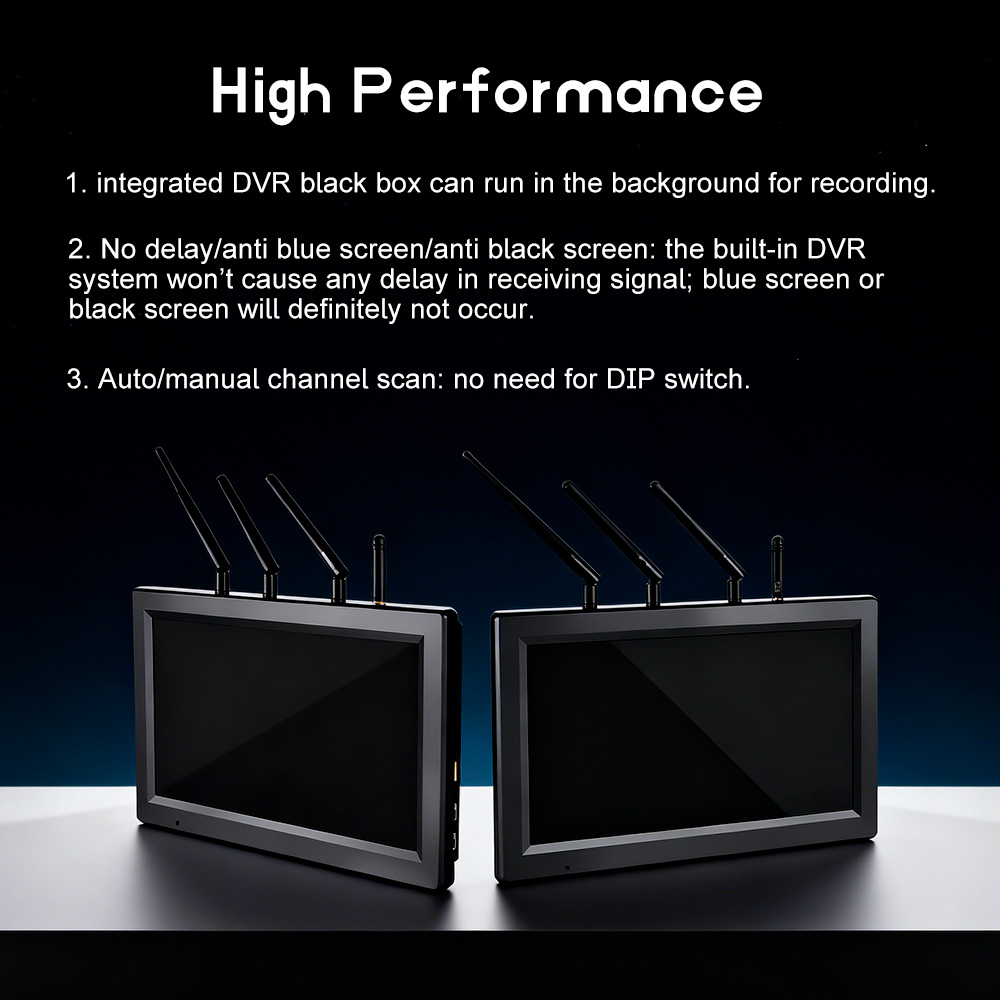

1. Built-in Integrated DVR Black Box, supports background continuous video recording, captures all flight footage without missing any FPV scenes.
2. Zero signal delay with anti-blue & anti-black screen design, stable built-in DVR system ensures smooth real-time signal reception without screen failure issues.

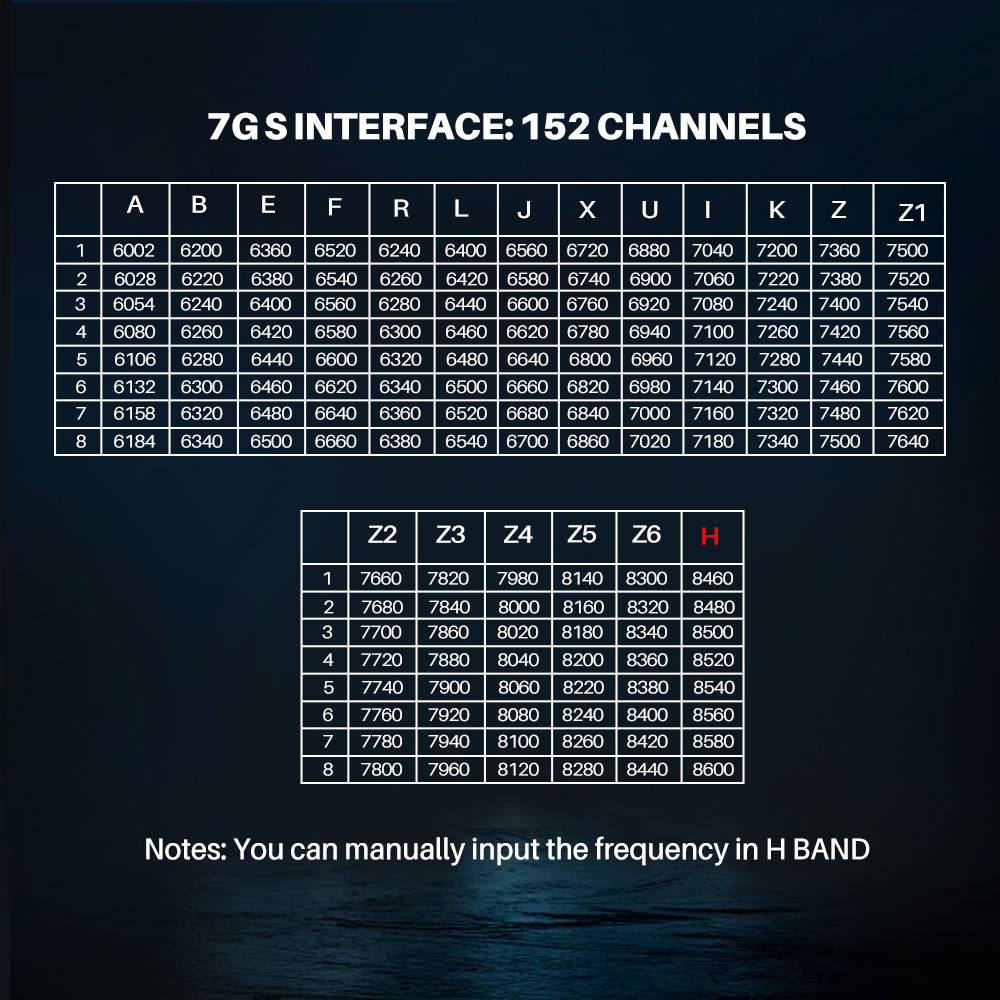

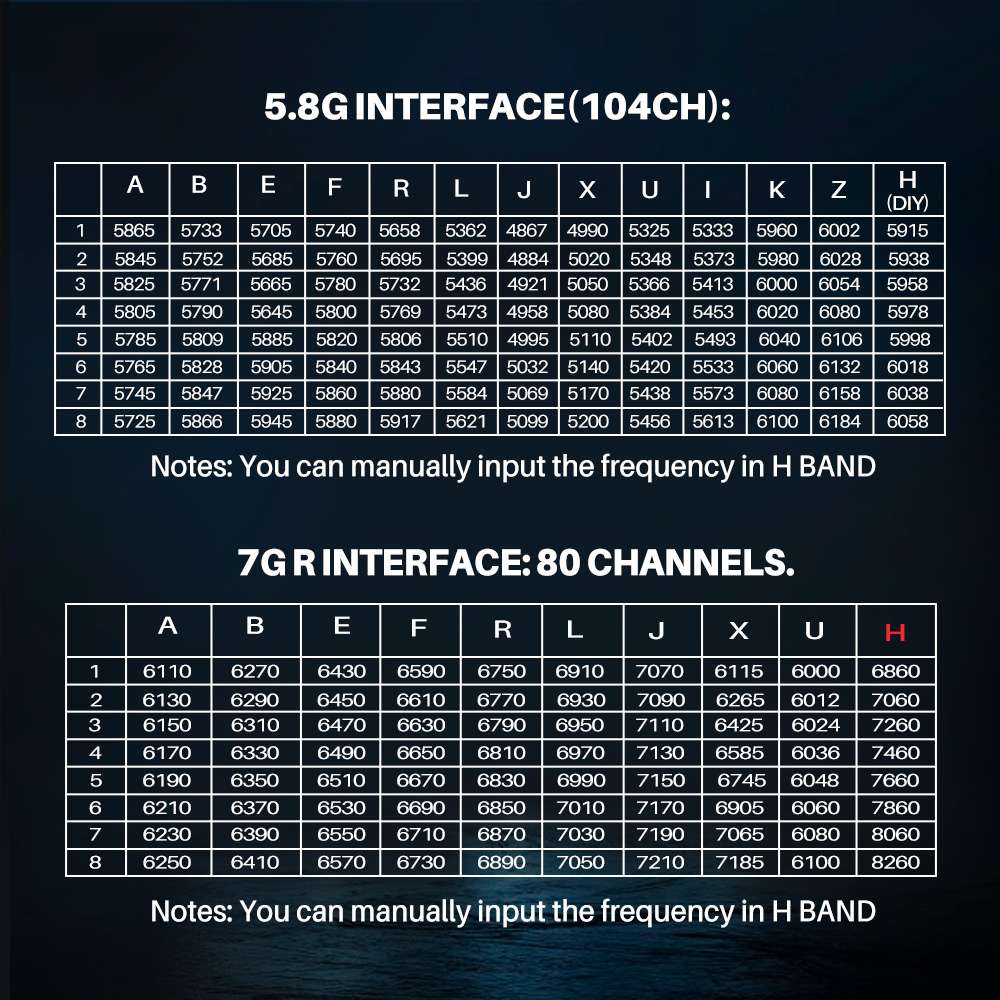

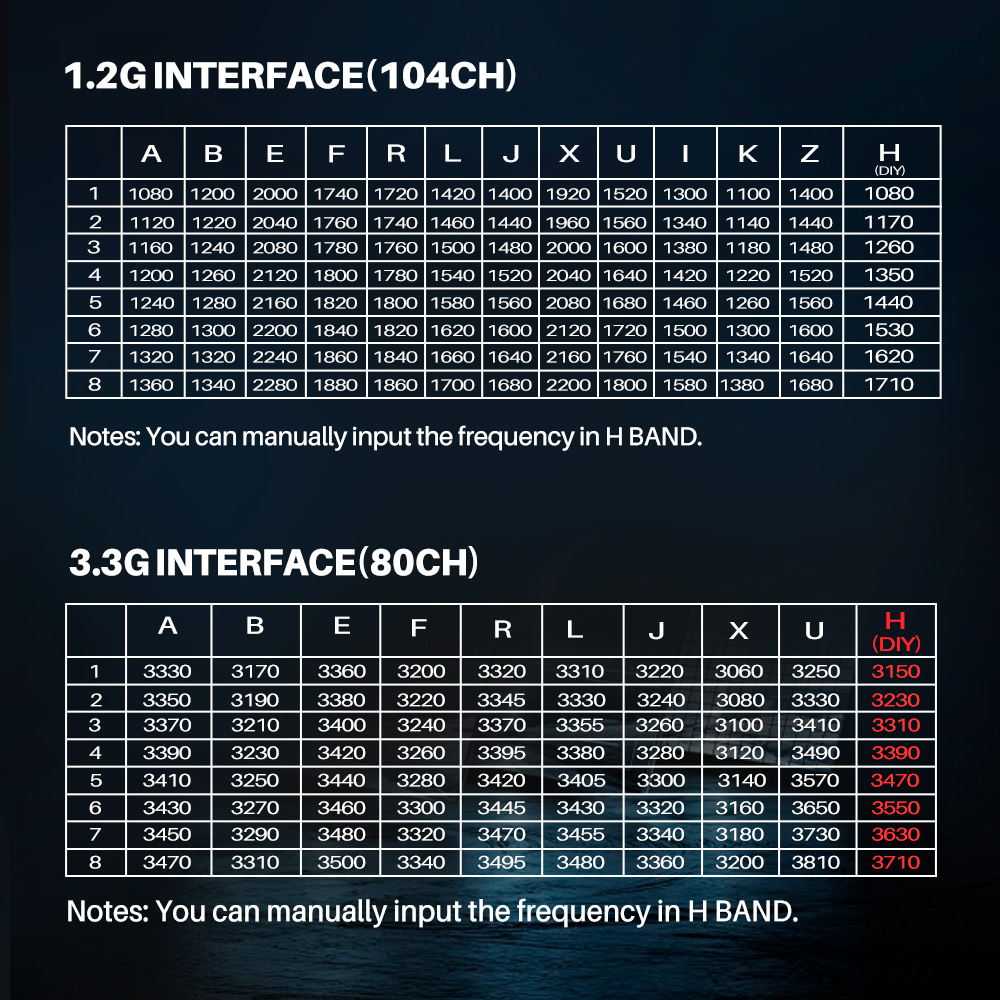

3. 520 adjustable FPV channels with auto & manual channel scan, no DIP switch required; compatible with 1.2G/3.3G/4.9-5.8/6/7/8GHz frequency bands, supports DIY channel setup.
4. Dual scan modes including tracking mode and loop scan mode, equipped with simple operation panel for quick, hassle-free parameter configuration.

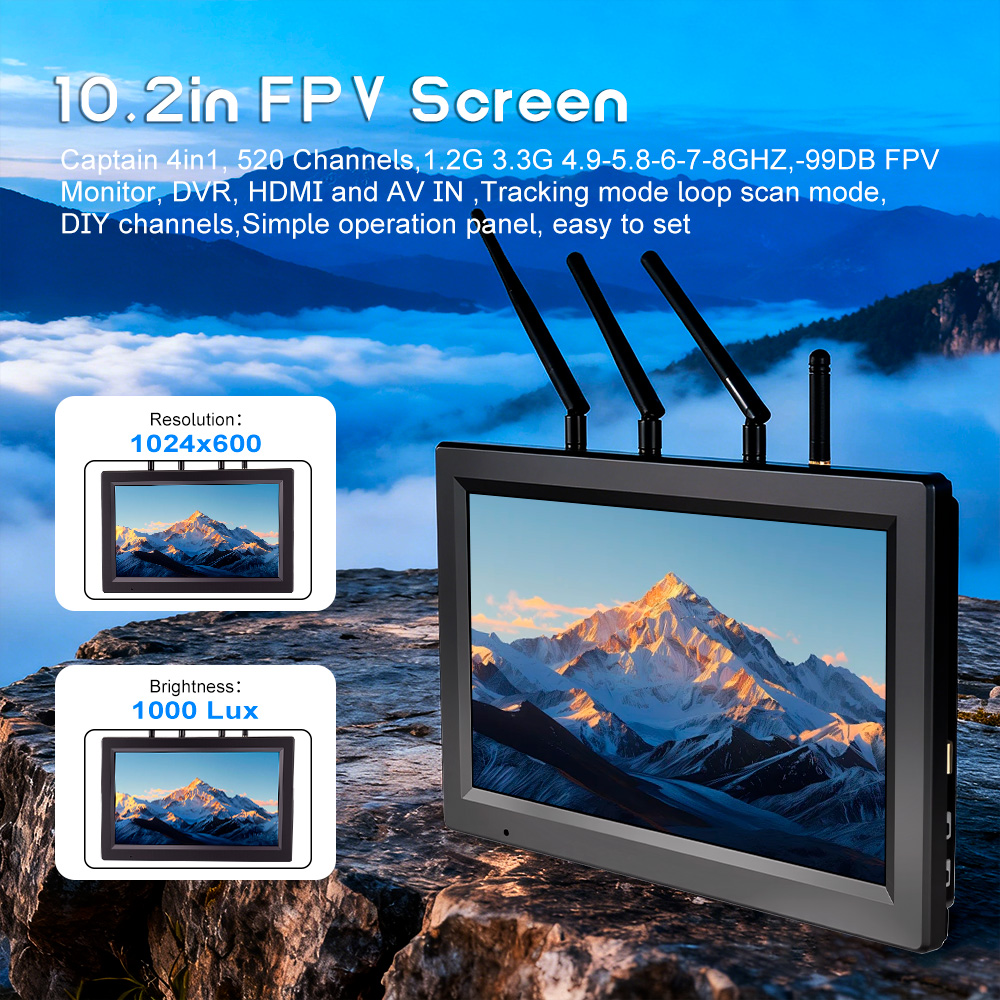

5. 10.2-inch 16:9 HD FPV screen, 1024×600 resolution & 1000 Lux high brightness, built-in HDMI/AV input ports for flexible signal connection.
Description:
10.2-inch ultra-bright FPV drone monitor with built-in background recording DVR, zero-latency anti-flicker screen, 520 multi-frequency channels, flexible tracking & loop scan modes, equipped with compatible HD video port and AV input for smooth outdoor drone flight viewing.

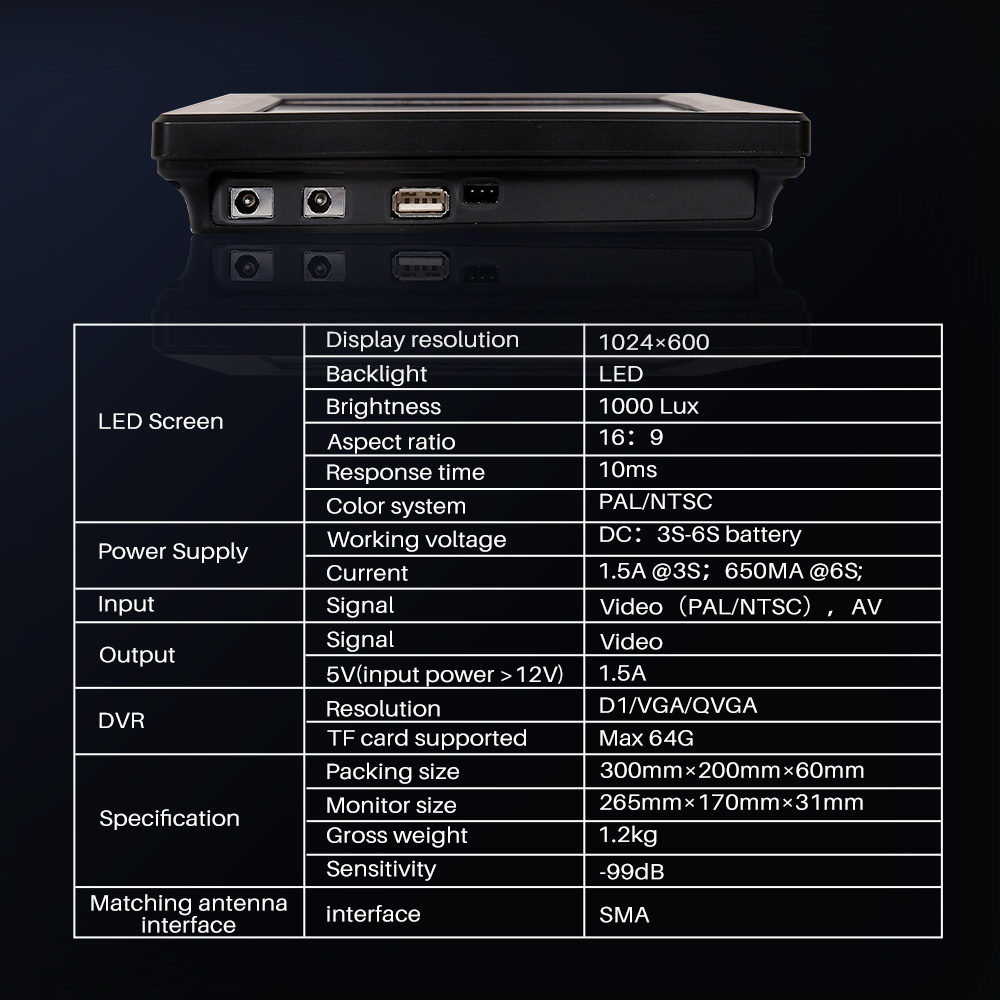

Specifications:

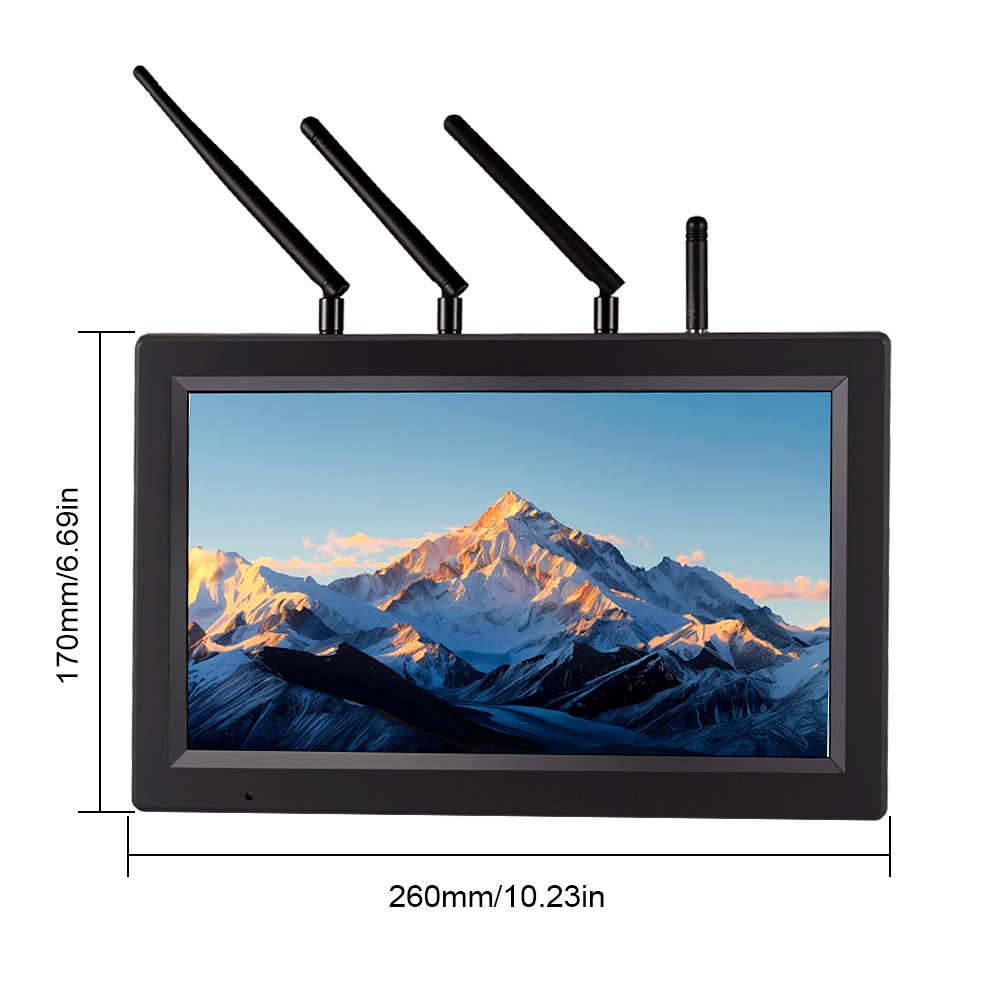

Display Size: 10.2 inch
Total Channels: 520 Channels
Frequency Bands: 1.2G, 3.3G, 4.9GHz, 5.8GHz, 6GHz, 7GHz, 8GHz
Display Resolution: 1024×600, D1/VGA/QVGA supported
Backlight: LED
Brightness: 1000 Lux
Aspect Ratio: 16:9
Response Time: 10ms
Color System: PAL / NTSC dual system
Receiving Sensitivity: -99dB
Antenna Interface: SMA
Channel Scan: Auto / Manual scan, no DIP switch, DIY customizable channels
Scan Modes: Tracking mode, Loop scan mode
TF Card Storage: Max support 64G TF card
Video Signal: PAL / NTSC analog video, AV input
Video Input Port: HD-compatible port, AV IN
Working Battery Voltage: DC 3S–6S lithium battery
Operating Current: 1.5A @3S battery; 650mA @6S battery
5V Output Power (Input voltage >12V): 1.5A
Package contents:
1 × 10.2-inch FPV monitor
1 × Metal adjustable mounting bracket
1 × XT60 Female to DC Male power cable
1 × DC power cable
1 × 3.5mm AV signal cable
1 × Auxiliary wiring harness
4 × Antennas
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
