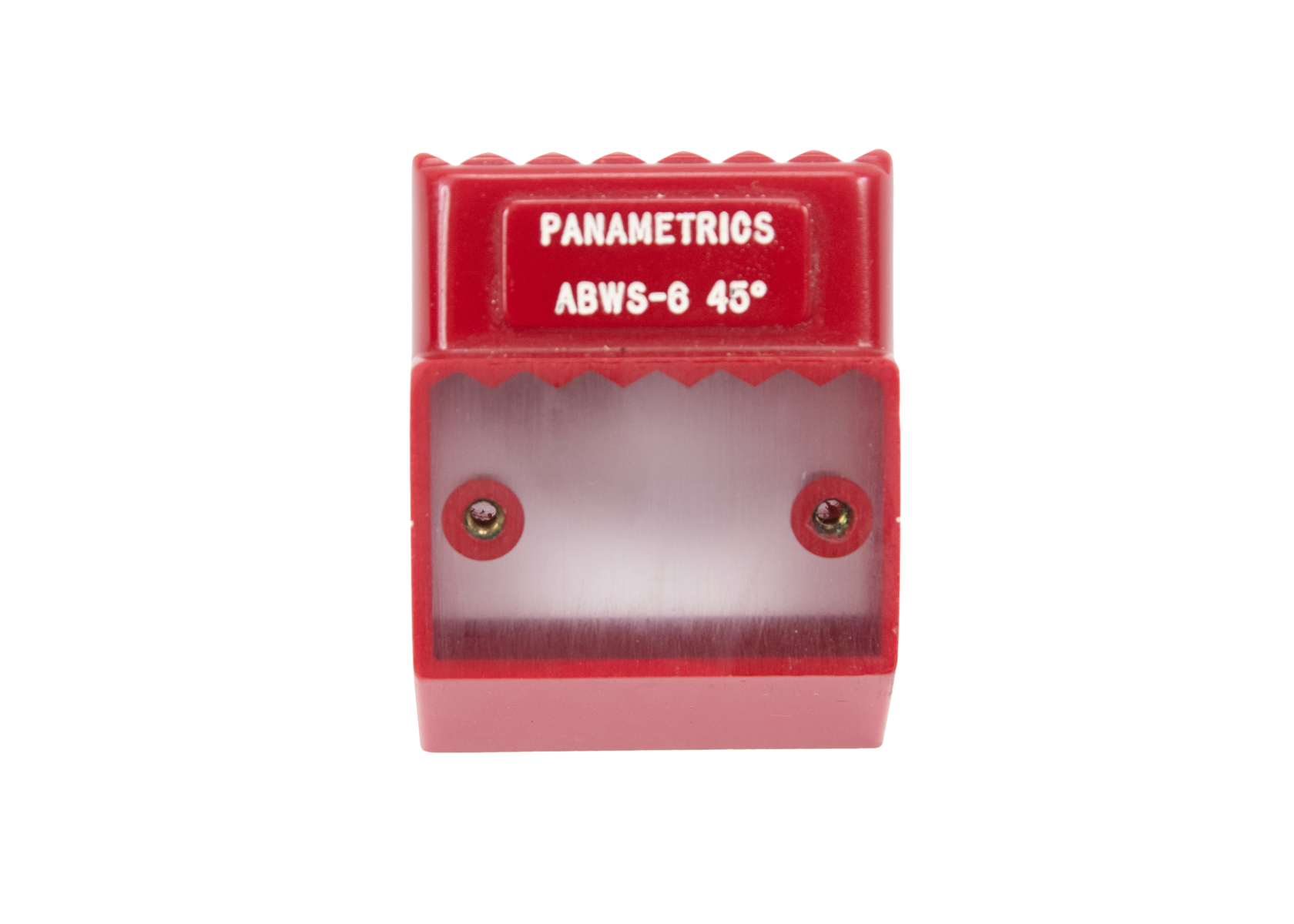

Panametrics ABWS-6-45°, 45° Shear Wave Angle Beam Wedge Transducer Accupath Series

SPECIAL OFFER: $89.95

Certified Pre-Owned ABWS-6-45° American Welding Society Accupath wedge. Verified for 45° shear in steel and built for AWS-case ultrasonic transducers only. Compatible element sizes: 0.625″×0.625″, 0.625″×0.75″, 0.75″×0.75″.

Detailed Overview

Overview

The Panametrics ABWS-6-45° is an AWS Accupath shear angle-beam wedge designed to introduce a 45° refracted shear wave in steel. It is built for AWS-case ultrasonic transducers with element sizes of 0.625″×0.625″, 0.625″×0.75″, or 0.75″×0.75″. This wedge will not fit Accupath (0.50″) or miniature case probes.


Compatible Devices

  • Transducers: Panametrics AWS-case transducers within the supported element sizes
  • Flaw Detectors: Compatible with standard ultrasonic flaw detectors such as:
    • Olympus EPOCH series (600, 650, 1000i)
    • Panametrics EPOCH IV, V, XT
    • Olympus OmniScan MX & MX2 (UT)
    • Waygate/GE USM Go+, USM 36

Key Benefits

  • Produces a 45° shear wave in steel for weld flaw sizing and detection
  • Designed to meet AWS D1.1 angle-beam assembly standards
  • Stable wedge design ensures repeatable exit point and beam delivery

Condition & Support

  • Certified Pre-Owned; cleaned and function-tested
  • Live chat or call 1-833-322-7865 for compatibility verification

Key Benefits

  • ✓
    Fully Tested & Certified
  • ✓
    30-Day Risk-Free Returns
  • ✓
    1-Year Full Warranty
  • ✓
    Professional Calibration Services
  • ✓
    Trade-In Program Available
  • ✓
    Fast & Reliable Delivery

What's in the Box

  • 1 x Panametrics ABWS-6-45° AWS Accupath Wedge

Technical Specifications

Manufacturer Olympus / Evident (Panametrics-NDT)
Model ABWS-6-45°
Wedge style AWS Accupath
Refracted angle in steel 45° shear
Compatible transducer case AWS-case (Accuscan or Centrascan)
Nominal element sizes (compatible) 0.625"×0.625" • 0.625"×0.75" • 0.75"×0.75"
Typical transducer frequency 2.25 MHz (AWS-case pairing)
Accupath wedge dimensions (45°) A=1.50 in • B=0.90 in • C=1.96 in • D=1.50 in
Screw spacing 1.062 in (center-to-center)
Standards Meets AWS D1.1 angle-beam assembly requirements
