Kaye X2025 Sensor Input Module for Validator 2000
Kaye X2025 Sensor Input Module for Validator 2000 delivers 12-channel sensor connectivity for validation workflows, supporting thermocouple, voltage, and current inputs with onboard calibration memory and reference RTD accuracy support.
Detailed Overview
Sensor Input Connectivity for Kaye Validator 2000
The Kaye X2025 is a sensor input module designed for use with the Kaye Validator 2000 system. It provides the connection point for sensor data collection and supports mixed input types used in validation workflows. Its format suits environments where repeatable setup and accurate input handling are important.
Multi-Sensor Input Handling and Data Capture
- Connects up to 12 sensor inputs through a single SIM for organized data acquisition.
- Accepts mixed sensor wiring so thermocouple, voltage, and current signals can be brought into one module.
- Stores calibration offsets and identification data in onboard memory to retain module-specific setup information.
- Uses an internal reference RTD to support cold-junction compensation for thermocouple measurement accuracy.
Input Capacity and Measurement Functions
- Provides 12 input channels per module.
- Supports thermocouple inputs in Type T, J, and K configurations.
- Supports voltage inputs from -6 mV to 10 V.
- Supports current inputs including 0-20 mA and 4-20 mA for transducer-based measurement.
- Allows up to three SIMs on one Validator 2000 system for as many as 36 total inputs.
Validation and Process Monitoring Use Cases
- Suited for pharmaceutical and biotech validation workflows.
- Supports connection of temperature, pressure, and humidity-related sensor inputs.
- Fits recurring validation studies where prewired module handling can streamline setup.
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery
What's in the Box
- 1 x Kaye X2025 Sensor Input Module (SIM)
Technical Specifications
| Brand | Kaye |
|---|---|
| Model | X2025 |
| Product Type | Sensor Input Module (SIM) |
| System Compatibility | Kaye Validator 2000 |
| Input Capacity | 12 channels |
| Expandable System Capacity | Up to 3 SIMs per Validator 2000, up to 36 total inputs |
| Supported Thermocouple Types | T, J, K |
| Voltage Input Range | -6 mV to 10 V |
| Current Input Range | 0-20 mA, 4-20 mA |
| Reference Compensation | Built-in reference RTD for cold-junction compensation |
| Onboard Memory | Stores calibration offsets, SIM serial number, slot location, and measurement board serial number |

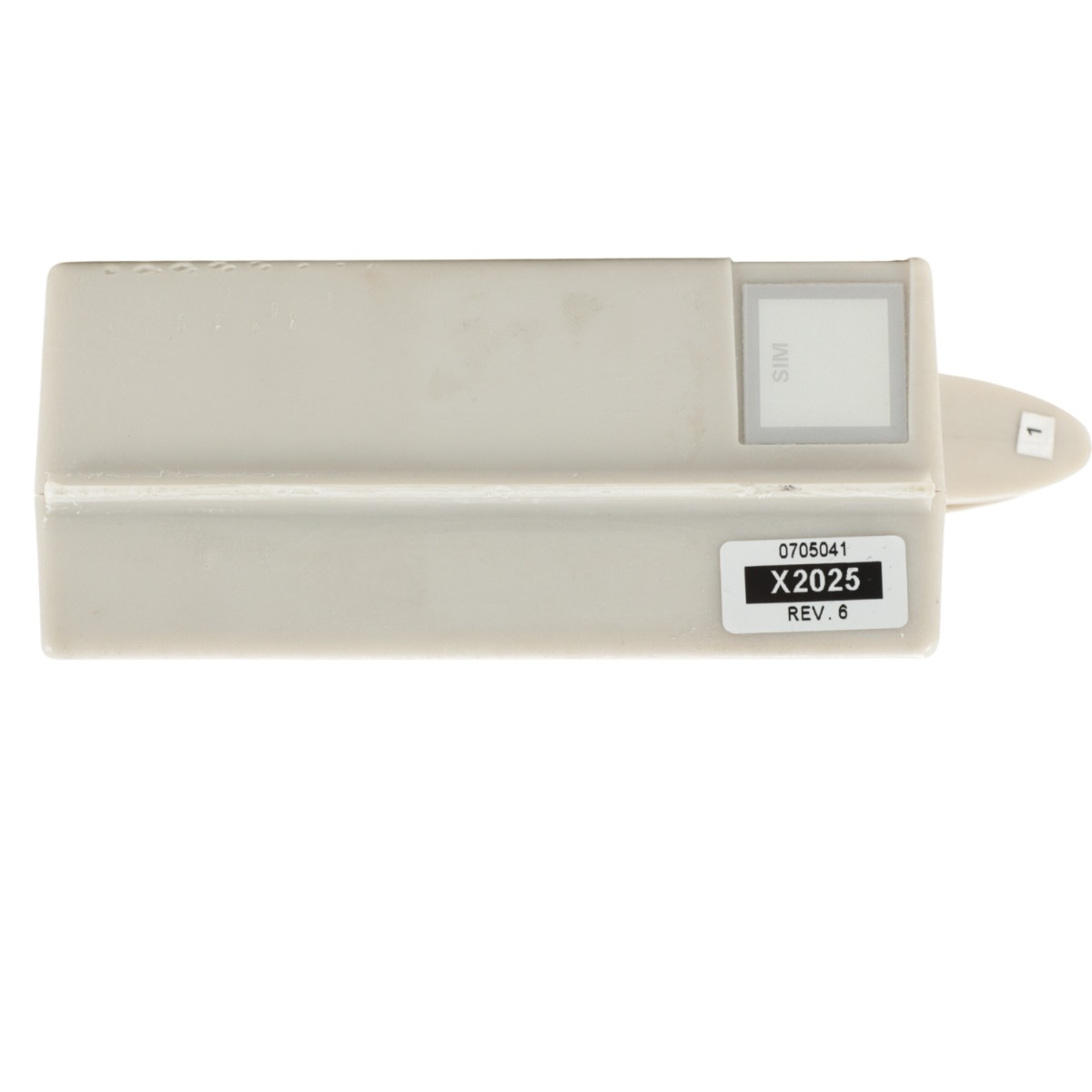

| Revision | Rev. 6 |

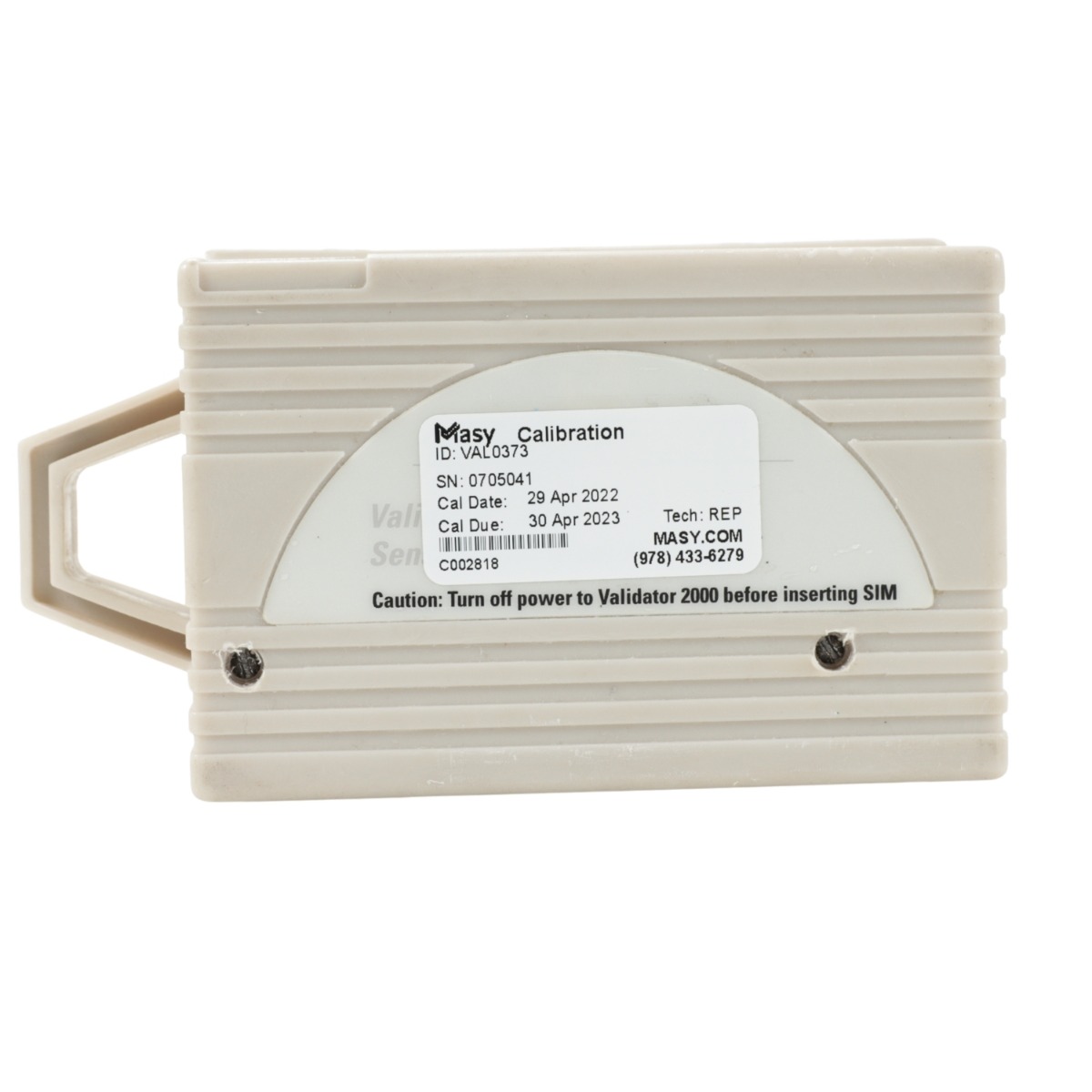

| Calibration Label ID | VAL0373 |
| Calibration Label Serial Number | 0705041 |
