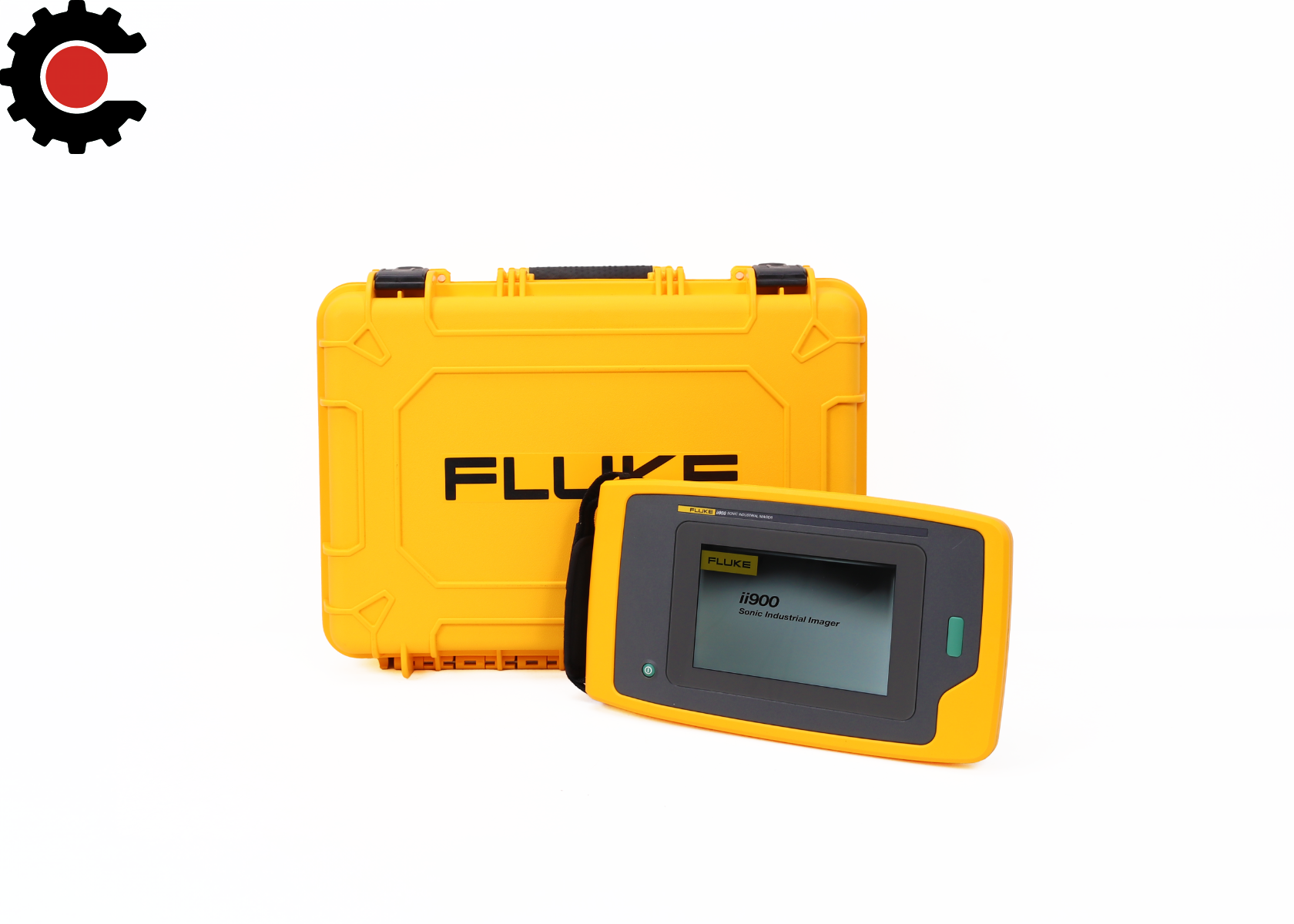

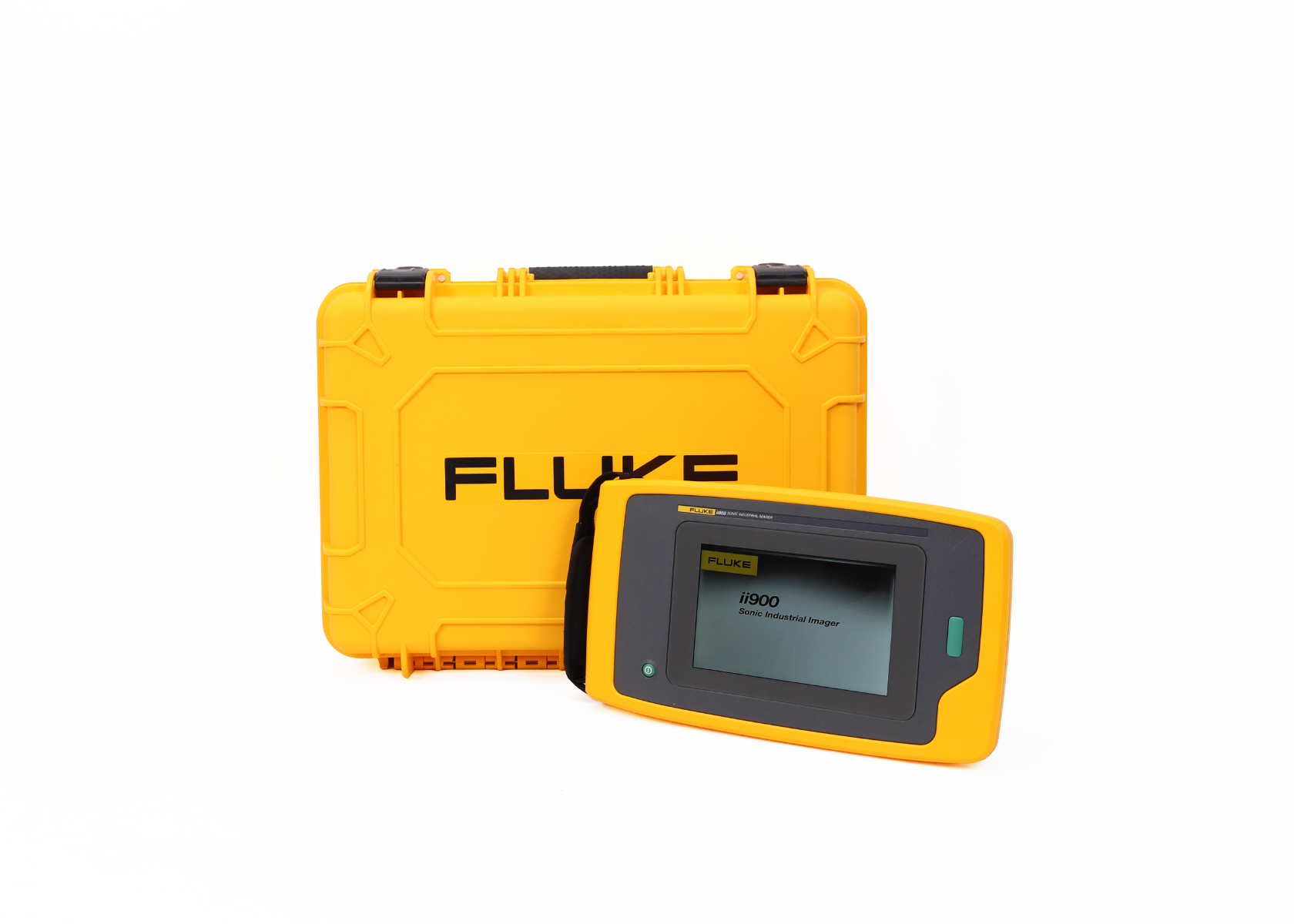

Fluke II900 Industrial Acoustic Imager *Demo Unit*

SPECIAL OFFER: $18,999.95
Fluke II900 Acoustic Imager: Detect and visualize leaks with precision! 70m range, SoundMap technology, and 6-hour battery life for efficient, accurate diagnostics.

Detailed Overview

The Fluke II900 Industrial Acoustic Imager is the ultimate tool for detecting and visualizing leaks with exceptional precision. Ideal for technicians and engineers, it offers a powerful, user-friendly design to ensure faster, more efficient diagnostics. With its innovative SoundMap™ technology and 70-meter detection range, you can easily pinpoint leaks in various industrial environments. The 6-hour battery life allows for extended use, while the 7-inch sunlight-readable display ensures clear imaging even in bright conditions. Take your leak detection to the next level with the Fluke II900.



Key Features:



  • SoundMap™ Technology: Visualize sound with superimposed images for precise leak detection.
  • Long Detection Range: Detect leaks up to 70 meters (230 feet) away for broad coverage.
  • Extended Battery Life: 6 hours of continuous use with a rechargeable Li-ion battery.
  • Large, Sunlight-Readable Display: 7-inch LCD screen with backlight for clear visibility in all conditions.
  • Built-in Digital Camera: Capture detailed images and videos for further analysis.
  • Multiple Palettes: Choose between Grayscale, Ironbow, and Blue-Red palettes for better visualization.
  •

Benefits:



  • Increased Accuracy: Achieve highly precise leak detection with SoundMap™ technology.
  • Improved Efficiency: Speed up leak diagnostics with an easy-to-use, intuitive interface.
  • Portable & Durable: Lightweight and designed for industrial environments with IP40 protection.
  • Clear Visuals: The high-resolution display provides detailed images even in bright sunlight.
  • Convenient Data Export: Easily transfer images and videos via USB-C for further analysis.
  •

Ready to streamline your leak detection process? The Fluke II900 Industrial Acoustic Imager is here to enhance your diagnostics!

Key Benefits

  • ✓
    Fully Tested & Certified
  • ✓
    30-Day Risk-Free Returns
  • ✓
    1-Year Full Warranty
  • ✓
    Professional Calibration Services
  • ✓
    Trade-In Program Available
  • ✓
    Fast & Reliable Delivery

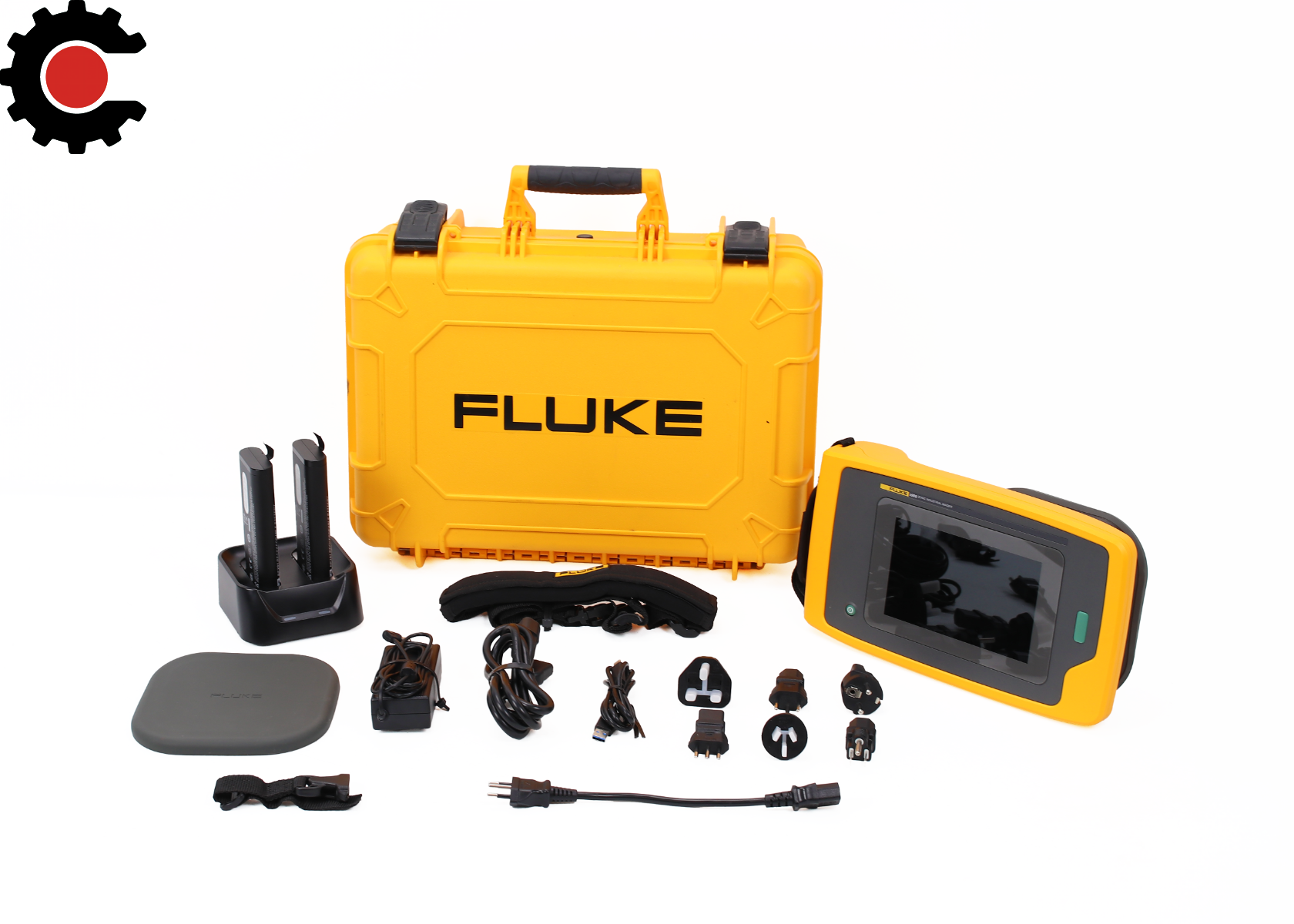

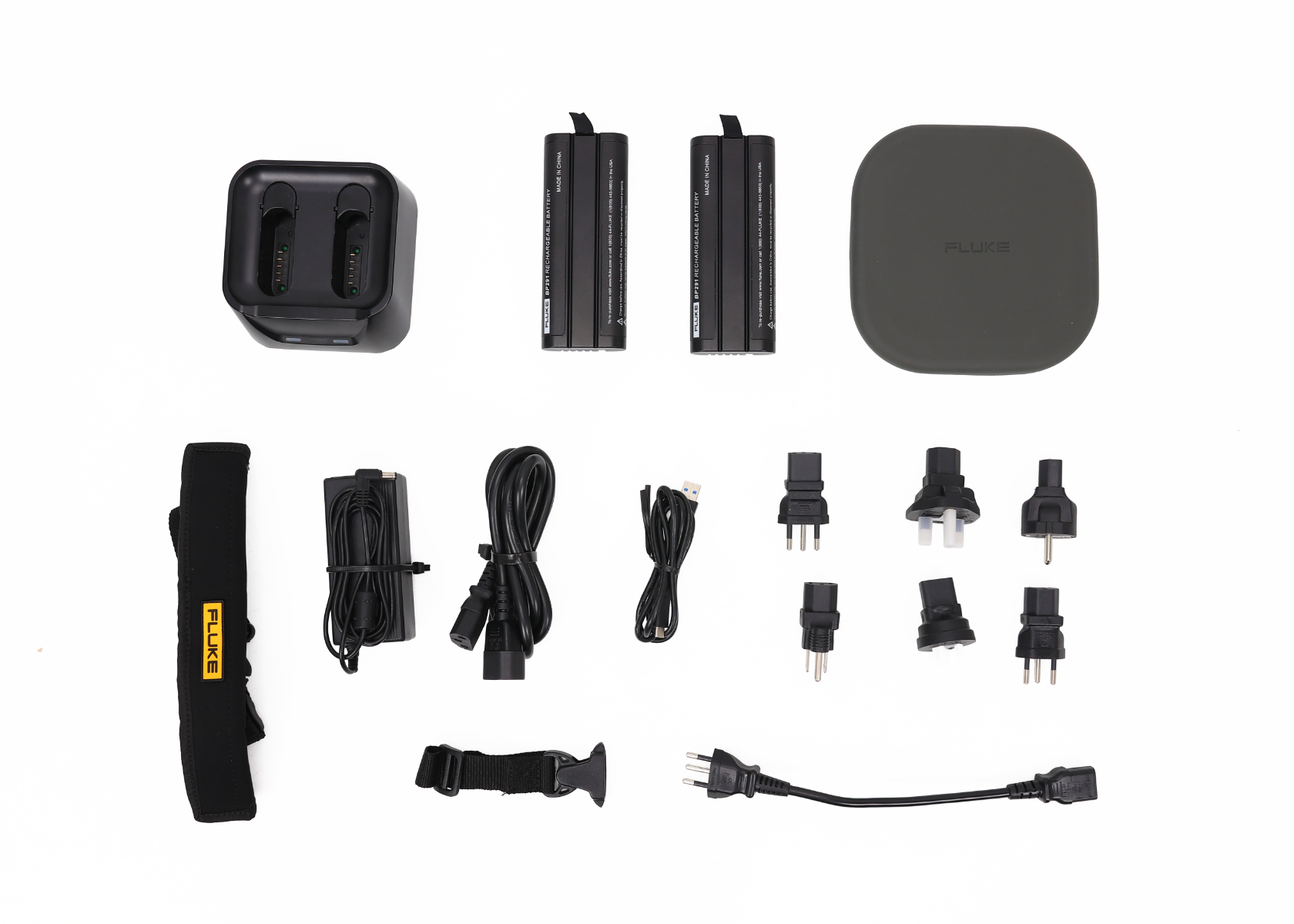

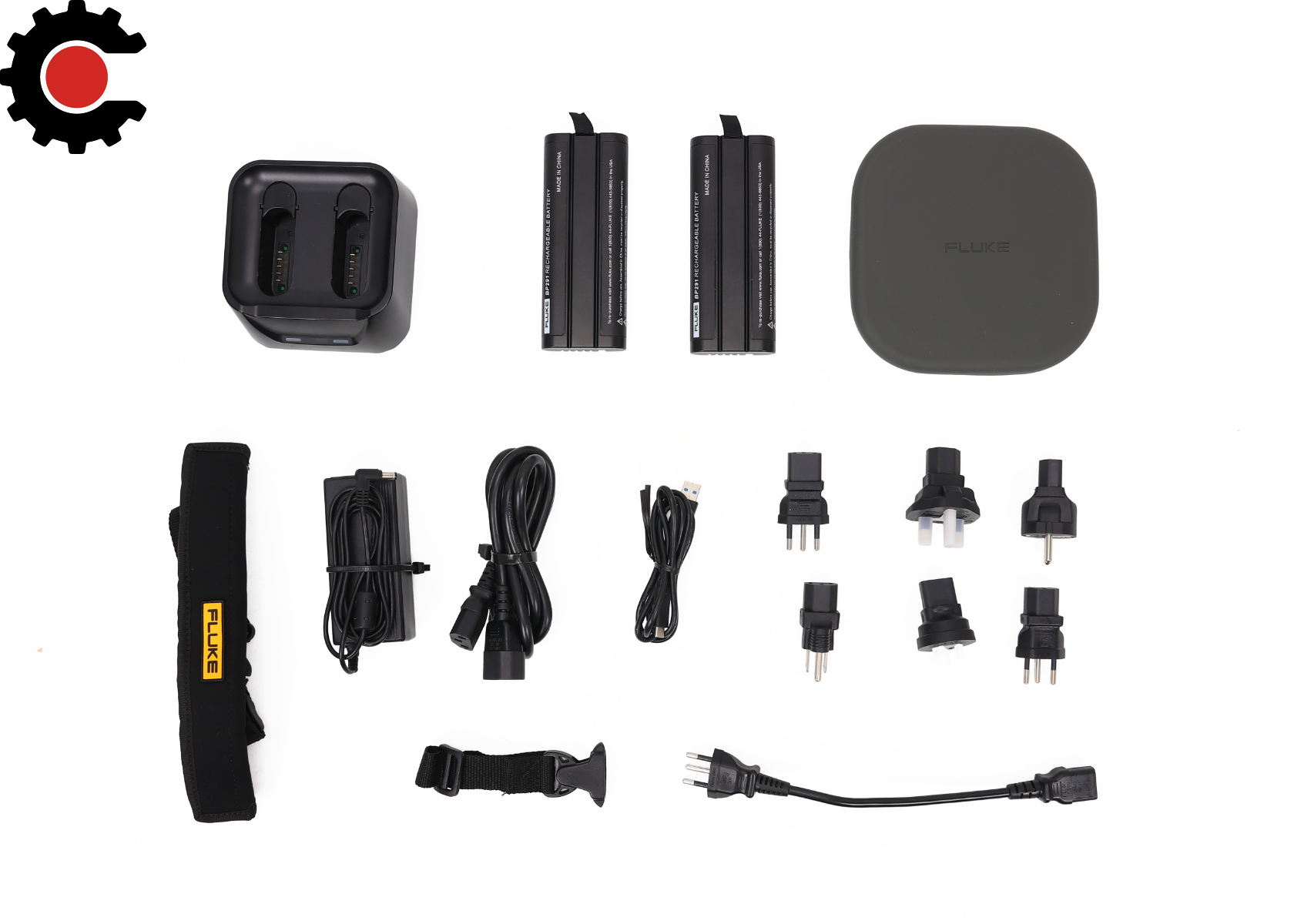

What's in the Box

  • 1 x Fluke II900 Sonic Industrial Imager *DEMO Unit*

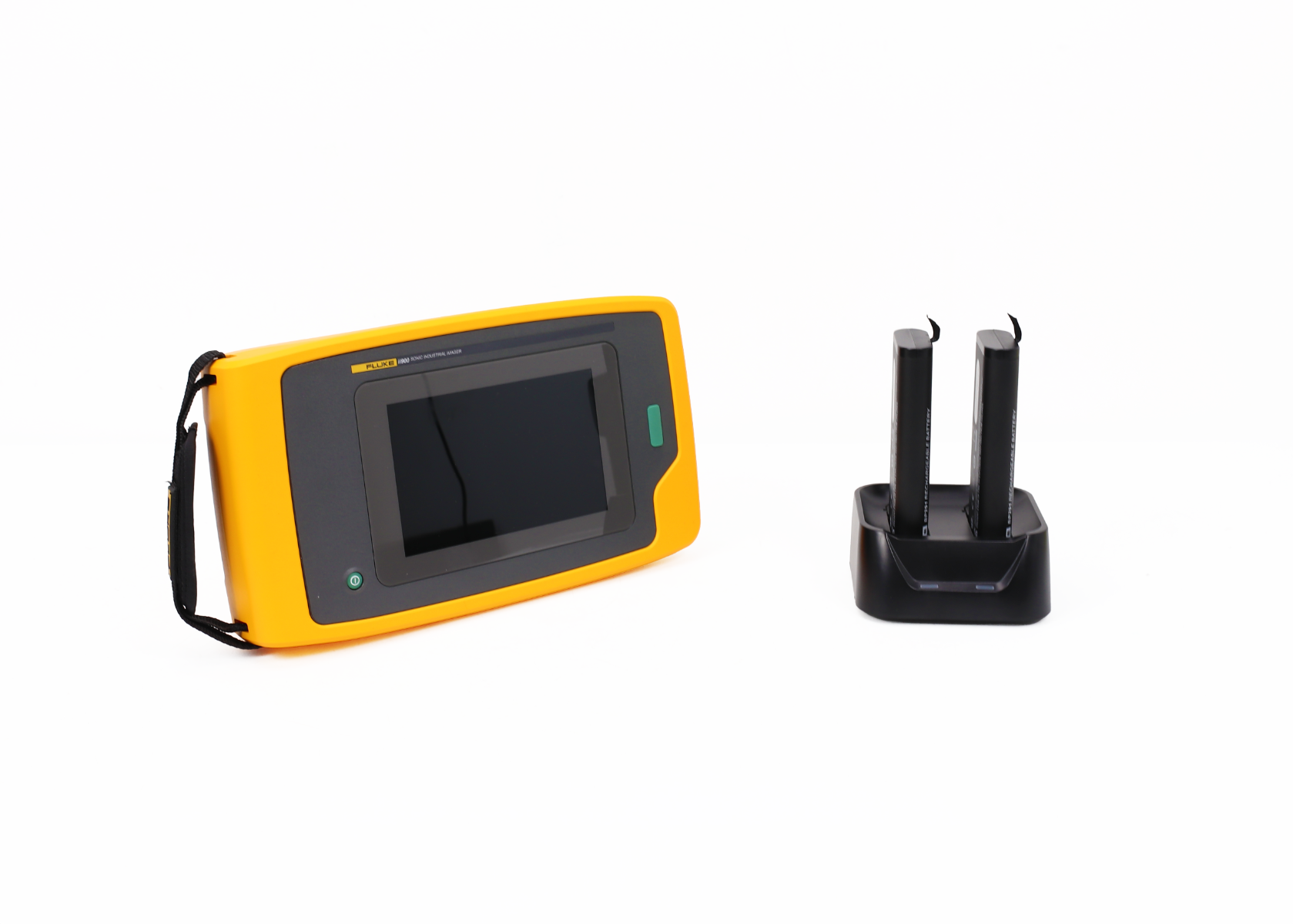

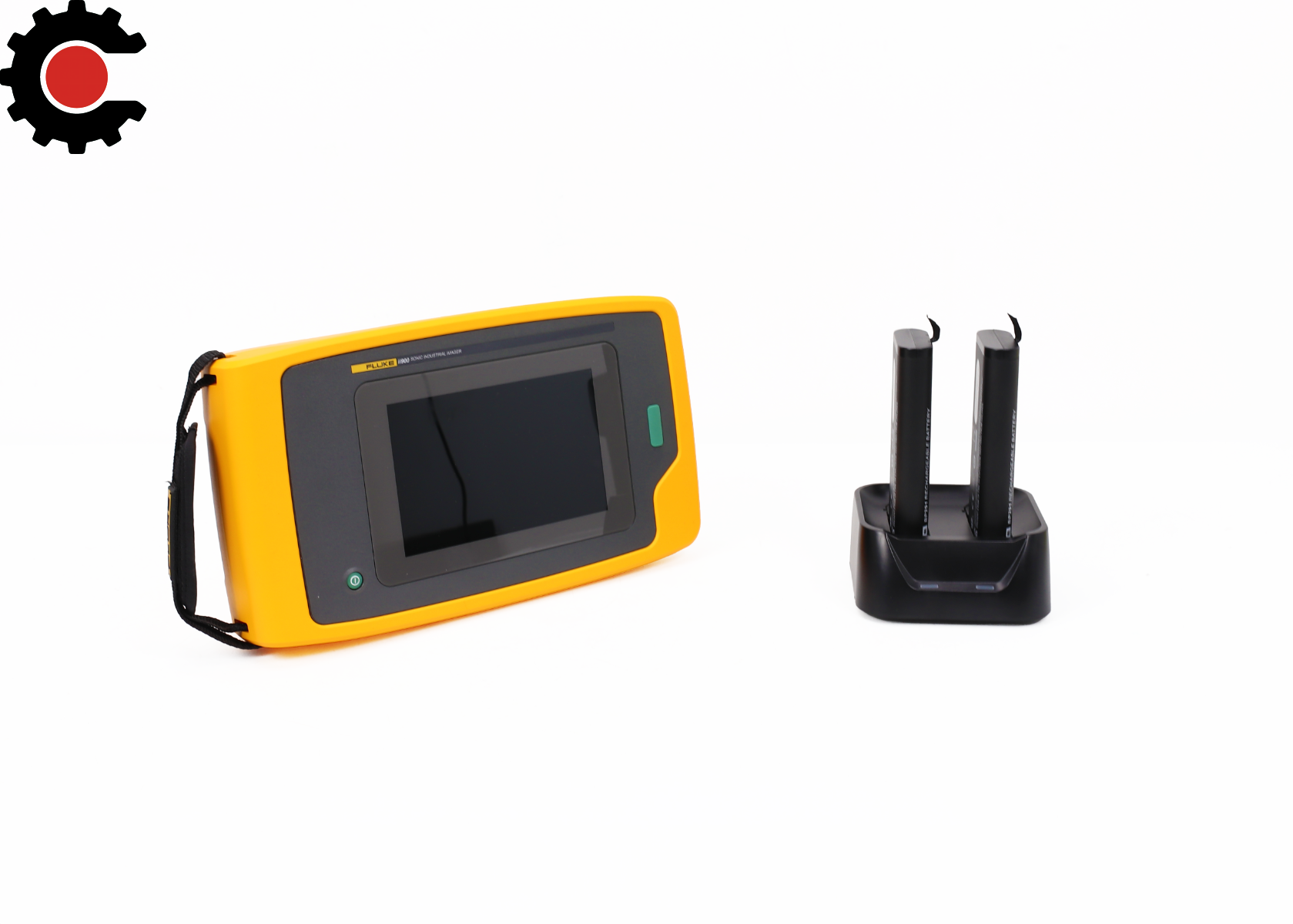

  • 1 x Battery Charging Station
  • 2 x Batteries
  • 1 x A/C Adapter and Charger (with Universal A/C Adapters)
  • 1 x USB Cord
  • 1 x High Capacity Li-Ion Battery
  • 1 x Adjustable Handstrap
  • 1 x Adjustable Neckstrap

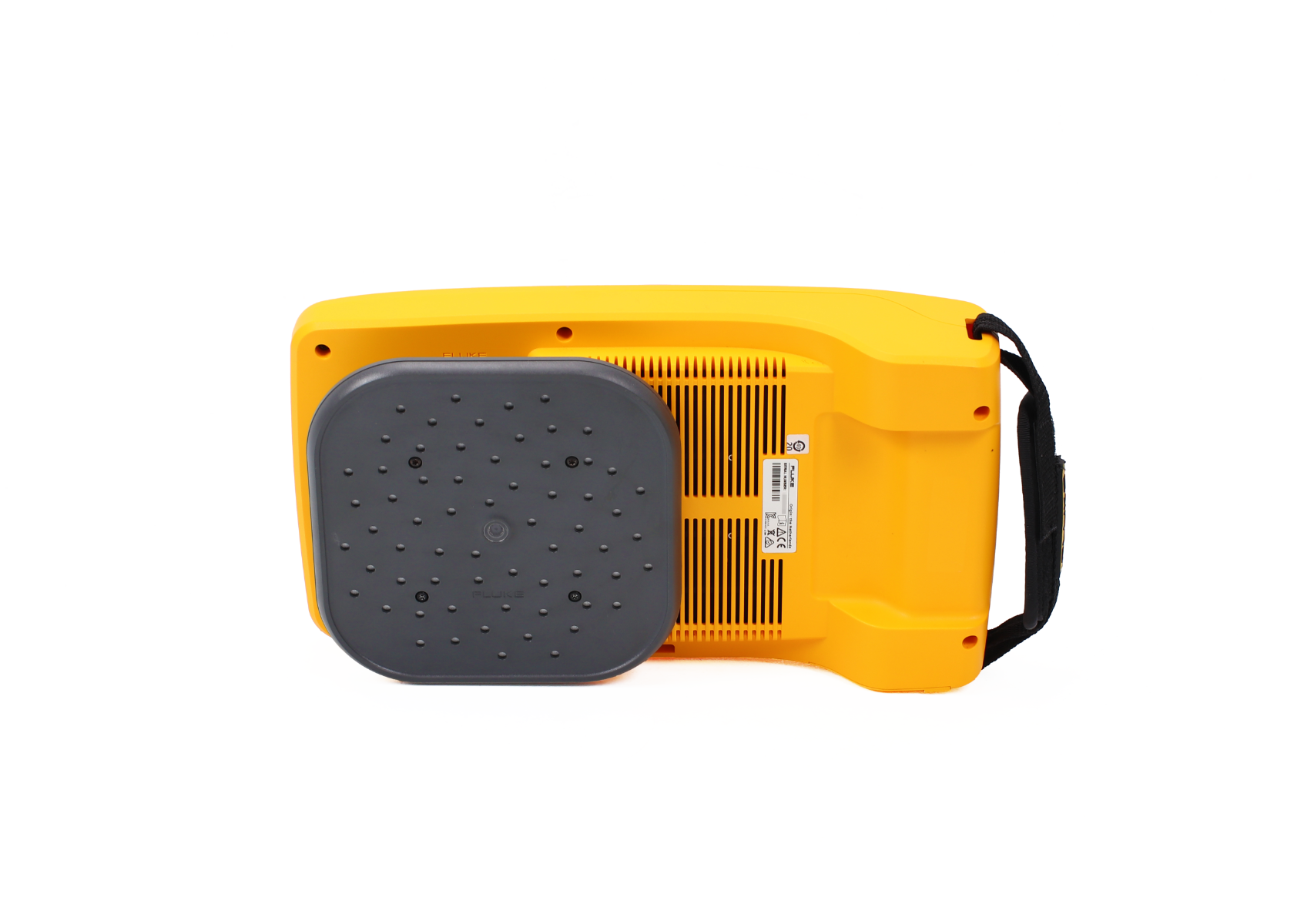

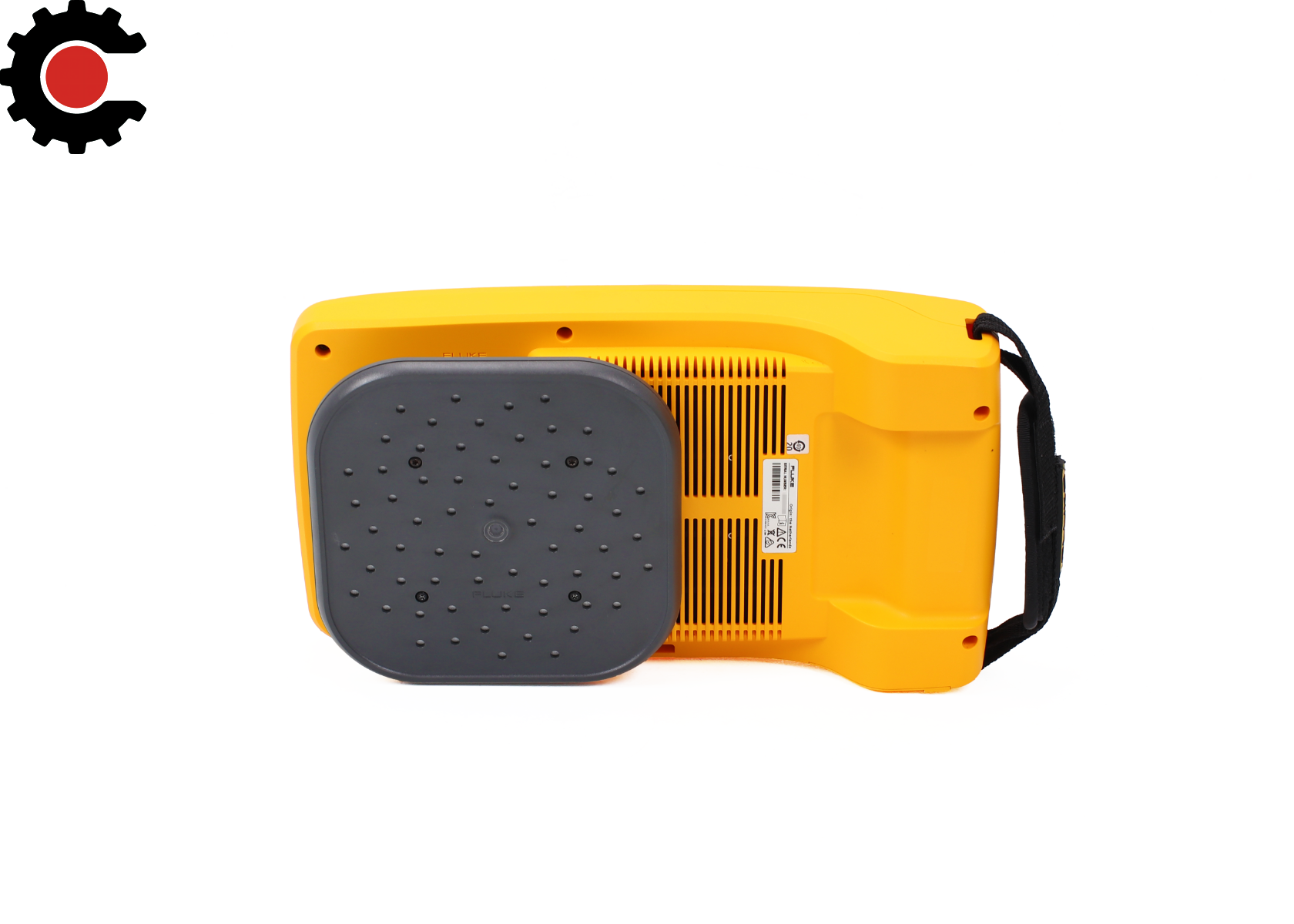

  • 2 x Array Cover
  • 1 x Hard Carry Case

Technical Specifications

Brand Fluke
Model Number II900
Frequency Band 2 kHz to 52 kHz
Detection Range 0.5 m to >70 meters (1.6 to >230 feet)
Field of View 63° ± 5°
Display 7-inch LCD with backlight, sunlight readable
Resolution 1280 x 800 (1,024,000 pixels)
Touchscreen Capacitive
Battery Life 6 hours per battery
Battery Type 2 x Rechargeable Li-ion
Charging Time 3 hours
Charging System External charger
Ingress Protection (IP) IP40
Weight 5 lbs (with battery included)
Dimensions (H x W x L) 15 inches x 15 inches x 15 inches
Operating Temperature -10°C to 45°C (14°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F) without batteries installed
Relative Humidity 10% to 95% non-condensing
Warranty 2 years
Acoustic Measurement Range 12.1 dB SPL to 135.5 dB SPL
Language Support Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese
RoHS Compliant Yes
Safety Standards IEC 61010-1, IEC 61326-1, IEC 61326-2-2
Electromagnetic Compatibility CISPR 11: Group 1, Class A, FCC 47 CFR 15 Subpart B
