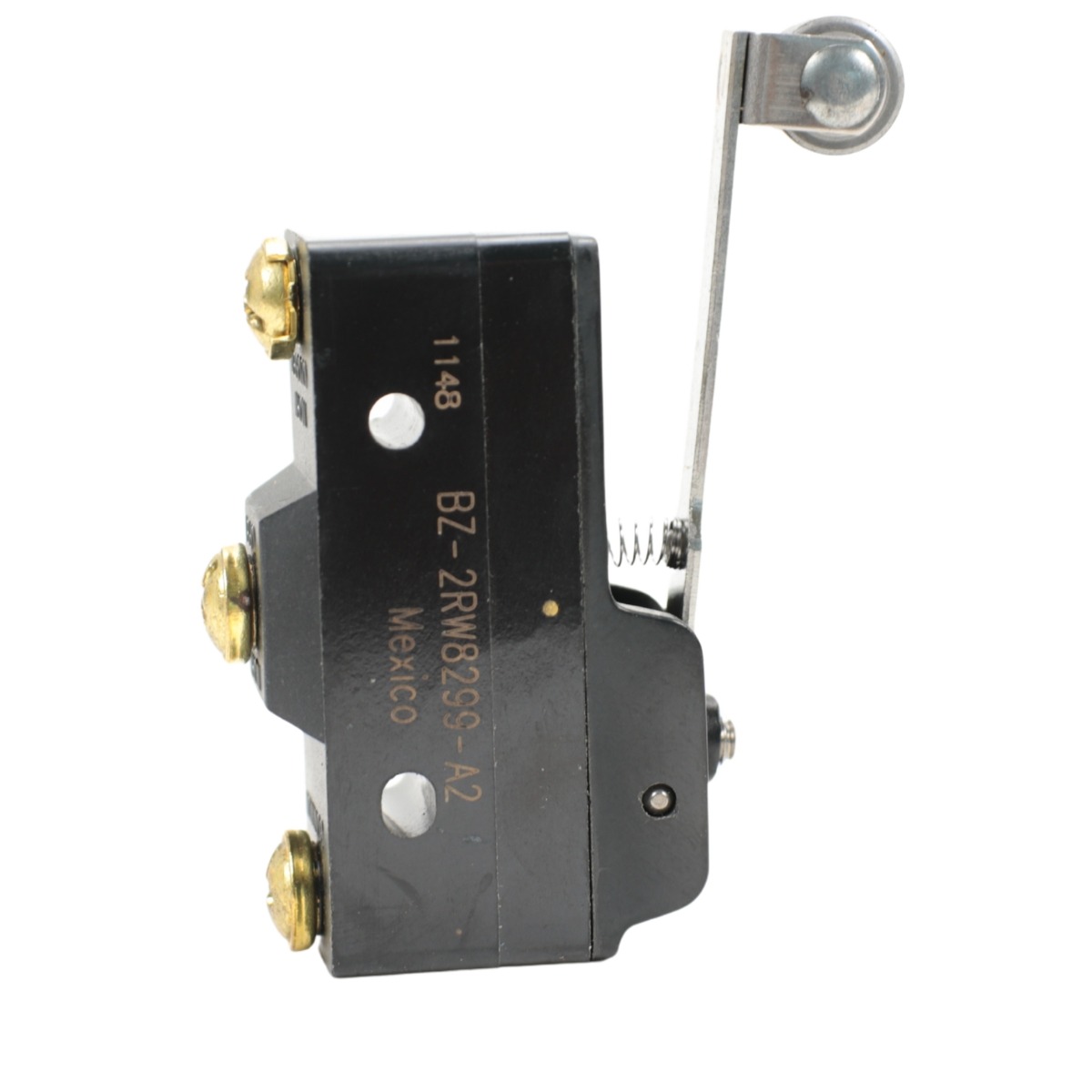

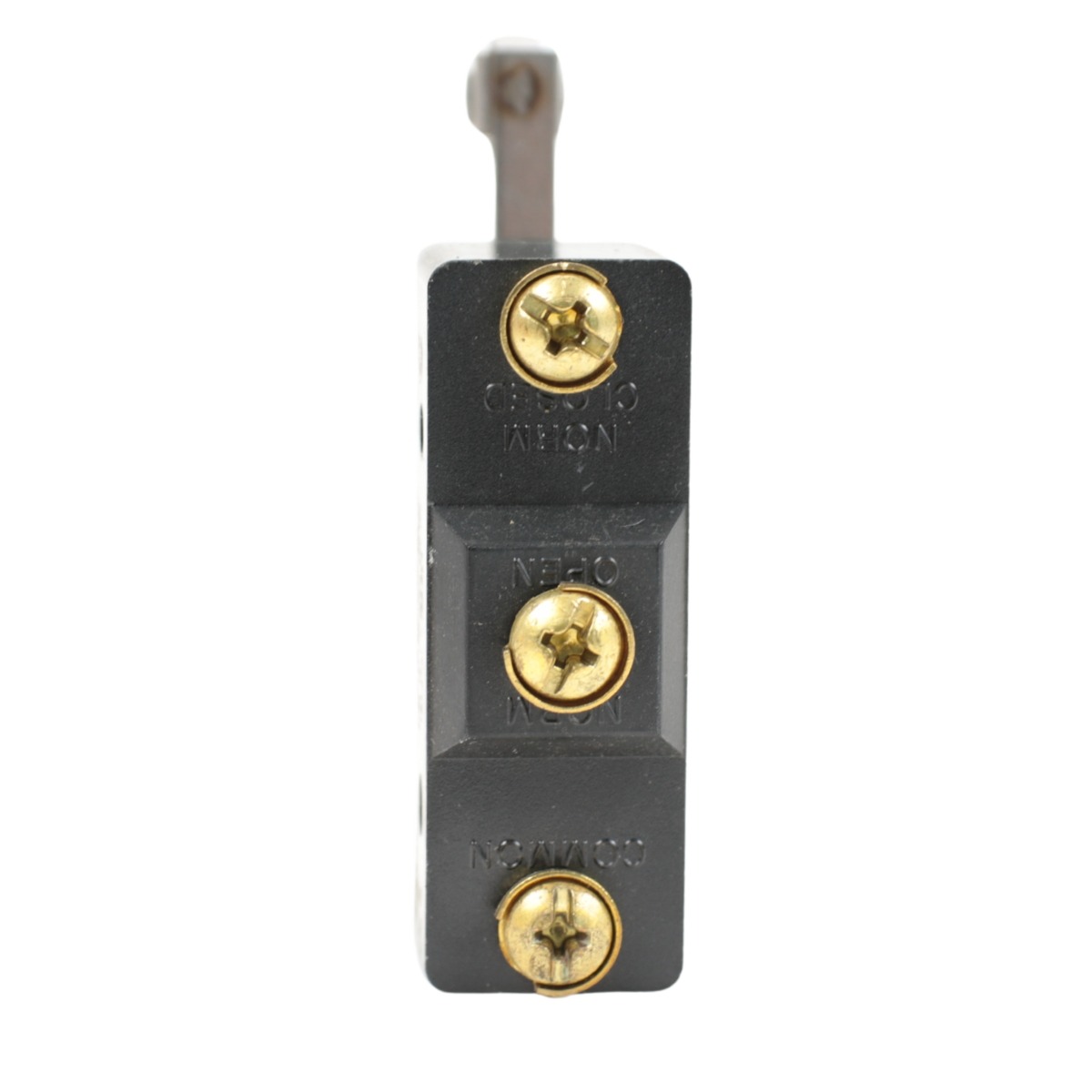

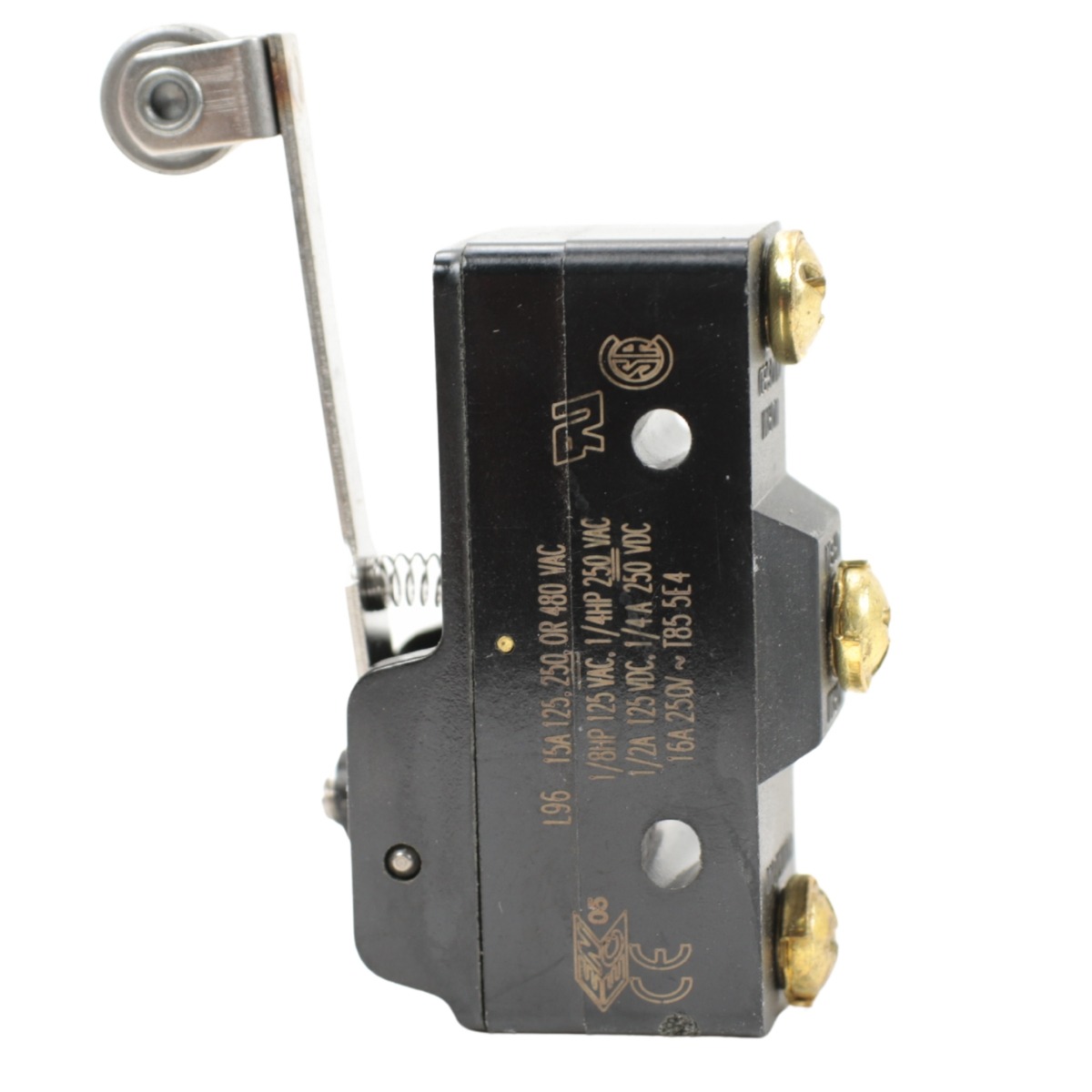

Honeywell BZ-2RW8299-A2 SPDT Roller Lever Basic Switch

SPECIAL OFFER: $14.95

Honeywell BZ-2RW8299-A2 MICRO SWITCH BZ Series basic switch delivers SPDT snap-action switching with a rigid roller lever actuator, screw terminals, and reliable 15 A electrical performance for industrial control and automation applications.

Detailed Overview

Snap-Action Switching for Industrial Control with Honeywell BZ-2RW8299-A2

The Honeywell BZ-2RW8299-A2 is a large premium snap-action basic switch in the MICRO SWITCH BZ Series. It provides SPDT switching through a rigid roller lever actuator with screw terminal connections for industrial control circuits. Its design supports reliable switching performance in machinery, automation equipment, and OEM installations.

Snap-Action Contact Operation with Roller Lever Actuation

  • Roller lever converts mechanical movement into snap-action contact switching.
  • SPDT contact arrangement changes between normally open and normally closed circuits.
  • Precision snap mechanism minimizes contact transition time during operation.
  • Screw terminals provide secure field wiring for control circuits.

Electrical Ratings and Mechanical Performance

  • SPDT contact configuration.
  • Rated 15 A switching capacity.
  • Rated for 125/250 VAC and 125/250 VDC operation.
  • Screw terminal electrical connections.
  • Mechanical life up to 20 million operations.

Industrial Control and OEM Applications

  • Industrial machinery control.
  • Factory automation equipment.
  • OEM mechanical position and limit detection.

Key Benefits

  • ✓
    Fully Tested & Certified
  • ✓
    30-Day Risk-Free Returns
  • ✓
    1-Year Full Warranty
  • ✓
    Professional Calibration Services
  • ✓
    Trade-In Program Available
  • ✓
    Fast & Reliable Delivery

What's in the Box

  • 1 x Honeywell BZ-2RW8299-A2 SPDT Roller Lever Basic Switch

Technical Specifications

Specification Value
Brand Honeywell
Model BZ-2RW8299-A2
Series MICRO SWITCH BZ Series
Product Type Large Premium Basic Switch
Circuit Configuration SPDT (Single Pole Double Throw)
Contact Arrangement Normally Open / Normally Closed
Actuator Type Rigid Roller Lever
Termination Screw Terminals
Current Rating 15 A
AC Voltage Rating 125 VAC, 250 VAC
DC Voltage Rating 125 VDC, 250 VDC
Frequency 50/60 Hz
Contact Resistance 15 mΩ max (initial)
Insulation Resistance 100,000 MΩ minimum
Dielectric Strength 2,000 V Terminal-to-Ground
Actuating Force 0.97 N
Maximum Differential Travel 1.02 mm
Housing Material Phenolic
Contact Material Silver / Silver Cadmium Oxide
Mechanical Life Up to 20,000,000 operations
Electrical Life 100,000 operations at rated load
Operating Temperature -55°C to 85°C
Mounting Surface / Chassis Mount
