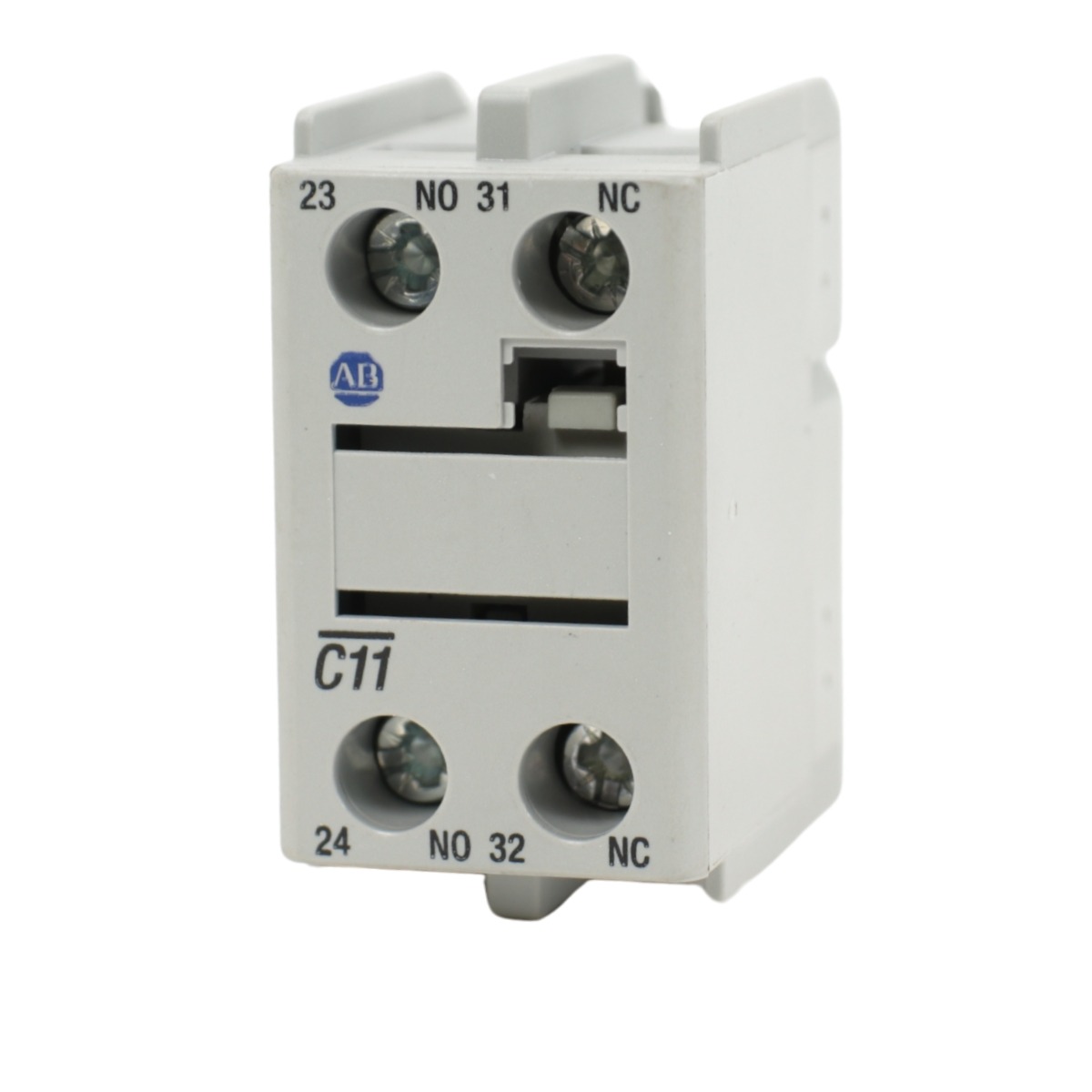

Allen-Bradley 100-FC11 Front-Mount Auxiliary Contact Block 1NO/1NC

SPECIAL OFFER: $24.95

Allen-Bradley 100-FC11 front-mount auxiliary contact block expands Bulletin 100-C contactors and compatible control relays with one normally open and one normally closed auxiliary contact for control, signaling, and status feedback applications.

Detailed Overview

Auxiliary Contact Expansion for IEC Contactor Control Systems Allen-Bradley 100-FC11

The Allen-Bradley 100-FC11 is a front-mount auxiliary contact block designed for Bulletin 100-C IEC contactors and compatible control relays. It provides one normally open and one normally closed auxiliary contact to extend control and indication circuits. It is intended for industrial control panels and automation systems requiring additional signaling or interlocking functions.

Front-Mounted Auxiliary Contact Operation

  • Snaps onto the front of compatible contactors without additional mounting hardware.
  • Mechanical operation follows the movement of the associated contactor.
  • Provides one normally open and one normally closed auxiliary switching path.
  • Enables additional control, status indication, and interlocking circuits.

Contact Configuration and Electrical Characteristics

  • One normally open and one normally closed auxiliary contact.
  • Front-mount snap-on construction for Bulletin 100-C accessories.
  • Screw-clamp terminals for secure field wiring.
  • Rated insulation voltage up to 690 V AC (IEC).
  • Conventional thermal current up to 10 A.

Industrial Control and Automation Applications

  • Industrial motor control panels.
  • Machine control and automation systems.
  • Auxiliary signaling and electrical interlocking circuits.

Key Benefits

  • ✓
    Fully Tested & Certified
  • ✓
    30-Day Risk-Free Returns
  • ✓
    1-Year Full Warranty
  • ✓
    Professional Calibration Services
  • ✓
    Trade-In Program Available
  • ✓
    Fast & Reliable Delivery

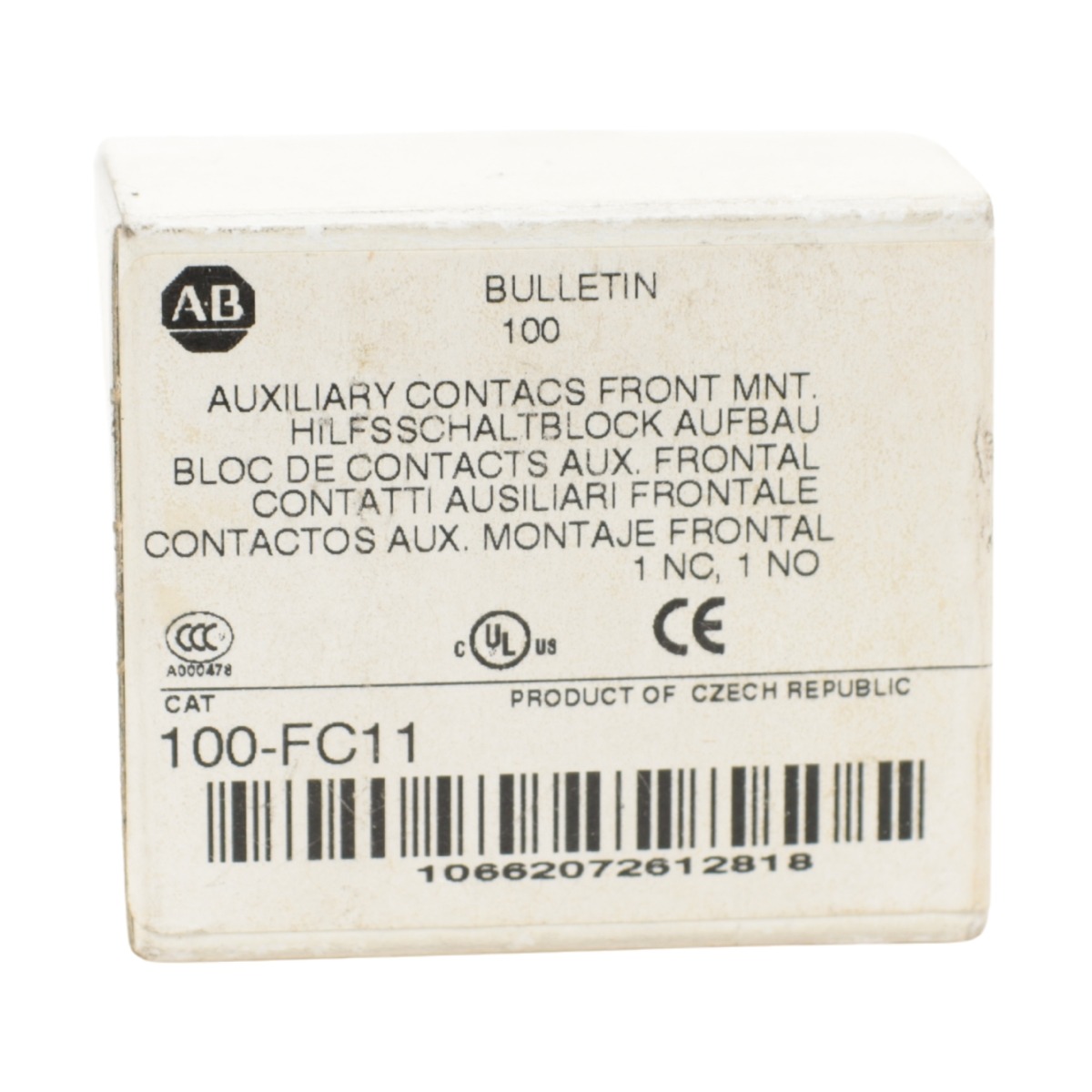

What's in the Box

  • 1 x Allen-Bradley 100-FC11 Front-Mount Auxiliary Contact Block

  • 1 x Allen-Bradley Factory Box

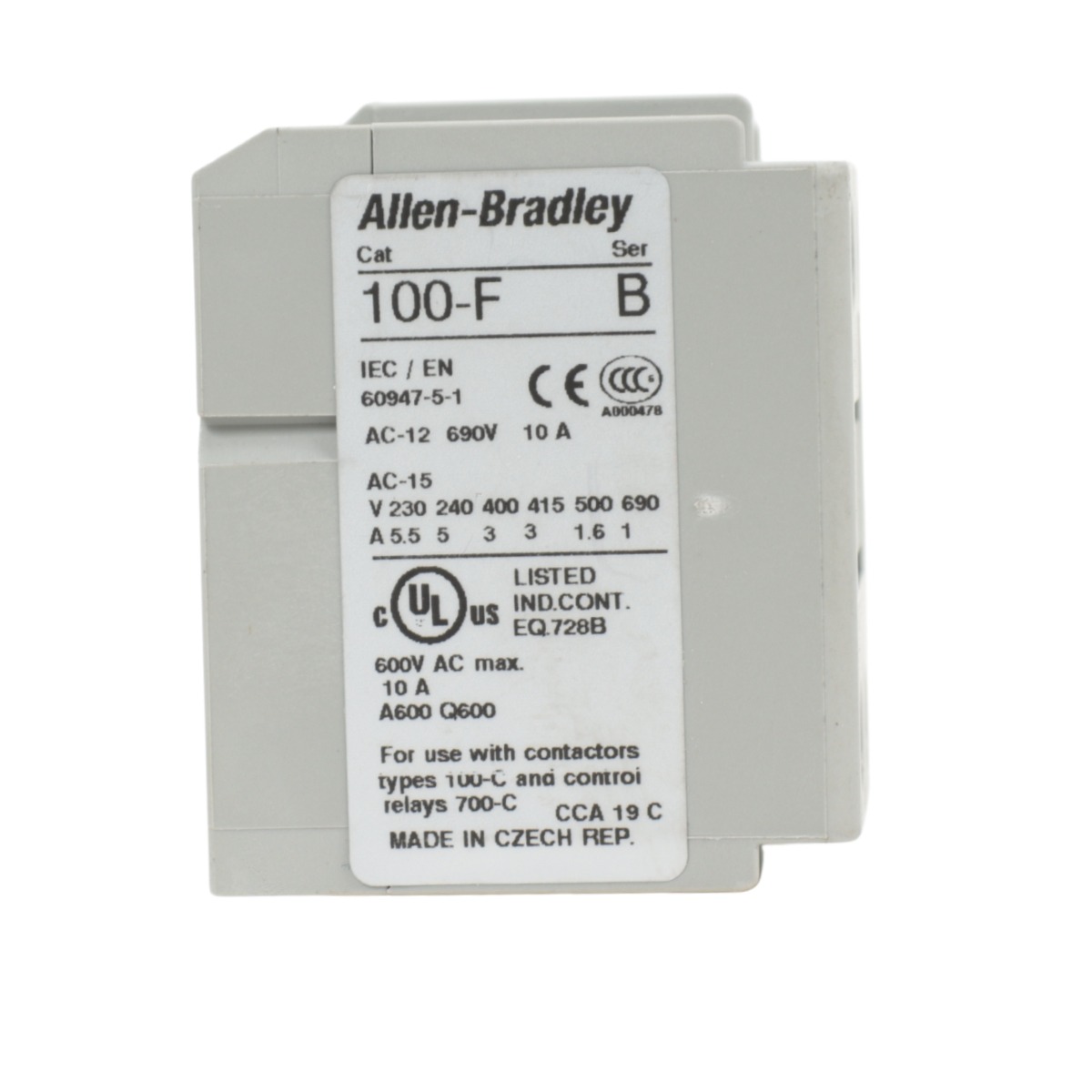

Technical Specifications

Specification Value
Brand Allen-Bradley
Model 100-FC11
Product Series Bulletin 100 Accessories
Product Type Front-Mount Auxiliary Contact Block
Contact Configuration 1 Normally Open (NO), 1 Normally Closed (NC)
Number of Contacts 2
Mounting Method Front-Mount Snap-On
Terminal Type Screw-Clamp
Conventional Thermal Current (Ith) 10 A
Rated Insulation Voltage (Ui) 690 V AC (IEC)
UL/CSA Rated Voltage 600 V AC Maximum
UL/CSA Rating A600 / Q600
Standards IEC/EN 60947-5-1
Compatible Products Bulletin 100-C, 104-C, 700-CF, 700S-CF
