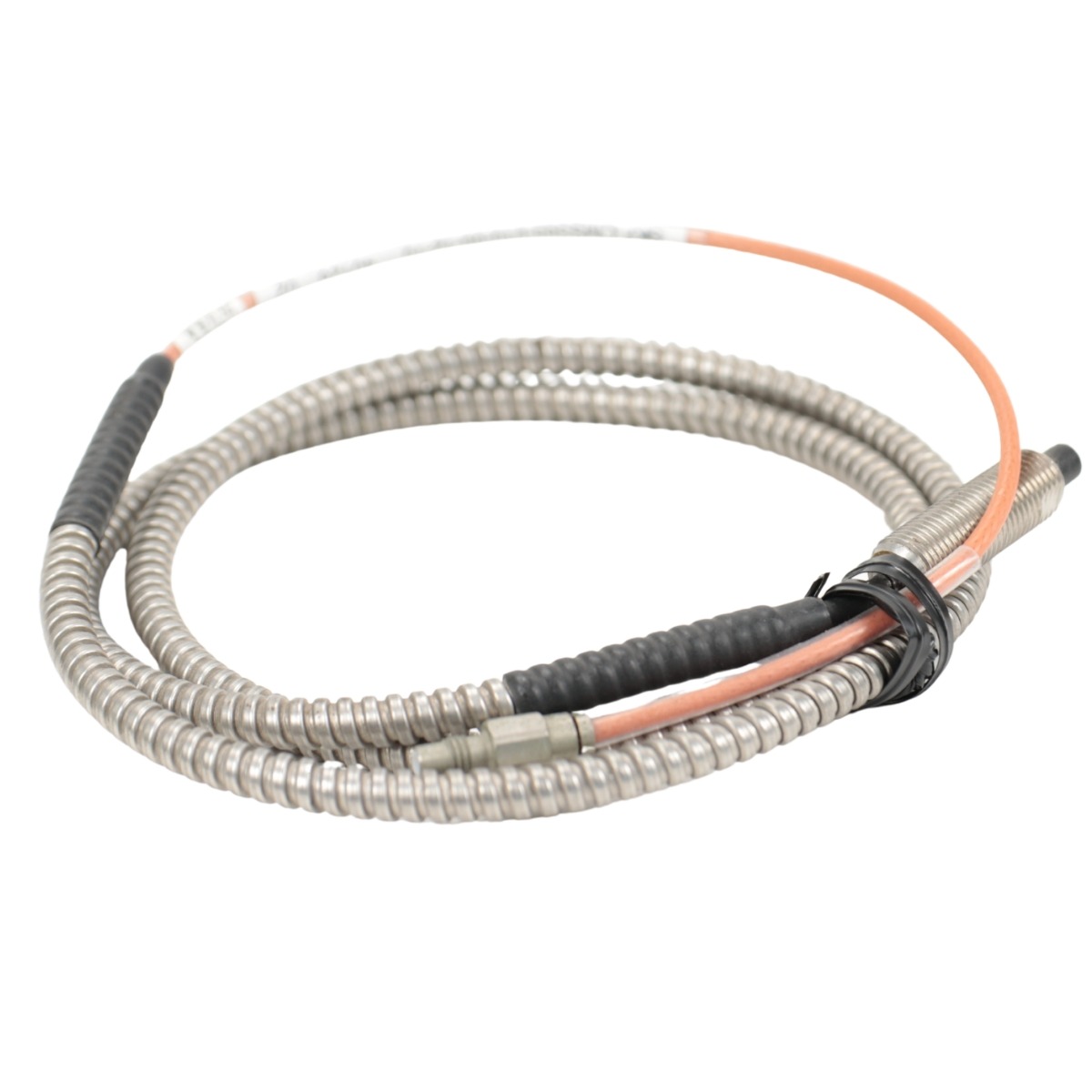

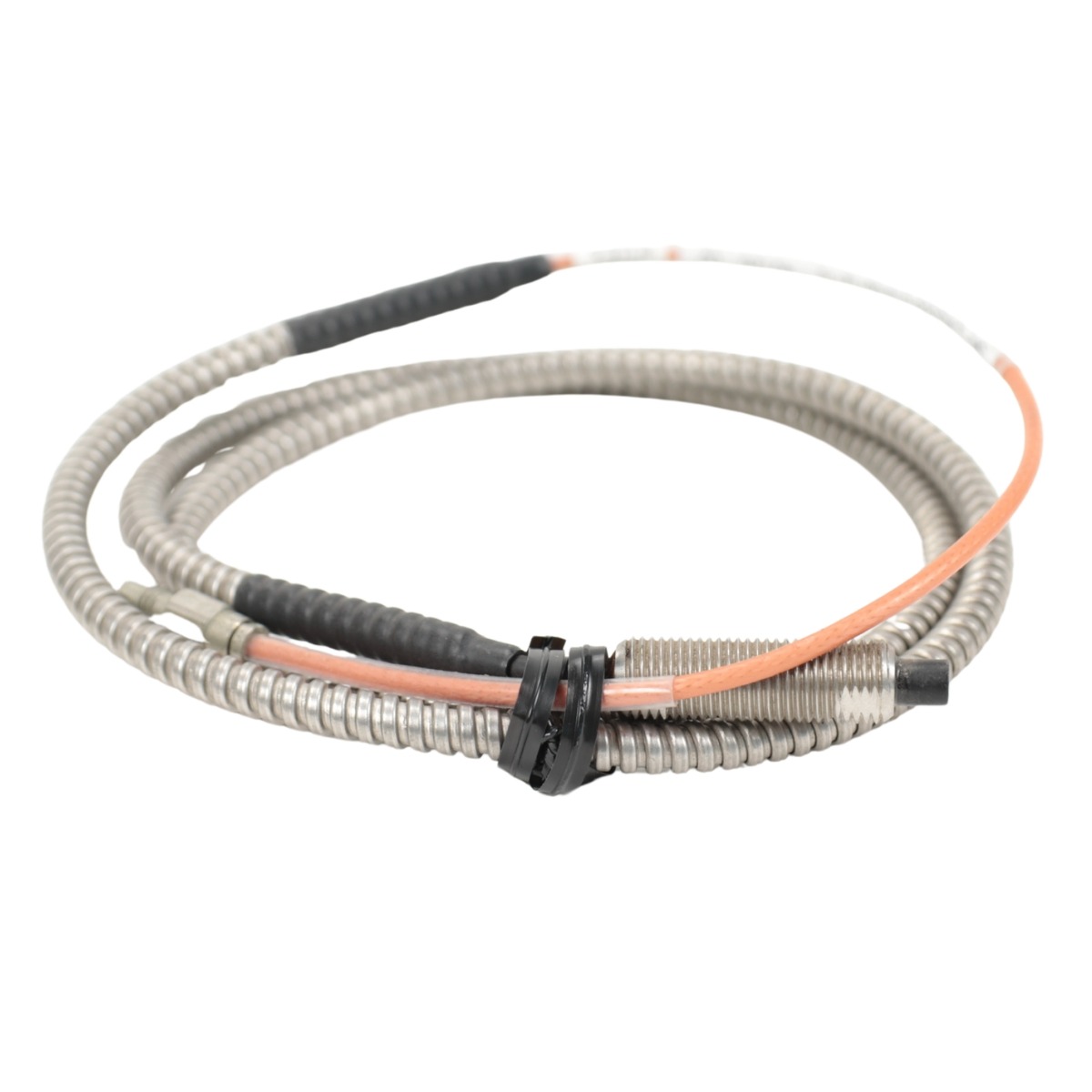

SKF CMSS65-010-00-12-10 Industrial 5 mm Eddy Current Probe

The SKF CMSS65-010-00-12-10 is a 5 mm eddy current probe designed for non-contact measurement of shaft displacement, vibration, and position in rotating machinery. It operates as part of an SKF proximity transducer system using compatible extension cables and drivers to monitor dynamic and static shaft movement. The probe is intended for machinery protection and condition monitoring applications.

• Generates an electromagnetic field from the probe tip toward a conductive target.
• Detects changes in eddy current strength as shaft position varies.
• Converts target distance into a proportional electrical signal through the compatible driver.
• Measures both static shaft position and dynamic vibration without physical contact.

• 5 mm probe tip minimizes shaft curvature calibration error.
• Fully threaded 1/4-28 probe body with approximately 3.0 cm case length.
• Integral 1.0 m armored cable provides mechanical protection.
• Typical measurement range of approximately 0.2 to 2.3 mm (10–90 mils).
• Standard sensitivity of 7.87 mV/µm (200 mV/mil) when used with the compatible SKF CMSS665 driver.

• Turbine shaft vibration monitoring.
• Compressor shaft position measurement.
• Machinery protection and condition monitoring systems.
