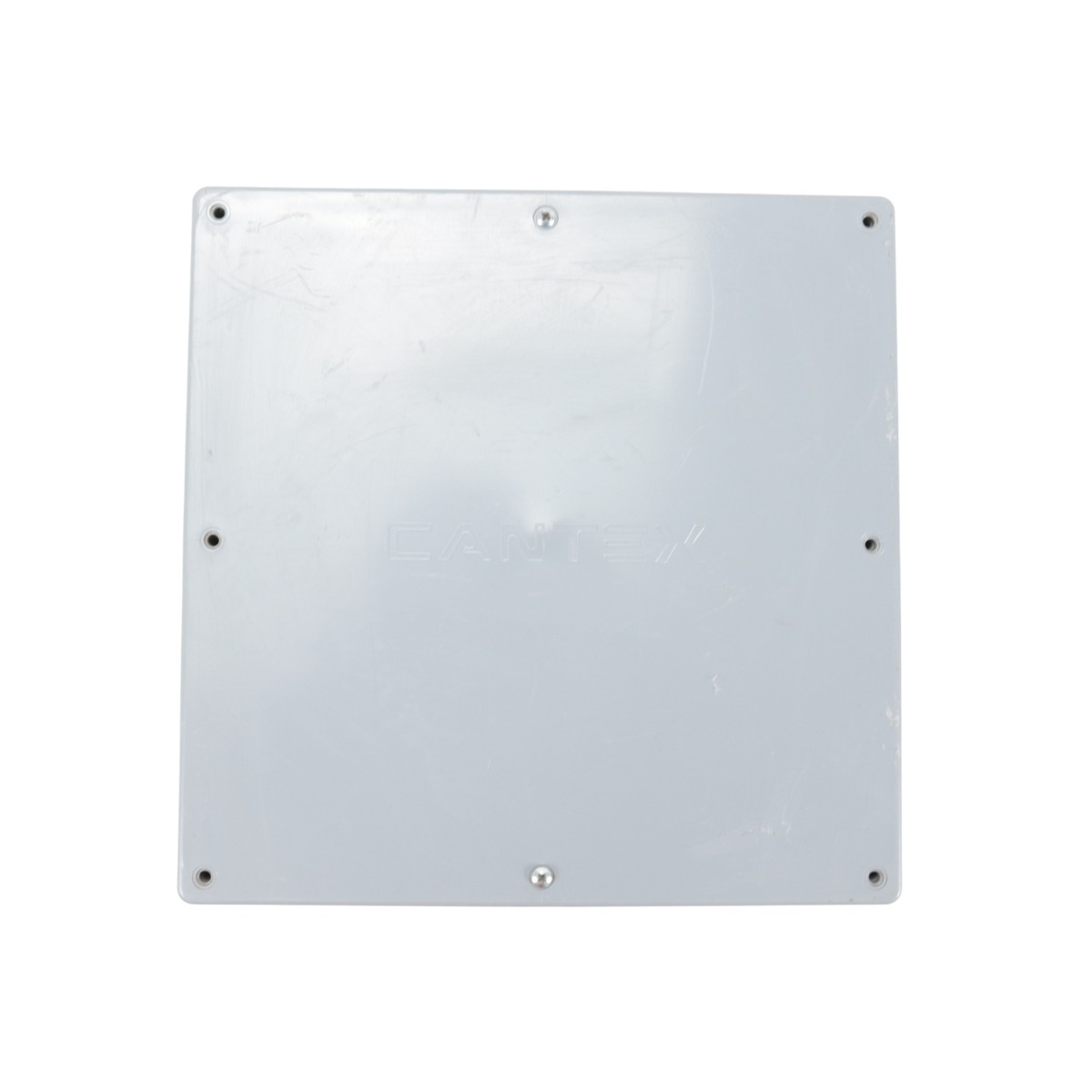

Cantex 51337141 PVC Junction Box 12 x 12 x 4
Cantex 51337141 PVC Junction Box provides 12 x 12 x 4 molded rigid PVC protection for wires and terminals, with a gasketed cover for electrical device and fixture support.
Detailed Overview
Electrical Protection for Wiring and Device Connections
The Cantex 51337141 is a molded PVC junction box sized 12 x 12 x 4. It is designed to support electrical devices and fixtures while protecting wires and terminals. The rigid PVC construction and gasketed cover suit enclosed electrical connection points.
Molded Enclosure Construction and Sealed Closure
- Molded rigid PVC construction forms the junction box body for enclosed wire and terminal protection.
- A removable cover closes the enclosure over the box opening for contained electrical connections.
- A neoprene gasket sits between the cover and box to create a sealed closure.
- Zinc-plated steel screws fasten the cover to maintain enclosure assembly.
Enclosure Size and Build Features
- Trade size is 12 x 12 x 4.
- Description is molded junction box construction.
- Base dimensions listed include 13.625 in and 12.625 in outer body measurements.
- Cover dimensions listed are 13.000 x 13.000 in.
- Materials include rigid PVC with neoprene gasket and zinc-plated steel screws.
Electrical Wiring and Fixture Support
- Supports electrical devices and fixtures.
- Provides protection for wires and terminals.
- Fits enclosed electrical connection and junction box installations.
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery
What's in the Box
- 1 x Cantex 51337141 PVC junction box base
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Cantex |
| Part Number | 51337141 |
| Model | 51337141 |
| Product Type | PVC Junction Box |
| Description | Molded |
| Trade Size | 12 x 12 x 4 |
| Material | Rigid PVC |
| Gasket Material | Neoprene |
| Screw Type | #10 x 3/4 in zinc-plated steel screws |
| Carton Quantity | 2 |
| Junction Box Base A | 4.000 in |
| Junction Box Base B | 4.250 in |
| Junction Box Base C | 13.625 in |
| Junction Box Base D | 12.625 in |
| Junction Box Base E | 12.625 in |
| Junction Box Base F | 11.875 in |
| Junction Box Base G | 11.875 in |
| Junction Box Base H | 0.250 in |
| Junction Box Base J | 0.188 in |
| Junction Box Base K | 0.220 in |
| Cover A | 13.000 in |
| Cover B | 13.000 in |
