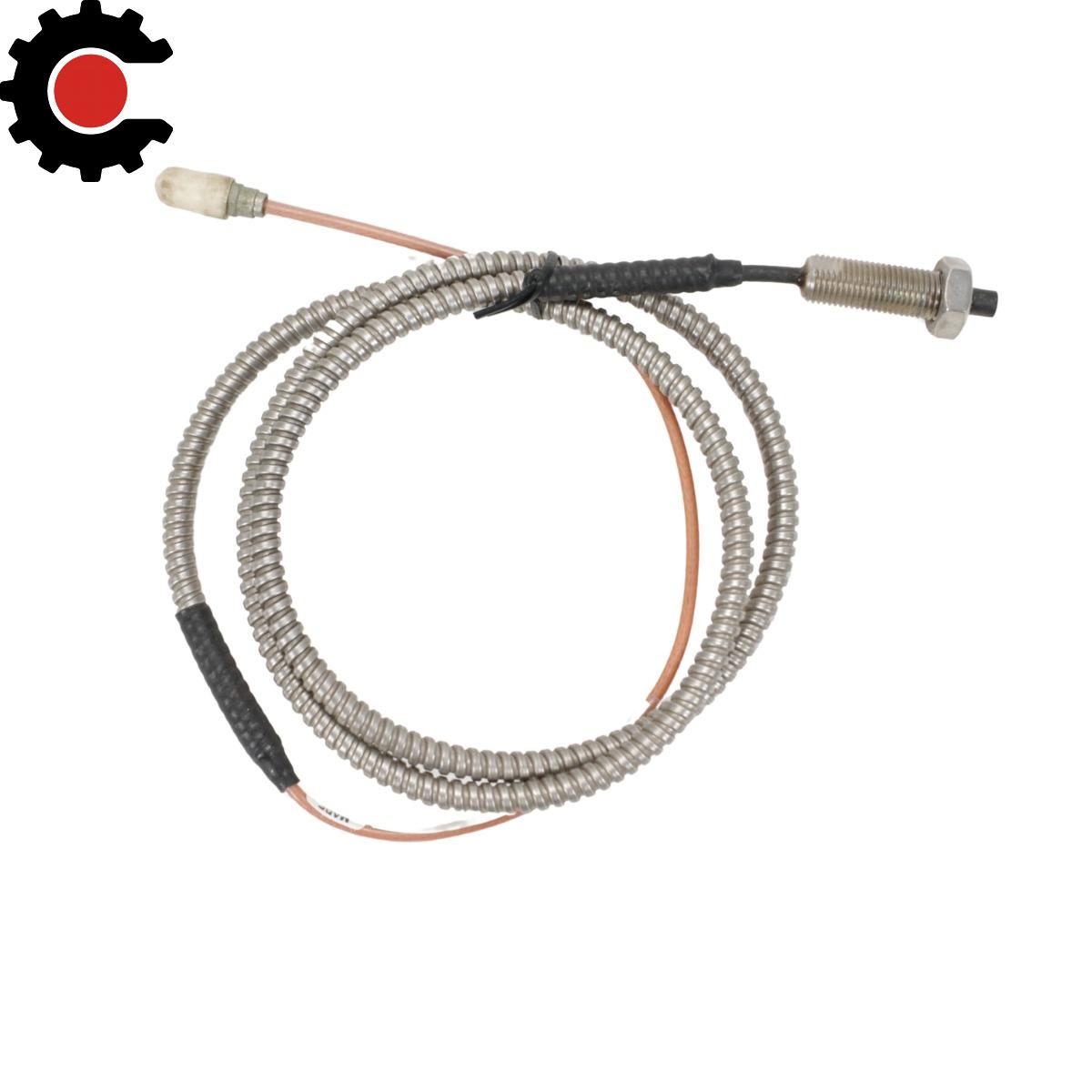

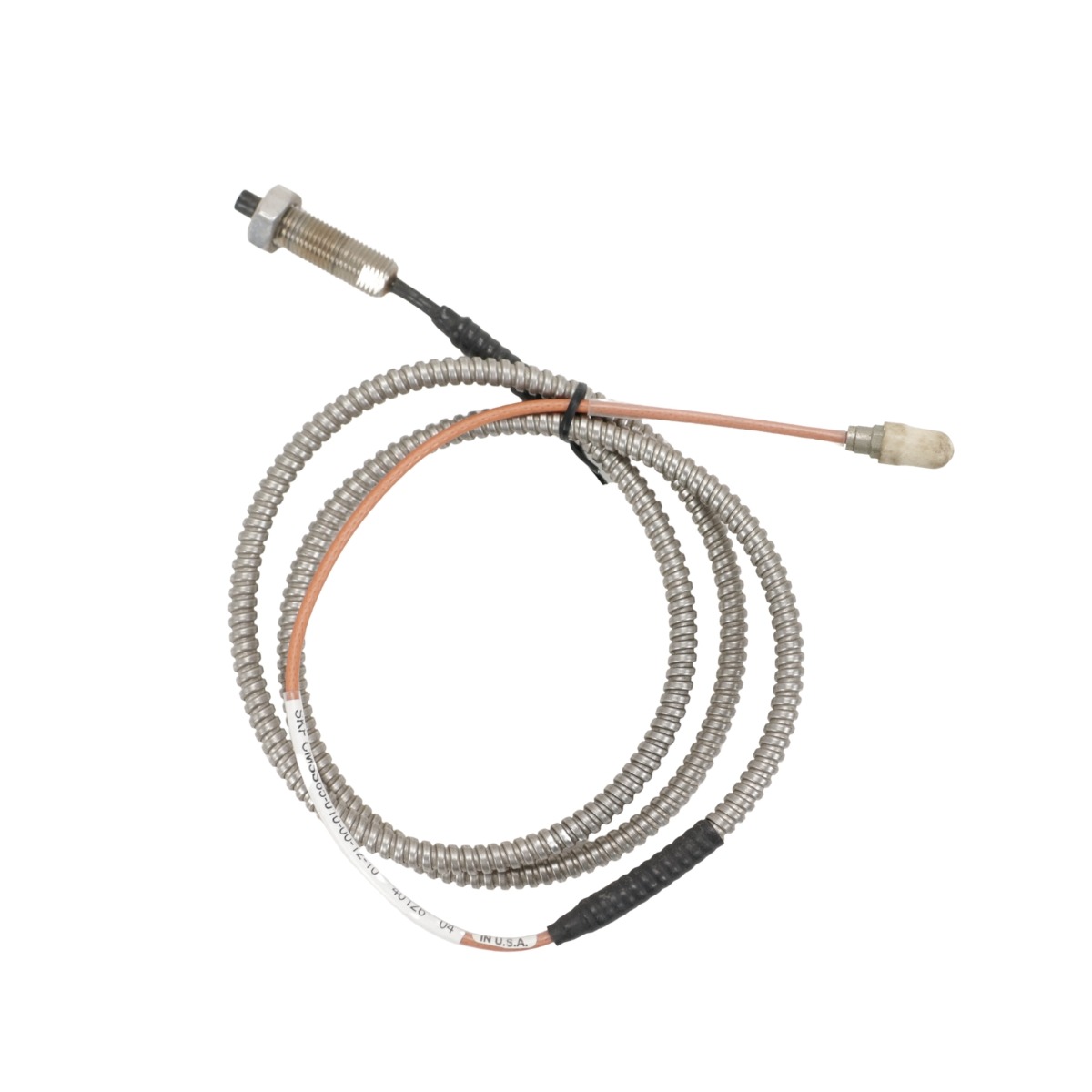

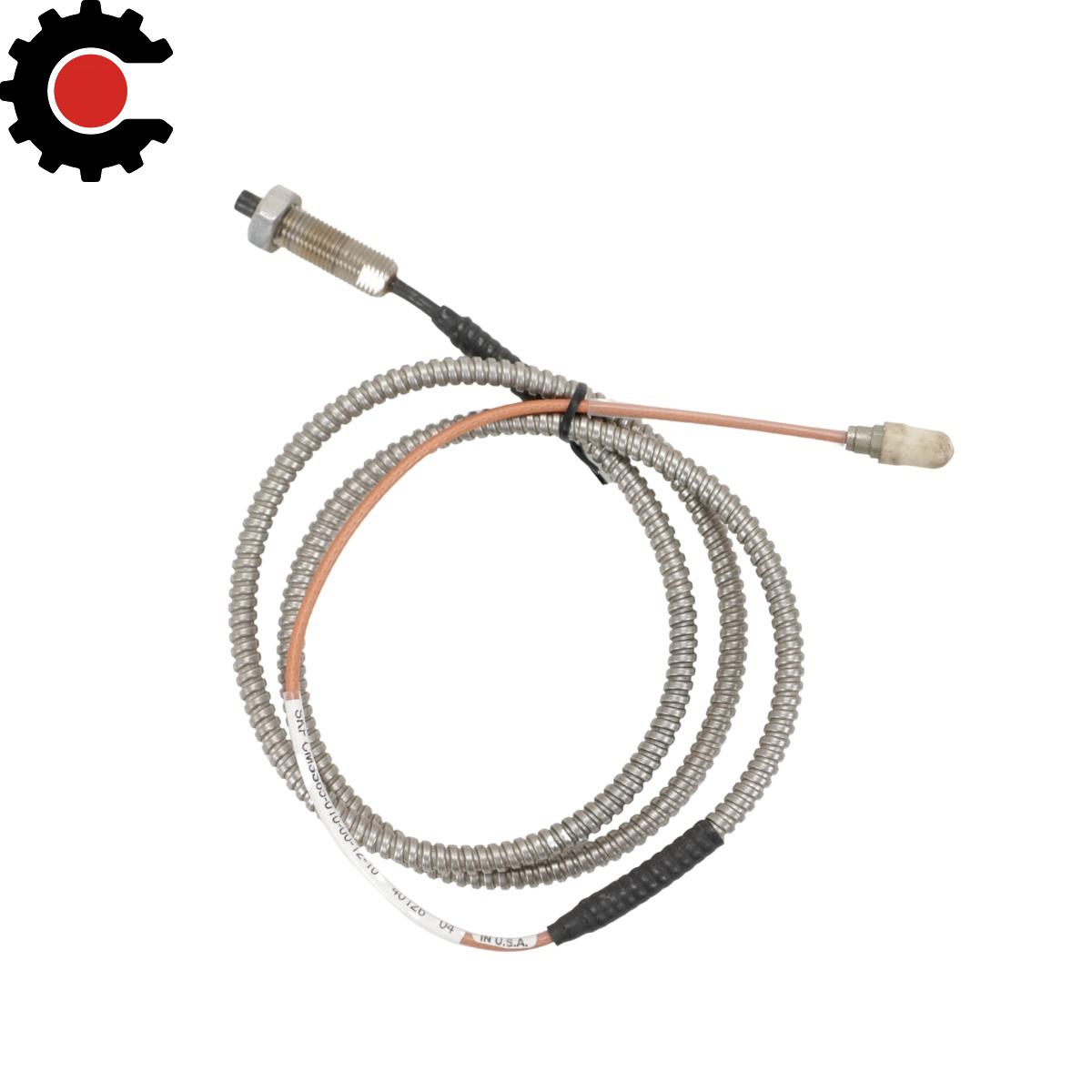

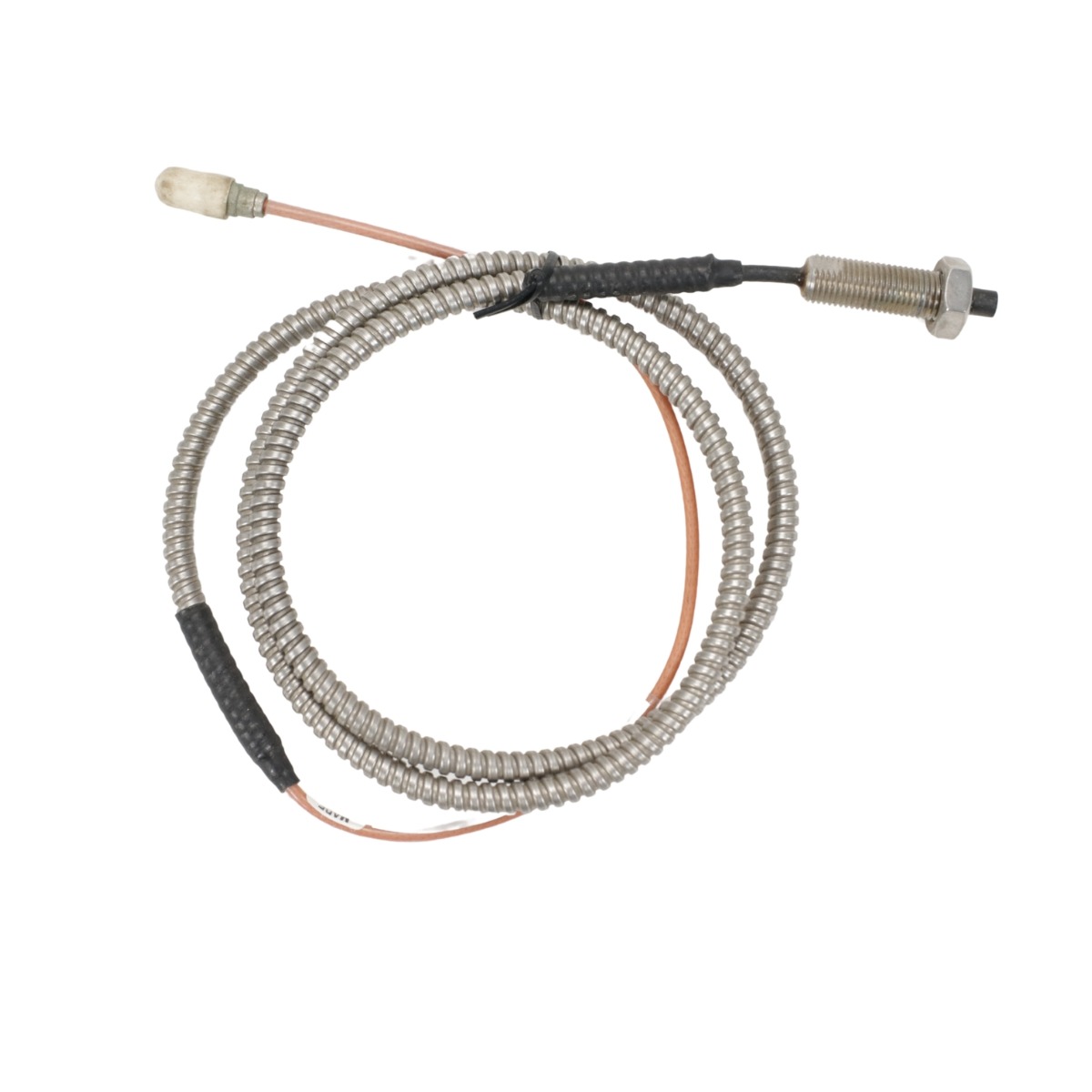

SKF CMSS65-010-00-12-10 Eddy Current Probe
SKF CMSS65-010-00-12-10 is a CMSS 65 series 5 mm eddy current probe with armored cable, 1/4-28 threaded fully threaded case, 3.0 cm case length, and 1.0 m overall length.
Detailed Overview
Eddy current measurement of shaft motion in rotating machinery
SKF CMSS65-010-00-12-10 is a CMSS 65 series eddy current probe for shaft motion measurement in rotating machinery. It is configured as a 5 mm probe with integral armored cable and threaded mounting for fixed installation.
5 mm probe configuration
- CMSS 65 series eddy current probe
- 5 mm probe format
- Armored cable
- 1/4-28 threaded case
- 1.0 m overall length
Mounting format
This configuration uses a fully threaded case with a 3.0 cm case length. The probe is part of the CMSS 65 eddy current probe family used in shaft motion measurement systems.
Application scope
- Radial shaft motion measurement
- Axial shaft motion measurement
- Rotating machinery monitoring
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery
What's in the Box
- 1 x SKF CMSS65-010-00-12-10 eddy current probe with integral armored cable
Technical Specifications
| Brand | SKF |
|---|---|
| Model | CMSS65-010-00-12-10 |
| Series | CMSS 65 |
| Product Type | Eddy Current Probe |
| Probe Diameter | 5 mm |
| Cable Configuration | Armored |
| Probe Thread | 1/4-28 |
| Unthreaded Case Length | Fully threaded |
| Case Length | 3.0 cm (1.2 in.) |
| Overall Length | 1.0 m (3.3 ft.) |
| Probe Operating Temperature Range | -35 to +175 °C (-30 to +350 °F) |
| Differential Pressure | To 4 bar (60 PSI) |
| Case Material | Grade 300 stainless steel |
| Tip Material | Ryton |
| Connectors | Nickel plated stainless steel; weatherproof, sealable |
| Cable Construction | Coaxial with fluorine based polymer insulation |
| Mounting Guidance | Recommend minimum clearance of 1/2 probe tip diameter around the probe tip to maintain factory calibration |
