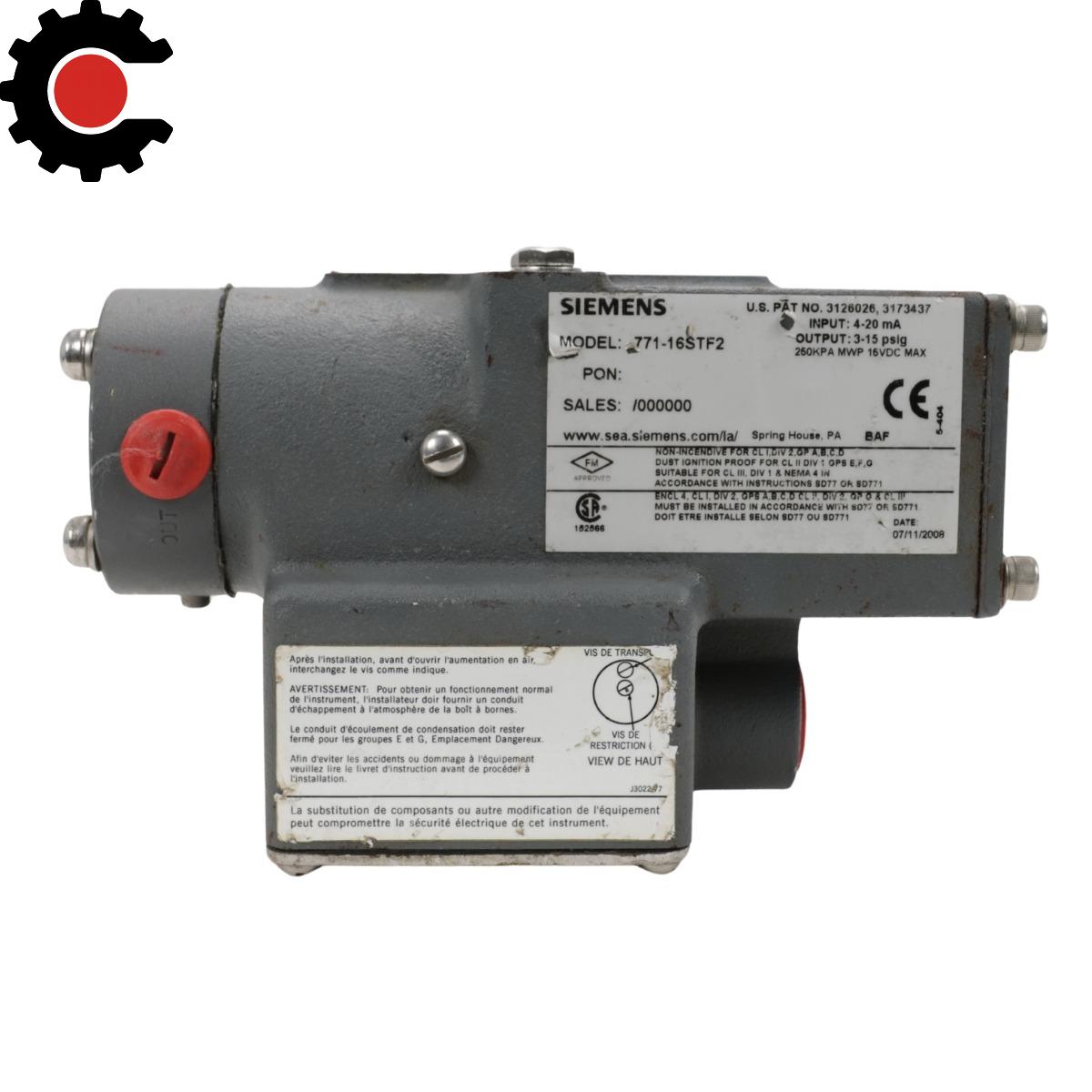

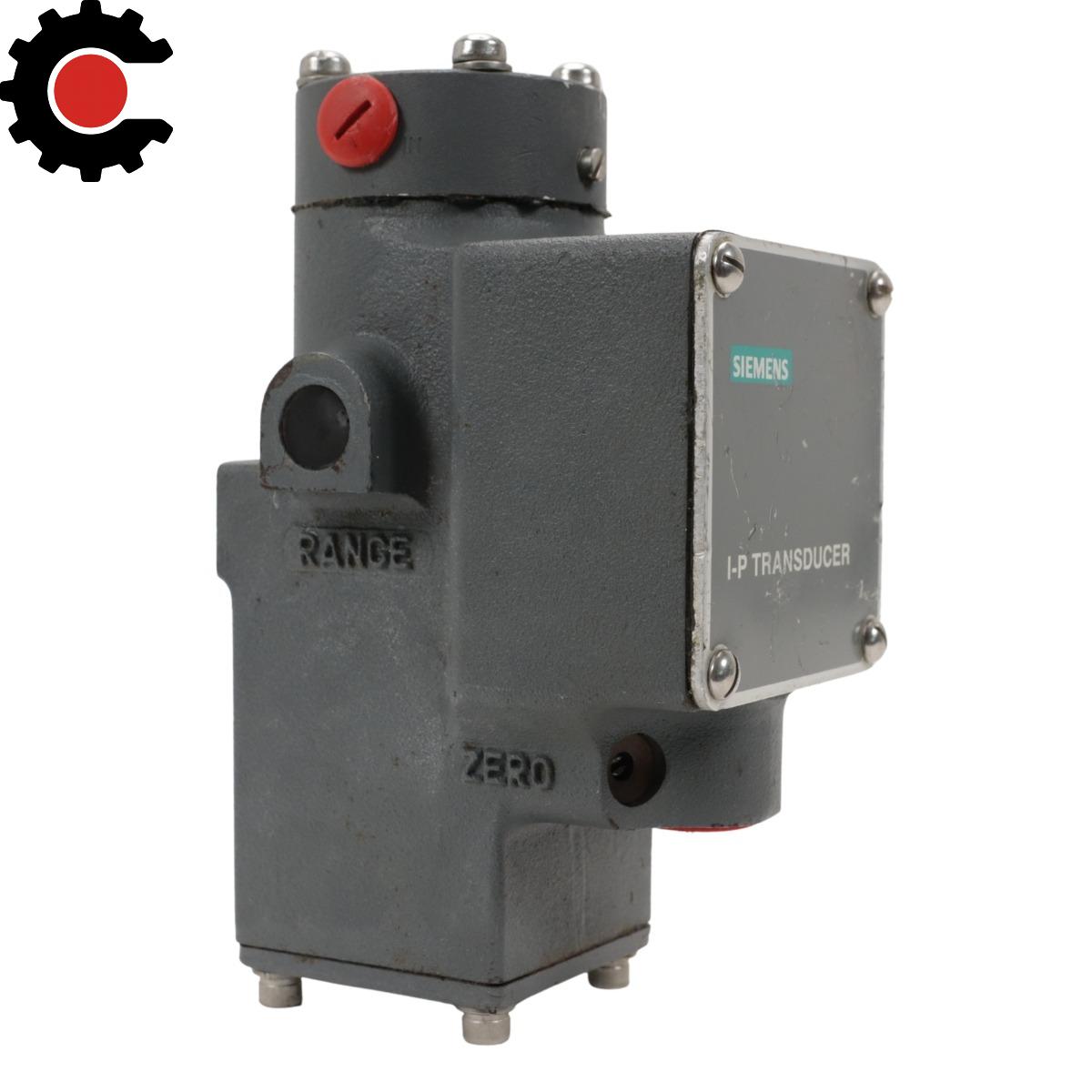

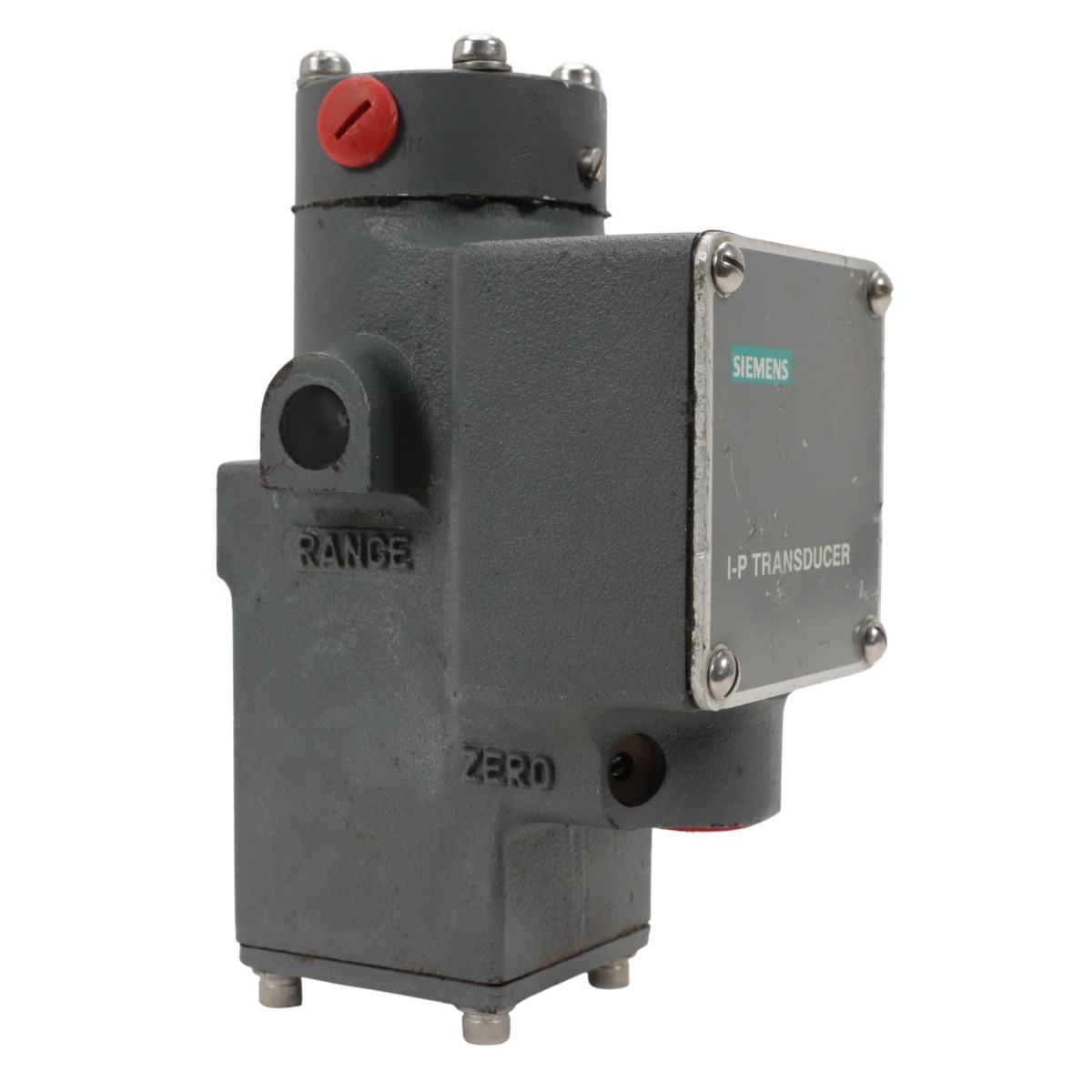

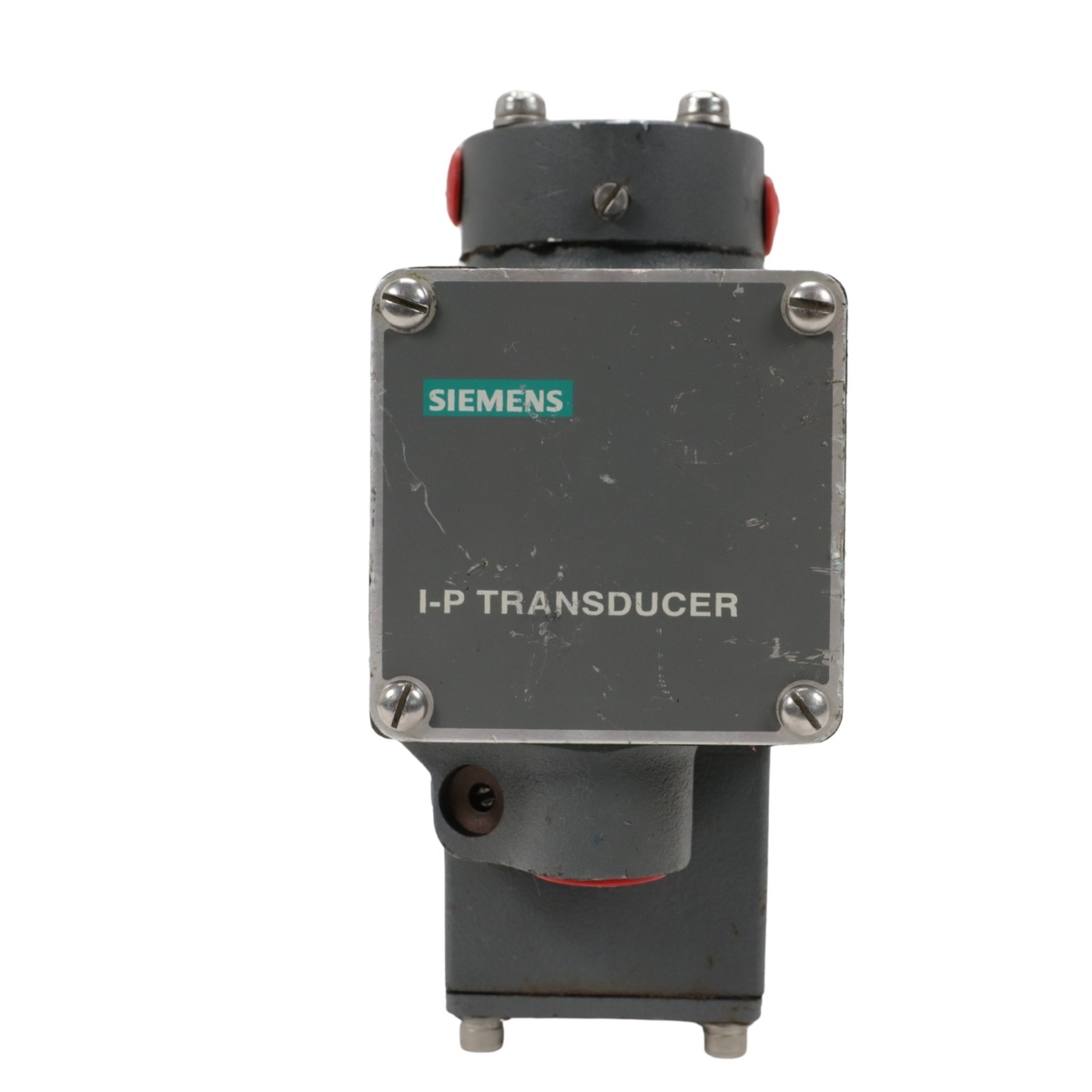

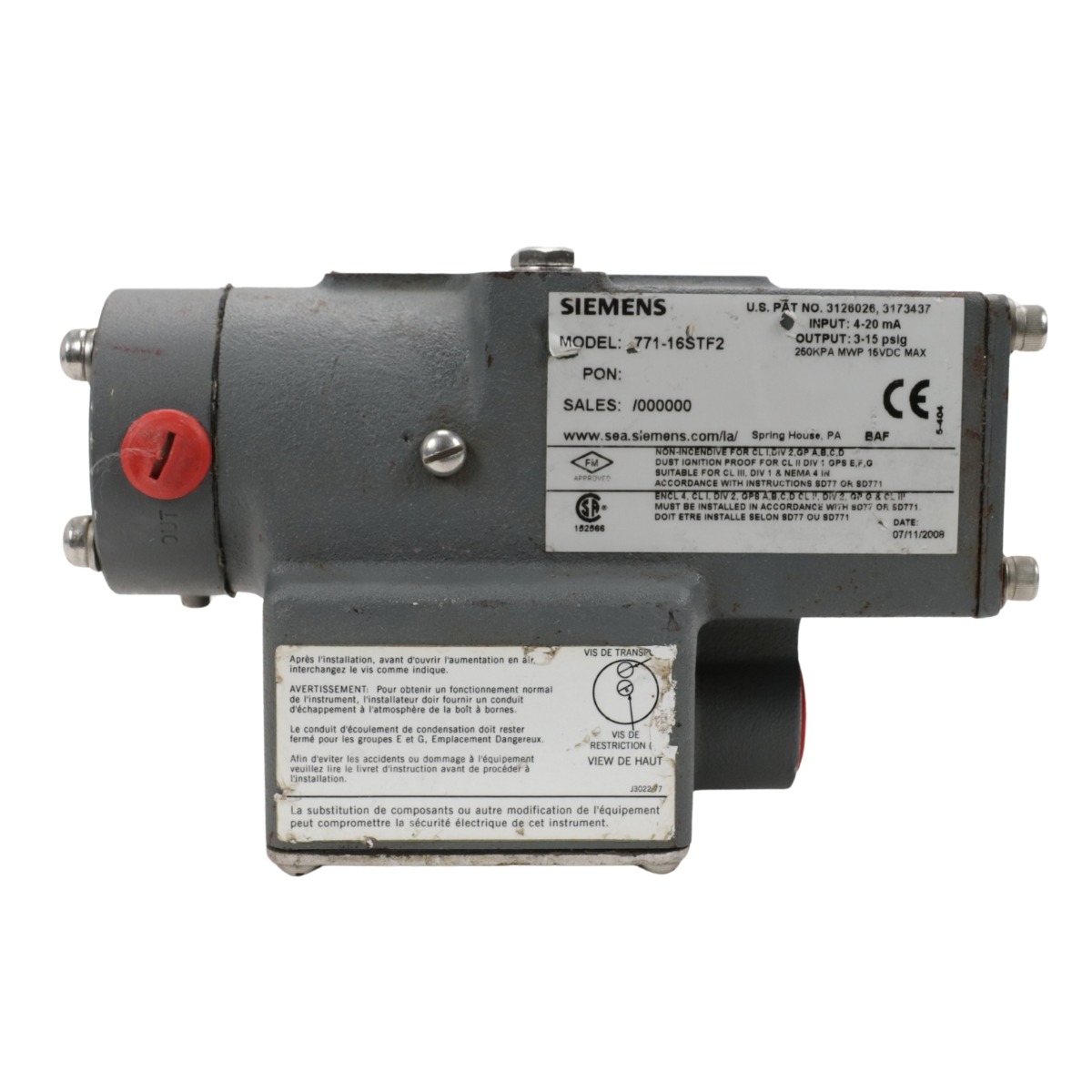

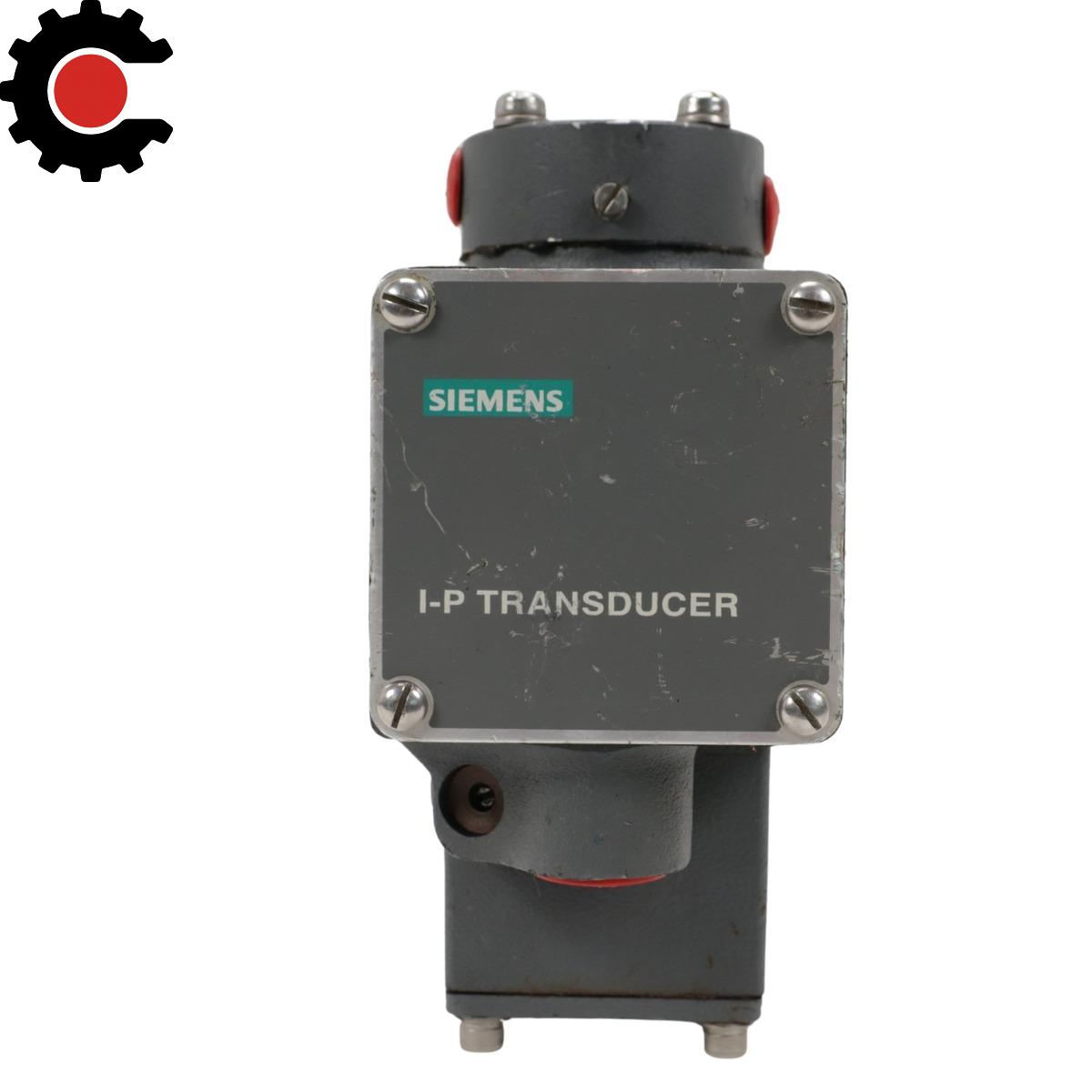

Siemens 771-16STF2 I/P Transducer 4-20 mA to 3-15 psig

SPECIAL OFFER: $299.00

Siemens 771-16STF2 current-to-pneumatic transducer converts a 4–20 mA DC input to a 3–15 psig pneumatic output. Standard output capacity (0.16 scfm), terminal strip wiring, 20 psig supply, and FM-approved F2 non-incendive classification.

Detailed Overview

Siemens 771-16STF2 Current-to-Pneumatic Transducer (4–20 mA to 3–15 psig, STF2)

The Siemens 771-16STF2 is a current-to-pneumatic transducer designed to convert a DC milliampere input signal to a proportional pneumatic output signal. This configuration is specified for a 4–20 mA input and a 3–15 psig output range.

Signal Conversion Features

Input range: 4–20 mA DC
Output range: 3–15 psig
Standard output capacity: 0.16 scfm
Zero offset adjustment: +40% and –20% of span
Terminal strip electrical connection

Performance and Operating Characteristics

For Series 771 standard units, calibration accuracy is specified at ±1/2% of span with reproducibility of 0.2% of span and response level of 0.025% of span. The specified supply pressure is 20 psig with an operating temperature range of –40 to 180°F (–40 to 82°C).

Applications

Electronic controller to pneumatic signal conversion in process control loops
Pneumatic actuation and final control element interfacing
General-purpose installations requiring current-to-pressure conversion

Key Benefits

✓
Fully Tested & Certified
✓
30-Day Risk-Free Returns
✓
1-Year Full Warranty
✓
Professional Calibration Services
✓
Trade-In Program Available
✓
Fast & Reliable Delivery

What's in the Box

Siemens 771-16STF2 Current-to-Pneumatic Transducer (1)

Technical Specifications

Type	Current-to-Pneumatic Transducer (I/P Transducer)
Series	Siemens 771
Model	771-16STF2
Input Range	4–20 mA DC
Output Range	3–15 psig
Input Impedance (for 4–20 mA, 3–15 psig)	185 Ω
Supply Pressure	20 psig
Output Capacity	Standard: 0.16 scfm
Zero Offset Adjustment	+40% and –20% of span
Calibration Accuracy (Series 771)	±1/2% of span (standard unit)
Reproducibility (Series 771)	0.2% of span
Response Level (Series 771)	0.025% of span
Supply Pressure Effect (Series 771)	Less than 2% of span (18 to 22 psig supply change)
Temperature Range	-40 to 180°F (-40 to 82°C)
Electrical Connections	Enclosed terminal block, 1/2" threaded
Enclosure	NEMA 3R; NEMA 4 via conduit vent
Electrical Classification (F2)	Non-incendive: Class I, Div. 2, Groups A, B, C, D; Dust-ignition proof: Class II, Div. 1, Groups E, F, G; Suitable for Class III, Div. 1 hazardous locations
Dimensions (standard unit drawing)	Approx. 4.78 in (H) × 3.47 in (W) × 2.25 in (D)
