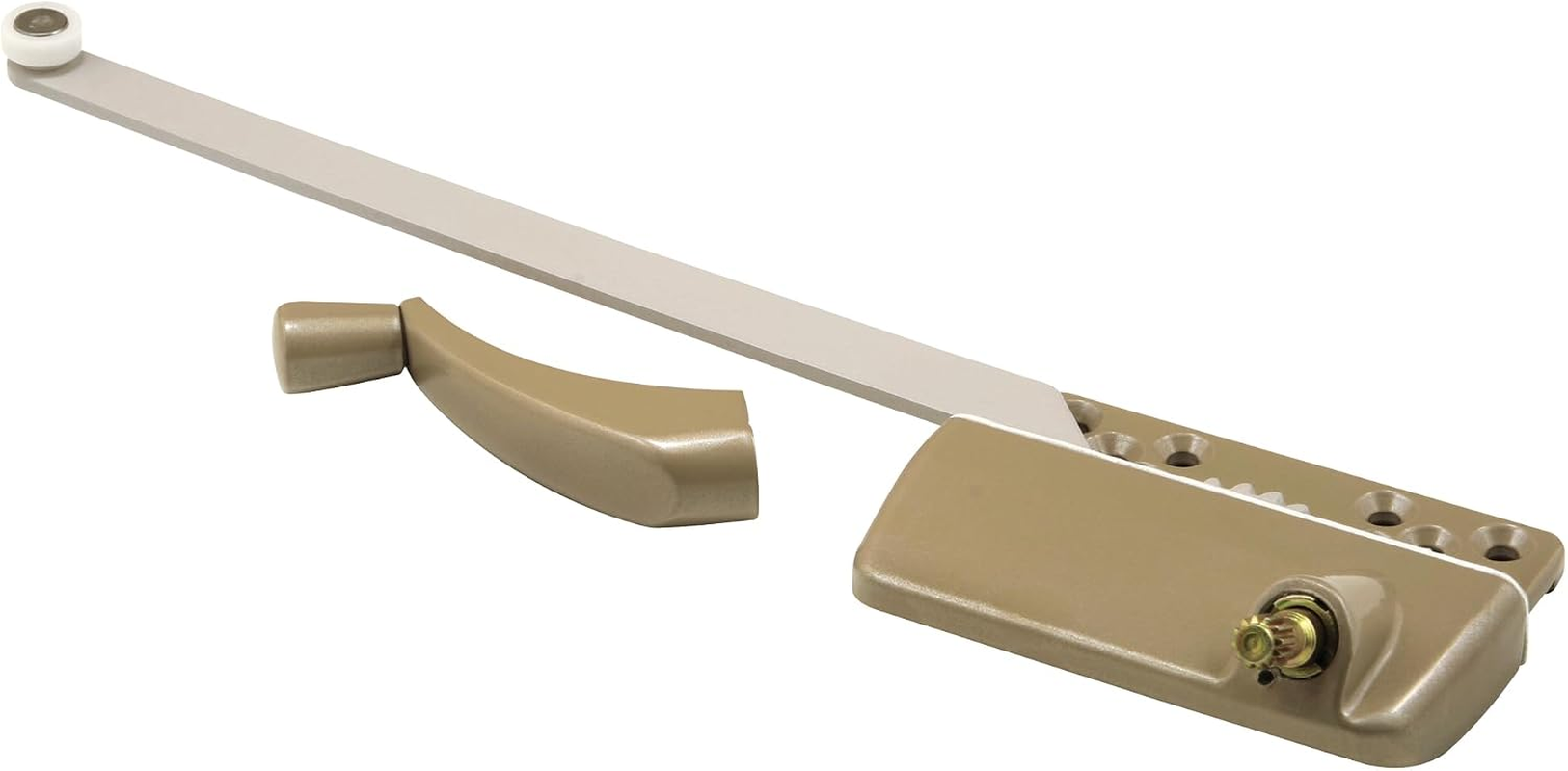

TH 23021 9-1/2 In. Single-Arm Left-Hand Casement Operator (Single Pack)

Description

Color	coppertone
Style Name	Modern
Exterior Finish	Coppertone
Shape	Rectangular
Finish Types	Copper
Item Dimensions L x W	9.5"L x 9.5"W
Item Weight	1.2 pounds
Projection Distance	9.5 inches
Unit Count	1 Count
Number of Items	1
Item Depth	9.5 inches
Material Type	Mixed Materials
Metal Type	Alloy Steel
Handle Material	Zinc
Handle Type	Lever
Specific Uses For Product	Window
Additional Features	Durable
Hand Orientation	Left
Handle Compatibility	Application Specific, Brand Specific, Size Specific
Handle Attachment Mechanism	Screw-on
Indoor Outdoor Usage	Indoor
Included Components	Casement Operator
Customer Package Type	Flat Free Package (FFP)
Model Number	TH 23021
Manufacturer	Prime-Line Products
Manufacturer Warranty Description	Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse
Global Trade Identification Number	00049793230218
Item Type Name	Casement Operator
Manufacturer Part Number	TH 23021
Material	Mixed Materials
Style	Modern
Product Dimensions	9.5"L x 9.5"W

This is a coppertone finish left-handed, 9-1/2 inch single arm operator. It is made of heavy-duty diecast zinc with the baked on coppertone finish. The steel arm, worm drive and gears are protected with a corrosive resistant finish, and it opens to a full 90 degrees. The plastic roller on the end of the arm insure a smooth operation as it slides through the Prime-Line part TH 22397 track. When installing, the housing easily fastens down to the window sill.

• This is a Truth hardware window sill mounted replacement left hand casement operator (as viewed from the inside looking out (please review TH 23024 for right hand casement operator)
• Heavy duty diecast zinc construction includes a white cover and handle that fits the operators’ 11/32 in. stem
• Opens the window to a full 90 degrees and will work with Prime-Line track item TH 22397
• Mounting holes 1 5/8 in., 2 7/32 in. and 3.0 in., arm length 9 ½ in. from the middle of the crank operator while closed to the center of the guide button, guide button is 9/16 in. diameter and 3/16 in. thick
• Please refer to the line art drawing for dimensions and compare with your original item before purchasing (not universal)
