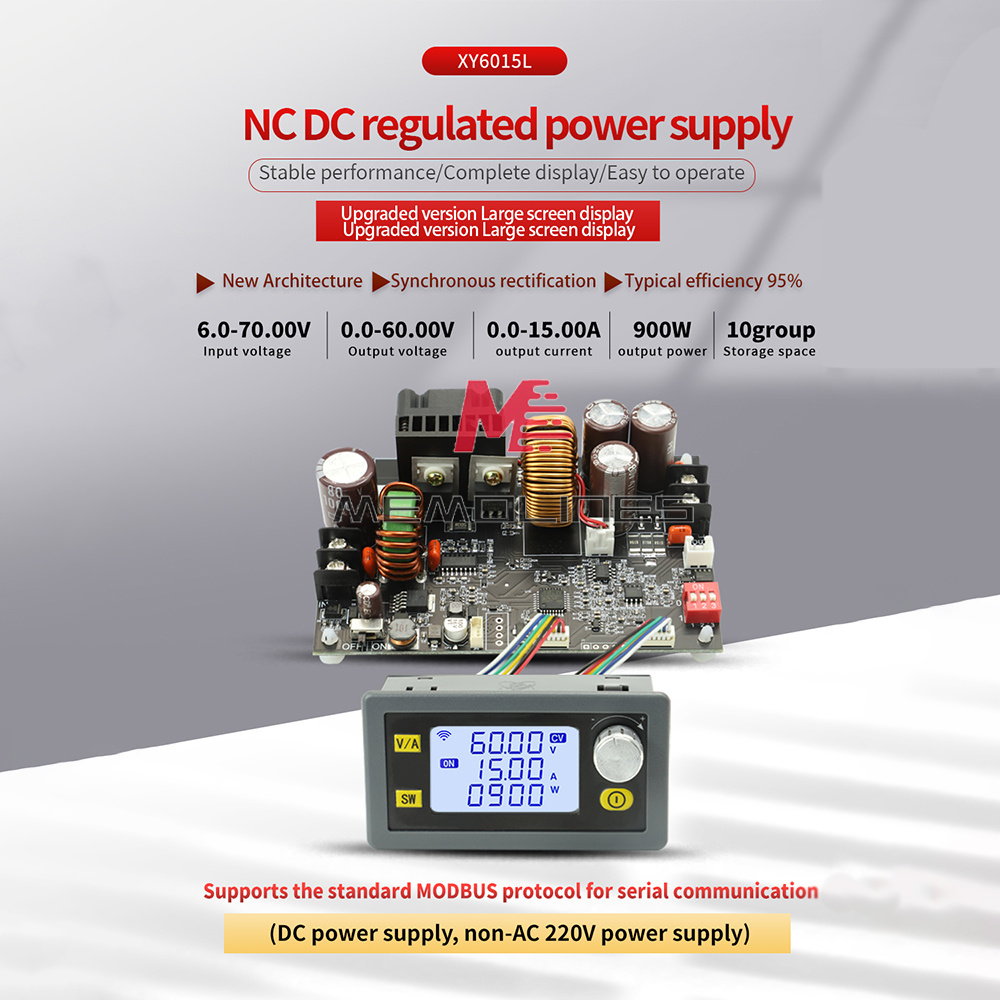

Description:
1. Use of high-quality materials, durable
2. Constant voltage and constant current CNC DC voltage stabilization power supply
3. Large screen display, full-view dedicated power LCD
4. Solid materials, input common-mode inductor, significantly reduce the impact of the input power supply wavenumber, to achieve low wavenumber output
5. Complete display, simple operation, stable performance

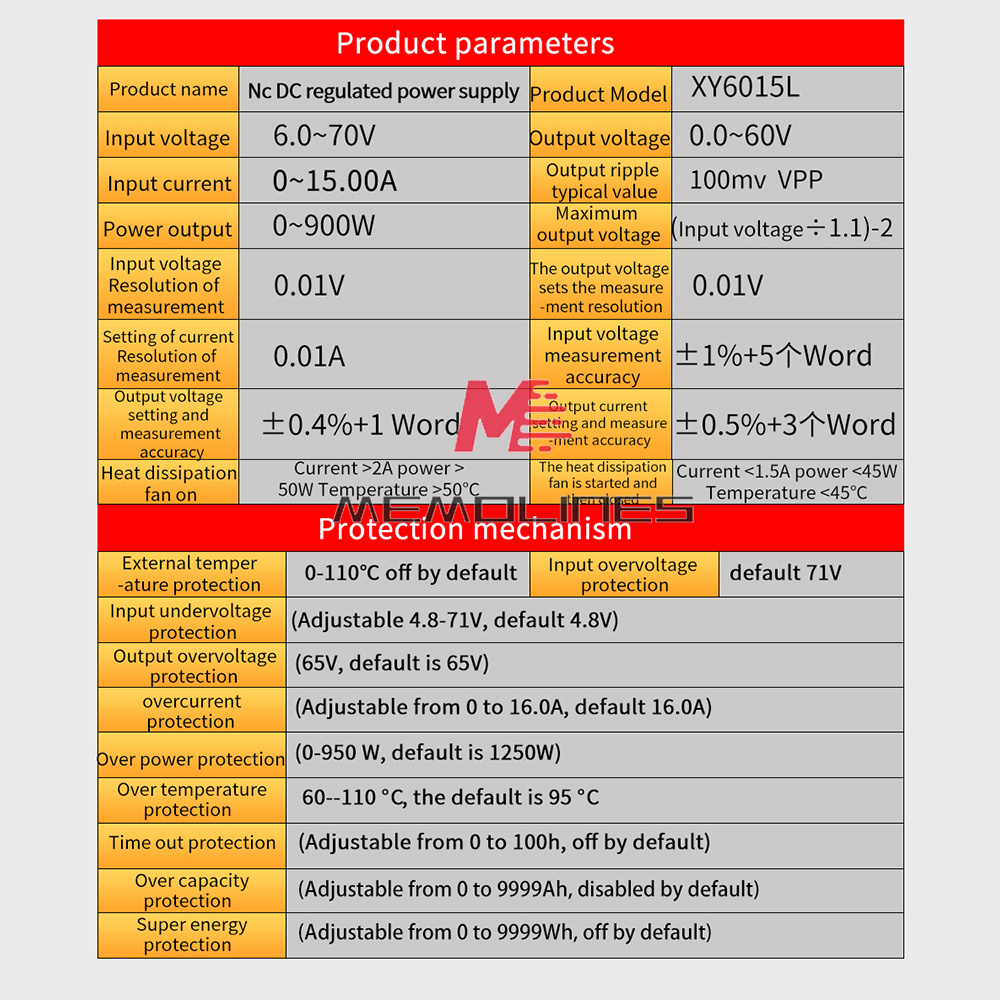

Input voltage: 6.0~70V
Output voltage: 0.0~60V
Output current: 0~15.00A
Output ripple typical value: 100mv VPP
Output power: 0~900W
Maximum output voltage: (input voltage + 1.1)-2
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.01A
Input voltage measurement accuracy: ±1% + 5 words
Output voltage setting and measurement accuracy: ±0.4% + 1 word
Output current setting and measurement accuracy: ±0.5% + 3 words
Cooling fan on: current> 2A power>50W temperature>50℃
Cooling fan on and off: current <1.5A power <45W temperature <45°C
External temperature protection: 0 - 110°C default off
Input overvoltage protection: 71V default
Input undervoltage protection: 4.8-71V adjustable default 4.8V
Output over-voltage protection: 0-65V default 65V
Output overcurrent protection: 0-16A default 16A
Output over power protection: 0-950W default 950W
Over temperature protection: 60 - 110°C Default 95°C

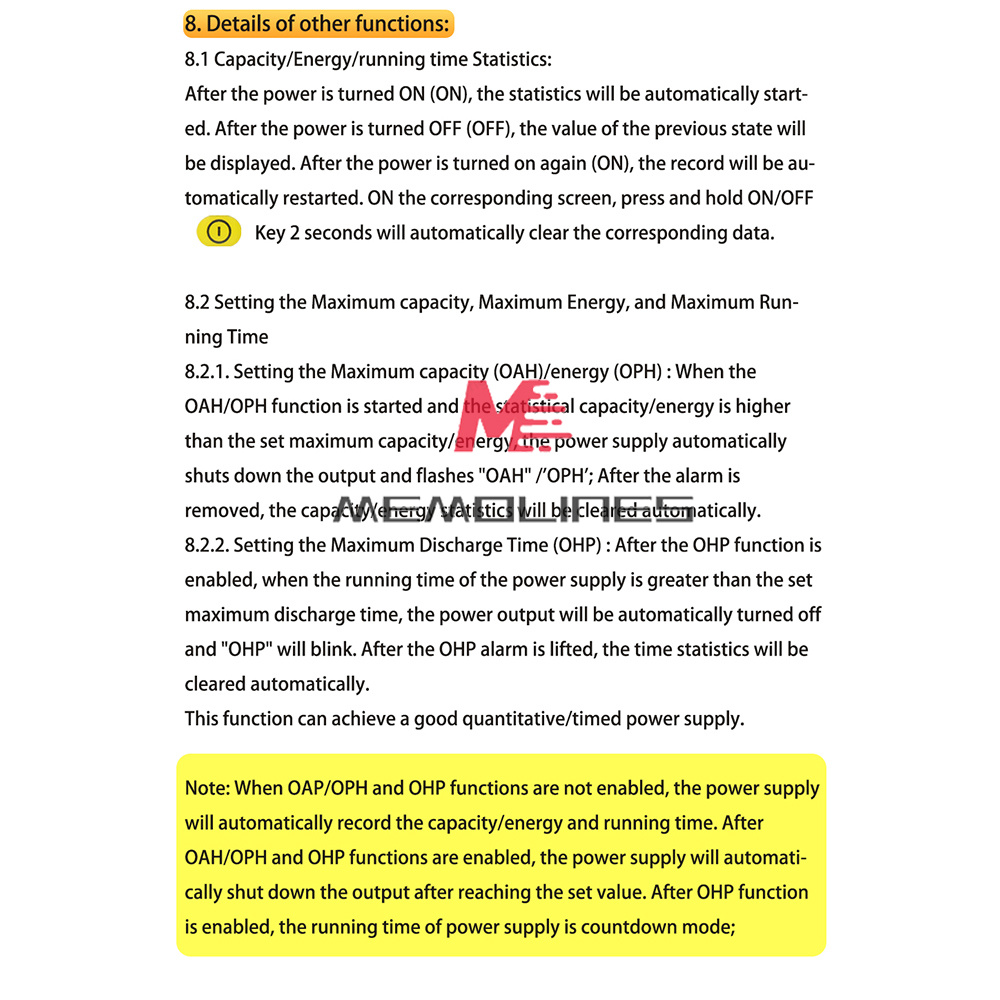

Timeout protection: 0 -100H adjustable Default off
Over capacity protection: 0~9999AH adjustable Default off
Super energy protection: 0~9999WH adjustable Default off

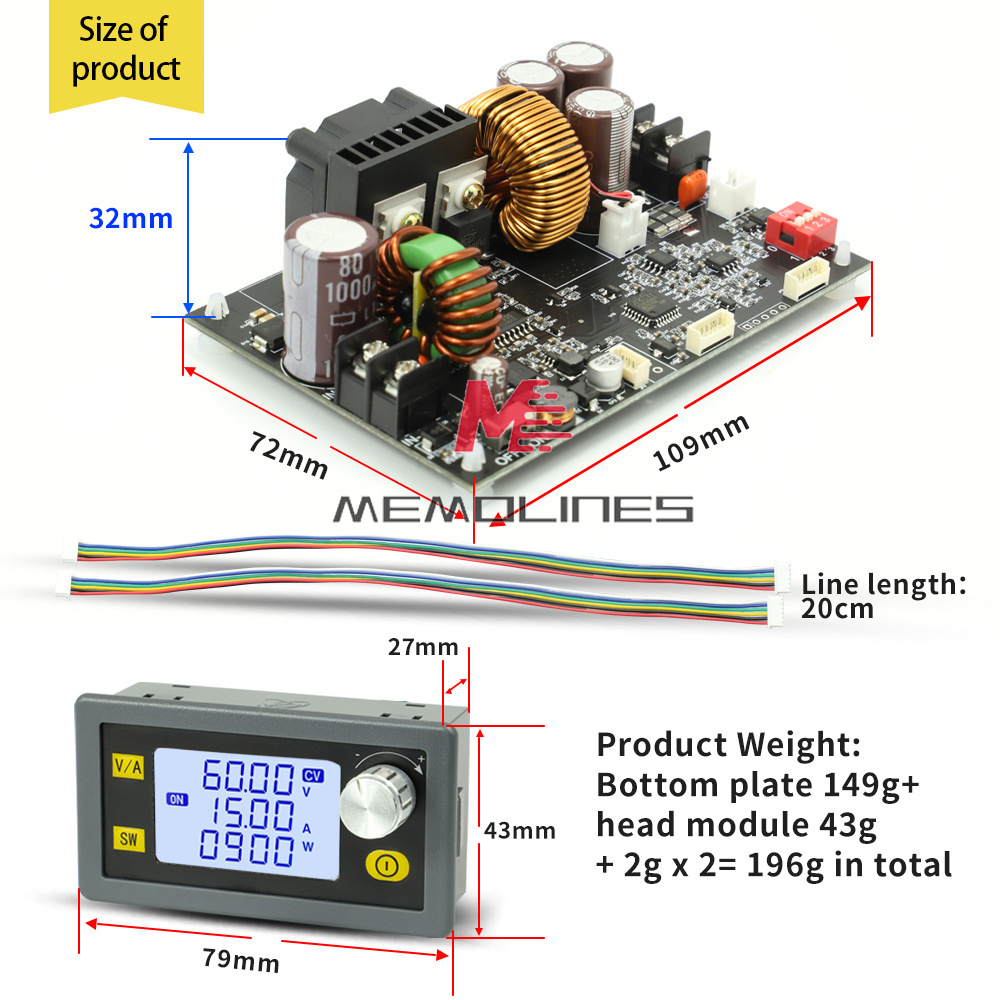

Package Include:
Package A
Meter head *1
Board *1 *1
Cable*2
Board *1

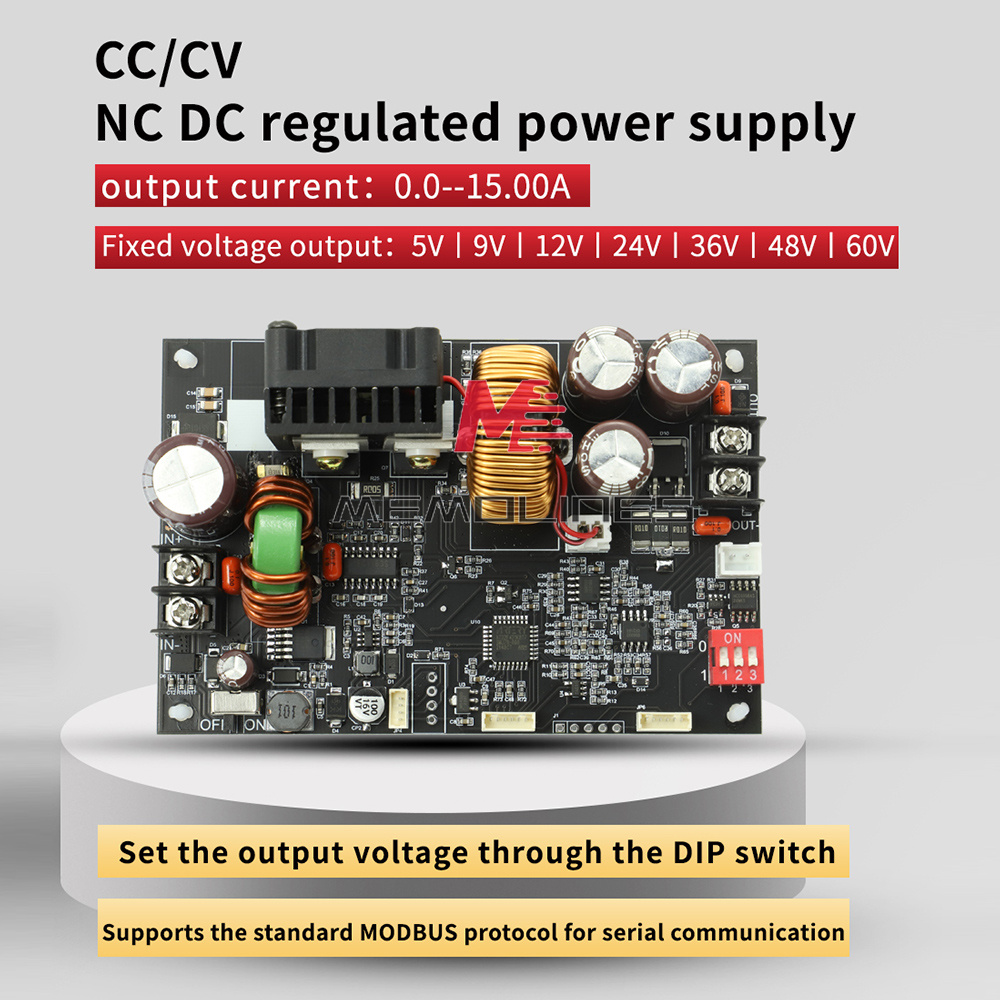

XY6020L
1. Use of high-quality materials, durable
2. Constant voltage and constant current CNC DC voltage stabilization power supply
3. Large screen display, full-view special power LCD
4. Support serial communication, standard MODBUS protocol
5. Complete display, simple operation, stable performance
Input voltage: 6.0~70V
Output voltage: 0.0~60V
Output current: 0~20.00A
Output ripple typical value: 100mv VPP
Output power: 0~1200W
Maximum output voltage: (input voltage + 1.1)-2
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.01A
Input voltage measurement accuracy: ±1% + 5 words
Output voltage setting and measurement accuracy: ±0.4% + 1 word
Output current setting and measurement accuracy: ±0.5% + 3 words
Cooling fan on: current> 2A power>50W temperature>50℃
Cooling fan on and off: current <1.5A power <45W temperature <45°C
External temperature protection: 0 - 110°C default off
Input overvoltage protection: 71V default
Input undervoltage protection: 4.8-71V adjustable default 4.8V
Output over-voltage protection: 0-65V default 65V
Output overcurrent protection: 0-16A default 16A
Output over power protection: 0-950W default 950W
Over temperature protection: 60 - 110°C Default 95°C
Timeout protection: 0 -100H adjustable Default off
Over capacity protection: 0~9999AH adjustable Default off
Super energy protection: 0~9999WH adjustable Default off
Package A.
Meter head *1
Board *1
Cable*2
Board *1

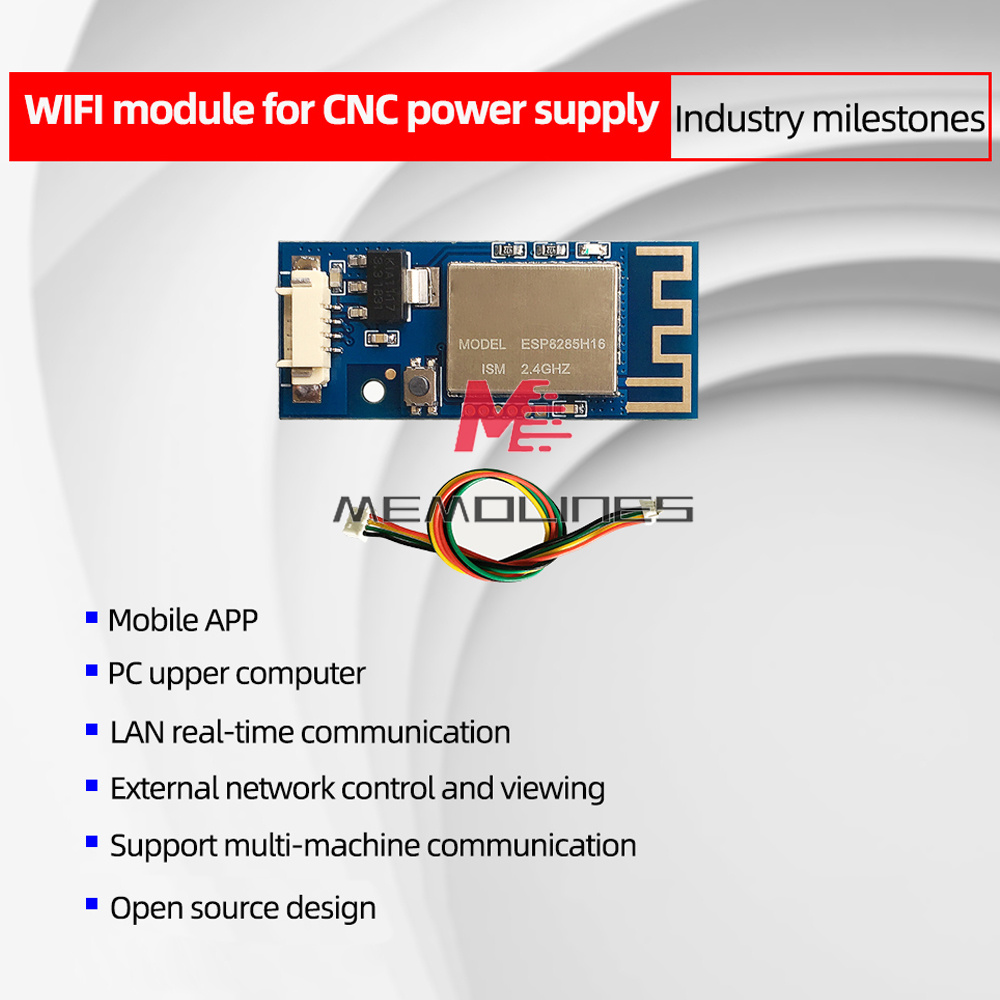

1. Use high quality materials, quality assurance

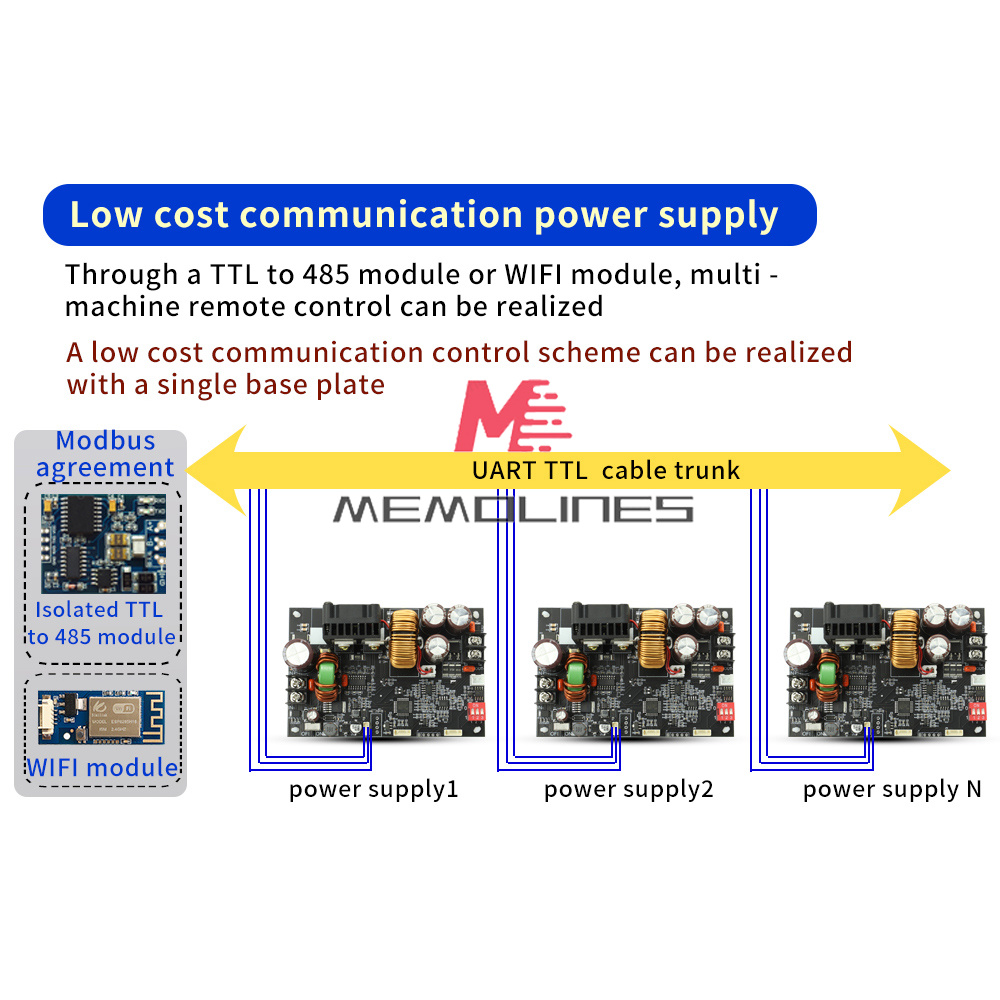

2. Only one wifi module can realize real-time communication in LAN, external network control and view
3. Support multi-computer communication
4. Real-time communication on LAN
5. Easy to apply, wide range of applications

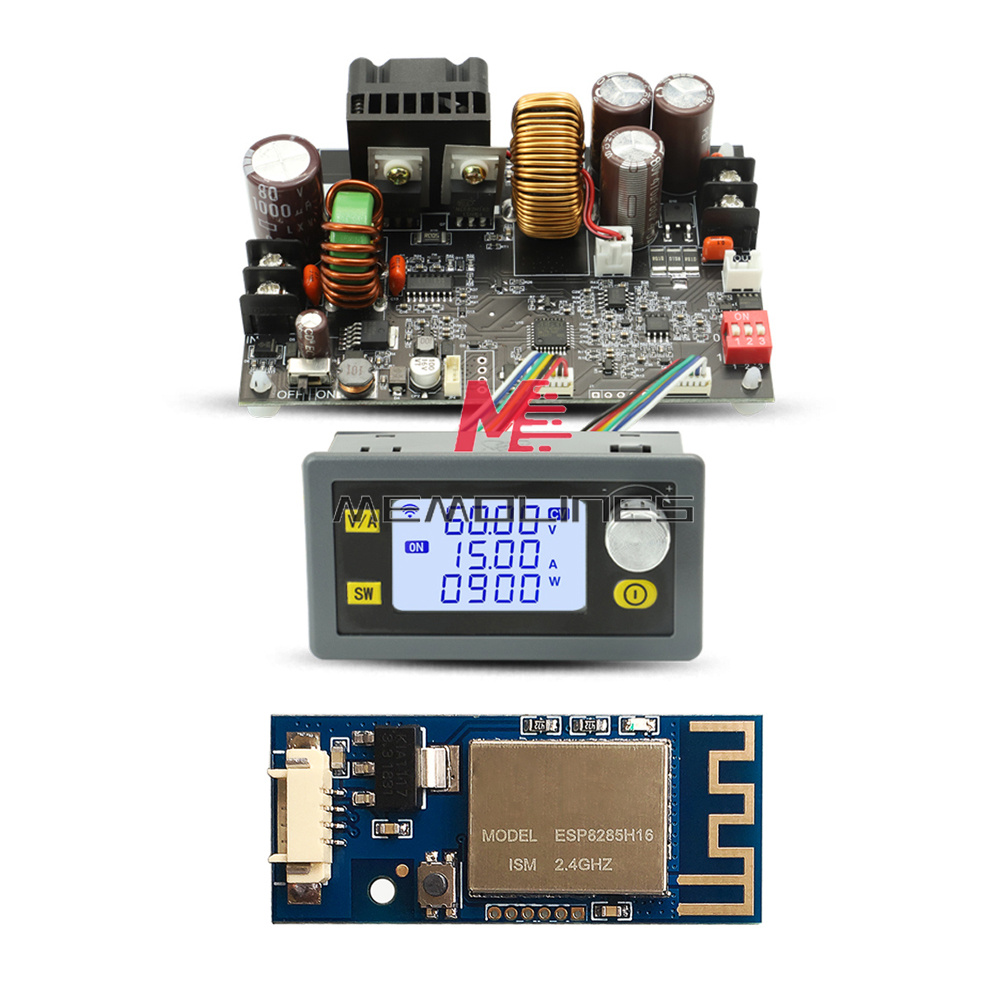

1 x wifi module
1 x cable arrangement
