Specification:
Working Voltage: 8-18V
Rated Voltage: DC 12V
Working Temperature: -20 - +70 Celsius
Storage Temperature: -30 - +80 Celsius
Digital Display Speed Range: 0-199km/h
Needle Display Rpm Range: 0-12000rpm
Digital Display Odo Distance Range: 0-99999.9km
Gear Indicator: 1-6

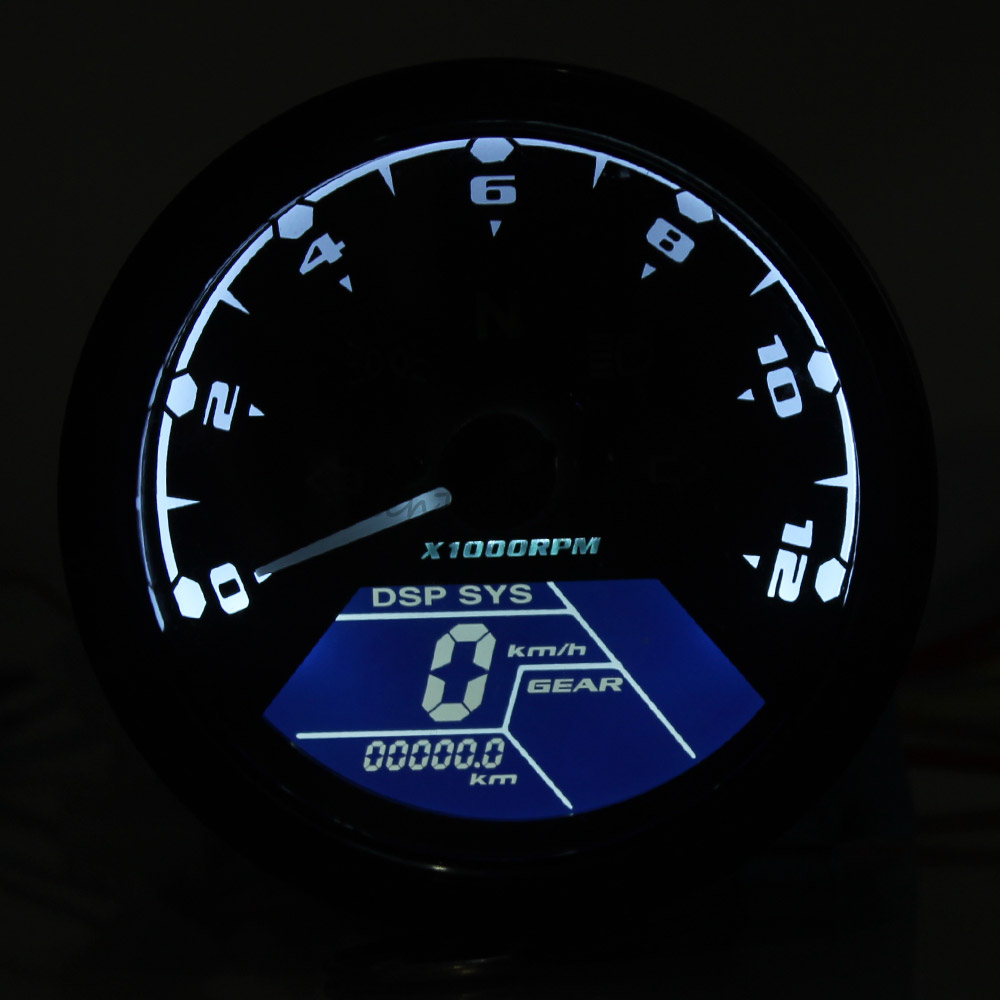

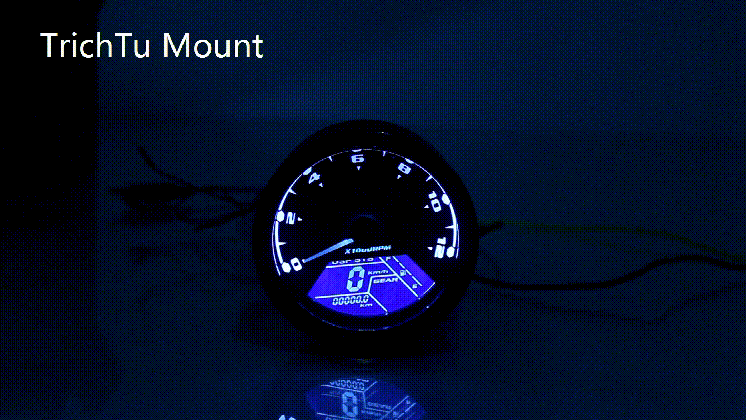

Backlight: Blue

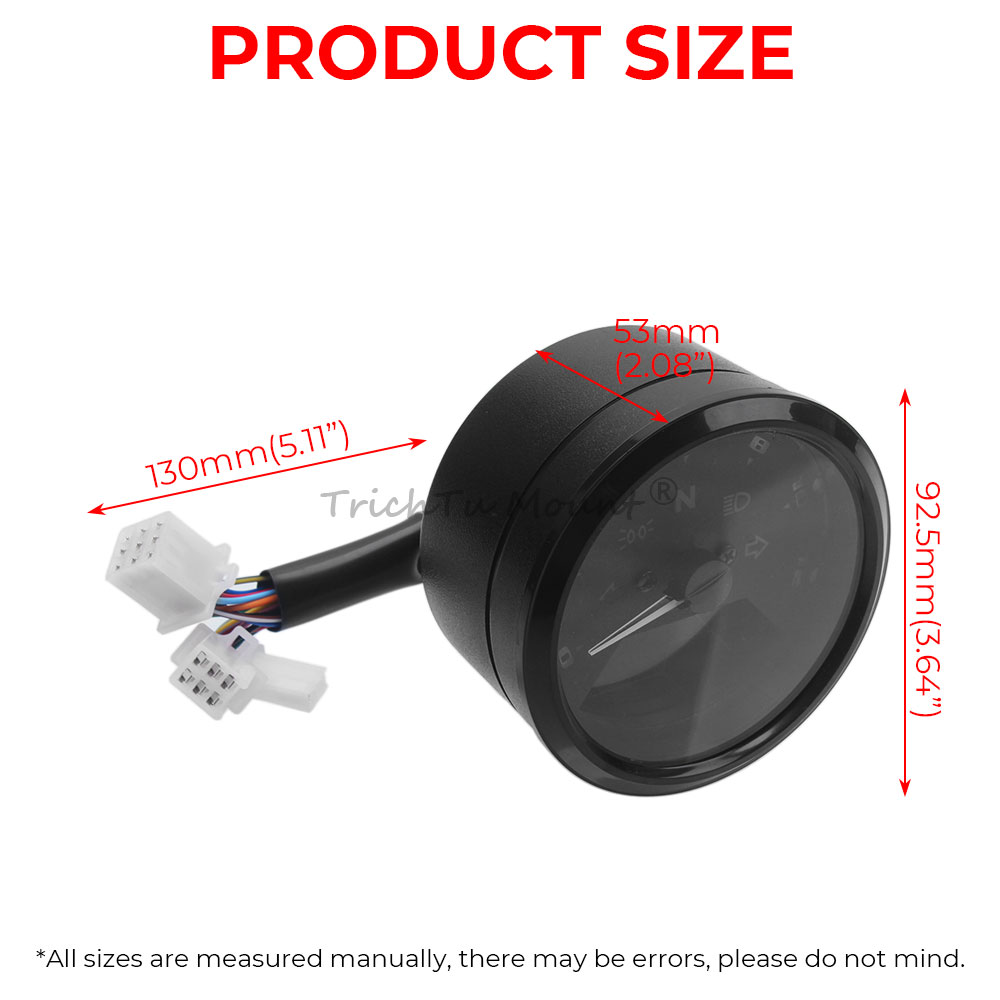

Installation diameter: 9cm
Note:

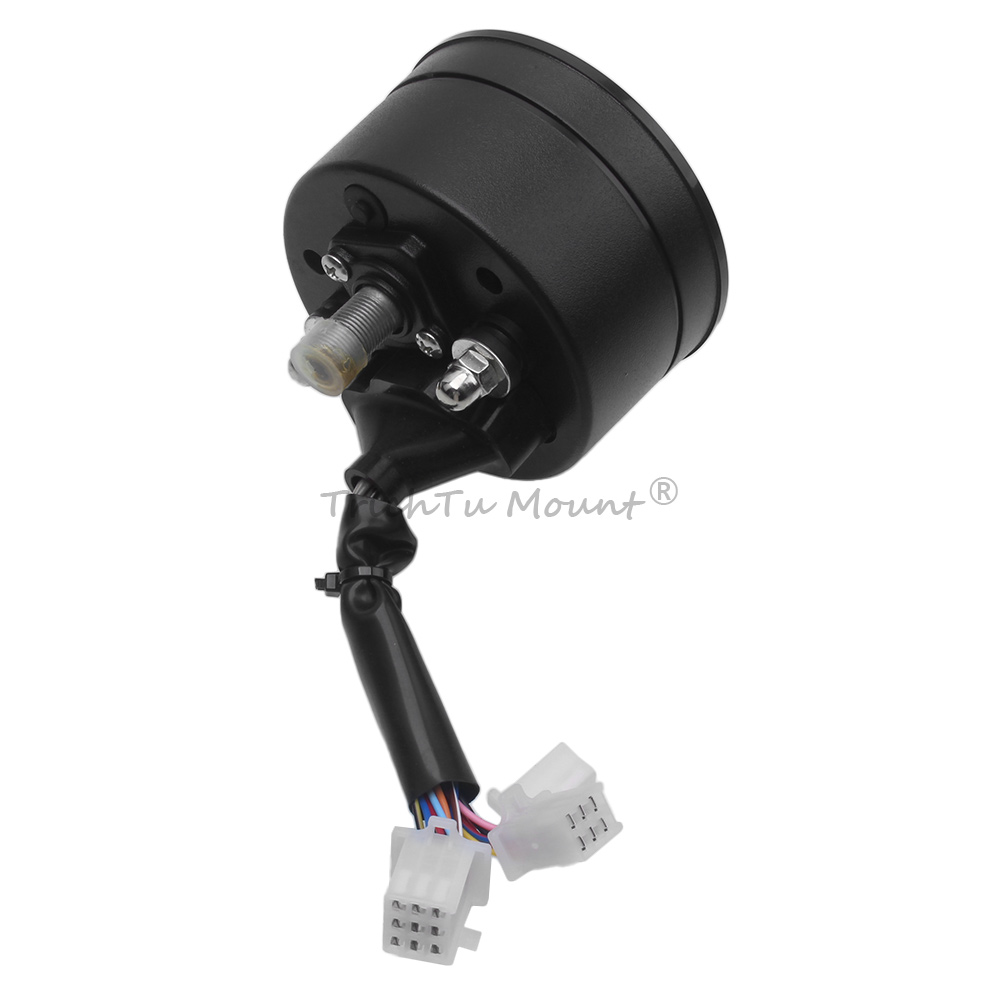

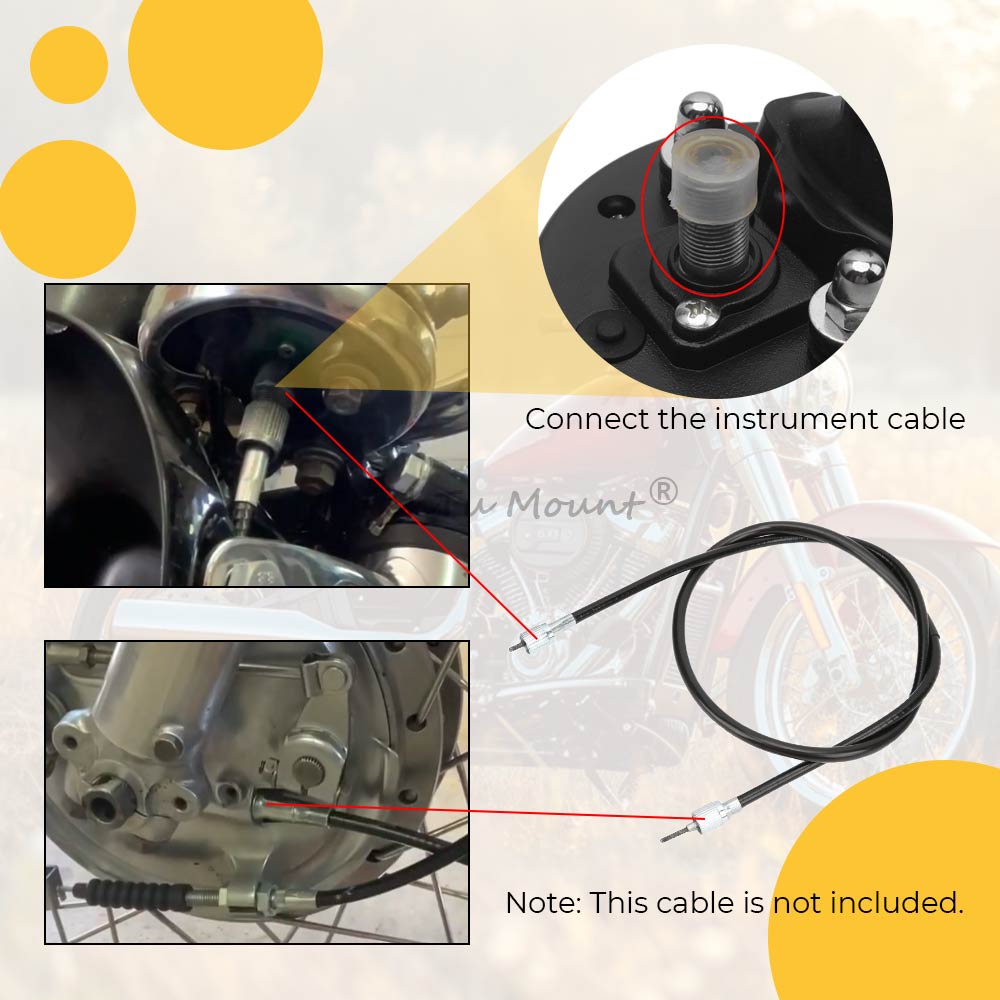

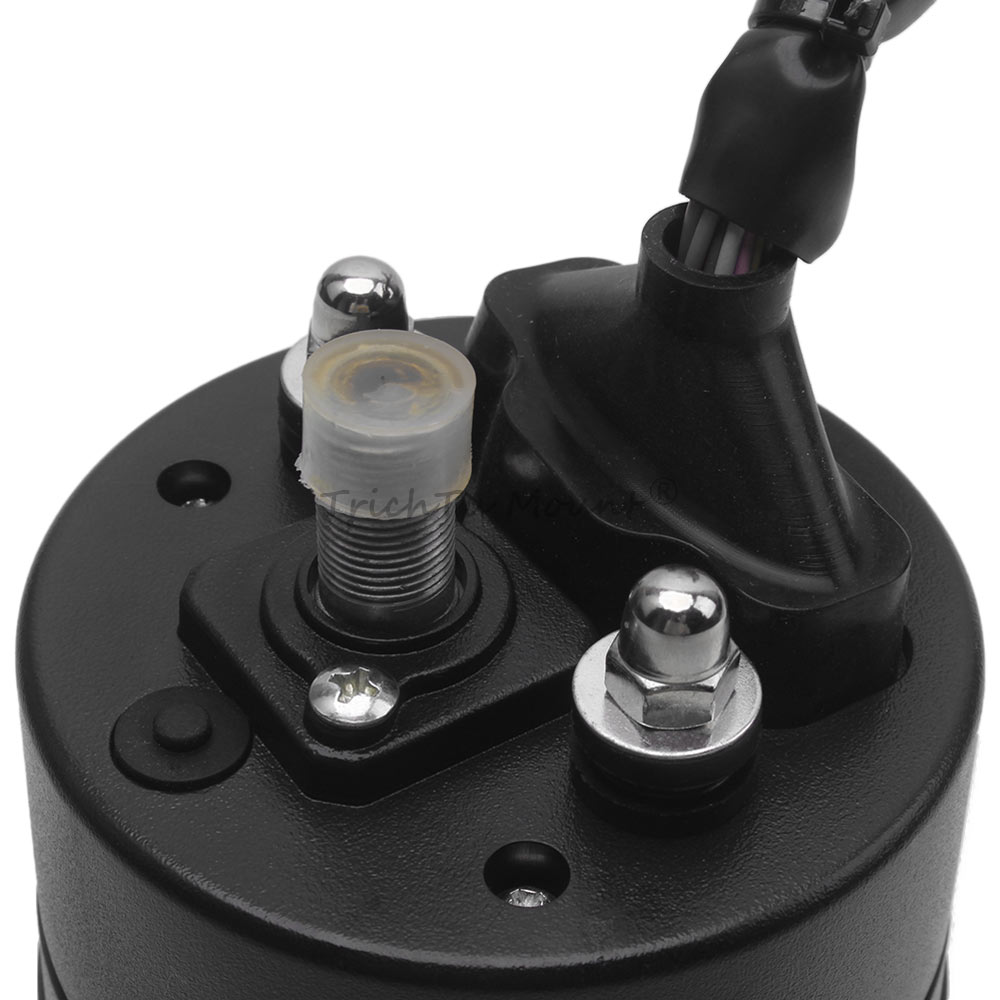

1. This is a mechanical instrument that requires a flexible shaft speedometer cable to drive its operation.One end of the speedometer cable is inserted into the front wheel drum, while the other end connects to the tachometer interface on the instrument back.
2. The speedometer cable is not included.
Features:
Large anti -UV & Anti-g lare LCD screen
All-in-one design with digital signal processing system
Using chip technology for most of the components

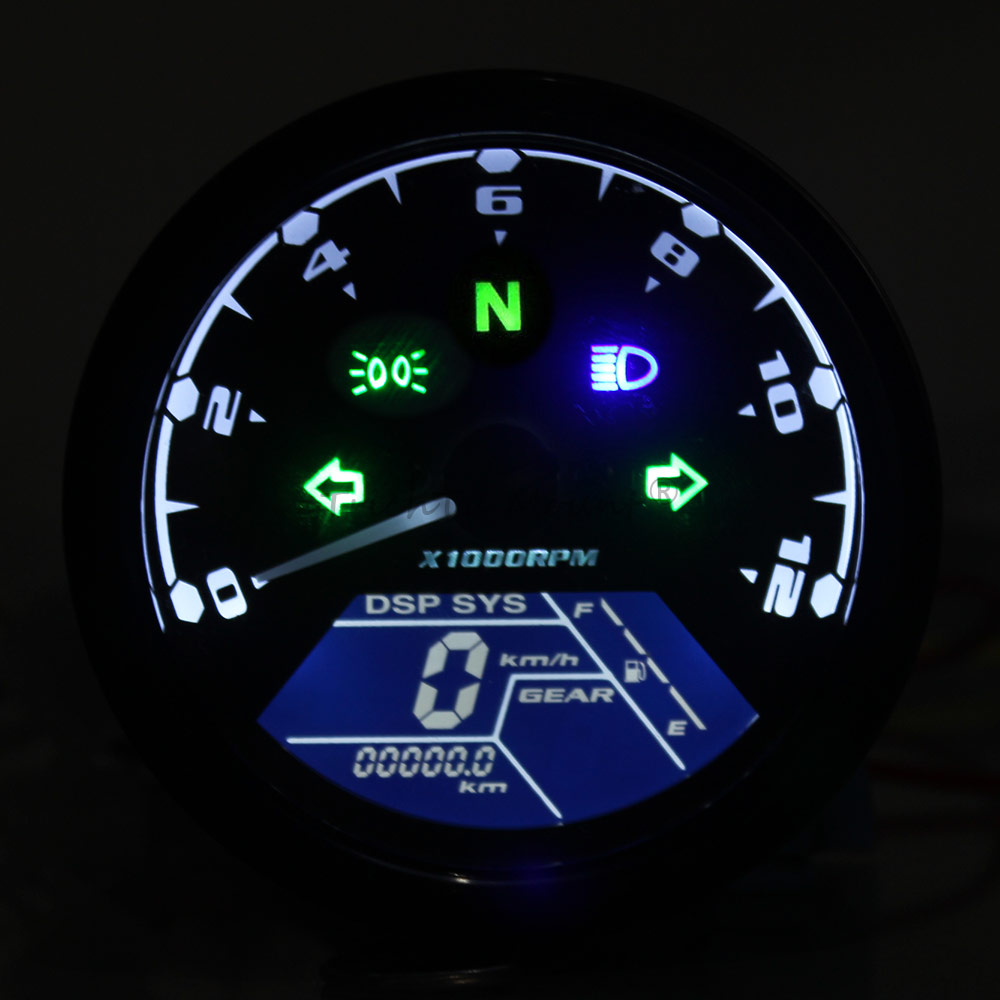

Multiple indicator functions as the L/R Turn Signal, High Beam, Position Lights, N Lights
High withstand voltage up to 100V
Waterproof & Anti-vibration
Fits for most motorcycle that is with 4 stroke, 2/ 4 Cylinders (default as 1 cylinder of the setting)
Package included: 1*LCD digital motorcycle speedometer

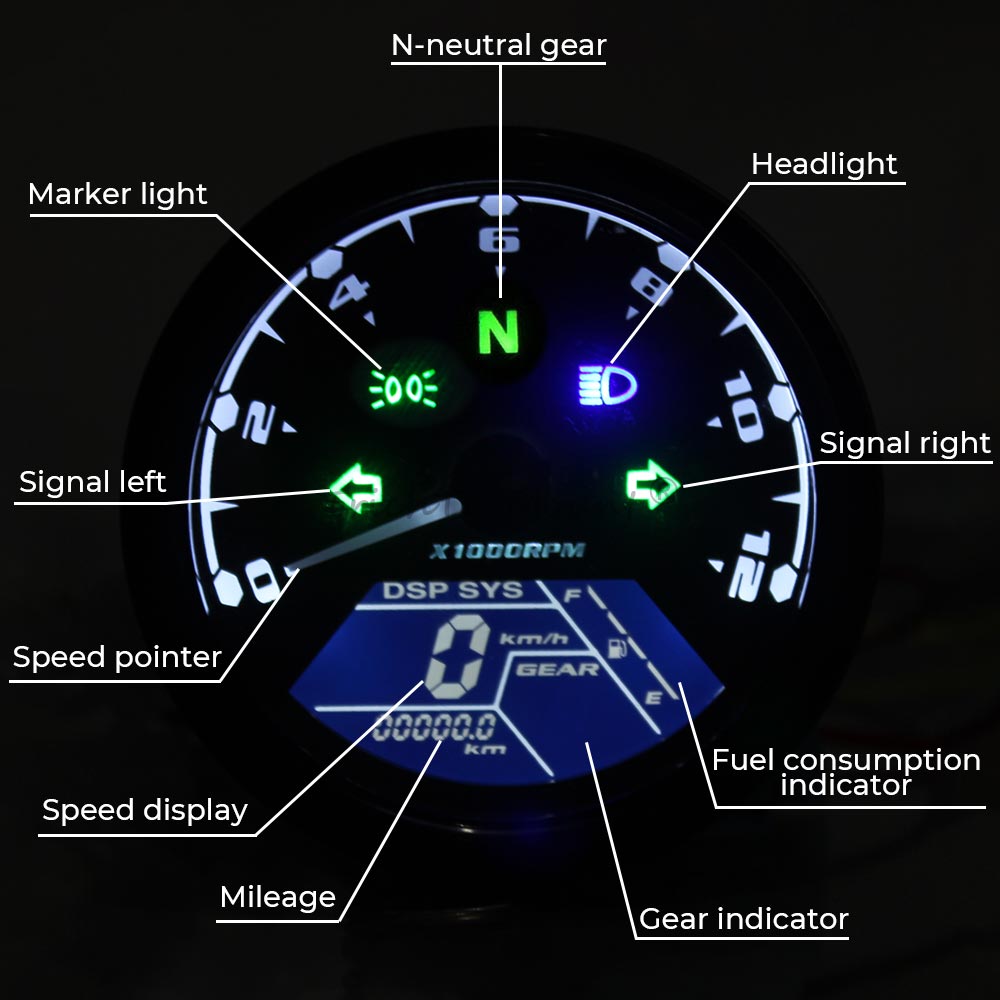

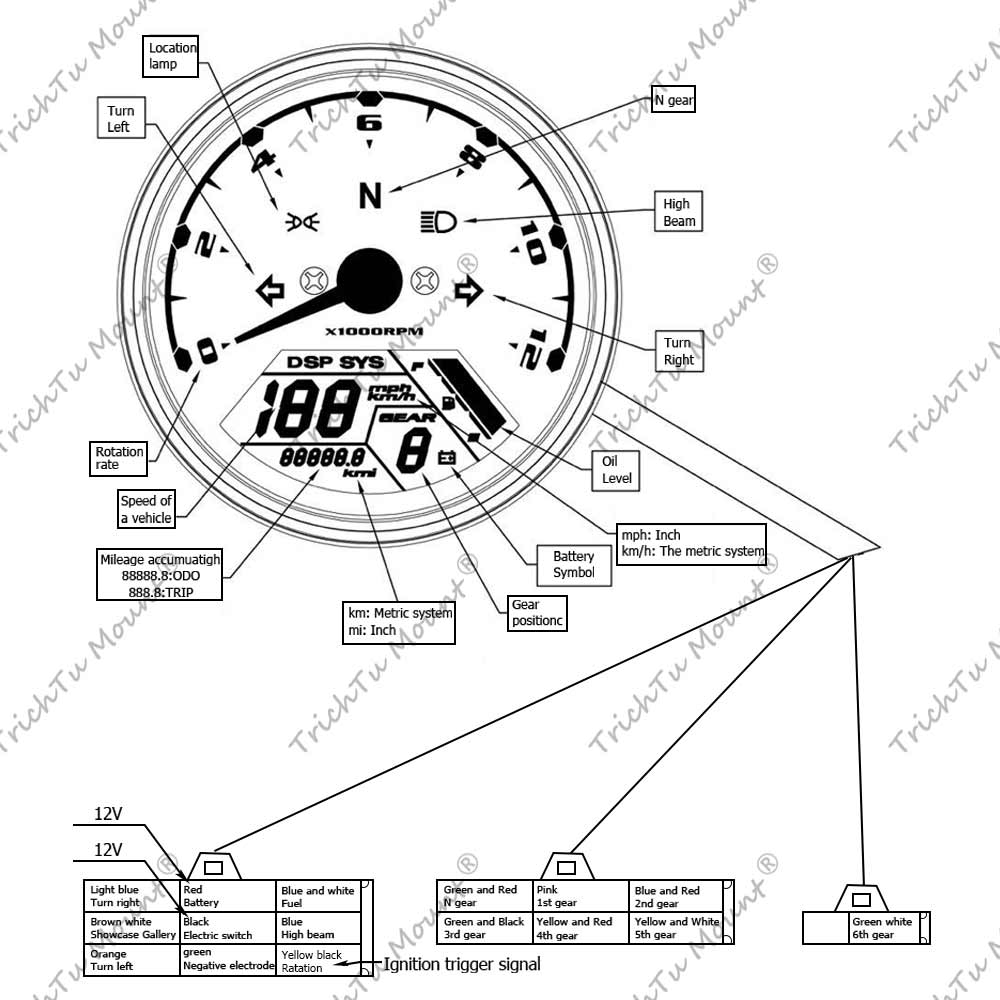

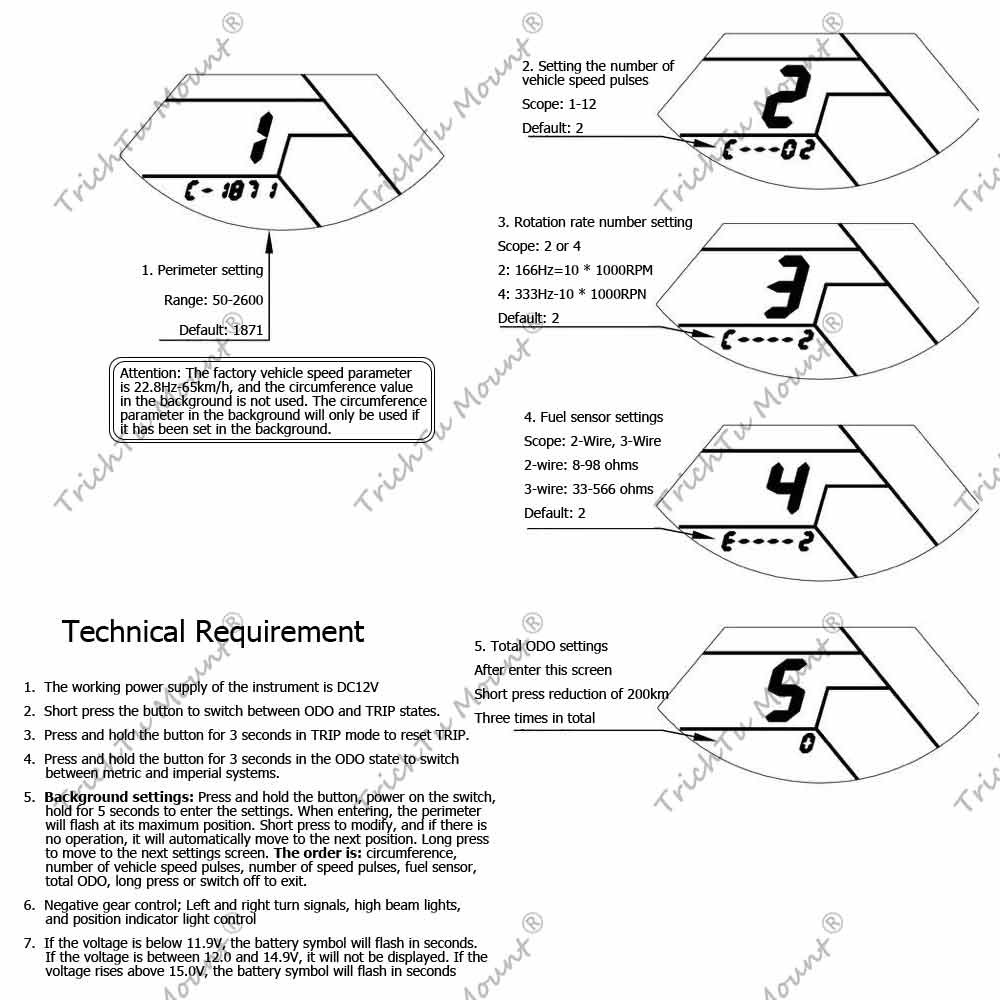

Number:
1: Beam indicator Number
2: Neutral gear Number
3: Rotation rate Number
4: High beam Number
5: Turning right Number
6: Oil Level Number
7: Low battery voltage alarm Number
8: Gear Number
9: Mileage accumulation Number
10: Speed Number 11:Turning left

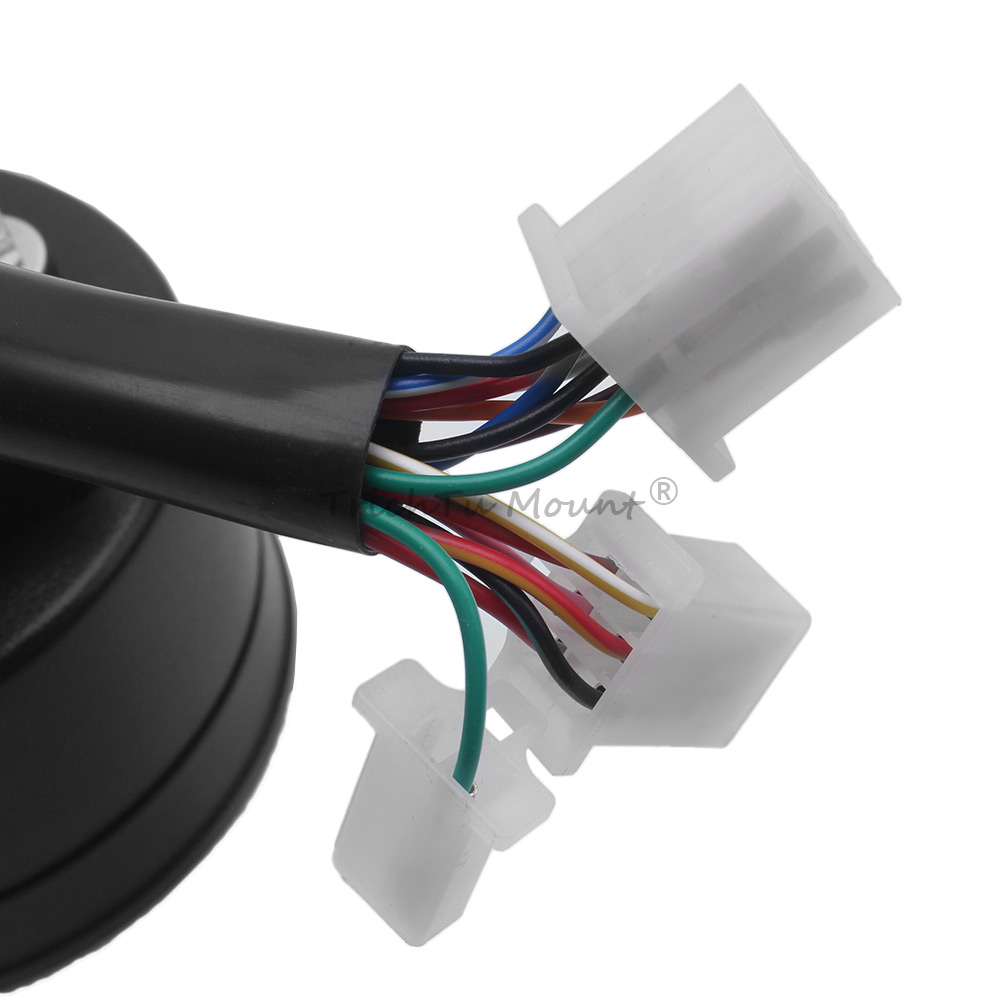

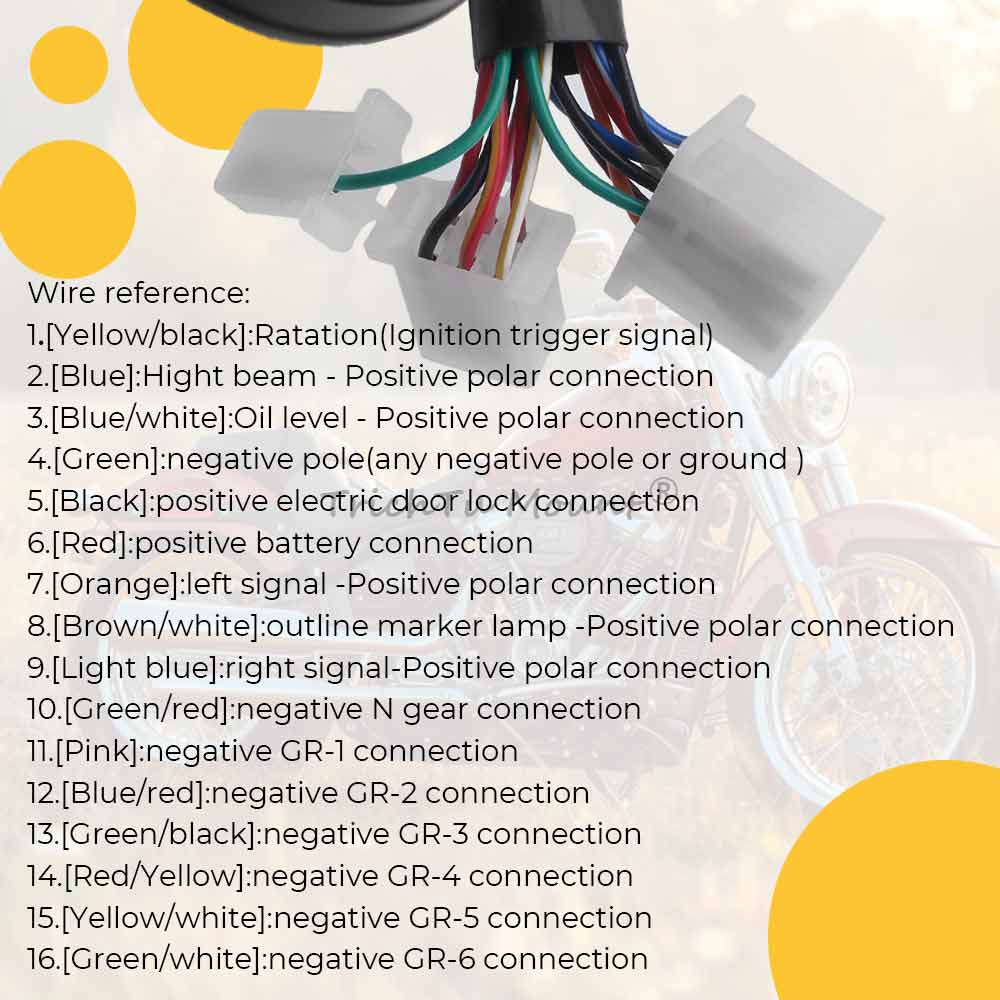

1[Yellow/black]: speed signal wire
2[Blue]: distance light Positive polar connection
3[blue/white]: outline marker lamp Positive polar connection
4[Green]: negative pole(any negative pole or ground )
5[Black]: positive electric door lock connection
6[Red]: positive battery connection
7[Orange]: left signal Positive polar connection
8[Brown/white]: outline marker lamp Positive polar connection
9[Fleet blue]: right signal Positive polar connection
10[Green/white]: negative GR-6 connection
11[Green/black]: negative GR-3 connection
12[Yellow/red]: negative GR-4 connection
13[Yellow/white]: negative GR-5 connection
14[Green/red]: negative N gear connection
15[Pink]: negative GR-1 connection
16[Blue/red]: negative GR-2 connection
17[Red/white]: positive speed sensor connection
18[Black/white]: speed sensor signal wire connection
19[Green]: negative speed sensor connection Must place the correct placement
