Twotrees 4th Axis Rotary Module Kit
Precision 3D Rotary Milling & Engraving for TTC450 CNC Machine
Key Product Features
- Unlock Advanced 3D Precision: Upgrade your CNC setup with this 4th axis rotary module kit. It redefines your machining processes, allowing you to explore versatile 3D mastering, intricate milling, and unparalleled CNC craftsmanship.
- Premium 4:1 Chuck Reduction Ratio: Engineered with a high-torque 4:1 reduction ratio, delivering exceptional rotational stability, precision positioning, and enough holding power for high-accuracy engraving details.

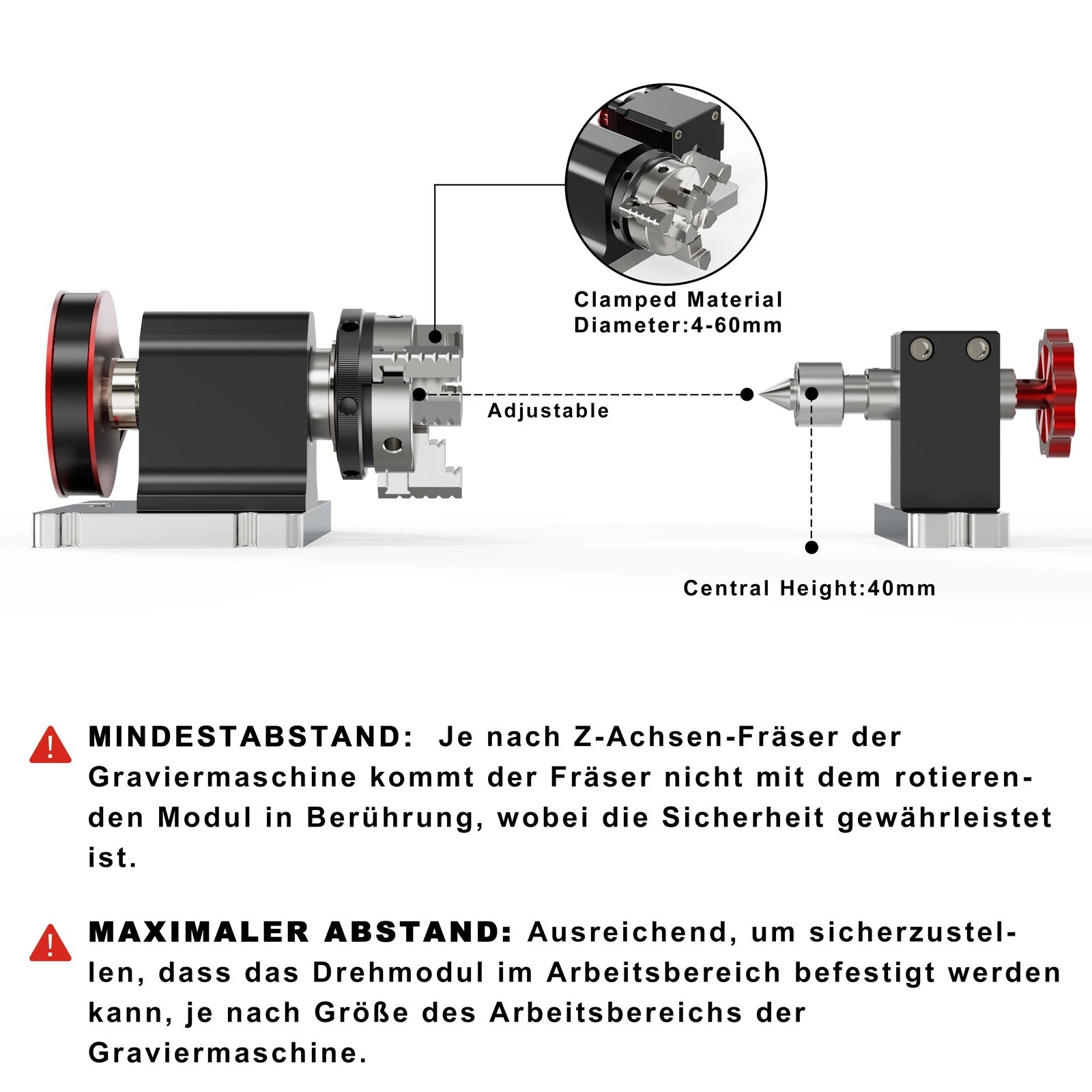

- Versatile Clamping Capability: Features a robust three-jaw chuck structure supporting a maximum clamping diameter of 60mm and a minimum of 4mm for round cylinders, giving you the flexibility to work on various stock sizes.
- Industrial-Grade Build Quality: Coated with a premium rust-resistant finish. The fine workmanship, sturdy practical jaws, and solid internal structure maximize structural rigidity and the overall lifespan of the module.
- Expanded Working Boundaries: Specifically designed to handle three-dimensional processing of cylinders, bent pipes, circles, and curves. Easily carve intricate spirals, bamboo joints, complex patterns, and text on round materials.
Target Audience & Ideal Applications

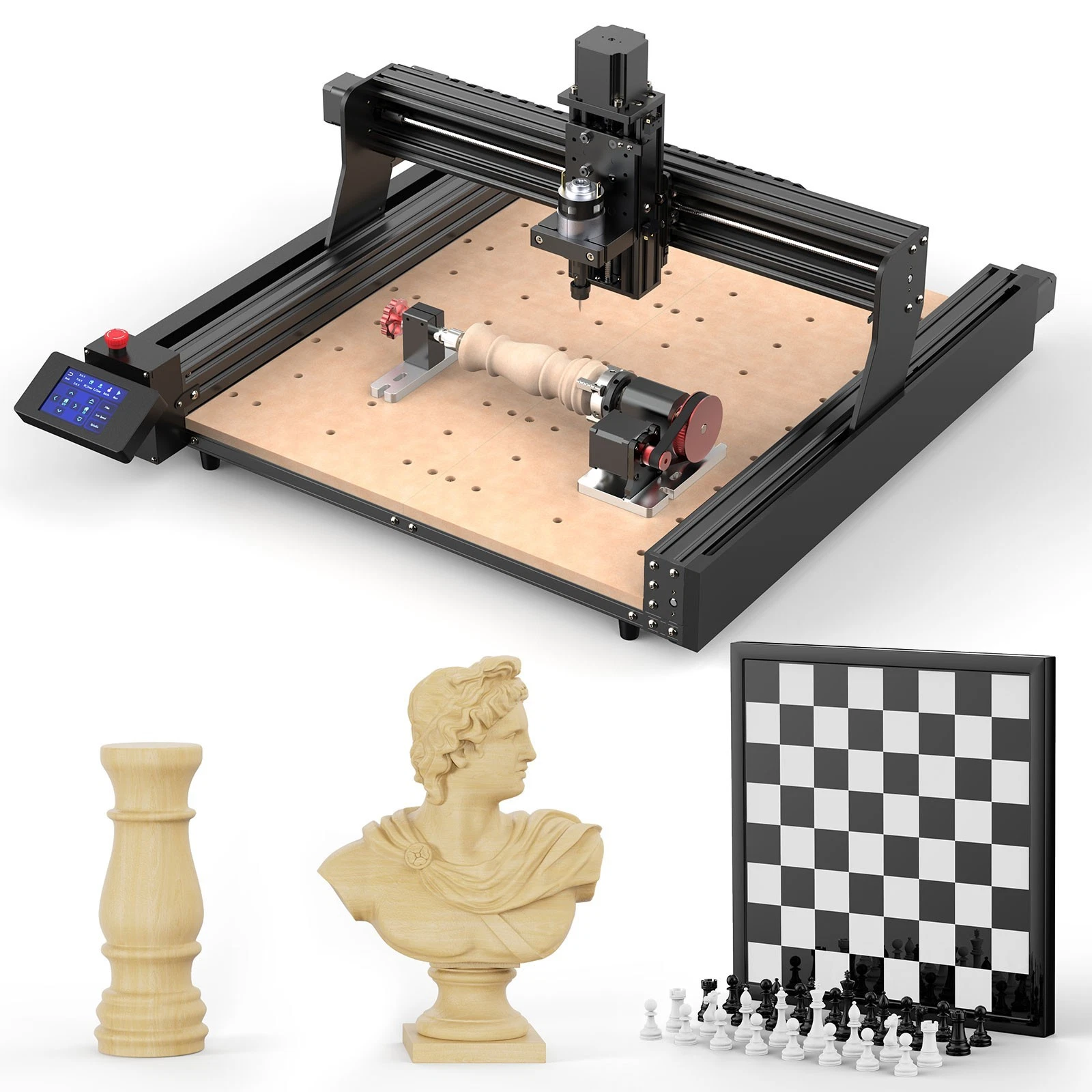

- Twotrees TTC450 Owners: An official, essential upgrade kit engineered exclusively for the TTC450 CNC machine to instantly turn your 3-axis router into a powerful 4-axis carving system.
- CNC Hobbyists & Professional Crafters: Perfect for artisans, designers, and DIYers looking to manufacture complex cylindrical custom parts, custom pen bodies, chess pieces, rings, or decorative pillars.
- 3D Curved Processing: Highly recommended for projects involving spirals, fluting, curved pipes, or uniform patterns wrapped around cylindrical surfaces.
Why Choose Our Rotary Module Kit?
- 100% Official OEM Compatibility: Skip the headache of universal DIY parts. This original Twotrees kit guarantees direct connection, matched motor parameters, and flawless synchronization with your TTC450 software.
- Rock-Solid Three-Jaw Stability: Provides centered, vibration-free spinning. The robust jaws hold your workpiece securely, eliminating slippage and misalignments during fast milling passes.
- Complete Ready-to-Install Kit: Includes the rotary axis, cables, and necessary installation tools. No additional modifications required—just mount, plug in, calibrate, and start creating!
Technical Specifications
| Brand | Twotrees (Original OEM) |
| Compatibility | Twotrees TTC450 CNC Machine Only |
| Chuck Reduction Ratio | 4:1 |
| Center Height | 50mm |
| Total Height | 76.5mm |
| Max. Clamping Cylinder Diameter | 60mm |
| Min. Clamping Cylinder Diameter | 4mm |

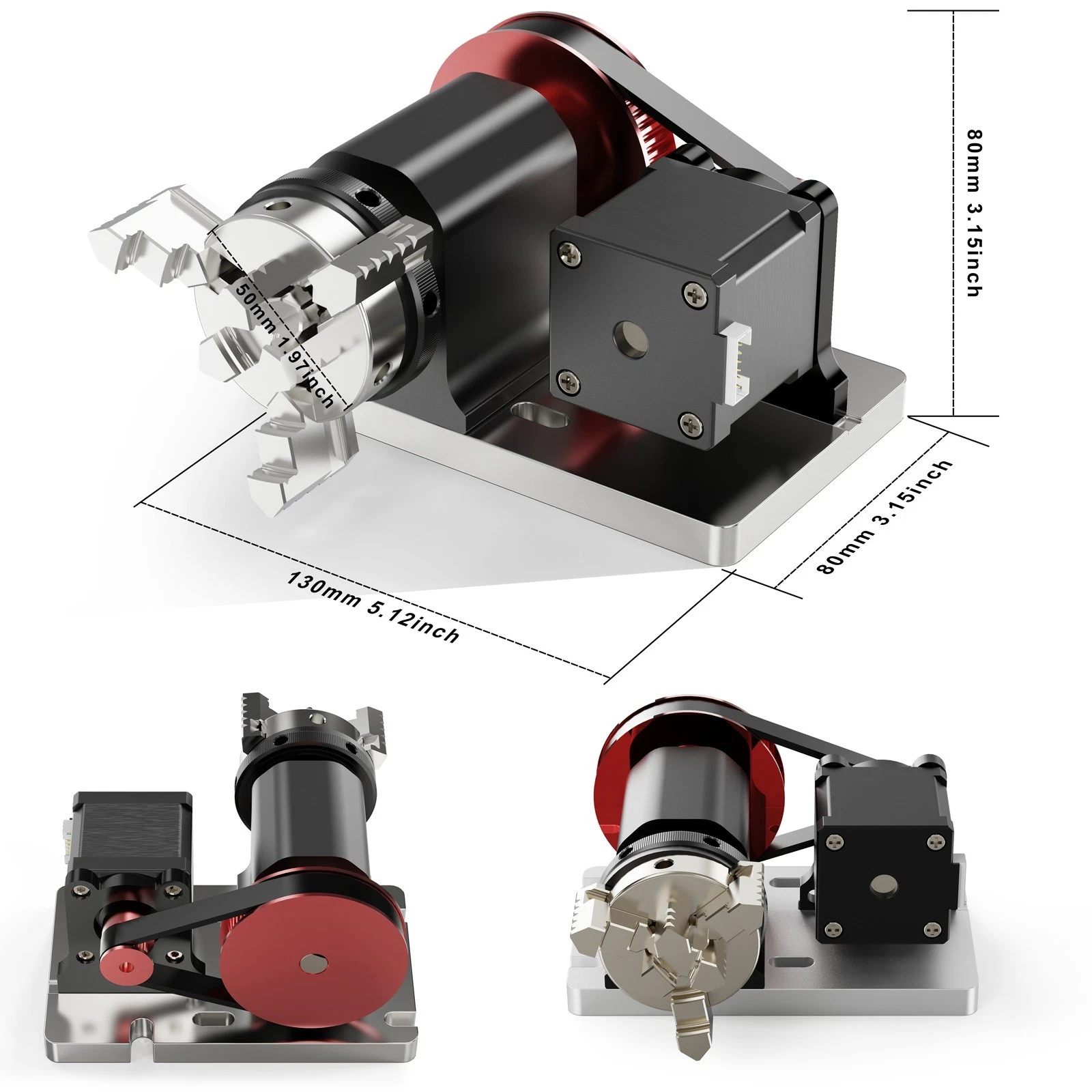

| Round Cylinder Assembly Size | 130mm * 80mm * 80mm |
Packing List
- 1 * Fourth Axis Rotary Module
- 1 * High-Quality Connection Cable
- 2 * Pull Levers
- 1 * Tool Kit (with several screws)
- 1 * Soft Ruler
Please Note:
- The maximum and minimum clamping lengths for round cylinders vary depending on your machine's actual working length and tool head size (the space occupied by the chuck kit and top pin kit must be subtracted).
- Due to different studio lighting and monitor variations, the actual color of the item might slightly differ from the pictures shown.
- Please allow a minor 1-3mm measurement deviation due to manual packaging. Thank you for your support and understanding!
