NOTE:

-If you decide to purchase, please choose from the following order spec template and tell us.

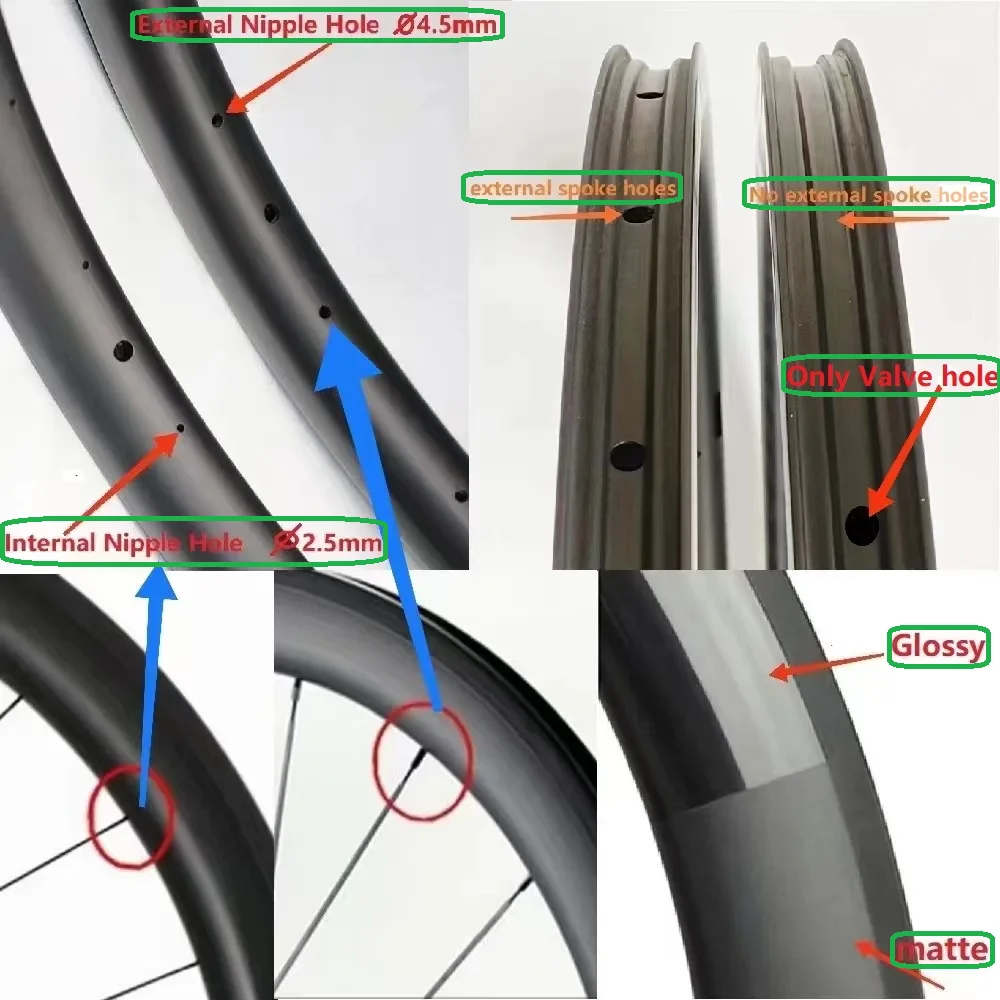

-Spoke Hole Dia：4.5mm or 2.5mm(internal nipple)

-Rim Type : Outer holes or Not outer holes ( tapeless )

-Weave：UD default Please let us know for other textures

-If not specified, the Hole Type defaults to Outer holes, and the Nipples position defaults to External.

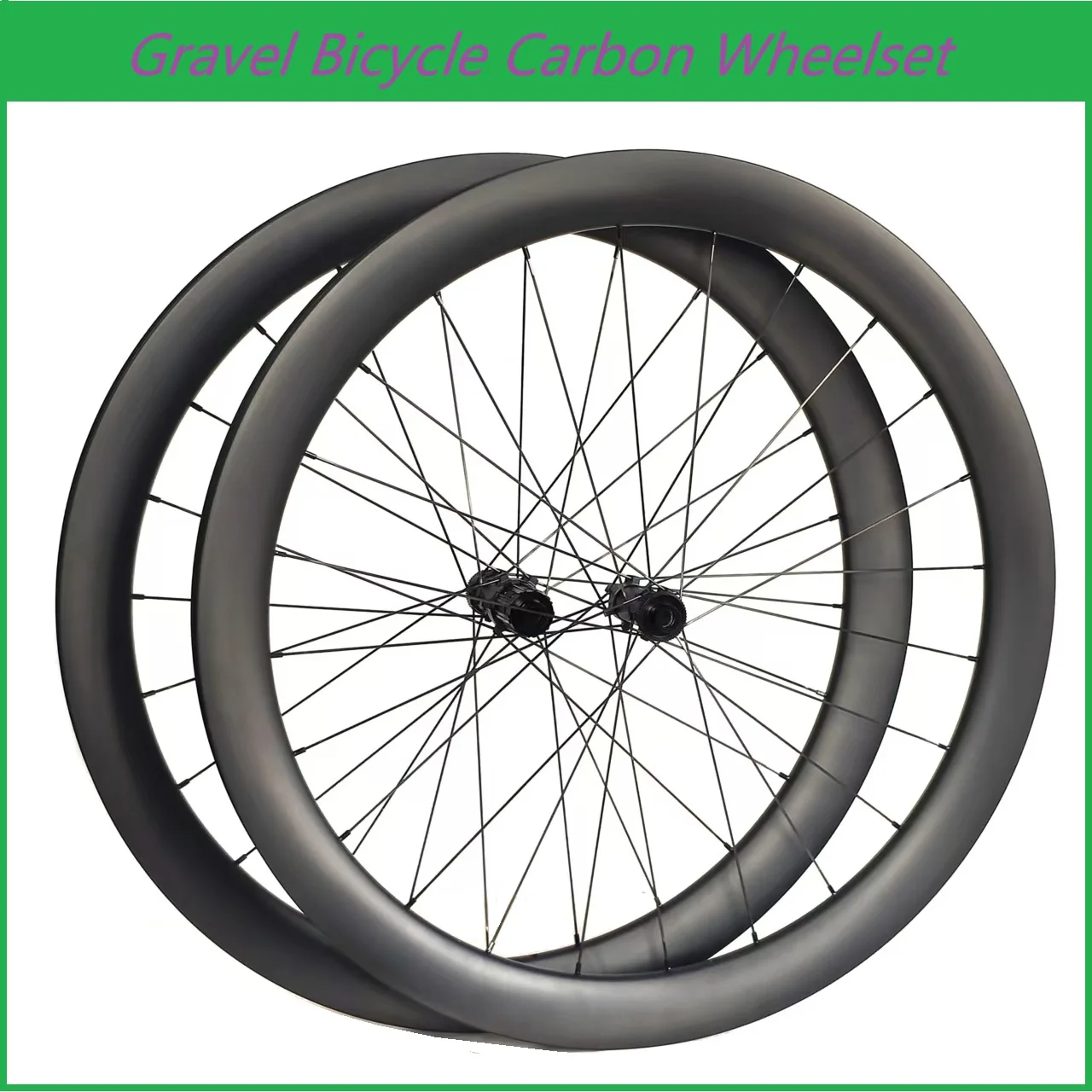

Detailed Informatica

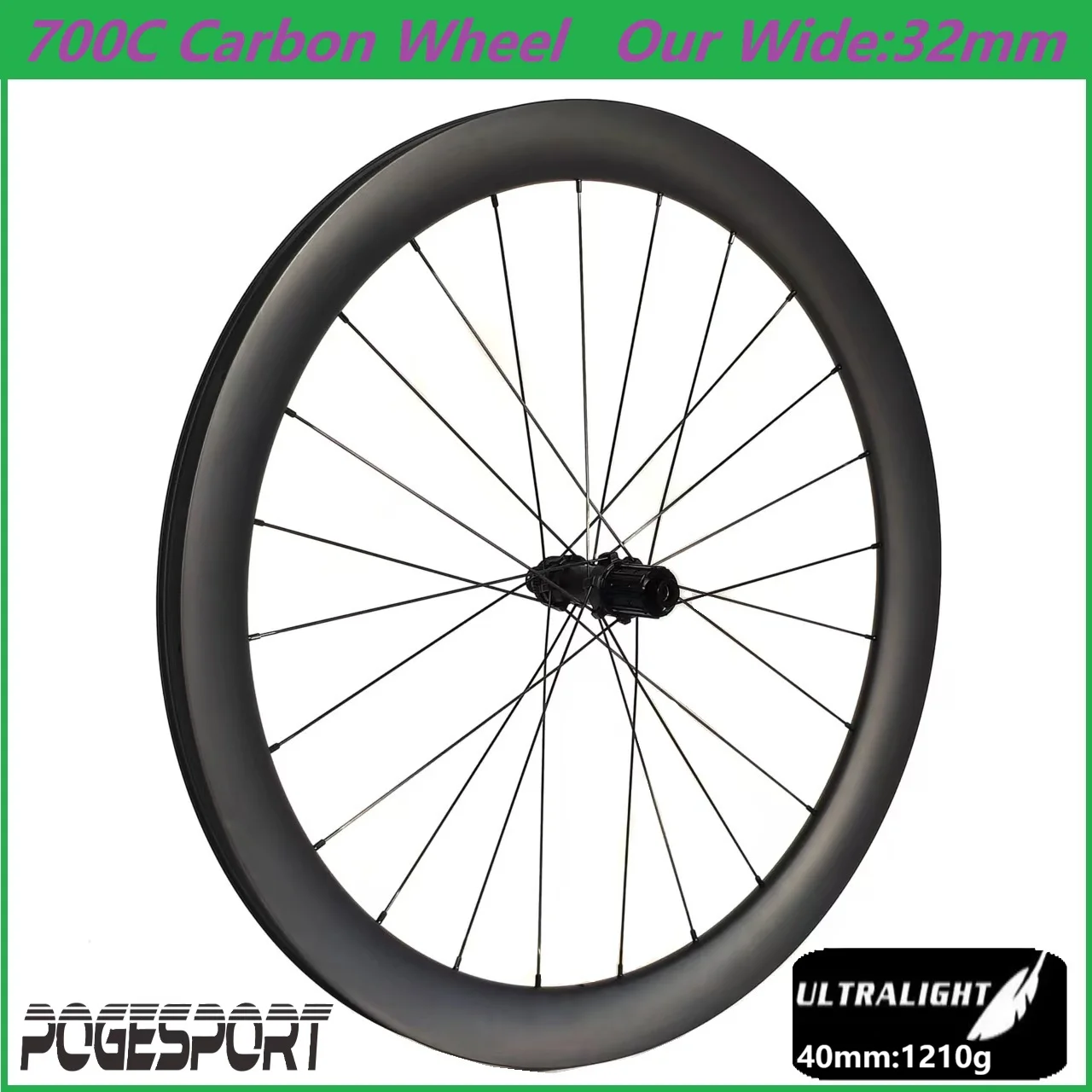

-Size:700C

-Material: Toray T800 Premium Carbon Fiber

-Depth：40mm 45mm 50mm 60mm

-Outer Width: 32mm

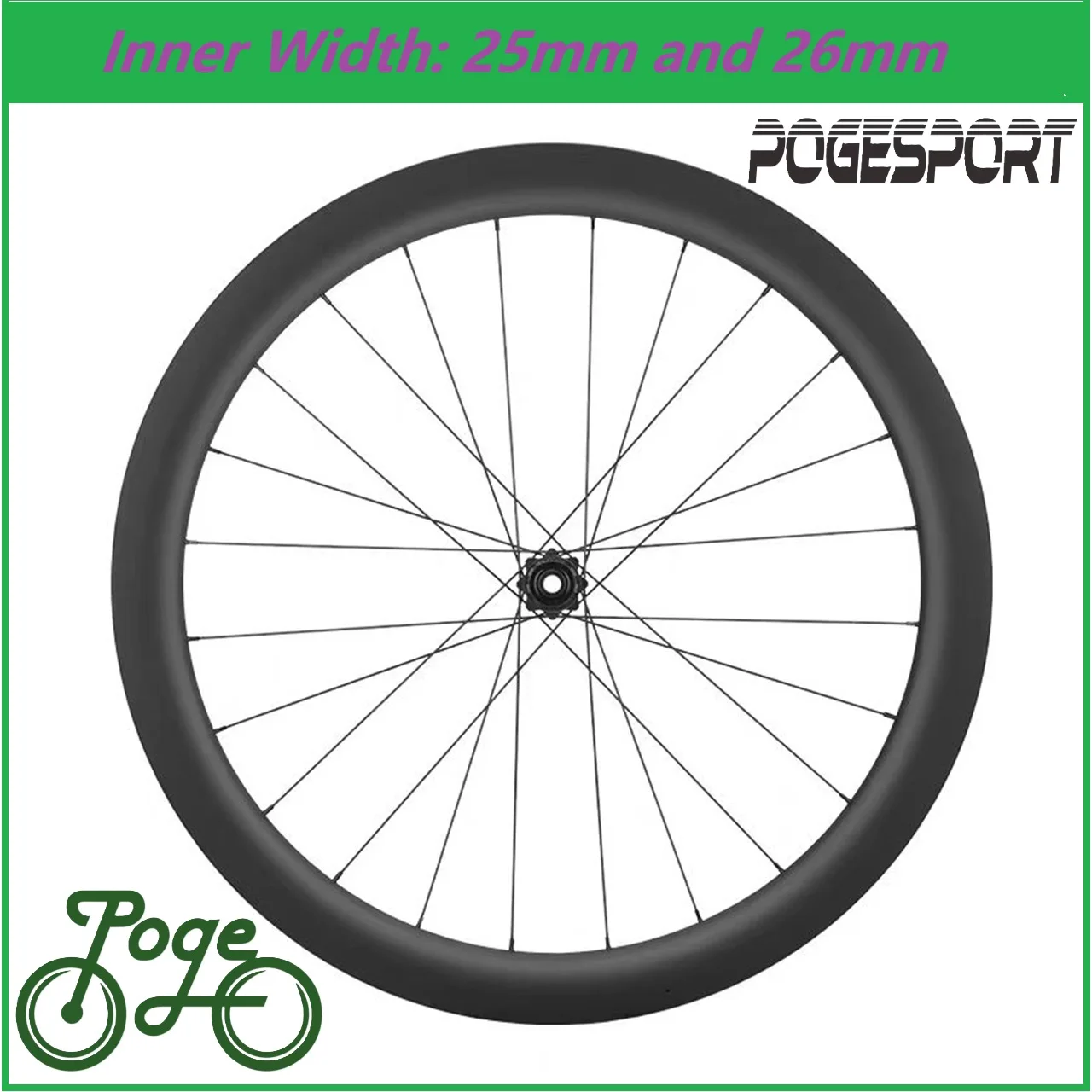

-Inner Width：25mm and 26mm

-Profile：Symmetric (0mm)

-ERD：559-519

-Rim Type: Tubeless and Hookless

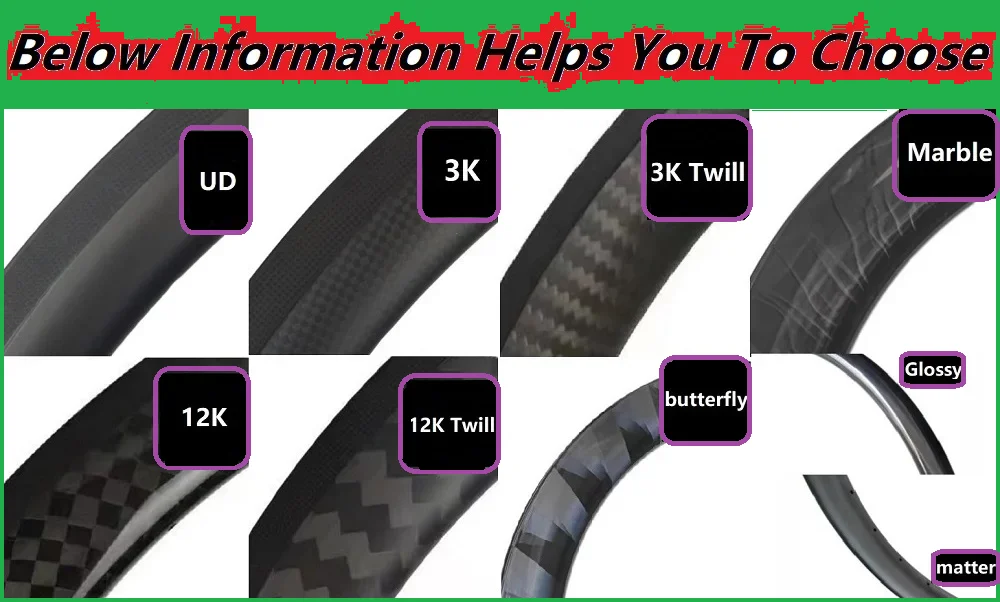

-Weave：UD/3K/3K Twill/12K/12K Twill/Marble

-Hole：16/18/20/21/22/24/28/32/36

-Finish：Matte/Glossy

-Spoke Hole Dia：4.5mm

-Valve Hole Dia：6.5mm

-Assembly Hole Dia：7.5mm

-Spoke Tension：120~160kgf

-Max Cyclist Weight：105KG【SL Weight】，120KG【Normal Weight】

-Max Tire Pressure：120psi(Tubeless); 60psi(Hookless)

-Warranty: 2 year

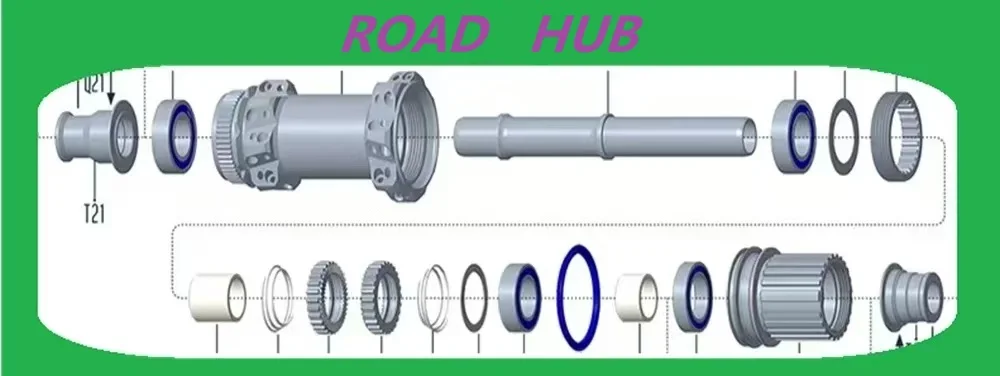

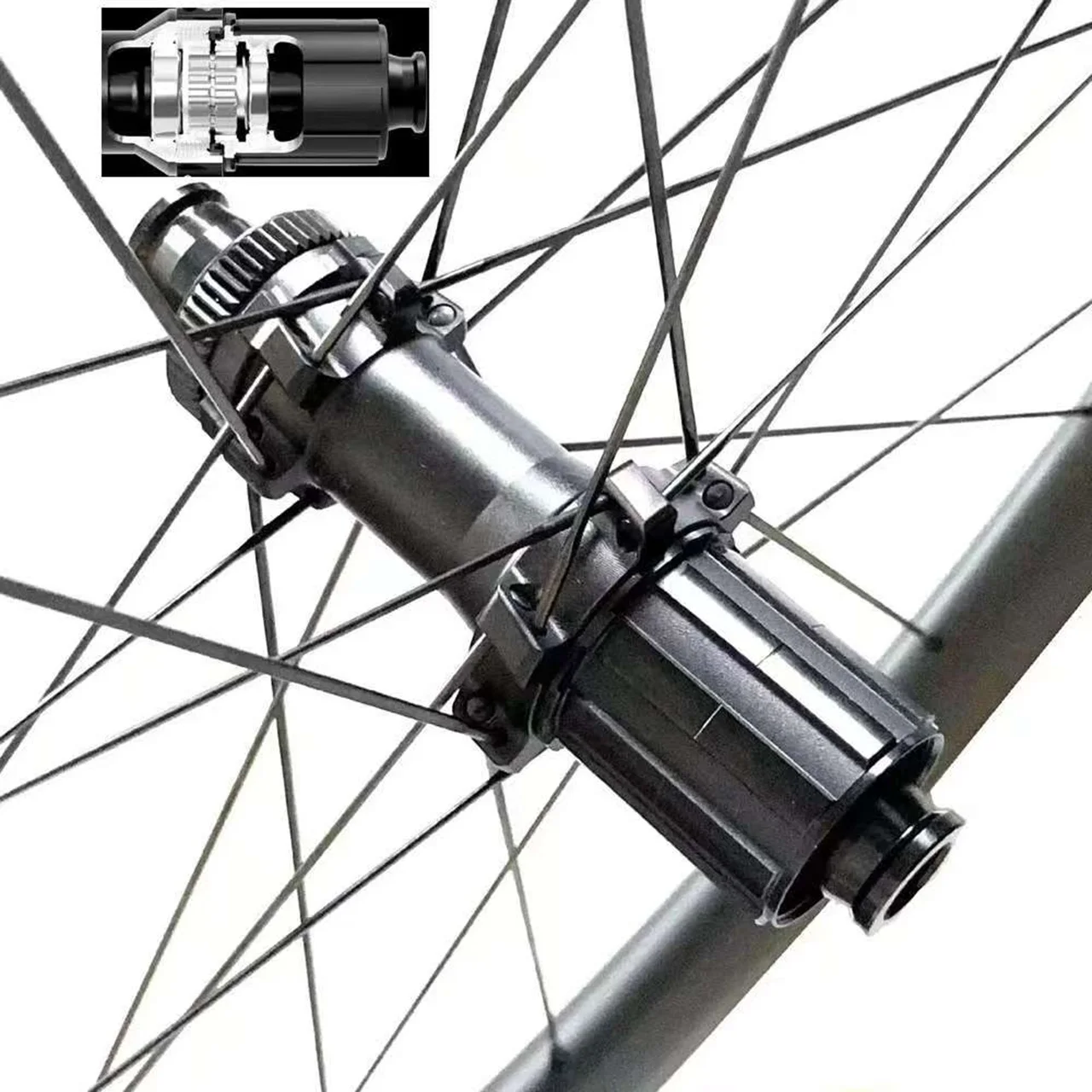

HUB

-Model name:  Ratchet System【36T】【If you want to use another brand of hub,please contact us】

-Front Axle Size：12x100mm

-Rear Axle Size：12*142mm

-Driver Body：Shimano 9/10/11/12S,SRAM XDR,CP

-Brake System: Center Lock

-Hole: 24/24H

-Warranty: 1 year

SPOKE

-Model name: 1423Normal Weight】，1420【 SL Weight

-Color：Black【Or other color】

NIPPLE

-Meterial：Pillar alloy

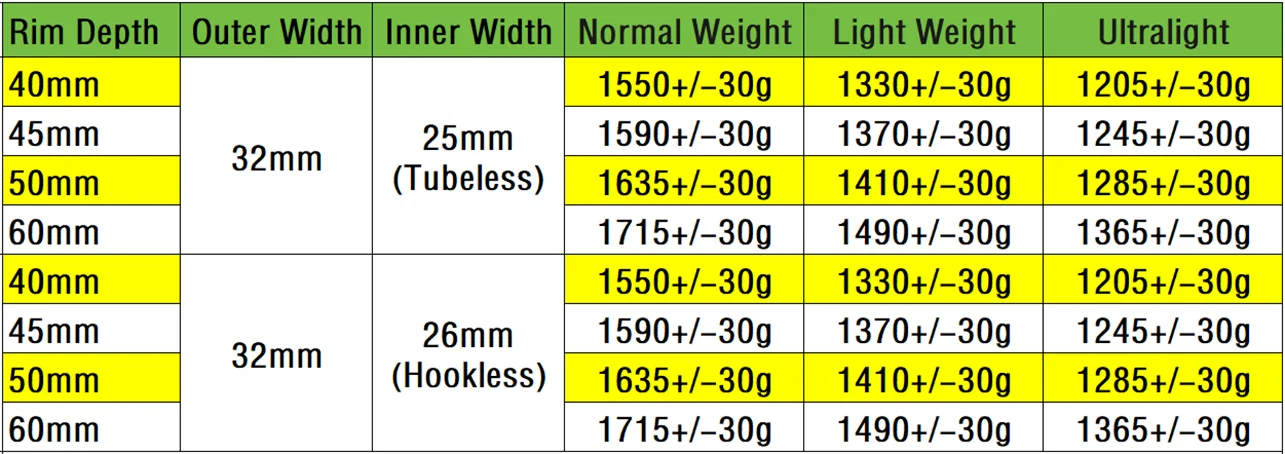

Weight【The center lock disc brake is the standard
