Hydrajaws 141-089 M35+ Standard Load Spreading Bridge 35kN

Hydrajaws 141-089 Standard Bridge for M35+ Anchor Pull Testing up to 35kN

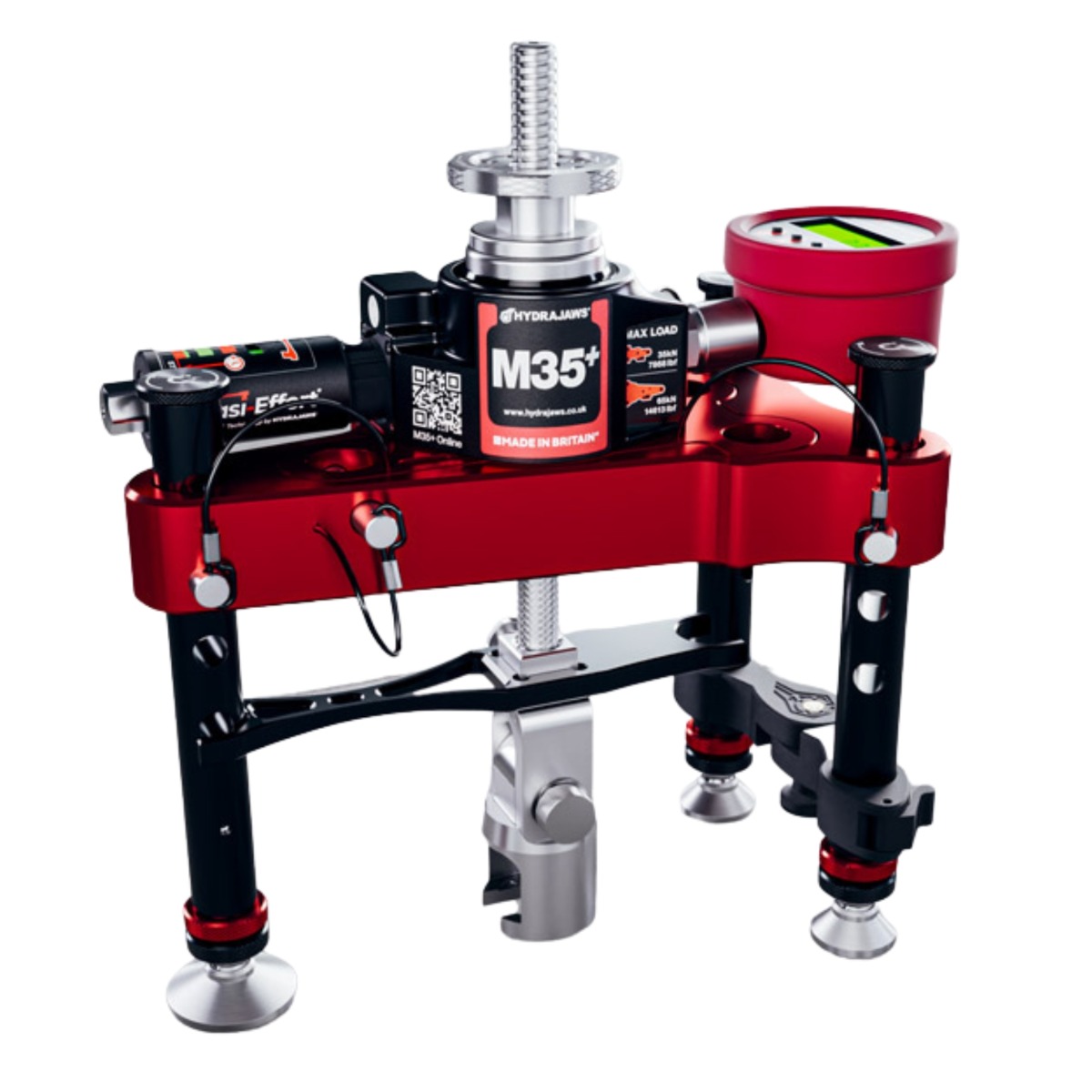

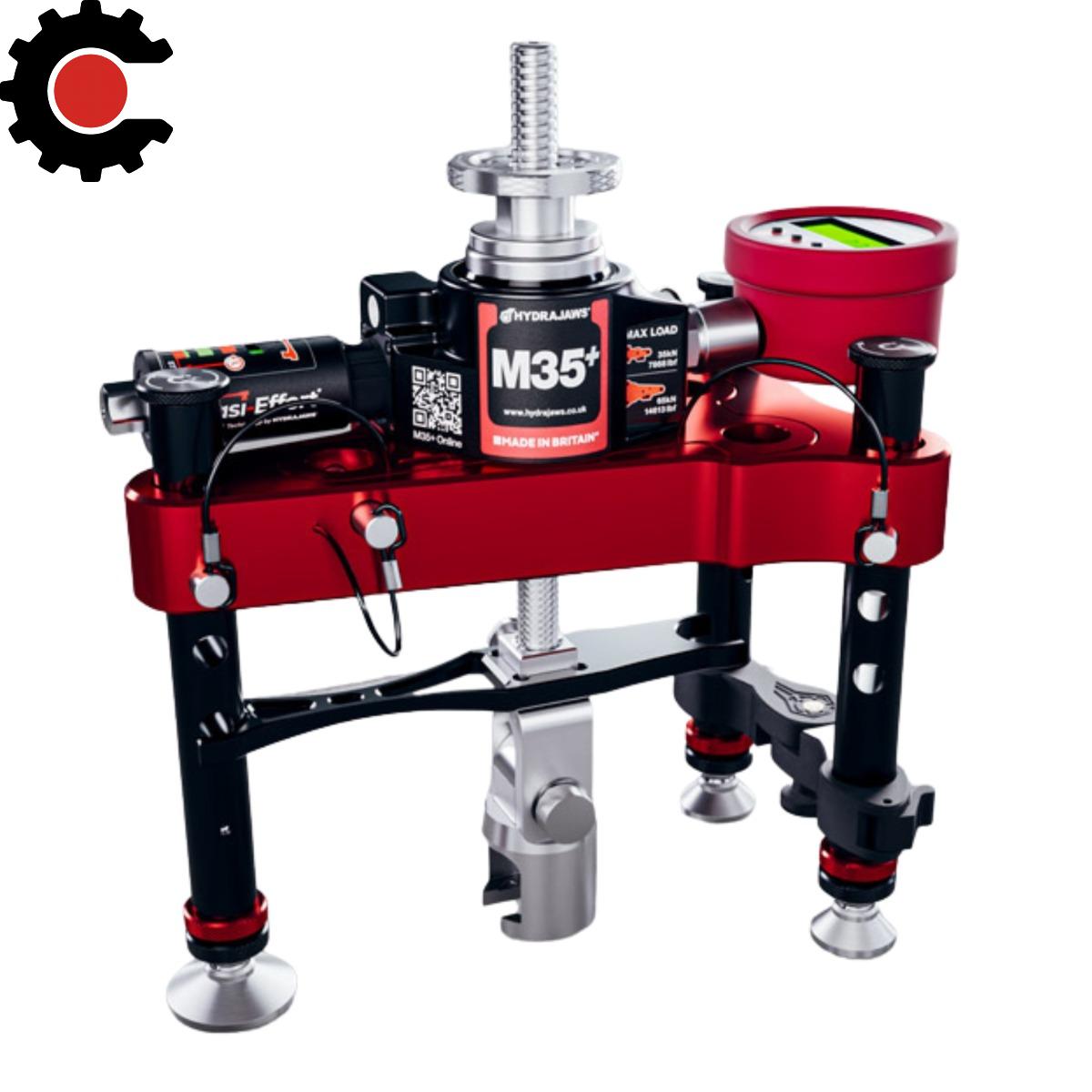

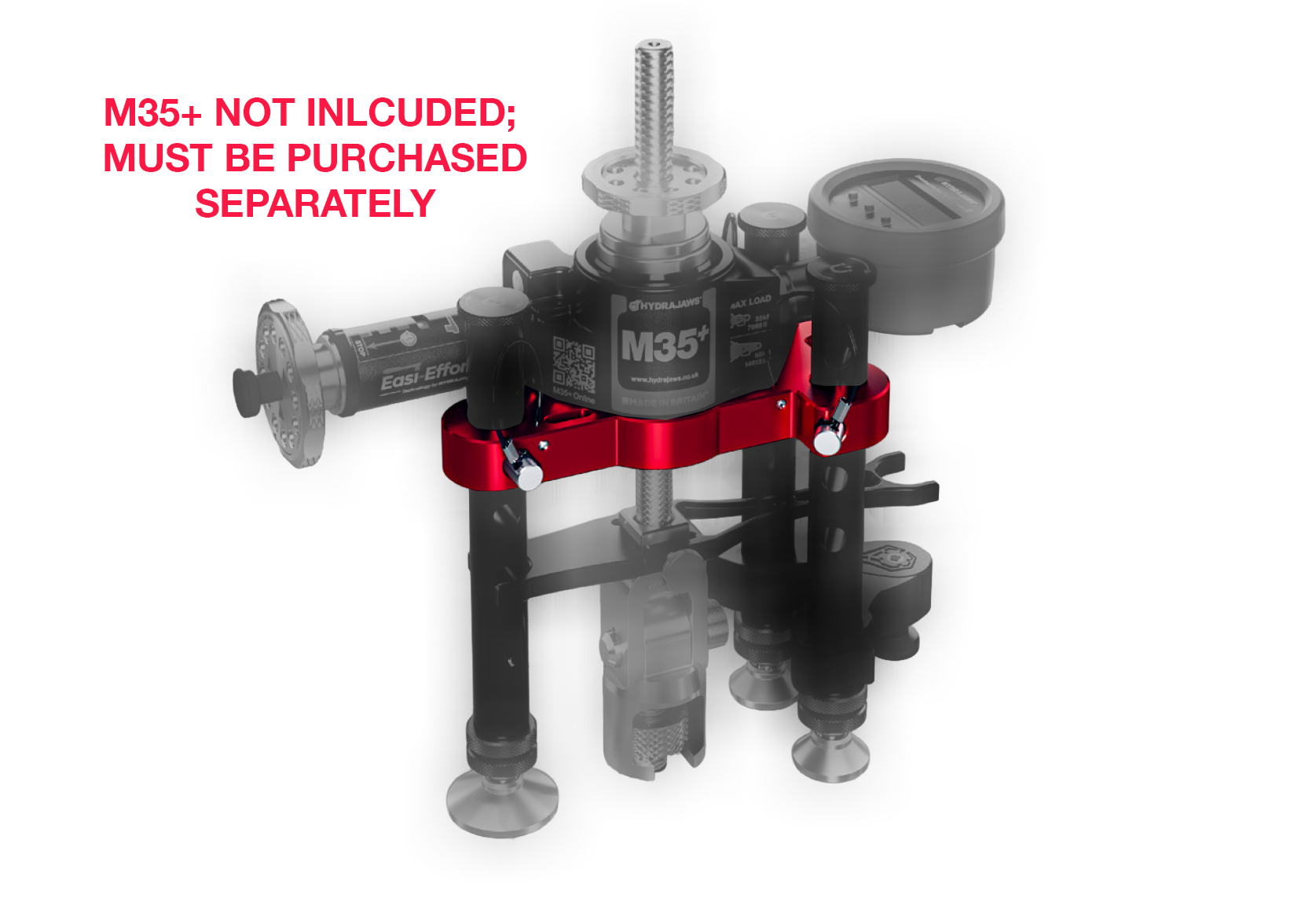

The Hydrajaws 141-089 Standard Load Spreading Bridge is engineered for use with the Hydrajaws M35+ modular digital pull tester system. Designed to distribute load evenly across the test surface, this bridge allows reliable pull testing of anchors, eye bolts, threaded rods, and structural fixings up to 35 kN. Its compact bridge footprint is optimized for typical site installations where controlled load distribution and stable positioning are required. As part of the M35+ modular system, the bridge integrates with the tester’s adjustable leg assembly and drop-rod mechanism for secure positioning during pull testing operations.

Load Distribution and Bridge Design

• Designed for the Hydrajaws M35+ modular pull tester system
• Supports anchor and fixing pull tests up to 35 kN (7,868 lbf)

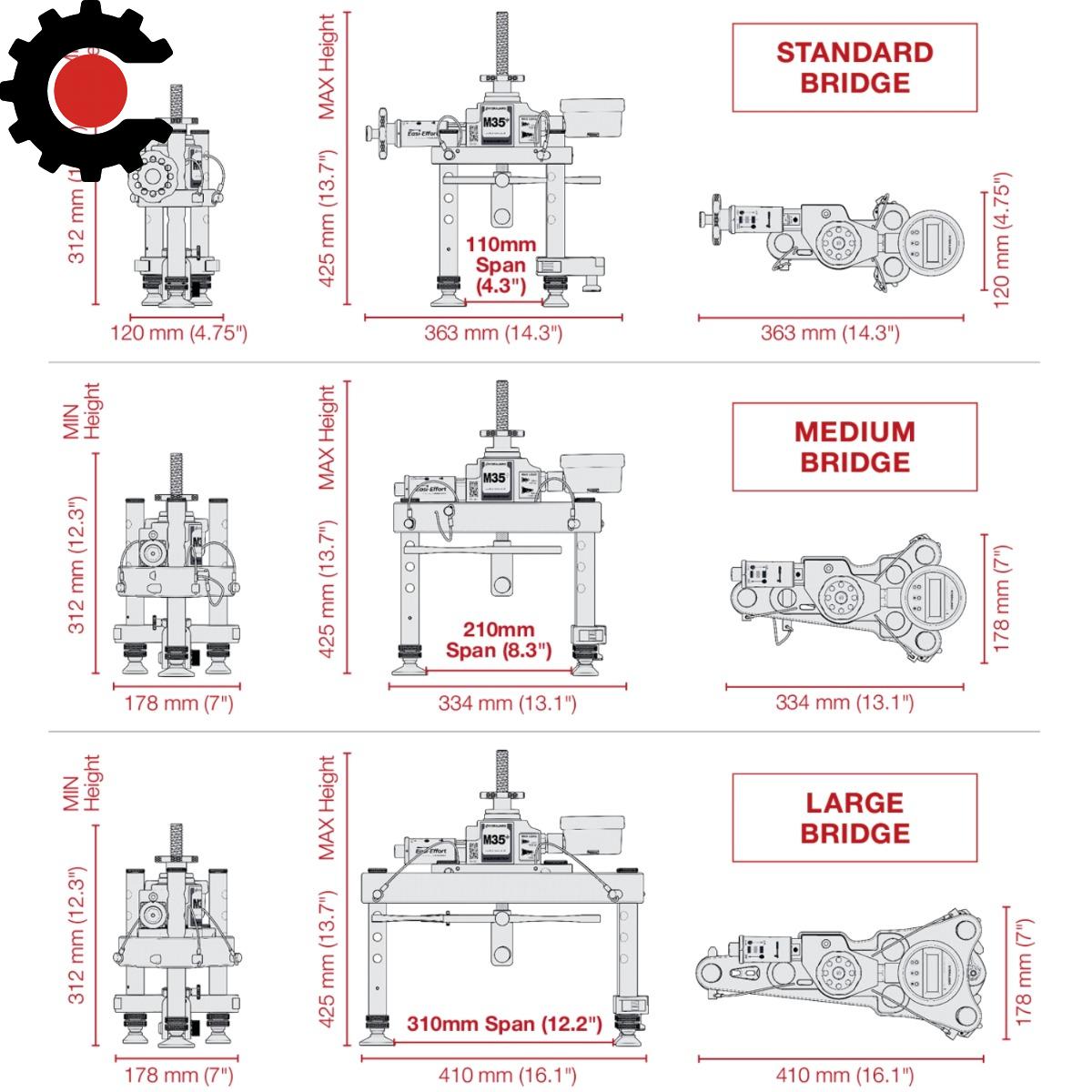

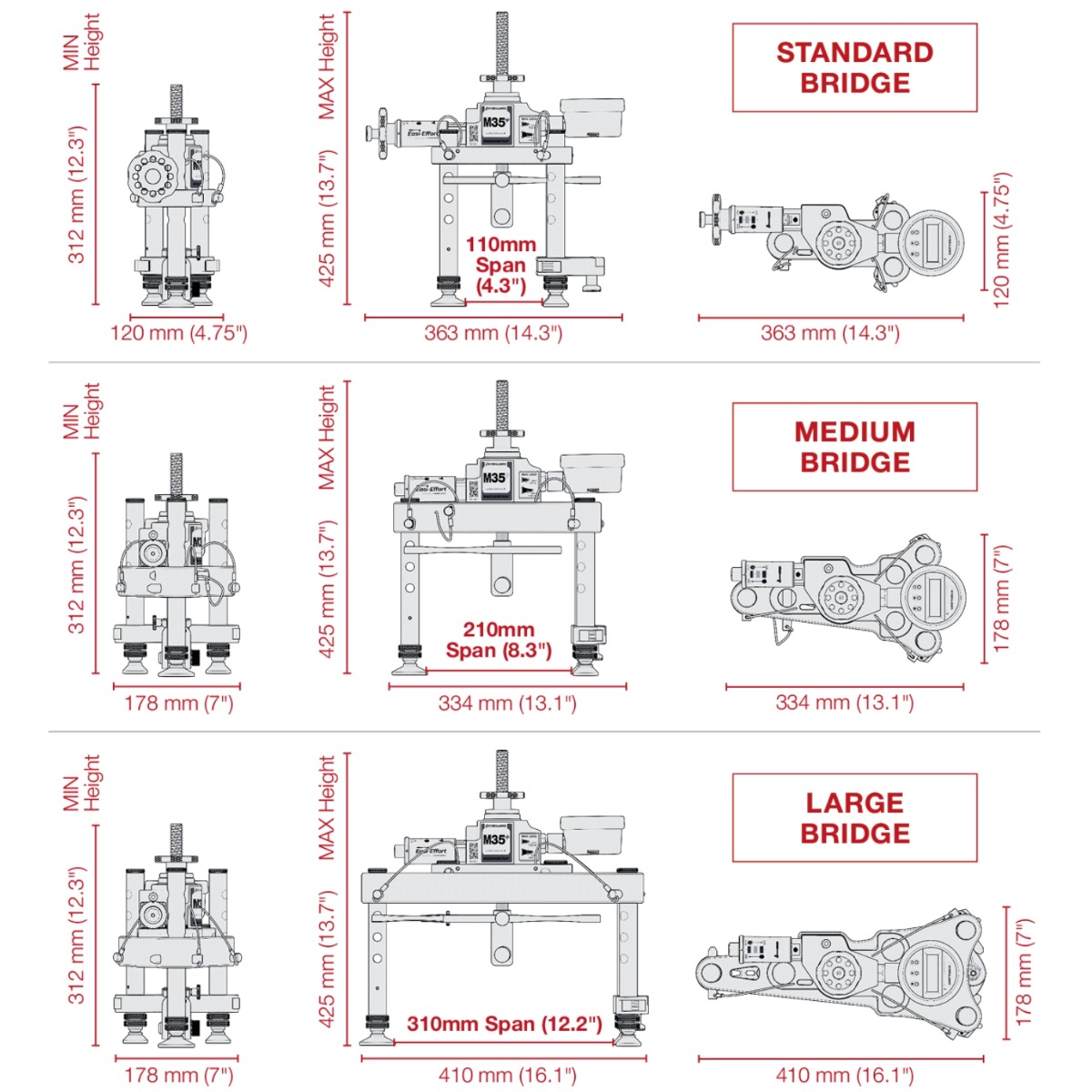

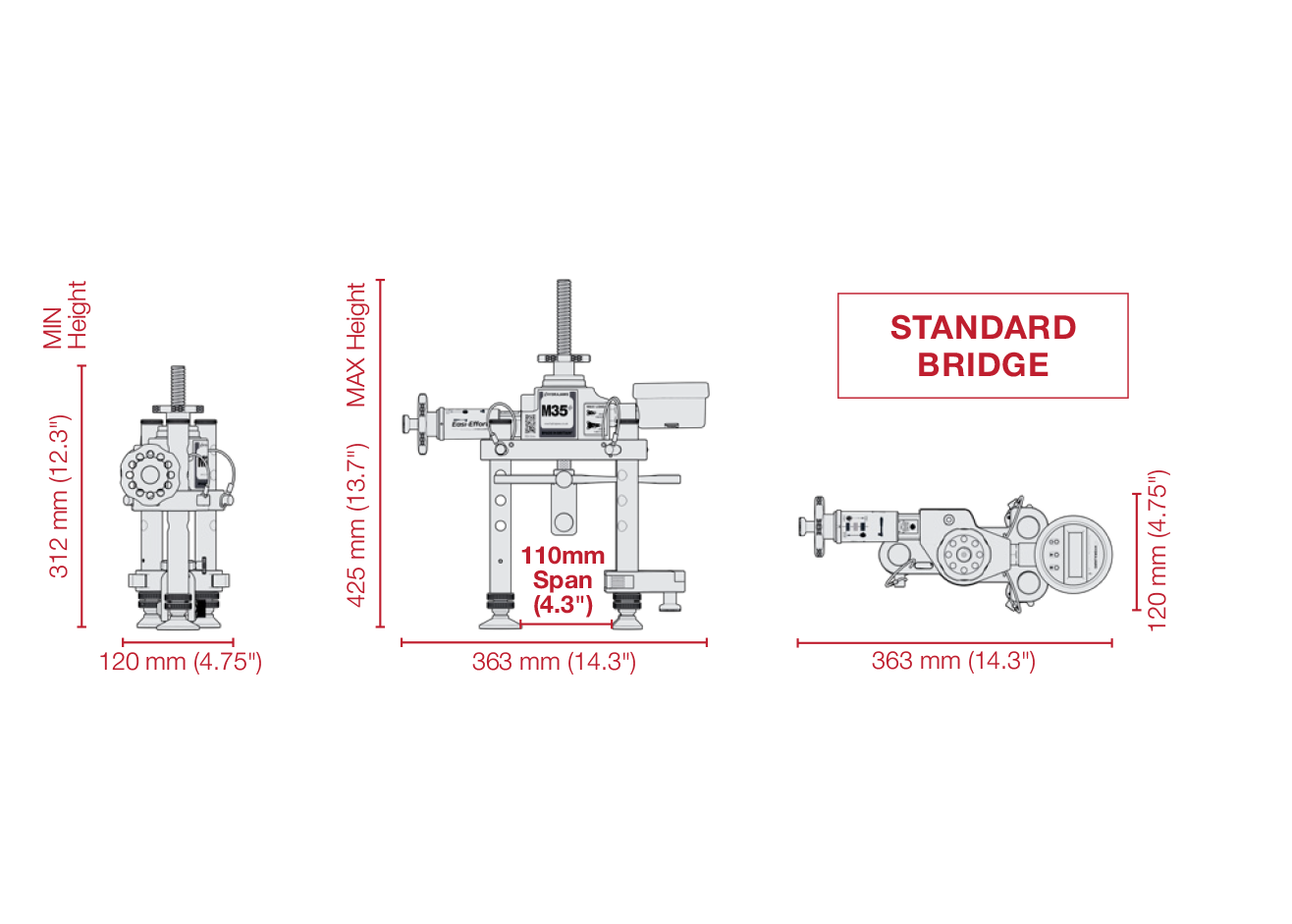

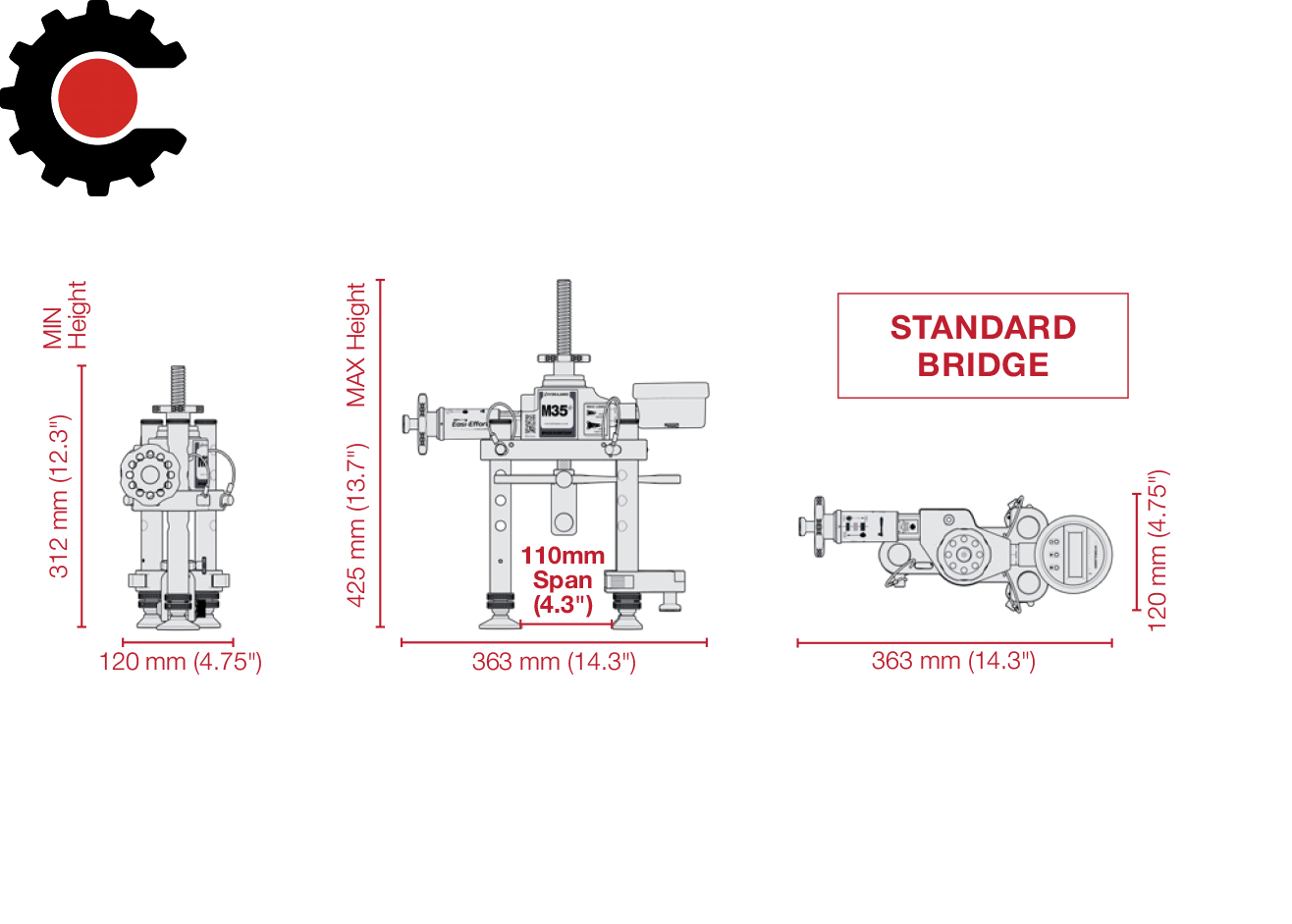

• Compact bridge footprint suitable for typical testing scenarios
• Compatible with the M35+ modular leg and pin configuration
• Allows stable positioning during pull testing procedures

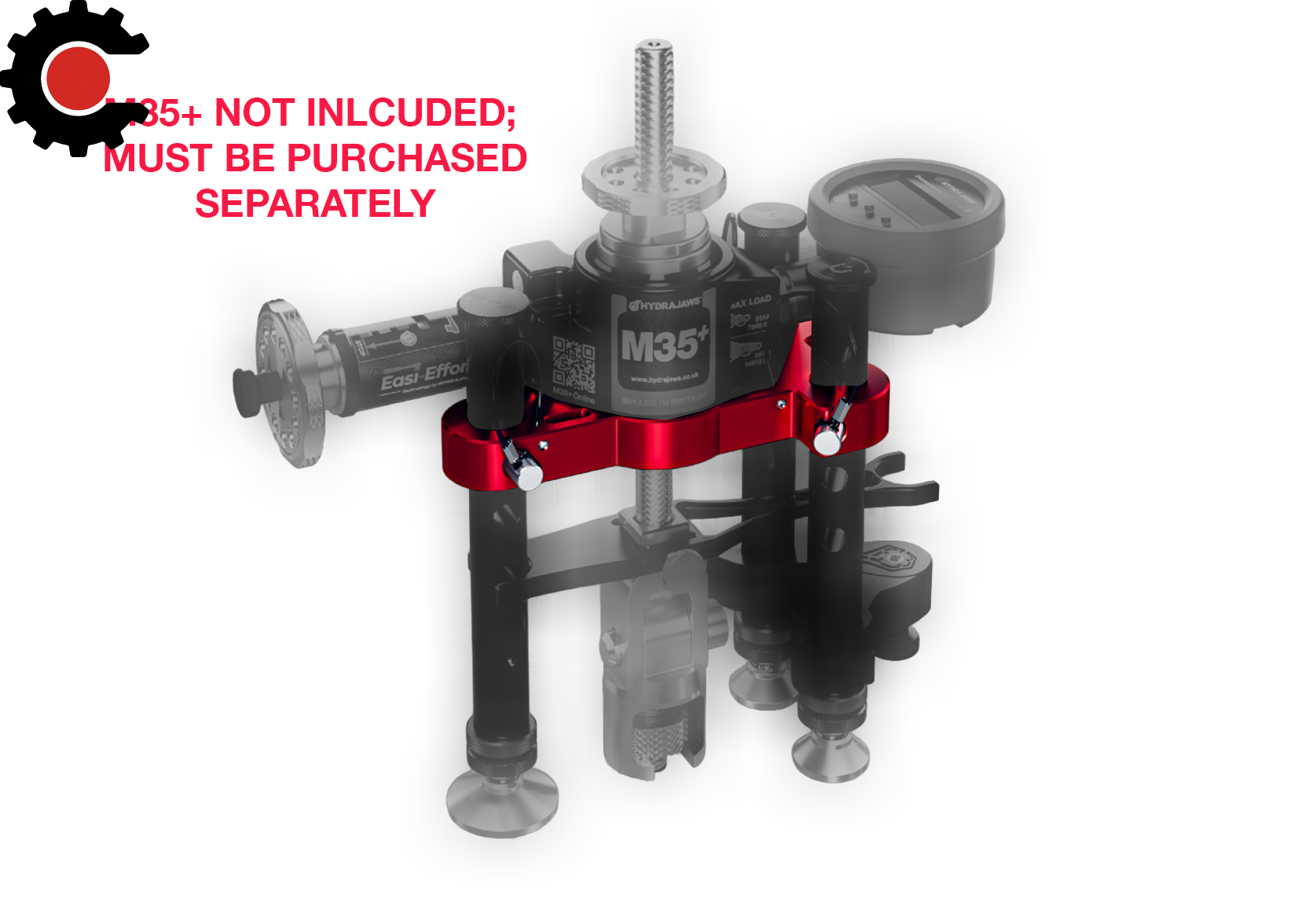

Modular Integration with the M35+ Testing System

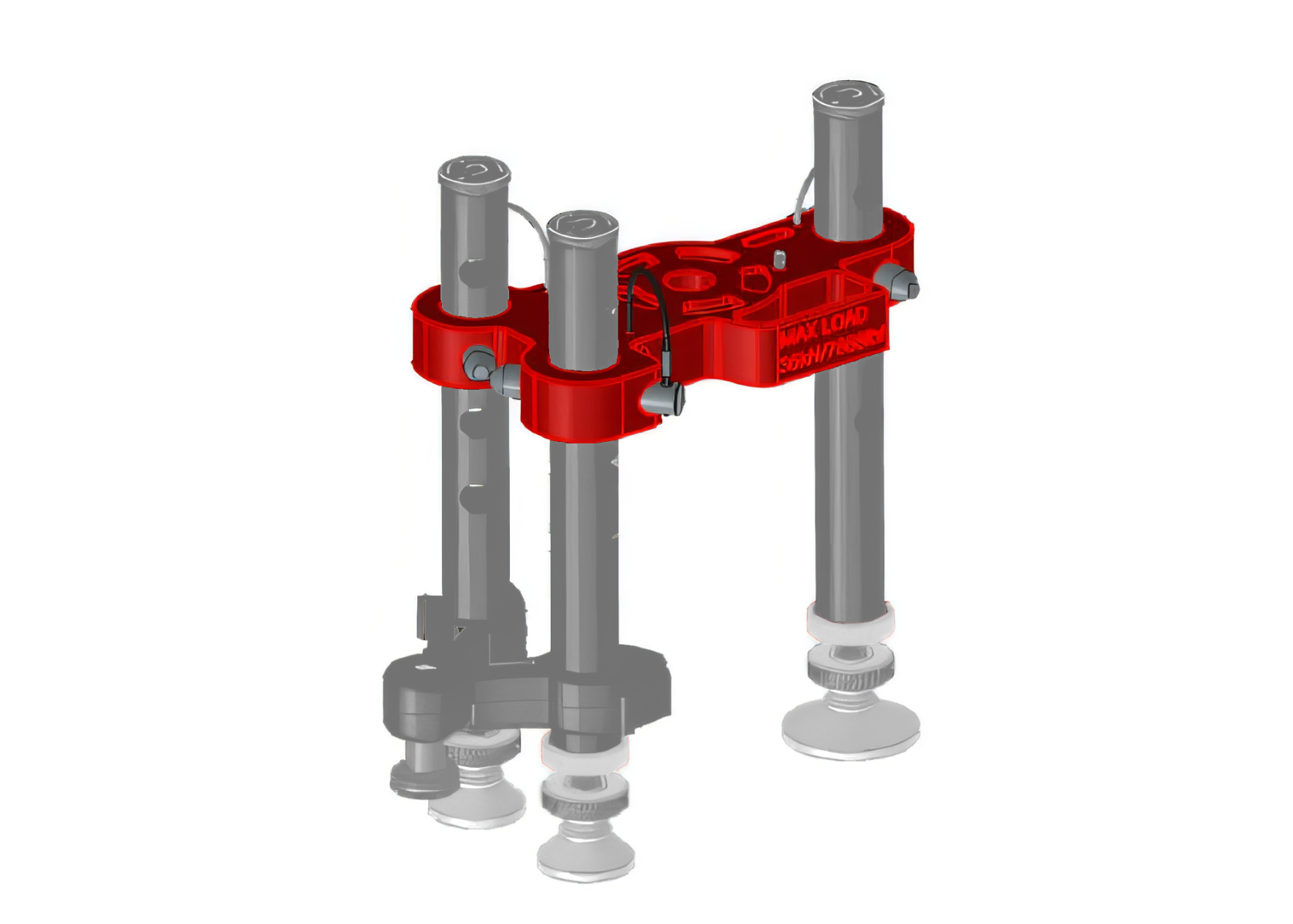

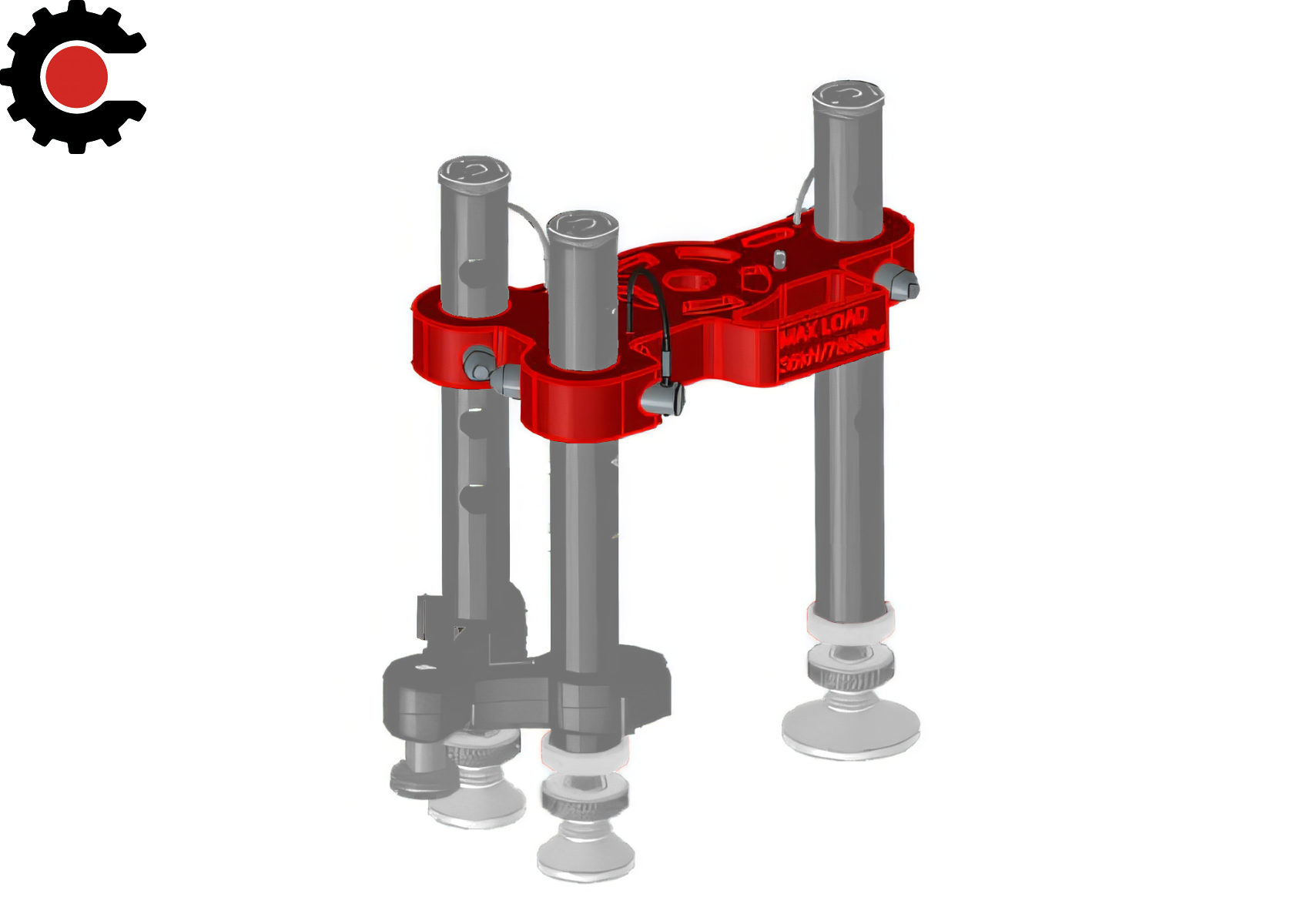

The bridge forms part of the modular testing structure of the Hydrajaws M35+ pull tester. It works with the adjustable leg assembly and drop rod to align the tester above a fixing, enabling consistent application of load while maintaining stability across the base material during testing operations.

Typical Anchor and Fixing Test Applications

• Mechanical anchor pull testing
• Structural fixing and threaded rod verification
• Eye bolt and fall protection anchor testing
