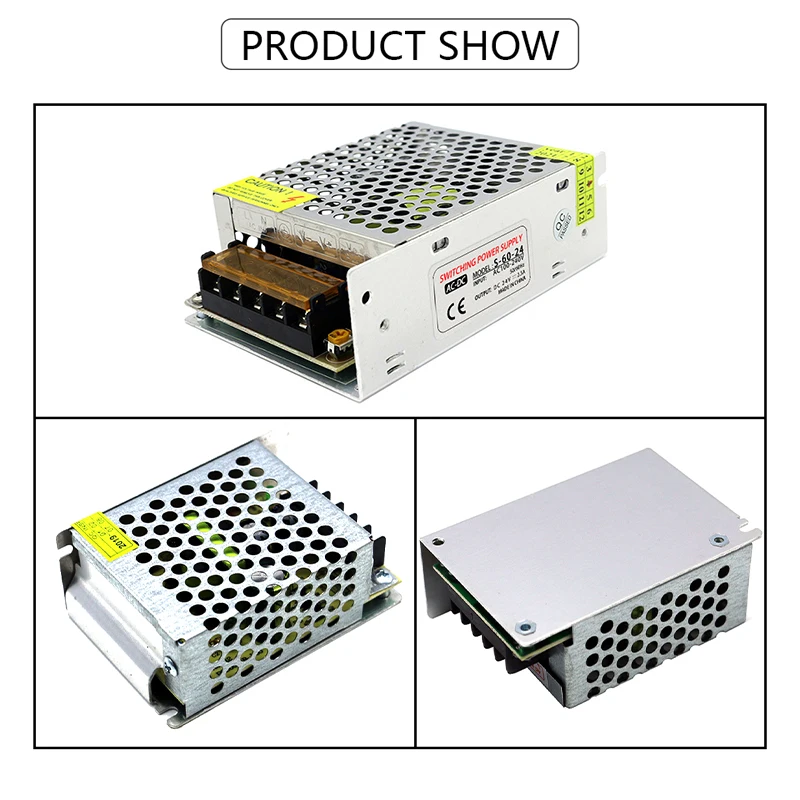

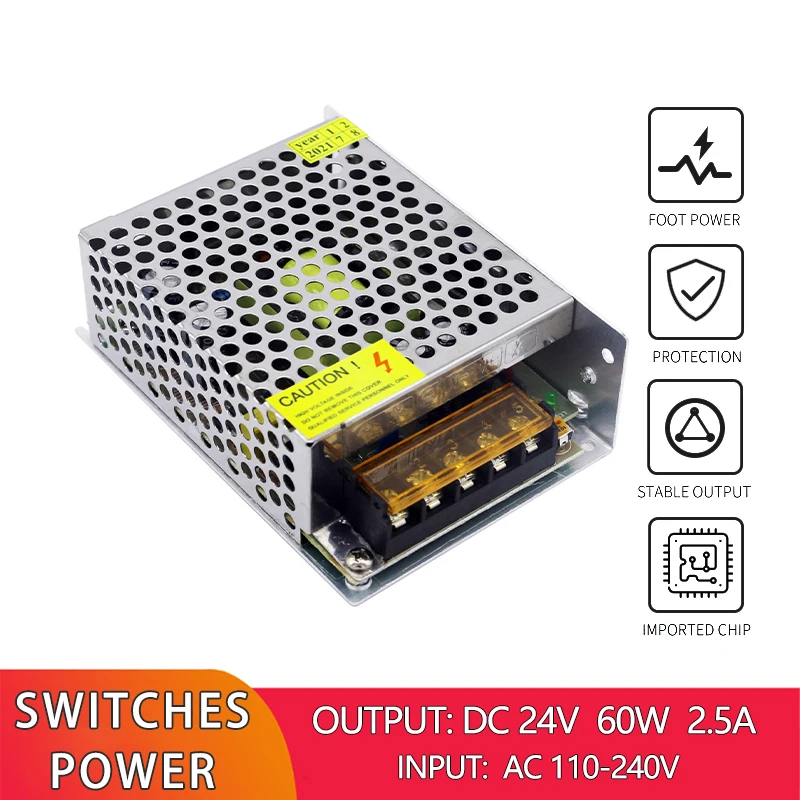

AC/DC Converter 100-240V AC to DC 24V 60W 2.5A Switching Power Supply LED Lighting Drive Transformer Adapter
Features:
1. Input voltage range: 100-240V AC
2. Low standby power consumption and high efficiency
3. Low ripple noise
4. Output short circuit, over current, over voltage protection
5. Scope of application: LED, street light control, electricity, security, industrial control, communication, instrumentation, laboratory, smart home, electrical appliances and other fields
Detailed parameters:
| Product Name： | Switch Mode Power Supply |
| Abbreviation： | SMPS |
| Power Type： | AC/DC Converter |
| Modulation method： | pulse width modulation (PWM) type |
| Transistor connection： | half bridge |
| Input voltage： | AC100-240V |
| Output voltage： | 24VDC |
| Output current： | 2.5A |
| Output power： | 60W |
| Cooling method： | natural cooling |

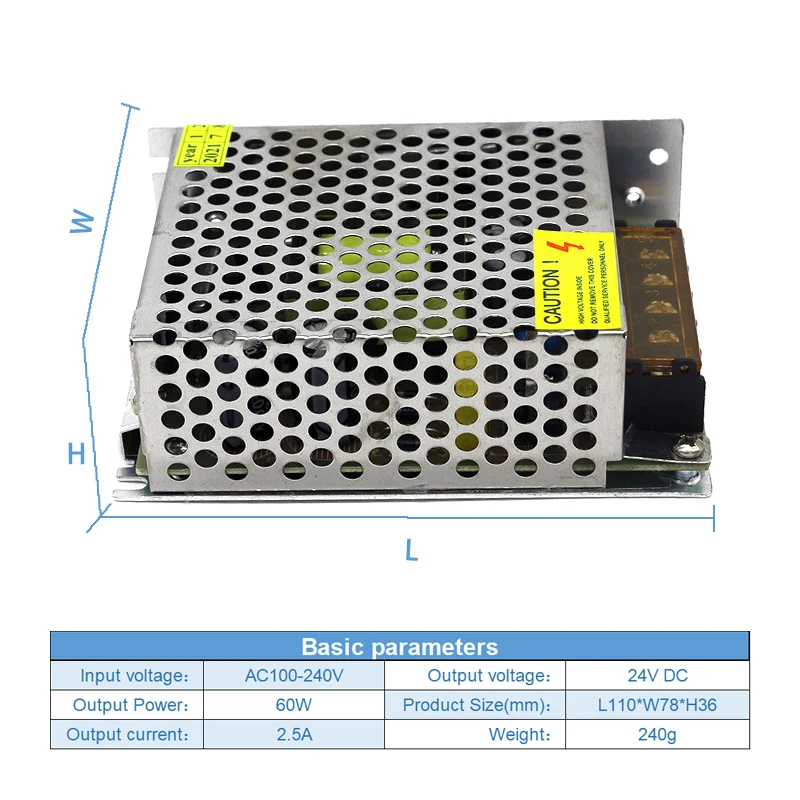

| Size： |
L110*W78*H36 |
| Weight： | 0.24KG |
| Work efficiency： | 87% |
| Working frequency： | 47-63HZ |
| Output Ripple Noise： | 120mVp-p |
| Output voltage accuracy： | 98% |
| Voltage regulation range： | 10% |
| Regulation rate： | ±5 (%) |
| Product certification： | ce ROHS |
| Scope of application： | LED, security, industrial control, motor |
| Working temperature： | -40℃ to 65℃ |
| Protection class： | IP20 |
| Installation method： | screw installation |
| Note： | do not overload |
| Reset method： | self-recovery |
| Protection function： | SCP, OLP, OVP |
