1. Supports 0–180° horizontal scanning, accurately detecting distance and angle data for objects within 1 meter
2. Dual-screen dynamic sector diagram display: local visualization on the LCD + real-time screen mirroring to a Windows host computer
3. Equipped with the NANO V3.0 core board; the software is fully open-source and supports modification via C/C++ programming
4. Modular, solder-free kit design; comes with a tutorial for self-assembly, offering a highly hands-on learning experience
5. Suitable for maker DIY projects, student programming education, science and technology training, and fun tech projects

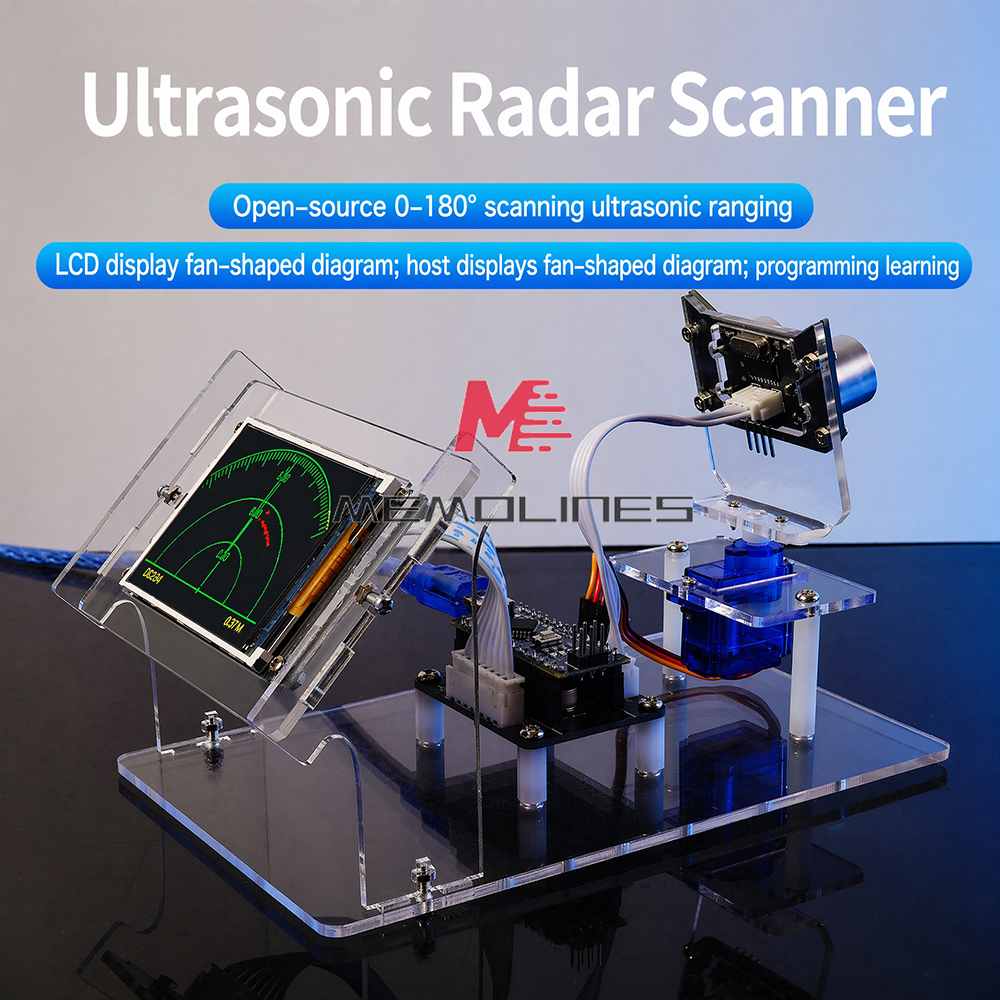

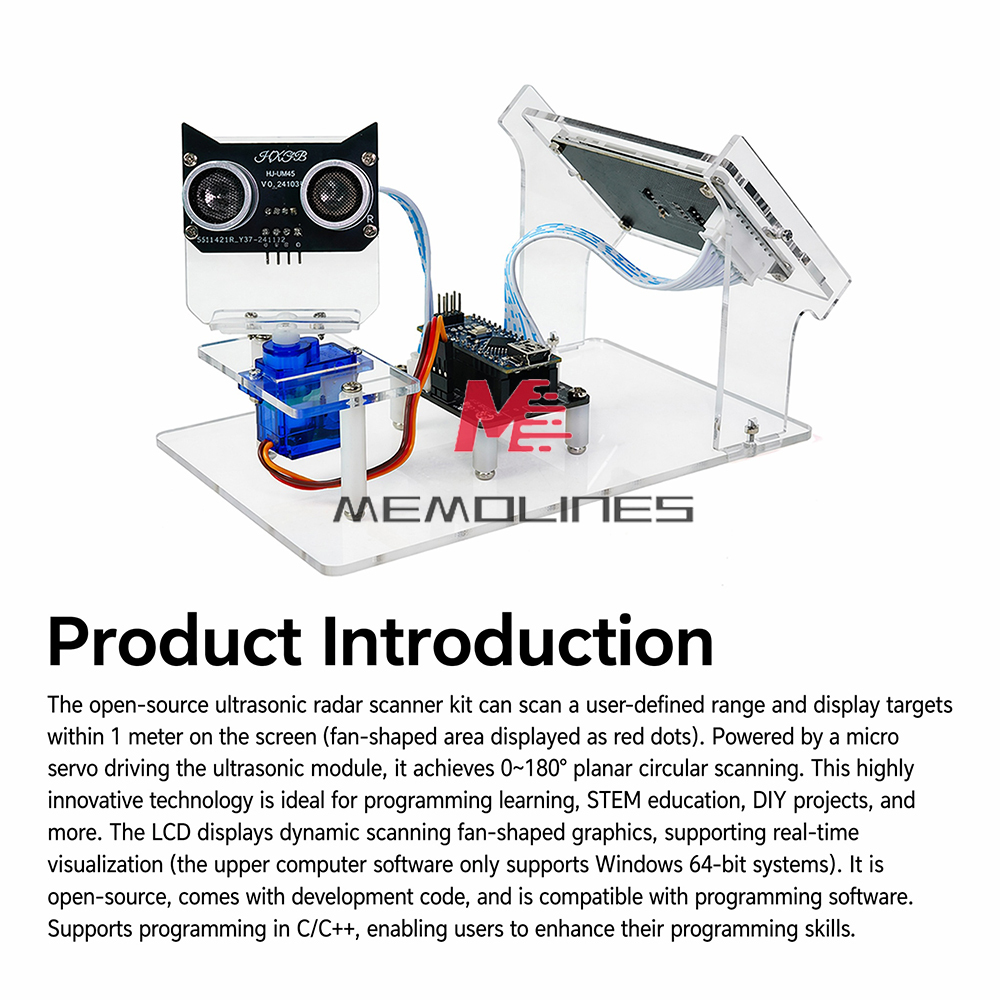

This open-source ultrasonic radar scanner kit can scan targets within a small range and display them on the screen (targets within 1 meter are displayed as red dots within a sector). A servo motor drives the ultrasonic module to perform a 0–180° cyclic planar scan. It is a very cool tech-based maker project, suitable for programming education, tech DIY, and more. The LCD displays a dynamic scanning sector diagram, and the host computer can also display a dynamic sector diagram (host computer software supports only Windows 64-bit systems). The source code is open-source; use programming software to write code in C/C++ to develop programming skills.

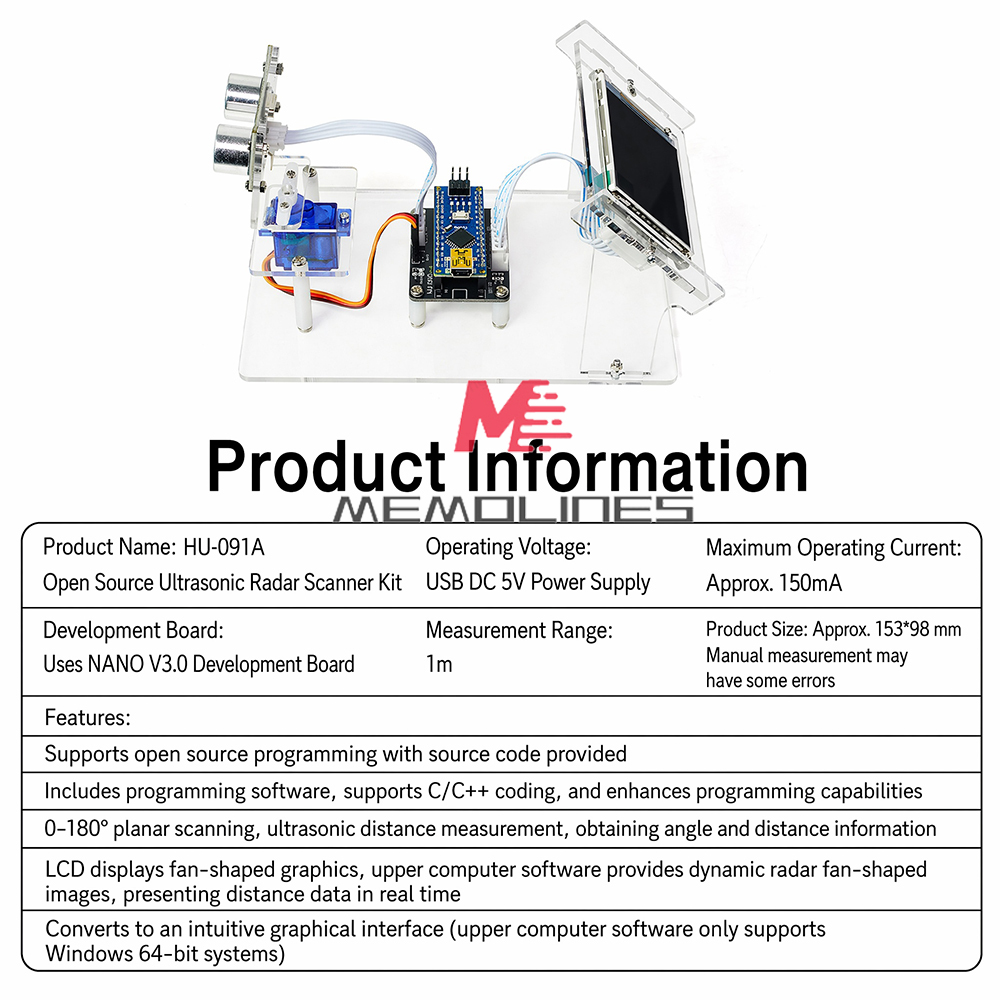

Kit Name: HU-091A Open-Source Ultrasonic Radar Scanner Kit
Operating Voltage: Powered by USB DC 5V
Maximum Operating Current: Approximately 150mA
Open-Source Programming: Uses the NANO V3.0 development board
Distance Measurement Range: 1 m

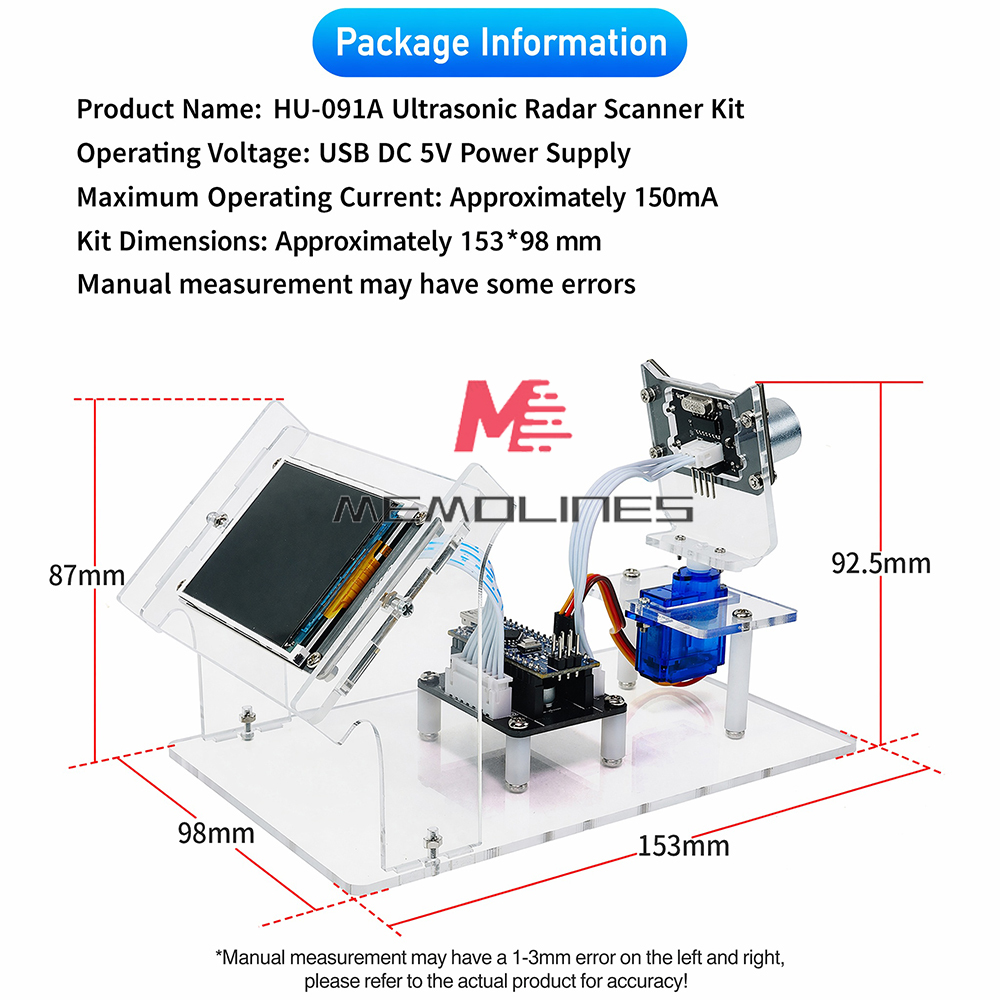

Kit Dimensions: Approx. 153 × 98 mm (Manual measurements may have slight errors)
Supports open-source programming with open-source code
Used with programming software to write code in C/C++, helping to develop programming skills.

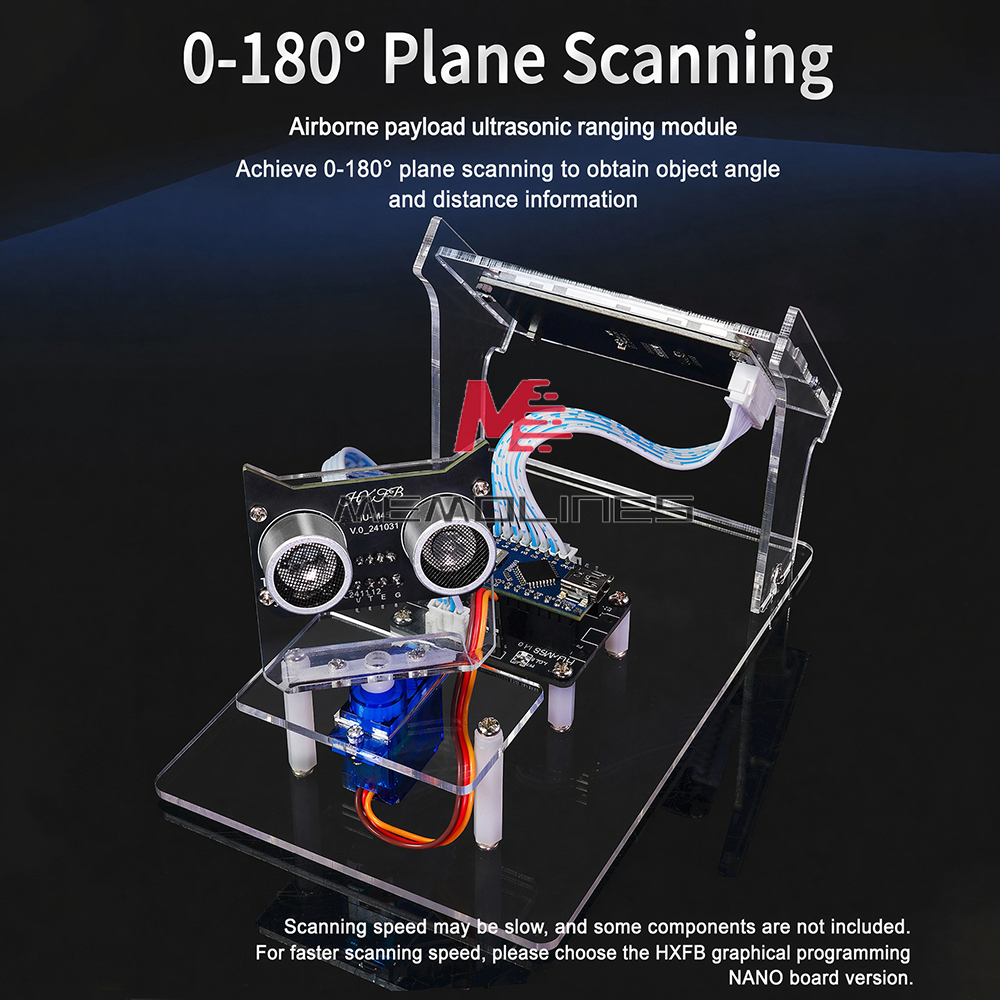

0–180° horizontal scanning, ultrasonic distance measurement, and acquisition of object angle and distance information

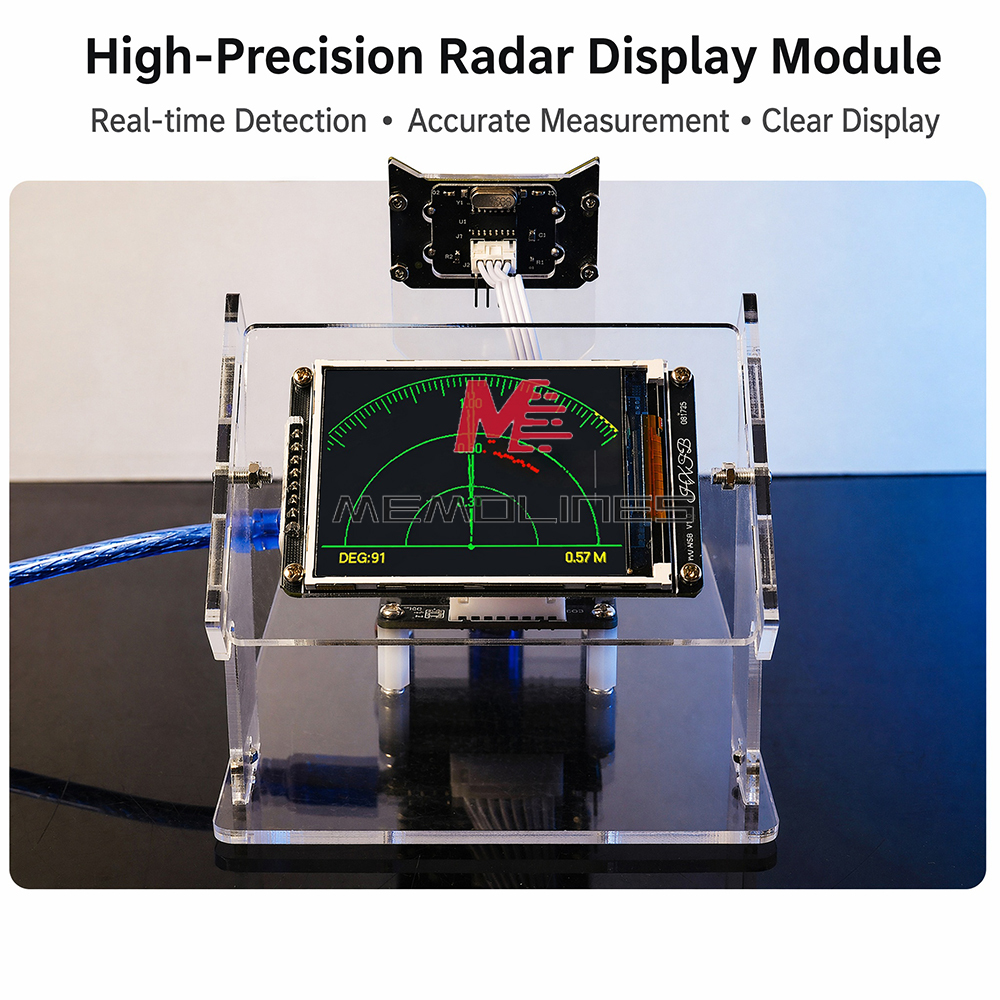

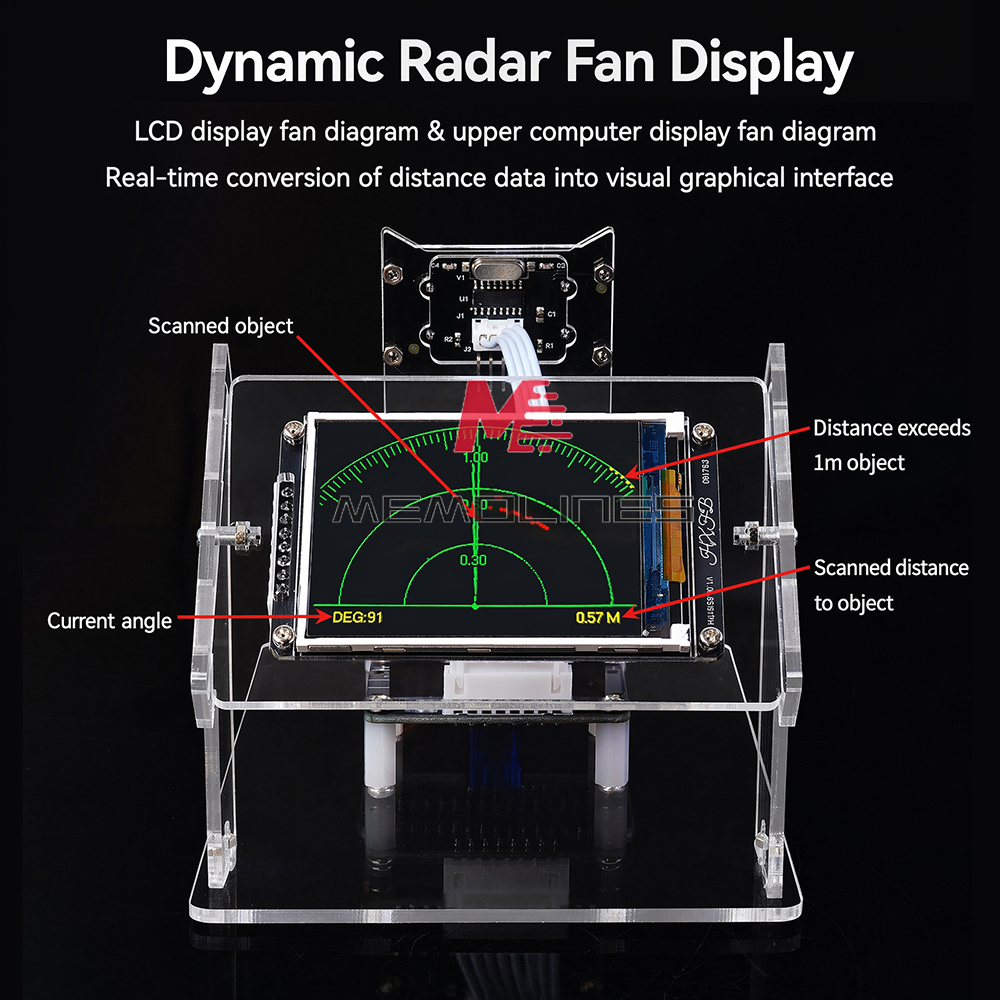

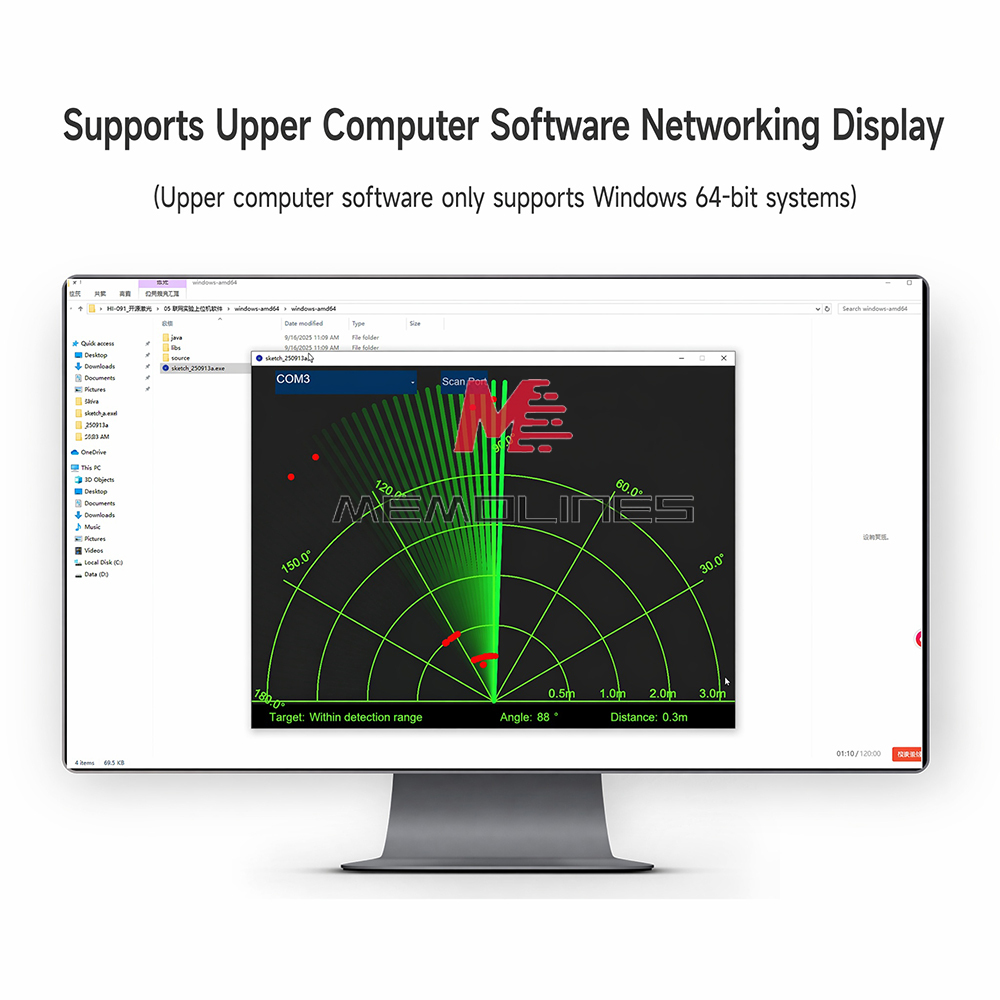

LCD display shows a sector diagram; the host computer software provides a dynamic radar sector diagram, converting distance measurement data in real time
into an intuitive graphical interface (host computer software supports only 64-bit Windows systems)

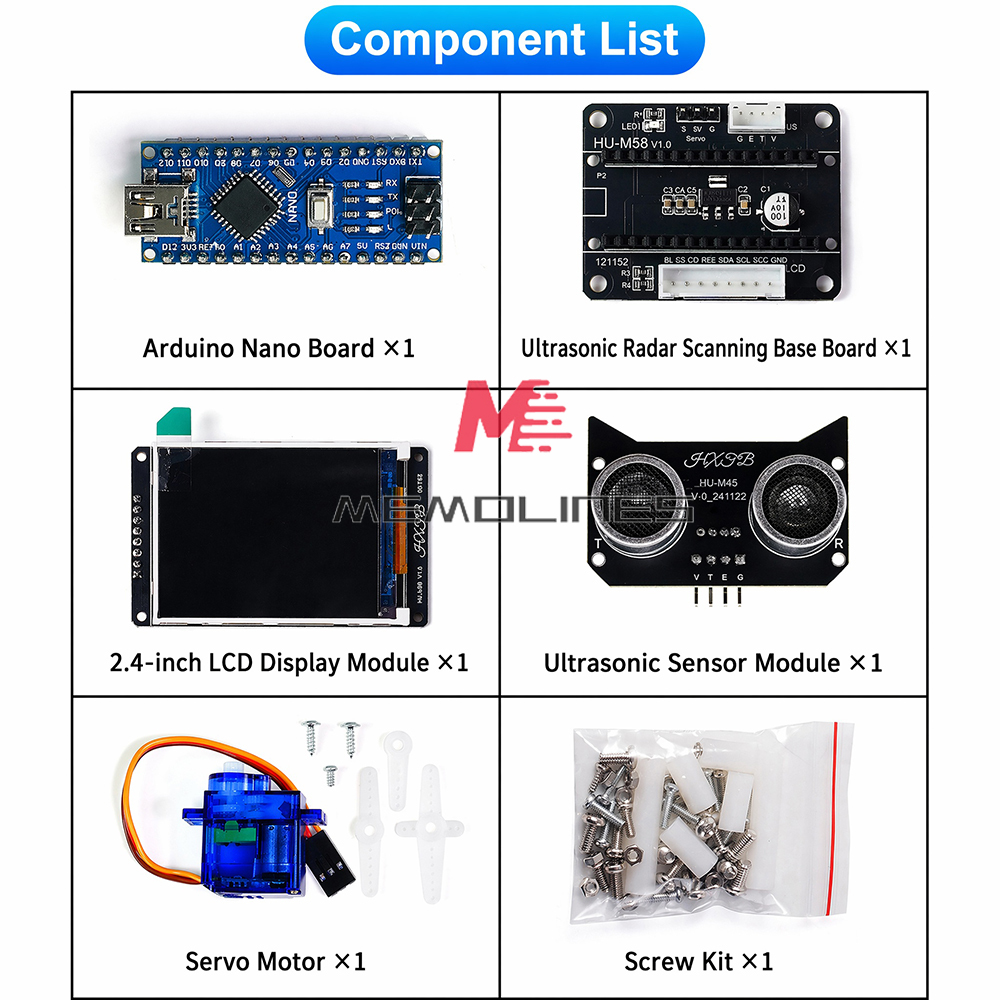

1x Open-Source Ultrasonic Radar Scanner DIY Kit

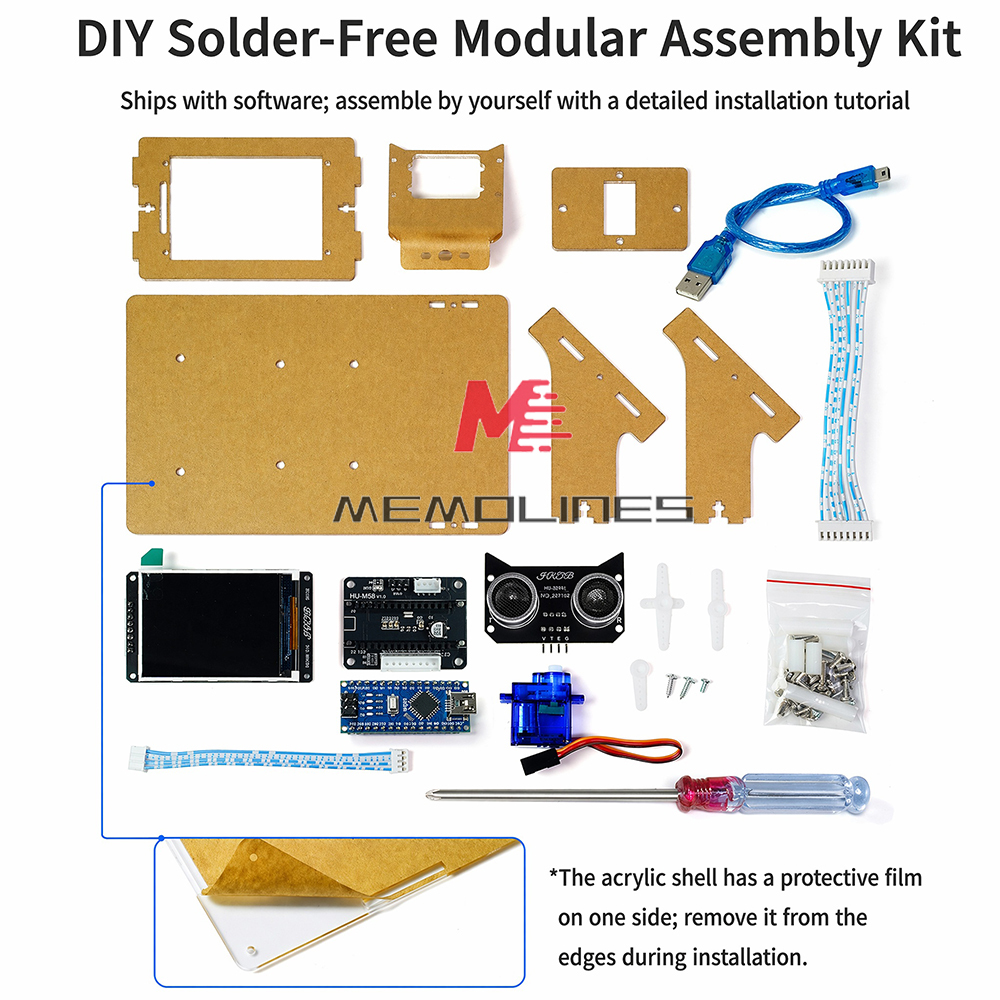

Note: DIY kit with loose components—no soldering required; modular assembly. Shipped as loose parts; assembly required. Includes detailed installation instructions
