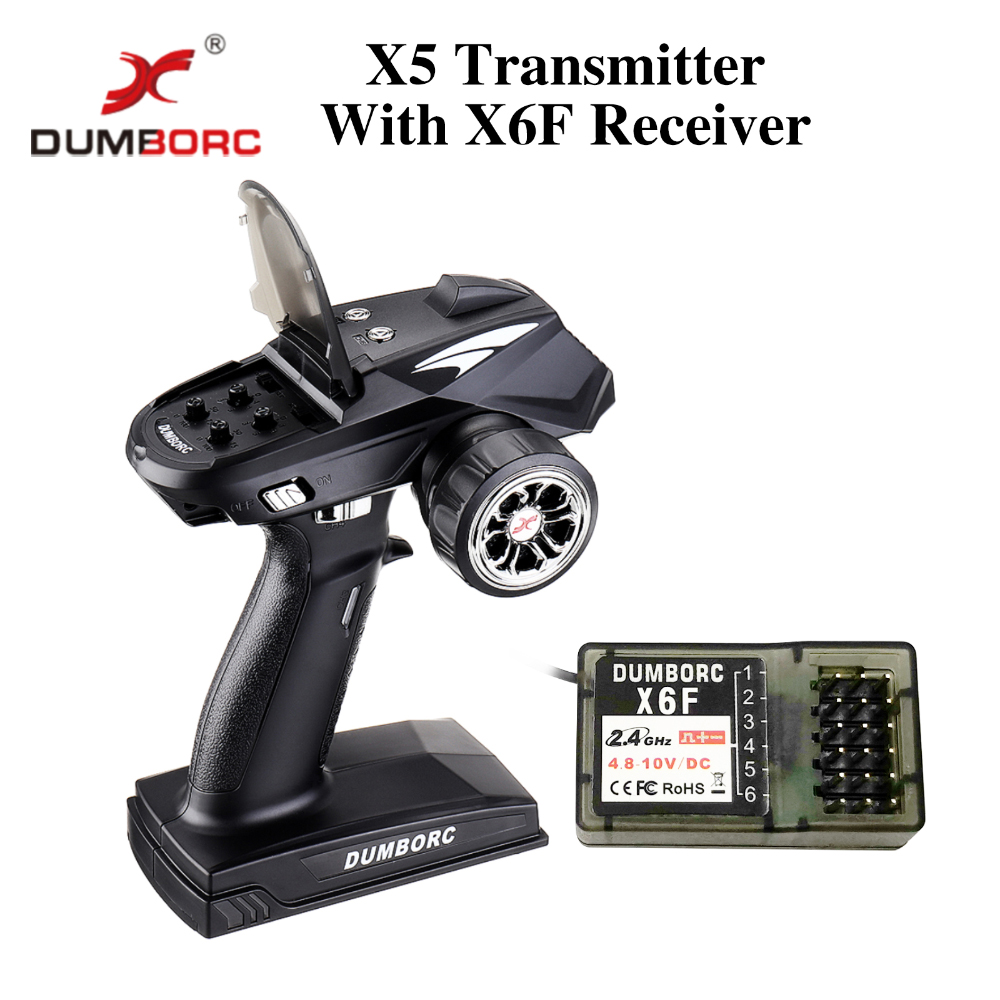

DUMBORC X5 2.4G 5CH Transmitter RC Radio Controller with X6F Receiver for RC Car Boat
Features:
1.2.4G technology,FHSS 67 channels frequency-hopping spread spectrum,highly resistantto ant-jamming.2.Receiver response time is 3m/s,ensuring a fast response and better control.
3.Smooth and highly sensitive to control inputs and stable at distances from 400-500m.
4.Compatible with a vanety of vehicles,suitable for RC cars,RC boats and RC tanks.
5.With brake and fail safe,out of control protection function.

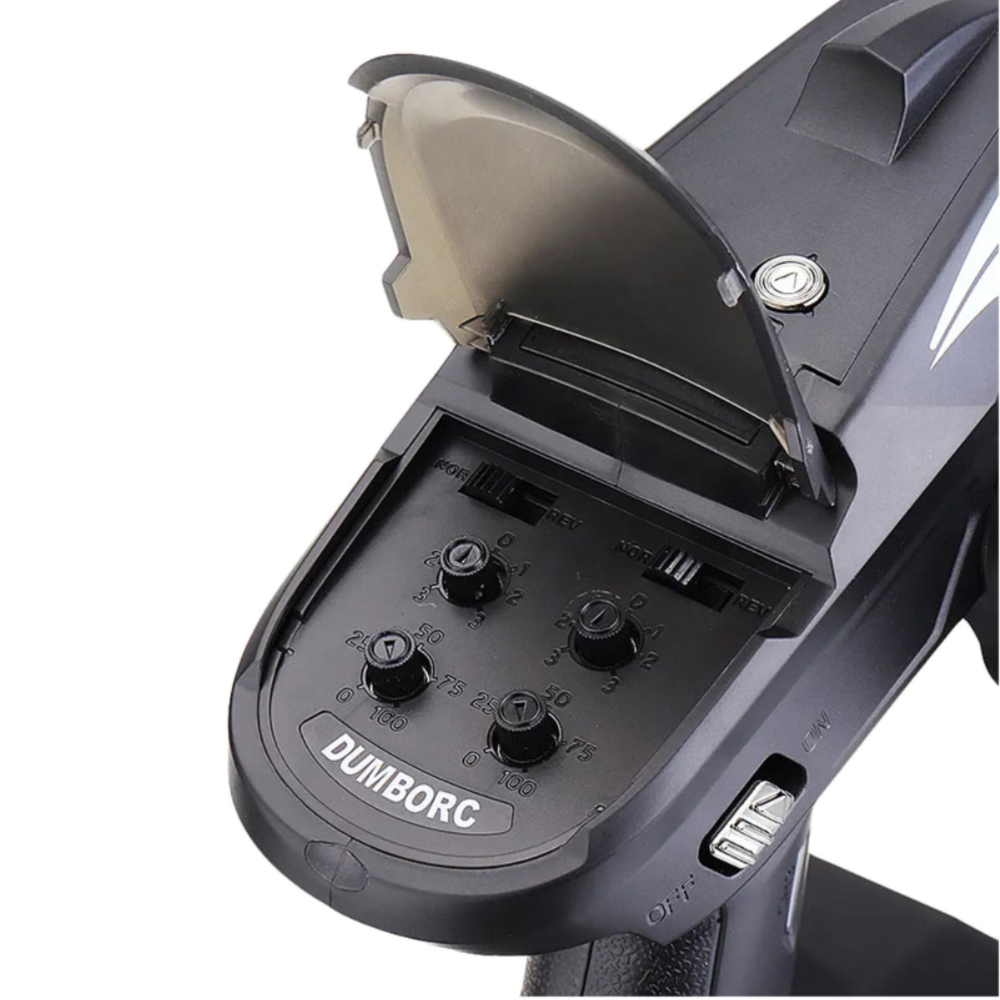

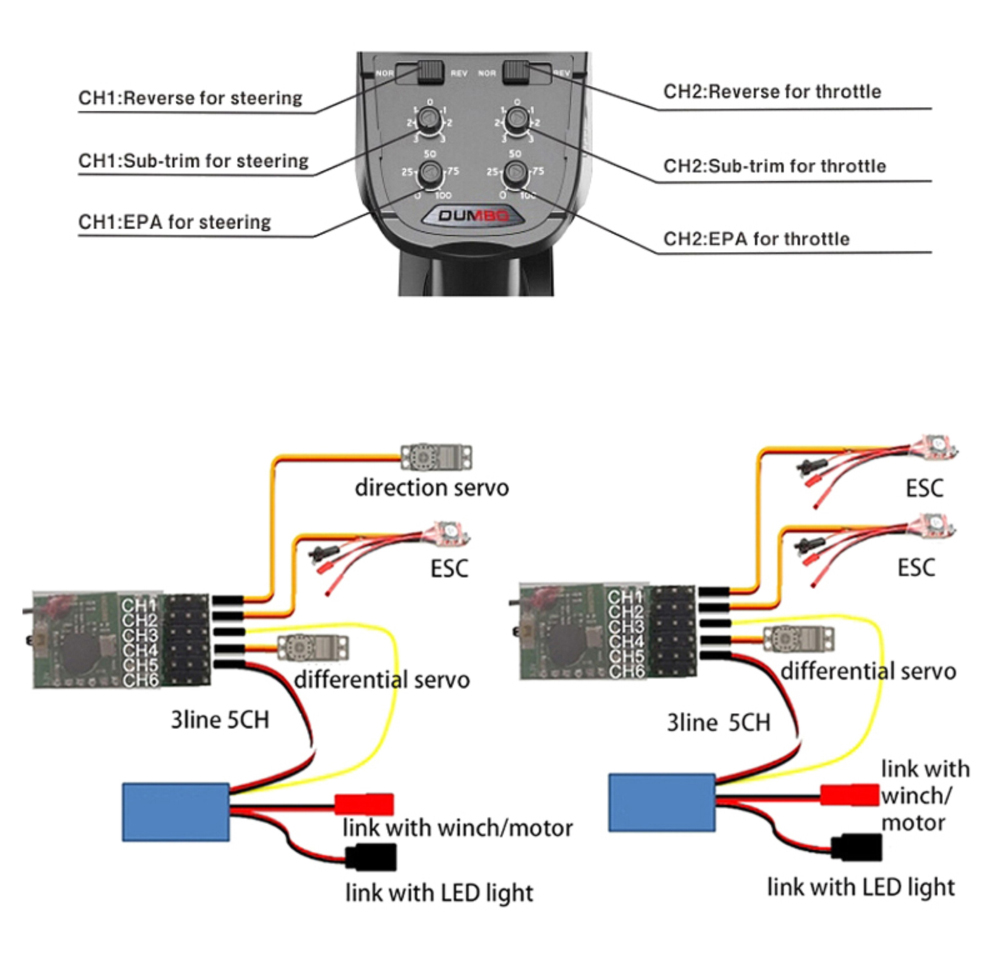

6.Each of the 3 channels can be set respectively,supporting mixed control of 1 and 2 channels.
7.Voltage range of the transmitter: 4.8v-12v(support 1s-3s )automatic identfication ofvoltage,low voltage waming:7.4V/4.8V.

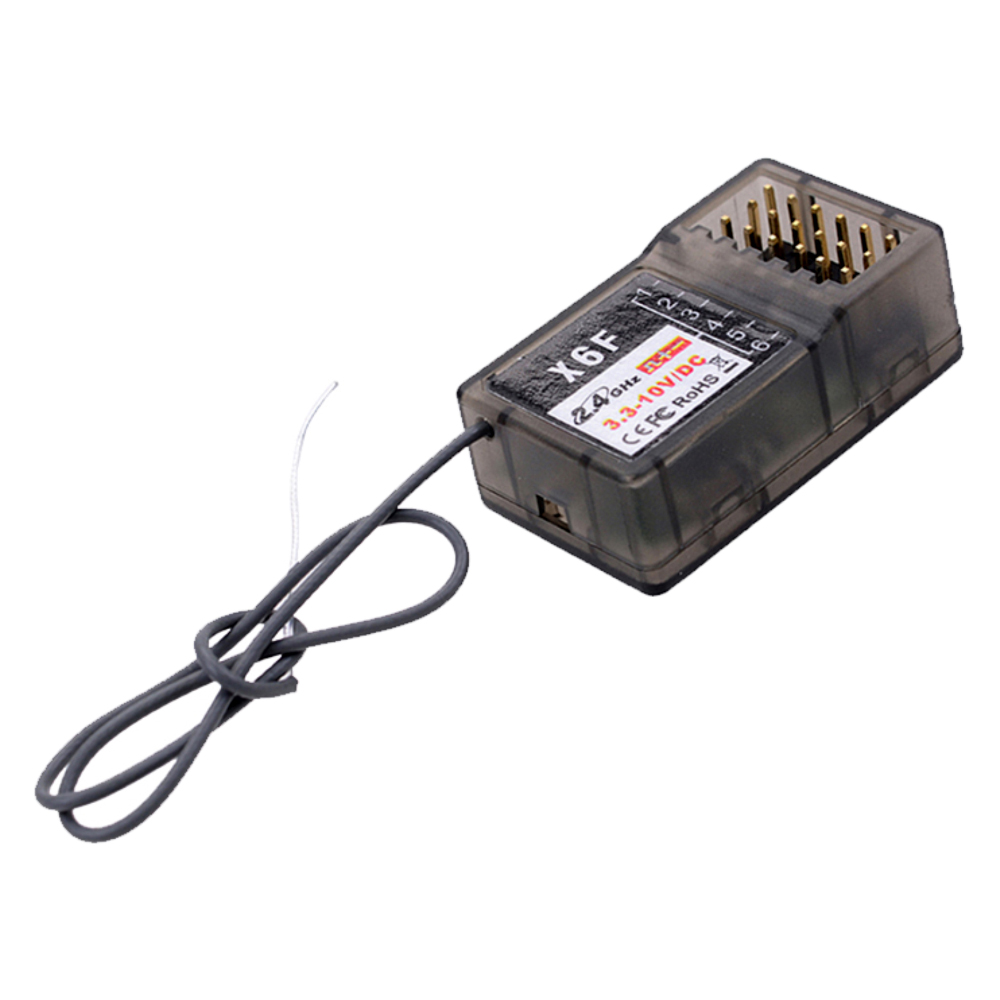

8.Voltage range of the receiver:3.3V-10V working curent 30MA,supports high voltage servos.
9.The unique throttle speed limit adjustment function,allows beginners to practice at a safe.
Description:
This X5 transmitter with X6F receiver is fit for RC Car Boat Tank Model,such as 1/10 1/8 Crawler TRX4 Axial SCX10 D90 RC Car Boat and so on.
Item Brand:DumboRC
Item Number:X5(transmitter),X6F(receiver)

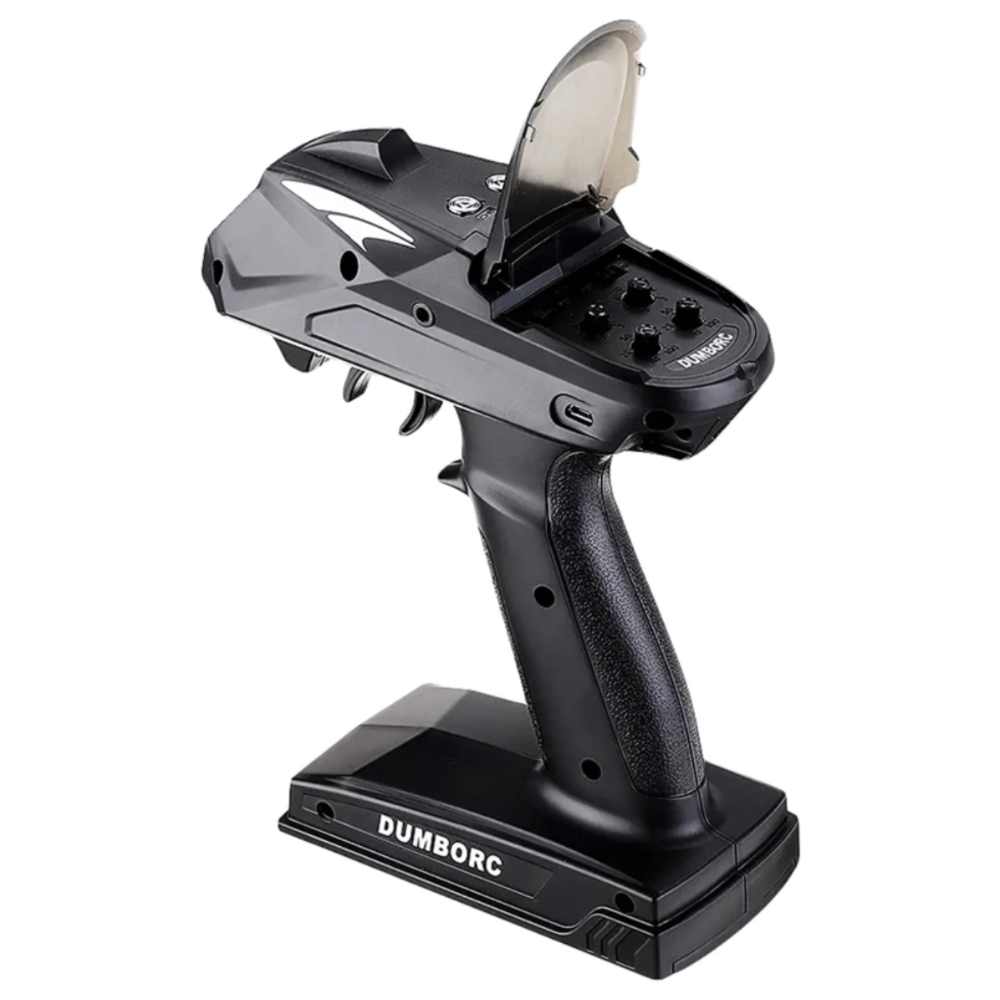

Item Name:Transmitter
Material:Plastic and metal
Color:Sliver grey
Product Size:160*100*205mm

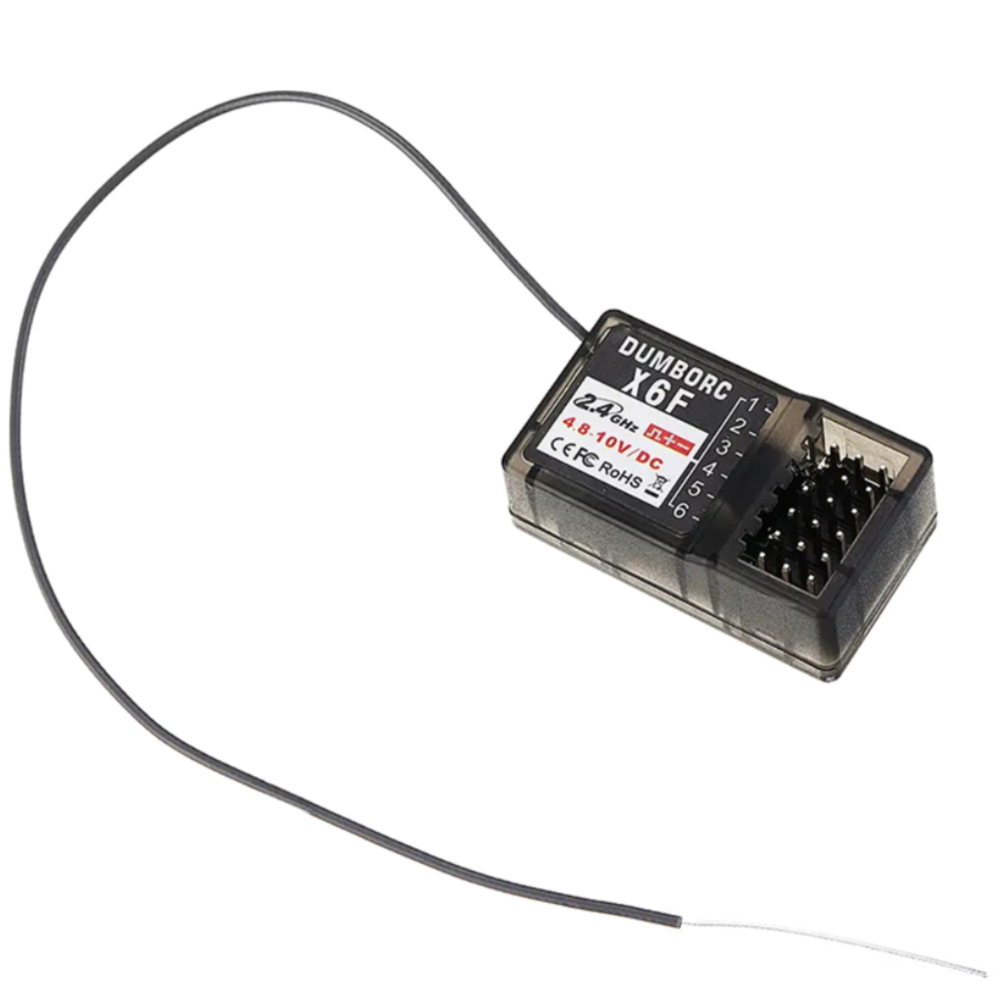

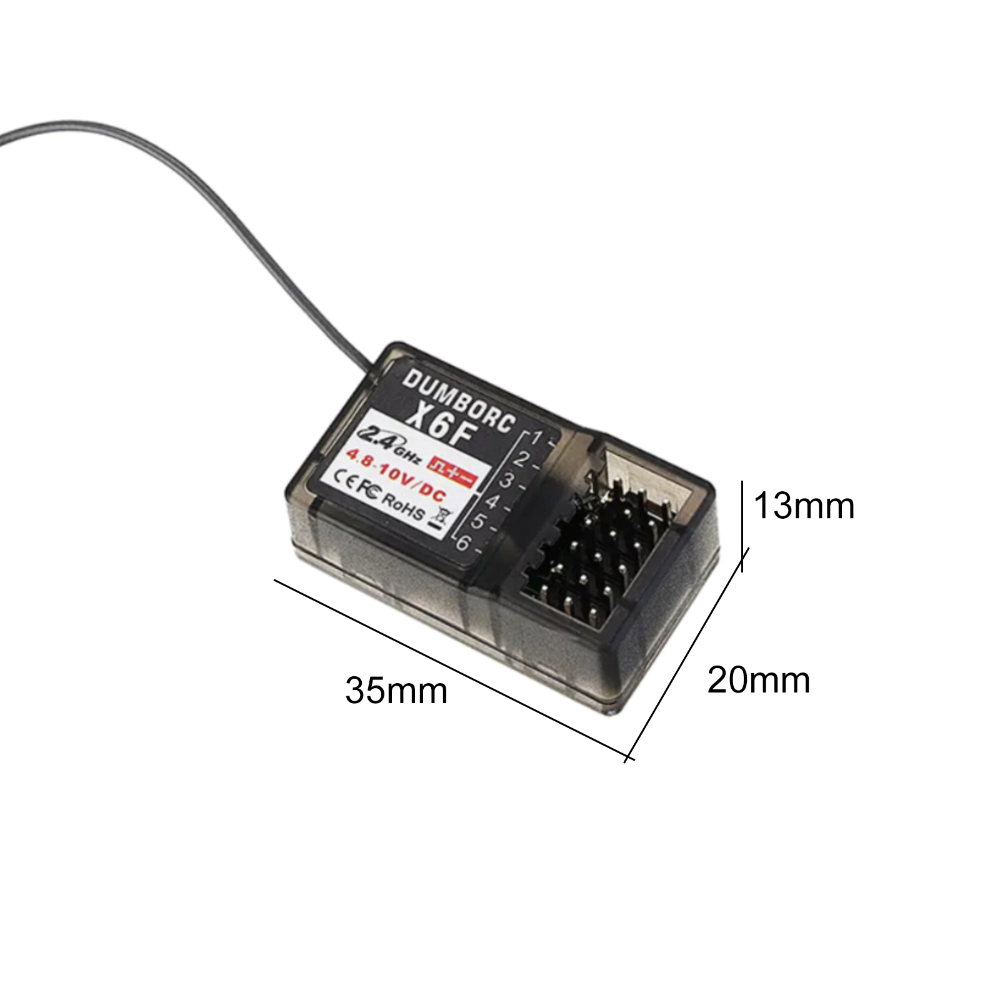

Receiver Size:35*20*13mm

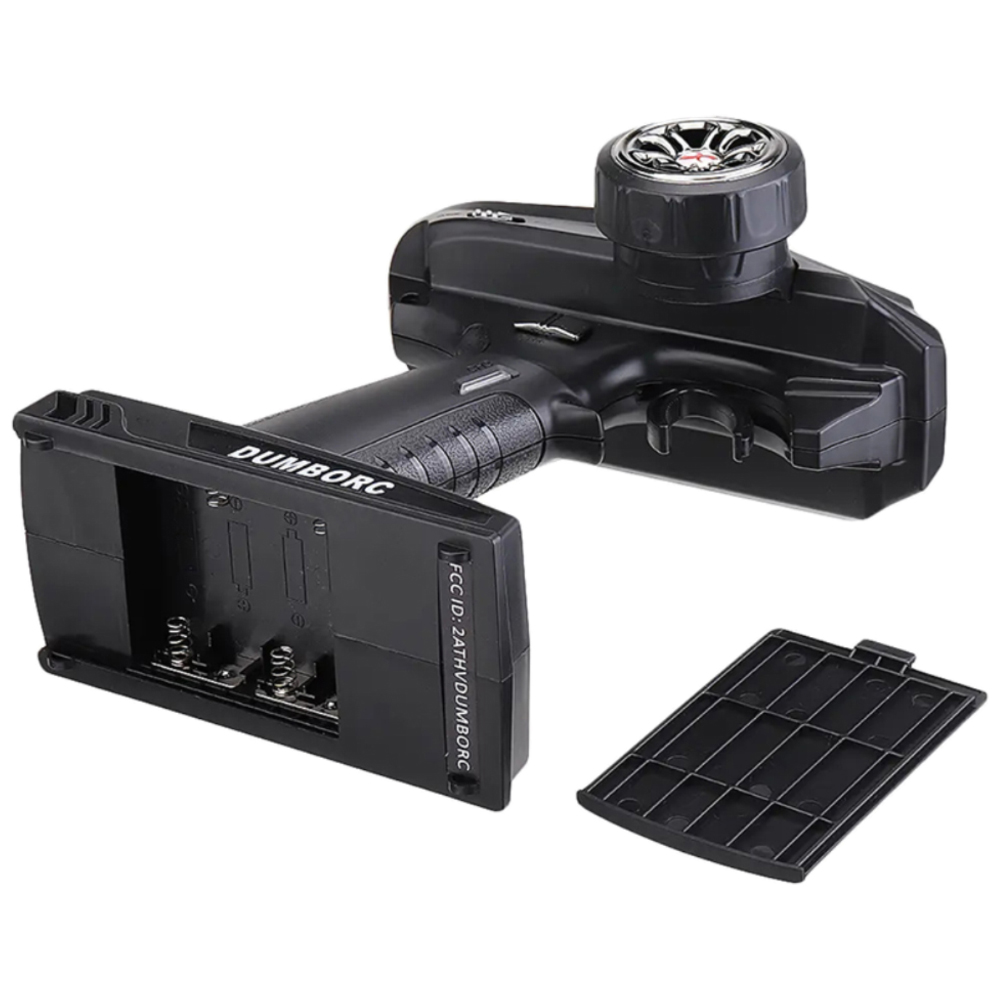

Battery:4X AA(not included)

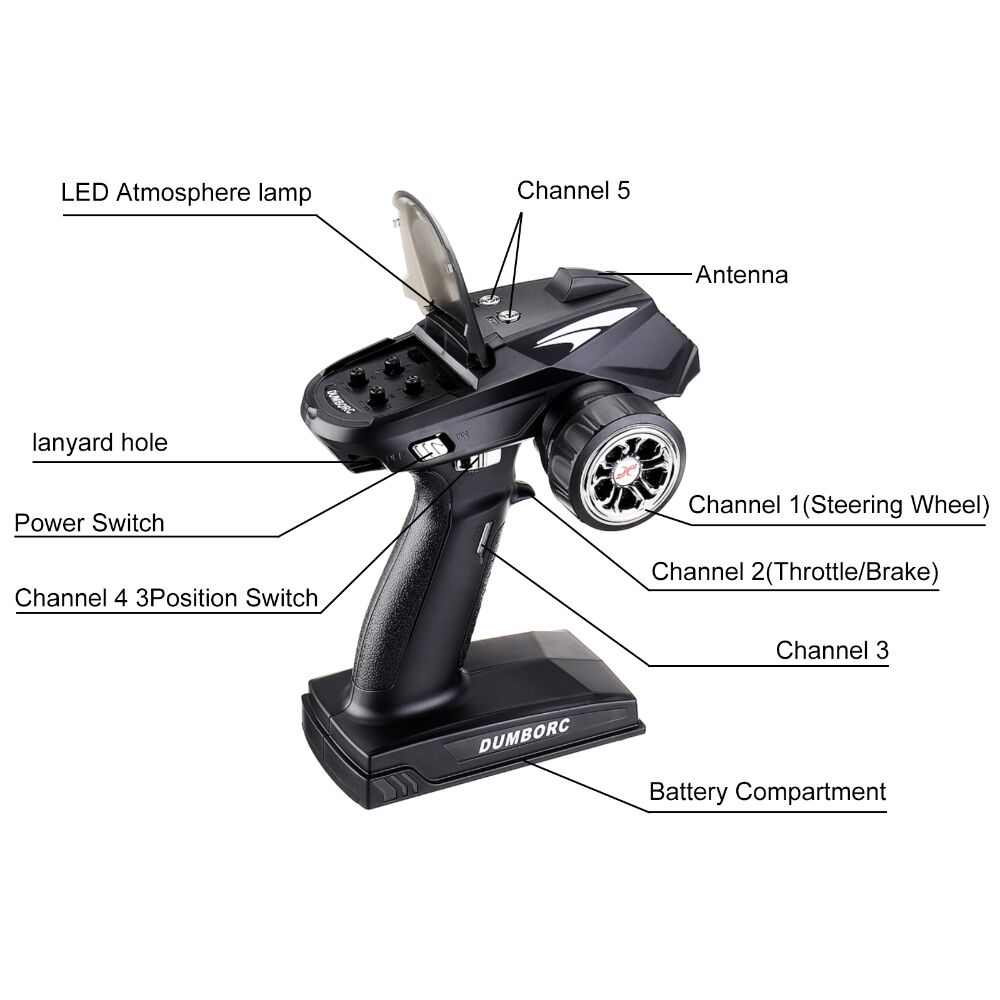

Channel:5CH
Fit For:Rc Car Boat Tank Model,such as JJRC Q65,MN-90 and so on
Modulation Mode: GFSK
Spreading Mode: FHSS 67 channel pseudo random frequency
Control Distance: 400-500 meters

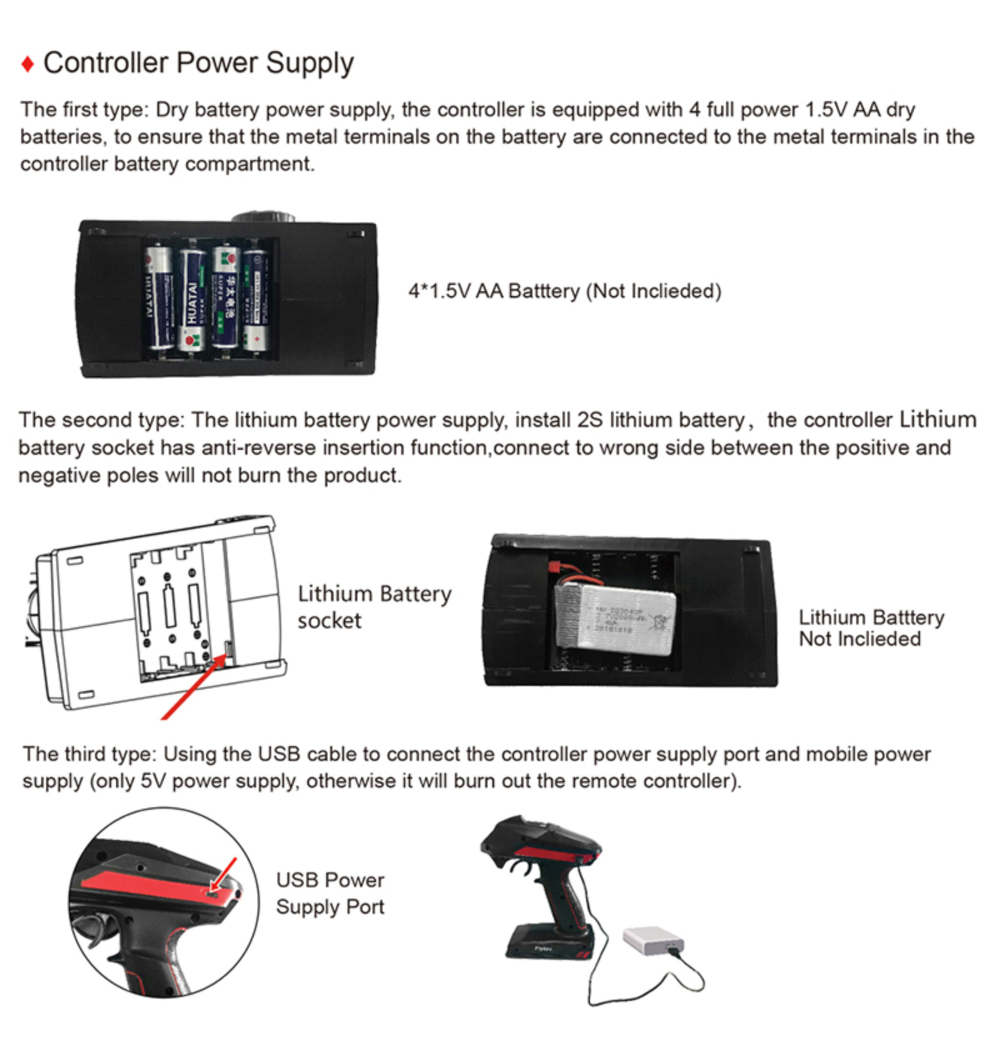

Remote Control Voltage Range: 4.8-12v
Remote Control Working Current: 80-120mA
Receiver Voltage Range: 3.3-10V
Receiver Operating Current: 30mA
RF Power: <20dbm
Data Resolution: 4096 levels, 0.5us per level
Voltage Alarm: 7.4V/4.8V
Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
Support Receiver: X6F
Package Information:
Package size:23.5*20*11.5cm
Pacakge weight:550g

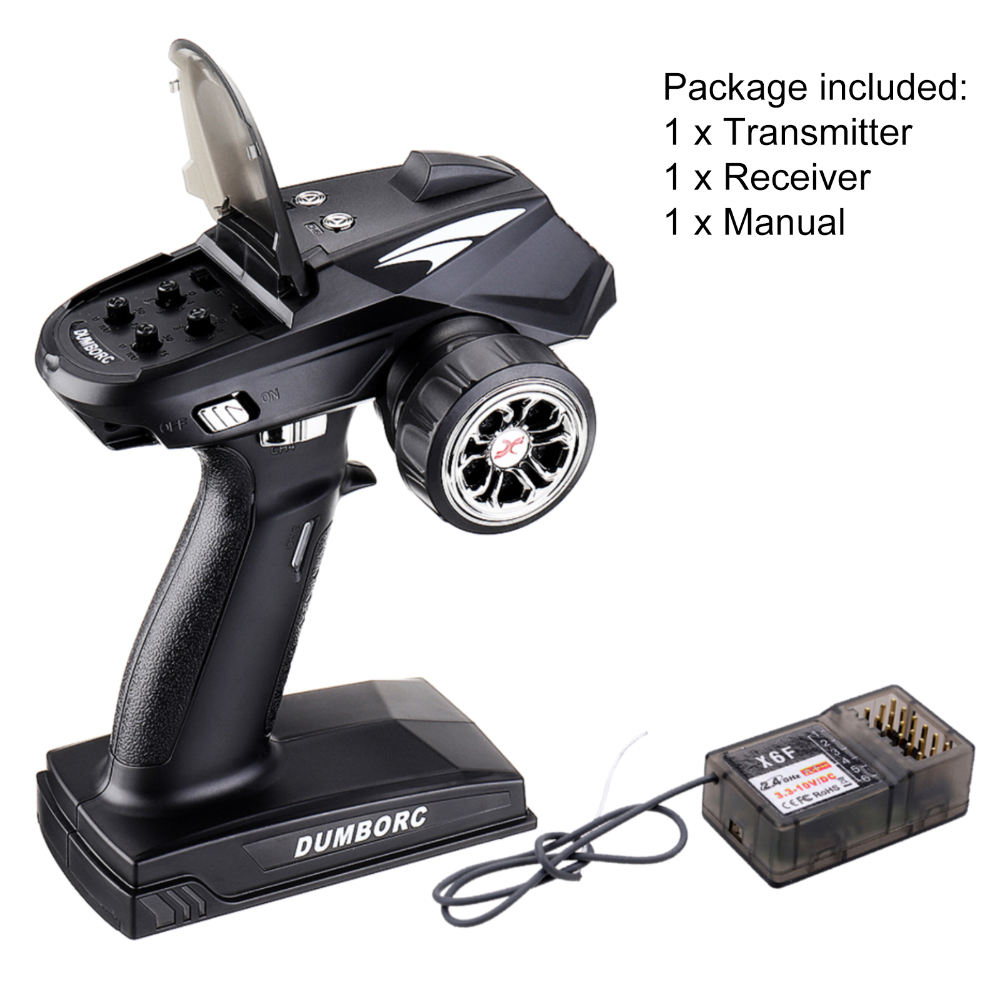

General box package
1 x Transmitter
1 x Receiver
1 x Manual
Notes:
Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
