What is a Three-mode controller?

• Quiet start(Except for special circumstances)

•


• strong power and power saving.

•


• The three-mode controller is a sine wave controller.

•


• It can operate in three modes, sine wave mode, square wave mode, and no hall mode (that is, it can be used without a hall sensor).

•


• The mode cannot be selected, the default is sine wave mode.

•


• When the hall sensor is damaged it will automatically switch to square wave mode.

•


• Runs no-Hall mode when no Hall sensors are connected.

•


• Suitable for in-wheel motors.Differential motor, etc.

• Applicable to a variety of motors, but only in-wheel motors with Hall sensors can use sine wave mode.
• When running other motors, it will automatically switch to square wave mode or no Hall mode.

【Product parameters】

• Color:Glod

• Condition: 100% brand newItem

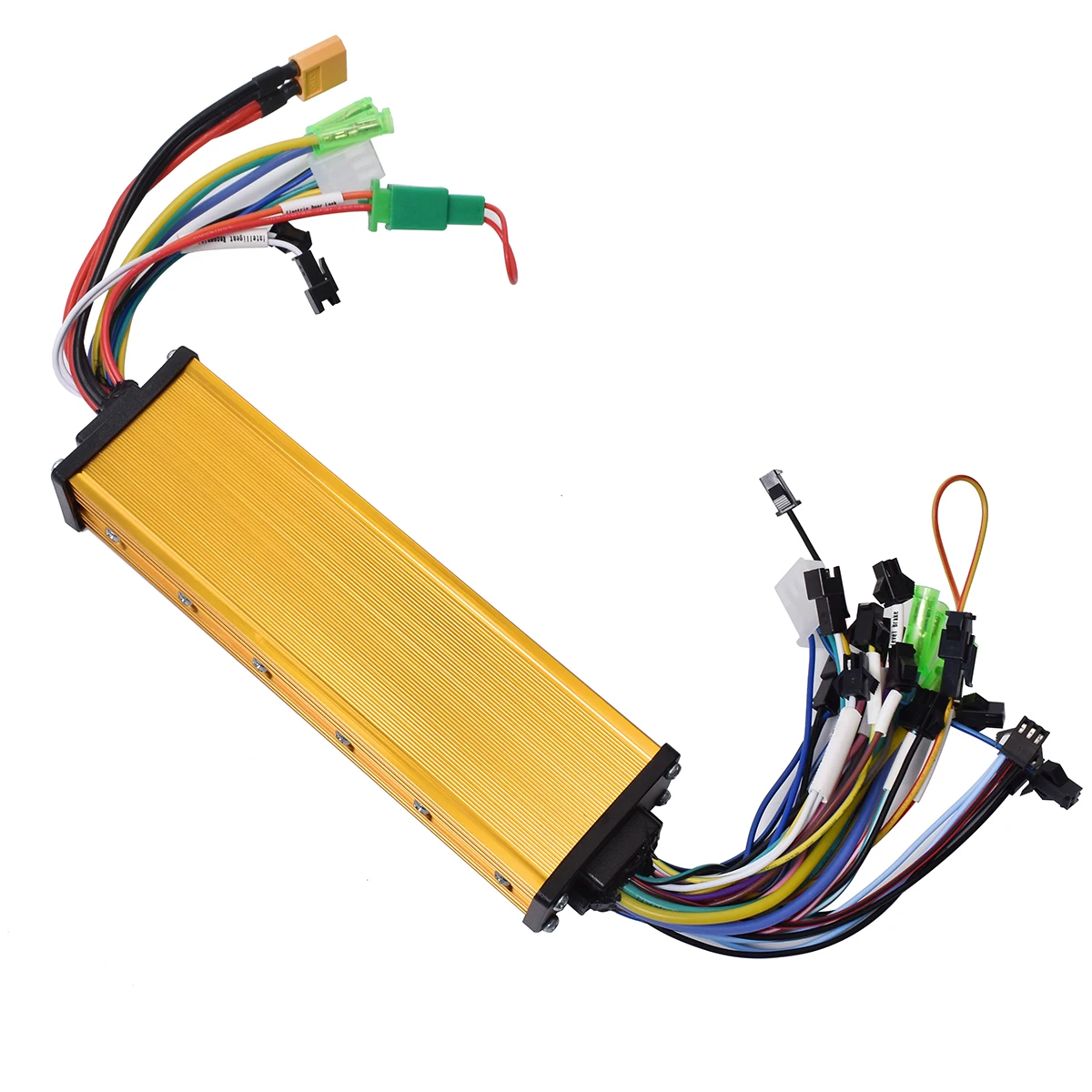

• type: Sine Motor Controller

• Material: Aluminium alloy

• Voltage: 36V-48V-52V-60V

• Weight: .454g

• Power: 350W-2000W

• Current limit:18A-40A

Tips

• This color is the color under strong light/sunlight, it will change during the light period, if you mind, you don't need to buy it. Thank you so much.

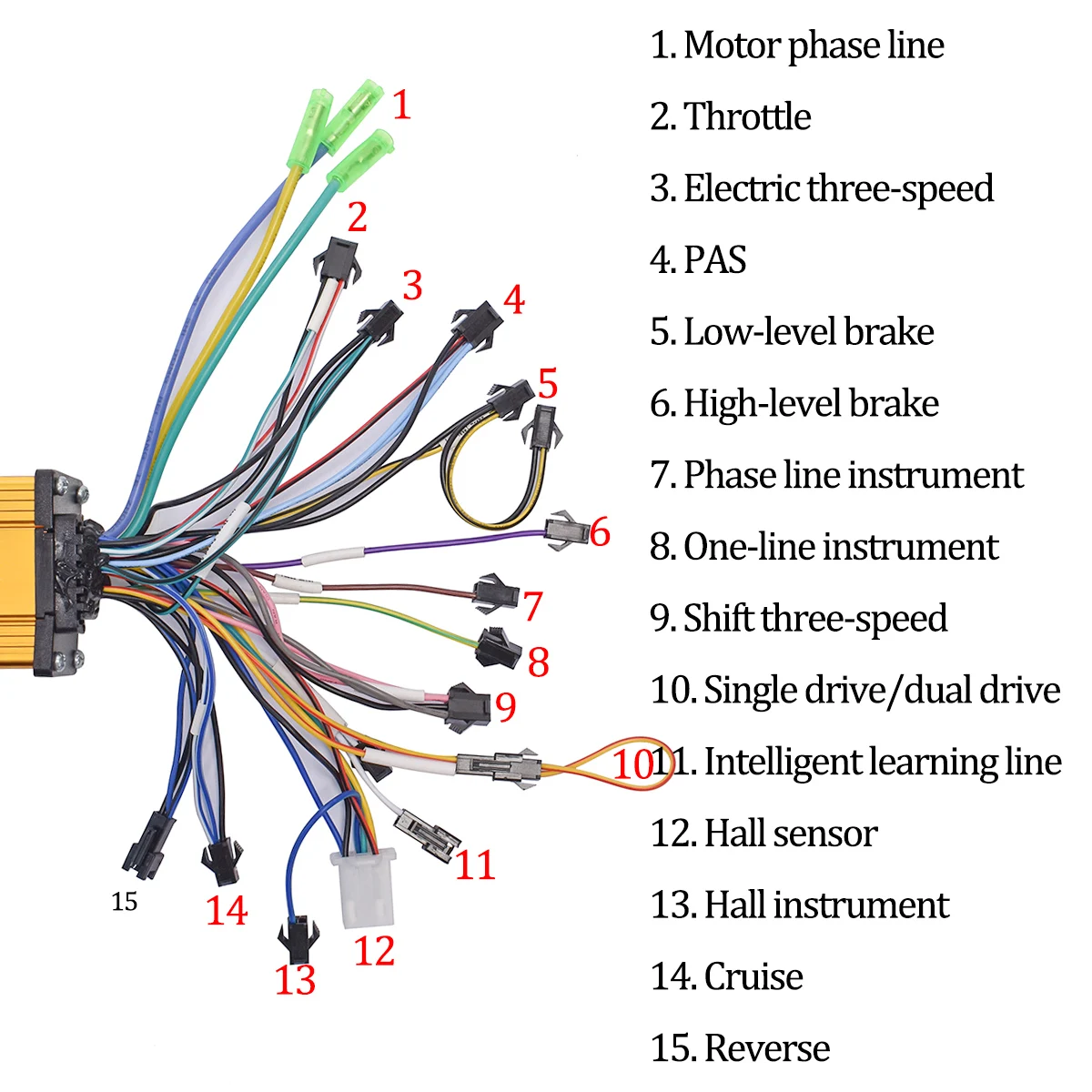

【Line Description】

1. Motor phase line

2. Throttle

3. Electric three-speed

4. PAS

5. Low-level brake

6. High-level brake

7. Phase line instrument

8. One-line instrument

9. Shift three-speed

10. Single drive/dual drive

11. Intelligent learning line

12. Hall sensor

13. Hall instrument

14. Cruise

15. Reverse

【About current and power】

1. The single drive current is rated at 18A and the maximum current is 20A. The dual drive current is rated at 36A and the maximum current is 40A.

2. About power. The power can be divided into calculated power and rated power. You can refer to the controller current for selection.

3. The single drive rated power is 350W-500W, the calculated power is 1000w, the dual drive rated power is 500W

-1000w, and the dual drive power is 2000w.
