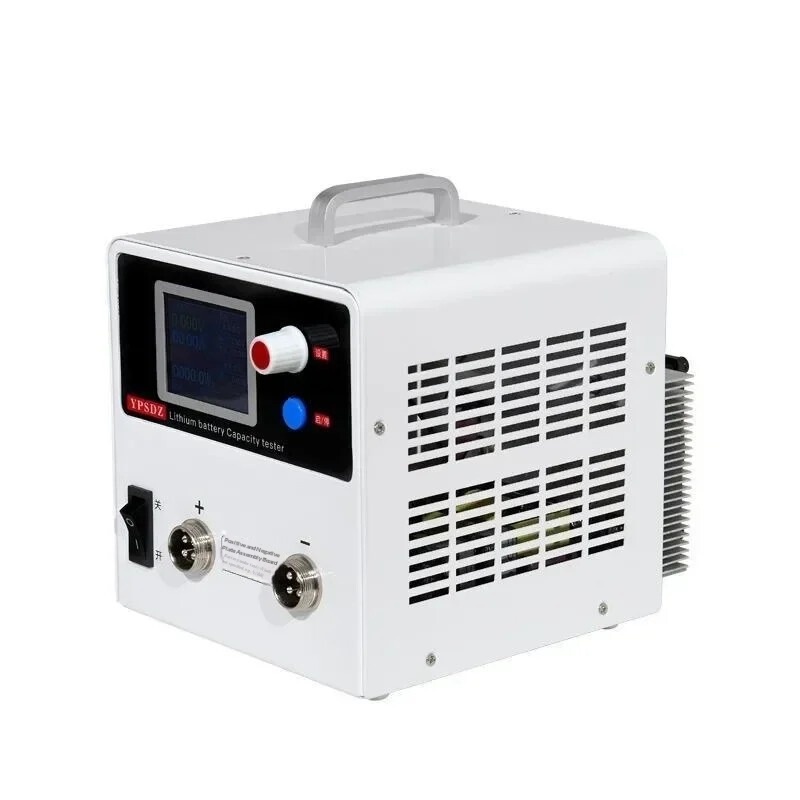

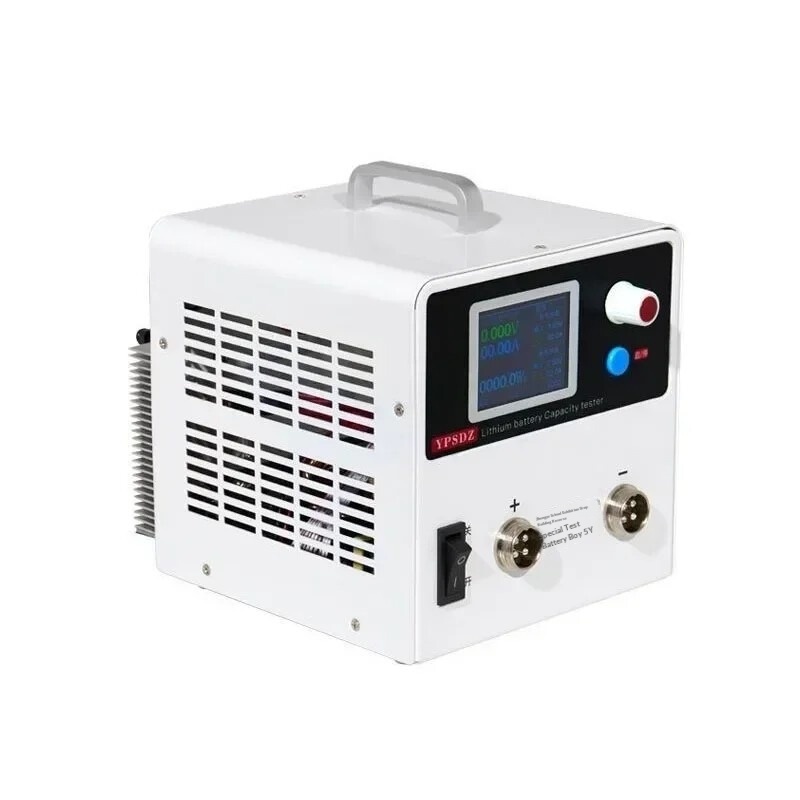

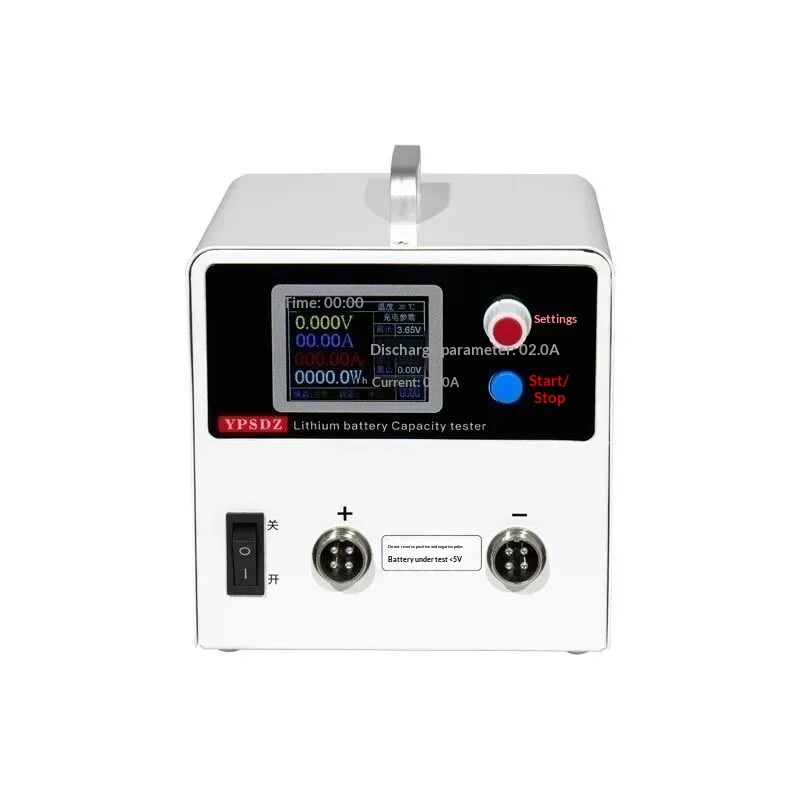

Model YPSDZ-3010
Charging Voltage Adjustable 1–30V
Charging Current Adjustable 0.5–10A
Discharging Voltage Adjustable 1–30V
Discharging Current Adjustable 0.5–10A
Charging Mode Constant current & constant voltage
Discharging Mode Constant current discharge (MOS tube)
Working Mode Charge / Discharge / Cycle test
Alarm Function Buzzer alarm for battery overvoltage, reverse connection, battery disconnection, over temperature, test completion, etc.
Calibration Method Factory calibration + third-party professional calibration (traceable to National Institute of Metrology)
Accuracy Voltage ±0.1%, Current ±0.2% (authorized user calibration available)
Heat Dissipation Temperature-controlled fan turns on at 40℃ (regular fan inspection required)
Notice Batteries over 30V are prohibited for testing
Power Supply AC220V 50Hz ±10% (110V customized available)
Operating Environment 0–45℃ well ventilated; foreign objects are forbidden to enter fan and machine interior
Dimension & Weight W150 × H170 × D215mm, Net weight 2Kg
