Features:
1. Stable 2.4G FHSS Anti-interference Signal:

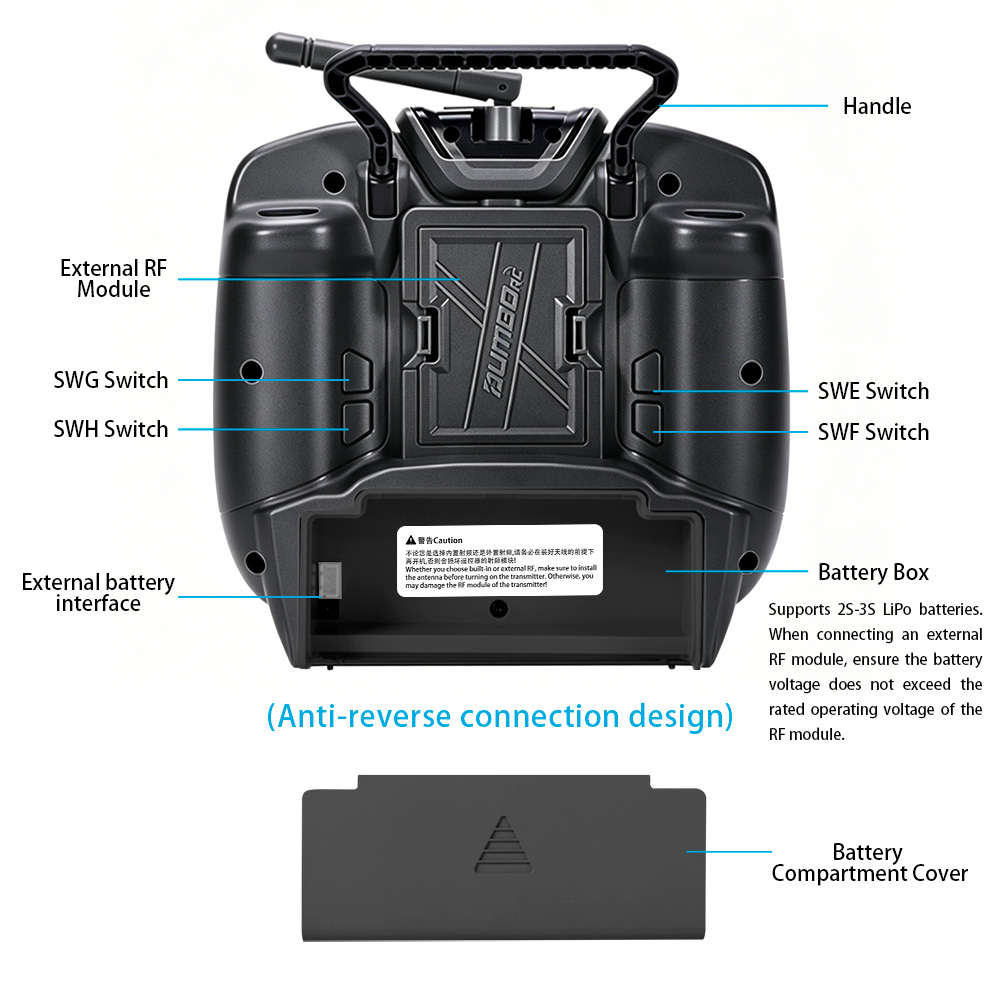

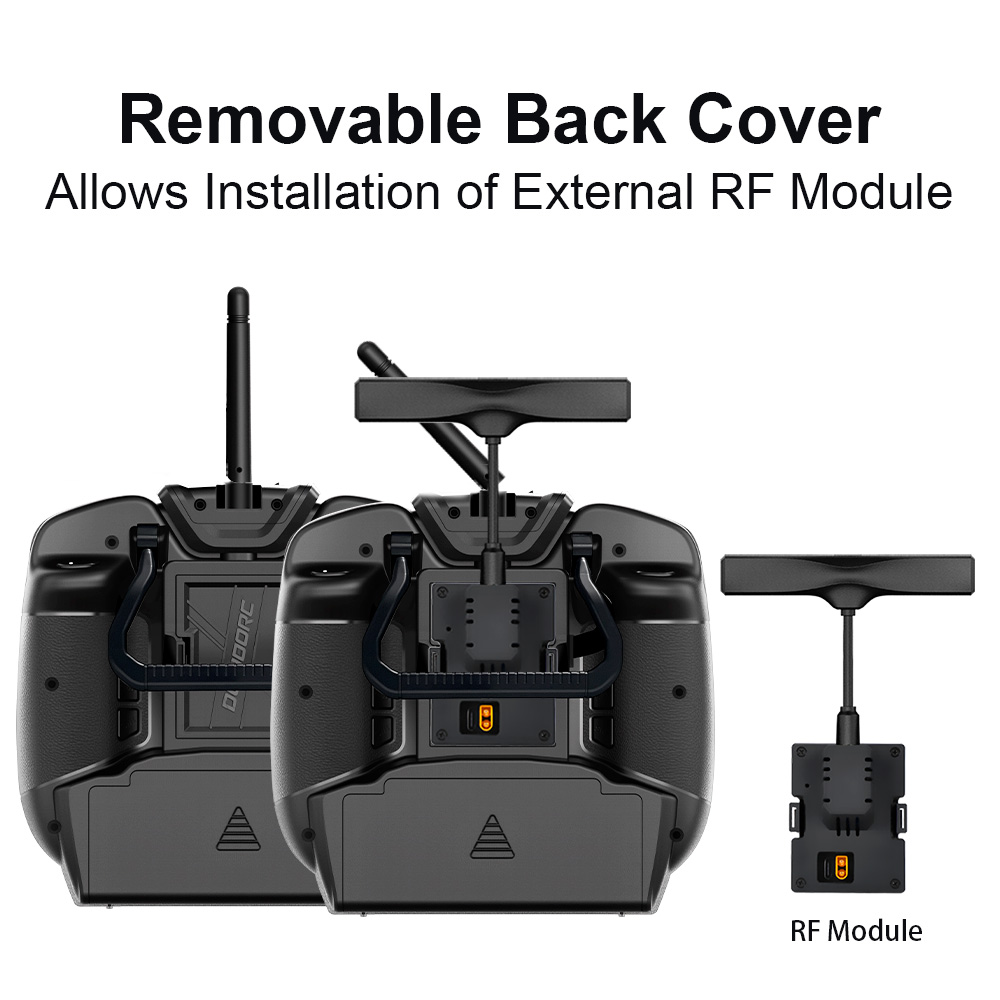

2400-2483.5MHz ISM band with 67 frequency hopping channels, 100MW transmit power, steady signal for long-distance control. Removable back cover supports external CRSF RF module to extend range freely.

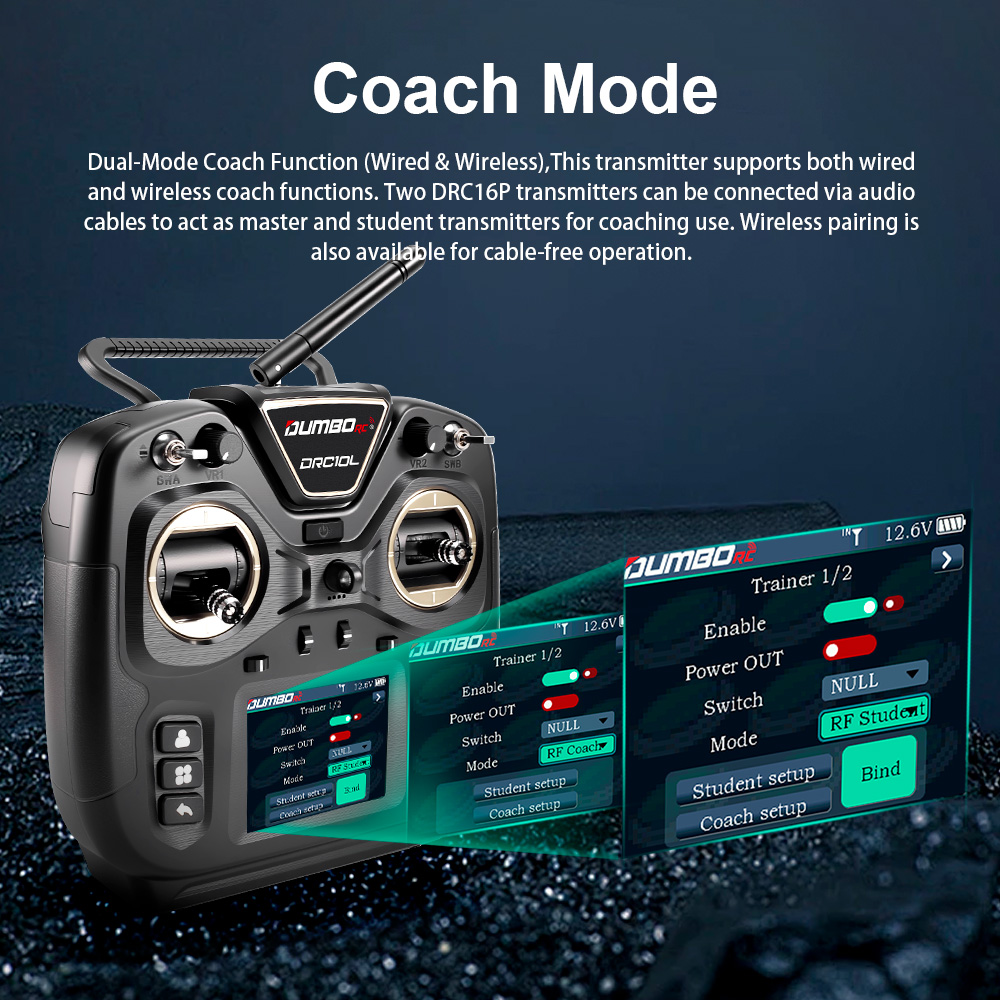

2. Dual Wired & Wireless Coach Teaching Mode:
Two transmitters connect via audio cable for master-student training, or wireless pairing without cables, ideal for guiding new players safely.

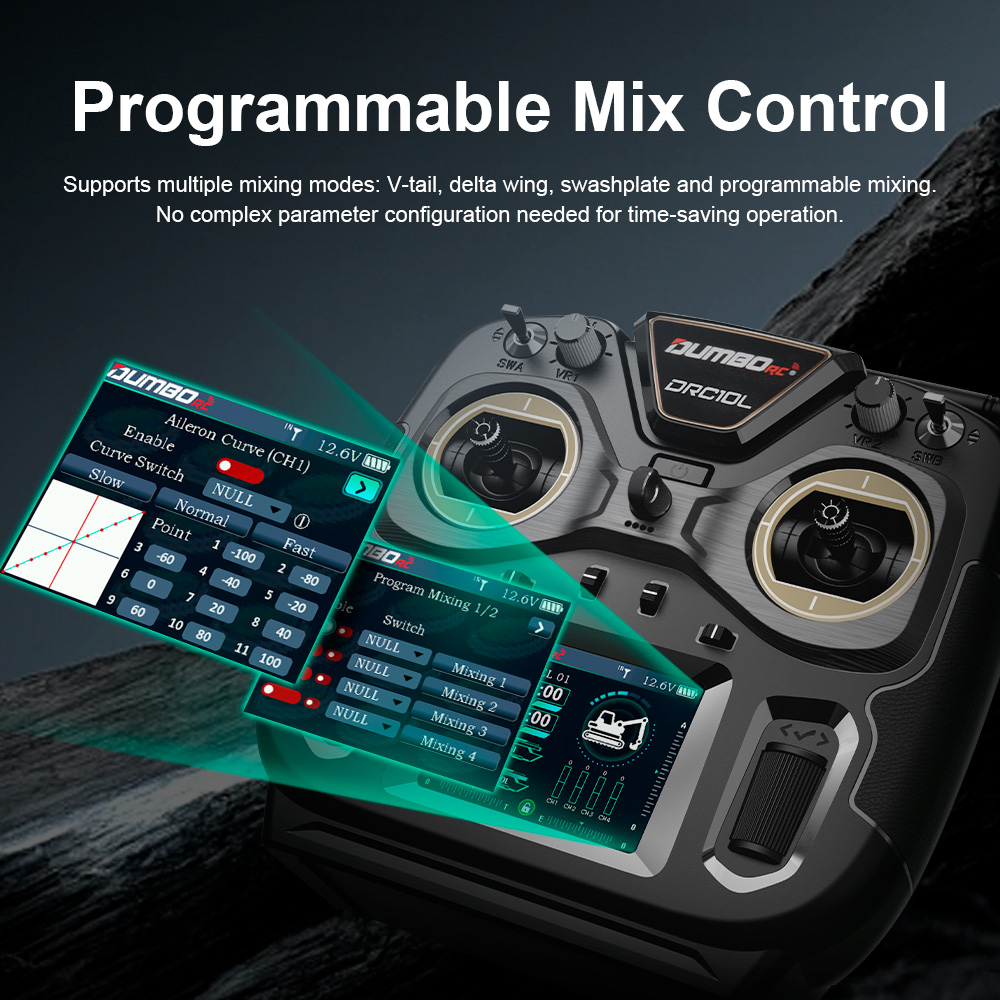

3. Rich Programmable Mix Functions:
Built-in V-tail, delta wing, swashplate & custom mixing modes. No complicated settings required, easy quick setup for RC cars, tanks, boats & mechs.

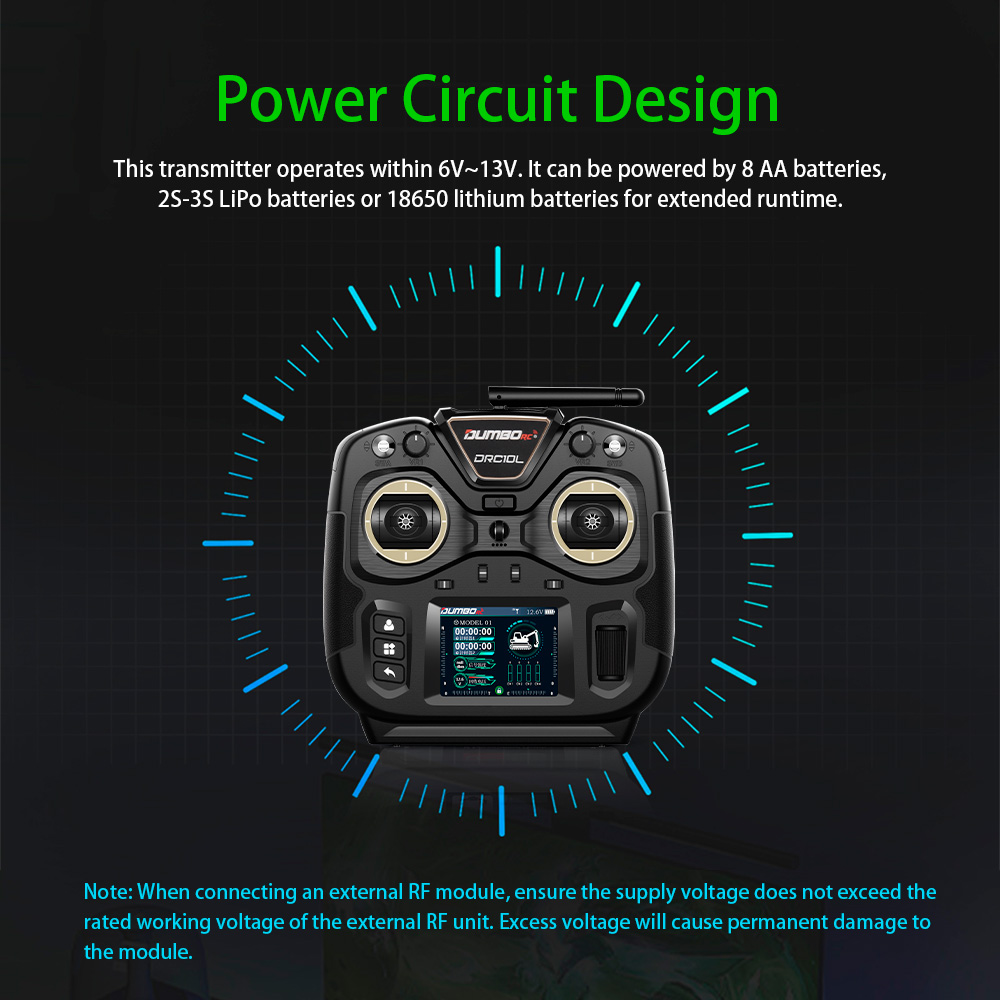

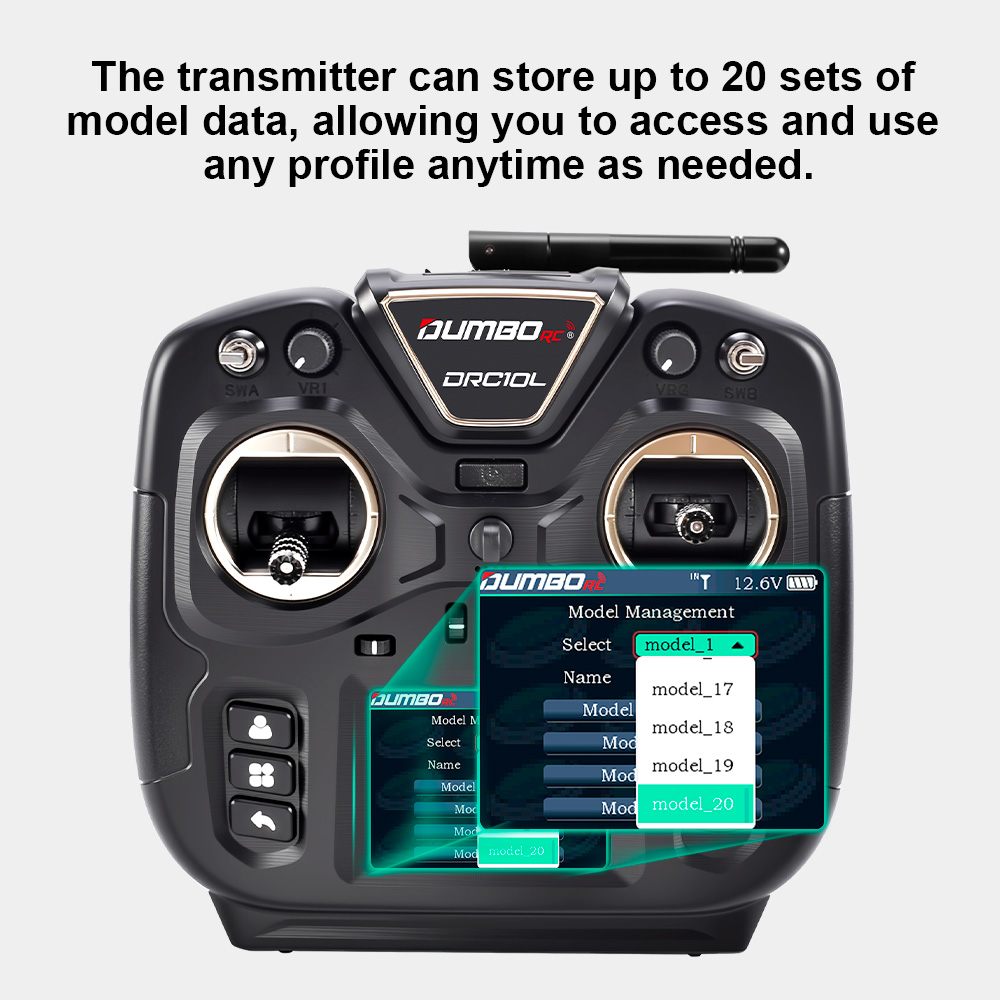

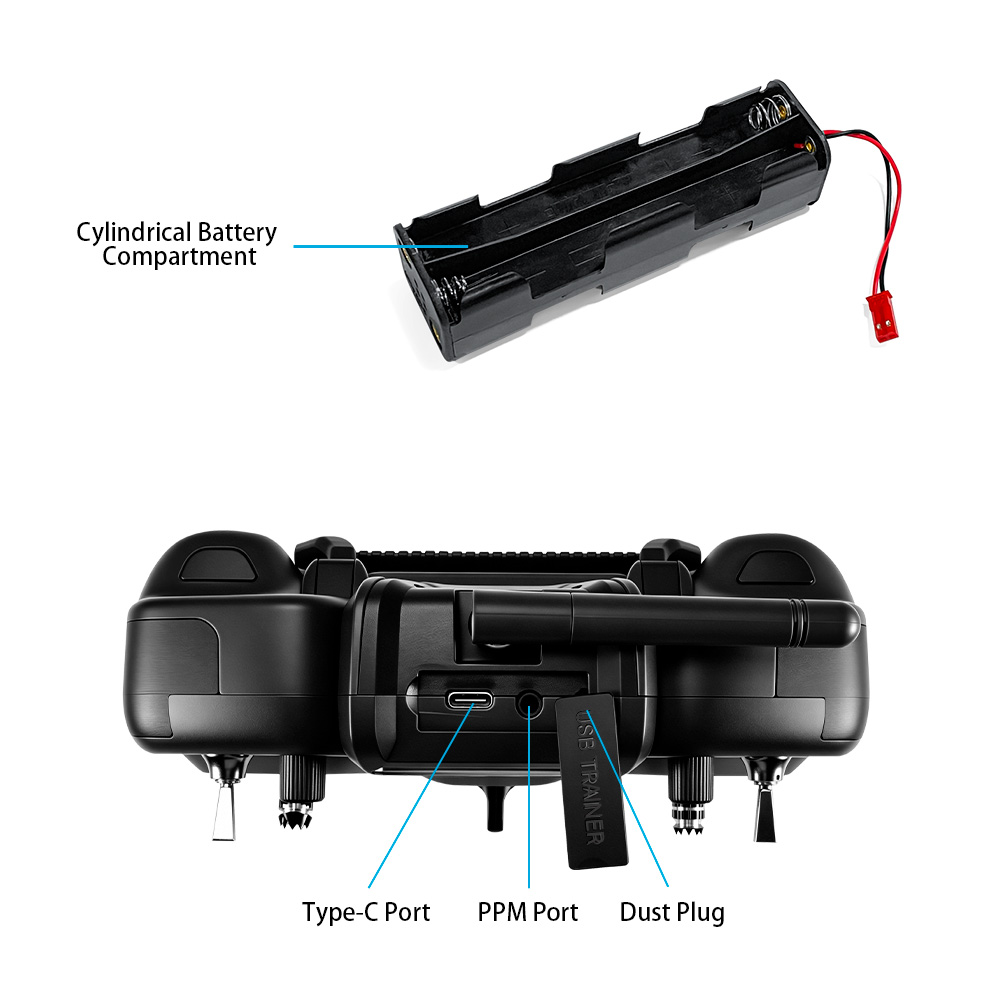

4. Multi-power Supply & 20 Groups Model Memory:
Compatible with 8×AA batteries, 2S/3S LiPo & 18650 cells for long outdoor runtime. Stores up to 20 model profiles to switch different vehicles in one click.

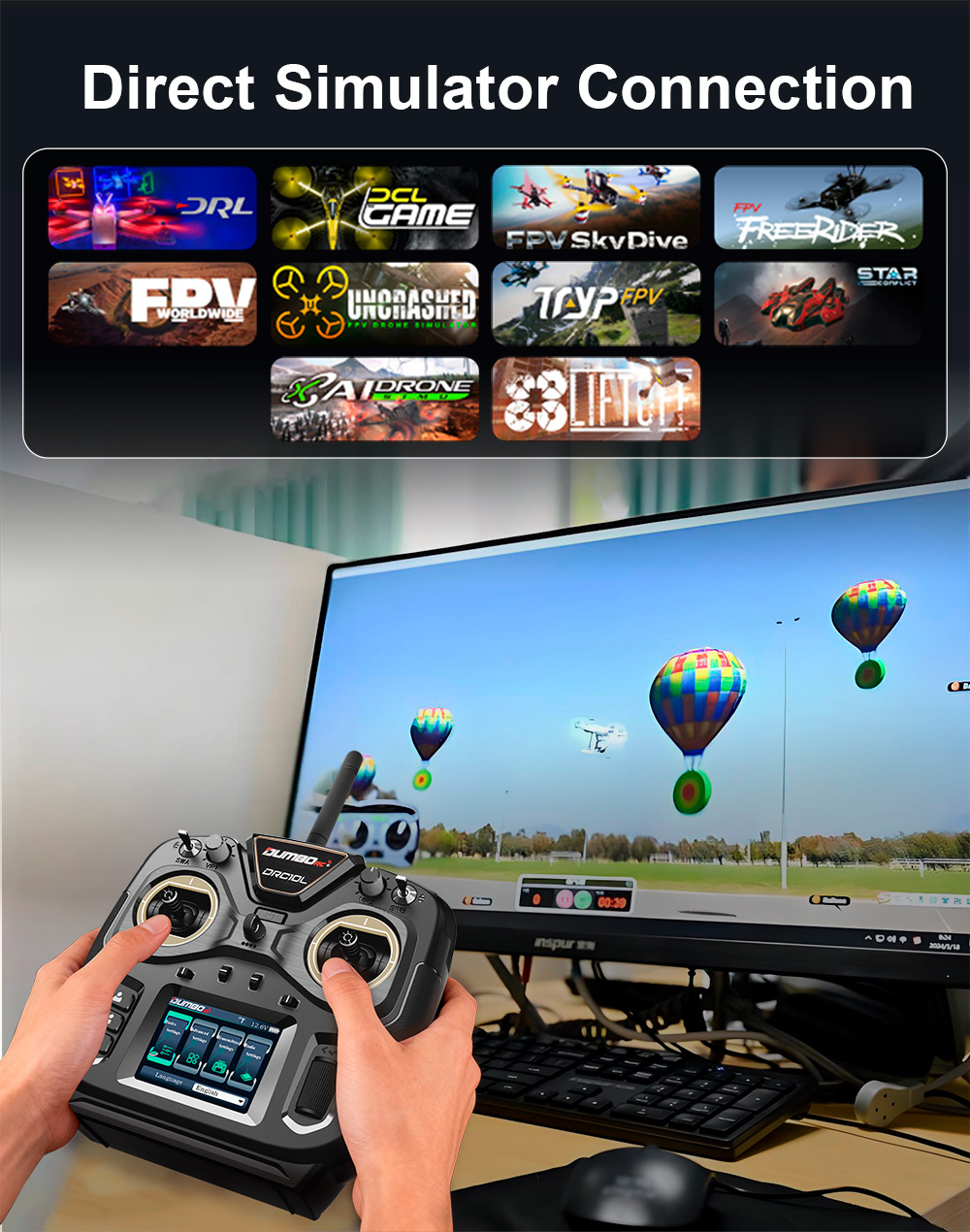

5. 2.8" IPS Color Screen & Direct Simulator Link:
320×240 16-bit true-color display with sunlight visibility, real-time data monitoring. Direct simulator connection enables low-cost offline practice without real models.
Description:

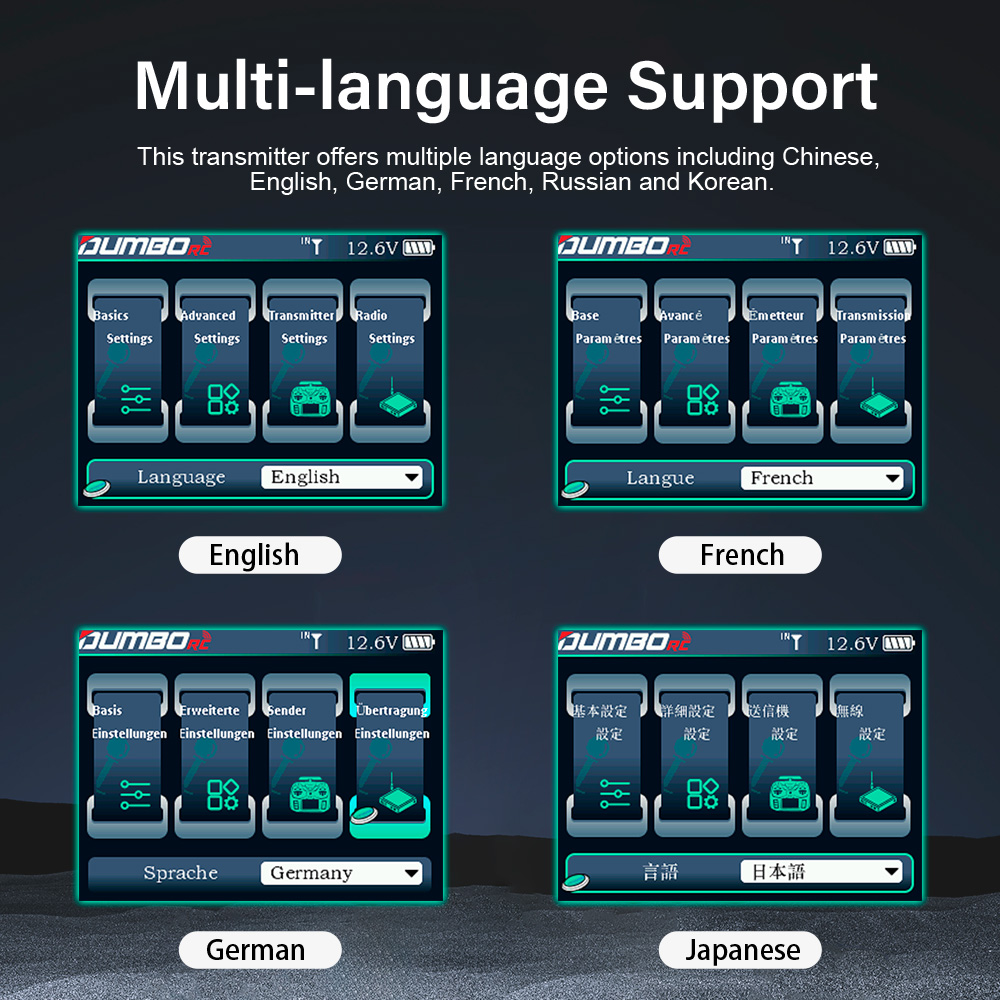

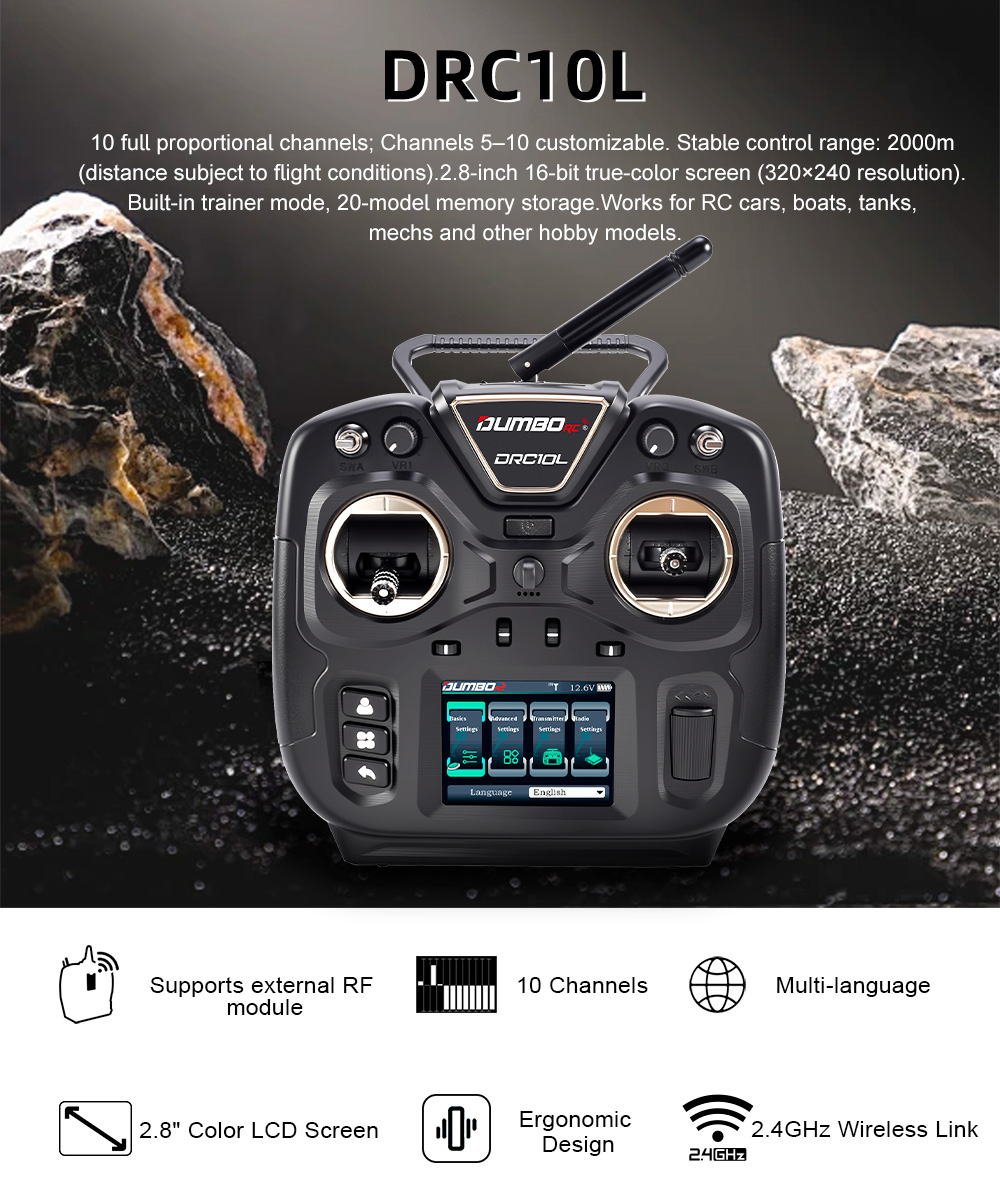

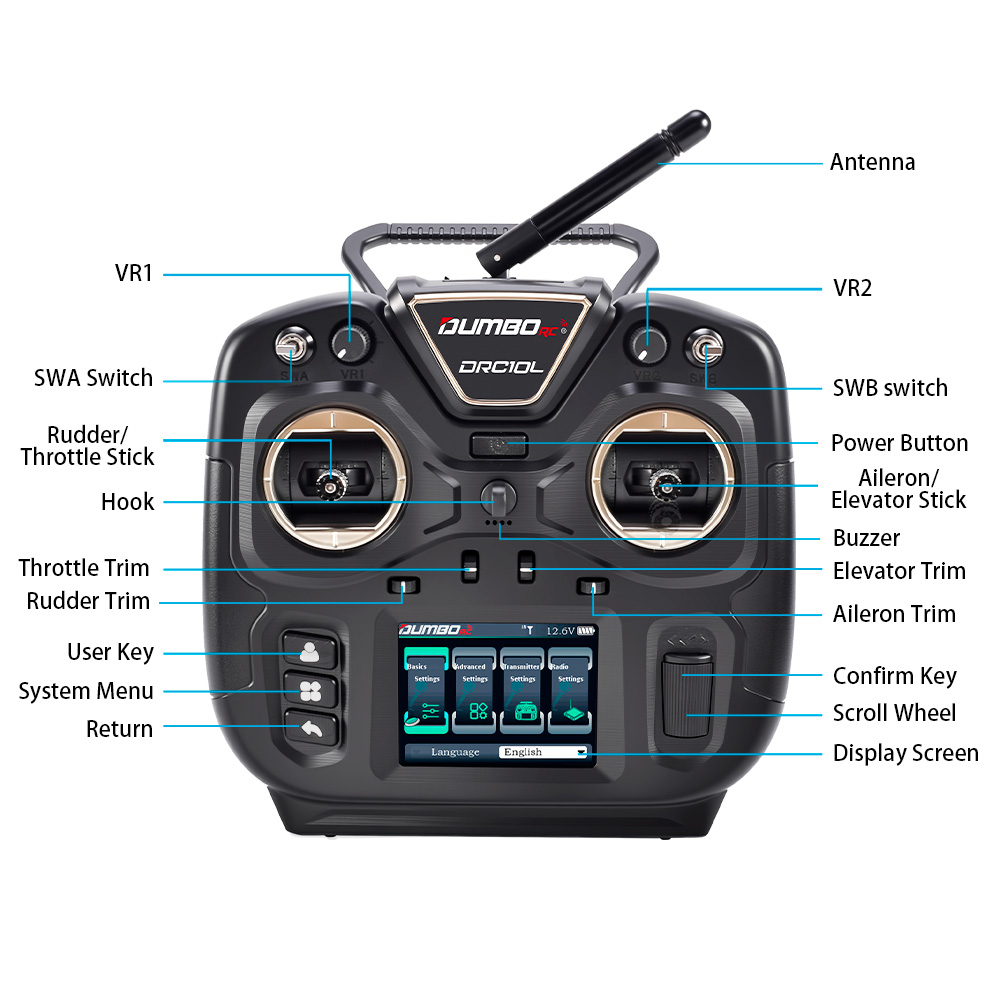

DumboRC DRC10L is a 10CH 2.4G RC transmitter for RC cars, tanks, boats and mechs. It supports external RF modules, programmable mixes, multi-language display and coach mode, perfect for newbies and pro racers.

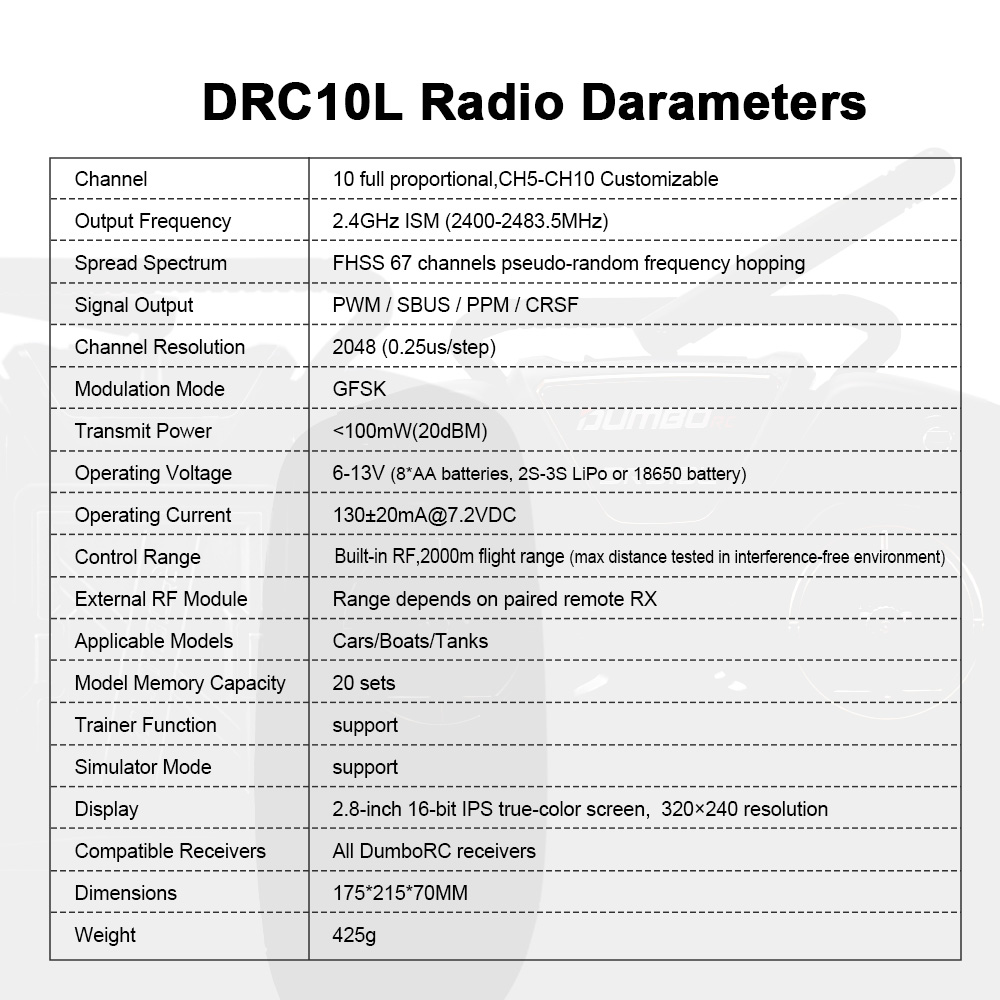

Specifications:
Channels: 10 full proportional, CH5~CH10 customizable
Frequency: ISM 2400-2483.5MHz
Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping
Signal Output: PWM / SBUS / PPM / CRSF
Channel Resolution: 2048 (0.25us/step)
Modulation: GFSK
Transmit Power: <100mW(20dBM)
Operating Voltage: 6-13V (8*AA / 2S-3S LiPo / 18650)
Operating Current: 130±20mA @7.2VDC
Built-in RF Range: 2000m (interference-free open area)
External RF Range: Depends on matched receiver module
Model Memory: 20 sets
Coach Function: Wired & Wireless dual support
Simulator Mode: Support direct connection
Screen: 2.8" 16-bit IPS LCD, 320×240

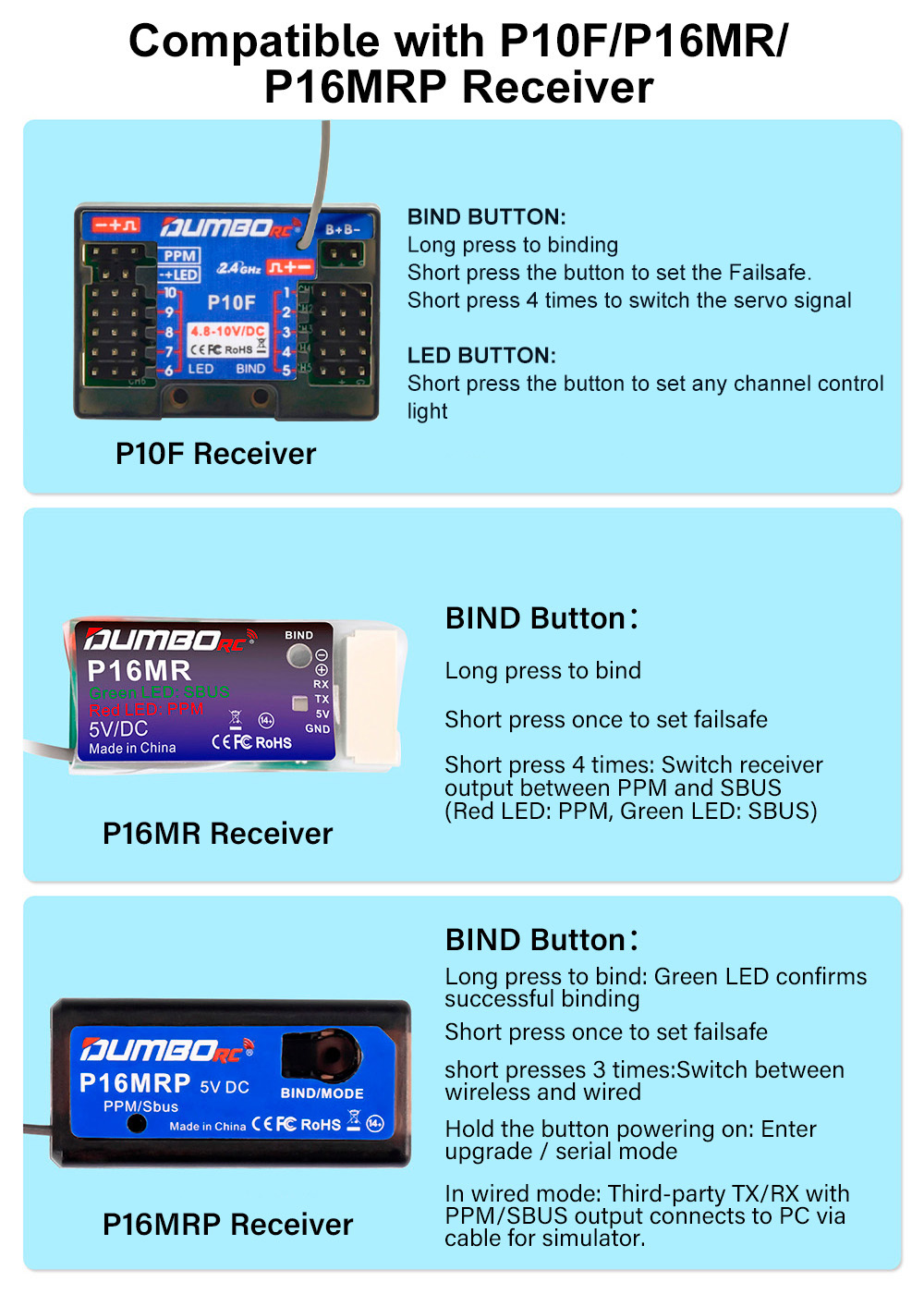

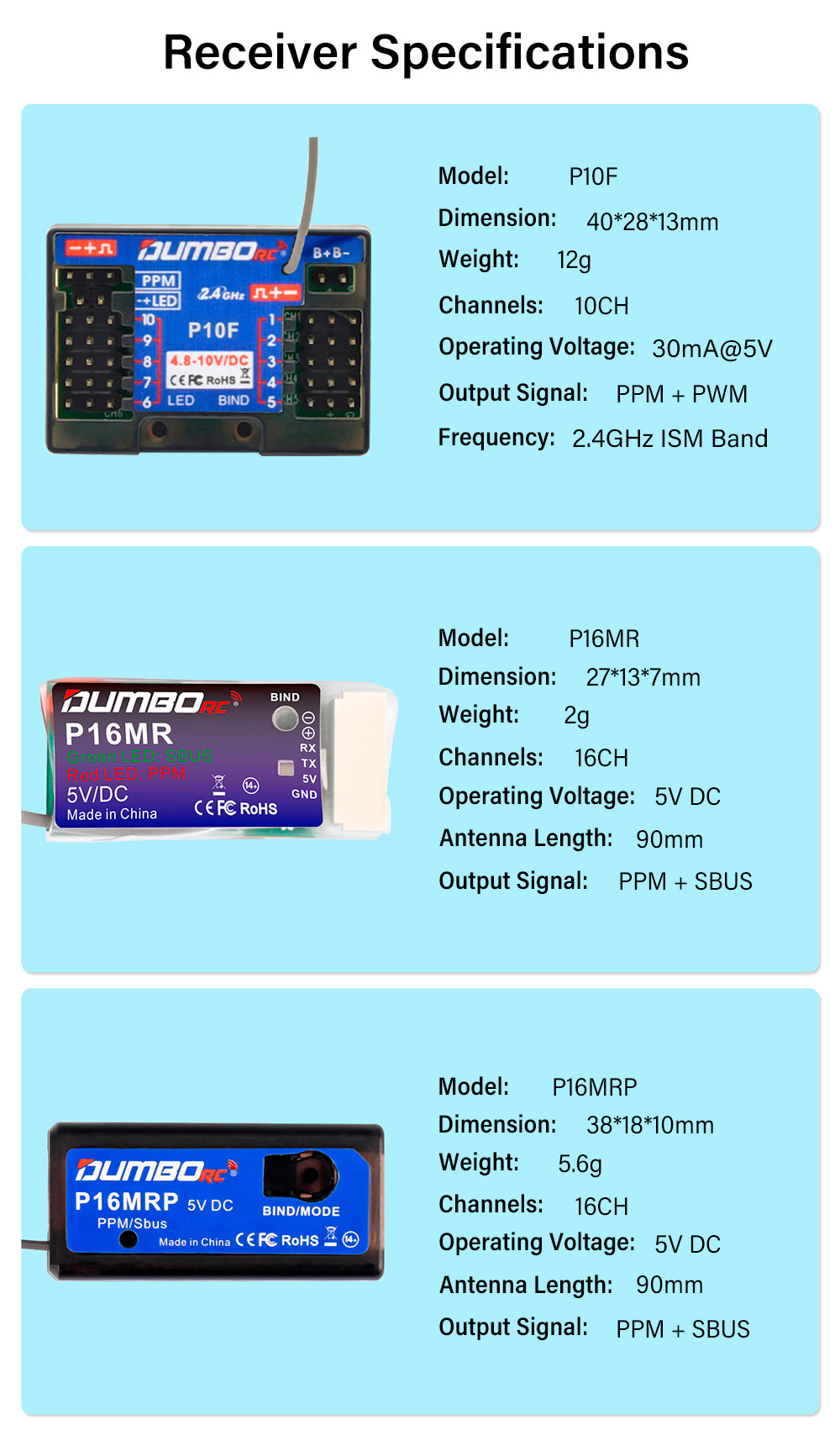

Compatible Receivers: All DumboRC receivers
Package contents:
1* DRC10L 10CH RC Transmitter
1* Instruction Manual
1* Receiver
1* Transmitter Mode Conversion Parts
